梗概：在master端部署，远程推送到任意minion

向server6推送apache服务，向server7推送nginx服务

实验环境

1:salt-master server4 172.25.254.4(也可以做minion)

salt-minion server6 172.25.254.6
salt-minion server7 172.25.254.7

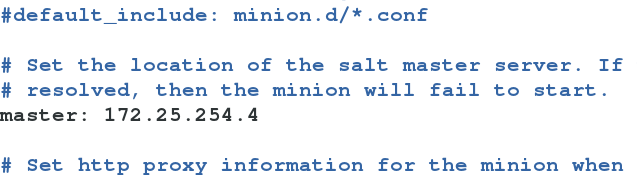

server6 .7 开启服务更配置文件的master指向

[root@server6 ~]# cd /etc/salt/
[root@server6 salt]# vim minion

[root@server6 salt]# /etc/init.d/salt-minion  start
Starting salt-minion:root:server6 daemon: OK

server4:直接开启无需修改配置文件
[root@server4 ~]# /etc/init.d/salt-master start
Starting salt-master daemon: [ OK ]

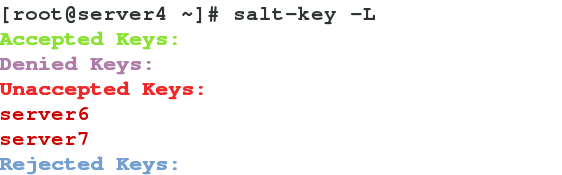

[root@server4 ~]# salt-key -L

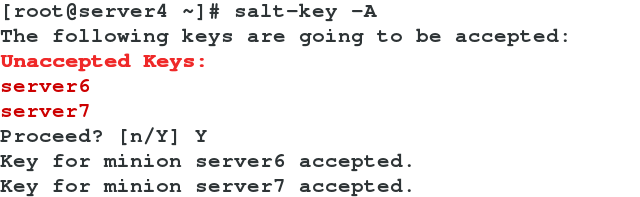

[root@server4 ~]# salt-key -A

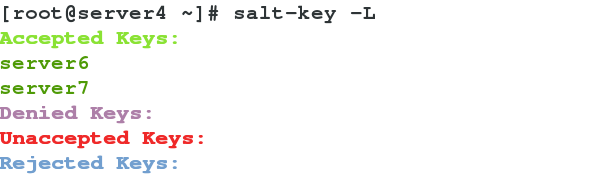

[root@server4 ~]# salt-key -L

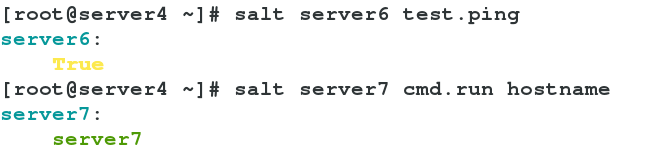

小测一下

[root@server4 ~]# yum install lsof -y
[root@server4 ~]# lsof  -i :4505
COMMAND    PID USER   FD   TYPE DEVICE SIZE/OFF NODE NAME
salt-mast 1303 root   16u  IPv4  36126      0t0  TCP *:4505 (LISTEN)
salt-mast 1303 root   18u  IPv4  38962      0t0  TCP server4:4505->server7:40374 (ESTABLISHED)
salt-mast 1303 root   19u  IPv4  38977      0t0  TCP server4:4505->server6:39404 (ESTABLISHED)

[root@server4 ~]# yum install python-setproctitle

master与minion密钥比对：

[root@server4 cache]# cd /etc/salt/pki/
[root@server4 pki]# ls
master  minion
[root@server4 pki]# cd master/
[root@server4 master]# ls
master.pem  minions           minions_denied  minions_rejected
master.pub  minions_autosign  minions_pre
[root@server4 master]# md5sum  master.pub
65b899b452ab4ddd380ea58f2461f356  master.pub

[root@server6 minion]# md5sum  minion_master.pub
65b899b452ab4ddd380ea58f2461f356  minion_master.pub
[root@server7 minion]# md5sum  minion_master.pub
65b899b452ab4ddd380ea58f2461f356  minion_master.pub

树状节点查看：

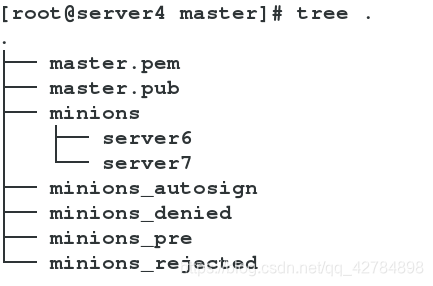

[root@server4 master]# tree .
.
├── master.pem
├── master.pub
├── minions
│   ├── server6
│   └── server7
├── minions_autosign
├── minions_denied
├── minions_pre
└── minions_rejected

根据配置文件创建发布目录：

[root@server4 salt]# mkdir /srv/salt
[root@server4 etc]# cd /etc/salt/
[root@server4 salt]# vim master
file_roots:
   base:
     - /srv/salt/

[root@server4 salt]# /etc/init.d/salt-master restart

apache 服务建立与推送

[root@server4 salt]# cd /srv/salt/
[root@server4 salt]# mkdir apache
[root@server4 salt]# ls
apache
[root@server4 salt]# cd apache/
[root@server4 salt]# vim install.sls
[root@server4 salt]# cat install.sls
httpd:
  pkg.installed
[root@server4 apache]#  salt server6 state.sls apache.install
Summary for server6
------------
Succeeded: 1 (changed=1)
Failed:    0
------------
Total states run:     1
Total run time:  11.112 s

搭建的http服务：查看

server6 查看：

[root@server6 ~]# cd /var/cache/salt/
[root@server6 salt]# tree .
.
└── minion
    ├── accumulator
    ├── extmods
    ├── files
    │   └── base
    │       └── apache
    │           └── install.sls
    ├── highstate.cache.p
    ├── proc
    └── sls.p

mater与minion之间密钥的查看

[root@server4 apache]# pwd
/srv/salt/apache
[root@server4 apache]# md5sum install.sls
fb86992808eaae5d6085e238d53c6e4e  install.sls
[root@server6 apache]# pwd
/var/cache/salt/minion/files/base/apache
[root@server6 apache]# ls
install.sls
[root@server6 apache]# md5sum  install.sls
fb86992808eaae5d6085e238d53c6e4e  install.sls

开启server6的http 服务：(格式很严格)

[root@server4 apache]# vim install.sls
[root@server4 apache]# cat install.sls
httpd:
  pkg.installed
apache:
  service.running:
    - name: httpd
    - enable: True
[root@server4 apache]#  salt server6 state.sls apache.install

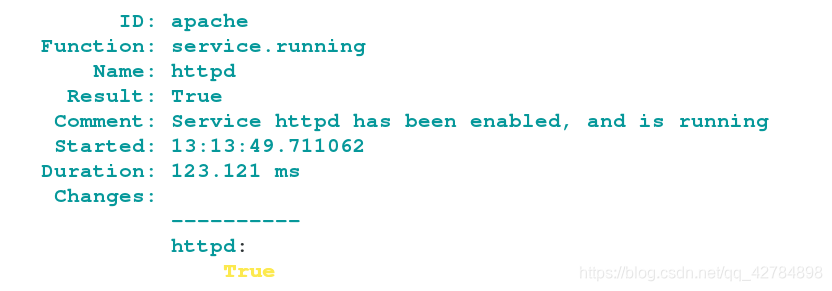

开启的http服务查看：

完善服务：比如要更改配置http文件

[root@server4 files]# pwd
/srv/salt/apache/files
[root@server4 apache]# mkdir files
[root@server4 files]# scp server6:/etc/httpd/conf/httpd.conf  .

[root@server4 apache]# cat  install.sls
apache-install:
  pkg.installed:
    - pkgs:
      - httpd
      - php
      - php-mysql
  file.managed:
    - name: /etc/httpd/conf/httpd.conf
    - source: salt://apache/files/httpd.conf
    - mode: 644
    - user: root
    - group: root

  service.running:
    - name: httpd
    - enable: True
    - watch:
      - file: apache-install

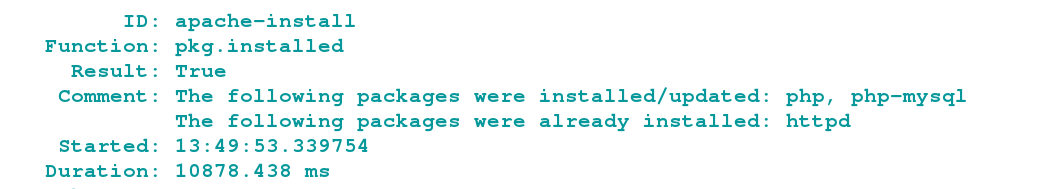

[root@server4 apache]#  salt server6 state.sls apache.install
---------
          ID: apache-install
    Function: pkg.installed
      Result: True
     Comment: The following packages were installed/updated: php, php-mysql
              The following packages were already installed: httpd
     Started: 13:49:53.339754
    Duration: 10878.438 ms
     Changes:
----------

当改变master端/srv/salt/apache/files/httpd.conf的配置时,
比如改变监听端口由80到8080 ,当推送过去就会生效

[root@server4 files]# pwd
/srv/salt/apache/files
[root@server4 files]# vim httpd.conf
Listen 8080

[root@server4 files]#  salt server6 state.sls apache.install

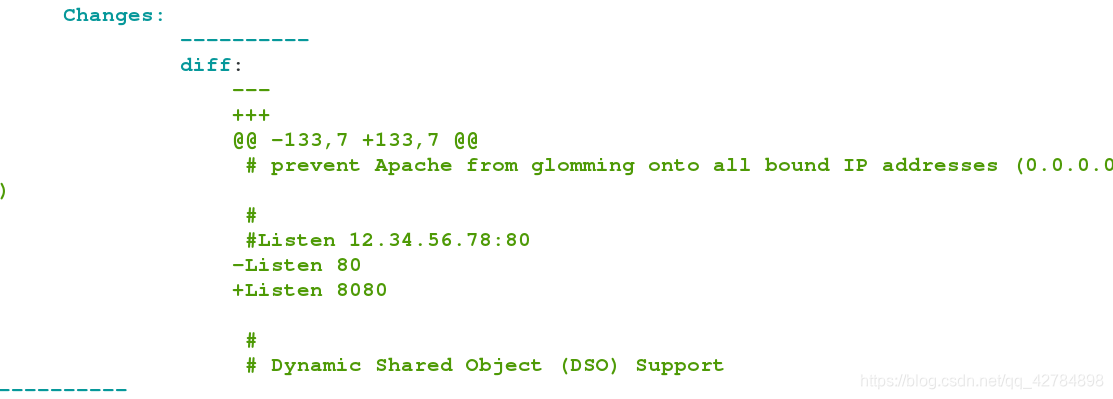

    Changes:
              ----------
              diff:
                  ---
                  +++
                  @@ -133,7 +133,7 @@
                   # prevent Apache from glomming onto all bound IP addresses (0.0.0.0)
                   #
                   #Listen 12.34.56.78:80
                  -Listen 80         画重点 变化啦
                  +Listen 8080

                   #
                   # Dynamic Shared Object (DSO) Support
----------

部署nginx 源码安装及推送

推送的内容可以提前查看是否成功

[root@server4 salt]# mkdir nginx
[root@server4 salt]# ls
apache  nginx
[root@server4 salt]# cd nginx/
[root@server4 nginx]# mkdir files
[root@server4 files]# scp root@172.25.254.154:/home/kiosk/Desktop/nginx-1.14.0.tar.gz .
[root@server4 files]# ls
nginx-1.14.0.tar.gz
[root@server4 salt]# cd nginx/
[root@server4 nginx]# vim install.sls
[root@server4 nginx]# cat install.sls
nginx-install:
  file.managed:
    - name: /mnt/nginx-1.14.0.tar.gz
    - source: salt://nginx/files/nginx-1.14.0.tar.gz
[root@server4 nginx]# salt server7 state.sls nginx.install

[root@server4 salt]# mkdir pkgs   用于公共的安装（可用可不用）
[root@server4 salt]# cd pkgs/
[root@server4 pkgs]# vim make.install
[root@server4 pkgs]# cat make.install
gcc-make:
  pkg.installed:
    - pkgs:
      - gcc
      - pcre-devel
      - openssl-devel

[root@server4 salt]# cd nginx/
[root@server4 nginx]# vim install.sls

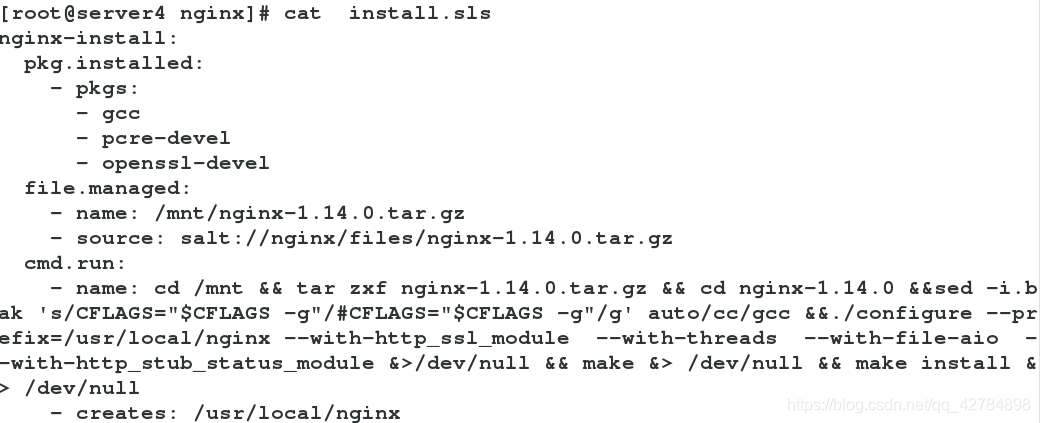

[root@server4 nginx]# cat  install.sls
nginx-install:
  pkg.installed:
    - pkgs:
      - gcc
      - pcre-devel
      - openssl-devel
  file.managed:
    - name: /mnt/nginx-1.14.0.tar.gz
    - source: salt://nginx/files/nginx-1.14.0.tar.gz
  cmd.run:
    - name: cd /mnt && tar zxf nginx-1.14.0.tar.gz && cd nginx-1.14.0 &&sed -i.bak 's/CFLAGS="$CFLAGS -g"/#CFLAGS="$CFLAGS -g"/g' auto/cc/gcc &&./configure --prefix=/usr/local/nginx --with-http_ssl_module  --with-threads  --with-file-aio  --with-http_stub_status_module &>/dev/null && make &> /dev/null && make install &> /dev/null
    - creates: /usr/local/nginx
[root@server4 nginx]# salt server7 state.sls nginx.install

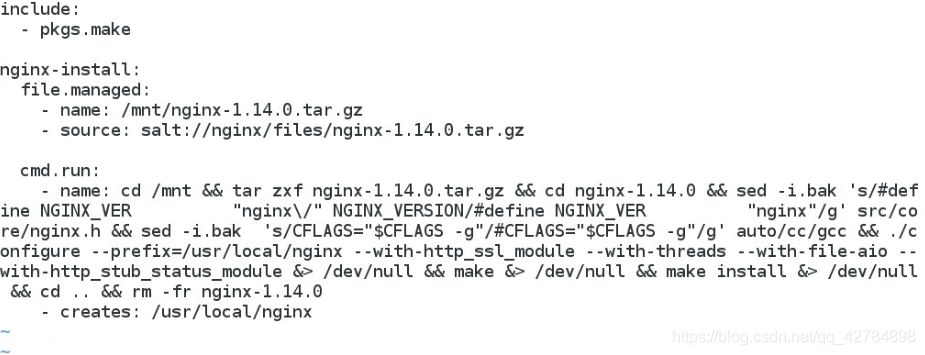

或者这幺写：利用公共的pkgs

server7端查看ok

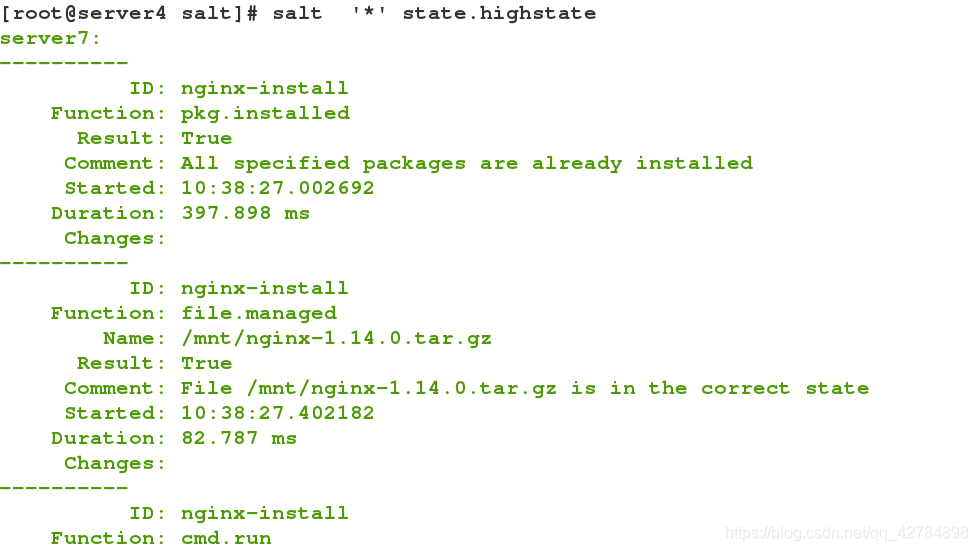

高级推：写个总结一起推

[root@server4 salt]# vim top.sls
[root@server4 salt]# cat  top.sls
base:
  "server6":
    - apache.install
  "server7":
    - nginx.install

成功：

成功

恩推haproxy 下继续
