引言

本篇博客主要介绍对极几何和基础矩阵的求解方法和作用。从一张2D的图像估计3D模型有时十分困难。这个时候，双/多摄像头就可以帮助解决3D恢复的问题。而对极几何和基础矩阵的出现解决了：已知两幅图像中两点是对应关系，如何求解两相机的相对位置和姿态

对极几何

1.基本概念

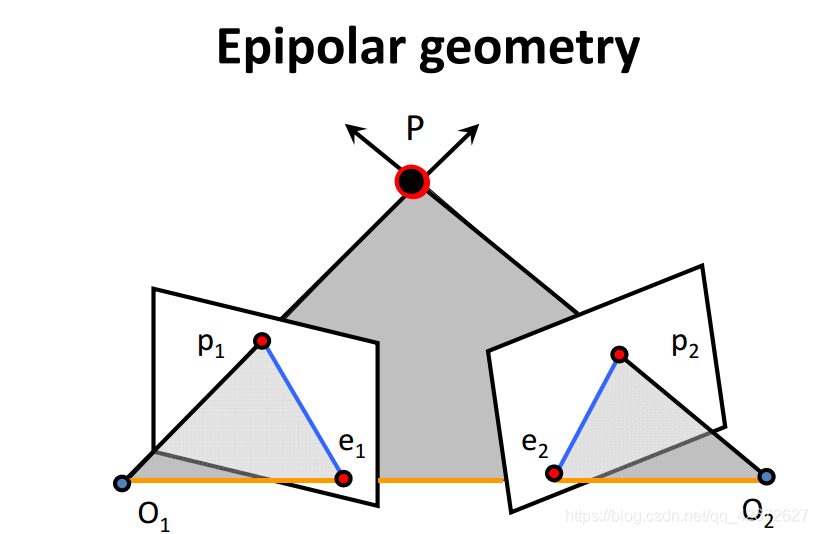

立体成像的基本几何就是对极几何。下图是最经典的对极几何示意图。
在这里插入图片描述
O1和O2为两个相机（也有可能是一个相机在不同时刻的位置）的主点，P为空间中一个物点，两个相对的白色平面是像面(严格按照光路应该是在O1 O2点的后方，与P点相反方向，CV中默认采用这种往前画的方式节省空间)。p1和p2是P点在像面上的对应点，e1 e2为像面和O1 O2的交点。O1O2为基线，也被称作相机的移动方向。在对极几何中，e1和e2被称作极点，PO1O2平面为极面，p1e1为极线，同理p2e2也为极线。这是对极几何中重要的三个概念。下面介绍极点的性质：
（1）像平面和的基线O1O2交点（2）O2在相机1上的像点为e1（3）基线的平行线在各自像面上的消失点

基础矩阵

基础矩阵的作用：如果已知基础矩阵F，以及一个3D点在一个像面上的像素坐标p，则可以求得在另一个像面上的像素坐标p’。可以表征两个相机的相对位置及相机内参数。

在这里插入图片描述

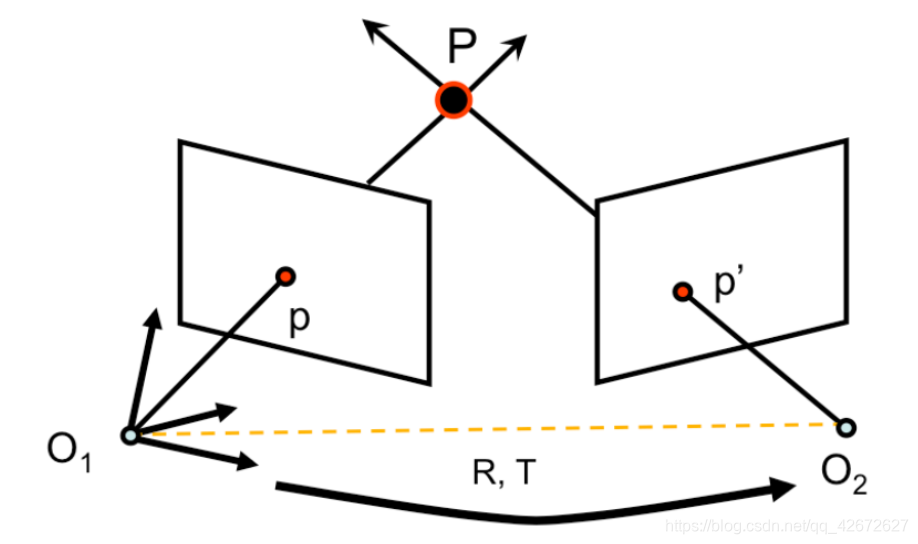

上图中以O1为原点，光轴方向为z轴，另外两个方向为x, y轴可以得到一个坐标系，在这个坐标系下，可以对P, p1(即图中所标p), p2(即图中所标p’)得到三维坐标，同理，对O2也可以得到一个三维坐标，这两个坐标之间的转换矩阵为[R T]，即通过旋转Ｒ和平移Ｔ可以将O1坐标系下的点P1(x1, y1, z1)，转换成O2坐标系下的P2(x2, y2, z2)。

代码

求投影矩阵和基础矩阵demo

from PIL import Image
from numpy import *
from pylab import *
import numpy as np


# In[2]:


from PCV.geometry import homography, camera, sfm
from PCV.localdescriptors import sift


# In[5]:

root="C:\\Users\\DELL\\Desktop\\PCV\\Ex3\\"
# Read features
im1 = array(Image.open(root+'im1.jpg'))
sift.process_image(root+'im1.jpg', root+'im1.sift')

im2 = array(Image.open(root+'im2.jpg'))
sift.process_image(root+'im2.jpg.', root+ 'im2.sift')



# In[6]:


l1, d1 = sift.read_features_from_file(root+'im1.sift')
l2, d2 = sift.read_features_from_file(root+'im2.sift')



# In[7]:


matches = sift.match_twosided(d1, d2)



# In[8]:


ndx = matches.nonzero()[0]
x1 = homography.make_homog(l1[ndx, :2].T)
ndx2 = [int(matches[i]) for i in ndx]
x2 = homography.make_homog(l2[ndx2, :2].T)

d1n = d1[ndx]
d2n = d2[ndx2]
x1n = x1.copy()
x2n = x2.copy()



# In[9]:

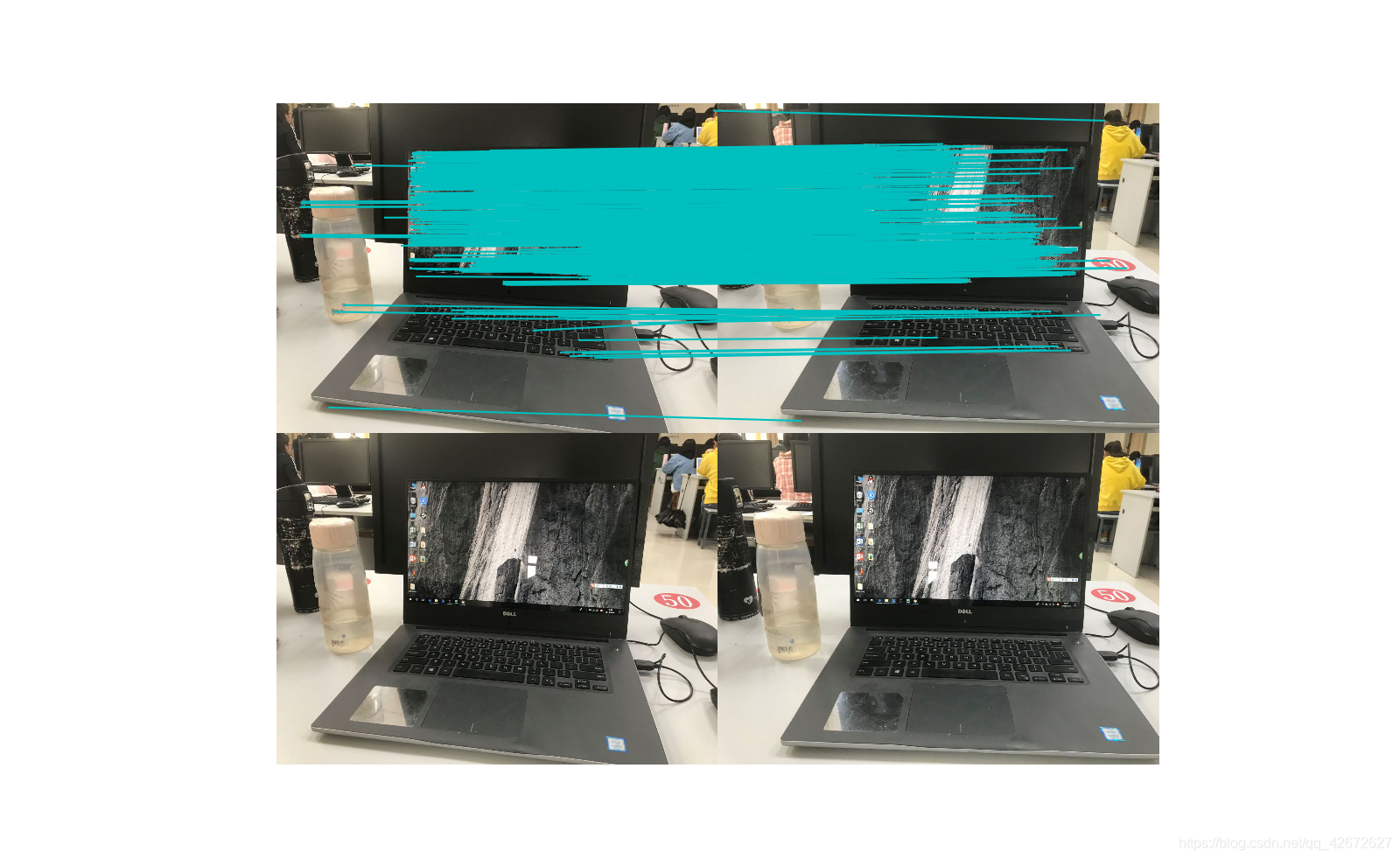

figure(figsize=(16,16))
sift.plot_matches(im1, im2, l1, l2, matches, True)
show()



# In[10]:


#def F_from_ransac(x1, x2, model, maxiter=5000, match_threshold=1e-6):
def F_from_ransac(x1, x2, model, maxiter=5000, match_threshold=1e-6):
    """ Robust estimation of a fundamental matrix F from point
    correspondences using RANSAC (ransac.py from
    http://www.scipy.org/Cookbook/RANSAC).

    input: x1, x2 (3*n arrays) points in hom. coordinates. """

    from PCV.tools import ransac
    data = np.vstack((x1, x2))
    d = 10 # 20 is the original
    # compute F and return with inlier index
    F, ransac_data = ransac.ransac(data.T, model,8, maxiter, match_threshold, d, return_all=True)
    return F, ransac_data['inliers']


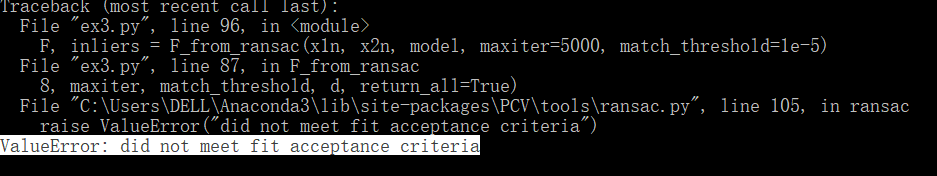

# In[11]:


# find F through RANSAC
model = sfm.RansacModel()
F, inliers = F_from_ransac(x1n, x2n, model, maxiter=5000, match_threshold=1e-3)
print(F)



# In[12]:


P1 = array([[1, 0, 0, 0], [0, 1, 0, 0], [0, 0, 1, 0]])
P2 = sfm.compute_P_from_fundamental(F)



# In[13]:


print(P2)
print(F)



# In[14]:


# P2, F (1e-4, d=20)
# [[ -1.48067422e+00   1.14802177e+01   5.62878044e+02   4.74418238e+03]
#  [  1.24802182e+01  -9.67640761e+01  -4.74418113e+03   5.62856097e+02]
#  [  2.16588305e-02   3.69220292e-03  -1.04831621e+02   1.00000000e+00]]
# [[ -1.14890281e-07   4.55171451e-06  -2.63063628e-03]
#  [ -1.26569570e-06   6.28095242e-07   2.03963649e-02]
#  [  1.25746499e-03  -2.19476910e-02   1.00000000e+00]]


# In[15]:


# triangulate inliers and remove points not in front of both cameras
X = sfm.triangulate(x1n[:, inliers], x2n[:, inliers], P1, P2)



# In[16]:


# plot the projection of X
cam1 = camera.Camera(P1)
cam2 = camera.Camera(P2)
x1p = cam1.project(X)
x2p = cam2.project(X)


# In[17]:

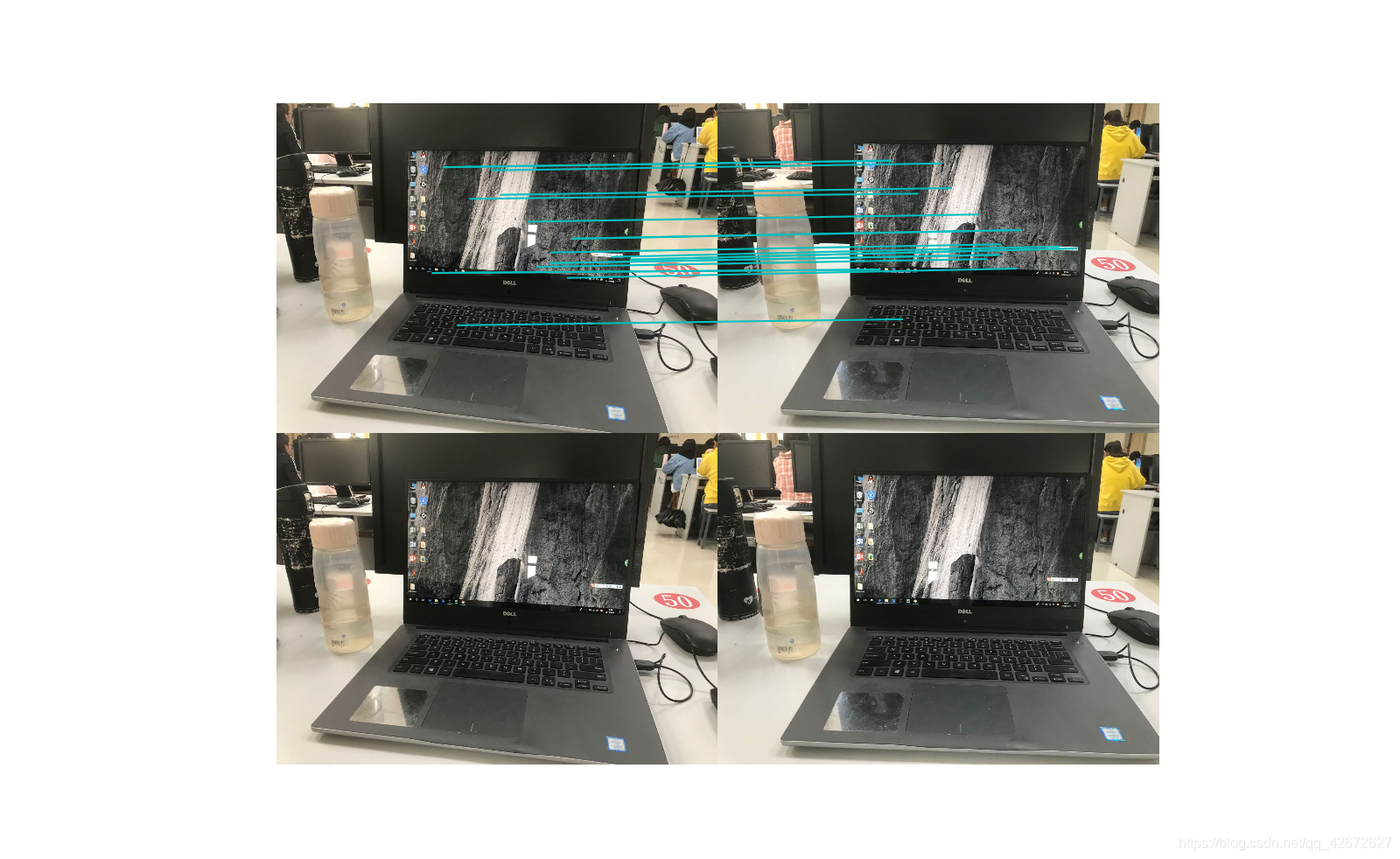

figure(figsize=(16, 16))
imj = sift.appendimages(im1, im2)
imj = vstack((imj, imj))

imshow(imj)

cols1 = im1.shape[1]
rows1 = im1.shape[0]
for i in range(len(x1p[0])):
    if (0<= x1p[0][i]<cols1) and (0<= x2p[0][i]<cols1) and (0<=x1p[1][i]<rows1) and (0<=x2p[1][i]<rows1):
        plot([x1p[0][i], x2p[0][i]+cols1],[x1p[1][i], x2p[1][i]],'c')
axis('off')
show()


# In[18]:


d1p = d1n[inliers]
d2p = d2n[inliers]



# In[19]:


# Read features
im3 = array(Image.open(root+'im3.jpg'))
sift.process_image(root+'im3.jpg', 'im3.sift')
l3, d3 = sift.read_features_from_file(root+'im3.sift')



# In[20]:


matches13 = sift.match_twosided(d1p, d3)



# In[21]:


ndx_13 = matches13.nonzero()[0]
x1_13 = homography.make_homog(x1p[:, ndx_13])
ndx2_13 = [int(matches13[i]) for i in ndx_13]
x3_13 = homography.make_homog(l3[ndx2_13, :2].T)



# In[22]:

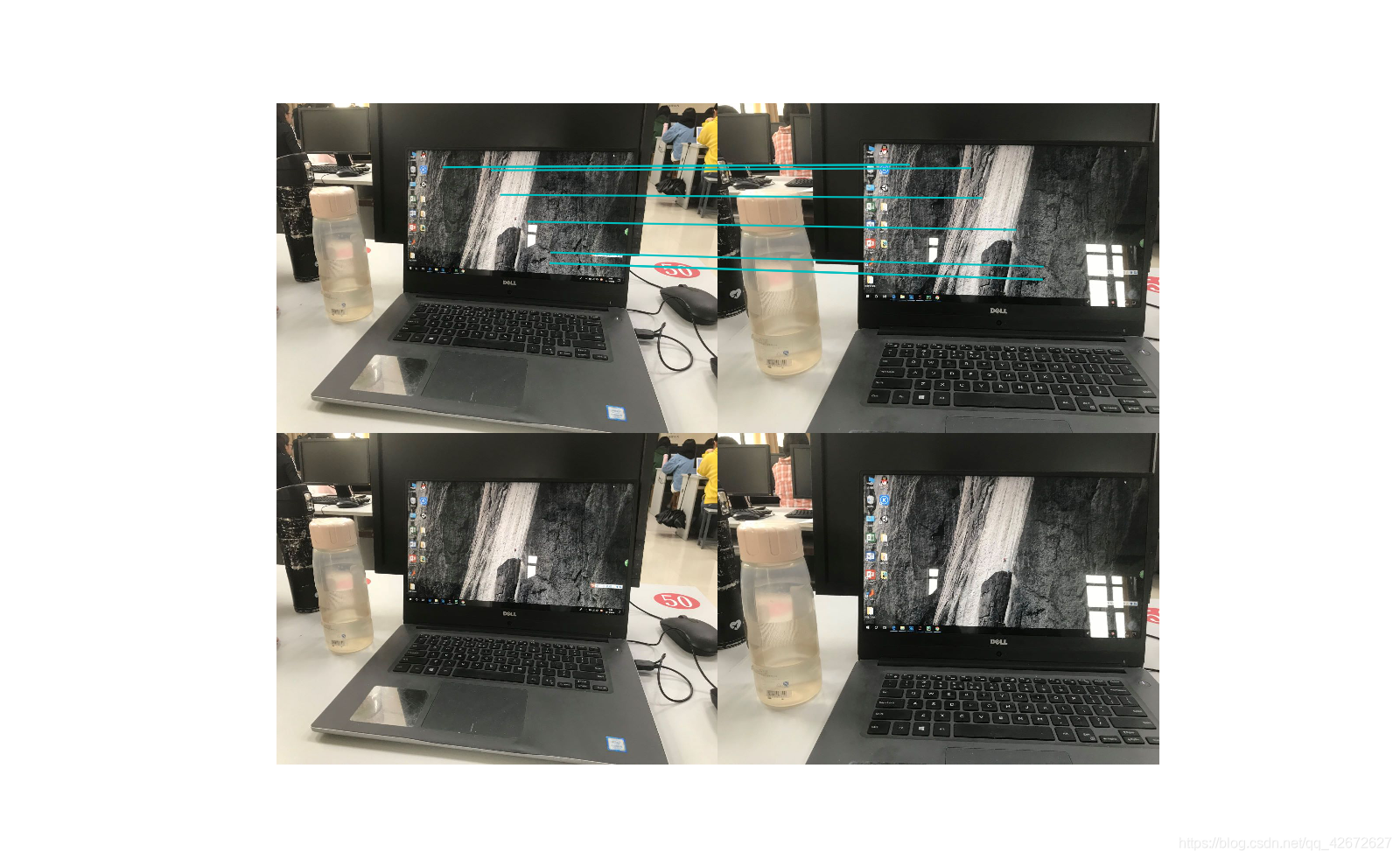

figure(figsize=(16, 16))
imj = sift.appendimages(im1, im3)
imj = vstack((imj, imj))

imshow(imj)

cols1 = im1.shape[1]
rows1 = im1.shape[0]
for i in range(len(x1_13[0])):
    if (0<= x1_13[0][i]<cols1) and (0<= x3_13[0][i]<cols1) and (0<=x1_13[1][i]<rows1) and (0<=x3_13[1][i]<rows1):
        plot([x1_13[0][i], x3_13[0][i]+cols1],[x1_13[1][i], x3_13[1][i]],'c')
axis('off')
show()



# In[23]:


P3 = sfm.compute_P(x3_13, X[:, ndx_13])



# In[24]:


print(P3)



# In[25]:


print(P1)
print(P2)
print(P3)
