openstack增加一个计算节点

1.前言

• 由于资源有限，所以直接在存储节点（block）部署
  • 由于存储节点最初只设计了一块网卡，所以需要增加一块网卡，名称为eth1，IP：192.168.200.30
  • 编辑ifcfg-eth1，然后重启网络systemctl restart network或启动网卡ifup eth1
• 如果是一台新机器，请按照OpenStack-Mitaka版本部署，进行环境准备工作

2.部署流程

1.安装openstack客户端和openstack-selinux

yum install python-openstackclient.noarch openstack-selinux.noarch openstack-utils -y

2.安装nova-compute

yum install openstack-nova-compute -y
yum install openstack-utils.noarch -y

3.修改配置

• 1.备份 /etc/nova/nova.conf 文件，并去掉注释

cp /etc/nova/nova.conf /etc/nova/nova.conf.bak
grep -Ev '^$|#' /etc/nova/nova.conf.bak > /etc/nova/nova.conf

• 2.使用openstack-config命令修改相关配置

openstack-config --set /etc/nova/nova.conf DEFAULT rpc_backend rabbit

openstack-config --set /etc/nova/nova.conf oslo_messaging_rabbit rabbit_host controller
openstack-config --set /etc/nova/nova.conf oslo_messaging_rabbit rabbit_userid openstack
openstack-config --set /etc/nova/nova.conf oslo_messaging_rabbit rabbit_password openstack

openstack-config --set /etc/nova/nova.conf DEFAULT auth_strategy keystone

openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_uri http://controller:5000
openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_url http://controller:35357
openstack-config --set /etc/nova/nova.conf keystone_authtoken memcached_servers controller:11211
openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_type password
openstack-config --set /etc/nova/nova.conf keystone_authtoken project_domain_name default
openstack-config --set /etc/nova/nova.conf keystone_authtoken user_domain_name default
openstack-config --set /etc/nova/nova.conf keystone_authtoken project_name service
openstack-config --set /etc/nova/nova.conf keystone_authtoken username nova
openstack-config --set /etc/nova/nova.conf keystone_authtoken password NOVA_PASS

# 计算节点的管理网络IP（重点修改对象，新机器的IP）
openstack-config --set /etc/nova/nova.conf DEFAULT my_ip 192.168.100.30

openstack-config --set /etc/nova/nova.conf DEFAULT use_neutron True
openstack-config --set /etc/nova/nova.conf DEFAULT firewall_driver nova.virt.firewall.NoopFirewallDriver

openstack-config --set /etc/nova/nova.conf vnc enabled True
openstack-config --set /etc/nova/nova.conf vnc vncserver_listen 0.0.0.0
openstack-config --set /etc/nova/nova.conf vnc vncserver_proxyclient_address '$my_ip'
# 控制节点的外部网络IP
openstack-config --set /etc/nova/nova.conf vnc novncproxy_base_url http://192.168.200.10:6080/vnc_auto.html

openstack-config --set /etc/nova/nova.conf glance api_servers http://controller:9292

openstack-config --set /etc/nova/nova.conf oslo_concurrency lock_path /var/lib/nova/tmp

openstack-config --set /etc/nova/nova.conf neutron url http://controller:9696
openstack-config --set /etc/nova/nova.conf neutron auth_url http://controller:35357
openstack-config --set /etc/nova/nova.conf neutron auth_type password
openstack-config --set /etc/nova/nova.conf neutron project_domain_name default
openstack-config --set /etc/nova/nova.conf neutron user_domain_name default
openstack-config --set /etc/nova/nova.conf neutron region_name RegionOne
openstack-config --set /etc/nova/nova.conf neutron project_name service
openstack-config --set /etc/nova/nova.conf neutron username neutron
openstack-config --set /etc/nova/nova.conf neutron password NEUTRON_PASS

4.安装neutron-linuxbridge-agent

yum install openstack-neutron-linuxbridge ebtables ipset -y

5.修改配置

• 1.备份 /etc/neutron/neutron.conf 文件，并去掉注释

cp /etc/neutron/neutron.conf /etc/neutron/neutron.conf.bak
grep -Ev '^$|#' /etc/neutron/neutron.conf.bak > /etc/neutron/neutron.conf

• 2.使用openstack-config命令修改相关配置

openstack-config --set /etc/neutron/neutron.conf DEFAULT rpc_backend rabbit

openstack-config --set /etc/neutron/neutron.conf oslo_messaging_rabbit rabbit_host controller
openstack-config --set /etc/neutron/neutron.conf oslo_messaging_rabbit rabbit_userid  openstack
openstack-config --set /etc/neutron/neutron.conf oslo_messaging_rabbit rabbit_password  openstack

openstack-config --set /etc/neutron/neutron.conf DEFAULT auth_strategy keystone

openstack-config --set /etc/neutron/neutron.conf keystone_authtoken auth_uri http://controller:5000
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken auth_url http://controller:35357
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken memcached_servers controller:11211
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken auth_type password
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken project_domain_name default
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken user_domain_name default
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken project_name service
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken username neutron
openstack-config --set /etc/neutron/neutron.conf keystone_authtoken  password NEUTRON_PASS

openstack-config --set /etc/neutron/neutron.conf oslo_concurrency lock_path /var/lib/neutron/tmp

• 3.备份 /etc/neutron/plugins/ml2/linuxbridge_agent.ini 文件，并去掉注释

cp /etc/neutron/plugins/ml2/linuxbridge_agent.ini /etc/neutron/plugins/ml2/linuxbridge_agent.ini.bak
grep -Ev '^$|#' /etc/neutron/plugins/ml2/linuxbridge_agent.ini.bak > /etc/neutron/plugins/ml2/linuxbridge_agent.ini

• 4.使用openstack-config命令修改相关配置

# PROVIDER_INTERFACE_NAME：为外网网卡eth1
openstack-config --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini linux_bridge physical_interface_mappings provider:eth1

openstack-config --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini vxlan enable_vxlan False

openstack-config --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini securitygroup enable_security_group True
openstack-config --set /etc/neutron/plugins/ml2/linuxbridge_agent.ini securitygroup firewall_driver neutron.agent.linux.iptables_firewall.IptablesFirewallDriver

6.启动服务

systemctl enable libvirtd.service openstack-nova-compute.service neutron-linuxbridge-agent.service
systemctl start libvirtd.service openstack-nova-compute.service neutron-linuxbridge-agent.service

7.验证

• 控制节点，检查是否多个一个nova服务

[root@controller ~]# nova service-list
+----+------------------+------------+----------+---------+-------+----------------------------+-----------------+
| Id | Binary           | Host       | Zone     | Status  | State | Updated_at                 | Disabled Reason |
+----+------------------+------------+----------+---------+-------+----------------------------+-----------------+
| 1  | nova-consoleauth | controller | internal | enabled | up    | 2023-01-09T13:33:35.000000 | -               |
| 2  | nova-conductor   | controller | internal | enabled | up    | 2023-01-09T13:33:34.000000 | -               |
| 3  | nova-scheduler   | controller | internal | enabled | up    | 2023-01-09T13:33:30.000000 | -               |
| 7  | nova-compute     | compute    | nova     | enabled | up    | 2023-01-09T13:33:35.000000 | -               |
| 8  | nova-compute     | block      | nova     | enabled | up    | 2023-01-09T13:33:32.000000 | -               |
+----+------------------+------------+----------+---------+-------+----------------------------+-----------------+

• 控制节点，检查是否多个一个bridge agent服务

[root@controller ~]# neutron agent-list
+--------------------------------------+--------------------+------------+-------------------+-------+----------------+---------------------------+
| id                                   | agent_type         | host       | availability_zone | alive | admin_state_up | binary                    |
+--------------------------------------+--------------------+------------+-------------------+-------+----------------+---------------------------+
| 01c79ff7-a257-4572-8d36-e53a41c54b4c | Metadata agent     | controller |                   | :-)   | True           | neutron-metadata-agent    |
| 7288d214-2d6e-40d1-a52b-4810ac843454 | Linux bridge agent | controller |                   | :-)   | True           | neutron-linuxbridge-agent |
| a53f41d4-b579-4d8f-9f70-681f5936d996 | Linux bridge agent | block      |                   | :-)   | True           | neutron-linuxbridge-agent |
| c94f5235-7ef6-4043-bed1-ad4c041525f4 | DHCP agent         | controller | nova              | :-)   | True           | neutron-dhcp-agent        |
| f40e89c2-9bef-4c6c-a063-03f9f32c9c20 | Linux bridge agent | compute    |                   | :-)   | True           | neutron-linuxbridge-agent |
+--------------------------------------+--------------------+------------+-------------------+-------+----------------+---------------------------+

3.创建实例

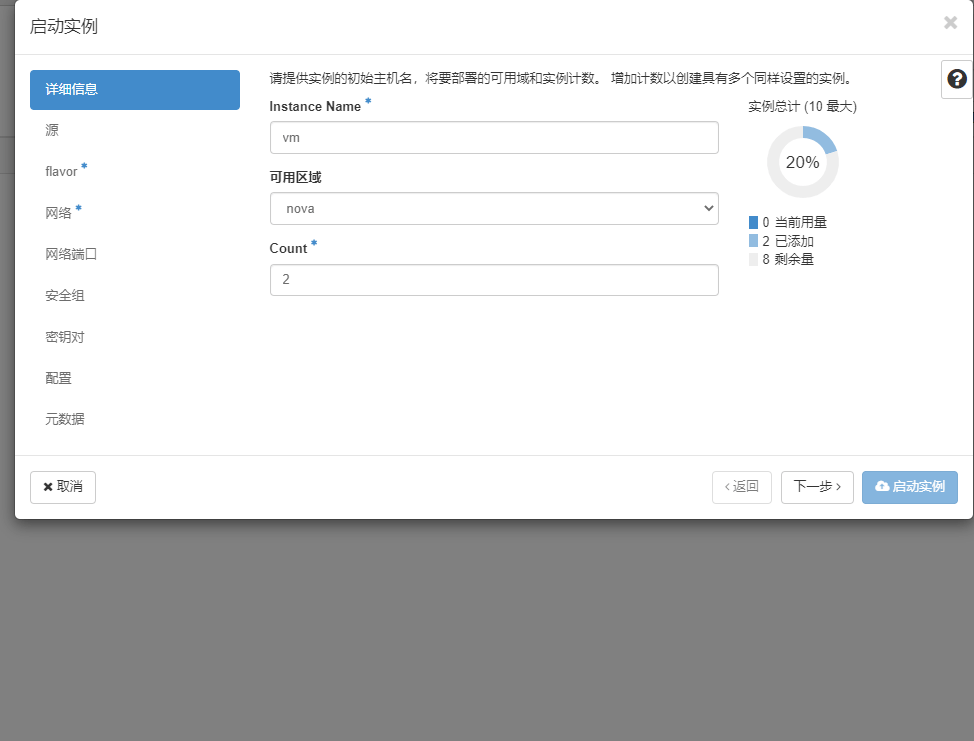

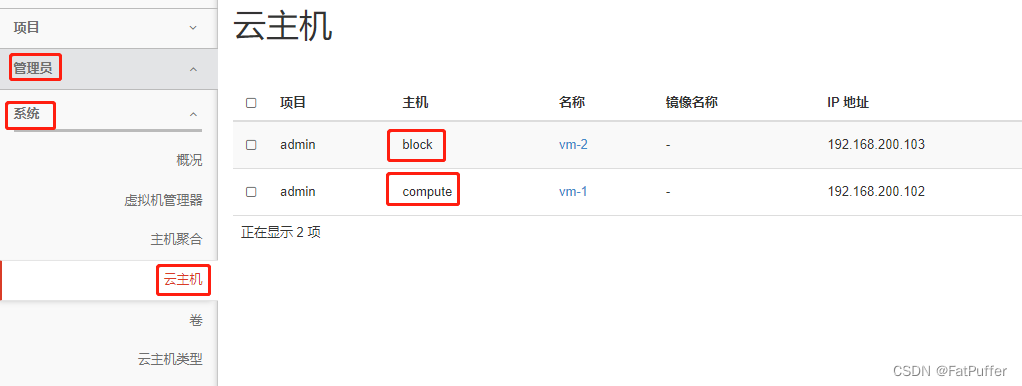

1.一次性创建两个实例，看看调度情况

• 由于资源相同，两个虚机应该会分别被调度在不同的节点



2.主机聚集

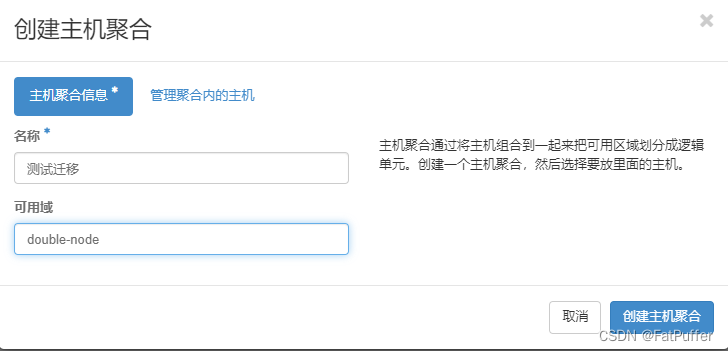

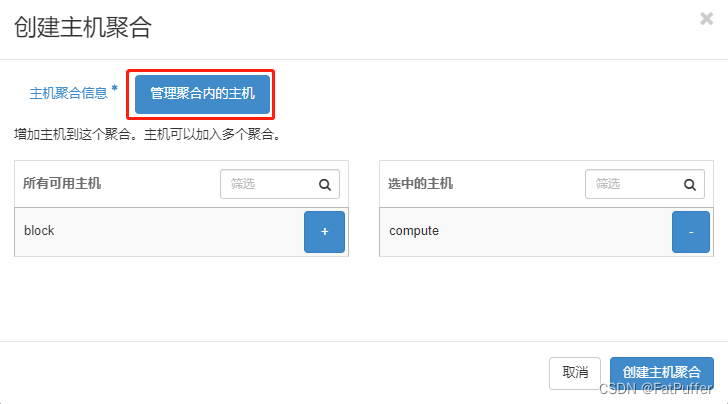

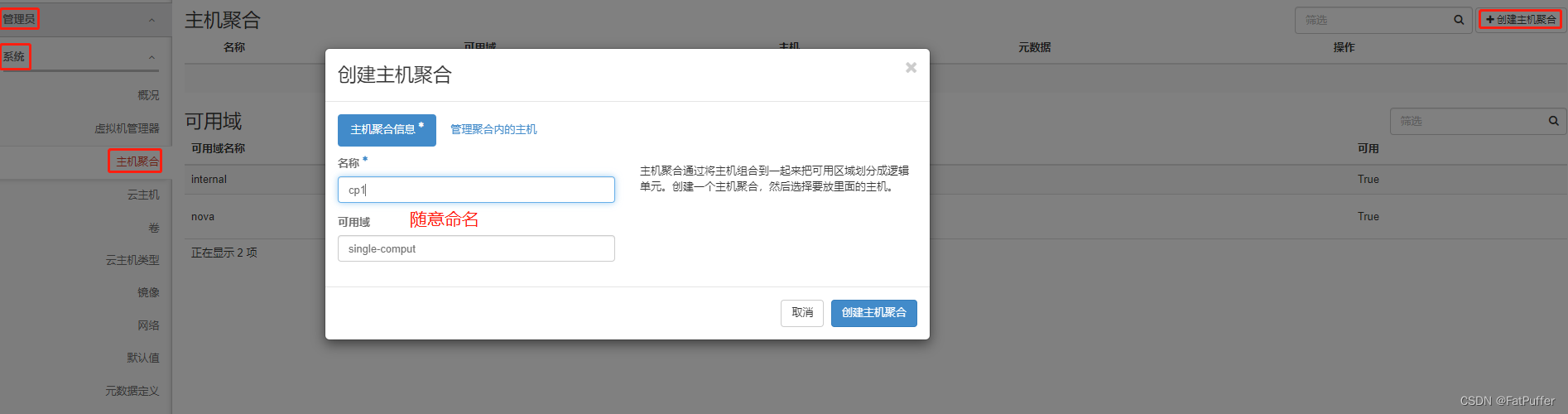

• 通过创建主机聚集，控制虚机调度在哪个节点

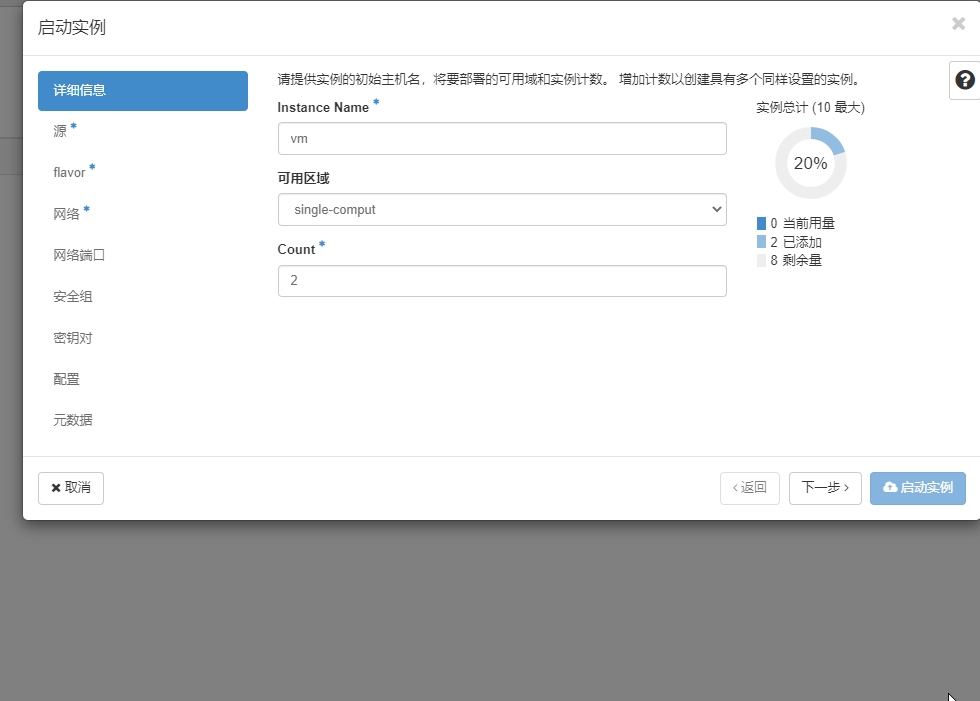

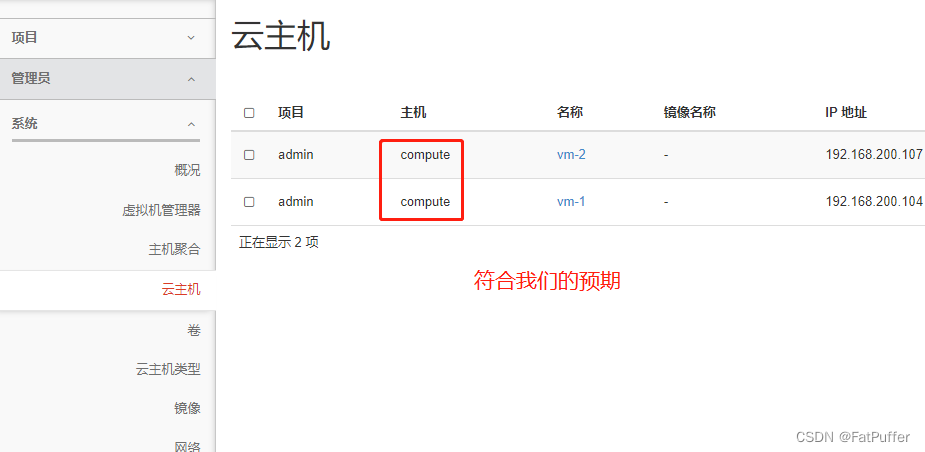

• 创建2个实例，观察调度情况（期望两个虚机都调度在compute节点上）



4.实例冷迁移

1.计算节点之间进行互信（免密登录）

1.在任意节点执行以下操做：假使在compute节点

• 1.切换nova用户

usermod -s /bin/bash nova
su - nova

cp /etc/skel/.bash* .
logout

su - nova

• 2.生成密钥对

ssh-keygen -t rsa -q -N ''

[nova@compute ~]$ ls /var/lib/nova/.ssh
id_rsa  id_rsa.pub

• 3.设置自己免密登录

cp -fa /var/lib/nova/.ssh/id_rsa.pub /var/lib/nova/.ssh/authorized_keys

2.将计算节点刚刚生成的.ssh目录拷贝到存储节点（部署了计算服务）

• 1.远程拷贝.ssh目录

scp -rp /var/lib/nova/.ssh root@block:`pwd`

• 2.存储节点切换nova用户

usermod -s /bin/bash nova
su - nova

cp /etc/skel/.bash* .
logout

su - nova
logout

• 3.修改/var/lib/nova/.ssh下的文件权限

chown -R nova:nova /var/lib/nova/.ssh

• 4.测试免密登录

su - nova
ssh nova@compute

su - nova
ssh nova@block

2.修改控制节点/etc/nova/nova.conf配置文件

• 1.修改/etc/nova/nova.conf配置

[default]
scheduler_default_filters = RetryFilter, AvailabilityZoneFilter, RamFilter, DiskFilter, ComputeFilter, ComputeCapabilitiesFilter, ImagePropertiesFilter, ServerGroupAntiAffinityFilter, ServerGroupAffinityFilter

• 2.重启nova-scheduler服务

systemctl restart openstack-nova-scheduler.service

3.修改所有计算节点/etc/nova/nova.conf配置文件

[default]
allow_resize_to_same_host = True

• 重启nova-compute服务

systemctl restart openstack-nova-compute.service

4.web界面操做

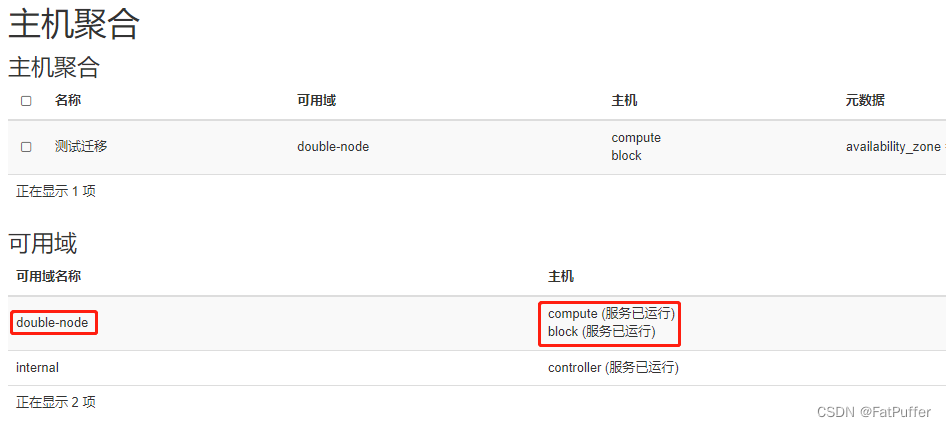

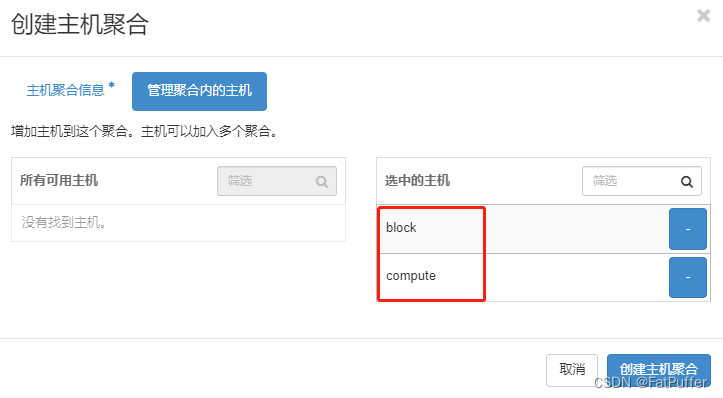

• 1.迁移主机必须属于同一个主机聚集，所以重新创建主机聚集

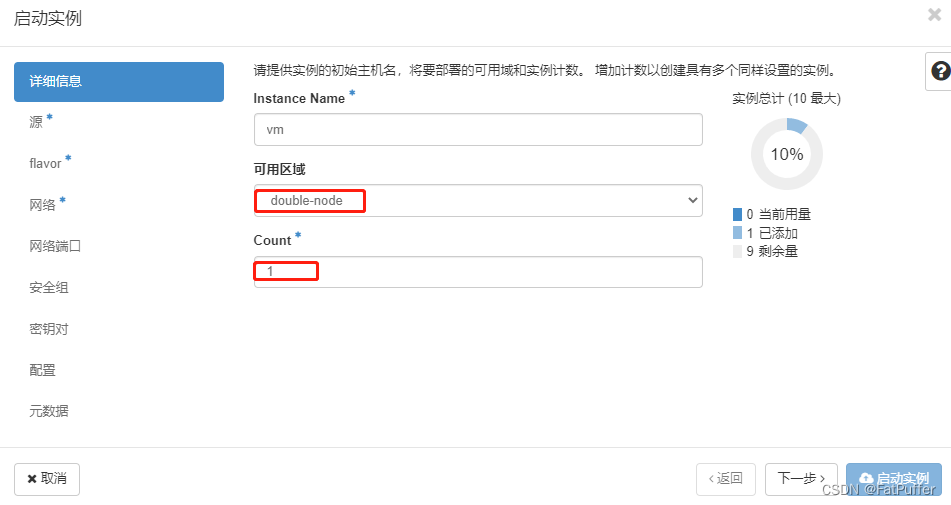

• 2.实例的迁移，只对配置了迁移环境后，创建的虚机有效，所以使用刚刚创建的主机聚集来重新创建实例测试。

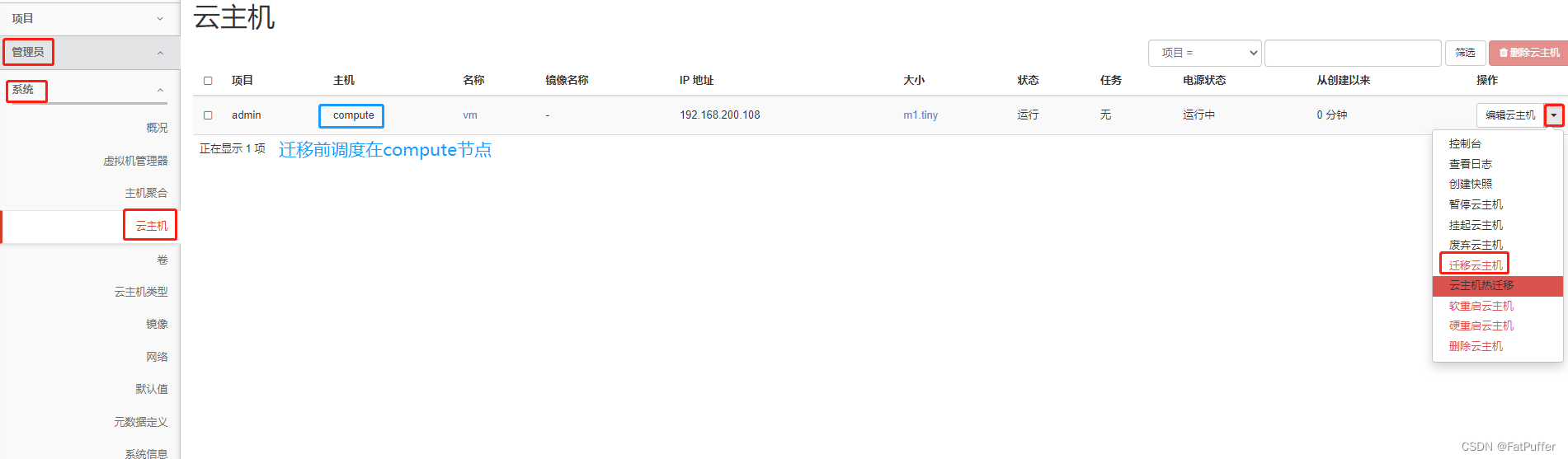

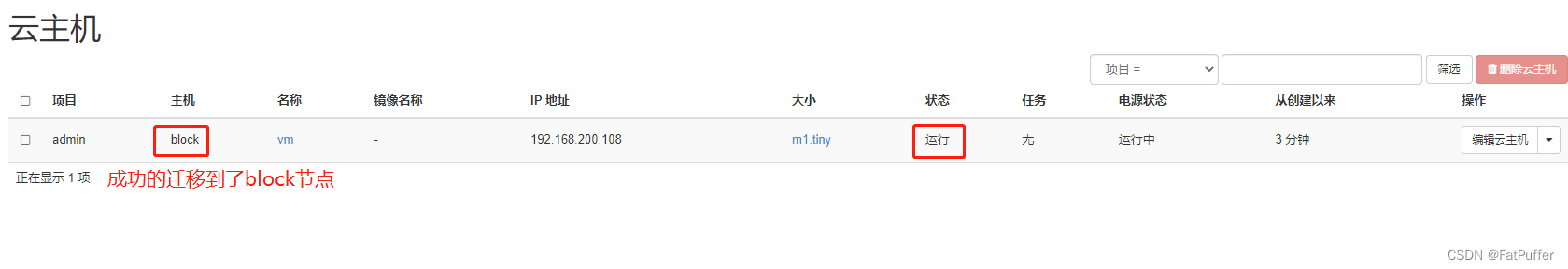

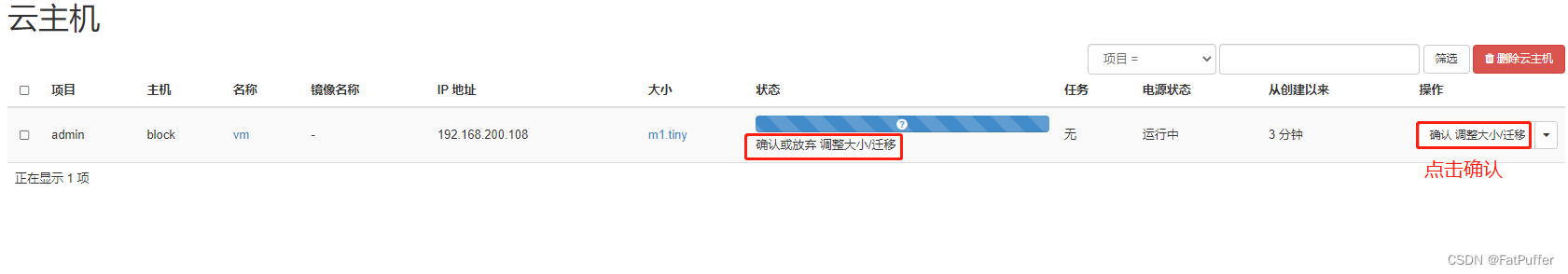

• 3.迁移
