2021-01-28实习日报

搭建增删改查服务

还是用昨天的注册中心和聚合中心，编写服务C，服务B也需要一些修改
数据库搭建了一个简单的user，数据是id，username，password

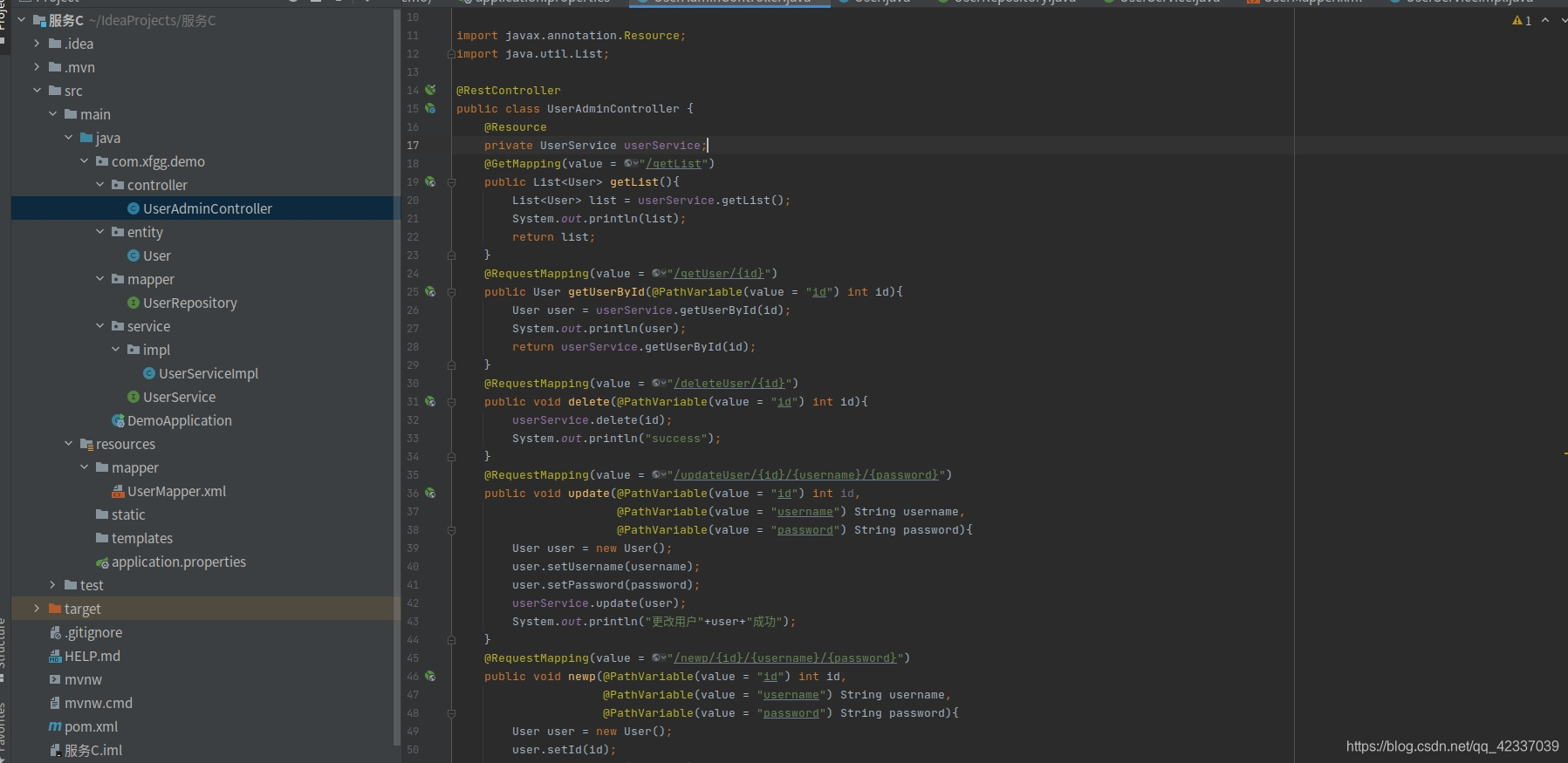

总体结构

依赖文件

 <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.4</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-hystrix</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-hystrix-dashboard</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

启动项

package com.xfgg.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
import org.springframework.cloud.netflix.hystrix.EnableHystrix;
import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;
import org.springframework.cloud.openfeign.EnableFeignClients;

@SpringBootApplication
@EnableEurekaClient
@EnableFeignClients
@EnableHystrixDashboard
@EnableHystrix
public class DemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }

}

配置文件

server.port=8092
spring.application.name=turbine-c
eureka.instance.prefer-ip-address=true
eureka.instance.hostname=${spring.cloud.client.ip-address}
eureka.instance.instance-id=${spring.cloud.client.ip-address}:${spring.application.name}:${server.port}
eureka.client.service-url.defaultZone= http://${eureka.instance.hostname}:8761/eureka/
management.endpoints.web.exposure.include=*
feign.hystrix.enabled=true

#数据源相关配置
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/kgc?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&allowMultiQueries=true
spring.datasource.username=root
spring.datasource.password=123456

#映射xml文件
mybatis.mapper-locations=mapper/*.xml
mybatis.type-aliases-package=com.xfgg.demo

实体类编写

package com.xfgg.demo.entity;

import lombok.*;

import java.io.Serializable;
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor(access = AccessLevel.PRIVATE)
public class User implements Serializable {
    private Integer id;
    private String username;
    private String password;
}

dao层编写

package com.xfgg.demo.mapper;

import com.xfgg.demo.entity.User;
import org.apache.ibatis.annotations.Mapper;

import java.util.List;

@Mapper
public interface UserRepository{
    List<User> getList();
    User getUserById(int id);
    void delete(int id);
    void update(User user);
    void newp(User user);
}

service接口层编写

package com.xfgg.demo.service;

import com.xfgg.demo.entity.User;

import java.util.List;

public interface UserService {
    List<User> getList();
    User getUserById(int id);
    void delete(int id);
    void update(User user);
    void newp(User user);
}

service实现层编写

package com.xfgg.demo.service.impl;

import com.xfgg.demo.entity.User;
import com.xfgg.demo.mapper.UserRepository;
import com.xfgg.demo.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

@Service
public class UserServiceImpl implements UserService {
    @Autowired
    private UserRepository userRepository;
    @Override
    public List<User> getList() {
        return userRepository.getList();
    }

    @Override
    public User getUserById(int id) {
        return userRepository.getUserById(id);
    }

    @Override
    public void delete(int id) {
        userRepository.delete(id);
    }

    @Override
    public void update(User user) {
        userRepository.update(user);
    }

    @Override
    public void newp(User user) {
        userRepository.newp(user);
    }
}

controller层编写

package com.xfgg.demo.controller;

import com.xfgg.demo.entity.User;
import com.xfgg.demo.service.UserService;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;
import java.util.List;

@RestController
public class UserAdminController {
    @Resource
    private UserService userService;
    @GetMapping(value = "/getList")
    public List<User> getList(){
        List<User> list = userService.getList();
        System.out.println(list);
        return list;
    }
    @RequestMapping(value = "/getUser/{id}")
    public User getUserById(@PathVariable(value = "id") int id){
        User user = userService.getUserById(id);
        System.out.println(user);
        return userService.getUserById(id);
    }
    @RequestMapping(value = "/deleteUser/{id}")
    public void delete(@PathVariable(value = "id") int id){
        userService.delete(id);
        System.out.println("success");
    }
    @RequestMapping(value = "/updateUser/{id}/{username}/{password}")
    public void update(@PathVariable(value = "id") int id,
                       @PathVariable(value = "username") String username,
                       @PathVariable(value = "password") String password){
        User user = new User();
        user.setUsername(username);
        user.setPassword(password);
        userService.update(user);
        System.out.println("更改用户"+user+"成功");
    }
    @RequestMapping(value = "/newp/{id}/{username}/{password}")
    public void newp(@PathVariable(value = "id") int id,
                     @PathVariable(value = "username") String username,
                     @PathVariable(value = "password") String password){
        User user = new User();
        user.setId(id);
        user.setUsername(username);
        user.setPassword(password);
        userService.newp(user);
        System.out.println("添加用户"+user+"成功");
    }
}

mapper编写

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.xfgg.demo.mapper.UserRepository">
    <!-- CodeBuilder Generated -->
    <resultMap id="UserMap" type="com.xfgg.demo.entity.User">
        <id column="id" property="id" jdbcType="INTEGER" />
        <result column="username" property="username" jdbcType="VARCHAR" />
        <result column="password" property="password" jdbcType="VARCHAR" />
    </resultMap>

    <sql id="Base_List">
        id,username,password
    </sql>

    <select id="getList" resultMap="UserMap">
        select
        <include refid="Base_List"></include>
        from user
    </select>
    <select id="getUserById" resultMap="UserMap">
        select * from user
        where id=#{id}
    </select>
    <insert id="newp" parameterType="com.xfgg.demo.entity.User">
        insert into
            user
            (id,username,password)
        values
            (#{id},#{username},#{password})
    </insert>
    <update id="update" parameterType="com.xfgg.demo.entity.User">
        update
            user
        set
            username=#{username},password=#{password}
        where
            id=#{id}
    </update>
    <delete id="delete" parameterType="com.xfgg.demo.entity.User">
        delete from
            user
        where
            id=#{id}
    </delete>
</mapper>

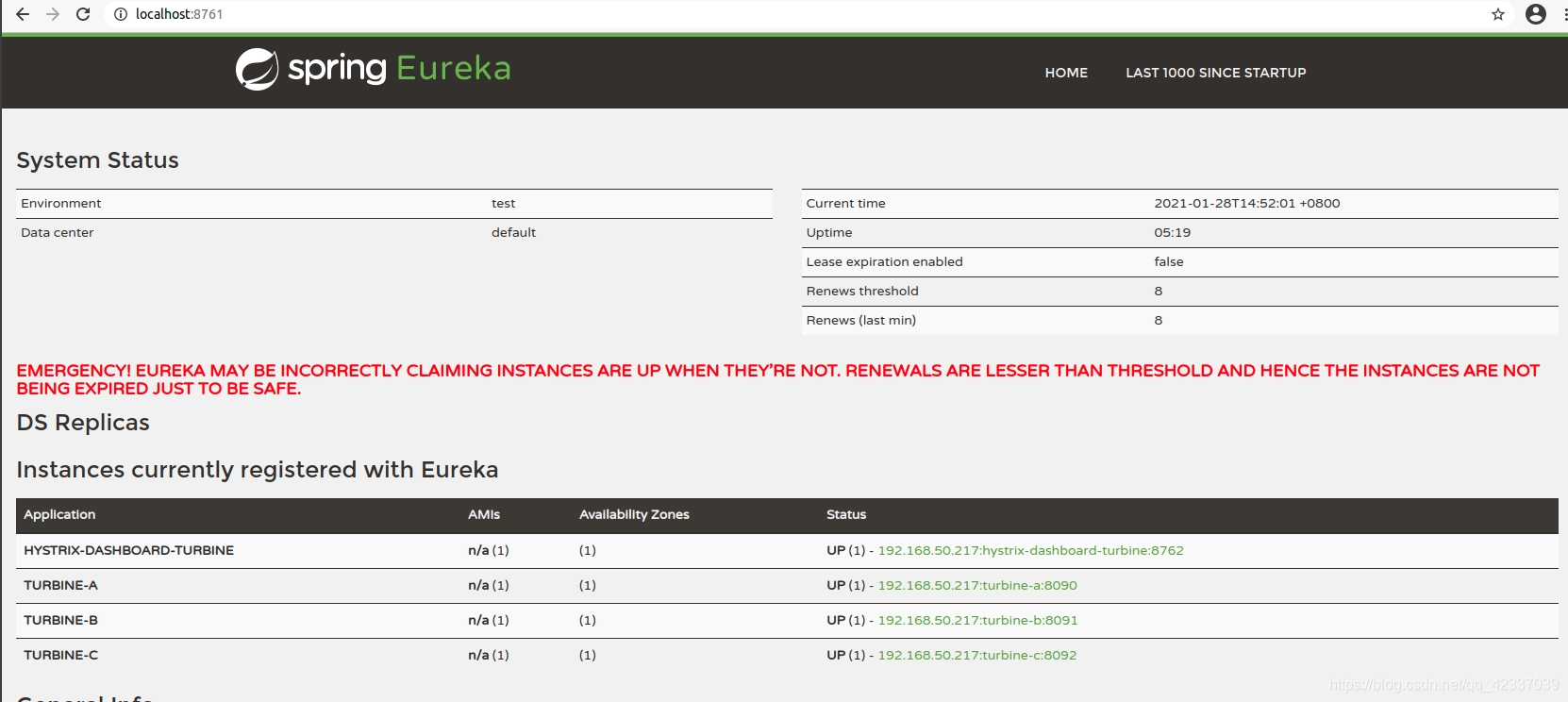

依次启动注册中心，聚合中心，服务ABC
如图

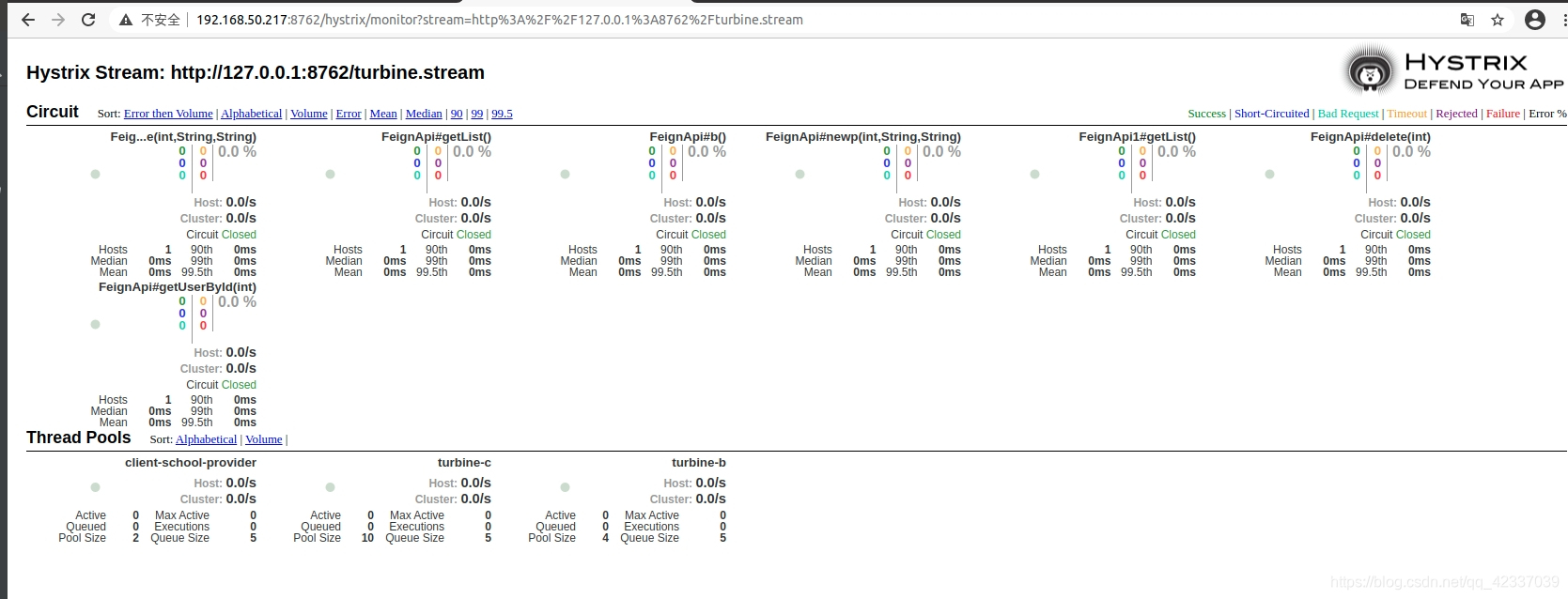

hystrix dashboard效果图

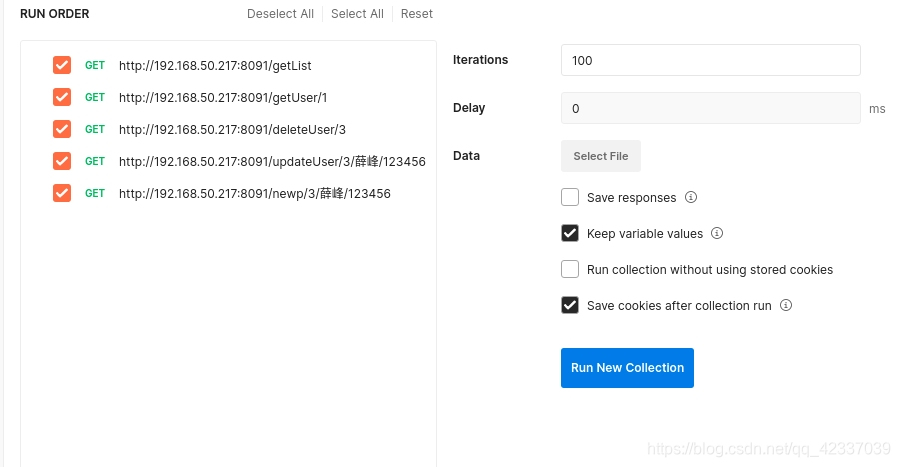

使用postman将各个请求运行100次

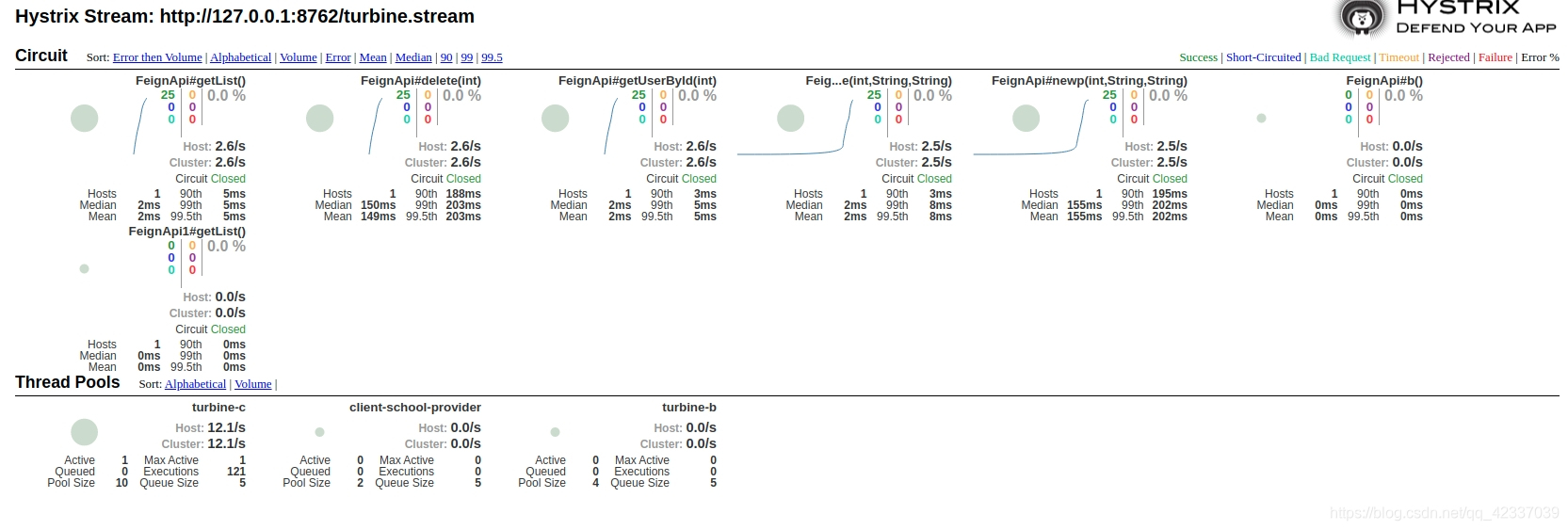

仪表盘效果

可以看到一切正常

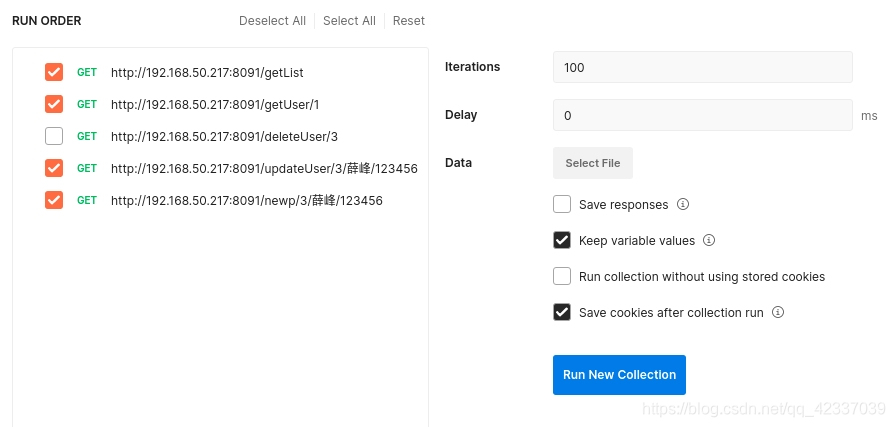

这次我们将删除用户去掉，理想状况应该是会导致newp错误率达到100%

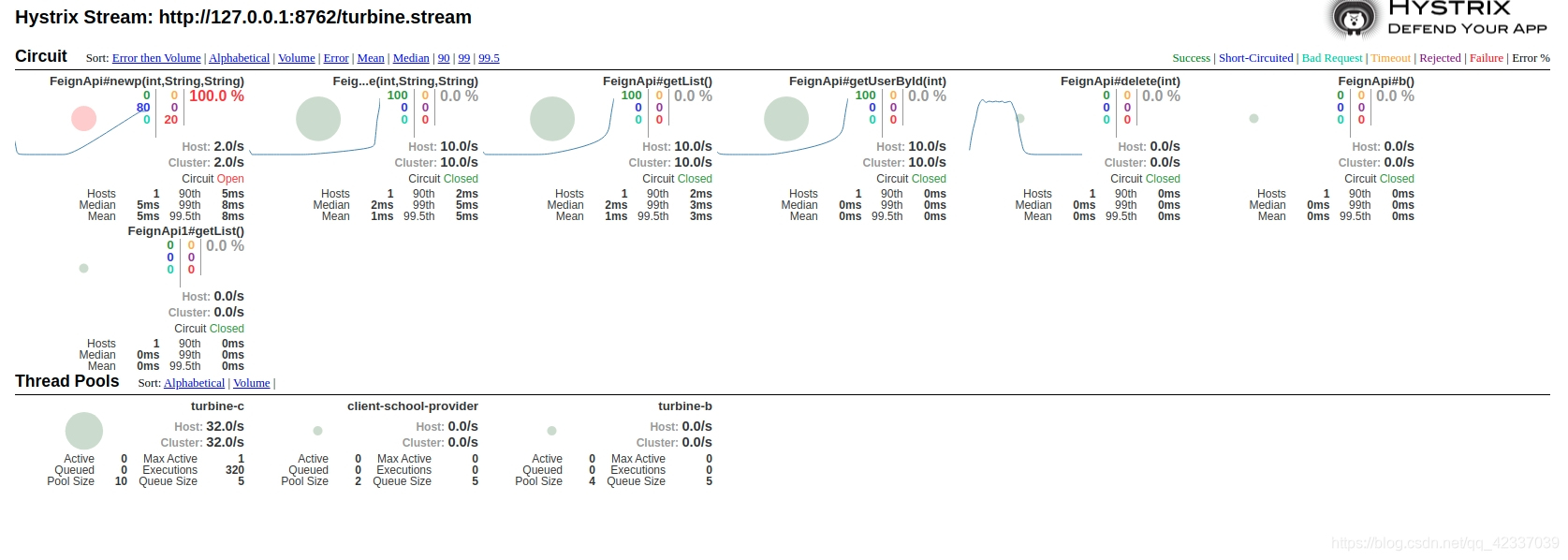

断路器并不是马上打开，可以看到失败了20个请求，80个请求使用了熔断器
delete服务的请求曲线平缓

Redis

因为之前有学过，所以这里只是大概过一下概念和常用的数据结构，手动构造一个数据

基本概念

Redis 是完全开源的，遵守 BSD 协议，是一个高性能的 key-value 数据库。

• Redis 与其他 key - value 缓存产品有以下三个特点：
• Redis支持数据的持久化，可以将内存中的数据保存在磁盘中，重启的时候可以再次加载进行使用。
• Redis不仅仅支持简单的key-value类型的数据，同时还提供list，set，zset，hash等数据结构的存储。
• Redis支持数据的备份，即master-slave模式的数据备份。

常用的数据结构

语法

127.0.0.1:6379> COMMAND KEY_NAME

• String
  Redis 字符串数据类型的相关命令用于管理 redis 字符串值，基本语法如下：

127.0.0.1:6379> set xf redis
OK
127.0.0.1:6379> get xf
"redis"
127.0.0.1:6379> getrange xf 1 3
"edi"
127.0.0.1:6379> getset xf redis
"redis"
127.0.0.1:6379> get xf
"redis"
127.0.0.1:6379> getbit key 1
(integer) 0
127.0.0.1:6379> getbit key 2
(integer) 0
127.0.0.1:6379> mget xf xf
1) "redis"
2) "redis"
127.0.0.1:6379> setnx xf redis
(integer) 0
127.0.0.1:6379> setex xf 100 redis
OK

详情见：https://www.runoob.com/redis/redis-strings.html

• Hash
  Redis hash 是一个 string 类型的 field（字段） 和 value（值） 的映射表，hash 特别适合用于存储对象。

Redis 中每个 hash 可以存储 232 - 1 键值对（40多亿）。

127.0.0.1:6379> hmset xf name xfgg like ball age 20
OK
127.0.0.1:6379> hgetall xf
1) "name"
2) "xfgg"
3) "like"
4) "ball"
5) "age"
6) "20"
127.0.0.1:6379> hdel xf name xfgg
(integer) 1
127.0.0.1:6379> hgetall xf
1) "like"
2) "ball"
3) "age"
4) "20"
127.0.0.1:6379> hexists xf age
(integer) 1
127.0.0.1:6379> hget xf age
"20"
127.0.0.1:6379> hincrby xf age 1
(integer) 21
127.0.0.1:6379> hkeys xf
1) "like"
2) "age"
127.0.0.1:6379> hlen xf
(integer) 2
127.0.0.1:6379> hvals xf
1) "ball"
2) "21"

具体：https://www.runoob.com/redis/redis-hashes.html

• List
  Redis列表是简单的字符串列表，按照插入顺序排序。你可以添加一个元素到列表的头部（左边）或者尾部（右边）

一个列表最多可以包含 232 - 1 个元素 (4294967295, 每个列表超过40亿个元素)。

127.0.0.1:6379> lpush xf redis
(integer) 1
127.0.0.1:6379> lpush xf mysql
(integer) 2
127.0.0.1:6379> lpush xf mybatis
(integer) 3
127.0.0.1:6379> lrange xf 0 10
1) "mybatis"
2) "mysql"
3) "redis"

具体：https://www.runoob.com/redis/redis-lists.html

• Set
  Redis 的 Set 是 String 类型的无序集合。集合成员是唯一的，这就意味着集合中不能出现重复的数据。
  Redis 中集合是通过哈希表实现的，所以添加，删除，查找的复杂度都是 O(1)。
  集合中最大的成员数为 232 - 1 (4294967295, 每个集合可存储40多亿个成员)。

127.0.0.1:6379> sadd xf reids
(integer) 1
127.0.0.1:6379> sadd xf mysql
(integer) 1
127.0.0.1:6379> sadd xf mysql
(integer) 0
127.0.0.1:6379> sadd xf mybatis
(integer) 1
127.0.0.1:6379> smembers xf
1) "reids"
2) "mybatis"
3) "mysql"
127.0.0.1:6379>

具体：https://www.runoob.com/redis/redis-sets.html

• zset
  Redis 有序集合和集合一样也是 string 类型元素的集合,且不允许重复的成员。
  不同的是每个元素都会关联一个 double 类型的分数。redis 正是通过分数来为集合中的成员进行从小到大的排序。
  有序集合的成员是唯一的,但分数(score)却可以重复。
  集合是通过哈希表实现的，所以添加，删除，查找的复杂度都是 O(1)。 集合中最大的成员数为 232 - 1 (4294967295, 每个集合可存储40多亿个成员)。

127.0.0.1:6379> zadd xf 1 redis
(integer) 1
127.0.0.1:6379> zadd xf 2 mybatis
(integer) 1
127.0.0.1:6379> zadd xf 3 mysql
(integer) 1
127.0.0.1:6379> zadd xf 3 mysql
(integer) 0
127.0.0.1:6379> zadd xf 4 mysql
(integer) 0
127.0.0.1:6379> zrange xf 0 10 withscores
1) "redis"
2) "1"
3) "mybatis"
4) "2"
5) "mysql"
6) "4"
127.0.0.1:6379> zrange xf 0 10
1) "redis"
2) "mybatis"
3) "mysql"
127.0.0.1:6379>

具体：https://www.runoob.com/redis/redis-sorted-sets.html

通过template模拟取数据

使用网络上大佬的RedisUtils工具类

package com.xfgg.demo.utils;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.*;
import org.springframework.stereotype.Service;

import java.io.Serializable;
import java.util.List;
import java.util.Set;
import java.util.concurrent.TimeUnit;

@Service
public class RedisUtils {
    @Autowired
    private RedisTemplate redisTemplate;

    private static double size = Math.pow(2, 32);


    /**
     * 写入缓存
     *
     * @param key
     * @param offset   位 8Bit=1Byte
     * @return
     */
    public boolean setBit(String key, long offset, boolean isShow) {
        boolean result = false;
        try {
            ValueOperations<Serializable, Object> operations = redisTemplate.opsForValue();
            operations.setBit(key, offset, isShow);
            result = true;
        } catch (Exception e) {
            e.printStackTrace();
        }
        return result;
    }

    /**
     * 写入缓存
     *
     * @param key
     * @param offset
     * @return
     */
    public boolean getBit(String key, long offset) {
        boolean result = false;
        try {
            ValueOperations<Serializable, Object> operations = redisTemplate.opsForValue();
            result = operations.getBit(key, offset);
        } catch (Exception e) {
            e.printStackTrace();
        }
        return result;
    }


    /**
     * 写入缓存
     *
     * @param key
     * @param value
     * @return
     */
    public boolean set(final String key, Object value) {
        boolean result = false;
        try {
            ValueOperations<Serializable, Object> operations = redisTemplate.opsForValue();
            operations.set(key, value);
            result = true;
        } catch (Exception e) {
            e.printStackTrace();
        }
        return result;
    }

    /**
     * 写入缓存设置时效时间
     *
     * @param key
     * @param value
     * @return
     */
    public boolean set(final String key, Object value, Long expireTime) {
        boolean result = false;
        try {
            ValueOperations<Serializable, Object> operations = redisTemplate.opsForValue();
            operations.set(key, value);
            redisTemplate.expire(key, expireTime, TimeUnit.SECONDS);
            result = true;
        } catch (Exception e) {
            e.printStackTrace();
        }
        return result;
    }

    /**
     * 批量删除对应的value
     *
     * @param keys
     */
    public void remove(final String... keys) {
        for (String key : keys) {
            remove(key);
        }
    }


    /**
     * 删除对应的value
     *
     * @param key
     */
    public void remove(final String key) {
        if (exists(key)) {
            redisTemplate.delete(key);
        }
    }

    /**
     * 判断缓存中是否有对应的value
     *
     * @param key
     * @return
     */
    public boolean exists(final String key) {
        return redisTemplate.hasKey(key);
    }

    /**
     * 读取缓存
     *
     * @param key
     * @return
     */
    public Object get(final String key) {
        Object result = null;
        ValueOperations<Serializable, Object> operations = redisTemplate.opsForValue();
        result = operations.get(key);
        return result;
    }

    /**
     * 哈希 添加
     *
     * @param key
     * @param hashKey
     * @param value
     */
    public void hmSet(String key, Object hashKey, Object value) {
        HashOperations<String, Object, Object> hash = redisTemplate.opsForHash();
        hash.put(key, hashKey, value);
    }

    /**
     * 哈希获取数据
     *
     * @param key
     * @param hashKey
     * @return
     */
    public Object hmGet(String key, Object hashKey) {
        HashOperations<String, Object, Object> hash = redisTemplate.opsForHash();
        return hash.get(key, hashKey);
    }

    /**
     * 列表添加
     *
     * @param k
     * @param v
     */
    public void lPush(String k, Object v) {
        ListOperations<String, Object> list = redisTemplate.opsForList();
        list.rightPush(k, v);
    }

    /**
     * 列表获取
     *
     * @param k
     * @param l
     * @param l1
     * @return
     */
    public List<Object> lRange(String k, long l, long l1) {
        ListOperations<String, Object> list = redisTemplate.opsForList();
        return list.range(k, l, l1);
    }

    /**
     * 集合添加
     *
     * @param key
     * @param value
     */
    public void add(String key, Object value) {
        SetOperations<String, Object> set = redisTemplate.opsForSet();
        set.add(key, value);
    }

    /**
     * 集合获取
     *
     * @param key
     * @return
     */
    public Set<Object> setMembers(String key) {
        SetOperations<String, Object> set = redisTemplate.opsForSet();
        return set.members(key);
    }

    /**
     * 有序集合添加
     *
     * @param key
     * @param value
     * @param scoure
     */
    public void zAdd(String key, Object value, double scoure) {
        ZSetOperations<String, Object> zset = redisTemplate.opsForZSet();
        zset.add(key, value, scoure);
    }

    /**
     * 有序集合获取
     *
     * @param key
     * @param scoure
     * @param scoure1
     * @return
     */
    public Set<Object> rangeByScore(String key, double scoure, double scoure1) {
        ZSetOperations<String, Object> zset = redisTemplate.opsForZSet();
        redisTemplate.opsForValue();
        return zset.rangeByScore(key, scoure, scoure1);
    }


    //第一次加载的时候将数据加载到redis中
    public void saveDataToRedis(String name) {
        double index = Math.abs(name.hashCode() % size);
        long indexLong = new Double(index).longValue();
        boolean availableUsers = setBit("availableUsers", indexLong, true);
    }

    //第一次加载的时候将数据加载到redis中
    public boolean getDataToRedis(String name) {

        double index = Math.abs(name.hashCode() % size);
        long indexLong = new Double(index).longValue();
        return getBit("availableUsers", indexLong);
    }

    /**
     * 有序集合获取排名
     *
     * @param key 集合名称
     * @param value 值
     */
    public Long zRank(String key, Object value) {
        ZSetOperations<String, Object> zset = redisTemplate.opsForZSet();
        return zset.rank(key,value);
    }


    /**
     * 有序集合获取排名
     *
     * @param key
     */
    public Set<ZSetOperations.TypedTuple<Object>> zRankWithScore(String key, long start,long end) {
        ZSetOperations<String, Object> zset = redisTemplate.opsForZSet();
        Set<ZSetOperations.TypedTuple<Object>> ret = zset.rangeWithScores(key,start,end);
        return ret;
    }

    /**
     * 有序集合添加
     *
     * @param key
     * @param value
     */
    public Double zSetScore(String key, Object value) {
        ZSetOperations<String, Object> zset = redisTemplate.opsForZSet();
        return zset.score(key,value);
    }


    /**
     * 有序集合添加分数
     *
     * @param key
     * @param value
     * @param scoure
     */
    public void incrementScore(String key, Object value, double scoure) {
        ZSetOperations<String, Object> zset = redisTemplate.opsForZSet();
        zset.incrementScore(key, value, scoure);
    }


    /**
     * 有序集合获取排名
     *
     * @param key
     */
    public Set<ZSetOperations.TypedTuple<Object>> reverseZRankWithScore(String key, long start, long end) {
        ZSetOperations<String, Object> zset = redisTemplate.opsForZSet();
        Set<ZSetOperations.TypedTuple<Object>> ret = zset.reverseRangeByScoreWithScores(key,start,end);
        return ret;
    }

    /**
     * 有序集合获取排名
     *
     * @param key
     */
    public Set<ZSetOperations.TypedTuple<Object>> reverseZRankWithRank(String key, long start, long end) {
        ZSetOperations<String, Object> zset = redisTemplate.opsForZSet();
        Set<ZSetOperations.TypedTuple<Object>> ret = zset.reverseRangeWithScores(key, start, end);
        return ret;
    }
}

发现是一些自定义的存取操作，如果想要使用需要改动大量的代码，所以感觉今天的方向错了，浪费了一个多小时来研究，造孽呀！！！！
多次尝试都达不到理想的redis存取，还是不够大佬
