本文介绍如何通过swagger2markup和asciidoctorj工具将Swagger.json转换为HTML和PDF文档。首先，需要在Pom.xml中配置相关参数，并注释可能冲突的阿里巴巴依赖。接着，在test目录创建Swagger2MarkupTest.java测试类以生成Swagger.json。运行Maven Test后，即可得到转换后的文档。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

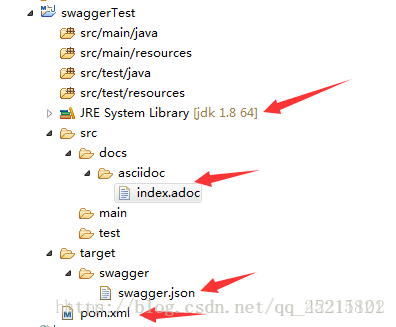

在src目录下新增docs/asciidoc/index.adoc

idex.adoc文件内容为

include::{generated}/overview.adoc[]
include::{generated}/paths.adoc[]
include::{generated}/security.adoc[]
include::{generated}/definitions.adoc[]

--pom.xml 配置参数-------------------------------------------------------

1.如果使用了aibaba的

druid-spring-boot-starter

依赖，需要先注释掉，否则会影响MockMvc生成json

<!-- alibaba的druid数据库连接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.0</version>
        </dependency>

2.需要新增的Pom.xml参数如下

<!-- 一些参数 -->
<properties>
    <java.version>1.8</java.version>
    <swagger2markup.version>1.2.0</swagger2markup.version>
    <asciidoctor.input.directory>${project.basedir}/src/docs/asciidoc</asciidoctor.input.directory>

    <swagger.output.dir>${project.build.directory}/swagger</swagger.output.dir>
    <swagger.snippetOutput.dir>${project.build.directory}/asciidoc/snippets</swagger.snippetOutput.dir>
    <generated.asciidoc.directory>${project.build.directory}/asciidoc/generated</generated.asciidoc.directory>
    <asciidoctor.html.output.directory>${project.build.directory}/asciidoc/html</asciidoctor.html.output.directory>
    <asciidoctor.pdf.output.directory>${project.build.directory}/asciidoc/pdf</asciidoctor.pdf.output.directory>

    <swagger.input>${swagger.output.dir}/swagger.json</swagger.input>
</properties>

<!-- 首先是两个远程仓库 -->
<pluginRepositories>
    <pluginRepository>
        <id>jcenter-snapshots</id>
        <name>jcenter</name>
        <url>http://oss.jfrog.org/artifactory/oss-snapshot-local/</url>
    </pluginRepository>
    <pluginRepository>
        <id>jcenter-releases</id>
        <name>jcenter</name>
        <url>http://jcenter.bintray.com</url>
        <snapshots>
            <enabled>false</enabled>
        </snapshots>
    </pluginRepository>
</pluginRepositories>

<repositories>
    <repository>
        <id>jcentral</id>
        <name>bintray</name>
        <url>http://jcenter.bintray.com</url>
        <snapshots>
            <enabled>false</enabled>
        </snapshots>
    </repository>
    <repository>
        <id>jcenter-snapshots</id>
        <name>jcenter</name>
        <url>http://oss.jfrog.org/artifactory/oss-snapshot-local/</url>
    </repository>
</repositories>

<!-- 以下用于生成adoc文件的配置 -->
<plugin>
    <groupId>io.github.swagger2markup</groupId>
    <artifactId>swagger2markup-maven-plugin</artifactId>
    <version>${swagger2markup.version}</version>
    <dependencies>
        <dependency>
            <groupId>io.github.swagger2markup</groupId>
            <artifactId>swagger2markup-import-files-ext</artifactId>
            <version>${swagger2markup.version}</version>
        </dependency>
        <dependency>
            <groupId>io.github.swagger2markup</groupId>
            <artifactId>swagger2markup-spring-restdocs-ext</artifactId>
            <version>${swagger2markup.version}</version>
        </dependency>
    </dependencies>
    <configuration>
        <swaggerInput>${swagger.input}</swaggerInput>
        <outputDir>${generated.asciidoc.directory}</outputDir>
        <config>
            <swagger2markup.markupLanguage>ASCIIDOC</swagger2markup.markupLanguage>
            <swagger2markup.pathsGroupedBy>TAGS</swagger2markup.pathsGroupedBy>
            <swagger2markup.extensions.dynamicOverview.contentPath>${project.basedir}/src/docs/asciidoc/extensions/overview</swagger2markup.extensions.dynamicOverview.contentPath>
            <swagger2markup.extensions.dynamicDefinitions.contentPath>${project.basedir}/src/docs/asciidoc/extensions/definitions</swagger2markup.extensions.dynamicDefinitions.contentPath>
            <swagger2markup.extensions.dynamicPaths.contentPath>${project.basedir}/src/docs/asciidoc/extensions/paths</swagger2markup.extensions.dynamicPaths.contentPath>
            <swagger2markup.extensions.dynamicSecurity.contentPath>${project.basedir}src/docs/asciidoc/extensions/security/</swagger2markup.extensions.dynamicSecurity.contentPath>

            <swagger2markup.extensions.springRestDocs.snippetBaseUri>${swagger.snippetOutput.dir}</swagger2markup.extensions.springRestDocs.snippetBaseUri>
            <swagger2markup.extensions.springRestDocs.defaultSnippets>true</swagger2markup.extensions.springRestDocs.defaultSnippets>
        </config>
    </configuration>
    <executions>
        <execution>
            <phase>test</phase>
            <goals>
                <goal>convertSwagger2markup</goal>
            </goals>
        </execution>
    </executions>
</plugin>
<!-- 以下配置用于生成html和pdf -->
<plugin>
    <groupId>org.asciidoctor</groupId>
    <artifactId>asciidoctor-maven-plugin</artifactId>
    <version>1.5.3</version>
    <dependencies>
        <dependency>
            <groupId>org.asciidoctor</groupId>
            <artifactId>asciidoctorj-pdf</artifactId>
            <version>1.5.0-alpha.10.1</version>
        </dependency>
        <dependency>
            <groupId>org.jruby</groupId>
            <artifactId>jruby-complete</artifactId>
            <version>1.7.21</version>
        </dependency>
    </dependencies>
    <configuration>
        <sourceDirectory>${asciidoctor.input.directory}</sourceDirectory>
        <sourceDocumentName>index.adoc</sourceDocumentName>
        <attributes>
            <doctype>book</doctype>
            <toc>left</toc>
            <toclevels>3</toclevels>
            <numbered></numbered>
            <hardbreaks></hardbreaks>
            <sectlinks></sectlinks>
            <sectanchors></sectanchors>
            <generated>${generated.asciidoc.directory}</generated>
        </attributes>
    </configuration>
    <executions>
        <execution>
            <id>output-html</id>
            <phase>test</phase>
            <goals>
                <goal>process-asciidoc</goal>
            </goals>
            <configuration>
                <backend>html5</backend>
                <outputDirectory>${asciidoctor.html.output.directory}</outputDirectory>
            </configuration>
        </execution>

        <execution>
            <id>output-pdf</id>
            <phase>test</phase>
            <goals>
                <goal>process-asciidoc</goal>
            </goals>
            <configuration>
                <backend>pdf</backend>
                <outputDirectory>${asciidoctor.pdf.output.directory}</outputDirectory>
            </configuration>
        </execution>
    </executions>
</plugin>

-新增测试类---------------

在test目录下新增/Swagger2Markup/Swagger2MarkupTest.java 用来生成Swagger.json文件

package com.htsc.aimap.Swagger2Markup;

import com.htsc.aimap.HtscAimapApplication;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

import org.springframework.mock.web.MockHttpServletResponse;
import org.springframework.test.web.servlet.MockMvc;
import org.springframework.test.web.servlet.MvcResult;
import org.springframework.boot.test.autoconfigure.web.servlet.AutoConfigureMockMvc;
import org.springframework.test.context.junit4.SpringRunner;
import org.springframework.http.MediaType;
import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.get;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;
import java.io.BufferedWriter;

import java.nio.charset.StandardCharsets;
import java.nio.file.Files;

import java.nio.file.Paths;



@RunWith(SpringJUnit4ClassRunner.class)//指定运行器。也可以不标注，会使用默认运行器。
@SpringBootTest(classes = HtscAimapApplication.class)// 指定spring-boot的启动类
@AutoConfigureMockMvc

public class Swagger2MarkupTest {
    @Autowired
    private MockMvc mockMvc;

    @Test
    public void createSpringfoxSwaggerJson() throws Exception {
        //String designFirstSwaggerLocation = Swagger2MarkupTest.class.getResource("/swagger.yaml").getPath();

        String outputDir = System.getProperty("io.springfox.staticdocs.outputDir");
        MvcResult mvcResult = this.mockMvc.perform(get("/v2/api-docs")
                .accept(MediaType.APPLICATION_JSON))
                .andExpect(status().isOk())
                .andReturn();

        MockHttpServletResponse response = mvcResult.getResponse();
        String swaggerJson = response.getContentAsString();
        Files.createDirectories(Paths.get(outputDir));
        try (BufferedWriter writer = Files.newBufferedWriter(Paths.get(outputDir, "swagger.json"), StandardCharsets.UTF_8)){
            writer.write(swaggerJson);
        }
    }


}

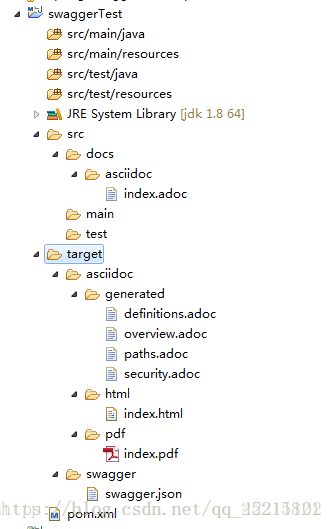

最后运行Maven Test，（所有测试类都要运行通过）就可以看到下图文件
