1、环境：

操作系统：win10 64 位
数据库：mysql 5.5.62
IDEA：2019.2
java:jdk1.8
maven:3.6.1,构建本地仓库，添加阿里镜像（国内下载速度快），settings.xml如下：

<?xml version="1.0" encoding="UTF-8"?>

<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
          xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
          xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">

  <localRepository>G:\apache-maven-3.6.1\repository</localRepository>

  <pluginGroups>
  </pluginGroups>
  <proxies>
  </proxies>
  <servers>
  </servers>

  <mirrors>
	<mirror>
     <id>nexus-aliyun</id>
     <name>nexus-aliyun</name>
      <url>http://maven.aliyun.com/nexus/content/groups/public</url>
      <mirrorOf>central</mirrorOf>
 </mirror>
  </mirrors>

  <profiles>
  </profiles>
</settings>

2、新建springboot项目

建完工程，把application.properties 重命名为application.yml

建立完成后，pom.xml 内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>springdemo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>springdemo</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
 <!--     jdbc-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <!--     thymeleaf-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <!--     spring-boot-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <!--     mybatis-->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.3</version>
        </dependency>


<!--        mysql-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
<!--        测试-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
<!--                单元测试-->
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
<!--        jpa-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
    </dependencies>

    <build>
<!--        插件-->
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

3、建库建表，并配置数据源

登录数据库，建库建表（数据库名 test 表名 user ,表中3列：id、userName、passWord）

create database test default charset utf8;

create table user
(
    id  int(20)  primary key auto_increment ,
    userName varchar(30)  null,
    passWord varchar(30)  null
)engine=innodb charset=utf8;

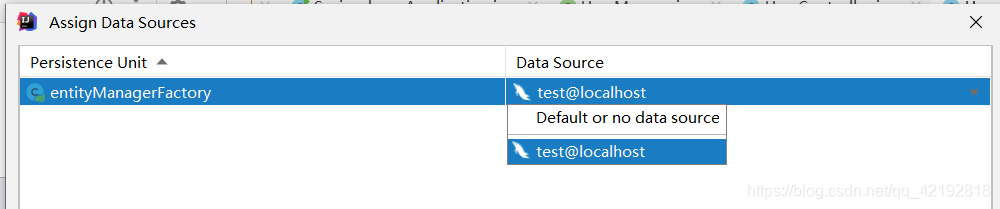

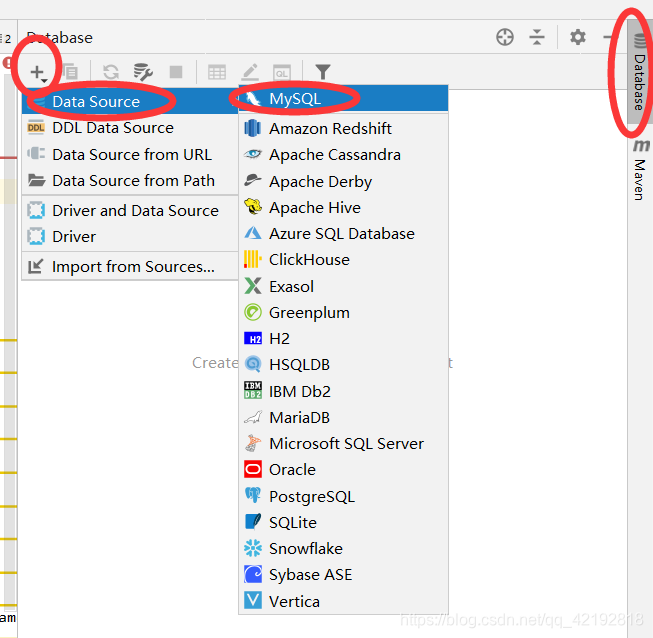

添加Mysql数据源

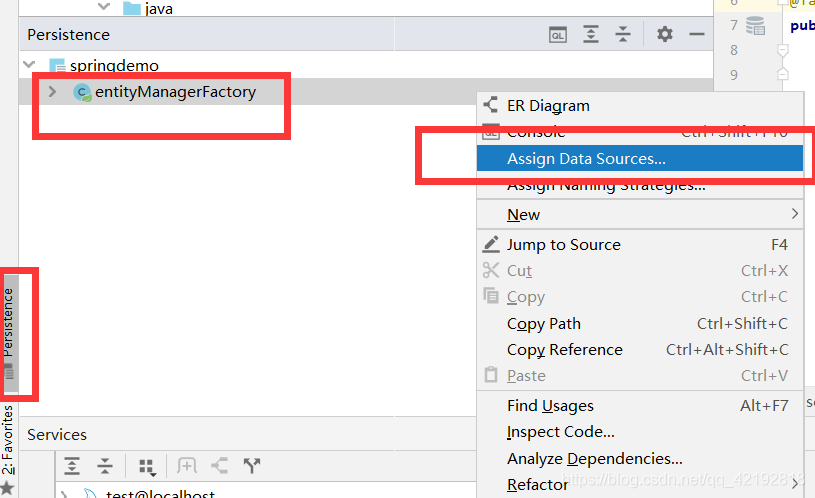

配置数据源：

application.yml配置数据库和持久化：

server:
  port: 8082
spring:
  #数据库相关配置
  datasource:
    url: jdbc:mysql://localhost:3306/test?characterEncoding=utf8&serverTimezone=UTC
    username: root
    password: 123456
    driver-class-name: com.mysql.jdbc.Driver
  jpa:
    database: mysql
    show-sql: true
#mybatis依赖
mybatis:
  type-aliases-package: com.example.springdemo.domain
  #驼峰命名
  configuration:
    map-underscore-to-camel-case: true

4、创建实体类、Mapper接口、controller类：

实体类User:

package com.example.springdemo.domain;

import javax.persistence.*;

@Entity
@Table(name="user")
public class User {
    @Id
    @GeneratedValue(strategy = GenerationType.AUTO)
    private int id;
    private String userName;
    private  String passWord;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getPassWord() {
        return passWord;
    }

    public void setPassWord(String passWord) {
        this.passWord = passWord;
    }
}

Mapper接口：

package com.example.springdemo.mapper;

import com.example.springdemo.domain.User;
import org.apache.ibatis.annotations.Select;

//不使用xml ，采用全注解的形式
import java.util.List;

public interface UserMapper {
    @Select("select * from user")
    List<User> findAll();

}

Controller类：

package com.example.springdemo.controller;

import com.example.springdemo.domain.User;
import com.example.springdemo.mapper.UserMapper;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
public class UserController {
    @Autowired
    UserMapper userMapper;
@RequestMapping("/fAUs")
    public List<User> findAllUser(){
    return userMapper.findAll();
}
}

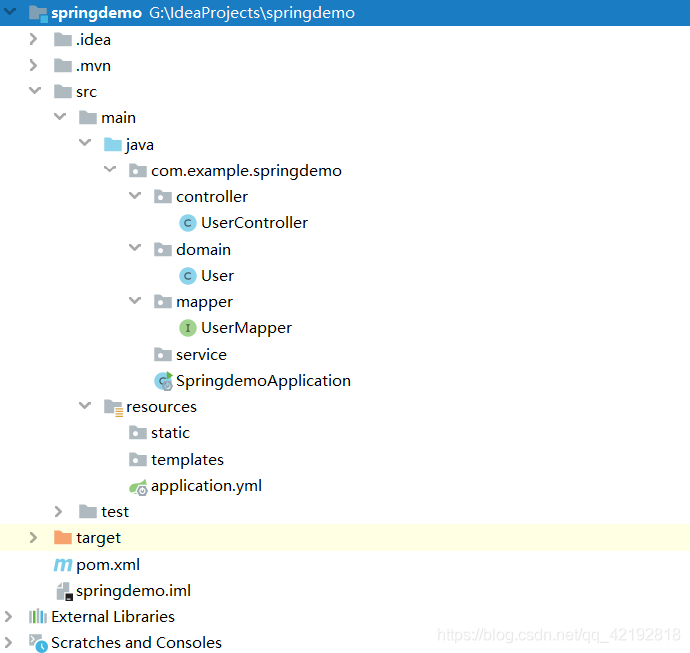

项目整体工程结构图如下：

5、测试

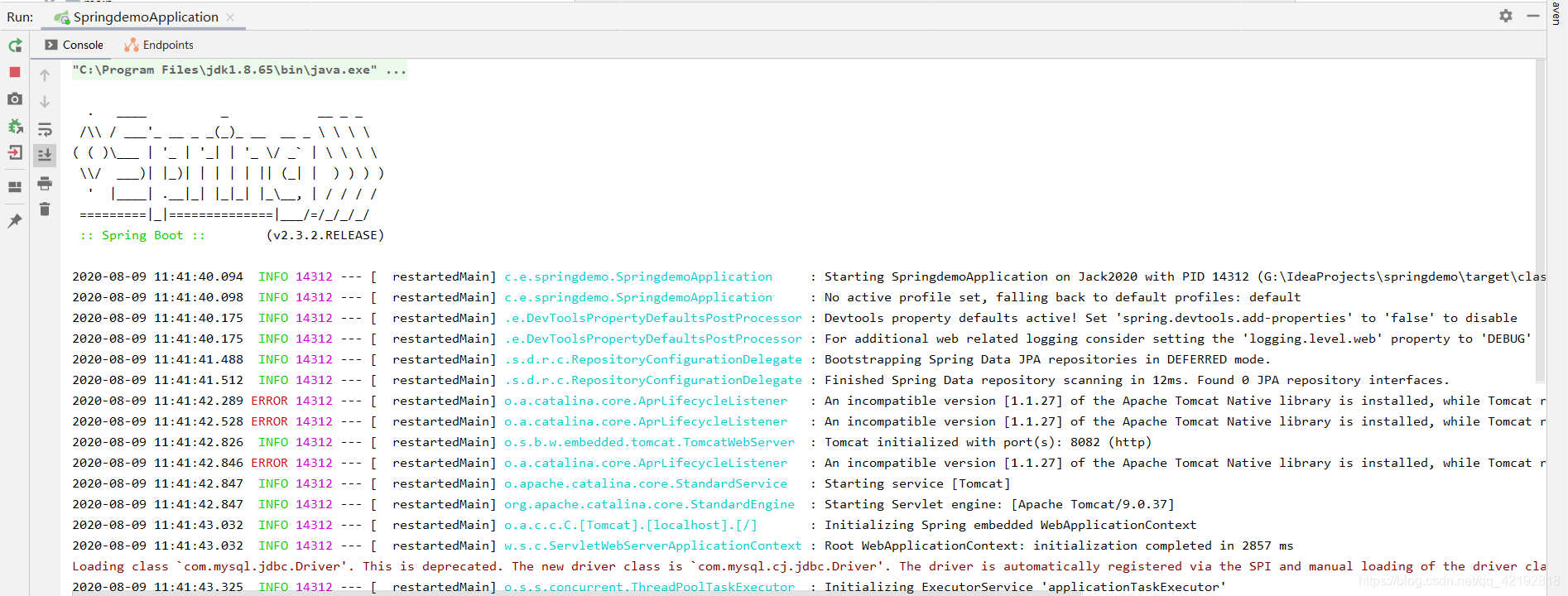

运行springboot项目：

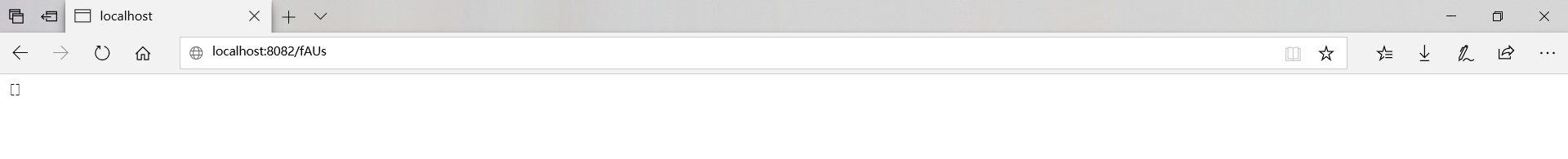

地址栏输入：localhost:8082/fAUs 回车，返回的数据库查询结果（未插入过数据，所以为空）

6、注意：

SpringdemoApplication要加注解：@MapperScan(value = "com.example.springdemo.mapper")，或者在UserMapper接口上加@Mapper注解。
