基于IDEA的SSM框架搭建

目录

一、环境搭建

1.创建Maven项目

2.pom.xml文件导入依赖

3.连接数据库

​4.创建xml文件

5.核心配置文件applicationContext.xml

​二、Mybatis配置

三、spring配置

四、springMVC配置

1.将项目变为web项目

2.配置tomcat服务器

3.将lib包导入

4.配置spring-mvc.xml文件

5.applicationContext.xml文件中进行整合

6.配置web.xml文件

五、测试

1.pojo

2.dao

3.service

4.Controller

5.前端页面

六、排错

1.前端转接错误

2.字符转换错误

3.配置文件导入错误

4.无法连接数据库

引用

---

一、环境搭建

1.创建Maven项目

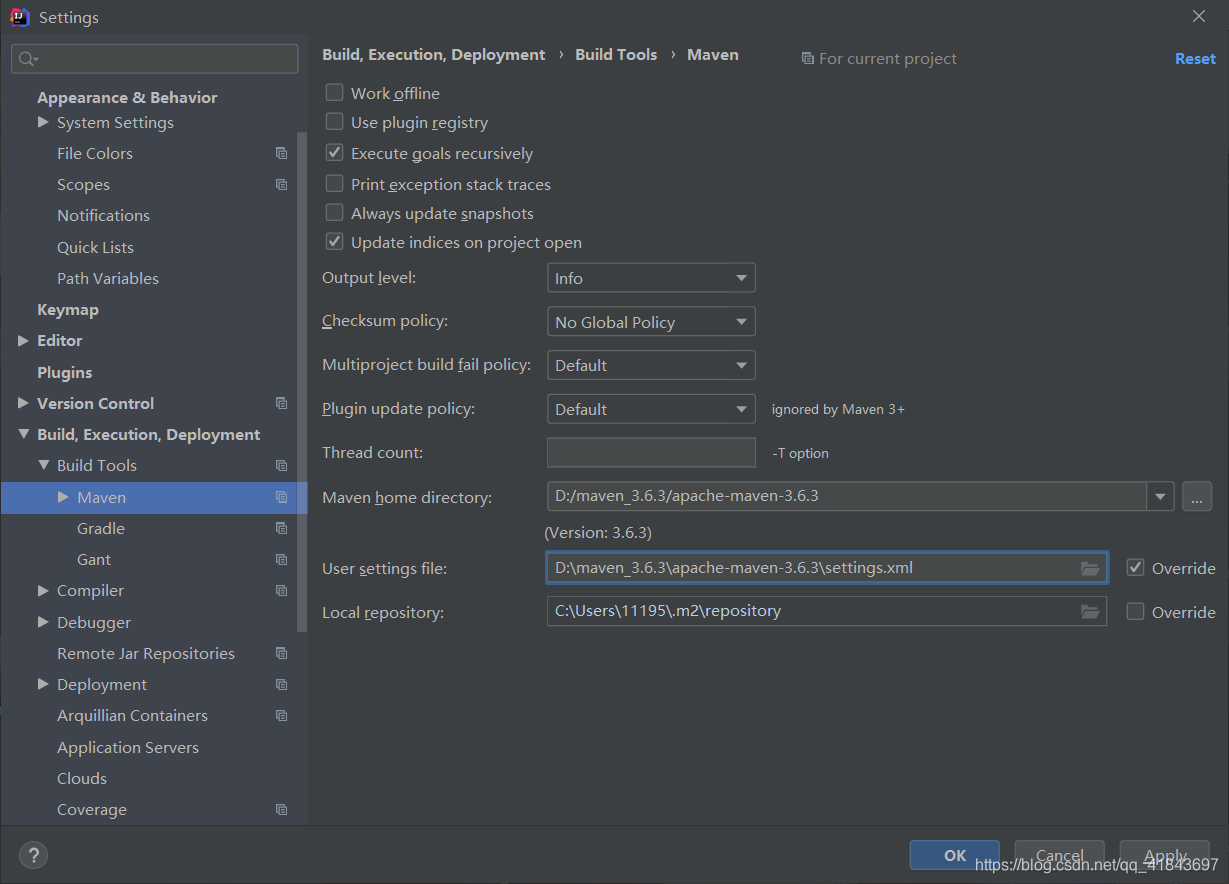

创建Maven项目，配置Maven仓库：

2.pom.xml文件导入依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>ssm2</artifactId>
    <version>1.0-SNAPSHOT</version>
    <!--依赖导入:junit、数据库驱动、连接池、servlet、jsp、mybatis、mybatis-spring、spring-->

    <dependencies>
        <!--junit-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
        <!--数据库驱动-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.46</version>
        </dependency>
        <!--数据库连接池-->
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.2</version>
        </dependency>
        <!--servlet jsp-->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>javax.servlet.jsp-api</artifactId>
            <version>2.3.1</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>
        <!--mybatis-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.2</version>
        </dependency>
        <!--mybatis-spring-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.2</version>
        </dependency>
        <!--spring-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.1.10.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.1.10.RELEASE</version>
        </dependency>
        <!--lombok组件,idea需要先安装对应插件-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.12</version>
        </dependency>
    </dependencies>

    <!--静态资源导出-->
    <build>
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>
    </build>
</project>

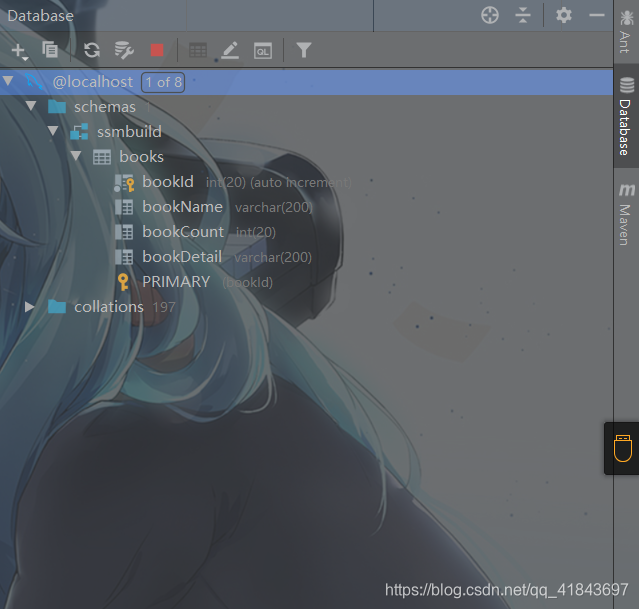

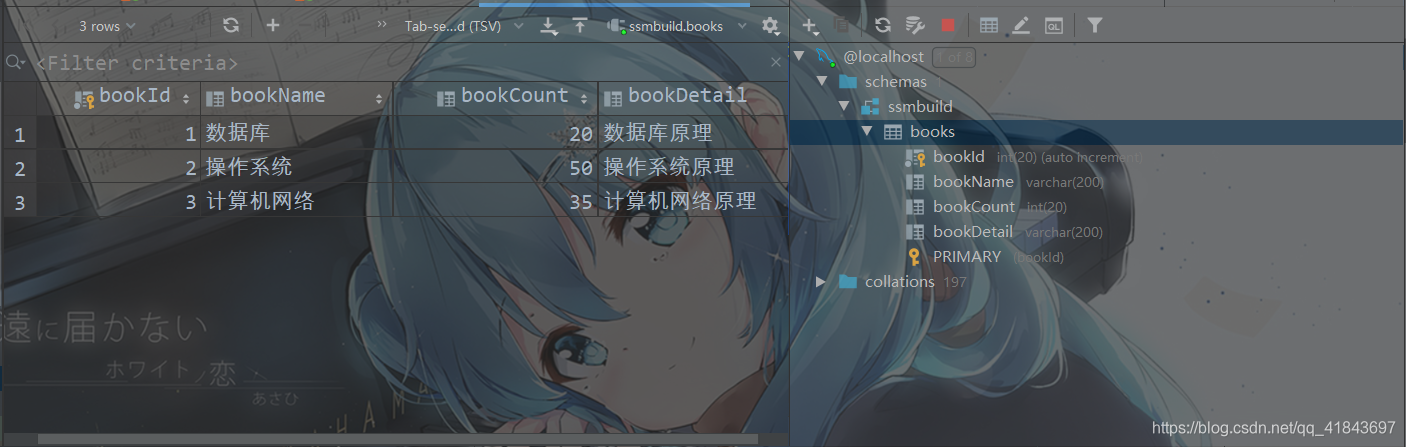

3.连接数据库

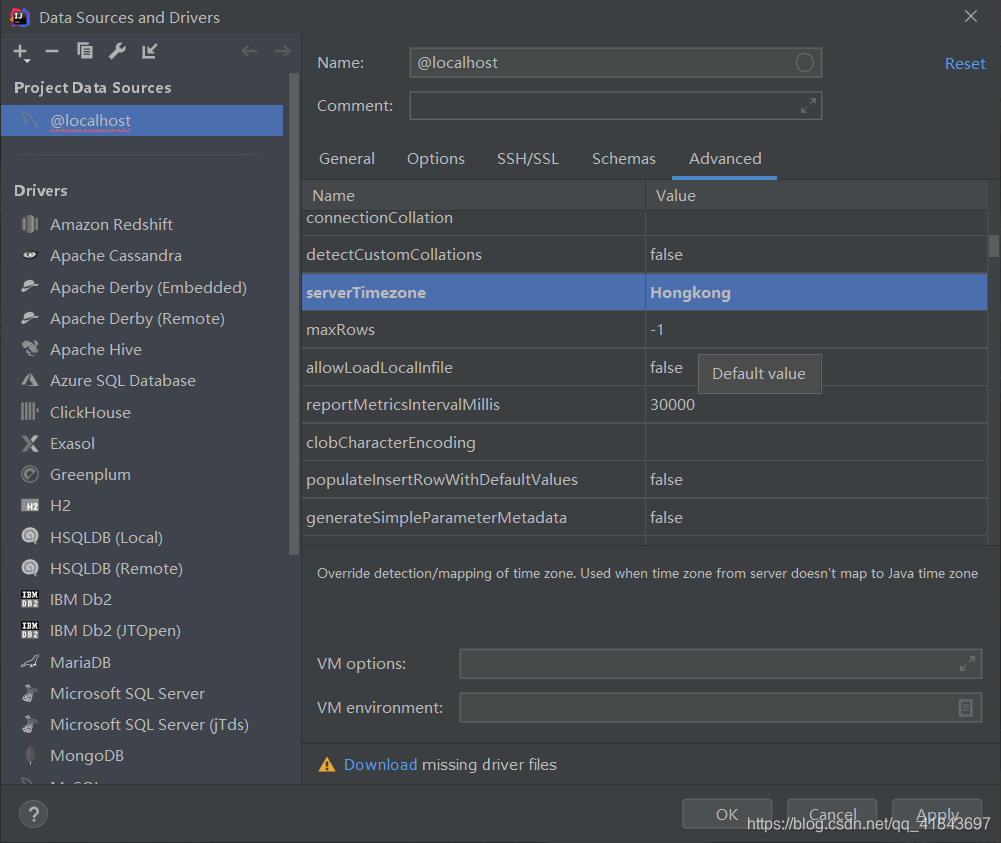

配置时区：

注意：大小写问题

4.创建xml文件

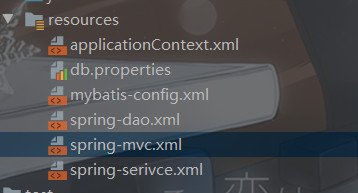

六个xml文件：db.properties、appliactionContext.xml、mybatis-config.xml、spring-dao.xml、spring-service.xml、spring-mvc.xml

5.核心配置文件applicationContext.xml

<?xml version="1.0" encoding="UTF8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        https://ww
