需求：

1、一个播放器能支持以下两个渠道的视频流播放
2、支持多个视频播放
3、样式统一

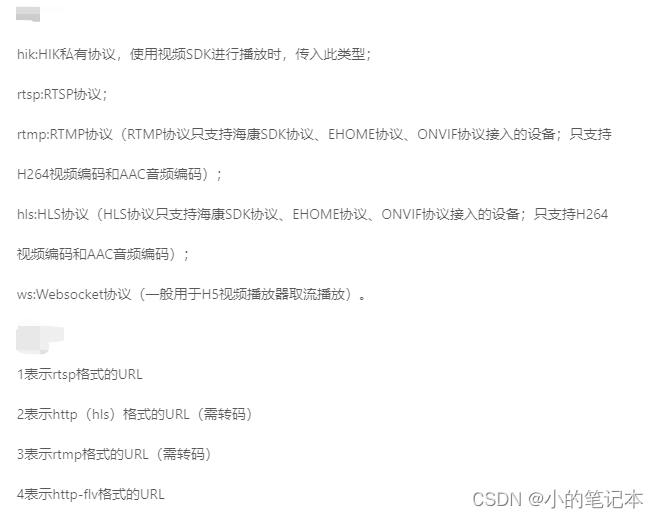

在这里插入图片描述

本地插件播放器客户不喜欢，浏览器能直接播放的不能支持多路负载(卡顿)

多种播放格式里最终选择了hls和flv作为网页播放的取流格式

使用到的包有 flv.js，hls.js

npm install flv.js hls.js

flv播放器

flvVideo.vue

<template>
  <div id="flvVideo" class="flv-video">
    <video
      :id="this.videoData.camera_id"
      :style="'width: 100%; height:100%;object-fit: fill'"
      controls
      autoplay
      muted
    ></video>
  </div>
</template>

<script>
//=> 引入flv.js
import flvjs from "flv.js";
export default {
  name: "flvVideo",
  data() {
    return {
      videoData: {},
      player: null,
      videoElement: null,
    };
  },
  props: {
    item: Object,
  },
  watch: {
    item: {
      // 每个属性值发生变化就会调用这个函数
      handler(newVal, oldVal) {
        console.log(oldVal);
        this.videoData = newVal;
        // 这里延迟只是为了等待页面内容加载，另外做点卡顿效果，实际上根据需求优化这里就好了
        setTimeout(() => {
          this.startPlay();
        }, 1000);
      },
      // 立即处理 进入页面就触发
      immediate: true,
      // 深度监听 属性的变化
      deep: true,
    },
  },
  methods: {
    //视频浏览
    startPlay() {
      if (flvjs.isSupported()) {
        this.videoElement = document.getElementById(this.videoData.camera_id);
        this.player = flvjs.createPlayer({
          type: "flv", //=> 媒体类型 flv 或 mp4
          isLive: true, //=> 是否为直播流
          hasAudio: false, //=> 是否开启声音
          url: this.videoData.flv_address, //=> 视频流地址
        });
        this.player.attachMediaElement(this.videoElement); //=> 绑DOM
        this.player.load();
        this.player.play();
      } else {
        console.log("flvjs不支持");
      }
    },
  },
};
</script>

<style>
.flv-video {
  object-fit: fill;
  display: inline-block;
}
</style>

hls播放器

hlsVideo.vue

<template>
  <div id="app-container" class="hls-video" style="display: inline-block">
    <video
      ref="videoElement"
      :src="videoData.flv_address"
      :id="videoData.camera_id"
      controls
      muted
      :style="'width: 100%; height:100%;object-fit: fill'"
    ></video>
  </div>
</template>

<script>
import hlsjs from "hls.js";
export default {
  name: "hlsVideo",
  components: {},
  data() {
    return {
      videoUrl: "", //这里书写路径，例
      videoData: {},
      video: null,
      hlsjs: null,
    };
  },
  props: {
    item: Object,
  },
  watch: {
    item: {
      // 每个属性值发生变化就会调用这个函数
      handler(newVal, oldVal) {
        console.log(oldVal);
        this.videoData = newVal;
        // 这里延迟只是为了等待页面内容加载，另外做点卡顿效果，实际上根据需求优化这里就好了
        setTimeout(() => {
          this.show();
        }, 1000);
      },
      // 立即处理 进入页面就触发
      immediate: true,
      // 深度监听 属性的变化
      deep: true,
    },
  },
  methods: {
    //播放
    show() {
      this.video = document.getElementById(this.videoData.camera_id); //定义挂载点
      console.log(this.video);
      if (hlsjs.isSupported()) {
        this.hlsjs = new hlsjs();
        this.hlsjs.loadSource(this.videoData.flv_address); //设置播放路径
        this.hlsjs.attachMedia(this.video); //解析到video标签上
        console.log(this.hlsjs);
        this.hlsjs.on(hlsjs.Events.MANIFEST_PARSED, () => {
          this.video.play();
          console.log("加载成功");
        });
        this.hlsjs.on(hlsjs.Events.ERROR, (event, data) => {
          console.log(event, data);
          // 监听出错事件
          console.log("加载失败");
        });
      } else {
        this.$message.error("不支持的格式");
        return;
      }
    },
    //停止播放
    closeVideo() {
      if (this.hlsjs) {
        this.video.pause();
        this.hlsjs.destroy();
        this.hlsjs = null;
        this.$emit("closeVideo");
      }
    },
  },
};
</script>

<style>
.hls-video {
  object-fit: fill;
  display: inline-block;
}
</style>

整合两个播放器

index.vue

<template>
  <div id="videoPage">
    <div class="list">
      <div class="title">Flv列表</div>
      <div class="item">
        <div class="item-title">
          唯一Key：<input type="text" v-model="flvObj.camera_id" />
        </div>
        <div class="item-content">
          视频地址：<input type="text" v-model="flvObj.flv_address" />
        </div>
        <button @click="flvAddFn">添加</button>
      </div>
      <div class="item scrollbar" v-for="(item, index) in itemFlvList" :key="index">
        <div class="item-title">唯一Key：{{ item.camera_id }}</div>
        <div class="item-content">视频地址：{{ item.flv_address }}</div>
      </div>
    </div>
    <div class="list">
      <div class="title">Hls列表</div>
      <div class="item">
        <div class="item-title">
          唯一Key：<input type="text" v-model="hlsObj.camera_id" />
        </div>
        <div class="item-content">
          视频地址：<input type="text" v-model="hlsObj.flv_address" />
        </div>
        <button @click="hlsAddFn">添加</button>
      </div>
      <div class="item scrollbar" v-for="(item, index) in itemHlsList" :key="index">
        <div class="item-title">唯一Key：{{ item.camera_id }}</div>
        <div class="item-content">视频地址：{{ item.flv_address }}</div>
      </div>
    </div>
    <!-- 通过 v-if 会移出 DOM 实现刷新部分组件 -->
    <div v-if="loading" :class="'video-card ' + isInRanges(itemFlvList.length + itemHlsList.length)">
      <template v-for="(item, index) in itemFlvList">
        <flv-video :item="item" :key="'flv' + index" class="video-item-card"></flv-video>
      </template>
      <template v-for="(item, index) in itemHlsList">
        <hls-video :item="item" :key="'hls' + index"  class="video-item-card"></hls-video>
      </template>
      <div class="video-item-card" v-for="item in (isInRangesCount(itemFlvList.length + itemHlsList.length) - itemFlvList.length - itemHlsList.length)" :key="item"></div>
    </div>
    <!-- <follower></follower> -->
  </div>
</template>

<script>
import flvVideo from "./components/flvVideo";
import hlsVideo from "./components/hlsVideo";
export default {
  name: "videoPage",
  data() {
    return {
      flvAddBool: false,
      hlsAddBool: false,
      flvObj: {
        camera_id: "flv",
        flv_address: "",
      },
      hlsObj: {
        camera_id: "hls",
        flv_address: "",
      },
      itemFlvList: [
        // {
        //   camera_id: "flv0",
        //   flv_address: "http://ivi.bupt.edu.cn/flv/7182741-1.flv",
        // },
      ],
      itemHlsList: [
        // {
        //   camera_id: "hls0",
        //   flv_address: "https://sf1-cdn-tos.huoshanstatic.com/obj/media-fe/xgplayer_doc_video/hls/xgplayer-demo.m3u8",
        // },
      ],
      loading: true,
    };
  },
  components: {
    flvVideo,
    hlsVideo
  },
  methods: {
    flvAddFn() {
      if (this.flvObj.flv_address != "") {
        this.flvObj.camera_id = "flv" + this.itemFlvList.length;
        this.itemFlvList.push({ ...this.flvObj });
      }
    },
    hlsAddFn() {
      if (this.hlsObj.flv_address != "") {
        this.hlsObj.camera_id = "hls" + this.itemHlsList.length;
        this.itemHlsList.push({ ...this.hlsObj });
      }
    },
    // 自定义分屏，支持多个播放
    isInRanges(num) {
      if (num === 0) {
        return 'video-count-1';
      } else if (num === 1) {
        return 'video-count-1';
      } else if (num >= 2 && num <= 4) {
        return 'video-count-4';
      } else if (num >= 5 && num <= 6) {
        return 'video-count-6';
      } else if (num >= 7 && num <= 9) {
        return 'video-count-9';
      } else if (num >= 10 && num <= 16) {
        return 'video-count-16';
      } else if (num >= 17 && num <= 25) {
        return 'video-count-25';
      } else {
        return 'video-count-25';
      }
    },
    isInRangesCount(num) {
      if (num === 0) {
        return 1
      } else if (num === 1) {
        return 1
      } else if (num >= 2 && num <= 4) {
        return 4
      } else if (num >= 5 && num <= 6) {
        return 6
      } else if (num >= 7 && num <= 9) {
        return 9
      } else if (num >= 10 && num <= 16) {
        return 16
      } else if (num >= 17 && num <= 25) {
        return 25
      } else {
        return false
      }
    },
  },
};
</script>

<style scoped>
.video-card {
  width: 1500px;
  height: 900px;
  background: #000;
  margin: 20px auto;
  display: flex;
  flex-wrap: wrap;
}
.list {
  width: 100%;
  max-height: 200px;
  overflow-y: auto;
  padding: 10px;
  border-radius: 6px;
  box-shadow: 0px 0px 6px 2px #858585;
  margin-bottom: 10px;
  box-sizing: border-box;
}
.list .title {
  font-weight: bold;
  line-height: 2;
}
.list .item {
  display: flex;
}
.list .item .item-title {
  min-width: 200px;
  margin-right: 40px;
}
.video-item-card {
  border: 1px solid #858585;
  box-sizing: border-box;
}
.video-count-1 .video-item-card {
  width: 100%;
  height: 100%;
}
.video-count-4 .video-item-card {
  width: 50%;
  height: 50%;
}
.video-count-6 .video-item-card {
  width: calc(100% / 3);
  height: calc(100% / 2);
}
.video-count-9 .video-item-card {
  width: calc(100% / 3);
  height: calc(100% / 3);
}
.video-count-16 .video-item-card {
  width: 25%;
  height: 25%;
}
.video-count-25 .video-item-card {
  width: 20%;
  height: 20%;
}
.scrollbar::-webkit-scrollbar {
  /*滚动条整体样式*/
  width: 2px; /*高宽分别对应横竖滚动条的尺寸*/
  height: 2px;
}
.scrollbar::-webkit-scrollbar-thumb {
  /*滚动条里面小方块*/
  border-radius: 2px;
  -webkit-box-shadow: inset 0 0 2px rgba(101, 183, 255, 0.5);
  background: rgba(101, 183, 255, 0.5);
}
.scrollbar::-webkit-scrollbar-track {
  /*滚动条里面轨道*/
  -webkit-box-shadow: inset 0 0 2px rgba(101, 183, 255, 0.5);
  border-radius: 2px;
  background: transparent;
}
</style>
