kd> ed nt!Kd_DEFAULT_Mask 0xFFFFFFFF
kd> ed nt!Kd_IHVDRIVER_Mask 0xFFFFFFFF
kd> g
[+] [DriverEntry] 驱动加载开始
[+] [DriverEntry] 驱动加载成功
[+] [ProcessNotifyCallback] 目标进程 oxygen.exe 创建 (PID: 8052)
[+] [ProcessNotifyCallback] 工作线程已创建
[+] Worker thread started for hook installation on PID: 8052
Break instruction exception - code 80000003 (first chance)
obpcallback!InstallHook+0x50:
fffff803`0e2a12f0 cc int 3
kd> g
[+] [InstallHook] 找到目标函数地址: FFFFF803062EFB60
[
PTE_HOOK] 开始隔离页面: PID=8052, 地址=0xFFFFF803062EFB60
[
PTE_HOOK] 正在拆分大页: 输入
PDE=0xa00000002a001a1, 输出
PDE=0xFFFFBB878EFA3F80
[
PTE_HOOK] 大页拆分完成: 新
PTE表物理地址=0x239dab000
[
PTE_HOOK] G-Bit Info:
Align Address: 0xFFFFF803062EF000
IsLargePage: 1
PDE: 0xa00000002a000a1 (Address: 0xFFFFFE7F3E00C188)
[
PTE_HOOK] 清除大页G位:
PDE=0xa00000002a000a1
[
PTE_HOOK] 开始隔离页表: CR3=0x12e16c000, 地址=0xFFFFF803062EF000
KDTARGET: Refreshing KD connection
*** Fatal System Error: 0x0000007e
(0xFFFFFFFFC0000005,0xFFFFF8030E2A2265,0xFFFF80031C95B638,0xFFFF80031C95AE70)
Break instruction exception - code 80000003 (first chance)
A fatal system error has occurred.
Debugger entered on first try; Bugcheck callbacks have not been invoked.
A fatal system error has occurred.
For analysis of this file, run !analyze -v
nt!DbgBreakPointWithStatus:
fffff803`05ffd0b0 cc int 3
kd> !analyze -v
Connected to Windows 10 19041 x64 target at (Wed Jul 9 20:20:01.053 2025 (UTC + 8:00)), ptr64 TRUE
Loading Kernel Symbols
...................................
Press ctrl-c (cdb, kd, ntsd) or ctrl-break (windbg) to abort symbol loads that take too long.
Run !sym noisy before .reload to track down problems loading symbols.
............................
................................................................
.....................................................
Loading User Symbols
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
Loading unloaded module list
......
ERROR: FindPlugIns 8007007b
*******************************************************************************
* *
* Bugcheck Analysis *
* *
*******************************************************************************
SYSTEM_THREAD_EXCEPTION_NOT_HANDLED (7e)
This is a very common BugCheck. Usually the exception address pinpoints
the driver/function that caused the problem. Always note this address
as well as the link date of the driver/image that contains this address.
Arguments:
Arg1: ffffffffc0000005, The exception code that was not handled
Arg2: fffff8030e2a2265, The address that the exception occurred at
Arg3: ffff80031c95b638, Exception Record Address
Arg4: ffff80031c95ae70, Context Record Address
Debugging Details:
------------------
Press ctrl-c (cdb, kd, ntsd) or ctrl-break (windbg) to abort symbol loads that take too long.
Run !sym noisy before .reload to track down problems loading symbols.
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
PEB is paged out (Peb.Ldr = 00000000`00259018). Type ".hh dbgerr001" for details
KEY_VALUES_STRING: 1
Key : AV.Type
Value: Read
Key : Analysis.CPU.mSec
Value: 4234
Key : Analysis.Elapsed.mSec
Value: 39170
Key : Analysis.IO.Other.Mb
Value: 0
Key : Analysis.IO.Read.Mb
Value: 2
Key : Analysis.IO.Write.Mb
Value: 0
Key : Analysis.Init.CPU.mSec
Value: 3250
Key : Analysis.Init.Elapsed.mSec
Value: 59417
Key : Analysis.Memory.CommitPeak.Mb
Value: 72
Key : Analysis.Version.DbgEng
Value: 10.0.27829.1001
Key : Analysis.Version.Description
Value: 10.2503.24.01 amd64fre
Key : Analysis.Version.Ext
Value: 1.2503.24.1
Key : Bugcheck.Code.KiBugCheckData
Value: 0x7e
Key : Bugcheck.Code.LegacyAPI
Value: 0x7e
Key : Bugcheck.Code.TargetModel
Value: 0x7e
Key : Failure.Bucket
Value: AV_obpcallback!
PteHookManager::fn_isolation_pagetable
Key : Failure.Exception.Code
Value: 0xc0000005
Key : Failure.Exception.IP.Address
Value: 0xfffff8030e2a2265
Key : Failure.Exception.IP.Module
Value: obpcallback
Key : Failure.Exception.IP.Offset
Value: 0x2265
Key : Failure.Exception.Record
Value: 0xffff80031c95b638
Key : Failure.Hash
Value: {03bbd39e-299b-91b8-212d-d002a6bff650}
Key : Hypervisor.Enlightenments.Value
Value: 12576
Key : Hypervisor.Enlightenments.ValueHex
Value: 0x3120
Key : Hypervisor.Flags.AnyHypervisorPresent
Value: 1
Key : Hypervisor.Flags.ApicEnlightened
Value: 0
Key : Hypervisor.Flags.ApicVirtualizationAvailable
Value: 0
Key : Hypervisor.Flags.AsyncMemoryHint
Value: 0
Key : Hypervisor.Flags.CoreSchedulerRequested
Value: 0
Key : Hypervisor.Flags.CpuManager
Value: 0
Key : Hypervisor.Flags.DeprecateAutoEoi
Value: 1
Key : Hypervisor.Flags.DynamicCpuDisabled
Value: 0
Key : Hypervisor.Flags.Epf
Value: 0
Key : Hypervisor.Flags.ExtendedProcessorMasks
Value: 0
Key : Hypervisor.Flags.HardwareMbecAvailable
Value: 0
Key : Hypervisor.Flags.MaxBankNumber
Value: 0
Key : Hypervisor.Flags.MemoryZeroingControl
Value: 0
Key : Hypervisor.Flags.NoExtendedRangeFlush
Value: 1
Key : Hypervisor.Flags.NoNonArchCoreSharing
Value: 0
Key : Hypervisor.Flags.Phase0InitDone
Value: 1
Key : Hypervisor.Flags.PowerSchedulerQos
Value: 0
Key : Hypervisor.Flags.RootScheduler
Value: 0
Key : Hypervisor.Flags.SynicAvailable
Value: 1
Key : Hypervisor.Flags.UseQpcBias
Value: 0
Key : Hypervisor.Flags.Value
Value: 536632
Key : Hypervisor.Flags.ValueHex
Value: 0x83038
Key : Hypervisor.Flags.VpAssistPage
Value: 1
Key : Hypervisor.Flags.VsmAvailable
Value: 0
Key : Hypervisor.RootFlags.AccessStats
Value: 0
Key : Hypervisor.RootFlags.CrashdumpEnlightened
Value: 0
Key : Hypervisor.RootFlags.CreateVirtualProcessor
Value: 0
Key : Hypervisor.RootFlags.DisableHyperthreading
Value: 0
Key : Hypervisor.RootFlags.HostTimelineSync
Value: 0
Key : Hypervisor.RootFlags.HypervisorDebuggingEnabled
Value: 0
Key : Hypervisor.RootFlags.IsHyperV
Value: 0
Key : Hypervisor.RootFlags.LivedumpEnlightened
Value: 0
Key : Hypervisor.RootFlags.Ma
pDeviceInterrupt
Value: 0
Key : Hypervisor.RootFlags.MceEnlightened
Value: 0
Key : Hypervisor.RootFlags.Nested
Value: 0
Key : Hypervisor.RootFlags.StartLogicalProcessor
Value: 0
Key : Hypervisor.RootFlags.Value
Value: 0
Key : Hypervisor.RootFlags.ValueHex
Value: 0x0
Key : SecureKernel.HalpHvciEnabled
Value: 0
Key : WER.OS.Branch
Value: vb_release
Key : WER.OS.Version
Value: 10.0.19041.1
BUGCHECK_CODE: 7e
BUGCHECK_P1: ffffffffc0000005
BUGCHECK_P2: fffff8030e2a2265
BUGCHECK_P3: ffff80031c95b638
BUGCHECK_P4: ffff80031c95ae70
FAULTING_THREAD: ffffbb8793f90080
EXCEPTION_RECORD: ffff80031c95b638 -- (.exr 0xffff80031c95b638)
ExceptionAddress: fffff8030e2a2265 (obpcallback!
PteHookManager::fn_isolation_pagetable+0x0000000000000315)
ExceptionCode: c0000005 (Access violation)
ExceptionFlags: 00000000
NumberParameters: 2
Parameter[0]: 0000000000000000
Parameter[1]: 0000000239dab000
Attempt to read from address 0000000239dab000
CONTEXT: ffff80031c95ae70 -- (.cxr 0xffff80031c95ae70)
rax=0000000239dab000 rbx=ffffbb8793f90080 rcx=0000000000001000
rdx=0000000000000000 rsi=0000000239dab000 rdi=ffff9181d99a7000
rip=fffff8030e2a2265 rsp=ffff80031c95b870 rbp=0000000000000080
r8=ffff80031c95b940 r9=8000000000000200 r10=0000000000000000
r11=ffffbb8790910000 r12=0000000000000280 r13=0000000000000000
r14=ffffbb878f4af040 r15=fffff8030c094000
iopl=0 nv up ei pl nz ac po nc
cs=0010 ss=0018 ds=002b es=002b fs=0053 gs=002b efl=00050216
obpcallback!
PteHookManager::fn_isolation_pagetable+0x315:
fffff803`0e2a2265 f3a4 rep movs byte ptr [rdi],byte ptr [rsi]
Resetting default scope
PROCESS_NAME: oxygen.exe
READ_ADDRESS: unable to get nt!PspSessionIdBitmap
0000000239dab000
ERROR_CODE: (NTSTATUS) 0xc0000005 - 0x%p 0x%p %s
EXCEPTION_CODE_STR: c0000005
EXCEPTION_PARAMETER1: 0000000000000000
EXCEPTION_PARAMETER2: 0000000239dab000
EXCEPTION_STR: 0xc0000005
STACK_TEXT:
ffff8003`1c95b870 fffff803`0e2a1da1 : ffffbb87`8efa7000 00000001`2e16c000 fffff803`062ef000 ffffbb87`8efa3f80 : obpcallback!
PteHookManager::fn_isolation_pagetable+0x315 [C:\Users\17116\source\repos\obpcallback\obpcallback\Ô´.cpp @ 526]
ffff8003`1c95b9c0 fffff803`0e2a25df : ffffbb87`8efa7000 00000000`00001f74 fffff803`062efb60 00000000`00000035 : obpcallback!
PteHookManager::fn_isolation_pages+0x261 [C:\Users\17116\source\repos\obpcallback\obpcallback\Ô´.cpp @ 602]
ffff8003`1c95bad0 fffff803`0e2a1344 : ffffbb87`8efa7000 00000000`00001f74 ffff8003`1c95bbb0 fffff803`0e2a1500 : obpcallback!
PteHookManager::fn_
pte_inline_hook_bp_pg+0x4f [C:\Users\17116\source\repos\obpcallback\obpcallback\Ô´.cpp @ 723]
ffff8003`1c95bb90 fffff803`0e2a13d4 : fffff803`0e2a44a0 00000000`00001f74 00000000`00000000 fffff803`040ef180 : obpcallback!InstallHook+0xa4 [C:\Users\17116\source\repos\obpcallback\obpcallback\Ô´.cpp @ 982]
ffff8003`1c95bbe0 fffff803`05ea29a5 : 00000000`00001f74 fffff803`0e2a13a0 00000000`00001f74 fffff803`00000001 : obpcallback!InstallHookWorker+0x34 [C:\Users\17116\source\repos\obpcallback\obpcallback\Ô´.cpp @ 1010]
ffff8003`1c95bc10 fffff803`05ffc868 : fffff803`040ef180 ffffbb87`93f90080 fffff803`05ea2950 ffff8003`1c95bc80 : nt!PspSystemThreadStartup+0x55
ffff8003`1c95bc60 00000000`00000000 : ffff8003`1c95c000 ffff8003`1c956000 00000000`00000000 00000000`00000000 : nt!KiStartSystemThread+0x28
FAULTING_SOURCE_LINE: C:\Users\17116\source\repos\obpcallback\obpcallback\Ô´.cpp
FAULTING_SOURCE_FILE: C:\Users\17116\source\repos\obpcallback\obpcallback\Ô´.cpp
FAULTING_SOURCE_LINE_NUMBER: 526
FAULTING_SOURCE_CODE:
522: memcpy(Va4kb, replace_align_addr, PAGE_SIZE);
523:
524: if (Table.IsLargePage && split_
pde_ptr) {
525: auto split_
pde = (decltype(PAGE_TABLE::
PdeAddress))split_
pde_ptr;
> 526: memcpy(VaPt, (void*)(split_
pde->flags.page_frame_number << 12), PAGE_SIZE);
527: }
528: else {
529: memcpy(VaPt, (void*)(Table.
PdeAddress->flags.page_frame_number << 12), PAGE_SIZE);
530: }
531:
SYMBOL_NAME: obpcallback!
PteHookManager::fn_isolation_pagetable+315
MODULE_NAME: obpcallback
IMAGE_NAME: obpcallback.sys
STACK_COMMAND: .cxr 0xffff80031c95ae70 ; kb
BUCKET_ID_FUNC_OFFSET: 315
FAILURE_BUCKET_ID: AV_obpcallback!
PteHookManager::fn_isolation_pagetable
OS_VERSION: 10.0.19041.1
BUILDLAB_STR: vb_release
OSPLATFORM_TYPE: x64
OSNAME: Windows 10
FAILURE_ID_HASH: {03bbd39e-299b-91b8-212d-d002a6bff650}
Followup: MachineOwner
---------按照你改的结果出错了。代码如下：#include <ntifs.h>
#include <ntddk.h>
#include <intrin.h>
#include "
ptehook.h"
#define CR0_WP (1 << 16)
HANDLE targetProcessId = NULL;
typedef INT(*LDE_DISASM)(PVOID address, INT bits);
typedef unsigned long DWORD;
typedef unsigned __int64 ULONG64;
// 使用WDK标准类型
typedef unsigned char BYTE;
typedef LONG NTSTATUS;
// 修正后的跳转指令结构
#pragma pack(push, 1)
typedef struct _JMP_ABS {
BYTE opcode[6]; // FF 25 00 00 00 00
ULONG64 address; // 8字节绝对地址
} JMP_ABS, * PJMP_ABS;
#pragma pack(pop)
LDE_DISASM lde_disasm;
// 初始化引擎
VOID lde_init()
{
lde_disasm = (LDE_DISASM)ExAllocatePool(NonPagedPool, 12800);
memcpy(lde_disasm, szShellCode, 12800);
}
// 得到完整指令长度,避免截断
ULONG GetFullPatchSize(PUCHAR Address)
{
ULONG LenCount = 0, Len = 0;
// 至少需要14字节
while (LenCount <= 14)
{
Len = lde_disasm(Address, 64);
Address = Address + Len;
LenCount = LenCount + Len;
}
return LenCount;
}
#define PROCESS_NAME_LENGTH 16
#define DRIVER_TAG 'HKOB'
EXTERN_C char* PsGetProcessImageFileName(PEPROCESS process);
char target_process_name[] = "oxygen.exe";
typedef NTSTATUS(*fn_ObReferenceObjectByHandleWithTag)(
HANDLE Handle,
ACCESS_MASK DesiredAccess,
POBJECT_TYPE ObjectType,
KPROCESSOR_MODE AccessMode,
ULONG Tag,
PVOID* Object,
POBJECT_HANDLE_INFORMATION HandleInformation
);
fn_ObReferenceObjectByHandleWithTag g_OriginalObReferenceObjectByHandleWithTag = NULL;
//
PTE Hook Framework
#define MAX_G_BIT_RECORDS 128
#define MAX_HOOK_COUNT 64
#define PAGE_ALIGN(va) ((PVOID)((ULONG_PTR)(va) & ~0xFFF))
#define PD
PTE_PS_BIT (1 << 7)
#define
PDE_PS_BIT (1 << 7)
#define
PTE_NX_BIT (1ULL << 63)
#define CACHE_WB (6ULL << 3)

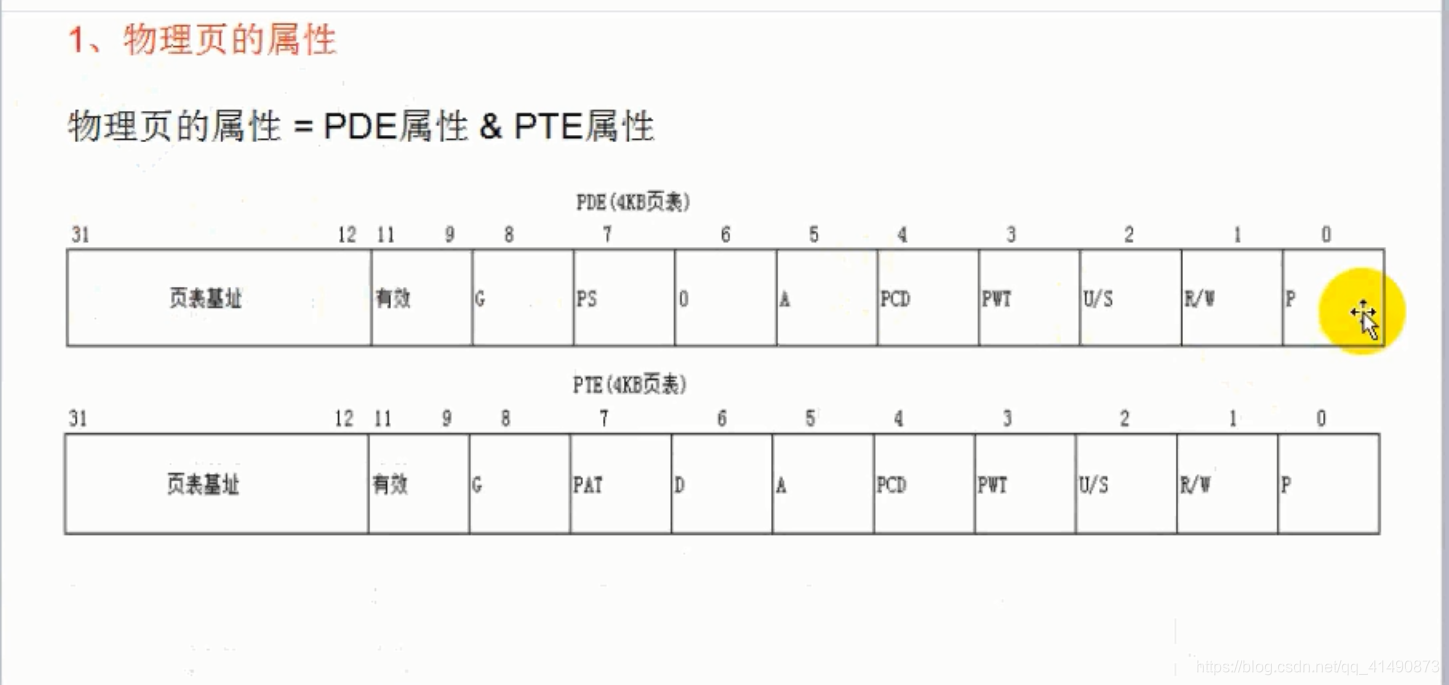

// 页表结构定义
typedef struct _PAGE_TABLE {
UINT64 LineAddress;
union {
struct {
UINT64 present : 1;
UINT64 write : 1;
UINT64 user : 1;
UINT64 write_through : 1;
UINT64 cache_disable : 1;
UINT64 accessed : 1;
UINT64 dirty : 1;
UINT64 pat : 1;
UINT64 global : 1;
UINT64 ignored_1 : 3;
UINT64 page_frame_number : 36;
UINT64 reserved_1 : 4;
UINT64 ignored_2 : 7;
UINT64 protection_key : 4;
UINT64 execute_disable : 1;
} flags;
UINT64 value;
}*
PteAddress;
union {
struct {
UINT64 present : 1;
UINT64 write : 1;
UINT64 user : 1;
UINT64 write_through : 1;
UINT64 cache_disable : 1;
UINT64 accessed : 1;
UINT64 dirty : 1;
UINT64 large_page : 1;
UINT64 global : 1;
UINT64 ignored_2 : 3;
UINT64 page_frame_number : 36;
UINT64 reserved_1 : 4;
UINT64 ignored_3 : 7;
UINT64 protection_key : 4;
UINT64 execute_disable : 1;
} flags;
UINT64 value;
}*
PdeAddress;
union {
struct {
UINT64 present : 1;
UINT64 write : 1;
UINT64 user : 1;
UINT64 write_through : 1;
UINT64 cache_disable : 1;
UINT64 accessed : 1;
UINT64 ignored_1 : 1;
UINT64 page_size : 1;
UINT64 ignored_2 : 4;
UINT64 page_frame_number : 36;
UINT64 reserved_1 : 4;
UINT64 ignored_3 : 7;
UINT64 protection_key : 4;
UINT64 execute_disable : 1;
} flags;
UINT64 value;
}*Pd
pteAddress;
UINT64* Pml4Address;
BOOLEAN IsLargePage;
BOOLEAN Is1GBPage;
UINT64 Original
Pte;
UINT64 Original
Pde;
UINT64 OriginalPd
pte;
UINT64 OriginalPml4e;
HANDLE ProcessId;
} PAGE_TABLE, * PPAGE_TABLE;
// G位信息记录结构体
typedef struct _G_BIT_INFO {
void* AlignAddress;
union {
struct {
UINT64 present : 1;
UINT64 write : 1;
UINT64 user : 1;
UINT64 write_through : 1;
UINT64 cache_disable : 1;
UINT64 accessed : 1;
UINT64 dirty : 1;
UINT64 large_page : 1;
UINT64 global : 1;
UINT64 ignored_2 : 3;
UINT64 page_frame_number : 36;
UINT64 reserved_1 : 4;
UINT64 ignored_3 : 7;
UINT64 protection_key : 4;
UINT64 execute_disable : 1;
} flags;
UINT64 value;
}*
PdeAddress;
union {
struct {
UINT64 present : 1;
UINT64 write : 1;
UINT64 user : 1;
UINT64 write_through : 1;
UINT64 cache_disable : 1;
UINT64 accessed : 1;
UINT64 dirty : 1;
UINT64 pat : 1;
UINT64 global : 1;
UINT64 ignored_1 : 3;
UINT64 page_frame_number : 36;
UINT64 reserved_1 : 4;
UINT64 ignored_2 : 7;
UINT64 protection_key : 4;
UINT64 execute_disable : 1;
} flags;
UINT64 value;
}*
PteAddress;
BOOLEAN IsLargePage;
} G_BIT_INFO, * PG_BIT_INFO;
typedef struct _HOOK_INFO {
void* OriginalAddress;
void* HookAddress;
UINT8 OriginalBytes[20];
UINT8 HookBytes[20];
UINT32 HookLength;
BOOLEAN IsHooked;
HANDLE ProcessId;
union {
struct {
UINT64 present : 1;
UINT64 write : 1;
UINT64 user : 1;
UINT64 write_through : 1;
UINT64 cache_disable : 1;
UINT64 accessed : 1;
UINT64 dirty : 1;
UINT64 pat : 1;
UINT64 global : 1;
UINT64 ignored_1 : 3;
UINT64 page_frame_number : 36;
UINT64 reserved_1 : 4;
UINT64 ignored_2 : 7;
UINT64 protection_key : 4;
UINT64 execute_disable : 1;
} flags;
UINT64 value;
}*Hooked
Pte;
union {
struct {
UINT64 present : 1;
UINT64 write : 1;
UINT64 user : 1;
UINT64 write_through : 1;
UINT64 cache_disable : 1;
UINT64 accessed : 1;
UINT64 dirty : 1;
UINT64 large_page : 1;
UINT64 global : 1;
UINT64 ignored_2 : 3;
UINT64 page_frame_number : 36;
UINT64 reserved_1 : 4;
UINT64 ignored_3 : 7;
UINT64 protection_key : 4;
UINT64 execute_disable : 1;
} flags;
UINT64 value;
}*Hooked
Pde;
} HOOK_INFO;
class
PteHookManager {
public:
bool fn_
pte_inline_hook_bp_pg(HANDLE process_id, _Inout_ void** ori_addr, void* hk_addr);
bool fn_remove_hook(HANDLE process_id, void* hook_addr);
static
PteHookManager* GetInstance();
HOOK_INFO* GetHookInfo() { return m_HookInfo; }
char* GetTrampLinePool() { return m_TrampLinePool; }
UINT32 GetHookCount() { return m_HookCount; }
bool fn_resume_global_bits(void* align_addr);
~
PteHookManager(); // 添加析构函数声明
private:
bool WriteTrampolineInstruction(void* trampoline, const JMP_ABS& jmpCmd);
void fn_add_g_bit_info(void* align_addr, void*
pde_address, void*
pte_address);
bool fn_isolation_pagetable(UINT64 cr3_val, void* replace_align_addr, void* split_
pde);
bool fn_isolation_pages(HANDLE process_id, void* ori_addr);
bool fn_split_large_pages(void* in_
pde, void* out_
pde);
NTSTATUS get_page_table(UINT64 cr3, PAGE_TABLE& table);
void* fn_pa_to_va(UINT64 pa);
UINT64 fn_va_to_pa(void* va);
__forceinline KIRQL DisableWriteProtection();
__forceinline void EnableWriteProtection(KIRQL oldIrql);
void logger(const char* info, bool is_err, LONG err_code = 0);
void PrintPageTableInfo(const PAGE_TABLE& table);
void PrintHookInfo(const HOOK_INFO& hookInfo);
void PrintGBitInfo(const G_BIT_INFO& gbitInfo);
static constexpr SIZE_T MAX_HOOKS = 256; // 根据需求调整
G_BIT_INFO m_GbitRecords[MAX_G_BIT_RECORDS];
UINT32 m_GbitCount = 0;
void* m_
PteBase = 0;
HOOK_INFO m_HookInfo[MAX_HOOK_COUNT] = { 0 };
DWORD m_HookCount = 0;
char* m_TrampLinePool = nullptr; // 合并为
一个声明
UINT32 m_PoolUsed = 0;
static
PteHookManager* m_Instance;
};
PteHookManager*
PteHookManager::m_Instance = nullptr;
// 实现部分
__forceinline KIRQL
PteHookManager::DisableWriteProtection() {
KIRQL oldIrql = KeRaiseIrqlToDpcLevel();
UINT64 cr0 = __readcr0();
__writecr0(cr0 & ~0x10000); // 清除CR0.WP位
_mm_mfence();
return oldIrql;
}
__forceinline void
PteHookManager::EnableWriteProtection(KIRQL oldIrql) {
_mm_mfence();
UINT64 cr0 = __readcr0();
__writecr0(cr0 | 0x10000); // 设置CR0.WP位
KeLowerIrql(oldIrql);
}
void
PteHookManager::logger(const char* info, bool is_err, LONG err_code) {
if (is_err) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_ERROR_LEVEL,
"[
PTE_HOOK] ERROR: %s (0x%X)\n", info, err_code);
}
else {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] INFO: %s\n", info);
}
}
void
PteHookManager::PrintPageTableInfo(const PAGE_TABLE& table) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] Page Table Info for VA: 0x%p\n", (void*)table.LineAddress);
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
" PML4E: 0x%llx (Address: 0x%p)\n", table.OriginalPml4e, table.Pml4Address);
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
" PD
PTE: 0x%llx (Address: 0x%p), Is1GBPage: %d\n",
table.OriginalPd
pte, table.Pd
pteAddress, table.Is1GBPage);
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"
PDE: 0x%llx (Address: 0x%p), IsLargePage: %d\n",
table.Original
Pde, table.
PdeAddress, table.IsLargePage);
if (!table.IsLargePage && !table.Is1GBPage) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"
PTE: 0x%llx (Address: 0x%p)\n", table.Original
Pte, table.
PteAddress);
}
}
void
PteHookManager::PrintHookInfo(const HOOK_INFO& hookInfo) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] Hook Info:\n");
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
" Original Address: 0x%p\n", hookInfo.OriginalAddress);
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
" Hook Address: 0x%p\n", hookInfo.HookAddress);
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
" Hook Length: %d\n", hookInfo.HookLength);
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
" Is Hooked: %d\n", hookInfo.IsHooked);
// 打印原始字节
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, " Original Bytes: ");
for (UINT32 i = 0; i < sizeof(hookInfo.OriginalBytes); i++) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "%02X ", hookInfo.OriginalBytes[i]);
}
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "\n");
// 打印Hook字节
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, " Hook Bytes: ");
for (UINT32 i = 0; i < sizeof(hookInfo.HookBytes); i++) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "%02X ", hookInfo.HookBytes[i]);
}
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "\n");
}
void
PteHookManager::PrintGBitInfo(const G_BIT_INFO& gbitInfo) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] G-Bit Info:\n");
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
" Align Address: 0x%p\n", gbitInfo.AlignAddress);
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
" IsLargePage: %d\n", gbitInfo.IsLargePage);
if (gbitInfo.
PdeAddress) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"
PDE: 0x%llx (Address: 0x%p)\n", gbitInfo.
PdeAddress->value, gbitInfo.
PdeAddress);
}
if (gbitInfo.
PteAddress) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"
PTE: 0x%llx (Address: 0x%p)\n", gbitInfo.
PteAddress->value, gbitInfo.
PteAddress);
}
}
void*
PteHookManager::fn_pa_to_va(UINT64 pa) {
PHYSICAL_ADDRESS physAddr;
physAddr.QuadPart = pa;
return MmGetVirtualForPhysical(physAddr);
}
UINT64
PteHookManager::fn_va_to_pa(void* va) {
PHYSICAL_ADDRESS physAddr = MmGetPhysicalAddress(va);
return physAddr.QuadPart;
}
NTSTATUS
PteHookManager::get_page_table(UINT64 cr3_val, PAGE_TABLE& table) {
UINT64 va = table.LineAddress;
UINT64 pml4e_index = (va >> 39) & 0x1FF;
UINT64 pd
pte_index = (va >> 30) & 0x1FF;
UINT64
pde_index = (va >> 21) & 0x1FF;
UINT64
pte_index = (va >> 12) & 0x1FF;
// PML4
UINT64 pml4_pa = cr3_val & ~0xFFF;
UINT64* pml4_va = (UINT64*)fn_pa_to_va(pml4_pa);
if (!pml4_va) return STATUS_INVALID_ADDRESS;
table.Pml4Address = &pml4_va[pml4e_index];
table.OriginalPml4e = *table.Pml4Address;
if (!(table.OriginalPml4e & 1)) return STATUS_ACCESS_VIOLATION;
// PD
PTE
UINT64 pd
pte_pa = table.OriginalPml4e & ~0xFFF;
UINT64* pd
pte_va = (UINT64*)fn_pa_to_va(pd
pte_pa);
if (!pd
pte_va) return STATUS_INVALID_ADDRESS;
table.Pd
pteAddress = (decltype(table.Pd
pteAddress))&pd
pte_va[pd
pte_index];
table.OriginalPd
pte = table.Pd
pteAddress->value;
table.Is1GBPage = (table.Pd
pteAddress->flags.page_size) ? TRUE : FALSE;
if (!(table.OriginalPd
pte & 1)) return STATUS_ACCESS_VIOLATION;
if (table.Is1GBPage) return STATUS_SUCCESS;
//
PDE
UINT64
pde_pa = table.OriginalPd
pte & ~0xFFF;
UINT64*
pde_va = (UINT64*)fn_pa_to_va(
pde_pa);
if (!
pde_va) return STATUS_INVALID_ADDRESS;
table.
PdeAddress = (decltype(table.
PdeAddress))&
pde_va[
pde_index];
table.Original
Pde = table.
PdeAddress->value;
table.IsLargePage = (table.
PdeAddress->flags.large_page) ? TRUE : FALSE;
if (!(table.Original
Pde & 1)) return STATUS_ACCESS_VIOLATION;
if (table.IsLargePage) return STATUS_SUCCESS;
//
PTE
UINT64
pte_pa = table.Original
Pde & ~0xFFF;
UINT64*
pte_va = (UINT64*)fn_pa_to_va(
pte_pa);
if (!
pte_va) return STATUS_INVALID_ADDRESS;
table.
PteAddress = (decltype(table.
PteAddress))&
pte_va[
pte_index];
table.Original
Pte = table.
PteAddress->value;
if (!(table.Original
Pte & 1)) return STATUS_ACCESS_VIOLATION;
// 打印页表信息
PrintPageTableInfo(table);
return STATUS_SUCCESS;
}
bool
PteHookManager::fn_split_large_pages(void* in_
pde_ptr, void* out_
pde_ptr) {
auto in_
pde = (decltype(PAGE_TABLE::
PdeAddress))in_
pde_ptr;
auto out_
pde = (decltype(PAGE_TABLE::
PdeAddress))out_
pde_ptr;
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] 正在拆分大页: 输入
PDE=0x%llx, 输出
PDE=0x%p\n",
in_
pde->value, out_
pde);
PHYSICAL_ADDRESS LowAddr = { 0 }, HighAddr = { 0 };
HighAddr.QuadPart = MAXULONG64;
auto pt = (decltype(PAGE_TABLE::
PteAddress))MmAllocateContiguousMemorySpecifyCache(
PAGE_SIZE, LowAddr, HighAddr, LowAddr, MmNonCached);
if (!pt) {
logger("分配连续
内存失败 (用于拆分大页)", true);
return false;
}
UINT64 start_pfn = in_
pde->flags.page_frame_number;
for (int i = 0; i < 512; i++) {
pt[i].value = 0;
pt[i].flags.present = 1;
pt[i].flags.write = in_
pde->flags.write;
pt[i].flags.user = in_
pde->flags.user;
pt[i].flags.write_through = in_
pde->flags.write_through;
pt[i].flags.cache_disable = in_
pde->flags.cache_disable;
pt[i].flags.accessed = in_
pde->flags.accessed;
pt[i].flags.dirty = in_
pde->flags.dirty;
pt[i].flags.global = 0;
pt[i].flags.page_frame_number = start_pfn + i;
}
out_
pde->value = in_
pde->value;
out_
pde->flags.large_page = 0;
out_
pde->flags.page_frame_number = fn_va_to_pa(pt) >> 12;
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] 大页拆分完成: 新
PTE表物理地址=0x%llx\n", fn_va_to_pa(pt));
return true;
}
bool
PteHookManager::fn_isolation_pagetable(UINT64 cr3_val, void* replace_align_addr, void* split_
pde_ptr) {
PHYSICAL_ADDRESS LowAddr = { 0 }, HighAddr = { 0 };
HighAddr.QuadPart = MAXULONG64;
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] 开始隔离页表: CR3=0x%llx, 地址=0x%p\n",
cr3_val, replace_align_addr);
auto Va4kb = (UINT64*)MmAllocateContiguousMemorySpecifyCache(PAGE_SIZE, LowAddr, HighAddr, LowAddr, MmNonCached);
auto VaPt = (UINT64*)MmAllocateContiguousMemorySpecifyCache(PAGE_SIZE, LowAddr, HighAddr, LowAddr, MmNonCached);
auto VaPdt = (UINT64*)MmAllocateContiguousMemorySpecifyCache(PAGE_SIZE, LowAddr, HighAddr, LowAddr, MmNonCached);
auto VaPdpt = (UINT64*)MmAllocateContiguousMemorySpecifyCache(PAGE_SIZE, LowAddr, HighAddr, LowAddr, MmNonCached);
if (!VaPt || !Va4kb || !VaPdt || !VaPdpt) {
if (VaPt) MmFreeContiguousMemory(VaPt);
if (Va4kb) MmFreeContiguousMemory(Va4kb);
if (VaPdt) MmFreeContiguousMemory(VaPdt);
if (VaPdpt) MmFreeContiguousMemory(VaPdpt);
logger("分配连续
内存失败 (用于隔离页表)", true);
return false;
}
PAGE_TABLE Table = { 0 };
Table.LineAddress = (UINT64)replace_align_addr;
NTSTATUS status = get_page_table(cr3_val, Table);
if (!NT_SUCCESS(status)) {
MmFreeContiguousMemory(VaPt);
MmFreeContiguousMemory(Va4kb);
MmFreeContiguousMemory(VaPdt);
MmFreeContiguousMemory(VaPdpt);
logger("获取页表信息失败", true, status);
return false;
}
UINT64
pte_index = (Table.LineAddress >> 12) & 0x1FF;
UINT64
pde_index = (Table.LineAddress >> 21) & 0x1FF;
UINT64 pd
pte_index = (Table.LineAddress >> 30) & 0x1FF;
UINT64 pml4e_index = (Table.LineAddress >> 39) & 0x1FF;
memcpy(Va4kb, replace_align_addr, PAGE_SIZE);
if (Table.IsLargePage && split_
pde_ptr) {
auto split_
pde = (decltype(PAGE_TABLE::
PdeAddress))split_
pde_ptr;
memcpy(VaPt, (void*)(split_
pde->flags.page_frame_number << 12), PAGE_SIZE);
}
else {
memcpy(VaPt, (void*)(Table.
PdeAddress->flags.page_frame_number << 12), PAGE_SIZE);
}
memcpy(VaPdt, (void*)(Table.Pd
pteAddress->flags.page_frame_number << 12), PAGE_SIZE);
memcpy(VaPdpt, (void*)(Table.Pml4Address[pml4e_index] & ~0xFFF), PAGE_SIZE);
auto new_
pte = (decltype(PAGE_TABLE::
PteAddress))VaPt;
new_
pte[
pte_index].flags.page_frame_number = fn_va_to_pa(Va4kb) >> 12;
auto new_
pde = (decltype(PAGE_TABLE::
PdeAddress))VaPdt;
new_
pde[
pde_index].value = Table.Original
Pde;
new_
pde[
pde_index].flags.large_page = 0;
new_
pde[
pde_index].flags.page_frame_number = fn_va_to_pa(VaPt) >> 12;
auto new_pd
pte = (decltype(PAGE_TABLE::Pd
pteAddress))VaPdpt;
new_pd
pte[pd
pte_index].flags.page_frame_number = fn_va_to_pa(VaPdt) >> 12;
auto new_pml4 = (UINT64*)fn_pa_to_va(cr3_val & ~0xFFF);
new_pml4[pml4e_index] = (new_pml4[pml4e_index] & 0xFFF) | (fn_va_to_pa(VaPdpt) & ~0xFFF);
__invlpg(replace_align_addr);
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] 页表隔离完成: 新PFN=0x%llx\n", fn_va_to_pa(Va4kb) >> 12);
return true;
}
bool
PteHookManager::fn_isolation_pages(HANDLE process_id, void* ori_addr) {
PEPROCESS Process;
if (!NT_SUCCESS(PsLookupProcessByProcessId(process_id, &Process))) {
logger("查找进程失败", true);
return false;
}
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] 开始隔离页面: PID=%d, 地址=0x%p\n",
(ULONG)(ULONG_PTR)process_id, ori_addr);
KAPC_STATE ApcState;
KeStackAttachProcess(Process, &ApcState);
void* AlignAddr = PAGE_ALIGN(ori_addr);
PAGE_TABLE Table = { 0 };
Table.LineAddress = (UINT64)AlignAddr;
UINT64 target_cr3 = *(UINT64*)((UCHAR*)Process + 0x28);
if (!NT_SUCCESS(get_page_table(target_cr3, Table))) {
KeUnstackDetachProcess(&ApcState);
ObDereferenceObject(Process);
logger("获取目标进程页表失败", true);
return false;
}
bool success = false;
decltype(PAGE_TABLE::
PdeAddress) split_
pde = nullptr;
if (Table.IsLargePage) {
split_
pde = (decltype(PAGE_TABLE::
PdeAddress))ExAllocatePoolWithTag(NonPagedPool, sizeof(*split_
pde), '
pdeS');
if (!split_
pde || !fn_split_large_pages(Table.
PdeAddress, split_
pde)) {
if (split_
pde) ExFreePoolWithTag(split_
pde, '
pdeS');
KeUnstackDetachProcess(&ApcState);
ObDereferenceObject(Process);
logger("拆分大页失败", true);
return false;
}
if (Table.
PdeAddress->flags.global) {
Table.
PdeAddress->flags.global = 0;
fn_add_g_bit_info(AlignAddr, Table.
PdeAddress, nullptr);
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] 清除大页G位:
PDE=0x%llx\n", Table.
PdeAddress->value);
}
success = fn_isolation_pagetable(target_cr3, AlignAddr, split_
pde);
}
else if (Table.
PteAddress && Table.
PteAddress->flags.global) {
Table.
PteAddress->flags.global = 0;
fn_add_g_bit_info(AlignAddr, nullptr, Table.
PteAddress);
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] 清除
PTE G位:
PTE=0x%llx\n", Table.
PteAddress->value);
success = fn_isolation_pagetable(target_cr3, AlignAddr, split_
pde);
if (split_
pde) ExFreePoolWithTag(split_
pde, '
pdeS');
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] 页表状态: IsLargePage=%d, Is1GBPage=%d\n",
Table.IsLargePage, Table.Is1GBPage);
if (Table.
PteAddress) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK]
PTE 值: 0x%llx (G位=%d)\n",
Table.
PteAddress->value, Table.
PteAddress->flags.global);
}
KeUnstackDetachProcess(&ApcState);
ObDereferenceObject(Process);
if (success) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] 页面隔离成功\n");
}
else {
logger("页面隔离失败", true);
}
return success;
}
KeUnstackDetachProcess(&ApcState);
ObDereferenceObject(Process);
return true;
}
bool
PteHookManager::WriteTrampolineInstruction(void* trampoline, const JMP_ABS& jmpCmd)
{
if (!MmIsAddressValid(trampoline)) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_ERROR_LEVEL,
"[
PTE_HOOK] 错误:
内存地址无效 (VA=%p)\n", trampoline);
return false;
}
PHYSICAL_ADDRESS physAddr = MmGetPhysicalAddress(trampoline);
if (physAddr.QuadPart == 0) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_ERROR_LEVEL,
"[
PTE_HOOK] 错误: 无法获取物理地址 (VA=%p)\n", trampoline);
return false;
}
KIRQL oldIrql = KeRaiseIrqlToDpcLevel();
BOOLEAN wpEnabled = (__readcr0() & CR0_WP);
if (wpEnabled) {
__writecr0(__readcr0() & ~CR0_WP);
_mm_mfence();
}
PMDL pMdl = IoAllocateMdl(trampoline, sizeof(JMP_ABS), FALSE, FALSE, NULL);
if (!pMdl) {
if (wpEnabled) __writecr0(__readcr0() | CR0_WP);
KeLowerIrql(oldIrql);
return false;
}
NTSTATUS status = STATUS_SUCCESS;
__try {
MmBuildMdlForNonPagedPool(pMdl);
MmProtectMdlSystemAddress(pMdl, PAGE_READWRITE);
// 正确写入 FF25 00000000 和 8字节地址
memcpy(trampoline, jmpCmd.opcode, 6); // FF25 00000000
*(ULONG64*)((BYTE*)trampoline + 6) = jmpCmd.address; // 地址写入 RIP+0 的位置
_mm_sfence();
_mm_clflush(trampoline);
_mm_clflush((BYTE*)trampoline + 8);
__invlpg(trampoline);
_mm_mfence();
}
__except (EXCEPTION_EXECUTE_HANDLER) {
status = GetExceptionCode();
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_ERROR_LEVEL,
"[
PTE_HOOK] 异常: 写入跳板失败 (代码: 0x%X)\n", status);
}
IoFreeMdl(pMdl);
if (wpEnabled) {
__writecr0(__readcr0() | CR0_WP);
_mm_mfence();
}
KeLowerIrql(oldIrql);
if (!NT_SUCCESS(status)) return false;
// 验证写入结果
if (*(USHORT*)trampoline != 0x25FF ||
*(ULONG64*)((BYTE*)trampoline + 6) != jmpCmd.address)
{
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_ERROR_LEVEL,
"[
PTE_HOOK] 验证失败: 跳板内容不匹配\n"
" 预期: FF25 [%p]\n"
" 实际: %02X%02X %02X%02X%02X%02X [%p]\n",
jmpCmd.address,
((BYTE*)trampoline)[0], ((BYTE*)trampoline)[1],
((BYTE*)trampoline)[2], ((BYTE*)trampoline)[3],
((BYTE*)trampoline)[4], ((BYTE*)trampoline)[5],
*(ULONG64*)((BYTE*)trampoline + 6));
return false;
}
return true;
}
bool
PteHookManager::fn_
pte_inline_hook_bp_pg(HANDLE process_id, _Inout_ void** ori_addr, void* hk_addr)
{
// [1] 页表隔离
if (!fn_isolation_pages(process_id, *ori_addr)) {
return false;
}
// [2] 获取目标进程上下文
PEPROCESS targetProcess;
if (!NT_SUCCESS(PsLookupProcessByProcessId(process_id, &targetProcess))) {
return false;
}
KAPC_STATE apcState;
KeStackAttachProcess(targetProcess, &apcState);
// [3] 构造跳转指令
JMP_ABS jmpCmd = {};
memcpy(jmpCmd.opcode, "\xFF\x25\x00\x00\x00\x00", 6); // FF25 00000000
jmpCmd.address = reinterpret_cast<ULONG64>(hk_addr);
// [4] 直接写入被隔离页
void* targetFunc = *ori_addr;
bool success = false;
// 禁用写保护
KIRQL oldIrql = DisableWriteProtection();
__try {
// 保存原始指令 (用于卸载)
RtlCopyMemory(m_HookInfo[m_HookCount].OriginalBytes, targetFunc, sizeof(jmpCmd));
// 写入跳转指令到隔离页
memcpy(targetFunc, &jmpCmd, 6);
*(ULONG64*)((BYTE*)targetFunc + 6) = jmpCmd.address;
// 刷新缓存
_mm_sfence();
_mm_clflush(targetFunc);
__invlpg(targetFunc);
_mm_mfence();
success = true;
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] 直接写入隔离页成功: VA=%p -> Hook=%p\n",
targetFunc, hk_addr);
}
__except (EXCEPTION_EXECUTE_HANDLER) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_ERROR_LEVEL,
"[
PTE_HOOK] 写入隔离页异常: 0x%X\n", GetExceptionCode());
}
// 恢复写保护
EnableWriteProtection(oldIrql);
// [5] 记录Hook信息
if (success) {
m_HookInfo[m_HookCount].OriginalAddress = targetFunc;
m_HookInfo[m_HookCount].HookAddress = hk_addr;
m_HookInfo[m_HookCount].ProcessId = process_id;
m_HookInfo[m_HookCount].IsHooked = TRUE;
m_HookCount++;
}
// [6] 清理
KeUnstackDetachProcess(&apcState);
ObDereferenceObject(targetProcess);
return success;
}
// 析构函数清理资源
PteHookManager::~
PteHookManager()
{
if (m_TrampLinePool) {
MmFreeContiguousMemory(m_TrampLinePool);
m_TrampLinePool = nullptr;
}
}
bool
PteHookManager::fn_remove_hook(HANDLE process_id, void* hook_addr) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] 尝试移除Hook: Hook地址=0x%p\n", hook_addr);
for (UINT32 i = 0; i < m_HookCount; i++) {
if (m_HookInfo[i].HookAddress == hook_addr && m_HookInfo[i].IsHooked) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] 找到匹配的Hook: 原始地址=0x%p\n", m_HookInfo[i].OriginalAddress);
KIRQL oldIrql = DisableWriteProtection();
memcpy(m_HookInfo[i].OriginalAddress, m_HookInfo[i].OriginalBytes,
sizeof(m_HookInfo[i].OriginalBytes));
EnableWriteProtection(oldIrql);
m_HookInfo[i].IsHooked = FALSE;
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] Hook已成功移除\n");
return true;
}
}
logger("未找到匹配的Hook", true);
return false;
}
void
PteHookManager::fn_add_g_bit_info(void* align_addr, void*
pde_address, void*
pte_address) {
if (m_GbitCount >= MAX_G_BIT_RECORDS) {
logger("达到最大G位记录数量限制", true);
return;
}
PG_BIT_INFO record = &m_GbitRecords[m_GbitCount++];
record->AlignAddress = align_addr;
record->
PdeAddress = (decltype(G_BIT_INFO::
PdeAddress))
pde_address;
record->
PteAddress = (decltype(G_BIT_INFO::
PteAddress))
pte_address;
record->IsLargePage = (
pde_address && ((decltype(PAGE_TABLE::
PdeAddress))
pde_address)->flags.large_page);
// 打印G位信息
PrintGBitInfo(*record);
}
bool
PteHookManager::fn_resume_global_bits(void* align_addr) {
KIRQL oldIrql = DisableWriteProtection();
bool found = false;
DbgPrintEx(DPFLTR_ERROR_LEVEL, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] 开始恢复G位: 对齐地址=0x%p\n", align_addr);
for (UINT32 i = 0; i < m_GbitCount; i++) {
PG_BIT_INFO record = &m_GbitRecords[i];
if (align_addr && record->AlignAddress != align_addr) continue;
if (record->
PteAddress) {
record->
PteAddress->flags.global = 1;
__invlpg(record->AlignAddress);
DbgPrintEx(DPFLTR_ERROR_LEVEL, DPFLTR_INFO_LEVEL,
" 恢复
PTE G位:
PTE=0x%llx, 地址=0x%p\n",
record->
PteAddress->value, record->AlignAddress);
}
if (record->
PdeAddress) {
record->
PdeAddress->flags.global = 1;
if (record->IsLargePage) {
__invlpg(record->AlignAddress);
}
DbgPrintEx(DPFLTR_ERROR_LEVEL, DPFLTR_INFO_LEVEL,
" 恢复
PDE G位:
PDE=0x%llx, 地址=0x%p, 大页=%d\n",
record->
PdeAddress->value, record->AlignAddress, record->IsLargePage);
}
found = true;
if (align_addr) break;
}
EnableWriteProtection(oldIrql);
if (found) {
DbgPrintEx(DPFLTR_ERROR_LEVEL, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK] G位恢复完成\n");
}
else {
logger("未找到匹配的G位记录", true);
}
return found;
}
PteHookManager*
PteHookManager::GetInstance() {
if (!m_Instance) {
m_Instance = static_cast<
PteHookManager*>(
ExAllocatePoolWithTag(NonPagedPool, sizeof(
PteHookManager), 'tpHk'));
if (m_Instance) {
RtlZeroMemory(m_Instance, sizeof(
PteHookManager));
DbgPrintEx(DPFLTR_ERROR_LEVEL, DPFLTR_INFO_LEVEL,
"[
PTE_HOOK]
PTE Hook管理器实例已创建: 地址=0x%p\n", m_Instance);
}
else {
DbgPrintEx(DPFLTR_ERROR_LEVEL, DPFLTR_ERROR_LEVEL,
"[
PTE_HOOK] 创建
PTE Hook管理器实例失败\n");
}
}
return m_Instance;
}
// 全局
PTE Hook管理器实例
PteHookManager* g_
PteHookManager = nullptr;
// 辅助函数：检查是否为目标进程
BOOLEAN IsTargetProcess(CHAR* imageName) {
CHAR currentName[16];
// 复制到本地缓冲区并确保 NULL 终止
RtlCopyMemory(currentName, imageName, 16);
currentName[15] = '\0'; // 确保终止
// 修剪尾部空格
for (int i = 15; i >= 0; i--) {
if (currentName[i] == ' ') currentName[i] = '\0';
else if (currentName[i] != '\0') break;
}
return (strcmp(currentName, target_process_name) == 0);
}
// Hook 函数
NTSTATUS MyObReferenceObjectByHandleWithTag(
HANDLE Handle,
ACCESS_MASK DesiredAccess,
POBJECT_TYPE ObjectType,
KPROCESSOR_MODE AccessMode,
ULONG Tag,
PVOID* Object,
POBJECT_HANDLE_INFORMATION HandleInformation
) {
PEPROCESS currentProcess = PsGetCurrentProcess();
CHAR* imageName = PsGetProcessImageFileName(currentProcess);
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[!] [HookFunction] 进入 Hook 函数! 当前进程: %s\n", imageName);
__debugbreak(); // 强制中断，确认是否执行到这里
if (IsTargetProcess(imageName)) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[!] [HookFunction] 拒绝访问目标进程 PID=%d\n", HandleToULong(PsGetCurrentProcessId()));
return STATUS_ACCESS_DENIED;
}
return g_OriginalObReferenceObjectByHandleWithTag(
Handle,
DesiredAccess,
ObjectType,
AccessMode,
Tag,
Object,
HandleInformation
);
}
NTSTATUS InstallHook() {
UNICODE_STRING funcName;
RtlInitUnicodeString(&funcName, L"ObReferenceObjectByHandleWithTag");
g_OriginalObReferenceObjectByHandleWithTag = (fn_ObReferenceObjectByHandleWithTag)MmGetSystemRoutineAddress(&funcName);
if (!g_OriginalObReferenceObjectByHandleWithTag) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_ERROR_LEVEL,
"[-] [InstallHook] 找不到 ObReferenceObjectByHandleWithTag\n");
return STATUS_NOT_FOUND;
}
__debugbreak();
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[+] [InstallHook] 找到目标函数地址: %p\n", g_OriginalObReferenceObjectByHandleWithTag);
void* targetFunc = (void*)g_OriginalObReferenceObjectByHandleWithTag;
void* hookFunc = (void*)MyObReferenceObjectByHandleWithTag;
if (!g_
PteHookManager->fn_
pte_inline_hook_bp_pg(targetProcessId, &targetFunc, hookFunc)) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_ERROR_LEVEL,
"[-] [InstallHook]
PTE Hook 安装失败\n");
return STATUS_UNSUCCESSFUL;
}
g_OriginalObReferenceObjectByHandleWithTag = (fn_ObReferenceObjectByHandleWithTag)targetFunc;
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[+] [InstallHook] Hook 成功安装. 跳板地址: %p\n", targetFunc);
__debugbreak(); // 强制中断，验证是否执行到这里
return STATUS_SUCCESS;
}
// 移除 Hook
VOID RemoveHook() {
if (g_OriginalObReferenceObjectByHandleWithTag && g_
PteHookManager) {
g_
PteHookManager->fn_remove_hook(PsGetCurrentProcessId(), (void*)MyObReferenceObjectByHandleWithTag);
}
}
// 工作线程函数
VOID InstallHookWorker(PVOID Context) {
targetProcessId = (HANDLE)Context;
DbgPrint("[+] Worker thread started for hook installation on PID: %d\n", HandleToULong(targetProcessId));
InstallHook();
PsTerminateSystemThread(STATUS_SUCCESS);
}
// 进程创建回调
VOID ProcessNotifyCallback(
_In_ HANDLE ParentId,
_In_ HANDLE ProcessId,
_In_ BOOLEAN Create
) {
UNREFERENCED_PARAMETER(ParentId);
if (Create) {
PEPROCESS process = NULL;
if (NT_SUCCESS(PsLookupProcessByProcessId(ProcessId, &process))) {
CHAR* imageName = PsGetProcessImageFileName(process);
CHAR currentName[16];
RtlCopyMemory(currentName, imageName, 16);
currentName[15] = '\0';
for (int i = 15; i >= 0; i--) {
if (currentName[i] == ' ') currentName[i] = '\0';
else if (currentName[i] != '\0') break;
}
if (strcmp(currentName, target_process_name) == 0) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[+] [ProcessNotifyCallback] 目标进程 %s 创建 (PID: %d)\n", currentName, HandleToULong(ProcessId));
HANDLE threadHandle;
NTSTATUS status = PsCreateSystemThread(
&threadHandle,
THREAD_ALL_ACCESS,
NULL,
NULL,
NULL,
InstallHookWorker,
(PVOID)ProcessId // 关键：传递目标进程ID
);
if (NT_SUCCESS(status)) {
ZwClose(threadHandle);
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL,
"[+] [ProcessNotifyCallback] 工作线程已创建\n");
}
else {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_ERROR_LEVEL,
"[-] [ProcessNotifyCallback] 创建线程失败: 0x%X\n", status);
}
}
ObDereferenceObject(process);
}
}
}
// 驱动卸载函数
VOID DriverUnload(PDRIVER_OBJECT DriverObject) {
UNREFERENCED_PARAMETER(DriverObject);
DbgPrint("[+] Driver unloading...\n");
// 移除进程通知回调
PsSetCreateProcessNotifyRoutineEx((PCREATE_PROCESS_NOTIFY_ROUTINE_EX)ProcessNotifyCallback, TRUE);
// 移除Hook
RemoveHook();
// 清理
PTE Hook资源
if (g_
PteHookManager) {
DbgPrint("[
PTE_HOOK] Cleaning up
PTE...\n");
// 恢复所有被修改的G位
g_
PteHookManager->fn_resume_global_bits(nullptr);
// 移除所有活动的Hook
HOOK_INFO* hookInfo = g_
PteHookManager->GetHookInfo();
UINT32 hookCount = g_
PteHookManager->GetHookCount();
for (UINT32 i = 0; i < hookCount; i++) {
if (hookInfo[i].IsHooked) {
g_
PteHookManager->fn_remove_hook(PsGetCurrentProcessId(), hookInfo[i].HookAddress);
}
}
// 释放跳板池
内存
char* trampLinePool = g_
PteHookManager->GetTrampLinePool();
if (trampLinePool) {
ExFreePoolWithTag(trampLinePool, 'JmpP');
}
// 释放管理器实例
ExFreePoolWithTag(g_
PteHookManager, 'tpHk');
g_
PteHookManager = nullptr;
}
DbgPrint("[+] Driver unloaded successfully\n");
}
extern "C"
NTSTATUS DriverEntry(PDRIVER_OBJECT DriverObject, PUNICODE_STRING RegistryPath) {
UNREFERENCED_PARAMETER(RegistryPath);
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "[+] [DriverEntry] 驱动加载开始\n");
DriverObject->DriverUnload = DriverUnload;
g_
PteHookManager =
PteHookManager::GetInstance();
if (!g_
PteHookManager) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_ERROR_LEVEL, "[-] [DriverEntry] 初始化
PteHookManager 失败\n");
return STATUS_INSUFFICIENT_RESOURCES;
}
NTSTATUS status = PsSetCreateProcessNotifyRoutineEx((PCREATE_PROCESS_NOTIFY_ROUTINE_EX)ProcessNotifyCallback, FALSE);
if (!NT_SUCCESS(status)) {
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_ERROR_LEVEL,
"[-] [DriverEntry] 注册进程通知失败 (0x%X)\n", status);
return status;
}
DbgPrintEx(DPFLTR_IHVDRIVER_ID, DPFLTR_INFO_LEVEL, "[+] [DriverEntry] 驱动加载成功\n");
return STATUS_SUCCESS;
}

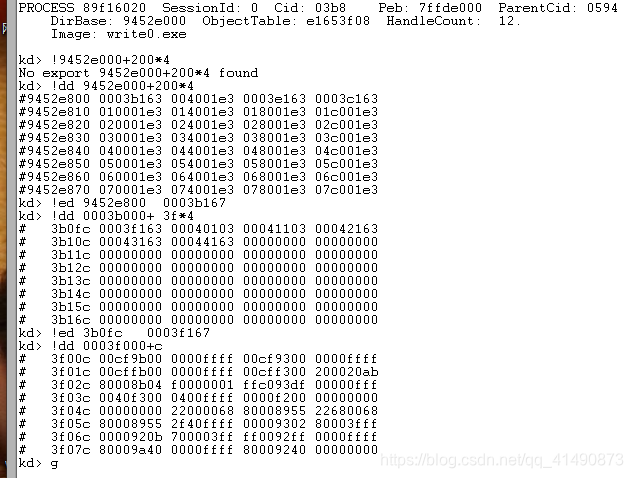

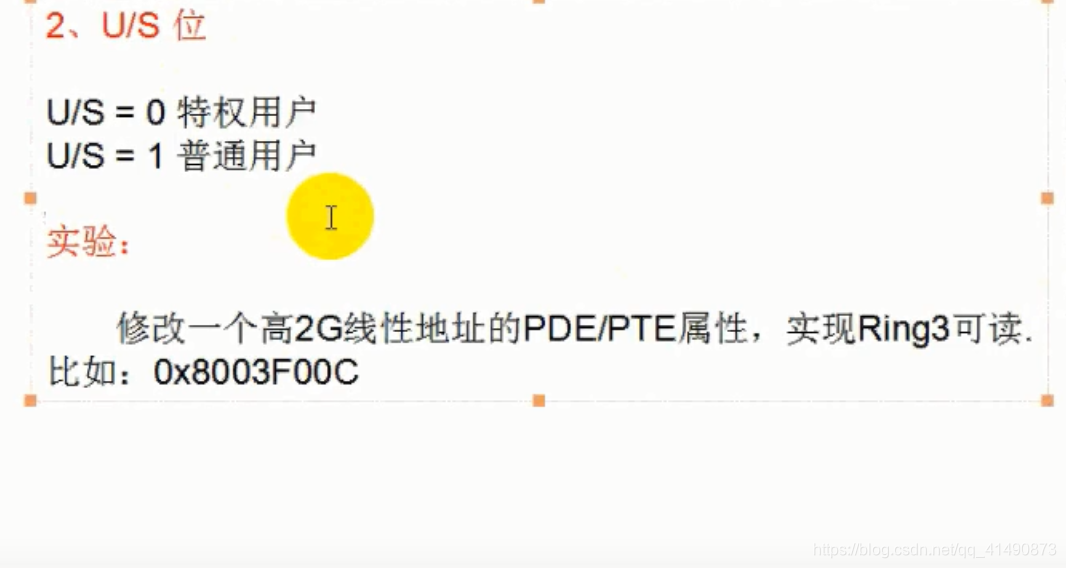

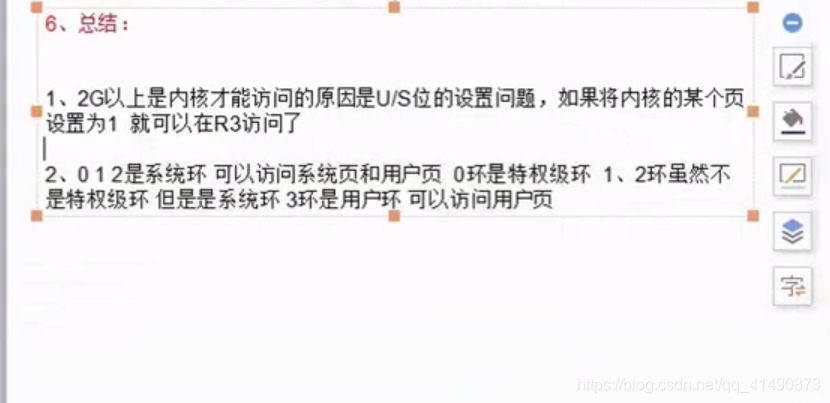

该博客围绕修改0x8003F00C属性展开实验，拆分地址后，将线性地址8003f00c的PDE和PTE改为167，U/S改成1。实验得出应用程序不能访问高2G地址的原因是高2G的PDE的U/S被设为0，用户权限无法访问，还提及修改PDE PTE的U/S位为1。
扫一扫
2478
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
