redis:使用AOP和lua实现分布式限流

噗噗·没心没肺

已于 2024-07-04 14:29:54 修改

阅读量350

点赞数 4

文章标签： redis lua 分布式

于 2024-06-26 17:24:14 首次发布

原文链接：https://developer.aliyun.com/article/1481000

版权

！！！这个是原文链接

按照原文链接操作了下，发现最后有报错，原先以为是lua脚本的问题，后来查了半天是redisTemplate序列化的问题，记录一下

ERR Error running script (call to f_c79b3e806a8d1920de018f895a7c77b74651efe1): @user_script:3: user_script:3: attempt to compare number with nil

pom依赖

        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>30.1-jre</version>
        </dependency>

注解

package com.example.demo.annotation;

import com.example.demo.enums.LimitType;

import java.lang.annotation.*;


@Target({ElementType.METHOD,ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Inherited
@Documented
public @interface RedisLimit {
    // 资源名称
    String name() default "";
    // 资源key
    String key() default "";
    // 前缀
    String prefix() default "";
    // 时间
    int period();
    // 最多访问次数
    int count();
    // 类型
    LimitType limitType() default LimitType.CUSTOMER;
    // 提示信息
    String msg() default "系统繁忙,请稍后再试";
}

切面类

package com.example.demo.aspect;

import com.example.demo.annotation.RedisLimit;
import com.example.demo.enums.LimitType;
import com.example.demo.exception.LimitException;
import com.google.common.collect.ImmutableList;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.reflect.MethodSignature;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.core.script.DefaultRedisScript;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;

import javax.annotation.Resource;
import javax.servlet.http.HttpServletRequest;
import java.lang.reflect.Method;
import java.util.Objects;


@Slf4j
@Aspect
@Configuration
public class RedisLimitAspect {

    @Resource
    private RedisTemplate<String, Object> redisTemplate;


    @Around("@annotation(com.example.demo.annotation.RedisLimit)")
    public Object around(ProceedingJoinPoint pjp) throws LimitException {
        MethodSignature methodSignature = (MethodSignature)pjp.getSignature();
        Method method = methodSignature.getMethod();
        RedisLimit annotation = method.getAnnotation(RedisLimit.class);
        LimitType limitType = annotation.limitType();
        String name = annotation.name();
        String key;
        int period = annotation.period();
        int count = annotation.count();
        switch (limitType){
            case IP:
                key = getIpAddress();
                break;
            case CUSTOMER:
                key = annotation.key();
                break;
            default:
                key = StringUtils.upperCase(method.getName());
        }
        ImmutableList<String> keys = ImmutableList.of(StringUtils.join(annotation.prefix(), key));
        try {
            String luaScript = buildLuaScript();
            DefaultRedisScript<Number> redisScript = new DefaultRedisScript<>(luaScript, Number.class);
            Number number = redisTemplate.execute(redisScript, keys, count, period);
            log.info("Access try count is {} for name = {} and key = {}", number, name, key);
            if(number != null && number.intValue() == 1){
                return pjp.proceed();
            }
            throw new LimitException(annotation.msg());
        }catch (Throwable e){
            if(e instanceof LimitException){
                log.debug("令牌桶={}，获取令牌失败",key);
                throw new LimitException(e.getLocalizedMessage());
            }
            e.printStackTrace();
            throw new RuntimeException("服务器异常");
        }
    }
    public String buildLuaScript(){
        return "redis.replicate_commands(); local listLen,time" +
                "\nlistLen = redis.call('LLEN', KEYS[1])" +
                // 不超过最大值，则直接写入时间
                "\nif listLen and tonumber(listLen) < tonumber(ARGV[1]) then" +
                "\nlocal a = redis.call('TIME');" +
                "\nredis.call('LPUSH', KEYS[1], a[1]*1000000+a[2])" +
                "\nelse" +
                // 取出现存的最早的那个时间，和当前时间比较，看是小于时间间隔
                "\ntime = redis.call('LINDEX', KEYS[1], -1)" +
                "\nlocal a = redis.call('TIME');" +
                "\nif a[1]*1000000+a[2] - time < tonumber(ARGV[2])*1000000 then" +
                // 访问频率超过了限制，返回0表示失败
                "\nreturn 0;" +
                "\nelse" +
                "\nredis.call('LPUSH', KEYS[1], a[1]*1000000+a[2])" +
                "\nredis.call('LTRIM', KEYS[1], 0, tonumber(ARGV[1])-1)" +
                "\nend" +
                "\nend" +
                "\nreturn 1;";
    }
    public String getIpAddress(){
        HttpServletRequest request = ((ServletRequestAttributes) Objects.requireNonNull(RequestContextHolder.getRequestAttributes())).getRequest();
        String ip = request.getHeader("x-forwarded-for");
        if(ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)){
            ip = request.getHeader("Proxy-Client-IP");
        }
        if(ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)){
            ip = request.getHeader("WL-Client-IP");
        }
        if(ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)){
            ip = request.getRemoteAddr();
        }
        return ip;
    }
}

枚举类-ip还是自定义限流

package com.example.demo.enums;

public enum LimitType {

    CUSTOMER,IP;
}

异常类

package com.example.demo.exception;

public class LimitException extends Exception {

    public LimitException(String message) {
        super(message);
    }
}

controller接口

注意：注解要加在方法上，不然不生效

package com.example.demo.controller;

import com.example.demo.domain.Student;
import org.springframework.web.bind.annotation.GetMapping;

import java.util.List;

public interface DemoController {

    @GetMapping("/demo/test")
    String demoTest();
}

package com.example.demo.controller;

import com.alibaba.fastjson.JSON;
import com.example.demo.annotation.RedisLimit;
import com.example.demo.domain.Student;
import com.example.demo.service.DemoService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

@RestController
@Slf4j
public class DemoControllerImpl implements DemoController {

    @Autowired
    private DemoService demoService;

    @Override
    @RedisLimit(key = "cachingTest", count = 1, period = 1, msg = "当前排队人数较多，请稍后再试！")
    public String demoTest() {
        log.info("this is a test log");
        try {
            Thread.sleep(3);
        } catch (InterruptedException e) {
            throw new RuntimeException(e);
        }
        return "test";
    }
}

问题

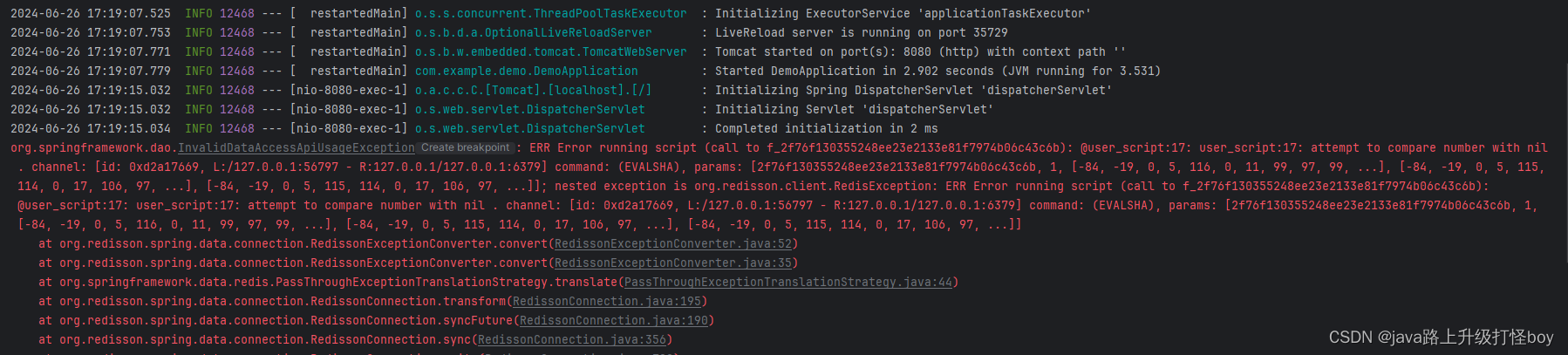

如果上述操作完后，启动运行报错, 要对redis添加序列化设置
在这里插入图片描述

package com.example.demo.config;

import com.fasterxml.jackson.annotation.JsonAutoDetect;
import com.fasterxml.jackson.annotation.PropertyAccessor;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.jsontype.impl.LaissezFaireSubTypeValidator;
import org.springframework.boot.SpringBootConfiguration;
import org.springframework.context.annotation.Bean;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.*;

@SpringBootConfiguration
public class RedisConfig {
    @Bean
    public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory redisConnectionFactory){
        RedisTemplate<String, Object> redisTemplate = new RedisTemplate<>();
        redisTemplate.setConnectionFactory(redisConnectionFactory);
        //设置value的序列化方式json
        redisTemplate.setValueSerializer(redisSerializer());
        //设置key序列化方式String
        redisTemplate.setKeySerializer(new StringRedisSerializer());
        //设置hash key序列化方式String
        redisTemplate.setHashKeySerializer(new StringRedisSerializer());
        //设置hash value序列化json
        redisTemplate.setHashValueSerializer(redisSerializer());
        redisTemplate.afterPropertiesSet();
        return redisTemplate;
    }

    public RedisSerializer<Object> redisSerializer() {
        //创建JSON序列化器
        ObjectMapper objectMapper = new ObjectMapper();
        objectMapper.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
        //必须设置，否则无法序列化实体类对象
        objectMapper.activateDefaultTyping(LaissezFaireSubTypeValidator.instance, ObjectMapper.DefaultTyping.NON_FINAL);
        return new GenericJackson2JsonRedisSerializer(objectMapper);
    }
}
