本文详细介绍如何在SpringBoot项目中配置多个数据源，包括配置文件的设置、数据源配置类的编写、关闭默认自动加载数据源的方法以及如何在代码中调用不同数据源的mapper。特别关注解决jdbcUrlisrequiredwithdriverClassName错误。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

在这里插入图片描述

1.配置文件

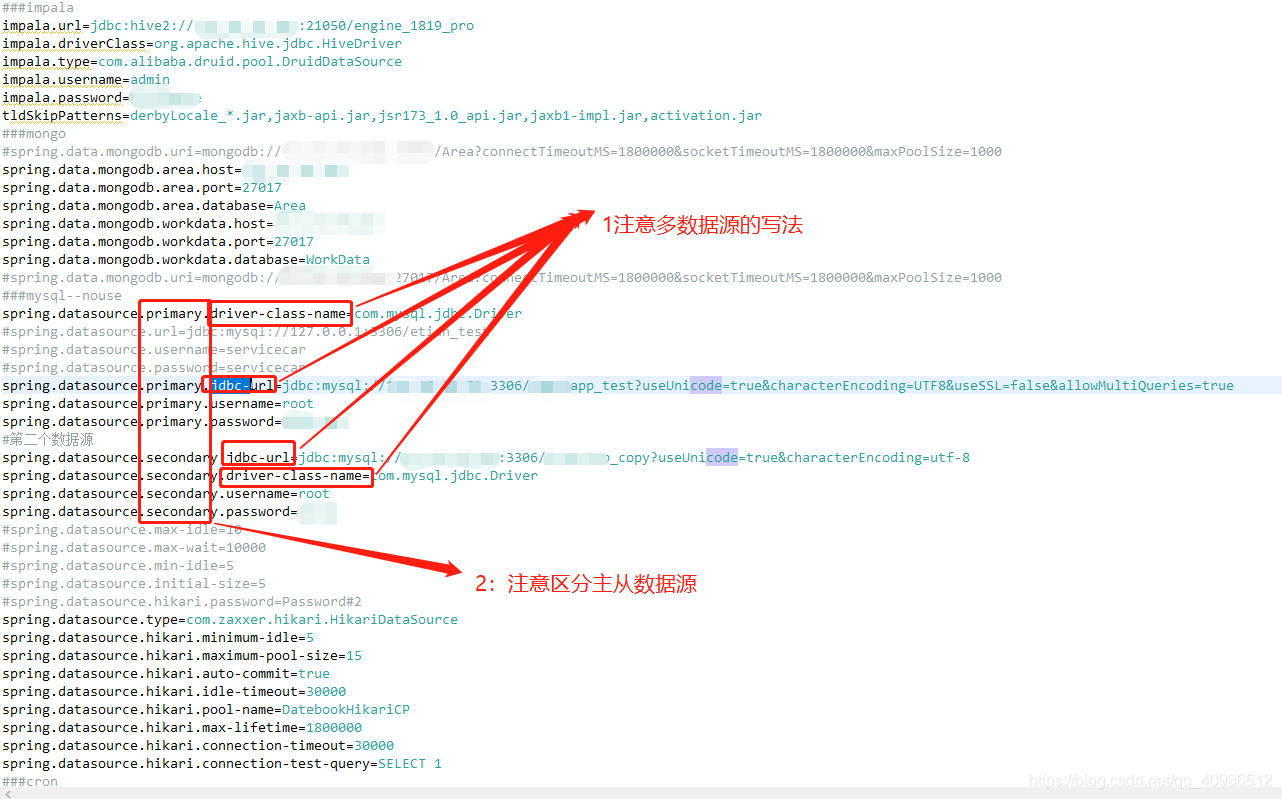

配置文件，红框标注的地方都是需要注意的地方，springboot2.x的数据链接池默认使用hikari，所以只需要配置一下即可，这里使用的properties作为配置文件，yml同理，红框中标注的

spring.datasource.url 数据库的 JDBC URL。

spring.datasource.jdbc-url 用来重写自定义连接池

官方文档的解释是：

因为连接池的实际类型没有被公开，所以在您的自定义数据源的元数据中没有生成密钥，而且在IDE中没有完成(因为DataSource接口没有暴露属性)。另外，如果您碰巧在类路径上有Hikari，那么这个基本设置就不起作用了，因为Hikari没有url属性(但是确实有一个jdbcUrl属性)。在这种情况下，您必须重写您的配置如下:

原文地址：https://blog.youkuaiyun.com/newbie_907486852/article/details/81391525

当遇到项目启动时 jdbcUrl is required with driverClassName这个错误时，注意看一下上面这部分的配置是否有问题↑↑↑↑↑↑↑↑↑↑↑↑↑↑↑↑↑↑↑↑↑↑

报错信息为
org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'entityManagerFactory' defined in class path resource [org/springframework/boot/autoconfigure/orm/jpa/HibernateJpaConfiguration.class]: Unsatisfied dependency expressed through method 'entityManagerFactory' parameter 0; nested exception is org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'entityManagerFactoryBuilder' defined in class path resource [org/springframework/boot/autoconfigure/orm/jpa/HibernateJpaConfiguration.class]: Unsatisfied dependency expressed through method 'entityManagerFactoryBuilder' parameter 0; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name 'jpaVendorAdapter' defined in class path resource [org/springframework/boot/autoconfigure/orm/jpa/HibernateJpaConfiguration.class]: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.orm.jpa.JpaVendorAdapter]: Factory method 'jpaVendorAdapter' threw exception; nested exception is java.lang.IllegalArgumentException: jdbcUrl is required with driverClassName.

2.数据源配置类

package com.***.***.config;

import javax.sql.DataSource;

import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;

import com.zaxxer.hikari.HikariDataSource;

@Configuration
//扫描 Mapper 接口并容器管理
@MapperScan(basePackages = "com.***.***.dao.mapper", sqlSessionFactoryRef = "sqlserverSqlSessionFactory")
public class MysqlConfig {
	/**
     * @Bean 注册Bean对象
     * @Primary 表示默认数据源
     * @ConfigurationProperties 读取properties中的配置参数映射成为一个对象
     */
    @Bean(name = "sqlserverDataSource")
    @Primary
    @ConfigurationProperties(prefix = "spring.datasource.primary")
    public HikariDataSource getSqlserverDateSource() {
        return new HikariDataSource();
    }

    /**
     * @param datasource 数据源
     * @return SqlSessionFactory
     * @Primary 默认SqlSessionFactory
     */
    @Bean(name = "sqlserverSqlSessionFactory")
    @Primary
    public SqlSessionFactory sqlserverSqlSessionFactory(@Qualifier("sqlserverDataSource") DataSource datasource) throws Exception {
        SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
        bean.setDataSource(datasource);
        //mybatis扫描xml所在位置
        bean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources("classpath*:mapper/*.xml"));
        //分页插件
//        Interceptor interceptor = new PageInterceptor();
//        Properties properties = new Properties();
        //数据库
//        properties.setProperty("helperDialect", "sqlserver");
//        //是否将参数offset作为PageNum使用
//        properties.setProperty("offsetAsPageNum", "true");
//        //是否进行count查询
//        properties.setProperty("rowBoundsWithCount", "true");
        //是否分页合理化
//        properties.setProperty("reasonable", "true");
//        interceptor.setProperties(properties);
//        bean.setPlugins(new Interceptor[] {interceptor});
        return bean.getObject();
    }

    @Bean("sqlserverSessionTemplate")
    @Primary
    public SqlSessionTemplate sqlserverSqlSessionTemplate(@Qualifier("sqlserverSqlSessionFactory") SqlSessionFactory sqlSessionFactory) {
        return new SqlSessionTemplate(sqlSessionFactory);
    }
}

第二个数据源配置类

package com.***.***.config;

import java.util.Properties;

import javax.sql.DataSource;

import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;

import com.zaxxer.hikari.HikariDataSource;

@Configuration
@MapperScan(basePackages = "com.***.***.dao.zhilianMapper", sqlSessionFactoryRef = "zhilianSessionFactory")
public class MysqlZhilianConfig {

	/**
	 * @Bean 注册Bean对象
	 * @Primary 表示默认数据源
	 * @ConfigurationProperties 读取properties中的配置参数映射成为一个对象
	 */
	@Bean(name = "zhilianyDataSource")
	@ConfigurationProperties(prefix = "spring.datasource.secondary")
	public HikariDataSource getMysqlDateSource() {
		return new HikariDataSource();
	}

	/**
	 * @param datasource 数据源
	 * @return SqlSessionFactory
	 * @Primary 默认SqlSessionFactory
	 */
	@Bean(name = "zhilianSessionFactory")
	public SqlSessionFactory mysqlSqlSessionFactory(@Qualifier("zhilianDataSource") DataSource datasource)
			throws Exception {
		SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
		bean.setDataSource(datasource);
		// mybatis扫描xml所在位置
		bean.setMapperLocations(
				new PathMatchingResourcePatternResolver().getResources("classpath*:zhilianMapper/*.xml"));
		// 分页插件
//		Interceptor interceptor = new PageInterceptor();
		Properties properties = new Properties();
		// 数据库
		properties.setProperty("helperDialect", "mysql");
//        //是否将参数offset作为PageNum使用
//        properties.setProperty("offsetAsPageNum", "true");
//        //是否进行count查询
//        properties.setProperty("rowBoundsWithCount", "true");
		// 是否分页合理化
//		properties.setProperty("reasonable", "true");
//		interceptor.setProperties(properties);
//		bean.setPlugins(new Interceptor[] { interceptor });
		return bean.getObject();
	}

	@Bean("zhilianTemplate")
	public SqlSessionTemplate mysqlSqlSessionTemplate(
			@Qualifier("zhilianSessionFactory") SqlSessionFactory sqlSessionFactory) {
		return new SqlSessionTemplate(sqlSessionFactory);
	}

}

在这里插入图片描述

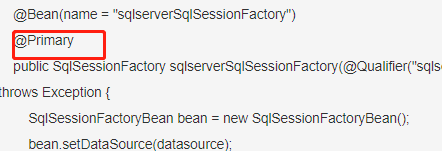

这里要注意两个数据源的区别第一个数据源，@primary注解只能出现在一个数据源的配置类里面，还有就是@MapperScan(basePackages = “com...dao.zhilianMapper”, sqlSessionFactoryRef = “zhilianSessionFactory”)，

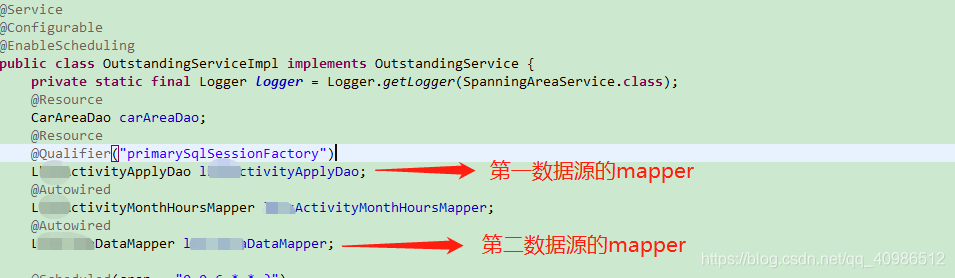

！！！注意，两个数据源是不同的扫描路径，在使用的时候注入哪个包下的mapper就是使用的哪个数据源！！！

在这里插入图片描述

3.关闭springboot默认自动加载数据源

package com.***.***;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.data.mongo.MongoDataAutoConfiguration;
import org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration;
import org.springframework.boot.autoconfigure.mongo.MongoAutoConfiguration;

@SpringBootApplication(exclude = {MongoAutoConfiguration.class,MongoDataAutoConfiguration.class,DataSourceAutoConfiguration.class})
//@EnableScheduling
@MapperScan("com.***.***.dao.mapper")
public class ***Application {
	public static void main(String[] args) {
		SpringApplication.run(***Application.class, args);
	}
}
