项目中为什么使用ssh框架

struts主要起控制的作用，spring主要是解耦合的作用，hibernate主要起操作数据的作用
struts2是一个基于mvc设计模式的web应用框架
，在mvc中struts作为控制器来建立模型与视图的数据交互，struts2以webwork为核心，采用拦截器的机制来处理用户的请求，是业务逻辑控制器与servletapi完全脱离开来
spring是一个轻量级的控制反转（IOC）和面向切面（AOP）的容器框架，是轻量、非倾入、面向接口编程，有容器控制程序控制之间的依赖关系。当使用IOC的，一个对象依赖的其他对象会通过被动的方式传递进来，而不是这个对象自己本生去创建或者查找依赖对象。依赖注入，就是组件之间的依赖关系有容器在运行期间决定，即由容器动态的将某种依赖关系注入到组件之间起着解耦合的作用，减少代码段冗余，提高代码的复用性
hibernate是一种数据持久化层，关系映射的工具，提供java类到数据表的映射，也提供了数据查询和恢复等机制，大大的减少了数据访问的复杂性，直接将对数据库的操作转化成对持久对象的操作。

struts spring hibernate在各个层次之间起到的作用

struts负责WEB层,ActionFormBean接收网页中表单提交的数据然后通过Action进行处理,再Forward到对应的网页,在struts-config.xml中定义ActionServlet会加载。
Spring负责业务层管理,即Service或Manager。
1.Service层为action提供统计的调用接口,封装持久层的DAO。
2.统一管理javaBean方法。
3.声明式事务管理。
4.集成Hiberante。
Hiberante负责持久化层完成数据库的CRUD操作,为持久层提供OR-Mapping，它有一组*.hbm.xml文件和POJO是跟数据库中的表相对应的。

在ssh中对象调用的流程

jsp->Action－>Service->DAO->Hibernate。数据的流向是ActionFormBean接受用户的数据,Action将数据从ActionFromBean中取出,封装成VO或PO,再调用业务层的Bean类,完成各种业务处理后再forward。而业务层Bean收到这个PO对象之后会调用DAO接口方法进行持久化操作。

分析整合要点

Struts2:
jar web.xml(中央处理器) struts.xml
Hibernate:
jar hibernate.cfg.xml(spring整合后取消该文件) *.hbm.xml(映射文件)
Spring:
jar web.xml(spring容器的加载)
spring-struts2:
struts-spring-plugin.jar
constant name=”struts.objectFactory” value=”spring” (struts的对象工厂交给spring管理)
action class=”stuct”
applicationContext.xml
bean
commons-loggiog.jaar
spring-hibernate:
hibernate.cfg.xml文件内容迁移到applicationContext中
applicationContext.xml-bean name=”SessionFactory”
applicationContext.xml:对事物的控制—bean

具体实现

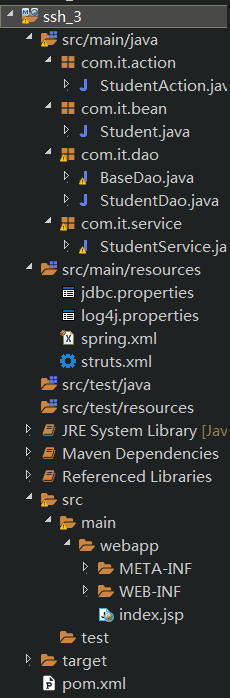

工程目录结构
考入jar包
1.版本控制

<properties>
    <webVersion>3.1</webVersion>
  	<!-- 统一源码的编码方式 -->
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <!-- 统一各个框架版本 -->
    <struts.version>2.5.10</struts.version>
    <spring.version>4.3.8.RELEASE</spring.version>
    <hibernate.version>5.1.7.Final</hibernate.version>
  </properties>

2.考入jar包

 <!--        SSH包                       -->
    <!-- Spring 核心依赖 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>

       <!-- Spring web依赖 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>

       <!-- Spring整合ORM框架依赖 -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-orm</artifactId>
            <version>${spring.version}</version>
        </dependency>

       <!-- Struts2 核心依赖 -->
        <dependency>
            <groupId>org.apache.struts</groupId>
            <artifactId>struts2-core</artifactId>
            <version>${struts.version}</version>
        </dependency>
        <!-- Struts2和Spring整合依赖 -->
        <dependency>
            <groupId>org.apache.struts</groupId>
            <artifactId>struts2-spring-plugin</artifactId>
            <version>${struts.version}</version>
        </dependency>

        <!-- Hibernate 核心依赖 -->
        <dependency>
            <groupId>org.hibernate</groupId>
            <artifactId>hibernate-core</artifactId>
            <version>${hibernate.version}</version>
        </dependency>

        <!-- C3P0 依赖 -->
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5</version>
        </dependency>
        <!-- AspectJ依赖 -->
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.8.10</version>
        </dependency>

        <!-- SLF4J依赖 -->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>1.7.25</version>
        </dependency>
         <!-- 导入java ee jar 包 -->
        <dependency>
            <groupId>javax</groupId>
            <artifactId>javaee-api</artifactId>
            <version>7.0</version>
        </dependency>
          <!-- mysql的驱动包 -->
	<dependency>
	    <groupId>mysql</groupId>
	    <artifactId>mysql-connector-java</artifactId>
	    <version>5.0.8</version>
	</dependency>

		<dependency>
		    <groupId>org.apache.struts</groupId>
		    <artifactId>struts2-convention-plugin</artifactId>
		    <version>2.5.10</version>
		</dependency>

配置web.xml文件
1.struts拦截器

<!-- 核心解析器，中央处理器，前端控制器 -->
   <filter>
        <filter-name>struts2</filter-name>
        <filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
    </filter>

    <filter-mapping>
        <filter-name>struts2</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

2.加载spring容器

 <!-- 加载spring容器 -->
    <listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value> /WEB-INF/spring.xml  /WEB-INF/spring-*.xml</param-value>
	</context-param>

配置struts.xml文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
    "-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
    "http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
<!-- 认识系统中常用的常量
系统中定义了大量的常量，程序员可以通过修改常量，达到自己的需求。
 -->
<constant name="struts.enable.DynamicMethodInvocation" value="true"></constant>
<constant name="struts.action.extension" value="action,do,xc"></constant>
<constant name="struts.devMode" value="true"></constant>
<constant name="struts.objectFactory" value="spring"></constant>
<package name="stu" namespace="/stu" extends="struts-default">
		<action name="studentAction_*" class="stuact" method="{1}">
			<result name="success" type="redirectAction">studentAction_show.action</result>
			<result name="index" >/index.jsp</result>
		</action>
	</package>

</struts>

配置数据库连接池jdbc.properties

jdbc.url=jdbc:mysql://localhost:3306/test
jdbc.driverClass=com.mysql.jdbc.Driver
jdbc.username=root
jdbc.password=123456

配置spring的spring.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:tx="http://www.springframework.org/schema/tx"
    xmlns:aop="http://www.springframework.org/schema/aop"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans-4.3.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/tx
        http://www.springframework.org/schema/tx/spring-tx.xsd
        http://www.springframework.org/schema/aop
        http://www.springframework.org/schema/aop/spring-aop.xsd">
    <!-- 开启包扫描，并注册注解 -->
    <context:component-scan base-package="com.it.*"/>
    <!-- 引入属性文件 -->
    <context:property-placeholder location="classpath:jdbc.properties"/>
    <!-- 配置C3P0连接池 -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <!-- 数据库连接相关信息 -->
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="driverClass" value="${jdbc.driverClass}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>
    <!-- 配置Hibernate的SessionFactory -->
    <bean id="sessionFactory" class="org.springframework.orm.hibernate5.LocalSessionFactoryBean">
        <!-- 注入连接池 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 配置Hibernate属性 -->
        <property name="hibernateProperties">
            <props>
                <prop key="hibernate.show_sql">true</prop><!-- 是否展示SQL -->
                <prop key="hibernate.hbm2ddl.auto">update</prop><!-- 是否自动创建表结构 -->
                <prop key="hibernate.dialect">org.hibernate.dialect.Oracle10gDialect</prop>
                <prop key="hibernate.current_session_context_class">org.springframework.orm.hibernate5.SpringSessionContext</prop>
            </props>
        </property>
        <!-- 包扫描的方式加载注解类(推荐) -->
		<property name="packagesToScan">
			<list>
				<value>com.it.*</value>
			</list>
		</property>
    </bean>
    <!-- 配置事务管理器 -->
    <bean id="transactionManager" class="org.springframework.orm.hibernate5.HibernateTransactionManager">
        <!-- 注入SessionFactory -->
        <property name="sessionFactory" ref="sessionFactory"/>
    </bean>
    <!-- 配置事务增强 -->
    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <tx:attributes>
                <tx:method name="create*" propagation="REQUIRED" />
                <tx:method name="save*" propagation="REQUIRED" />
                <tx:method name="add*" propagation="REQUIRED" />
                <tx:method name="update*" propagation="REQUIRED" />
                <tx:method name="remove*" propagation="REQUIRED" />
                <tx:method name="del*" propagation="REQUIRED" />
                <tx:method name="import*" propagation="REQUIRED" />
                 <tx:method name="*"  propagation="REQUIRED"  />
               <!--  <tx:method name="*"  read-only="false"/> -->
                <!--这里如果觉着麻烦只要最后一行*就可以了，因为他会扫描所有的函数的 -->
            </tx:attributes>
    </tx:advice>
    <!-- 配置切面 -->
    <aop:config>
        <aop:pointcut id="pointcut" expression="execution(* com.it.services.*+.*(..))"/>
        <!-- 适配切入点和事务增强 -->
        <aop:advisor advice-ref="txAdvice" pointcut-ref="pointcut"/>
    </aop:config>
</beans>

创建实体bean

package com.it.bean;

public class Student {
	private String stu_id;
	private String stu_name;
	private String stu_sex;
	private String stu_birth;
	private String stu_addr;
	public String getStu_id() {
		return stu_id;
	}
	public void setStu_id(String stu_id) {
		this.stu_id = stu_id;
	}
	public String getStu_name() {
		return stu_name;
	}
	public void setStu_name(String stu_name) {
		this.stu_name = stu_name;
	}
	public String getStu_sex() {
		return stu_sex;
	}
	public void setStu_sex(String stu_sex) {
		this.stu_sex = stu_sex;
	}
	public String getStu_birth() {
		return stu_birth;
	}
	public void setStu_birth(String stu_birth) {
		this.stu_birth = stu_birth;
	}
	public String getStu_addr() {
		return stu_addr;
	}
	public void setStu_addr(String stu_addr) {
		this.stu_addr = stu_addr;
	}
	public Student(String stu_id, String stu_name, String stu_sex, String stu_birth, String stu_addr) {
		super();
		this.stu_id = stu_id;
		this.stu_name = stu_name;
		this.stu_sex = stu_sex;
		this.stu_birth = stu_birth;
		this.stu_addr = stu_addr;
	}
	public Student() {
		super();
		// TODO Auto-generated constructor stub
	}
	public Student(String stu_id, String stu_name) {
		super();
		this.stu_id = stu_id;
		this.stu_name = stu_name;
	}

}

Studnent.hbm.xml

<?xml version="1.0"?>
<!DOCTYPE hibernate-mapping PUBLIC
"-//Hibernate/Hibernate Mapping DTD 3.0//EN"
"http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">
<hibernate-mapping package="com.it.bean">
	<class name="Student" table="stuinfo">
		<id name="stu_id" column="stu_id">
			<!-- 主键生成策略 -->
			<generator class="assigned"></generator>
		</id>
		<property name="stu_name" column="stu_name"></property>
		<property name="stu_sex" column="stu_sex"></property>
		<property name="stu_birth" column="stu_birth"></property>
		<property name="stu_addr" column="stu_addr"></property>
	</class>
</hibernate-mapping>

BaseDao

package com.it.dao;

import java.sql.SQLException;
import java.util.List;

import org.hibernate.HibernateException;
import org.hibernate.Query;
import org.hibernate.Session;
import org.springframework.orm.hibernate3.HibernateCallback;
import org.springframework.orm.hibernate3.support.HibernateDaoSupport;

public class BaseDao<E> extends HibernateDaoSupport{

	public void add(E e){
		this.getHibernateTemplate().save(e);
	}

	@SuppressWarnings("unchecked")
	public List<E> findSplit(int currentPage,int currentSize,String hql){
		return (List<E>)this.getHibernateTemplate().execute(new HibernateCallback() {

			@Override
			public Object doInHibernate(Session session) throws HibernateException, SQLException {
				// TODO Auto-generated method stub
				Query query=session.createQuery(hql);
				int start=(currentPage-1)*currentSize;
				query.setFirstResult(start);
				query.setMaxResults(currentSize);
				return query.list();
			}
		});
	}

}

StudentDao

package com.it.dao;

import java.util.List;

import com.it.bean.Student;

public class StudentDao extends BaseDao<Student>{
	public void add(Student stu){
		super.add(stu);
	}
	public List<Student> findSplit(int currentPage,int currentSize){
		String hql="from Student";
		return super.findSplit(currentPage, currentSize, hql);
	}
}

StudentService

package com.it.service;

import java.util.List;

import com.it.bean.Student;
import com.it.dao.StudentDao;

public class StudentService {
	private StudentDao studao;
	public void add(Student stu){
		studao.add(stu);
	}
	public List<Student> findSplit(int currentPage,int currentSize){
		return studao.findSplit(currentPage, currentSize);
	}
	public StudentDao getStudao() {
		return studao;
	}
	public void setStudao(StudentDao studao) {
		this.studao = studao;
	}

}

StudentAction

package com.it.action;

import java.util.List;

import com.it.bean.Student;
import com.it.service.StudentService;
import com.opensymphony.xwork2.ModelDriven;

public class StudentAction implements ModelDriven<Student>{
	private Student stu=new Student();
	private StudentService stusv;
	private List<Student> list;
	private int currentPage;
	private int currentSize;
	private int flag;
	public String add(){
		stusv.add(stu);
		return "success";
	}
	public String show(){
		if(flag==0){
			currentPage=1;
			currentSize=5;
		}else if(flag==1){
			currentSize=5;
			currentPage=currentPage-1;
		}else{
			currentSize=5;
			currentPage=currentPage+1;
		}
		list=stusv.findSplit(currentPage,currentSize);
		return "index";
	}
	@Override
	public Student getModel() {
		// TODO Auto-generated method stub0
		return stu;
	}
	public StudentService getStusv() {
		return stusv;
	}
	public void setStusv(StudentService stusv) {
		this.stusv = stusv;
	}
	public List<Student> getList() {
		return list;
	}
	public void setList(List<Student> list) {
		this.list = list;
	}
	public int getCurrentPage() {
		return currentPage;
	}
	public void setCurrentPage(int currentPage) {
		this.currentPage = currentPage;
	}
	public int getCurrentSize() {
		return currentSize;
	}
	public void setCurrentSize(int currentSize) {
		this.currentSize = currentSize;
	}
	public int getFlag() {
		return flag;
	}
	public void setFlag(int flag) {
		this.flag = flag;
	}

}

此刻变完成了一个ssh整合
