springboot+mybatis实现分页

该博客介绍了如何在SpringBoot项目中整合MyBatis,并利用PageHelper分页插件实现动态SQL进行分页功能。通过RESTful接口,前端通过AJAX获取JSON数据,实现了前后端的数据交互。内容包括MyBatis框架整合、PageHelper配置、接口设计、动态SQL在Mapper中的应用以及前端请求数据的处理。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

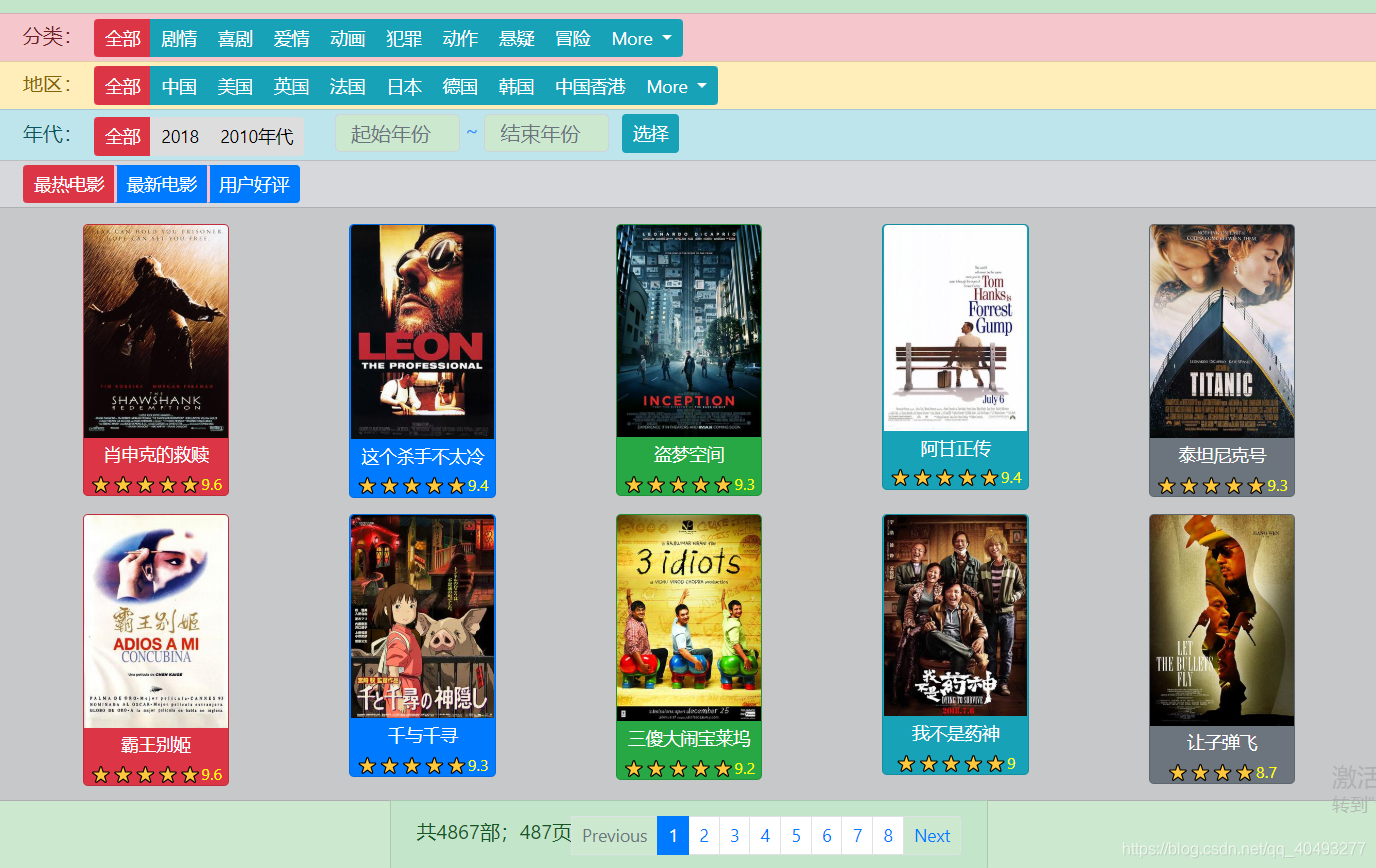

分页成果展示:www.qihea.xyz

1.整合mybatis框架

1.数据库准备好数据:我网站中的数据时通过python爬虫,直接保存到数据库中的。图片直接保存的豆瓣的url。

2.整合mybatis依赖和mybatis分页插件:

根据此教程完成初步操作:Kotlin+IDEA+SpringBoot+MyBatis+MySQL+Gradle项目(不要选择kotlin即可)

然后添加分页插件依赖:官网https://github.com/abel533/MyBatis-Spring-Boot

//mybatis分页插件
compile group: 'com.github.pagehelper', name:'pagehelper-spring-boot-starter',version: '1.2.10'

推荐阅读:(读不读都行)
1.为什么使用mybatis
2.Mybatis配置之配置元素详述
3.mybatis使用


2.结合mybatis分页插件编写动态sql实现分页功能。

有三种分页方式:JavaWeb分页显示内容之分页查询的三种思路(数据库分页查询)。我选择的是后台分页。

1.约定好url接口(REST风格)

  因为使用mybatis分页插件直接得到的是json数据,所以我直接使用接口来访问和传递数据。如果不想用接口的话,也可以使用模版等方式,不过我就不说了。

  使用接口后,前端可以直接通过ajax来通过rest风格接口获取数据。

示例:

  1. 如果什么都不选择http://www.qihea.xyz/page?size=1&start=0&sort=0
  2. {"total":4867,"list":[{"id":1292052,"name":"肖申克的救赎","score":9.6,"url":"https://img3.doubanio.com/view/photo/s_ratio_poster/public/p480747492.jpg"}],"pageNum":0,"pageSize":1,"size":1,"startRow":1,"endRow":1,"pages":4867,"prePage":0,"nextPage":1,"isFirstPage":false,"isLastPage":false,"hasPreviousPage":false,"hasNextPage":true,"navigatePages":8,"navigatepageNums":[1,2,3,4,5,6,7,8],"navigateFirstPage":1,"navigateLastPage":8}

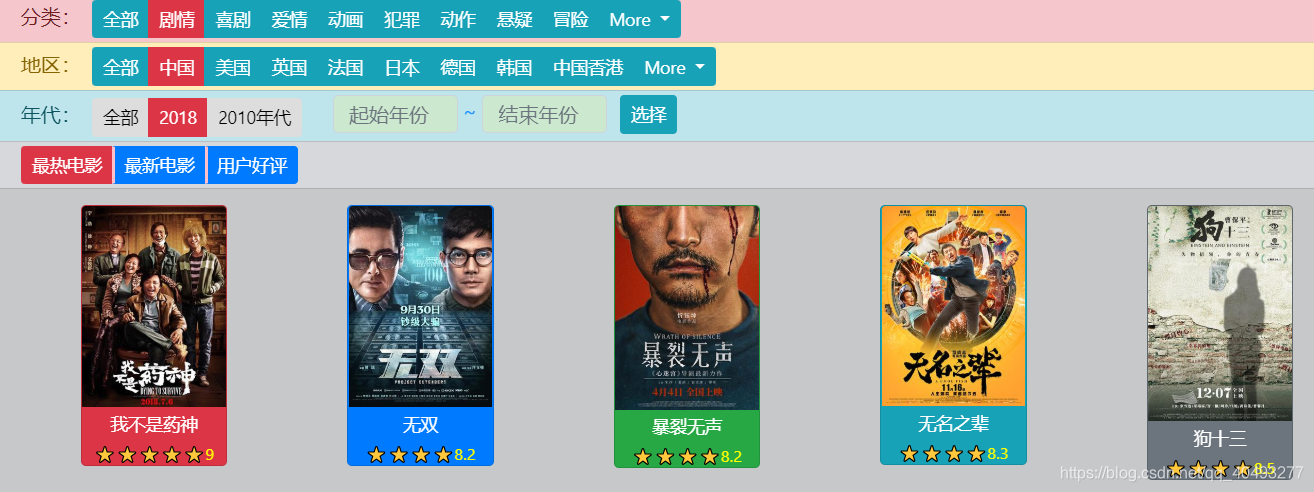

  3. 比如选择:剧情分类(genres=11),地区为中国(place=中国),年代为2018(beginyear和endyear都为2018),排序为最热电影(sort=0),第一页(start=1),每页最多条目(size=10)来发送url请求。
  4. http://www.qihea.xyz/page?size=10&start=1&sort=0&genres=11&place=%E4%B8%AD%E5%9B%BD%E5%A4%A7%E9%99%86&beginyear=2018&endyear=2018
  5. {"total":6,"list":[{"id":26752088,"name":"我不是药神","score":9.0,"url":"https://img3.doubanio.com/view/photo/s_ratio_poster/public/p2519070834.jpg"},{"id":26425063,"name":"无双","score":8.2,"url":"https://img3.doubanio.com/view/photo/s_ratio_poster/public/p2535096871.jpg"},{"id":26647117,"name":"暴裂无声","score":8.2,"url":"https://img3.doubanio.com/view/photo/s_ratio_poster/public/p2517333671.jpg"},{"id":27110296,"name":"无名之辈","score":8.3,"url":"https://img3.doubanio.com/view/photo/s_ratio_poster/public/p2539661066.jpg"},{"id":25716096,"name":"狗十三","score":8.5,"url":"https://img1.doubanio.com/view/photo/s_ratio_poster/public/p2540474819.jpg"},{"id":30206517,"name":"切尔诺贝利之春","sc
# Spring Boot 集成 MyBatis, 分页插件 PageHelper, 通用 Mapper ## 项目依赖 ```xml <!--mybatis--> <dependency> <groupId>org.mybatis.spring.boot</groupId> <artifactId>mybatis-spring-boot-starter</artifactId> <version>1.1.1</version> </dependency> <!--mapper--> <dependency> <groupId>tk.mybatis</groupId> <artifactId>mapper-spring-boot-starter</artifactId> <version>1.1.1</version> </dependency> <!--pagehelper--> <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper-spring-boot-starter</artifactId> <version>1.1.1</version> </dependency> ``` ## Spring DevTools 配置 在使用 DevTools 时,通用Mapper经常会出现 class x.x.A cannot be cast to x.x.A。 同一个类如果使用了不同的类加载器,就会产生这样的错误,所以解决方案就是让通用Mapper和实体类使用相同的类加载器即可。 DevTools 默认会对 IDE 中引入的所有项目使用 restart 类加载器,对于引入的 jar 包使用 base 类加载器,因此只要保证通用Mapper的jar包使用 restart 类加载器即可。 在 `src/main/resources` 中创建 META-INF 目录,在此目录下添加 spring-devtools.properties 配置,内容如下: ```properties restart.include.mapper=/mapper-[\\w-\\.]+jar restart.include.pagehelper=/pagehelper-[\\w-\\.]+jar ``` 使用这个配置后,就会使用 restart 类加载加载 include 进去的 jar 包。 ## 集成 MyBatis Generator 通过 Maven 插件集成的,所以运行插件使用下面的命令: >mvn mybatis-generator:generate Mybatis Geneator 详解: >http://blog.youkuaiyun.com/isea533/article/details/42102297 ## application.properties 配置 ```properties #mybatis mybatis.type-aliases-package=tk.mybatis.springboot.model mybatis.mapper-locations=classpath:mapper/*.xml #mapper #mappers 多个接口时逗号隔开 mapper.mappers=tk.mybatis.springboot.util.MyMapper mapper.not-empty=false mapper.identity=MYSQL #pagehelper pagehelper.helperDialect=mysql pagehelper.reasonable=true pagehelper.supportMethodsArguments=true pagehelper.params=count=countSql ``` ## application.yml 配置 完整配置可以参考 [src/main/resources/application-old.yml](https://github.com/abel533/MyBatis-Spring-Boot/blob/master/src/main/resources/application-old.yml) ,和 MyBatis 相关的部分配置如下: ```yaml mybatis: type-aliases-package: tk.mybatis.springboot.model mapper-locations: classpath:mapper/*.xml mapper: mappers: - tk.mybatis.springboot.util.MyMapper not-empty: false identity: MYSQL pagehelper: helperDialect: mysql reasonable: true supportMethodsArguments: true params: count=countSql ``` 注意 mapper 配置,因为参数名固定,所以接收参数使用的对象,按照 Spring Boot 配置规则,大写字母都变了带横线的小写字母。针对如 IDENTITY(对应i-d-e-n-t-i-t-y)提供了全小写的 identity 配置,如果 IDE 能自动提示,看自动提示即可。 ## SSM集成的基础项目 >https://github.com/abel533/Mybatis-Spring ## MyBatis工具 http://www.mybatis.tk - 推荐使用 Mybatis 通用 Mapper3 https://github.com/abel533/Mapper - 推荐使用 Mybatis 分页插件 PageHelper https://github.com/pagehelper/Mybatis-PageHelper ## 作者信息 - 作者博客:http://blog.youkuaiyun.com/isea533 - 作者邮箱:abel533@gmail.com
