MapReduce任务提交源码分析

MapReduce任务提交 API 调用顺序： waitForCompletion -》 submit -》submitJobInternal 主要的部分在 submitJobInternal

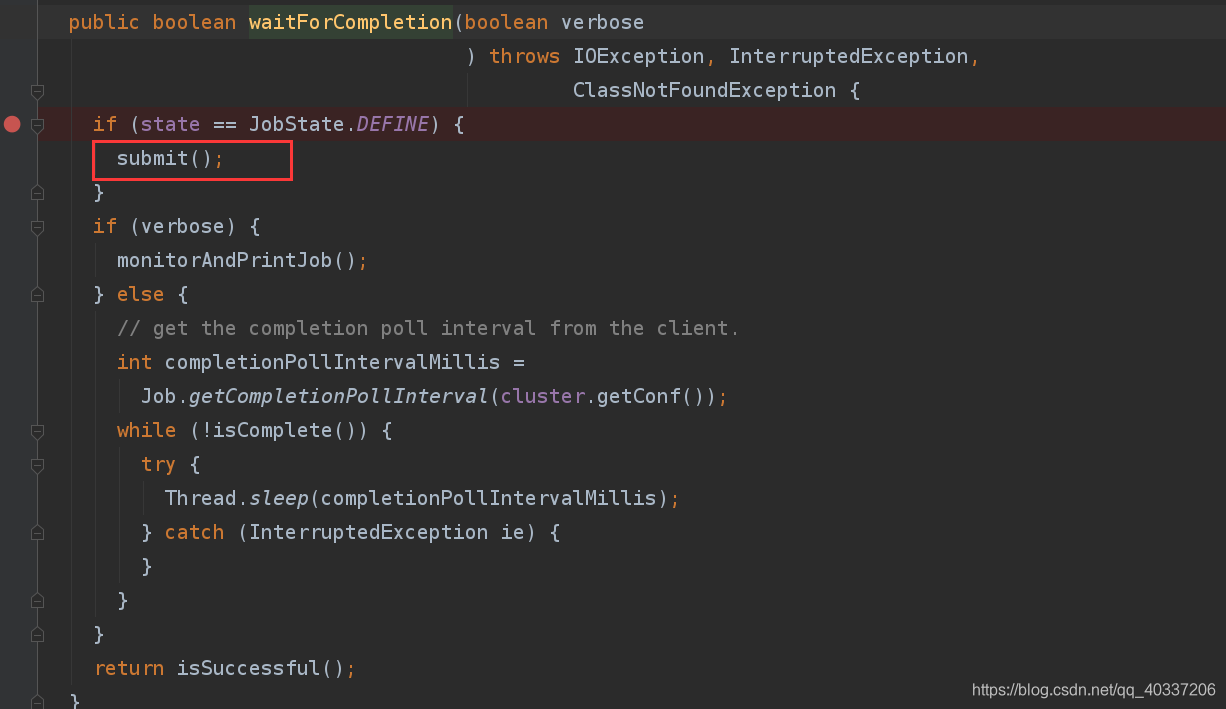

1. 任务提交 waitForCompletion

job.waitForCompletion(true)

---

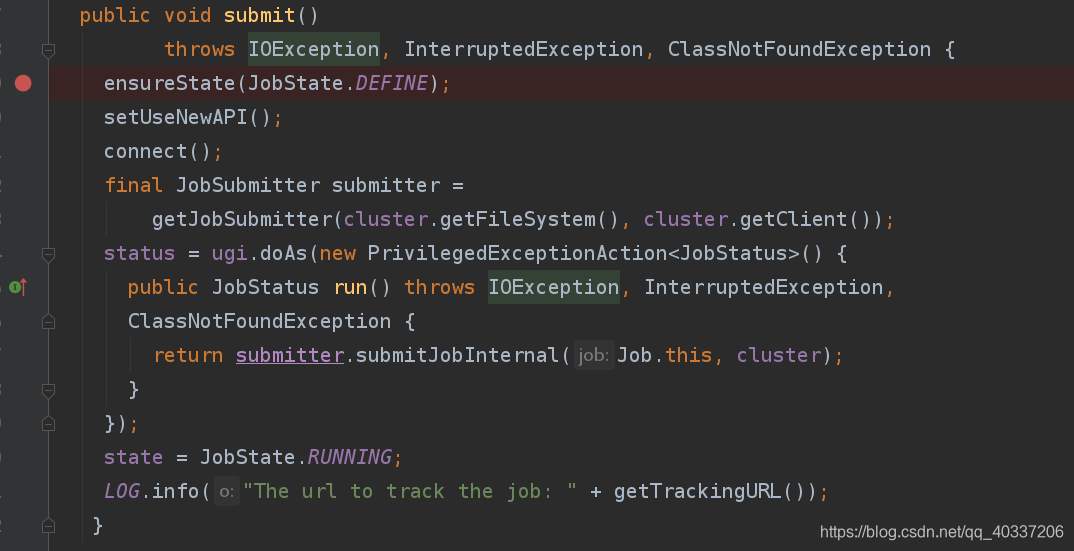

2. 任务提交 submit

---

3.任务提交 submitJobInternal

主要的几个步骤

checkSpecs(job); // 为了检查输出目录是否存在

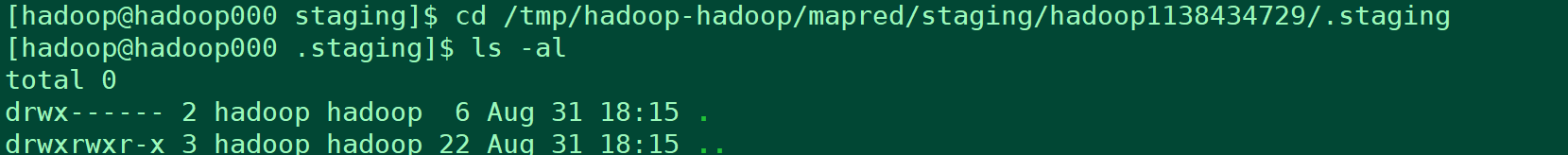

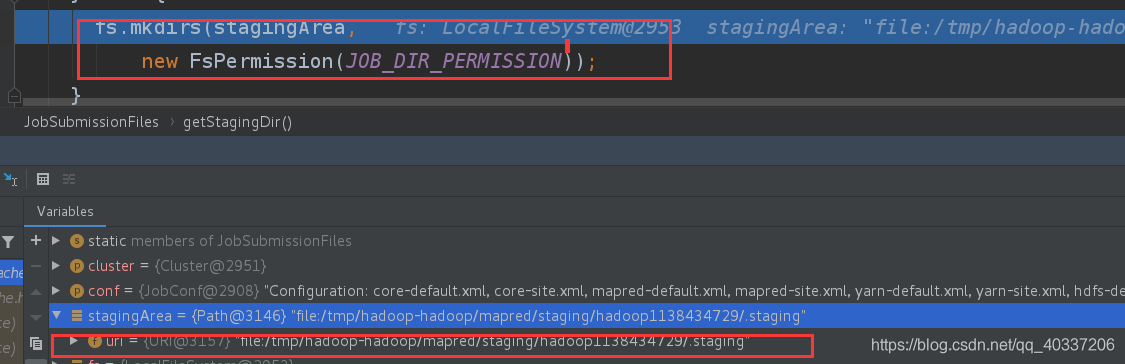

Path jobStagingArea = JobSubmissionFiles.getStagingDir(cluster, conf);// 创建一个staging目录

JobID jobId = submitClient.getNewJobID();// 获取该Job的id

job.setJobID(jobId);

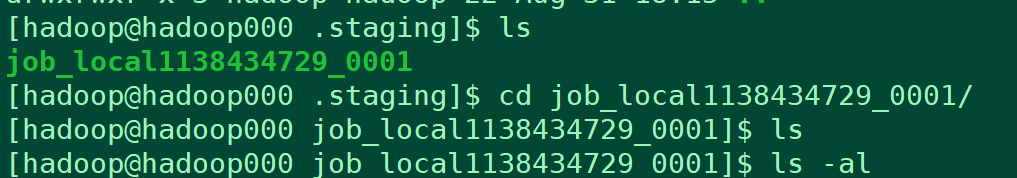

Path submitJobDir = new Path(jobStagingArea, jobId.toString()); // 本Job对应的目录: staging + jobid

copyAndConfigureFiles(job, submitJobDir); // 本Job的信息

int maps = writeSplits(job, submitJobDir); // 获取该Job对应的map数量

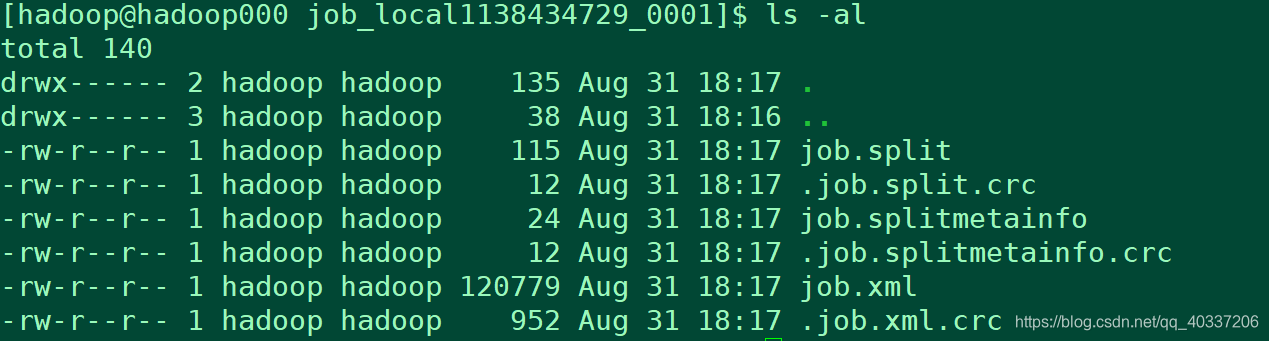

writeConf(conf, submitJobFile); // 本Job的信息写入到指定的文件中去

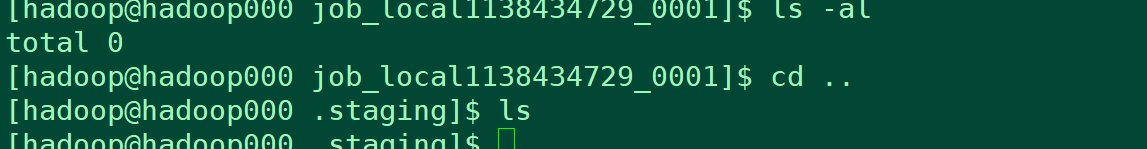

jtFs.delete(submitJobDir, true); // 删除该Job对应的文件目录中的信息

 JobStatus submitJobInternal(Job job, Cluster cluster)
  throws ClassNotFoundException, InterruptedException, IOException {

    //validate the jobs output specs
    checkSpecs(job);

    Configuration conf = job.getConfiguration();
    addMRFrameworkToDistributedCache(conf);

    Path jobStagingArea = JobSubmissionFiles.getStagingDir(cluster, conf);
    //configure the command line options correctly on the submitting dfs
    InetAddress ip = InetAddress.getLocalHost();
    if (ip != null) {
      submitHostAddress = ip.getHostAddress();
      submitHostName = ip.getHostName();
      conf.set(MRJobConfig.JOB_SUBMITHOST,submitHostName);
      conf.set(MRJobConfig.JOB_SUBMITHOSTADDR,submitHostAddress);
    }
    JobID jobId = submitClient.getNewJobID();
    job.setJobID(jobId);
    Path submitJobDir = new Path(jobStagingArea, jobId.toString());
    JobStatus status = null;
    try {
      conf.set(MRJobConfig.USER_NAME,
          UserGroupInformation.getCurrentUser().getShortUserName());
      conf.set("hadoop.http.filter.initializers",
          "org.apache.hadoop.yarn.server.webproxy.amfilter.AmFilterInitializer");
      conf.set(MRJobConfig.MAPREDUCE_JOB_DIR, submitJobDir.toString());
      LOG.debug("Configuring job " + jobId + " with " + submitJobDir
          + " as the submit dir");
      // get delegation token for the dir
      TokenCache.obtainTokensForNamenodes(job.getCredentials(),
          new Path[] { submitJobDir }, conf);

      populateTokenCache(conf, job.getCredentials());

      // generate a secret to authenticate shuffle transfers
      if (TokenCache.getShuffleSecretKey(job.getCredentials()) == null) {
        KeyGenerator keyGen;
        try {
          keyGen = KeyGenerator.getInstance(SHUFFLE_KEYGEN_ALGORITHM);
          keyGen.init(SHUFFLE_KEY_LENGTH);
        } catch (NoSuchAlgorithmException e) {
          throw new IOException("Error generating shuffle secret key", e);
        }
        SecretKey shuffleKey = keyGen.generateKey();
        TokenCache.setShuffleSecretKey(shuffleKey.getEncoded(),
            job.getCredentials());
      }
      if (CryptoUtils.isEncryptedSpillEnabled(conf)) {
        conf.setInt(MRJobConfig.MR_AM_MAX_ATTEMPTS, 1);
        LOG.warn("Max job attempts set to 1 since encrypted intermediate" +
                "data spill is enabled");
      }

      copyAndConfigureFiles(job, submitJobDir);

      Path submitJobFile = JobSubmissionFiles.getJobConfPath(submitJobDir);

      // Create the splits for the job
      LOG.debug("Creating splits at " + jtFs.makeQualified(submitJobDir));
      int maps = writeSplits(job, submitJobDir);
      conf.setInt(MRJobConfig.NUM_MAPS, maps);
      LOG.info("number of splits:" + maps);

      // write "queue admins of the queue to which job is being submitted"
      // to job file.
      String queue = conf.get(MRJobConfig.QUEUE_NAME,
          JobConf.DEFAULT_QUEUE_NAME);
      AccessControlList acl = submitClient.getQueueAdmins(queue);
      conf.set(toFullPropertyName(queue,
          QueueACL.ADMINISTER_JOBS.getAclName()), acl.getAclString());

      // removing jobtoken referrals before copying the jobconf to HDFS
      // as the tasks don't need this setting, actually they may break
      // because of it if present as the referral will point to a
      // different job.
      TokenCache.cleanUpTokenReferral(conf);

      if (conf.getBoolean(
          MRJobConfig.JOB_TOKEN_TRACKING_IDS_ENABLED,
          MRJobConfig.DEFAULT_JOB_TOKEN_TRACKING_IDS_ENABLED)) {
        // Add HDFS tracking ids
        ArrayList<String> trackingIds = new ArrayList<String>();
        for (Token<? extends TokenIdentifier> t :
            job.getCredentials().getAllTokens()) {
          trackingIds.add(t.decodeIdentifier().getTrackingId());
        }
        conf.setStrings(MRJobConfig.JOB_TOKEN_TRACKING_IDS,
            trackingIds.toArray(new String[trackingIds.size()]));
      }

      // Set reservation info if it exists
      ReservationId reservationId = job.getReservationId();
      if (reservationId != null) {
        conf.set(MRJobConfig.RESERVATION_ID, reservationId.toString());
      }

      // Write job file to submit dir
      writeConf(conf, submitJobFile);

      //
      // Now, actually submit the job (using the submit name)
      //
      printTokens(jobId, job.getCredentials());
      status = submitClient.submitJob(
          jobId, submitJobDir.toString(), job.getCredentials());
      if (status != null) {
        return status;
      } else {
        throw new IOException("Could not launch job");
      }
    } finally {
      if (status == null) {
        LOG.info("Cleaning up the staging area " + submitJobDir);
        if (jtFs != null && submitJobDir != null)
          jtFs.delete(submitJobDir, true);

      }
    }
  }

---
