idea搭建ssm框架+easyui实现 增删改查功能

本文档详述了在IDEA中使用Spring、SpringMVC、Mybatis(SSM)框架结合EasyUI实现增删改查功能的过程。涉及到的配置包括web.xml、log4j.properties、mybatis-config.xml、spring-mvc.xml和applicationContext.xml等,并介绍了项目目录结构、关键类如UserController、UserDao、UserService及分页工具PageBean等的实现。文章还强调了Mybatis相对于Hibernate的轻量级特性,以及环境搭建过程中可能出现的jar包冲突问题。

spring版本:4.0.6

mybatis版本:3.2.5

所有jar包打包下载:http://pan.baidu.com/s/1qLEaU

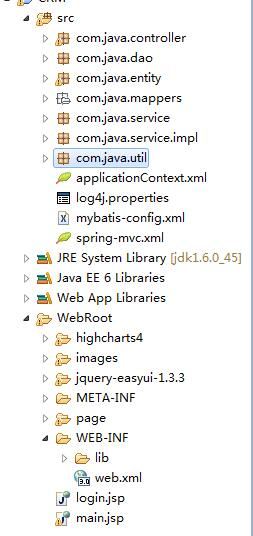

1、项目目录结构

技术分享

其中,controller包下存放控制层文件,dao下存放各个model类相关的数据库操作接口,entity下放置各种model类,mappers下放置各个dao对应的映射文件,service服务层就不说了,放置各种service接口,impl是其具体实现类。

2、web.xml文件配置

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0"
    xmlns="http://java.sun.com/xml/ns/javaee"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
    http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">
  <display-name></display-name>
  <welcome-file-list>
    <welcome-file>login.jsp</welcome-file>
  </welcome-file-list>

  <!-- Spring配置文件 -->
  <context-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:applicationContext.xml</param-value>
  </context-param>

  <!-- 编码过滤器 -->
  <filter>
      <filter-name>encodingFilter</filter-name>
      <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
      <async-supported>true</async-supported>
      <init-param>
          <param-name>encoding</param-name>
          <param-value>UTF-8</param-value>
      </init-param>
  </filter>
  <filter-mapping>
      <filter-name>encodingFilter</filter-name>
      <url-pattern>/*</url-pattern>
  </filter-mapping>

  <!-- 配置Spring监听器 -->
  <listener>
      <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>

  <!-- 添加对SpringMVC的支持 -->
  <servlet>
      <servlet-name>SpringMVC</servlet-name>
      <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
      <init-param>
          <param-name>contextConfigLocation</param-name>
          <param-value>classpath:spring-mvc.xml</param-value>
      </init-param>
  </servlet>
  <servlet-mapping>
      <servlet-name>SpringMVC</servlet-name>
      <url-pattern>*.do</url-pattern>
  </servlet-mapping>

</web-app>



3、log4j.properties配置日志

log4j.rootLogger=DEBUG, Console

#Console
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.layout=org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=%d [%t] %-5p [%c] - %m%n

log4j.logger.java.sql.ResultSet=INFO
log4j.logger.org.apache=INFO
log4j.logger.java.sql.Connection=DEBUG
log4j.logger.java.sql.Statement=DEBUG
log4j.logger.java.sql.PreparedStatement=DEBUG



4、mybatis-config.xml配置

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <!-- 别名 -->
    <typeAliases>
        <package name="com.java.entity" />    <!-- 后面书写类全名时默认加该包名前缀如:<resultMap type="User"... -->
    </typeAliases>

</configuration>



5、spring-mvc.xml配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:p="http://www.springframework.org/schema/p"
    xmlns:aop="http://www.springframework.org/schema/aop"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:jee="http://www.springframework.org/schema/jee"
    xmlns:tx="http://www.springframework.org/schema/tx"
    xsi:schemaLocation="
        http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
        http://www.springframework.org/schema/jee http://www.springframework.org/schema/jee/spring-jee-4.0.xsd
        http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd">

    <!-- 使用注解的包,包括子集 -->
    <context:component-scan base-package="com.java.controller"></context:component-scan>

    <!-- 视图解析器 -->
    <bean id="viewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/"></property>
        <property name="suffix" value=".jsp"></property>
    </bean>
</beans>



6、applicationContext.xml配置

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:p="http://www.springframework.org/schema/p"
    xmlns:aop="http://www.springframework.org/schema/aop"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:jee="http://www.springframework.org/schema/jee"
    xmlns:tx="http://www.springframework.org/schema/tx"
    xsi:schemaLocation="
        http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
        http://www.springframework.org/schema/jee http://www.springframework.org/schema/jee/spring-jee-4.0.xsd
        http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd">

    <!-- 自动扫描该包下面的bean文件 -->
    <context:component-scan base-package="com.java.service"></context:component-scan>

    <bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
        <!-- <property name="driverClassName" value="com.microsoft.sqlserver.jdbc.SQLServerDriver"/> -->
        <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
        <property name="url" value="jdbc:mysql://localhost:3306/crm"/>
        <property name="username" value="root"/>
        <property name="password" value="root"/>
    </bean>

    <!-- 配置MyBatis的sqlSessionFactory -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"></property>
        <property name="configLocation" value="classpath:mybatis-config.xml"></property>
        <property name="mapperLocations" value="classpath:com/java/mappers/*.xml"></property>
    </bean>

    <!-- Mapper接口所在包名,Spring会自动查找其下的Mapper  -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.java.dao"></property>
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"></property>
    </bean>

    <!-- 配置transactionManager事务管理器 -->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"></property>
    </bean>

    <!-- 配置事物通知属性 -->
    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <!-- 定义事物传播特性 -->
        <tx:attributes>
            <tx:method name="insert" propagation="REQUIRED"/>
            <tx:method name="update*" propagation="REQUIRED" />
            <tx:method name="edit*" propagation="REQUIRED" />
            <tx:method name="save*" propagation="REQUIRED" />
            <tx:method name="add*" propagation="REQUIRED" />
            <tx:method name="new*" propagation="REQUIRED" />
            <tx:method name="set*" propagation="REQUIRED" />
            <tx:method name="remove*" propagation="REQUIRED" />
            <tx:method name="delete*" propagation="REQUIRED" />
            <tx:method name="change*" propagation="REQUIRED" />
            <tx:method name="check*" propagation="REQUIRED" />
            <tx:method name="get*" propagation="REQUIRED" read-only="true" />
            <tx:method name="find*" propagation="REQUIRED" read-only="true" />
            <tx:method name="load*" propagation="REQUIRED" read-only="true" />
            <tx:method name="*" propagation="REQUIRED" read-only="true" />
        </tx:attributes>
    </tx:advice>

    <!-- 配置事物切面 -->
    <aop:config>
        <aop:pointcut expression="execution(* com.java.service.*.*(..))" id="serviceOperation"/>
        <aop:advisor advice-ref="txAdvice" pointcut-ref="serviceOperation"/>
    </aop:config>

</beans>



7、增删改查具体实现

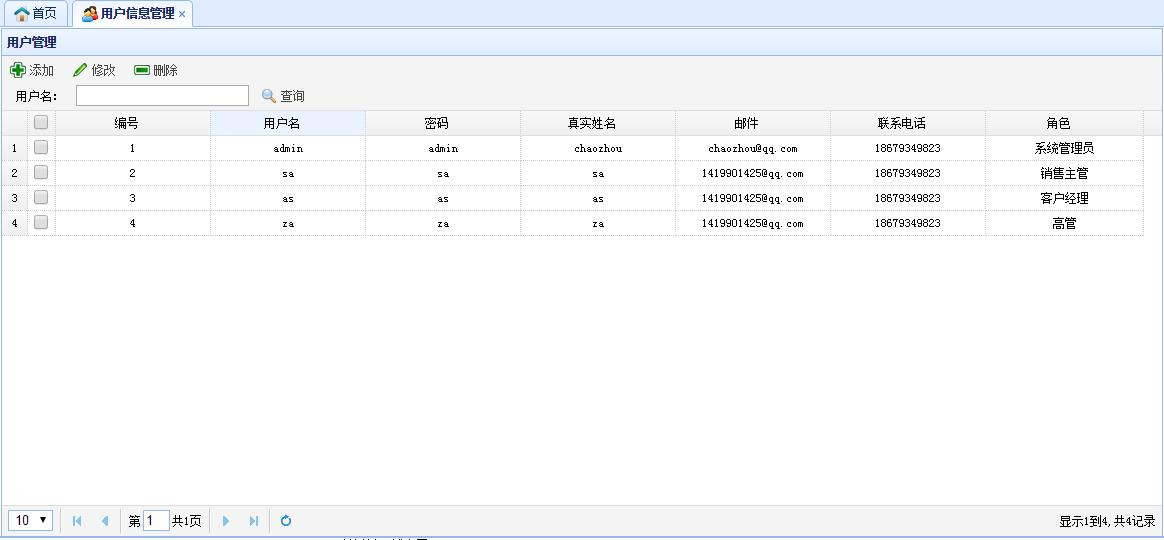

主界面很简单:

技术分享

详细html实现:

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%
    String path = request.getContextPath();
    String basePath = request.getScheme() + "://"
            + request.getServerName() + ":" + request.getServerPort()
            + path + "/";
%>

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<base href="<%=basePath%>">

<title>My JSP ‘userManage.jsp‘ starting page</title>
<link rel="stylesheet" type="text/css"
    href="${pageContext.request.contextPath}/jquery-easyui-1.3.3/themes/default/easyui.css">
<link rel="stylesheet" type="text/css"
    href="${pageContext.request.contextPath}/jquery-easyui-1.3.3/themes/icon.css">
<script type="text/javascript"
    src="${pageContext.request.contextPath}/jquery-easyui-1.3.3/jquery.min.js"></script>
<script type="text/javascript"
    src="${pageContext.request.contextPath}/jquery-easyui-1.3.3/jquery.easyui.min.js"></script>
<script type="text/javascript"
    src="${pageContext.request.contextPath}/jquery-easyui-1.3.3/locale/easyui-lang-zh_CN.js"></script>

<script type="text/javascript">
    var url;
    function searchUser() {
        $("#dg").datagrid(‘load‘, {
            "userName" : $("#s_userName").val()
        });
    }
    function openUserAddDialog() {
        $("#dlg").dialog("open").dialog("setTitle", "添加用户信息");
        url = "${pageContext.request.contextPath}/user/save.do";
    }

    function openUserModifyDialog() {
        var selectedRows = $("#dg").datagrid("getSelections");
        if (selectedRows.length != 1) {
            $.messager.alert("系统提示", "请选择一条要编辑的数据!");
            return;
        }
        var row = selectedRows[0];
        $("#dlg").dialog("open").dialog("setTitle", "编辑用户信息");
        $("#fm").form("load", row);
        url = "${pageContext.request.contextPath}/user/save.do?id=" + row.id;
    }

    function saveUser() {
        $("#fm").form("submit", {
            url : url,
            onSubmit : function() {
                if ($("#roleName").combobox("getValue") == "") {
                    $.messager.alert("系统提示", "请选择用户角色!");
                    return false;
                }
                return $(this).form("validate");
            },
            success : function(result) {
                var result = eval(‘(‘ + result + ‘)‘);
                if (result.success) {
                    $.messager.alert("系统提示", "保存成功!");
                    resetValue();
                    $("#dlg").dialog("close");
                    $("#dg").datagrid("reload");
                } else {
                    $.messager.alert("系统提示", "保存失败!");
                    return;
                }
            }
        });
    }

    function resetValue() {
        $("#userName").val("");
        $("#password").val("");
        $("#trueName").val("");
        $("#email").val("");
        $("#phone").val("");
        $("#roleName").combobox("setValue", "");
    }

    function closeUserDialog() {
        $("#dlg").dialog("close");
        resetValue();
    }

    function deleteUser() {
        var selectedRows = $("#dg").datagrid("getSelections");
        if (selectedRows.length == 0) {
            $.messager.alert("系统提示", "请选择要删除的数据!");
            return;
        }
        var strIds = [];
        for ( var i = 0; i < selectedRows.length; i++) {
            strIds.push(selectedRows[i].id);
        }
        var ids = strIds.join(",");
        $.messager.confirm("系统提示", "您确定要删除这<font color=red>"
