1、项目初始化

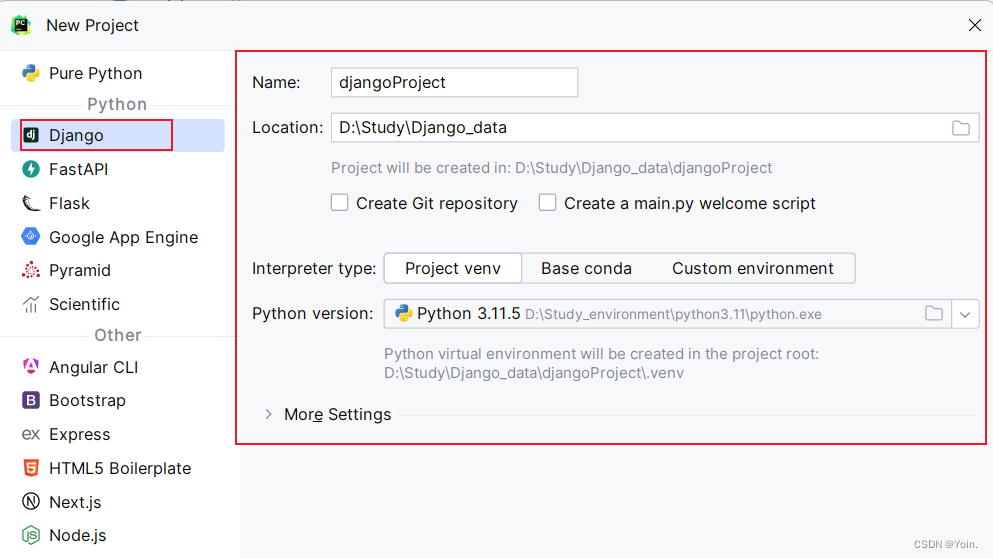

1.1 项目创建
1.2 APP的创建
1.2.1 方法一 命令配置
python manage.py startapp app01

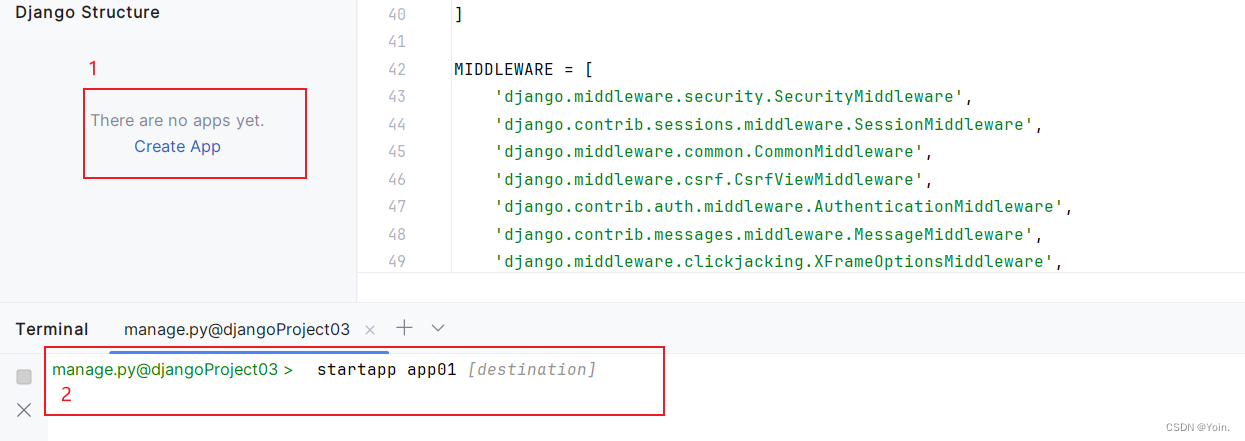

1.2.2 方法二 Pycharm配置
在Django Structure 中创建APP
2.设计表结构

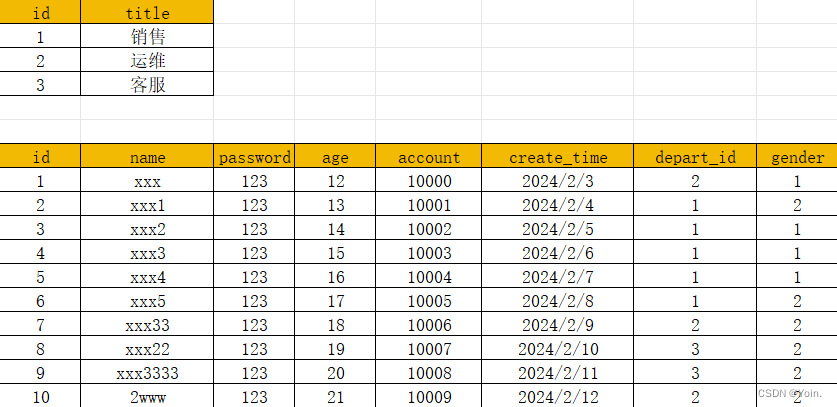

2.1 表结构
注意：
1.员工表与部门表关联时
id关联 节省存储，但是查找耗时
名称关联 加速查找
2.部门id的约束——用户表中的部门id只能是部门表中有的id
3.部门被删除，关联对应的员工表
直接删除对应员工 级联删除
对应部门的员工 部门id置空
''' 部门（与部门表连接）'''
# 1.无约束
# depart_id = models.BigIntegerField(verbose_name='部门ID')
# 2.有约束
# to:与哪张表有关
# to_field: 表中哪一列关联
# 会自动生成 depart_id列
# depart = models.ForeignKey(to="Department",to_field="id")
# 2.1部门删除
# 2.1.1 级联删除
# depart = models.ForeignKey(to="Department", to_field="id", on_delete=models.CASCADE)
# 2.1.2 置空删除
# depart = models.ForeignKey(to="Department",to_field="id",null=True,blank=True,on_delete=models.SET_NULL)
2.2 部门表结构
class Department(models.Model):
""" 部门表 """
title = models.CharField(max_length=32, verbose_name='部门')
2.3 员工表结构
class UserInfo(models.Model):
""" 员工表 """
name = models.CharField(max_length=16, verbose_name='姓名')
password = models.CharField(max_length=64, verbose_name='密码')
age = models.IntegerField(verbose_name='年龄')
# 金额采用decimal格式，位数10位，小数点后有两位
account = models.DecimalField(max_digits=10, decimal_places=2, verbose_name='账户余额')
# 入职时间采用datetime格式
creat_time = models.DateTimeField(auto_now_add=True, verbose_name='入职时间')
''' 部门（与部门表连接）'''
depart = models.ForeignKey(to="Department", to_field="id", on_delete=models.CASCADE)
# 性别选择
gender_choice = (
(1,"男"),
(2,"女"),
)
gender = models.SmallIntegerField(verbose_name='性别',choices=gender_choice)
2.3生成数据库
2.3.1配置mysql
安装msql包
pip install mysqlclient
setting.py中
DATABASES = {
'default': {
'ENGINE': 'django.db.backends.mysql',
'NAME': 'db',
'USER': 'root',
'PASSWORD': 'root',
'HOST': 'localhost',
'PORT': 3306,
}
}
2.3.2 创建表
makemigrations [appname]
migrate [appname]
如果是数据表都已经存在了，在migrate时直接使用 --fake-initial 来处理
python manage.py migrate --fake-initial
3.案例实现

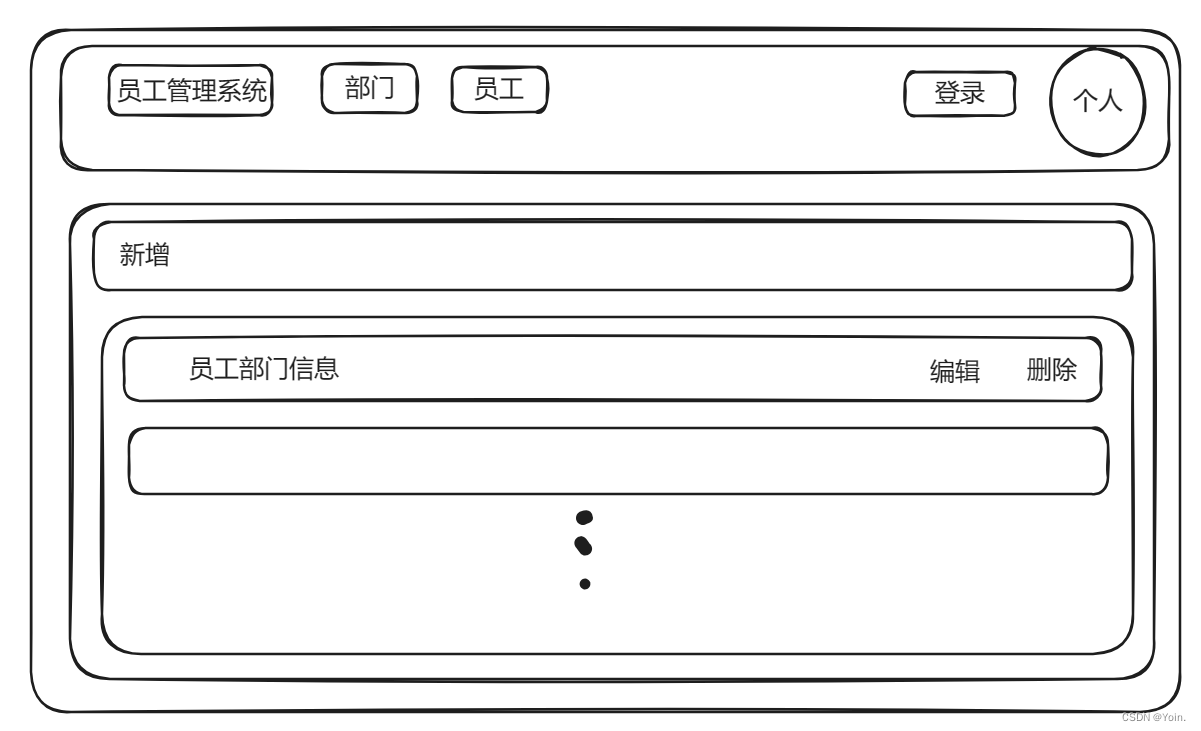

3.1 基本结构

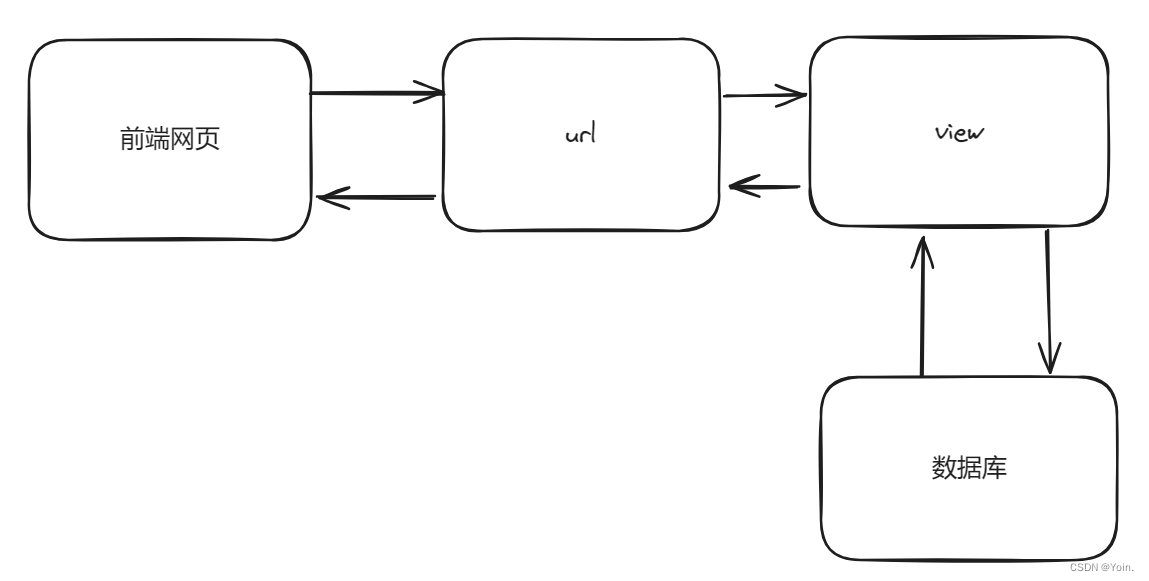

3.2 实现逻辑
3.3 部门管理

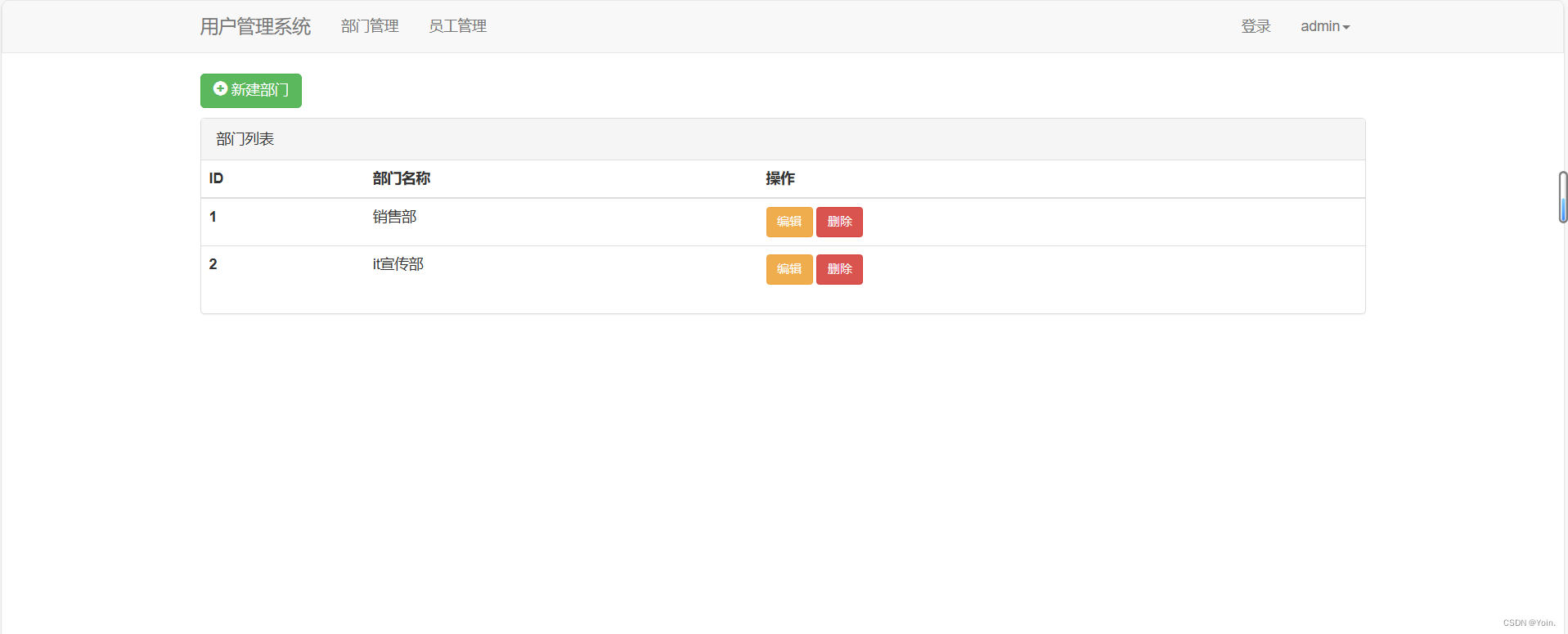

3.3.1 部门列表的实现
depart_list.html
{% load static %}
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<link rel="stylesheet" href="{% static 'plugins/bootstrap-3.4.1/css/bootstrap.css' %}">
<style>
.navbar {
border-radius: 0;
}
</style>
</head>
<body>
<nav class="navbar navbar-default">
<div class="container">
<div class="navbar-header">
<button type="button" class="navbar-toggle collapsed" data-toggle="collapse"
data-target="#bs-example-navbar-collapse-1" aria-expanded="false">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
<a class="navbar-brand" href="#">用户管理系统</a>
</div>
<div class="collapse navbar-collapse" id="bs-example-navbar-collapse-1">
<ul class="nav navbar-nav">
<li><a href="/depart/list">部门管理</a></li>
<li><a href="#">员工管理</a></li>
</ul>
<ul class="nav navbar-nav navbar-right">
<li><a href="#">登录</a></li>
<li class="dropdown">
<a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button" aria-haspopup="true"
aria-expanded="false">admin<span class="caret"></span></a>
<ul class="dropdown-menu">
<li><a href="#">个人中心</a></li>
<li><a href="#">设置</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">注销</a></li>
</ul>
</li>
</ul>
</div>
</div>
</nav>
<div class="container">
<div style="margin-bottom: 10px">
<a type="button" class="btn btn-success" href="/depart/add"><span class="glyphicon glyphicon-plus-sign" aria-hidden="true"></span> 新建部门</a>
</div>
<div class="panel panel-default">
<div class="panel-heading">部门列表</div>
<div class="bs-example" data-example-id="hoverable-table">
<table class="table table-hover">
<thead>
<tr>
<th>ID</th>
<th>部门名称</th>
<th>操作</th>
</tr>
</thead>
<tbody>
{% for dept in depart_list %}
<tr>
<th scope="row">{{ dept.id }}</th>
<td>{{ dept.title }}</td>
<td>
<a class="btn btn-warning btn-sm" href="/depart/{{ dept.id }}/update">编辑</a>
<a class="btn btn-danger btn-sm" href="/depart/del?nid={{ dept.id }}">删除</a>
</td>
</tr>
{% endfor %}
</tbody>
</table>
</div>
</div>
</div>
<script src="{% static 'js/jquery-3.7.1.js' %}"></script>
<script src="{% static 'plugins/bootstrap-3.4.1/js/bootstrap.min.js' %}"></script>
</body>
</html>
3.3.2 部门管理的实现逻辑
- 显示部门数据
-- 获取数据信息，以depart_list传入前端
def depart_list(request):
""" 部门列表 """
'''获取数据部门信息'''
depart_list = models.Department.objects.all()
return render(request, "depart_list.html", {"depart_list": depart_list})
**************************************************************************************
-- 前端展示数据
{% for dept in depart_list %}
<tr>
<th scope="row">{{ dept.id }}</th>
<td>{{ dept.title }}</td>
<td>
<a class="btn btn-warning btn-sm" href="/depart/{{ dept.id }}/update">编辑</a>
<a class="btn btn-danger btn-sm" href="/depart/del?nid={{ dept.id }}">删除</a>
</td>
</tr>
{% endfor %}
- 增加部门数据
-- 新建按钮跳转，新建页面
<div style="margin-bottom: 10px">
<a type="button" class="btn btn-success" href="/depart/add"><span class="glyphicon glyphicon-plus-sign" aria-hidden="true"></span> 新建部门</a>
</div>
**************************************************************************************
-- 前端页面获取添加信息，返还post请求
<div class="panel panel-default">
<div class="panel-heading">部门添加</div>
<div class="panel-body">
<div class="bs-example" data-example-id="simple-form-inline">
<form class="form-inline" method="post" action="/depart/add">
{% csrf_token %}
<div class="form-group">
<label for="username">部门名称</label>
<input type="text" class="form-control" id="dept_title" name="title" placeholder="部门名称">
</div>
<input type="submit" class="btn btn-success" value="提交">
</form>
</div>
</div>
</div>
**************************************************************************************
-- 判断请求（get渲染新建页面；post接收数据，操作数据库）
-- 获取前端增添的信息，更新到数据库
def depart_add(request):
""" 部门添加 """
if request.method == 'GET':
return render(request, "depart_add.html")
title = request.POST.get("title")
models.Department.objects.create(title=title)
return redirect('/depart/list')
- 删除部门数据
-- 前端通过删除按钮获取待删除的部门id
<a class="btn btn-danger btn-sm" href="/depart/del?nid={{ dept.id }}">删除</a>
**************************************************************************************
-- del函数post请求，接收待删除的部门id，操作数据库，重定向到部门列表页面
def depart_del(request):
"""部门删除"""
# http://localhost:8000/depart/del?nid=id
nid = request.GET.get("nid")
models.Department.objects.filter(id=nid).delete()
return redirect('/depart/list')
- 修改部门数据
-- 前端通过编辑按钮获取待修改的部门id，并发送get请求，渲染修改页面
<a class="btn btn-warning btn-sm" href="/depart/{{ dept.id }}/update">编辑</a>
def depart_update(request, nid):
# http://localhost:8000/depart/nid/update
'''部门编辑'''
if request.method == 'GET':
dept = models.Department.objects.filter(id=nid).get()
return render(request, "depart_update.html", {"dept": dept})
<div class="panel-body">
<div class="bs-example" data-example-id="simple-form-inline">
<form class="form-inline" method="post" action="/depart/{{ dept.id }}/update">
{% csrf_token %}
<div class="form-group">
<label for="username">部门名称</label>
<input type="text" class="form-control" id="dept_title" name="title" value="{{ dept.title }}">
</div>
<input type="submit" class="btn btn-success" value="提交">
</form>
</div>
</div>
**************************************************************************************
-- 修改数据后，发送post请求，update函数接收请求，修改数据库
def depart_update(request, nid):
# http://localhost:8000/depart/nid/update
'''部门编辑'''
if request.method == 'GET':
dept = models.Department.objects.filter(id=nid).get()
return render(request, "depart_update.html", {"dept": dept})
new_title = request.POST.get("title")
models.Department.objects.filter(id=nid).update(title=new_title)
return redirect('/depart/list')
3.3.4 url传参的两种形式
1.get请求方法
# http://localhost:8000/depart/del?nid=id
- urls：path('depart/del', views.depart_del),
- 获取参数：<a href="/depart/del?nid={{ dept.id }}">删除</a>
- 函数：
def depart_del(request):
nid = request.GET.get("nid")
models.Department.objects.filter(id=nid).delete()
return redirect('/depart/list')t
2.正则表达式
# http://localhost:8000/depart/nid/update
- urls：path('depart/ <int:nid> /update', views.depart_update),
- 获取参数：<a href="/depart/{{ dept.id }}/update">编辑</a>
- 函数：
def depart_update(request, nid):
if request.method == 'GET':
dept = models.Department.objects.filter(id=nid).get()
return render(request, "depart_update.html", {"dept": dept})
new_title = request.POST.get("title")
models.Department.objects.filter(id=nid).update(title=new_title)
return redirect('/depart/list')
3.4模板的继承
上述部门列表、部门新建、部门更新的html页面中导航栏和一些其他的部分高度相似，为避免重复，可采用模板继承
3.4.1 模板
定义母版：layout.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<link rel="stylesheet" href="{% static 'plugin...min.css' %}">
{% block css %}子版css内容{% endblock %}
</head>
<body>
<h1>标题</h1>
<div>
{% block content %}子版内容{% endblock %}
</div>
<h1>底部</h1>
<script src="{% static 'js/jquery-3.6.0.min.js' %}"></script>
{% block js %}子版js内容{% endblock %}
</body>
</html>
3.4.2 继承模板
-- 继承母版
{% extends 'layout.html' %}
--自己的css内容
{% block css %}
<link rel="stylesheet" href="{% static 'pluxxx.css' %}">
<style>
...
</style>
{% endblock %}
--自己的内容
{% block content %}
<h1>首页</h1>
{% endblock %}
--自己的js内容
{% block js %}
<script src="{% static 'js/jqxxxin.js' %}"></script>
{% endblock %}
3.4.3部门案例的模板应用
定义母版：layout.html
{% load static %}
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Title</title>
<link rel="stylesheet" href="{% static 'plugins/bootstrap-3.4.1/css/bootstrap.css' %}">
<style>
.navbar {
border-radius: 0;
}
</style>
{% block css %}{% endblock %}
</head>
<body>
<nav class="navbar navbar-default">
<div class="container">
<div class="navbar-header">
<button type="button" class="navbar-toggle collapsed" data-toggle="collapse"
data-target="#bs-example-navbar-collapse-1" aria-expanded="false">
<span class="sr-only">Toggle navigation</span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
<span class="icon-bar"></span>
</button>
<a class="navbar-brand" href="#">用户管理系统</a>
</div>
<div class="collapse navbar-collapse" id="bs-example-navbar-collapse-1">
<ul class="nav navbar-nav">
<li><a href="/depart/list">部门管理</a></li>
<li><a href="#">员工管理</a></li>
</ul>
<ul class="nav navbar-nav navbar-right">
<li><a href="#">登录</a></li>
<li class="dropdown">
<a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button" aria-haspopup="true"
aria-expanded="false">admin<span class="caret"></span></a>
<ul class="dropdown-menu">
<li><a href="#">个人中心</a></li>
<li><a href="#">设置</a></li>
<li role="separator" class="divider"></li>
<li><a href="#">注销</a></li>
</ul>
</li>
</ul>
</div>
</div>
</nav>
<div class="container">
{% block content %}{% endblock %}
</div>
<script src="{% static 'js/jquery-3.7.1.js' %}"></script>
<script src="{% static 'plugins/bootstrap-3.4.1/js/bootstrap.min.js' %}"></script>
{% block js %}{% endblock %}
</body>
</html>
dept_list.html
{% extends 'layout.html' %}
{% block content %}
<div style="margin-bottom: 10px">
<a type="button" class="btn btn-success" href="/depart/add"><span class="glyphicon glyphicon-plus-sign"
aria-hidden="true"></span> 新建部门</a>
</div>
<div class="panel panel-default">
<div class="panel-heading">部门列表</div>
<div class="bs-example" data-example-id="hoverable-table">
<table class="table table-hover">
<thead>
<tr>
<th>ID</th>
<th>部门名称</th>
<th>操作</th>
</tr>
</thead>
<tbody>
{% for dept in depart_list %}
<tr>
<th scope="row">{{ dept.id }}</th>
<td>{{ dept.title }}</td>
<td>
<a class="btn btn-warning btn-sm" href="/depart/{{ dept.id }}/update">编辑</a>
<a class="btn btn-danger btn-sm" href="/depart/del?nid={{ dept.id }}">删除</a>
</td>
</tr>
{% endfor %}
</tbody>
</table>
</div>
</div>
{% endblock %}
dept_add.html
{% extends 'layout.html' %}
{% block content %}
<div class="panel panel-default">
<div class="panel-heading">部门添加</div>
<div class="panel-body">
<div class="bs-example" data-example-id="simple-form-inline">
<form class="form-inline" method="post" action="/depart/add">
{% csrf_token %}
<div class="form-group">
<label for="username">部门名称</label>
<input type="text" class="form-control" id="dept_title" name="title" placeholder="部门名称">
</div>
<input type="submit" class="btn btn-success" value="提交">
</form>
</div>
</div>
</div>
{% endblock %}
dept_update.html
{% extends 'layout.html' %}
{% block content %}
<div class="panel panel-default">
<div class="panel-heading">部门修改</div>
<div class="panel-body">
<div class="bs-example" data-example-id="simple-form-inline">
<form class="form-inline" method="post" action="/depart/{{ dept.id }}/update">
{% csrf_token %}
<div class="form-group">
<label for="username">部门名称</label>
<input type="text" class="form-control" id="dept_title" name="title" value="{{ dept.title }}">
</div>
<input type="submit" class="btn btn-success" value="提交">
</form>
</div>
</div>
</div>
{% endblock %}
3.5员工管理
3.5.1员工列表的实现
user_list.html
{% extends 'layout.html' %}
{% block content %}
<div style="margin-bottom: 10px">
<a type="button" class="btn btn-success" href="/user/add"><span class="glyphicon glyphicon-plus-sign"
aria-hidden="true"></span> 增加员工</a>
<a
type="button" class="btn btn-success" href="/user/ModelForm/add"><span class="glyphicon glyphicon-plus-sign"
aria-hidden="true"></span> 增加员工ModelForm</a>
</div>
<div class="panel panel-default">
<div class="panel-heading">员工列表</div>
<div class="bs-example" data-example-id="hoverable-table">
<table class="table table-hover">
<thead>
<tr>
<th>ID</th>
<th>姓名</th>
<th>密码</th>
<th>年龄</th>
<th>余额</th>
<th>注册时间</th>
<th>性别</th>
<th>部门</th>
<th>操作</th>
</tr>
</thead>
<tbody>
{% for user in user_list %}
<tr>
<th scope="row">{{ user.id }}</th>
<td>{{ user.name }}</td>
<td>{{ user.password }}</td>
<td>{{ user.age }}</td>
<td>{{ user.account }}</td>
{# <td>{% now 'Y-m-d' %}</td>#}
<td>{{ user.creat_time|date:"Y-m-d H:i:s" }}</td>
<td>{{ user.get_gender_display }}</td>
<td>{{ user.depart.title }}</td>
<td>
<a class="btn btn-warning btn-sm" href="/user/{{ user.id }}/update">编辑</a>
<a class="btn btn-danger btn-sm" href="/user/del?nid={{ user.id }}">删除</a>
</td>
</tr>
{% endfor %}
</tbody>
</table>
</div>
</div>
{% endblock %}
views.py
def user_list(request):
'''获取用户信息'''
user_list = models.UserInfo.objects.all()
return render(request, "user_list.html", {"user_list": user_list})
<tbody> {% for user in user_list %} <tr> <th scope="row">{{ user.id }}</th> <td>{{ user.name }}</td> <td>{{ user.password }}</td> <td>{{ user.age }}</td> <td>{{ user.account }}</td> {#<td>{% now 'Y-m-d' %}</td>#} <td>{{ user.creat_time|date:"Y-m-d H:i:s" }}</td> <td>{{ user.get_gender_display }}</td> <td>{{ user.depart.title }}</td> </tr> {% endfor %} </tbody>后端查询的用户列表返回user_list 为queryset类型
<QuerySet [<UserInfo: UserInfo object (1)>, <UserInfo: UserInfo object (7)>, <UserInfo: UserInfo object (8)>, <UserInfo: UserInfo object (9)>, <UserInfo: UserInfo object (10)>, <UserInfo: UserInfo object (11)>, <UserInfo: UserInfo object (12)>]>1.当前时间的格式化输出
- 获取当前时间：
- python语言：
datetime.datetime.now()- django模板语言：
{% now 'Y-m-d' %}- 时间格式化输出
- python语言：
datetime.datetime.now().strftime("%Y-%m-%d %H:%M:%S")- django模板语言：
{{ {% now 'Y-m-d' %} | date:"Y-m-d" }}2.性别的格式化输出
gender字段的定义：
gender_choice = ( (1, "男"), (2, "女"), ) gender = models.SmallIntegerField(verbose_name='性别', choices=gender_choice)
user.gender：1或2``````user.get_gender_display：男或女对于设置了choice的字段，Django会自动帮我们提供一个方法(注意是方法), 用来获取这个字段对应的要展示的值。展示带有choice属性的字段时，django会自动帮我们调用get_xxx_display(xxx为字段名，如本文的get_gender_display)方法，所以不用配置。而在我们自己写的模板中，这需要自己来写。并且为了简化模板的使用，默认只支持无参数的方法调用，你只需要写方法名称即可，后面的括号不能写，Django会自行帮你调用(如果是方法的话)。
3.关联数据的调用
depart字段的定义：
depart = models.ForeignKey(verbose_name='部门', to="Department", to_field="id", on_delete=models.CASCADE)表示user中会自动生成一个depart_id的字段，来关联存储depart表的内容
因此user可以直接调用depart表的字段。user.depart.xxx(depart各字段)
3.5.2 员工的删除操作
user_list.html
<td>
<a class="btn btn-danger btn-sm" href="/user/del?nid={{ user.id }}">删除</a>
</td>
采用get方式传入，待删除数据的id数据
http://localhost:8000/user/del?nid=id
views.py
def user_del(request):
""" 员工删除"""
nid = request.GET.get("nid") # get获取（从url中）待删除数据的id
models.UserInfo.objects.filter(id=nid).delete()
return redirect("/user/list")
3.5.3 员工的增加操作
3.5.3.1 原始操作
类似员工的更新操作
user_list.html
<div style="margin-bottom: 10px">
<a type="button" class="btn btn-success" href="/user/add"><span class="glyphicon glyphicon-plus-sign"
aria-hidden="true"></span> 增加员工</a>
</div>
user_add.html
{% extends 'layout.html' %}
{% block content %}
<div class="panel panel-default">
<div class="panel-heading">员工添加</div>
<div class="panel-body">
<div class="bs-example" data-example-id="simple-form-inline">
<form class="form" method="post" action="/user/add">
{% csrf_token %}
<div class="form-group">
<label>姓名</label>
<input type="text" class="form-control" id="dept_title" name="name">
</div>
<div class="form-group">
<label>密码</label>
<input type="text" class="form-control" id="dept_title" name="pwd">
</div>
<div class="form-group">
<label>年龄</label>
<input type="text" class="form-control" id="dept_title" name="age">
</div>
<div class="form-group">
<label>余额</label>
<input type="text" class="form-control" id="dept_title" name="account">
</div>
<div class="form-group">
<label>入职时间</label>
<input type="text" class="form-control" id="dept_title" name="creat_time" value="{% now 'Y-m-d' %}">
</div>
<div class="form-group">
<label>性别</label>
<select class="form-control" name="gender">
{% for item in gender_list %}
<option value="{{ item.0 }}">{{ item.1 }}</option>
{% endfor %}
</select>
</div>
<div class="form-group">
<label>部门</label>
<select class="form-control" name="depart">
{% for item in depart_list %}
<option value="{{ item.id }}">{{ item.title }}</option>
{% endfor %}
</select>
</div>
<input type="submit" class="btn btn-success" value="提交">
</form>
</div>
</div>
</div>
{% endblock %}
同更新操作
views.py
def user_add(request):
'''新增员工'''
if request.method == 'GET':
context = {
"depart_list": models.Department.objects.all(),
"gender_list": models.UserInfo.gender_choice,
}
return render(request, "user_add.html", context)
# 缺少数据校验和错误提示
# 前端的每一个字段都得写一遍
# 关联的数据，需要手动获取并循环展示
name = request.POST.get("name")
password = request.POST.get("pwd")
age = request.POST.get("age")
account = request.POST.get("account")
creat_time = request.POST.get("creat_time")
gender = request.POST.get("gender")
depart_id = request.POST.get("depart")
models.UserInfo.objects.create(name=name, password=password, age=age, account=account, creat_time=creat_time,gender=gender, depart_id=depart_id)
return redirect('/user/list')
原始方法的弊端
- 缺少数据校验和错误提示
- 前端的每一个字段都得写一遍
- 关联的数据（depart）需要手动获取并且循环展示
3.5.3.2 form组件
views.py
class MyForm(Form):<-----------------------------------------
user = forms.CharField(widget=forms.Input) |
pwd = form.CharFiled(widget=forms.Input) |
email = form.CharFiled(widget=forms.Input) |
account = form.CharFiled(widget=forms.Input) |
create_time = form.CharFiled(widget=forms.Input) |
depart = form.CharFiled(widget=forms.Input) |
gender = form.CharFiled(widget=forms.Input) |
|
## 封装form， form = MyForm()运行自动生成input输入框 |
|
def user_add(request): |
if request.method == "GET": |
form = MyForm()>-------------------------------------
## form 此时为一系列输入框
return render(request, 'user_add.html',{"form":form})
user_add.html
<form method="post">
{% for field in form%}
{{ field }}
{% endfor %}
<!-- <input type="text" placeholder="姓名" name="user" /> -->
</form>
<form method="post">
{{ form.user }}
{{ form.pwd }}
{{ form.email }}
<!-- <input type="text" placeholder="姓名" name="user" /> -->
</form>
3.5.3.3 ModelsForm组件
views.py
class user_ModelForm(forms.ModelForm):
password = forms.CharField(min_length=6, label="密码")
class Meta:
# 自动获取UserInfo创建的各字段
model = models.UserInfo
# fields存储UserInfo创建的各字段的input输入框
fields = ['name', 'password', 'age', 'account', 'creat_time', 'gender', 'depart']
def __init__(self, *args, **kwargs):
super().__init__(*args, **kwargs)
# 循环找到所有的插件，添加了class="form-control"
print(self.fields) #####---------------1
for key, value in self.fields.items():
print(value.widget)
if key == "creat_time":
# python中当前时间并且格式化形式datetime.datetime.now().strftime("%Y-%m-%d %H:%M:%S")
# django模板语言当前时间并且格式形式 {% now 'Y-m-d' %} 或 {{ user.creat_time|date:"Y-m-d" }}
value.widget.attrs = {"class": "form-control", "placeholder": value.label,
"value": datetime.datetime.now().strftime("%Y-%m-%d")}
else:
value.widget.attrs = {"class": "form-control", "placeholder": value.label}
def user_ModelForm_add(request):
if request.method == 'GET':
# form为userinfo各字段的表单
form = user_ModelForm()
print(form)
return render(request, "user_ModelForm_add.html", {"form": form})
# 将前端表单的post请求，直接传入form对象中
form = user_ModelForm(request.POST)
# 判断数据是否合法有效(校验规则————models中建表表项规则 + class user_ModelForm(forms.ModelForm)重新定义表项规则)
if form.is_valid():
# 将表单保存到数据库中
form.save()
return redirect('/user/list')
# 校验失败（在页面显示错误信息） form.error()含有错误
return render(request, "user_ModelForm_add.html", {"form": form})

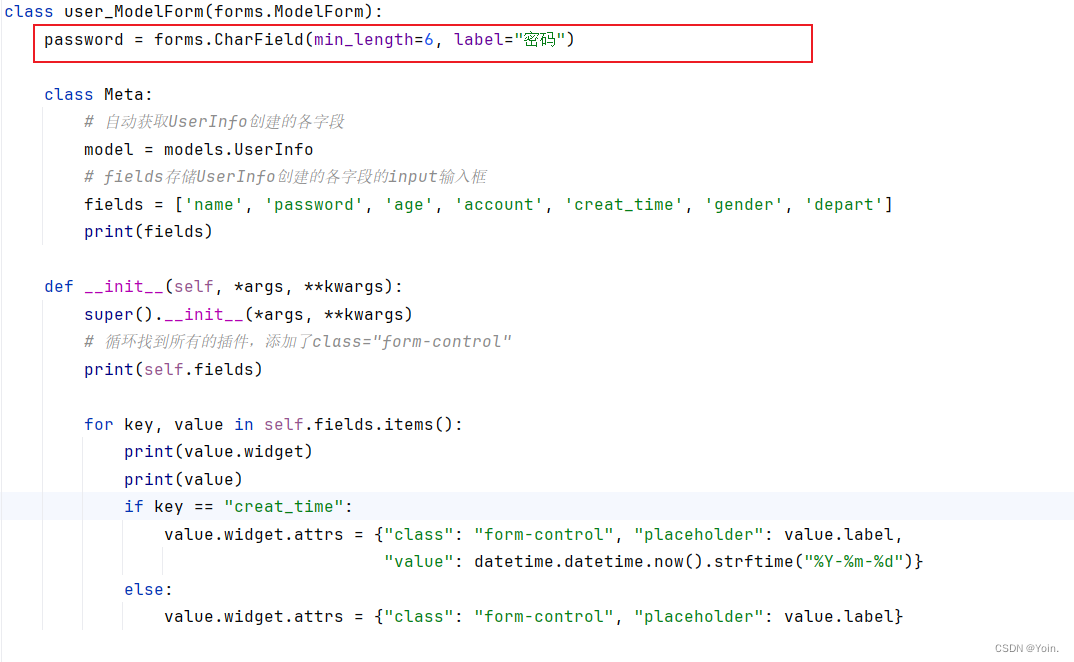

输入框加入样式的方法
- widgets方法
class user_ModelForm(forms.ModelForm): password = forms.CharField(min_length=6, label="密码") class Meta: # 自动获取UserInfo创建的各字段 model = models.UserInfo # fields存储UserInfo创建的各字段的input输入框 fields = ['name', 'password', 'age', 'account', 'creat_time', 'gender', 'depart'] # 给输入框上样式的方法 widgets = { "name": forms.TextInput(attrs={"class": 'form-control'}), "password": forms.TextInput(attrs={"class": 'form-control'}), "age": forms.NumberInput(attrs={"class": 'form-control'}), "account": forms.NumberInput(attrs={"class": 'form-control'}), "creat_time": forms.DateTimeInput(attrs={"class": 'form-control'}), "gender": forms.Select(attrs={"class": 'form-control'}), "depart": forms.Select(attrs={"class": 'form-control'}), }
- 自定义方法
class user_ModelForm(forms.ModelForm): password = forms.CharField(min_length=6, label="密码") class Meta: # 自动获取UserInfo创建的各字段 model = models.UserInfo # fields存储UserInfo创建的各字段的input输入框 fields = ['name', 'password', 'age', 'account', 'creat_time', 'gender', 'depart'] def __init__(self, *args, **kwargs): super().__init__(*args, **kwargs) # 循环找到所有的插件，添加了class="form-control" ① print(self.fields) for key, value in self.fields.items(): ② print(value.widget) if key == "creat_time": value.widget.attrs = {"class": "form-control", "placeholder": value.label, "value": datetime.datetime.now().strftime("%Y-%m-%d")} else: value.widget.attrs = {"class": "form-control", "placeholder": value.label}要点1
# 自动获取UserInfo创建的各字段 model = models.UserInfo # fields存储UserInfo创建的各字段的input输入框 fields = ['name', 'password', 'age', 'account', 'creat_time', 'gender', 'depart']要点2
①处field返回值为字典，key为表的各字段. value为form对象，存储form中每一个输入框格式
{ 'name': <django.forms.fields.CharField object at 0x000001CFBED9A1D0>, 'password': <django.forms.fields.CharField object at 0x000001CFBED9A410>, 'age': <django.forms.fields.IntegerField object at 0x000001CFBED9A5D0>, 'account': <django.forms.fields.DecimalField object at 0x000001CFBED9A850>, 'creat_time': <django.forms.fields.DateTimeField object at 0x000001CFBED9AAD0>, 'gender': <django.forms.fields.TypedChoiceField object at 0x000001CFBED9AD50>, 'depart': <django.forms.models.ModelChoiceField object at 0x000001CFBED9B250> }②处self.fields.items()遍历字典的每一个键值对
key为表的各字段；value为forms对象，存储form为各字段的格式；value.widget 操作每一项的输入框
字段name为例 value： <django.forms.fields.CharField object at 0x000001CFBED9A1D0> value.widget：<django.forms.widgets.TextInput object at 0x000001DDA8476C50>
value.widget.attrs给输入框增加样式value.widget.attrs = {"class": "form-control", "placeholder": value.label,xxx:xxx}

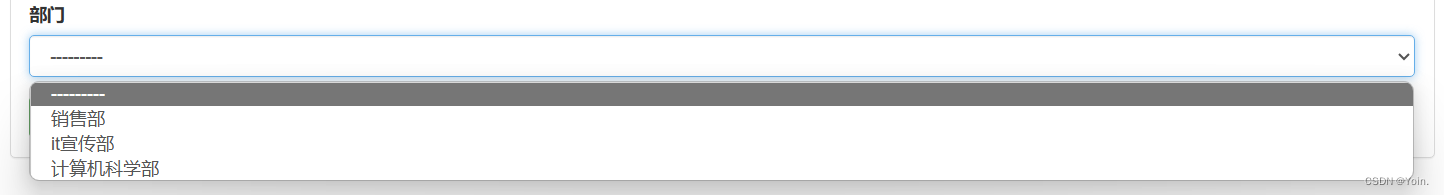

特别注意:使用此方法，只要使用class Department，立马输出对应内容**此处关联数据无需遍历，只需在构建关联表时，定义默认输出值即可
class Department(models.Model): """ 部门表 """ title = models.CharField(max_length=32, verbose_name='部门') # 默认返回部门名称 def __str__(self): return self.title

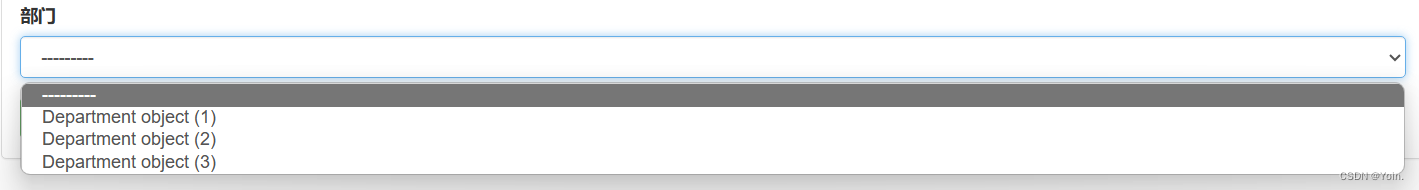

若不采用，默认返回的时department的表对象，若要取得title字段，还得特殊处理
操作函数
def user_ModelForm_add(request):
if request.method == 'GET':
# form为userinfo各字段的表单
form = user_ModelForm()
① print(form)
return render(request, "user_ModelForm_add.html", {"form": form})
② # 将前端表单的post请求，直接传入form对象中
form = user_ModelForm(request.POST)
# 判断数据是否合法有效(校验规则————models中建表表项规则 + class user_ModelForm(forms.ModelForm)重新定义表项规则)
if form.is_valid():
# 将表单保存到数据库中
form.save()
return redirect('/user/list')
# 校验失败（在页面显示错误信息） form.error()含有错误
return render(request, "user_ModelForm_add.html", {"form": form})
要点1
form = user_ModelForm()返回一个生成好的表<div> <label for="id_name">姓名:</label> <input type="text" name="name" class="form-control" placeholder="姓名" required id="id_name"> </div> <div> <label for="id_password">密码:</label> <input type="text" name="password" class="form-control" placeholder="密码" required id="id_password"> </div> <div> <label for="id_age">年龄:</label> <input type="number" name="age" class="form-control" placeholder="年龄" required id="id_age"> </div> <div> <label for="id_account">账户余额:</label> <input type="number" name="account" class="form-control" placeholder="账户余额" required id="id_account"> </div> <div> <label for="id_creat_time">入职时间:</label> <input type="text" name="creat_time" class="form-control" placeholder="入职时间" value="2024-02-21" required id="id_creat_time"> </div> <div> <label for="id_gender">性别:</label> <select name="gender" class="form-control" placeholder="性别" required id="id_gender"> <option value="" selected>---------</option> <option value="1">男</option> <option value="2">女</option> </select> </div> <div> <label for="id_depart">部门:</label> <select name="depart" class="form-control" placeholder="部门" required id="id_depart"> <option value="" selected>---------</option> <option value="1">销售部</option> <option value="2">it宣传部</option> <option value="3">计算机科学部</option> </select> </div>要点2
前端的应用
{% extends 'layout.html' %} {% block content %} <div class="panel panel-default"> <div class="panel-heading">员工添加</div> <div class="panel-body"> <div class="bs-example" data-example-id="simple-form-inline"> <form class="form" method="post" action="/user/ModelForm/add" novalidate> {% csrf_token %} {#创建表单，form为userinfo各字段的表单#} {#每一个field都是一个字段的输入框#} {% for field in form %} <div class="form-group"> <label>{{ field.label }}</label> {{ field }} </div> {% endfor %} <input type="submit" class="btn btn-success" value="提交"> </form> </div> </div> </div> {% endblock %}要点3：校验和错误提示
# 将前端表单的post请求，直接传入form对象中，此时的form中含有form结构以及输入的数据 form = user_ModelForm(request.POST) if form.is_valid(): # 将表单保存到数据库中 form.save() return redirect('/user/list') # 校验失败（在页面显示错误信息） form.error()含有错误 return render(request, "user_ModelForm_add.html", {"form": form})
判断数据是否合法有效
1.校验规则————models中建表表项规则class UserInfo(models.Model): """ 员工表 """ name = models.CharField(max_length=16, verbose_name='姓名') password = models.CharField(max_length=64, verbose_name='密码') age = models.IntegerField(verbose_name='年龄') # 金额采用decimal格式，位数10位，小数点后有两位 account = models.DecimalField(max_digits=10, decimal_places=2, verbose_name='账户余额') # 入职时间采用datetime格式 creat_time = models.DateTimeField(verbose_name='入职时间') depart = models.ForeignKey(verbose_name='部门', to="Department", to_field="id", on_delete=models.CASCADE) # 性别选择 gender_choice = ( (1, "男"), (2, "女"), ) gender = models.SmallIntegerField(verbose_name='性别', choices=gender_choice)2.class user_ModelForm(forms.ModelForm)重新定义表项规则
> >
保存到数据库
form.save()直接将表单字段以及对应的数据，存入数据库的对应字段

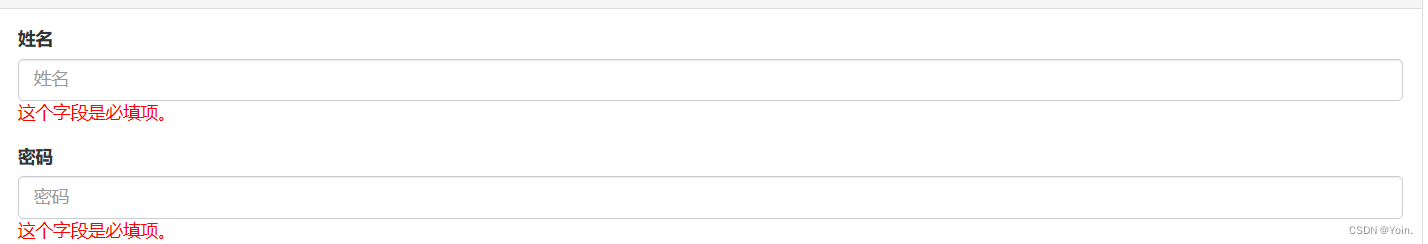

- 错误提示
此时的form中不仅存放着form结构以及输入的数据还有一系列form有效信息、错误提示等form对象含有的信息
form.error存放错误信息field.errors.0存放错误提示的第一条信息{% for field in form %} <div class="form-group"> <label>{{ field.label }}</label> {{ field }} <span style="color: red">{{ field.errors.0 }}</span> </div> {% endfor %}
name = models.CharField(max_length=16, verbose_name='姓名') password = models.CharField(max_length=64, verbose_name='密码') age = models.IntegerField(verbose_name='年龄') # 金额采用decimal格式，位数10位，小数点后有两位 account = models.DecimalField(max_digits=10, decimal_places=2, verbose_name='账户余额') # 入职时间采用datetime格式 creat_time = models.DateTimeField(verbose_name='入职时间') depart = models.ForeignKey(verbose_name='部门', to="Department", to_field="id", on_delete=models.CASCADE) # 性别选择 gender_choice = ( (1, "男"), (2, "女"), ) gender = models.SmallIntegerField(verbose_name='性别', choices=gender_choice)2.class user_ModelForm(forms.ModelForm)重新定义表项规则
- 保存到数据库
form.save()直接将表单字段以及对应的数据，存入数据库的对应字段
- 错误提示
此时的form中不仅存放着form结构以及输入的数据还有一系列form有效信息、错误提示等form对象含有的信息
form.error存放错误信息field.errors.0存放错误提示的第一条信息{% for field in form %} <div class="form-group"> <label>{{ field.label }}</label> {{ field }} <span style="color: red">{{ field.errors.0 }}</span> </div> {% endfor %}
![[外链图片转存中...(img-I43rGkJh-1708496635163)]](https://i-blog.csdnimg.cn/blog_migrate/2e97254d24758d7aeecfc01f392550bb.png)
3.5.4 员工的更新操作
3.5.4.1 原始操作
user_list.html
<td>
<a class="btn btn-warning btn-sm" href="/user/{{ user.id }}/update">编辑</a>
</td>
urls.py
path('user/<int:nid>/update', views.user_update)
可使用此种url进行传输待更新数据的id，与删除进行对比
http://localhost:8000/user/nid/update
user_update.html
{% extends 'layout.html' %}
{% block content %}
<div class="panel panel-default">
<div class="panel-heading">部门修改</div>
<div class="panel-body">
<div class="bs-example" data-example-id="simple-form-inline">
<form class="form" method="post" action="/user/{{ user.id }}/update">
{% csrf_token %}
<div class="form-group">
<label>姓名</label>
<input type="text" class="form-control" id="dept_title" name="name" value="{{ user.name }}">
</div>
<div class="form-group">
<label>密码</label>
<input type="text" class="form-control" id="dept_title" name="pwd" value="{{ user.password }}">
</div>
<div class="form-group">
<label>年龄</label>
<input type="text" class="form-control" id="dept_title" name="age" value="{{ user.age }}">
</div>
<div class="form-group">
<label>余额</label>
<input type="text" class="form-control" id="dept_title" name="account"
value="{{ user.account }}">
</div>
<div class="form-group">
<label>入职时间</label>
<input type="text" class="form-control" id="dept_title" name="creat_time"
value="{{ user.creat_time|date:"Y-m-d" }}">
</div>
<div class="form-group">
<label>性别</label>
<select class="form-control" name="gender">
{% for item in gender_list %}
{% if item.1 == user.get_gender_display %}
<option value="{{ item.0 }}" selected>{{ item.1 }}</option>
{% else %}
<option value="{{ item.0 }}">{{ item.1 }}</option>
{% endif %}
{% endfor %}
</select>
</div>
<div class="form-group">
<label>部门</label>
<select class="form-control" name="depart">
{% for item in depart_list %}
{% if item.title == user.depart.title %}
<option value="{{ item.id }}" selected>{{ item.title }}</option>
{% else %}
<option value="{{ item.id }}">{{ item.title }}</option>
{% endif %}
{% endfor %}
</select>
</div>
<input type="submit" class="btn btn-success" value="保存">
</form>
</div>
</div>
</div>
{% endblock %}
<div class="form-group"> <label>入职时间</label> <input type="text" class="form-control" id="dept_title" name="creat_time" value="{{ user.creat_time|date:"Y-m-d" }}"> </div>
- 入职时间自动获取当前时间并格式化
<div class="form-group"> <label>性别</label> <select class="form-control" name="gender"> {% for item in gender_list %} {% if item.1 == user.get_gender_display %} <option value="{{ item.0 }}" selected>{{ item.1 }}</option> {% else %} <option value="{{ item.0 }}">{{ item.1 }}</option> {% endif %} {% endfor %} </select> </div>
- 性别下拉框遍历设置
- 默认值设置（遍历设置）
- choice属性采用get_gender_display调用
<div class="form-group"> <label>部门</label> <select class="form-control" name="depart"> {% for item in depart_list %} {% if item.title == user.depart.title %} <option value="{{ item.id }}" selected>{{ item.title }}</option> {% else %} <option value="{{ item.id }}">{{ item.title }}</option> {% endif %} {% endfor %} </select> </div>
- 同上
views.py
def user_update(request, nid):
"""员工更新"""
if request.method == "GET":
# context 为获取到的部门列表、性别列表、待更新用户id
# 传入前端便于操作
context = {
"depart_list": models.Department.objects.all(),
"gender_list": models.UserInfo.gender_choice,
"user": models.UserInfo.objects.get(id=nid),
}
return render(request, "user_update.html", context)
name = request.POST.get("name")
password = request.POST.get("pwd")
age = request.POST.get("age")
account = request.POST.get("account")
creat_time = request.POST.get("creat_time")
gender = request.POST.get("gender")
depart_id = request.POST.get("depart")
# 操作数据库
models.UserInfo.objects.filter(id=nid).update(name=name, password=password, age=age, account=account,creat_time=creat_time, gender=gender, depart_id=depart_id)
return redirect("/user/list")
3.5.3.2 ModelForm组件实现
user_list.html
<td>
<a class="btn btn-warning btn-sm" href="/user/ModelForm/{{ user.id }}/update">ModelForm编辑</a>
</td>
urls.py
path('user/ModelForm/<int:nid>/update', views.user_ModelForm_update),
views.py
class user_ModelForm(forms.ModelForm):
password = forms.CharField(min_length=6, label="密码")
class Meta:
# 自动获取UserInfo创建的各字段
model = models.UserInfo
# fields存储UserInfo创建的各字段的input输入框
fields = ['name', 'password', 'age', 'account', 'creat_time', 'gender', 'depart']
def __init__(self, *args, **kwargs):
super().__init__(*args, **kwargs)
# 循环找到所有的插件，添加了class="form-control"
for key, value in self.fields.items():
# print(value.widget)
# print(value)
if key == "creat_time":
value.widget.attrs = {"class": "form-control", "placeholder": value.label,
"value": datetime.datetime.now().strftime("%Y-%m-%d")}
else:
value.widget.attrs = {"class": "form-control", "placeholder": value.label}
def user_ModelForm_update(request, nid):
""" 编辑用户 """
# 根据nid取数据库获取要编辑的哪一行数据（行对象）
row_user = models.UserInfo.objects.filter(id=nid).first()
if request.method == "GET":
# form为userinfo各字段的表单
# instance=row_user并将row_user中各字段的数据赋值给form中各字段的值
form = user_ModelForm(instance=row_user)
return render(request, "user_ModelForm_update.html", {"form": form,"nid":nid})
# 将前端表单的post请求，直接传入form对象中
form = user_ModelForm(data=request.POST, instance=row_user)
# 判断数据是否合法有效(校验规则————models中建表表项规则 + class user_ModelForm(forms.ModelForm)重新定义表项规则)
if form.is_valid():
# 将表单保存到数据库中
form.save()
return redirect('/user/list')
# 校验失败（在页面显示错误信息） form.error()含有错误
return render(request, "user_ModelForm_update.html", {"form": form})
user_ModelForm_update.html
{% extends 'layout.html' %}
{% block content %}
<div class="panel panel-default">
<div class="panel-heading">员工编辑</div>
<div class="panel-body">
<div class="bs-example" data-example-id="simple-form-inline">
<form class="form" method="post" action="/user/ModelForm/{{ nid }}/update" novalidate>
{% csrf_token %}
{#创建表单，form为userinfo各字段的表单#}
{#每一个field都是一个字段的输入框#}
{% for field in form %}
<div class="form-group">
<label>{{ field.label }}</label>
{{ field }}
<span style="color: red">{{ field.errors.0 }}</span>
{#field.errors.0显示第一条错误即可#}
</div>
{% endfor %}
<input type="submit" class="btn btn-success" value="提交">
</form>
</div>
</div>
</div>
{% endblock %}
要点1
根据nid取数据库获取要编辑的哪一行数据（行对象）
row_user = models.UserInfo.objects.filter(id=nid).first()页面发送get请求，则渲染页面
form为userinfo各字段的表单
instance=row_user并将row_user中各字段的数据赋值给form中各字段的值form = user_ModelForm(instance=row_user) form为 <div> <label for="id_name">姓名:</label> <input type="text" name="name" value="yqy" class="form-control" placeholder="姓名" required id="id_name"> </div> <div> <label for="id_password">密码:</label> <input type="text" name="password" value="123" class="form-control" placeholder="密码" required id="id_password"> </div> <div> <label for="id_age">年龄:</label> <input type="number" name="age" value="12" class="form-control" placeholder="年龄" required id="id_age"> </div> <div> <label for="id_account">账户余额:</label> <input type="number" name="account" value="1000.00" class="form-control" placeholder="账户余额" required id="id_account"> </div> <div> <label for="id_creat_time">入职时间:</label> <input type="text" name="creat_time" value="2024/02/19 00:00" class="form-control" placeholder="入职时间" value="2024-02-21" required id="id_creat_time"> </div> <div> <label for="id_gender">性别:</label> <select name="gender" class="form-control" placeholder="性别" required id="id_gender"> <option value="">---------</option> <option value="1" selected>男</option> <option value="2">女</option> </select> </div> <div> <label for="id_depart">部门:</label> <select name="depart" class="form-control" placeholder="部门" required id="id_depart"> <option value="">---------</option> <option value="1" selected>销售部</option> <option value="2">it宣传部</option> <option value="3">计算机科学部</option> </select> </div>将form传入前端进行渲染 nid传入前端，便于跳转url
if request.method == "GET": form = user_ModelForm(instance=row_user) return render(request, "user_ModelForm_update.html", {"form": form,"nid":nid})要点2
data=request.POST接收前端的POST请求，获取填写的数据
instance=row_user在原数据(row_user)的基础上修改，替换原数据，而不是新增form = user_ModelForm(data=request.POST, instance=row_user)
3.6 ModelForm与BootStrap的整合
以user_modelform_update为例
class user_ModelForm(forms.ModelForm):
password = forms.CharField(min_length=6, label="密码")
class Meta:
# 自动获取UserInfo创建的各字段
model = models.UserInfo
# fields存储UserInfo创建的各字段的input输入框
fields = ['name', 'password', 'age', 'account', 'creat_time', 'gender', 'depart']
def __init__(self, *args, **kwargs):
super().__init__(*args, **kwargs)
# 循环找到所有的插件，添加了class="form-control"
① print(self.fields)
for key, value in self.fields.items():
② print(value.widget)
if key == "creat_time":
value.widget.attrs = {"class": "form-control", "placeholder": value.label,
"value": datetime.datetime.now().strftime("%Y-%m-%d")}
else:
value.widget.attrs = {"class": "form-control", "placeholder": value.label}
- ModelForm可以帮助我们生成标签
class user_ModelForm(forms.ModelForm):
class Meta:
# 自动获取UserInfo创建的各字段
model = models.UserInfo
# fields存储UserInfo创建的各字段的input输入框
fields = ['name', 'password', 'age', 'account', 'creat_time', 'gender', 'depart']
form = user_ModelForm()
生成一个表单，每一个字段为一个普通的<input>输入框
{{form.name}} 普通的<input>输入框
{{form.password}} 普通的<input>输入框
{{form.age}} 普通的<input>输入框
.
.
.
-
为输入框增加样式
- widgets方法 见上
- 自定义初始化函数
def __init__(self, *args, **kwargs): super().__init__(*args, **kwargs) # 循环找到所有的插件，添加了class="form-control" print(self.fields) for key, value in self.fields.items(): print(value.widget) if key == "creat_time": value.widget.attrs = {"class": "form-control", "placeholder": value.label, "value": datetime.datetime.now().strftime("%Y-%m-%d")} else: value.widget.attrs = {"class": "form-control", "placeholder": value.label}
生成表单与增加样式分开，自定义类
- 将自定义初始化函数写入
bootstrap.py
class BootStrapModelForm_user(forms.ModelForm):
def __init__(self, *args, **kwargs):
super().__init__(*args, **kwargs)
# 循环找到所有的插件，添加了class="form-control"
for key, value in self.fields.items():
# 加样式
if key == "creat_time":
# python中当前时间并且格式化形式datetime.datetime.now().strftime("%Y-%m-%d %H:%M:%S")
# django模板语言当前时间并且格式形式 {% now 'Y-m-d' %} 或 {{ user.creat_time|date:"Y-m-d" }}
value.widget.attrs = {"class": "form-control", "placeholder": value.label,
"value": datetime.datetime.now().strftime("%Y-%m-%d"),
"id": "dt_creat_time"}
else:
value.widget.attrs = {"class": "form-control", "placeholder": value.label}
- 利用ModelForm时直接继承BootStrapModelForm_user类
class user_ModelForm(BootStrapModelForm_user):
password = forms.CharField(min_length=6, label="密码")
class Meta:
# 自动获取UserInfo创建的各字段
model = models.UserInfo
# fields存储UserInfo创建的各字段的input输入框
fields = ['name', 'password', 'age', 'account', 'creat_time', 'gender', 'depart']
扫一扫
703
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
