一.先创建一个Eureka-Server服务注册中心
回顾上节知识：springboot集成Eureka注册中心（四）

二.创建EurekaMybatis服务

1.pom.xml配置

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.mybatis.spring.boot</groupId>
			<artifactId>mybatis-spring-boot-starter</artifactId>
			<version>2.1.0</version>
		</dependency>

2.配置application.yml文件

eureka:
  client:
    serviceUrl: #注册中心的注册地址
      defaultZone: http://127.0.0.1:8081/eureka/
server:
  port: 8085  #服务端口号
spring:
  application:
    name: service-mybatis #服务名称--调用的时候根据名称来调用该服务的方法
  datasource:
    username: root
    password: 123456
    url: jdbc:mysql://localhost:3306/springboot?useUnicode=true&characterEncoding=utf-8&useSSL=true&serverTimezone=UTC
    driver-class-name: com.mysql.jdbc.Driver
mybatis:
  mapper-locations: classpath:mapping/*Mapping.xml
  type-aliases-package: com.sun.eureka.pojo

3.配置启动类

@MapperScan("com.sun.eureka.mapper")
@EnableEurekaClient
@SpringBootApplication
public class EurekaMybatisApplication {

	public static void main(String[] args) {
		SpringApplication.run(EurekaMybatisApplication.class, args);
	}

}

4.定义控制器UserController.java

/**
 *
 * @author ex_sunqi
 *
 */
@RestController
@RequestMapping(value="/User")
public class UserController {

	@Autowired
	private IUserService userService;

	@RequestMapping(value="/getUser/{id}" , method=RequestMethod.GET)
	public String getUserById(@PathVariable int id) {
		return userService.getUserId(id).toString();
	}

}

5.定义接口及实现

/**
 *
 * @author ex_sunqi
 *
 */
public interface IUserService {

	public void addUser(User user);

    public Users getUserId(int id);

}

@Service("userService")
public class UserImpl implements IUserService{

	@Autowired
	private UserMapper userMapper;

	@Override
	public void addUser(User user) {
		// TODO Auto-generated method stub

	}

	@Override
	public User getUserId(int id) {
		return userMapper.getUserId(id);
	}

}

6.定义Mapper及User对象

/**
 *
 * @author ex_sunqi
 *
 */
public class User implements Serializable{

	private static final long serialVersionUID = 4252672653445403625L;

	private Integer id;
    private String userName;
    private String passWord;
    private String realName;

	public Integer getId() {
		return id;
	}
	public void setId(Integer id) {
		this.id = id;
	}
	public String getUserName() {
		return userName;
	}
	public void setUserName(String userName) {
		this.userName = userName;
	}
	public String getPassWord() {
		return passWord;
	}
	public void setPassWord(String passWord) {
		this.passWord = passWord;
	}
	public String getRealName() {
		return realName;
	}
	public void setRealName(String realName) {
		this.realName = realName;
	}

	@Override
	public String toString() {
		return "User [id=" + id + ", userName=" + userName + ", passWord=" + passWord + ", realName=" + realName + "]";
	}


}

/**
 *
 * @author ex_sunqi
 *
 */
@Repository("userMapper")
public interface UserMapper {

	 public User getUserId(int id);
}

7.定义UserMapping.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.sun.eureka.mapper.UserMapper">

    <resultMap id="BaseResultMap" type="com.sun.eureka.pojo.User">
        <result column="id" jdbcType="INTEGER" property="id" />
        <result column="userName" jdbcType="VARCHAR" property="userName" />
        <result column="passWord" jdbcType="VARCHAR" property="passWord" />
        <result column="realName" jdbcType="VARCHAR" property="realName" />
    </resultMap>

    <select id="getUserId" resultType="com.sun.eureka.pojo.User">
        select * from user where id = #{id}
    </select>

</mapper>

8.查看项目结构

user表数据

CREATE TABLE `user` (
  `id` int(32) NOT NULL AUTO_INCREMENT,
  `userName` varchar(32) NOT NULL,
  `passWord` varchar(50) NOT NULL,
  `realName` varchar(32) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3 DEFAULT CHARSET=utf8;

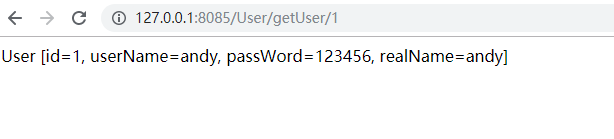

9.访问http://127.0.0.1:8085/User/getUser/1
