基于swarm的docker机群搭建

实验环境

准备三台虚拟机

172.25.11.12    rhel7.3   manager    vm2
172.25.11.13    rhel7.3   node       vm3
172.25.11.14    rhel7.3   node       vm4

三台主机上：

yum install -y docker-engine-17.03.1.ce-1.el7.centos.x86_64.rpm docker-engine-selinux-17.03.1.ce-1.el7.centos.noarch.rpm
systemctl start docker
yum install -y bash-completion.noarch  # 若Tab键补不齐的话下载此软件

vm2上：

[root@vm2 ~]# docker swarm init
Swarm initialized: current node (xdjl4l6y6lw3r9nww9zhijf7l) is now a manager.

To add a worker to this swarm, run the following command:

    docker swarm join \
    --token SWMTKN-1-47uuc1popatt8a08ncyh3kermwul5fvf3quq84fhrii3nt7wtp-3w1ssi01g7modi6ls7dxhuj86 \
    172.25.11.12:2377

To add a manager to this swarm, run 'docker swarm join-token manager' and follow the instructions.

node节点上都做：

[root@vm3 ~]# docker swarm join \
>     --token SWMTKN-1-47uuc1popatt8a08ncyh3kermwul5fvf3quq84fhrii3nt7wtp-3w1ssi01g7modi6ls7dxhuj86 \
>     172.25.11.12:2377
This node joined a swarm as a worker.

将主机证书复制到每个主机上，以便使用主机上的仓库
仓库搭建：容器仓库搭建
容器仓库搭建上传拉取认证
在manager上：

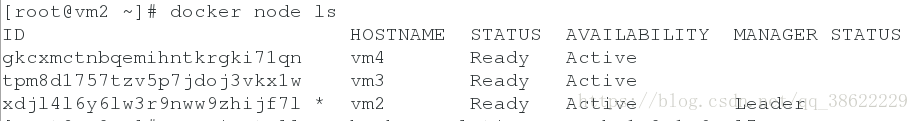

docker node ls

docker pull westos.org/nginx  # 拉取的前提主机仓库中必须有

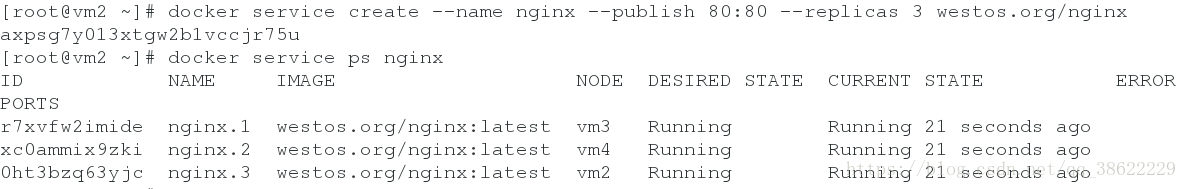

docker service create --name nginx --publish 80:80 --replicas 3 westos.org/nginx

docker pull westos.org/visualizer

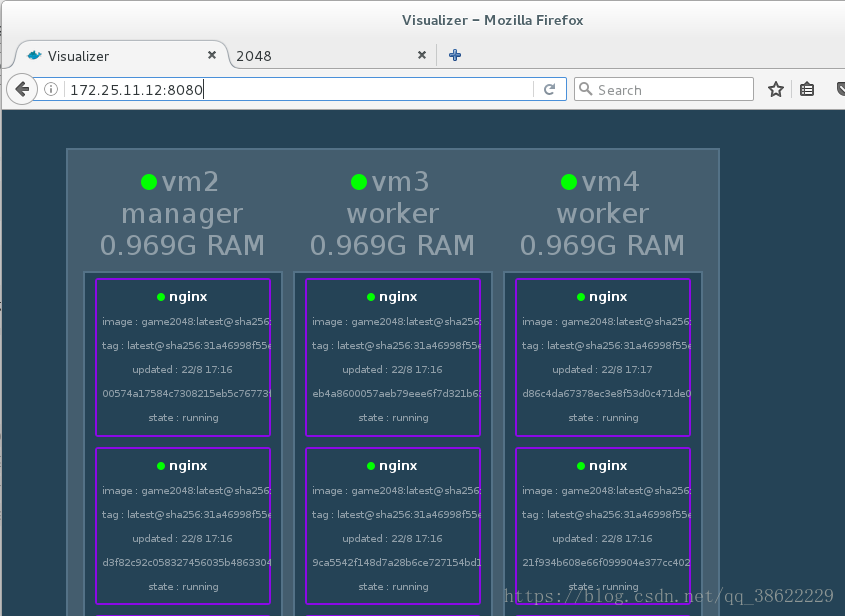

[root@vm2 ~]# docker service create \
> --name=viz \
> --publish=8080:8080/tcp \
> --constraint=node.role==manager \
> --mount=type=bind,src=/var/run/docker.sock,dst=/var/run/docker.sock \
> westos.org/visualizer

浏览器：

每个主机都做

docker cp index.html nginx.3.0ht3bzq63yjckumz2tu85bfzj:/usr/share/nginx/html  # 设置首页文件

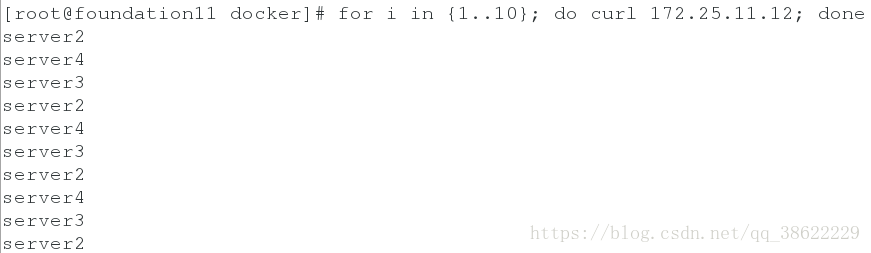

验证负载均衡：

docker service update --image westos.org/game2048 --update-parallelism 10 --update-delay 10s nginx   # 大批量更新  10s一次，一次10个

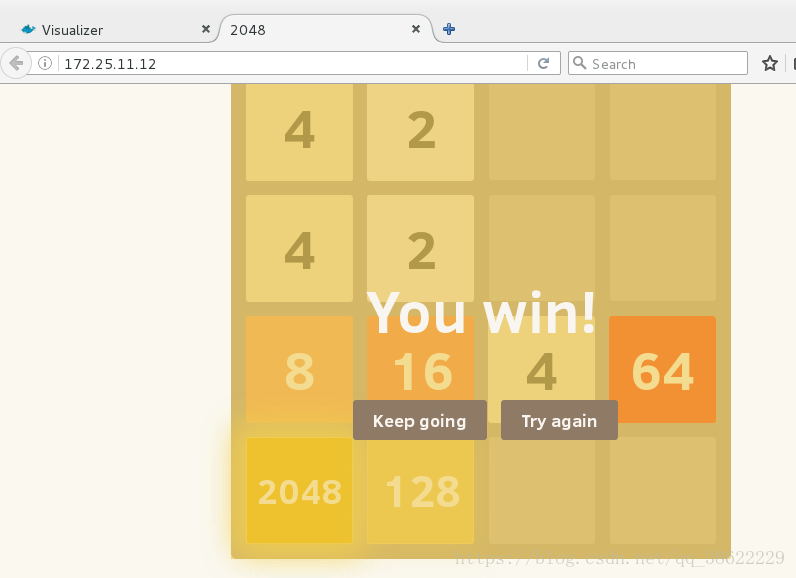

浏览器查看：页面变化
