spring对xml文件进行加载bean过程初步解析

本文详细介绍了Spring如何加载XML配置文件并解析Bean的过程。从读取XML文件开始,通过`XmlBeanFactory`解析,再到`DocumentBuilderFactory`创建DOM解析器,解析XML生成`Document`对象。接着注册Bean,包括BeanDefinition的校验、覆盖检查、存储到ConcurrentHashMap。最后讨论了`BeanFactory`中`doGetBean`方法的工作原理,涉及单例和原型模式的实例化,以及依赖注入的过程。文章深入解析了Spring内部的反射机制和依赖注入实现。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

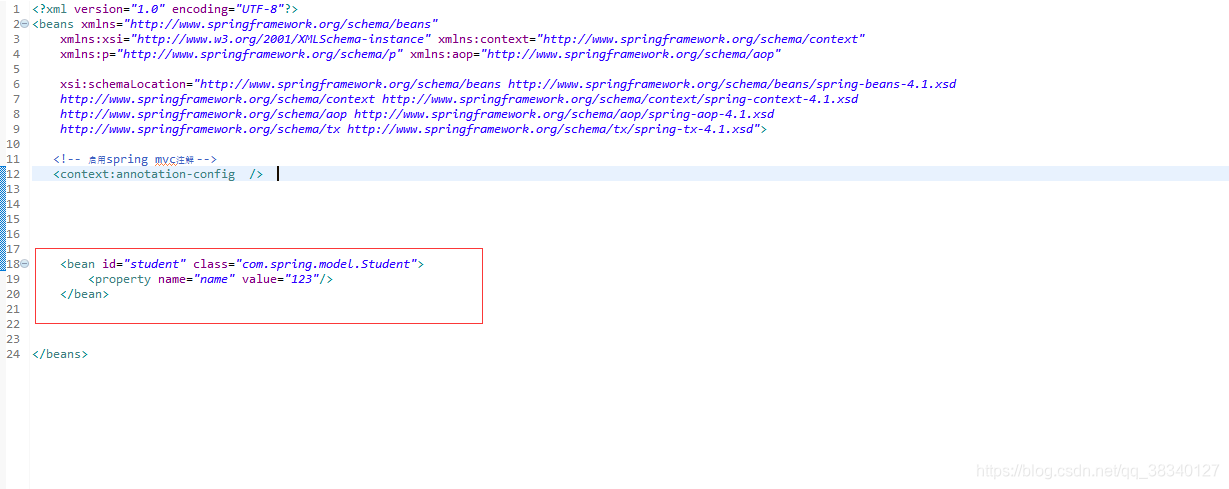

以下是一段简单的通过类路径下的test.xml文件加载bean获得BeanFactory的代码:(对student进行依赖注入)

BeanFactory bf = new XmlBeanFactory(new ClassPathResource("test.xml"));

       其中new ClassPathResource()为内置的解析xml文件,进行封装底层资源。

通过源码可以分析出Spring对xml文件的读取解析主要通过XmlBeanFactory该类进行解析。

该类因为后续的注释类的普及,逐渐被取代。

 该方法主要运用了this.reader.loadBeanDefinitions(resource);对资源进行解析的过程,该过程主要操作如下:

对resouce文件进行解析

@Override
    public int loadBeanDefinitions(Resource resource) throws BeanDefinitionStoreException {
        return loadBeanDefinitions(new EncodedResource(resource));//将resource分装成EncodedResourece类
    }



    public int loadBeanDefinitions(EncodedResource encodedResource) throws BeanDefinitionStoreException {
        Assert.notNull(encodedResource, "EncodedResource must not be null");
        if (logger.isTraceEnabled()) {
            logger.trace("Loading XML bean definitions from " + encodedResource);
        }

        Set<EncodedResource> currentResources = this.resourcesCurrentlyBeingLoaded.get();
        if (currentResources == null) {
            currentResources = new HashSet<>(4);
            this.resourcesCurrentlyBeingLoaded.set(currentResources);
        }
        if (!currentResources.add(encodedResource)) {
            throw new BeanDefinitionStoreException(
                    "Detected cyclic loading of " + encodedResource + " - check your import definitions!");
        }
        try {
            InputStream inputStream = encodedResource.getResource().getInputStream();
            try {
                InputSource inputSource = new InputSource(inputStream);
                if (encodedResource.getEncoding() != null) {
                    inputSource.setEncoding(encodedResource.getEncoding());
                }
                return doLoadBeanDefinitions(inputSource, encodedResource.getResource());
            }
            finally {
                inputStream.close();
            }
        }
        catch (IOException ex) {
            throw new BeanDefinitionStoreException(
                    "IOException parsing XML document from " + encodedResource.getResource(), ex);
        }
        finally {
            currentResources.remove(encodedResource);
            if (currentResources.isEmpty()) {
                this.resourcesCurrentlyBeingLoaded.remove();
            }
        }
    }

通过该方法可以了解到主要是对输入流进行获取,并通过doLoadBeanDefinitions方法进行解析



该方法中的主要方法是

分别为:加载xml,获取对应的Document;根据返回的Document注册bean信息。

首先是doLoadDocument方法

其中的

getValidationModeForResource(resource)方法为根据xml获取对应的验证模式,分别为DTD与XSD

该方法首先是通过查看是否有指定检验模式,没有则进行猜测:

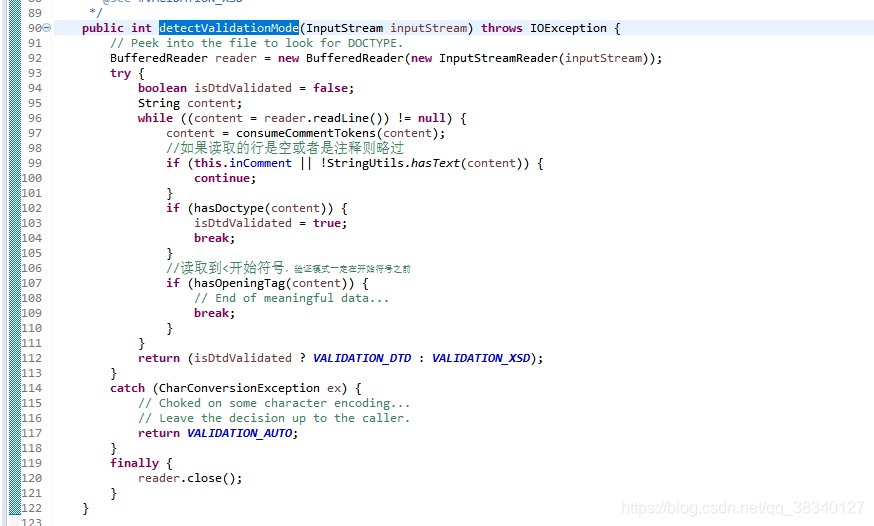

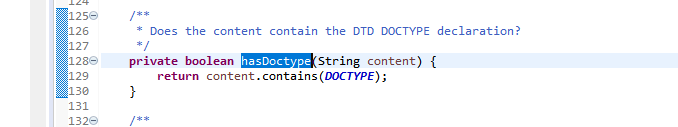

通过xml文件中的DOCTYPE进行了猜测。

返回主方法:



DocumentBuilderFactory factory = createDocumentBuilderFactory(validationMode, namespaceAware);

该方法为调用 javax.xml.parsers 包中的DocumentBuilderFactory用于创建DOM模式的解析器对象

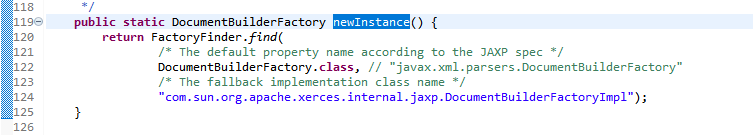

public abstract class DocumentBuilderFactory为抽象类,故无法直接new,该类提供了一个newInstance方法 ,这个方法会根据本地平台默认安装的解析器,自动创建一个工厂的对象并返回。

获取到factory后再获取对应的xml的解析器DocumentBuilder,然后对xml文件进行解析生成对应的Document

方法:return builder.parse(inputSource);类似于解析json数据,生成对应的key-value数据。返回对应的方法,接下来就是进行注册bean

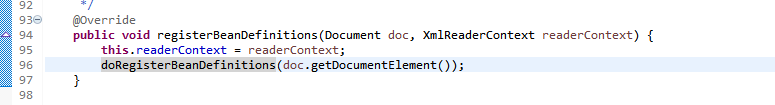

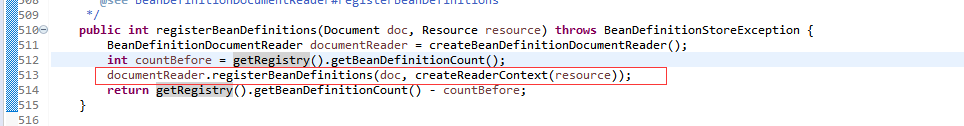

该方法中主要调用了红框位置的注册:

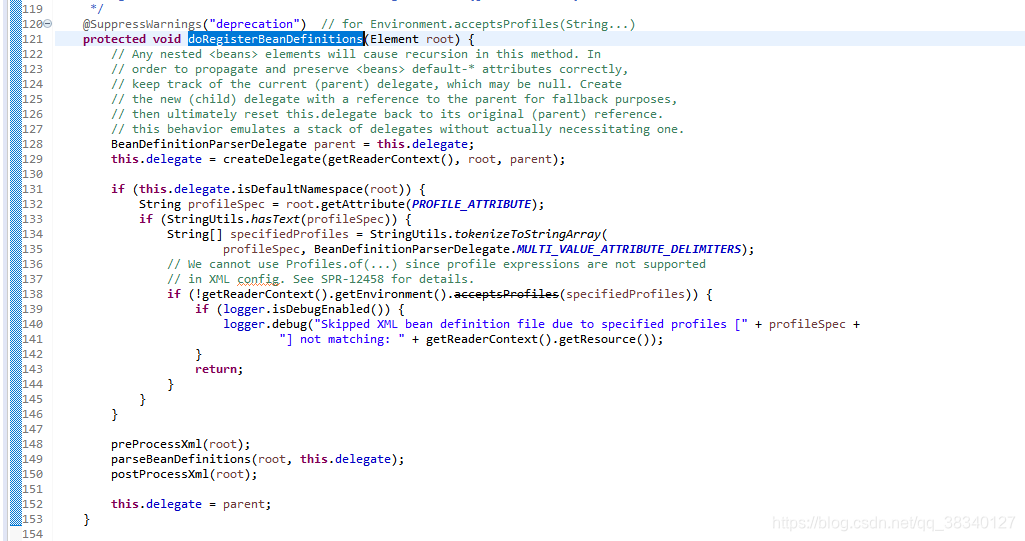

对xml文件中解析出的对象doRegisterBeanDefinitions(doc.getDocumentElement());进行解析

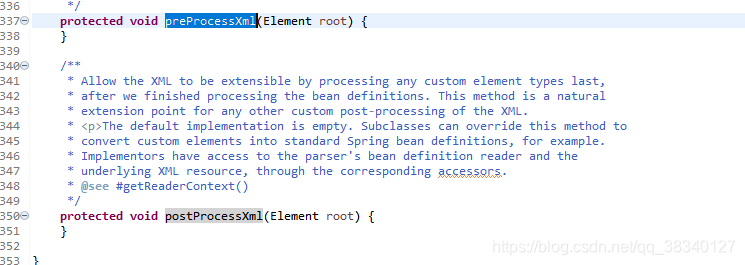

其中为了父类的衍生使用

对默认的bean处理中

以对bean的标签的处理进行解析:

    /**
     * Process the given bean element, parsing the bean definition
     * and registering it with the registry.
     */
    protected void processBeanDefinition(Element ele, BeanDefinitionParserDelegate delegate) {
        //对bean的元素进行解析
        BeanDefinitionHolder bdHolder = delegate.parseBeanDefinitionElement(ele);
        if (bdHolder != null) {
            //自定义标签进行解析
            bdHolder = delegate.decorateBeanDefinitionIfRequired(ele, bdHolder);
            try {
                // Register the final decorated instance. 解析完成后进行注册
                BeanDefinitionReaderUtils.registerBeanDefinition(bdHolder, getReaderContext().getRegistry());
            }
            catch (BeanDefinitionStoreException ex) {
                getReaderContext().error("Failed to register bean definition with name '" +
                        bdHolder.getBeanName() + "'", ele, ex);
            }
            // Send registration event.
            getReaderContext().fireComponentRegistered(new BeanComponentDefinition(bdHolder));
        }
    }

本文对解析的过程不进行分析,主要了解注册:

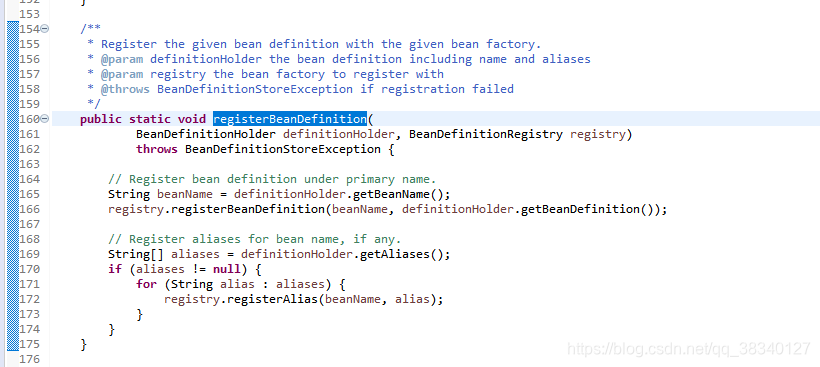

将解析到的beanDefintion通过beanName进行了注册.

    @Override
    public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition)
            throws BeanDefinitionStoreException {

        Assert.hasText(beanName, "Bean name must not be empty");
        Assert.notNull(beanDefinition, "BeanDefinition must not be null");

        if (beanDefinition instanceof AbstractBeanDefinition) {
            try {
                //校验beanDefinition
                ((AbstractBeanDefinition) beanDefinition).validate();
            }
            catch (BeanDefinitionValidationException ex) {
                throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,
                        "Validation of bean definition failed", ex);
            }
        }
        //可以看出直接将BeanDefinition放入concurrenthashmap
        BeanDefinition existingDefinition = this.beanDefinitionMap.get(beanName);
        if (existingDefinition != null) {
            //如果已经被注册,且在配置中bean不允许被覆盖,则抛出异常
            if (!isAllowBeanDefinitionOverriding()) {
                throw new BeanDefinitionOverrideException(beanName, beanDefinition, existingDefinition);
            }
            else if (existingDefinition.getRole() < beanDefinition.getRole()) {
                // e.g. was ROLE_APPLICATION, now overriding with ROLE_SUPPORT or ROLE_INFRASTRUCTURE
                if (logger.isInfoEnabled()) {
                    logger.info("Overriding user-defined bean definition for bean '" + beanName +
                            "' with a framework-generated bean definition: replacing [" +
                            existingDefinition + "] with [" + beanDefinition + "]");
                }
            }
            else if (!beanDefinition.equals(existingDefinition)) {
                if (logger.isDebugEnabled()) {
                    logger.debug("Overriding bean definition for bean '" + beanName +
                            "' with a different definition: replacing [" + existingDefinition +
                            "] with [" + beanDefinition + "]");
                }
            }
            else {
                if (logger.isTraceEnabled()) {
                    logger.trace("Overriding bean definition for bean '" + beanName +
                            "' with an equivalent definition: replacing [" + existingDefinition +
                            "] with [" + beanDefinition + "]");
                }
            }
            this.beanDefinitionMap.put(beanName, beanDefinition);
        }
        else {
            if (hasBeanCreationStarted()) {
                // Cannot modify startup-time collection elements anymore (for stable iteration)防止并发
                synchronized (this.beanDefinitionMap) {
                    this.beanDefinitionMap.put(beanName, beanDefinition);
                    List<String> updatedDefinitions = new ArrayList<>(this.beanDefinitionNames.size() + 1);
                    updatedDefinitions.addAll(this.beanDefinitionNames);
                    updatedDefinitions.add(beanName);
                    this.beanDefinitionNames = updatedDefinitions;
                    if (this.manualSingletonNames.contains(beanName)) {
                        Set<String> updatedSingletons = new LinkedHashSet<>(this.manualSingletonNames);
                        updatedSingletons.remove(beanName);
                        this.manualSingletonNames = updatedSingletons;
                    }
                }
            }
            else {
                // Still in startup registration phase
                this.beanDefinitionMap.put(beanName, beanDefinition);
                this.beanDefinitionNames.add(beanName);
                this.manualSingletonNames.remove(beanName);
            }
            this.frozenBeanDefinitionNames = null;
        }

        if (existingDefinition != null || containsSingleton(beanName)) {

          //重置所有的缓存
            resetBeanDefinition(beanName);
        }
    }
通过以上方法,可以了解到主要是讲解析的bean放入了一个concurrenthashmap。

主要进行了以下步骤:

1.对AbstractBeanDefintion进行校验

2.判断bean是否进行了注册,如不允许覆盖则抛出异常,否则进行覆盖

3.加入map的缓存

4.重置缓存



以上注册等步骤完成后:

通过监听解析进行注册完成。

那么Test test = (Test) bf.getBean(test);是如何实现的呢?

bean的加载:

在beanfactory中的方法

    @SuppressWarnings("unchecked")
    protected <T> T doGetBean(
            final String name, final Class<T> requiredType, final Object[] args, boolean typeCheckOnly)
            throws BeansException {

        final String beanName = transformedBeanName(name);
        Object bean;

        // Eagerly check singleton cache for manually registered singletons.
        Object sharedInstance = getSingleton(beanName);
        if (sharedInstance != null && args == null) {
            if (logger.isDebugEnabled()) {
                if (isSingletonCurrentlyInCreation(beanName)) {
                    logger.debug("Returning eagerly cached instance of singleton bean '" + beanName +
                            "' that is not fully initialized yet - a consequence of a circular reference");
                }
                else {
                    logger.debug("Returning cached instance of singleton bean '" + beanName + "'");
                }
            }
            bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
        }

        else {
            // Fail if we're already creating this bean instance:
            // We're assumably within a circular reference.
            if (isPrototypeCurrentlyInCreation(beanName)) {
                throw new BeanCurrentlyInCreationException(beanName);
            }

            // Check if bean definition exists in this factory.
            BeanFactory parentBeanFactory = getParentBeanFactory();
            if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
                // Not found -> check parent.
                String nameToLookup = originalBeanName(name);
                if (args != null) {
                    // Delegation to parent with explicit args.
                    return (T) parentBeanFactory.getBean(nameToLookup, args);
                }
                else {
                    // No args -> delegate to standard getBean method.
                    return parentBeanFactory.getBean(nameToLookup, requiredType);
                }
            }

            if (!typeCheckOnly) {
                markBeanAsCreated(beanName);
            }

            try {
                final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
                checkMergedBeanDefinition(mbd, beanName, args);

                // Guarantee initialization of beans that the current bean depends on.
                String[] dependsOn = mbd.getDependsOn();
                if (dependsOn != null) {
                    for (String dependsOnBean : dependsOn) {
                        if (isDependent(beanName, dependsOnBean)) {
                            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                    "Circular depends-on relationship between '" + beanName + "' and '" + dependsOnBean + "'");
                        }
                        registerDependentBean(dependsOnBean, beanName);
                        getBean(dependsOnBean);
                    }
                }

                // Create bean instance.
                if (mbd.isSingleton()) {
                    sharedInstance = getSingleton(beanName, new ObjectFactory<Object>() {
                        @Override
                        public Object getObject() throws BeansException {
                            try {
                                return createBean(beanName, mbd, args);
                            }
                            catch (BeansException ex) {
                                // Explicitly remove instance from singleton cache: It might have been put there
                                // eagerly by the creation process, to allow for circular reference resolution.
                                // Also remove any beans that received a temporary reference to the bean.
                                destroySingleton(beanName);
                                throw ex;
                            }
                        }
                    });
                    bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
                }

                else if (mbd.isPrototype()) {
                    // It's a prototype -> create a new instance.
                    Object prototypeInstance = null;
                    try {
                        beforePrototypeCreation(beanName);
                        prototypeInstance = createBean(beanName, mbd, args);
                    }
                    finally {
                        afterPrototypeCreation(beanName);
                    }
                    bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
                }

                else {
                    String scopeName = mbd.getScope();
                    final Scope scope = this.scopes.get(scopeName);
                    if (scope == null) {
                        throw new IllegalStateException("No Scope registered for scope '" + scopeName + "'");
                    }
                    try {
                        Object scopedInstance = scope.get(beanName, new ObjectFactory<Object>() {
                            @Override
                            public Object getObject() throws BeansException {
                                beforePrototypeCreation(beanName);
                                try {
                                    return createBean(beanName, mbd, args);
                                }
                                finally {
                                    afterPrototypeCreation(beanName);
                                }
                            }
                        });
                        bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
                    }
                    catch (IllegalStateException ex) {
                        throw new BeanCreationException(beanName,
                                "Scope '" + scopeName + "' is not active for the current thread; " +
                                "consider defining a scoped proxy for this bean if you intend to refer to it from a singleton",
                                ex);
                    }
                }
            }
            catch (BeansException ex) {
                cleanupAfterBeanCreationFailure(beanName);
                throw ex;
            }
        }

        // Check if required type matches the type of the actual bean instance.
        if (requiredType != null && bean != null && !requiredType.isAssignableFrom(bean.getClass())) {
            try {
                return getTypeConverter().convertIfNecessary(bean, requiredType);
            }
            catch (TypeMismatchException ex) {
                if (logger.isDebugEnabled()) {
                    logger.debug("Failed to convert bean '" + name + "' to required type [" +
                            ClassUtils.getQualifiedName(requiredType) + "]", ex);
                }
                throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
            }
        }
        return (T) bean;
    }

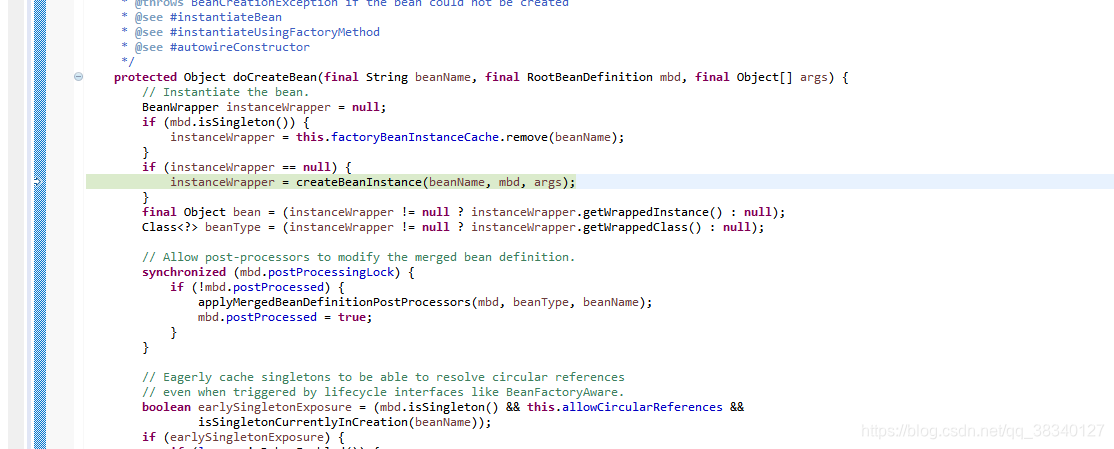

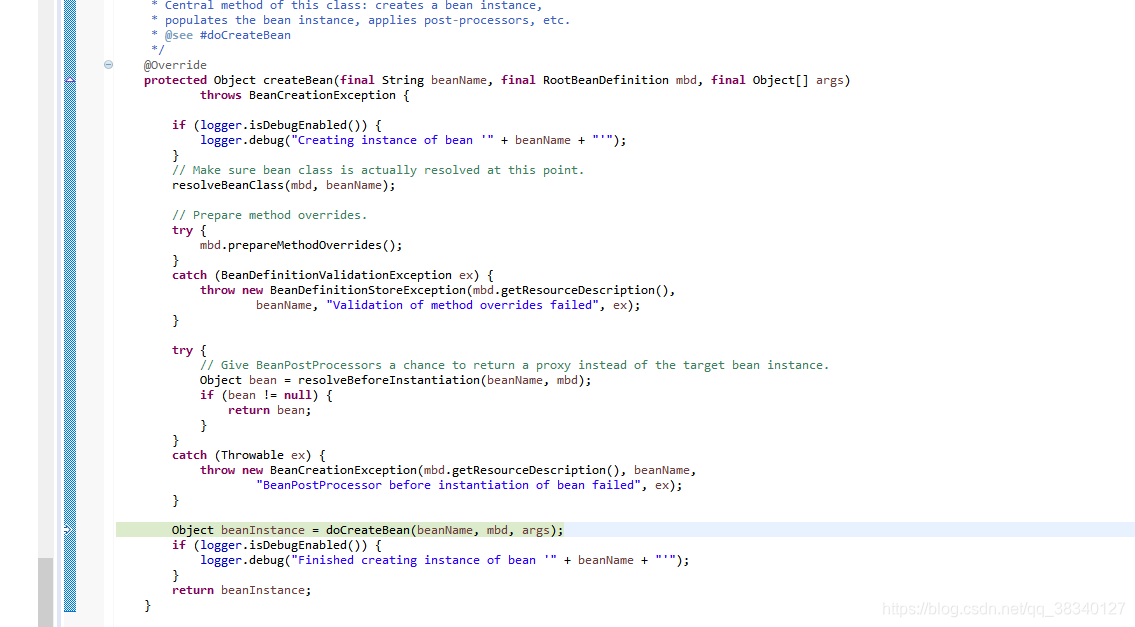

对代码进行跟踪,因为是初次调用,所以缓存中都是为null,所以主要是运用了以下的标红方法进行创建class对象:

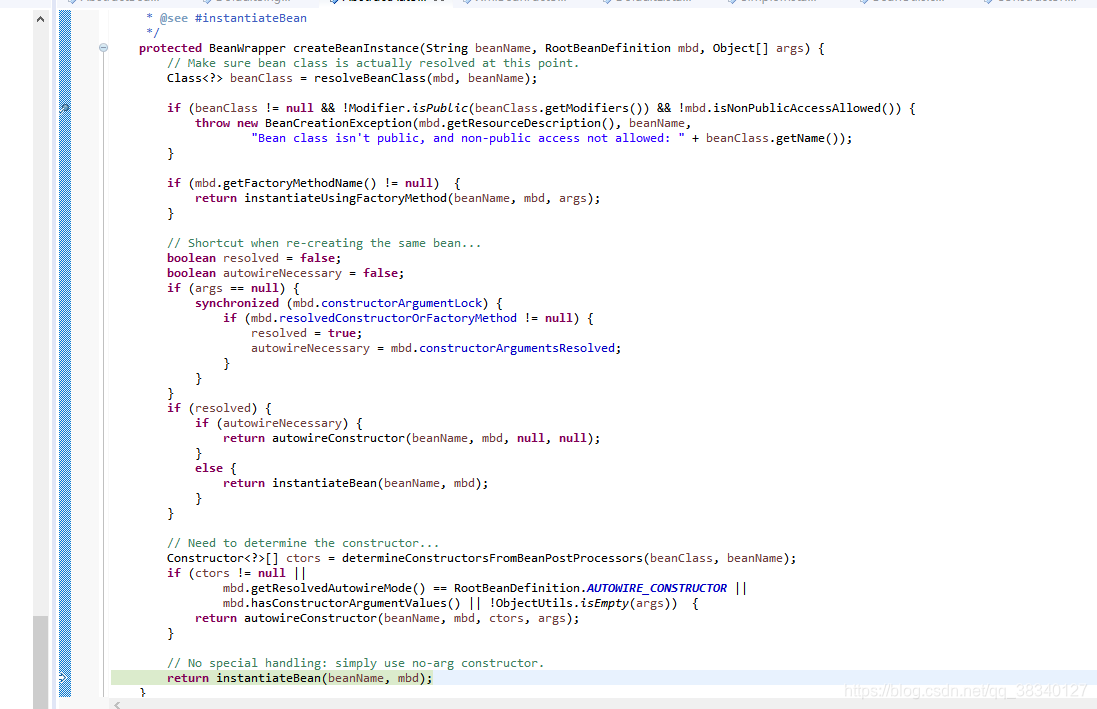

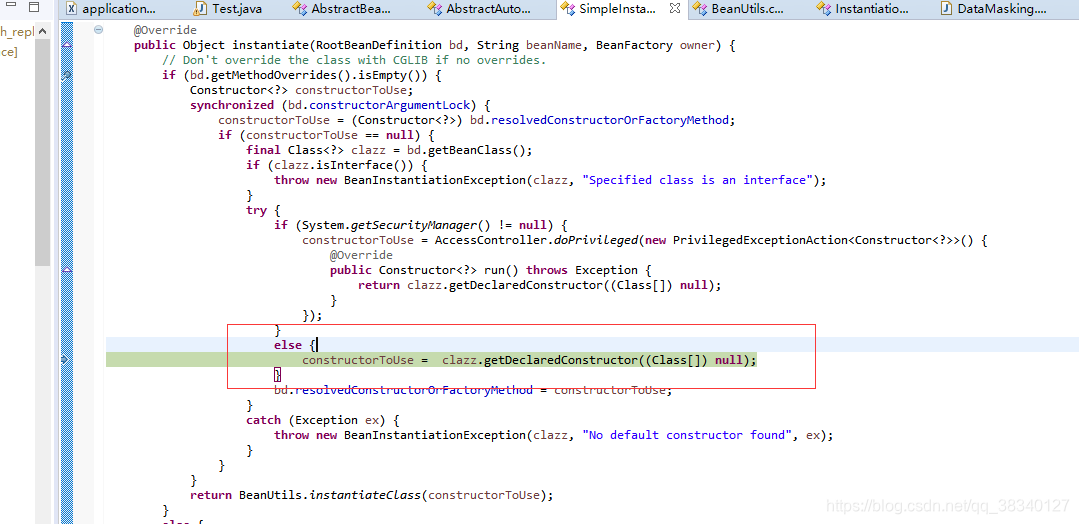

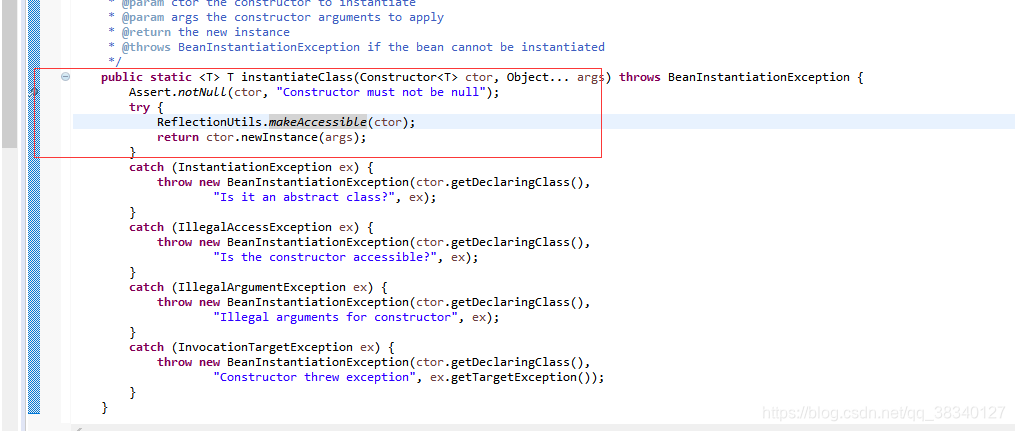

根据以上的方法,可以得知主要运用了JAVA的反射方法,根据Class对象进行创建一个Student的实例。

运用class对象获取出无参构造器,然后将构造器进行实例。

创建了对象后就是对属性的注入:

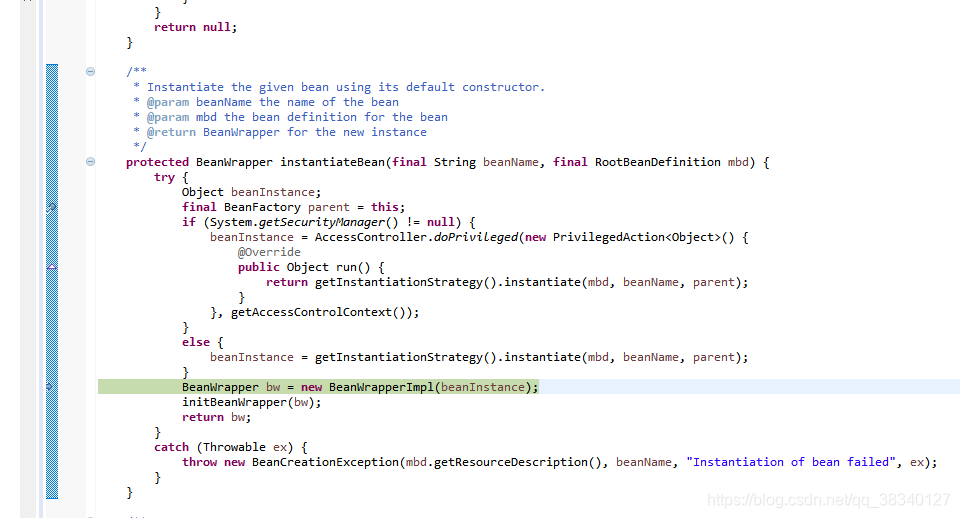

获取了bean的对象后,将其转变为spring中的内部对象。

下列方法就是将xml中的放入缓存中的属性,进行获取并set




(获取注入值)

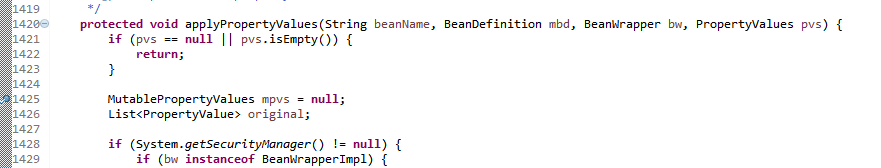

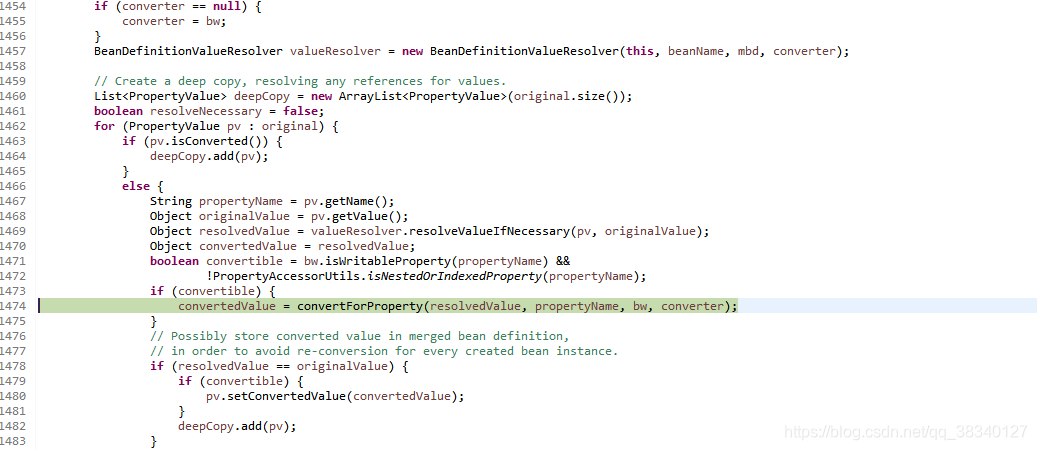

然后在applyPropertyValues方法中 对值进行set

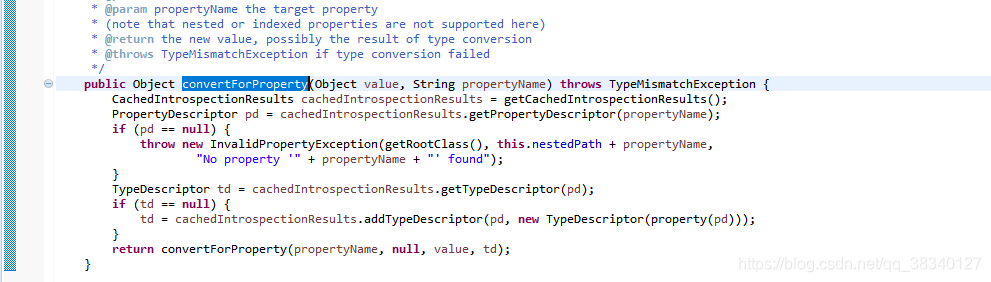

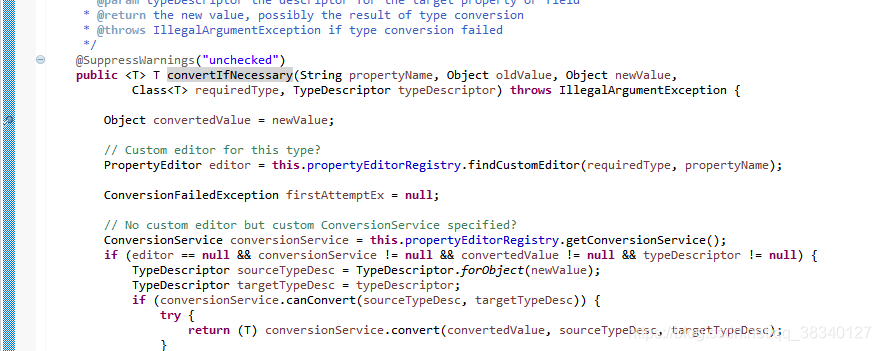

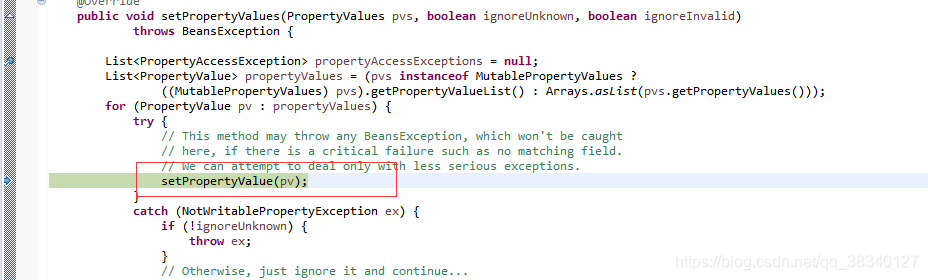

在下列方法中进行set值

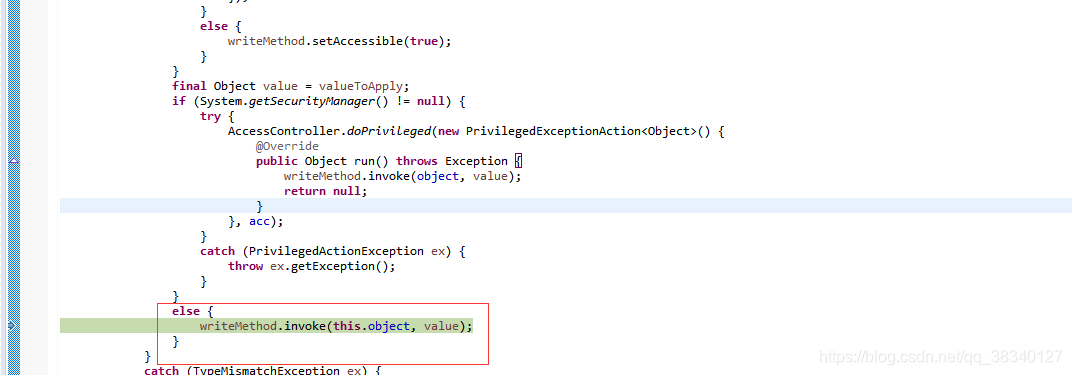

从下列代码可以知道,运用反射 对方法进行了set值,即调用了setName方法

故主要是调用了反射来实现了IOC

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
