这篇博客详细介绍了Vision Transformer (ViT) 的工作原理，包括Transformer结构、多头注意力机制和FeedForward网络。提供了一个简洁易懂的PyTorch复现版本，并给出了使用示例。ViT将图像划分为patches，通过Transformer编码器进行处理，最后通过分类头进行预测。文章适合初学者了解ViT模型。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

官方提供的代码：https://github.com/google-research/vision_transformer
大佬复现的版本：https://github.com/lucidrains/vit-pytorch
对不起，我好菜，官方给的代码我确实看不懂啊，所以看了第二个版本的代码。第二个版本的代码超级受欢迎且易使用，我看的时候，Git repo已经被star 5.7k次。大家直接 pip install vit-pytorch就好。
所以作为初次接触vit的同学们来说，推荐看第二个版本，结构清晰明了。

1. 大佬复现版本给的使用案例

import torch
from vit_pytorch import ViT

v = ViT(
    image_size = 256,    # 图像大小
    patch_size = 32,     # patch大小（分块的大小）
    num_classes = 1000,  # imagenet数据集1000分类
    dim = 1024,          # position embedding的维度
    depth = 6,           # encoder和decoder中block层数是6
    heads = 16,          # multi-head中head的数量为16
    mlp_dim = 2048,
    dropout = 0.1,       #
    emb_dropout = 0.1
)

img = torch.randn(1, 3, 256, 256)

preds = v(img) # (1, 1000)

大家完全可以把这段代码copy-paste到自己的pycharm里，然后使用调试功能，一步步看ViT的每一步操作。

2. Transformer结构

进行6次for循环，有6层encoder结构。for循环内部依次使用multi-head attention和Feed Forward，对应Transformer的Encoder结构中多头自注意力模块和MLP模块。在自注意力后及feed forward后，有残差连接。

class Transformer(nn.Module):
    def __init__(self, dim, depth, heads, dim_head, mlp_dim, dropout = 0.):
        super().__init__()
        self.layers = nn.ModuleList([])
        for _ in range(depth):
            self.layers.append(nn.ModuleList([
                PreNorm(dim, Attention(dim, heads = heads, dim_head = dim_head, dropout = dropout)),
                PreNorm(dim, FeedForward(dim, mlp_dim, dropout = dropout))
            ]))
    def forward(self, x):
        for attn, ff in self.layers:
            x = attn(x) + x
            x = ff(x) + x
        return x

PreNorm类代码如下，在使用multi-head attention和Feed Forward之前，首先对输入通过LayerNorm进行处理。

class PreNorm(nn.Module):
    def __init__(self, dim, fn):
        super().__init__()
        self.norm = nn.LayerNorm(dim)
        self.fn = fn
    def forward(self, x, **kwargs):
        return self.fn(self.norm(x), **kwargs)

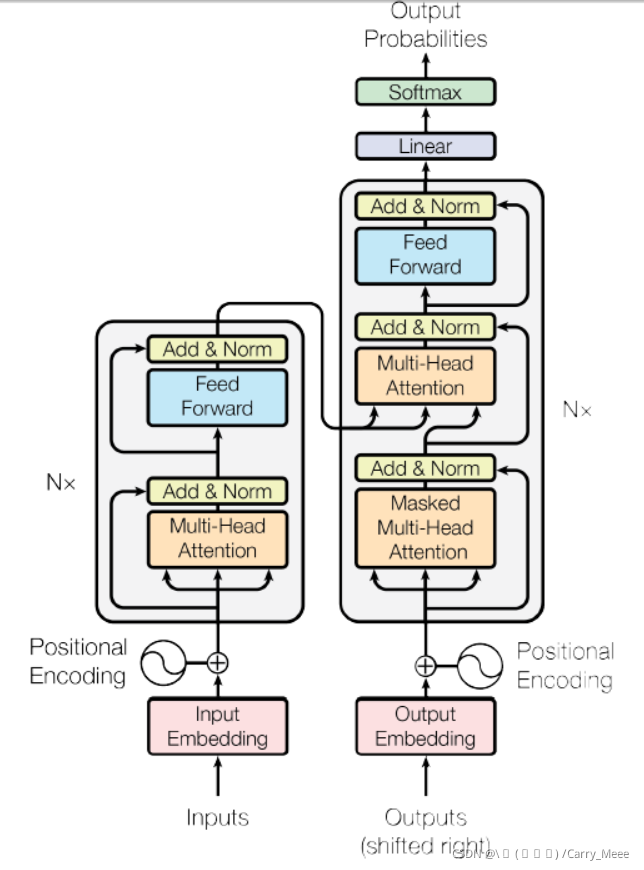

可以参考论文中的图：
在这里插入图片描述

3. Attention

class Attention(nn.Module):
    def __init__(self, dim, heads = 8, dim_head = 64, dropout = 0.):
        super().__init__()
        inner_dim = dim_head *  heads
        project_out = not (heads == 1 and dim_head == dim)

        self.heads = heads
        self.scale = dim_head ** -0.5

        self.attend = nn.Softmax(dim = -1)
        self.to_qkv = nn.Linear(dim, inner_dim * 3, bias = False)

        self.to_out = nn.Sequential(
            nn.Linear(inner_dim, dim),
            nn.Dropout(dropout)
        ) if project_out else nn.Identity()

    def forward(self, x):
        qkv = self.to_qkv(x).chunk(3, dim = -1)    # 首先生成q,k,v
        q, k, v = map(lambda t: rearrange(t, 'b n (h d) -> b h n d', h = self.heads), qkv)

        dots = torch.matmul(q, k.transpose(-1, -2)) * self.scale

        attn = self.attend(dots)

        out = torch.matmul(attn, v)
        out = rearrange(out, 'b h n d -> b n (h d)')
        return self.to_out(out)

torch.chunk(tensor, chunk_num, dim)函数的功能：与torch.cat()刚好相反，它是将tensor按dim（行或列）分割成chunk_num个tensor块，返回的是一个元组。
attention操作的整体流程：

首先对输入生成query, key和value，这里的“输入”有可能是整个网络的输入，也可能是某个hidden layer的output。在这里，生成的qkv是个长度为3的元组，每个元组的大小为(1, 65, 1024)
对qkv进行处理，重新指定维度，得到的q, k, v维度均为(1, 16, 65, 64)
q和k做点乘，得到的dots维度为(1, 16, 65, 65)
对dots的最后一维做softmax，得到各个patch对其他patch的注意力得分
将attention和value做点乘
对各个维度重新排列，得到与输入相同维度的输出 (1, 65, 1024)

4. FeedForward

class FeedForward(nn.Module):
    def __init__(self, dim, hidden_dim, dropout = 0.):
        super().__init__()
        self.net = nn.Sequential(
            nn.Linear(dim, hidden_dim),   # dim=1024, hidden_dim=2048
            nn.GELU(),
            nn.Dropout(dropout),
            nn.Linear(hidden_dim, dim),
            nn.Dropout(dropout)
        )
    def forward(self, x):
        return self.net(x)

FeedForward模块共有2个全连接层，整个结构是：

首先过一个全连接层
经过GELU()激活函数进行处理
nn.Dropout()，以一定概率丢失掉一些神经元，防止过拟合
再过一个全连接层
nn.Dropout()
注意：GELU(x) = x * Φ(x), 其中，Φ(x)是高斯分布的累积分布函数。

5. ViT操作流程

ViT的各个结构都写在了__init__()里，不再细讲，通过forward()来看ViT的整个前向传播过程（操作流程）。

class ViT(nn.Module):
    def __init__(self, *, image_size, patch_size, num_classes, dim, depth, heads, mlp_dim, pool = 'cls', channels = 3, dim_head = 64, dropout = 0., emb_dropout = 0.):
        super().__init__()
        image_height, image_width = pair(image_size)
        patch_height, patch_width = pair(patch_size)
        assert image_height % patch_height == 0 and image_width % patch_width == 0, 'Image dimensions must be divisible by the patch size.'
        num_patches = (image_height // patch_height) * (image_width // patch_width)
        patch_dim = channels * patch_height * patch_width
        assert pool in {'cls', 'mean'}, 'pool type must be either cls (cls token) or mean (mean pooling)'
        self.to_patch_embedding = nn.Sequential(
            Rearrange('b c (h p1) (w p2) -> b (h w) (p1 p2 c)', p1 = patch_height, p2 = patch_width),
            nn.Linear(patch_dim, dim),
        )
        self.pos_embedding = nn.Parameter(torch.randn(1, num_patches + 1, dim))  # (1,65,1024)
        self.cls_token = nn.Parameter(torch.randn(1, 1, dim))
        self.dropout = nn.Dropout(emb_dropout)
        self.transformer = Transformer(dim, depth, heads, dim_head, mlp_dim, dropout)
        self.pool = pool
        self.to_latent = nn.Identity()
        self.mlp_head = nn.Sequential(
            nn.LayerNorm(dim),
            nn.Linear(dim, num_classes)
        )

    def forward(self, img):   # img: (1, 3, 256, 256)
        x = self.to_patch_embedding(img)     # (1, 64, 1024)
        b, n, _ = x.shape
        cls_tokens = repeat(self.cls_token, '() n d -> b n d', b = b)    # (1, 1, 1024)
        x = torch.cat((cls_tokens, x), dim=1)  # (1, 65, 1024)
        x += self.pos_embedding[:, :(n + 1)]   # (1, 65, 1024)
        x = self.dropout(x)                    # (1, 65, 1024)
        x = self.transformer(x)                # (1, 65, 1024)
        x = x.mean(dim = 1) if self.pool == 'mean' else x[:, 0]      # (1, 1024)
        x = self.to_latent(x)
        return self.mlp_head(x)
