三、分布式数据库架构-MyCAT

oldguo导师的图

3.1 环境准备：

两台虚拟机 db01 db02
每台创建四个mysql实例：3307 3308 3309 3310

3.2 2 删除历史环境：

pkill mysqld
rm -rf /data/330*
mv /etc/my.cnf /etc/my.cnf.bak

3.3 创建相关目录初始化数据

mkdir /data/33{07..10}/data -p
mysqld --initialize-insecure  --user=mysql --datadir=/data/3307/data --basedir=/application/mysql
mysqld --initialize-insecure  --user=mysql --datadir=/data/3308/data --basedir=/application/mysql
mysqld --initialize-insecure  --user=mysql --datadir=/data/3309/data --basedir=/application/mysql
mysqld --initialize-insecure  --user=mysql --datadir=/data/3310/data --basedir=/application/mysql

3.4 准备配置文件和启动脚本

========db01==============
cat >/data/3307/my.cnf<<EOF
[mysqld]
basedir=/application/mysql
datadir=/data/3307/data
socket=/data/3307/mysql.sock
port=3307
log-error=/data/3307/mysql.log
log_bin=/data/3307/mysql-bin
binlog_format=row
skip-name-resolve
server-id=7
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF

cat >/data/3308/my.cnf<<EOF
[mysqld]
basedir=/application/mysql
datadir=/data/3308/data
port=3308
socket=/data/3308/mysql.sock
log-error=/data/3308/mysql.log
log_bin=/data/3308/mysql-bin
binlog_format=row
skip-name-resolve
server-id=8
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF

cat >/data/3309/my.cnf<<EOF
[mysqld]
basedir=/application/mysql
datadir=/data/3309/data
socket=/data/3309/mysql.sock
port=3309
log-error=/data/3309/mysql.log
log_bin=/data/3309/mysql-bin
binlog_format=row
skip-name-resolve
server-id=9
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF
cat >/data/3310/my.cnf<<EOF
[mysqld]
basedir=/application/mysql
datadir=/data/3310/data
socket=/data/3310/mysql.sock
port=3310
log-error=/data/3310/mysql.log
log_bin=/data/3310/mysql-bin
binlog_format=row
skip-name-resolve
server-id=10
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF

cat >/etc/systemd/system/mysqld3307.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/application/mysql/bin/mysqld --defaults-file=/data/3307/my.cnf
LimitNOFILE = 5000
EOF

cat >/etc/systemd/system/mysqld3308.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/application/mysql/bin/mysqld --defaults-file=/data/3308/my.cnf
LimitNOFILE = 5000
EOF

cat >/etc/systemd/system/mysqld3309.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/application/mysql/bin/mysqld --defaults-file=/data/3309/my.cnf
LimitNOFILE = 5000
EOF
cat >/etc/systemd/system/mysqld3310.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target

[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/application/mysql/bin/mysqld --defaults-file=/data/3310/my.cnf
LimitNOFILE = 5000
EOF


========db02===============
cat >/data/3307/my.cnf<<EOF
[mysqld]
basedir=/application/mysql
datadir=/data/3307/data
socket=/data/3307/mysql.sock
port=3307
log-error=/data/3307/mysql.log
log_bin=/data/3307/mysql-bin
binlog_format=row
skip-name-resolve
server-id=17
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF
cat >/data/3308/my.cnf<<EOF
[mysqld]
basedir=/application/mysql
datadir=/data/3308/data
port=3308
socket=/data/3308/mysql.sock
log-error=/data/3308/mysql.log
log_bin=/data/3308/mysql-bin
binlog_format=row
skip-name-resolve
server-id=18
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF
cat >/data/3309/my.cnf<<EOF
[mysqld]
basedir=/application/mysql
datadir=/data/3309/data
socket=/data/3309/mysql.sock
port=3309
log-error=/data/3309/mysql.log
log_bin=/data/3309/mysql-bin
binlog_format=row
skip-name-resolve
server-id=19
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF


cat >/data/3310/my.cnf<<EOF
[mysqld]
basedir=/application/mysql
datadir=/data/3310/data
socket=/data/3310/mysql.sock
port=3310
log-error=/data/3310/mysql.log
log_bin=/data/3310/mysql-bin
binlog_format=row
skip-name-resolve
server-id=20
gtid-mode=on
enforce-gtid-consistency=true
log-slave-updates=1
EOF

cat >/etc/systemd/system/mysqld3307.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/application/mysql/bin/mysqld --defaults-file=/data/3307/my.cnf
LimitNOFILE = 5000
EOF

cat >/etc/systemd/system/mysqld3308.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/application/mysql/bin/mysqld --defaults-file=/data/3308/my.cnf
LimitNOFILE = 5000
EOF

cat >/etc/systemd/system/mysqld3309.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/application/mysql/bin/mysqld --defaults-file=/data/3309/my.cnf
LimitNOFILE = 5000
EOF
cat >/etc/systemd/system/mysqld3310.service<<EOF
[Unit]
Description=MySQL Server
Documentation=man:mysqld(8)
Documentation=http://dev.mysql.com/doc/refman/en/using-systemd.html
After=network.target
After=syslog.target
[Install]
WantedBy=multi-user.target
[Service]
User=mysql
Group=mysql
ExecStart=/application/mysql/bin/mysqld --defaults-file=/data/3310/my.cnf
LimitNOFILE = 5000
EOF

3.5 修改权限，启动多实例

chown -R mysql.mysql /data/*
systemctl start mysqld3307
systemctl start mysqld3308
systemctl start mysqld3309
systemctl start mysqld3310
systemctl enable mysqld3307
systemctl enable mysqld3308
systemctl enable mysqld3309
systemctl enable mysqld3310

mysql -S /data/3307/mysql.sock -e "show variables like 'server_id'"
mysql -S /data/3308/mysql.sock -e "show variables like 'server_id'"
mysql -S /data/3309/mysql.sock -e "show variables like 'server_id'"
mysql -S /data/3310/mysql.sock -e "show variables like 'server_id'"

3.6 节点主从规划

箭头指向谁是主库
    10.0.0.51:3307    <----->  10.0.0.52:3307
    10.0.0.51:3309    ------>  10.0.0.51:3307
    10.0.0.52:3309    ------>  10.0.0.52:3307

    10.0.0.52:3308  <----->    10.0.0.51:3308
    10.0.0.52:3310  ----->     10.0.0.52:3308
    10.0.0.51:3310  ----->     10.0.0.51:3308

3.7 分片规划

shard1：
    Master：10.0.0.51:3307
    slave1：10.0.0.51:3309
    Standby Master：10.0.0.52:3307
    slave2：10.0.0.52:3309
shard2：
    Master：10.0.0.52:3308
    slave1：10.0.0.52:3310
    Standby Master：10.0.0.51:3308
    slave2：10.0.0.51:3310

3.8 开始配置

shard1
10.0.0.51:3307    <----->  10.0.0.52:3307

db02
mysql  -S /data/3307/mysql.sock -e "grant replication slave on *.* to repl@'10.0.0.%' identified by '123';"
mysql  -S /data/3307/mysql.sock -e "grant all  on *.* to root@'10.0.0.%' identified by '123'  with grant option;"

db01
mysql  -S /data/3307/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.52', MASTER_PORT=3307, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql  -S /data/3307/mysql.sock -e "start slave;"
mysql  -S /data/3307/mysql.sock -e "show slave status\G"

db02
mysql  -S /data/3307/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.51', MASTER_PORT=3307, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql  -S /data/3307/mysql.sock -e "start slave;"
mysql  -S /data/3307/mysql.sock -e "show slave status\G"

10.0.0.51:3309    ------>  10.0.0.51:3307

db01
mysql  -S /data/3309/mysql.sock  -e "CHANGE MASTER TO MASTER_HOST='10.0.0.51', MASTER_PORT=3307, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql  -S /data/3309/mysql.sock  -e "start slave;"
mysql  -S /data/3309/mysql.sock  -e "show slave status\G"

10.0.0.52:3309    ------>  10.0.0.52:3307

db02
mysql  -S /data/3309/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.52', MASTER_PORT=3307, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql  -S /data/3309/mysql.sock -e "start slave;"
mysql  -S /data/3309/mysql.sock -e "show slave status\G"

shard2
10.0.0.52:3308  <----->    10.0.0.51:3308
db01
mysql  -S /data/3308/mysql.sock -e "grant replication slave on *.* to repl@'10.0.0.%' identified by '123';"
mysql  -S /data/3308/mysql.sock -e "grant all  on *.* to root@'10.0.0.%' identified by '123'  with grant option;"

db02
mysql  -S /data/3308/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.51', MASTER_PORT=3308, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql  -S /data/3308/mysql.sock -e "start slave;"
mysql  -S /data/3308/mysql.sock -e "show slave status\G"

db01
mysql  -S /data/3308/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.52', MASTER_PORT=3308, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql  -S /data/3308/mysql.sock -e "start slave;"
mysql  -S /data/3308/mysql.sock -e "show slave status\G"

10.0.0.52:3310    ----->       10.0.0.52:3308

db02
mysql  -S /data/3310/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.52', MASTER_PORT=3308, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql  -S /data/3310/mysql.sock -e "start slave;"
mysql  -S /data/3310/mysql.sock -e "show slave status\G"

10.0.0.51:3310  ----->     10.0.0.51:3308

db01
mysql  -S /data/3310/mysql.sock -e "CHANGE MASTER TO MASTER_HOST='10.0.0.51', MASTER_PORT=3308, MASTER_AUTO_POSITION=1, MASTER_USER='repl', MASTER_PASSWORD='123';"
mysql  -S /data/3310/mysql.sock -e "start slave;"
mysql  -S /data/3310/mysql.sock -e "show slave status\G"

3.9 检测主从状态

mysql -S /data/3307/mysql.sock -e "show slave status\G"|grep Running:
mysql -S /data/3308/mysql.sock -e "show slave status\G"|grep Running:
mysql -S /data/3309/mysql.sock -e "show slave status\G"|grep Running:
mysql -S /data/3310/mysql.sock -e "show slave status\G"|grep Running:

3.10 MySQL分布式架构介绍

oldguo导师的图

1. schema拆分及业务分库
2. 垂直拆分-分库分表
3. 水平拆分-分片

4. MyCAT安装

4.1 预先安装Java运行环境

[root@db02 ~]# yum install -y java

4.2 上传到/application

[root@db02 /server/tools]# wget http://192.168.0.163/mysql/Mycat-server-1.6.5-release-20180117003034-linux.tar.gz
[root@db02 /server/tools]# tar xf Mycat-server-1.6.5-release-20180117003034-linux.tar.gz

[root@db02 /server/tools]# ll mycat/
total 12
drwxr-xr-x 2 root root  190 Aug 21 17:10 bin
drwxrwxrwx 2 root root    6 Mar  1  2016 catlet
drwxrwxrwx 4 root root 4096 Aug 21 17:10 conf
drwxr-xr-x 2 root root 4096 Aug 21 17:10 lib
drwxrwxrwx 2 root root    6 Jan 17  2018 logs
-rwxrwxrwx 1 root root  219 Jan 17  2018 version.txt

[root@db02 /server/tools/mycat]# ll conf
autopartition-long.txt
auto-sharding-long.txt
auto-sharding-rang-mod.txt
cacheservice.properties
dbseq.sql
ehcache.xml
index_to_charset.properties
log4j2.xml
migrateTables.properties
myid.properties
partition-hash-int.txt
partition-range-mod.txt
rule.xml
schema.xml
sequence_conf.properties
sequence_db_conf.properties
sequence_distributed_conf.properties
sequence_time_conf.properties
server.xml
sharding-by-enum.txt
wrapper.conf
zkconf
zkdownload

4.3 启动和连接

移动到/application下
[root@db02 ~]# mv /server/tools/mycat /application/

配置环境变量
vim /etc/profile
export PATH=/application/mycat/bin:$PATH
source /etc/profile

启动
[root@db02 ~]# mycat start
Starting Mycat-server...

连接mycat：
mysql -uroot -p123456 -h 10.0.0.52 -P8066
mysql>

4.4. 测试数据准备

db01:
mysql -S /data/3307/mysql.sock
grant all on *.* to root@'10.0.0.%' identified by '123';
source /root/world.sql

mysql -S /data/3308/mysql.sock
grant all on *.* to root@'10.0.0.%' identified by '123';
source /root/world.sql

4.5. 核心配置文件使用介绍(schema.xml)

[root@db02 /application/mycat/conf]# pwd
/application/mycat/conf
[root@db02 /application/mycat/conf]# vim schema.xml
<?xml version="1.0"?>
<!DOCTYPE mycat:schema SYSTEM "schema.dtd">
<mycat:schema xmlns:mycat="http://io.mycat/">
<schema name="TESTDB" checkSQLschema="false" sqlMaxLimit="100" dataNode="sh1">
</schema>
        <dataNode name="sh1" dataHost="oldguo1" database= "world" />
        <dataHost name="oldguo1" maxCon="1000" minCon="10" balance="1"  writeType="0" dbType="mysql"  dbDriver="native" switchType="1">
                <heartbeat>select user()</heartbeat>
        <writeHost host="db1" url="10.0.0.51:3307" user="root" password="123">
                        <readHost host="db2" url="10.0.0.51:3309" user="root" password="123" />
        </writeHost>
        </dataHost>
</mycat:schema>

配置文件的介绍：

https://blog.youkuaiyun.com/qq_34457768/article/details/81625758

balance属性
负载均衡类型，目前的取值有3种：
1. balance="0", 不开启读写分离机制，所有读操作都发送到当前可用的writeHost上。
2. balance="1"，全部的readHost与standby writeHost参与select语句的负载均衡，简单的说，
  当双主双从模式(M1->S1，M2->S2，并且M1与 M2互为主备)，正常情况下，M2,S1,S2都参与select语句的负载均衡。
3. balance="2"，所有读操作都随机的在writeHost、readhost上分发。

writeType属性
负载均衡类型，目前的取值有2种：
1. writeType="0", 所有写操作发送到配置的第一个writeHost，
第一个挂了切到还生存的第二个writeHost，重新启动后已切换后的为主，切换记录在配置文件中:dnindex.properties .
2. writeType=“1”，所有写操作都随机的发送到配置的writeHost，但不推荐使用

switchType属性
-1 表示不自动切换
1 默认值，自动切换
2 基于MySQL主从同步的状态决定是否切换 ，心跳语句为 show slave status

datahost其他配置
<dataHost name="localhost1" maxCon="1000" minCon="10" balance="1"  writeType="0" dbType="mysql"  dbDriver="native" switchType="1">

maxCon="1000"：最大的并发连接数
minCon="10" ：mycat在启动之后，会在后端节点上自动开启的连接线程

tempReadHostAvailable="1"
这个一主一从时（1个writehost，1个readhost时），可以开启这个参数，如果2个writehost，2个readhost时
<heartbeat>select user()</heartbeat>  监测心跳

(1) 逻辑库定义
<schema name="TESTDB" checkSQLschema="false" sqlMaxLimit="100" dataNode="sh1">
</schema>
(2) 数据节点定义
  <dataNode name="sh1" dataHost="oldguo1" database= "world" />
(3) 数据主机定义
<dataHost name="oldguo1" maxCon="1000" minCon="10" balance="1"  writeType="0" dbType="mysql"  dbDriver="native" switchType="1">
                <heartbeat>select user()</heartbeat>
        <writeHost host="db1" url="10.0.0.51:3307" user="root" password="123">
                        <readHost host="db2" url="10.0.0.51:3309" user="root" password="123" />
        </writeHost>
        </dataHost>

4.6 连接测试读写分离

[root@db02 ~]# mysql -uroot -p123456 -h 10.0.0.52 -P8066
mysql> select @@server_id;    #读
+-------------+
| @@server_id |
+-------------+
|           9 |
+-------------+
1 row in set (0.00 sec)

mysql> begin;select @@server_id;commit;   #写
Query OK, 0 rows affected (0.00 sec)

+-------------+
| @@server_id |
+-------------+
|           7 |
+-------------+
1 row in set (0.00 sec)

Query OK, 0 rows affected (0.00 sec)

4.7 读写分离+高可用功能

#将原本的配置文件备份
[root@db02 /application/mycat/conf]# mv schema.xml schema.xml.bak

#添加新的配置文件(有四个节点)

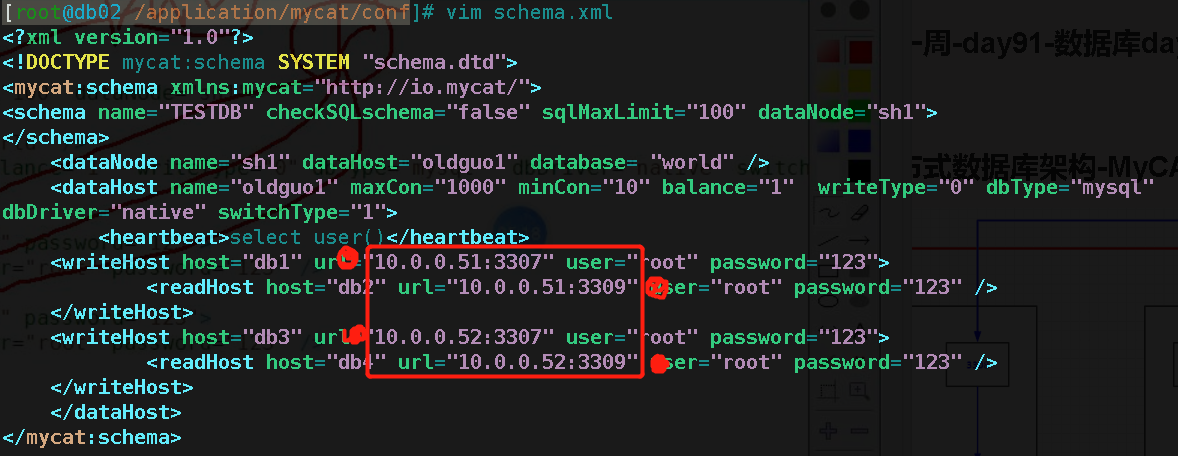

[root@db02 /application/mycat/conf]# vim schema.xml
<?xml version="1.0"?>
<!DOCTYPE mycat:schema SYSTEM "schema.dtd">
<mycat:schema xmlns:mycat="http://io.mycat/">
<schema name="TESTDB" checkSQLschema="false" sqlMaxLimit="100" dataNode="sh1">
</schema>
    <dataNode name="sh1" dataHost="oldguo1" database= "world" />
    <dataHost name="oldguo1" maxCon="1000" minCon="10" balance="1"  writeType="0" dbType="mysql"  dbDriver="native" switchType="1">
        <heartbeat>select user()</heartbeat>
    <writeHost host="db1" url="10.0.0.51:3307" user="root" password="123">
            <readHost host="db2" url="10.0.0.51:3309" user="root" password="123" />
    </writeHost>
    <writeHost host="db3" url="10.0.0.52:3307" user="root" password="123">
            <readHost host="db4" url="10.0.0.52:3309" user="root" password="123" />
    </writeHost>
    </dataHost>
</mycat:schema>

4.8 拥有了高可用的读写分离

#重启mycat
[root@db02 /application/mycat/conf]# mycat restart
Stopping Mycat-server...
Stopped Mycat-server.
Starting Mycat-server...
[root@db02 /application/mycat/conf]# mysql -uroot -p123456 -h 10.0.0.52 -P8066

# 读是三个节点轮询
mysql> select @@server_id;
+-------------+
| @@server_id |
+-------------+
|           9 |
+-------------+
1 row in set (0.00 sec)

mysql> select @@server_id;
+-------------+
| @@server_id |
+-------------+
|          17 |
+-------------+
1 row in set (0.00 sec)

mysql> select @@server_id;
+-------------+
| @@server_id |
+-------------+
|           9 |
+-------------+
1 row in set (0.00 sec)


#写只有一个节点，现在节点是 7
mysql> begin;select @@server_id;commit;
Query OK, 0 rows affected (0.00 sec)

+-------------+
| @@server_id |
+-------------+
|           7 |
+-------------+
1 row in set (0.01 sec)

Query OK, 0 rows affected (0.00 sec)

4.9 检查高可用功能

节点号的切换与配置文件指定的有关，莫懵

mysql -S /data/3307/mysql.sock -e "show variables like 'server_id'"
mysql -S /data/3308/mysql.sock -e "show variables like 'server_id'"
mysql -S /data/3309/mysql.sock -e "show variables like 'server_id'"
mysql -S /data/3310/mysql.sock -e "show variables like 'server_id'"

#将db01的mysql3307数据库宕掉
[root@db01 ~]# systemctl stop mysqld3307.service

#在db02上进mycat库读写
mysql> select @@server_id;  切换为19节点
+-------------+
| @@server_id |
+-------------+
|          19 |
+-------------+
1 row in set (0.00 sec)

mysql> begin;select @@server_id;commit;  3切换为17节点
Query OK, 0 rows affected (0.00 sec)

+-------------+
| @@server_id |
+-------------+
|          17 |
+-------------+
1 row in set (0.00 sec)

Query OK, 0 rows affected (0.00 sec)
