SpringBoot系列--新建SpringBoot多模块工程项目

1. 项目环境

• IDEA 2020.1.4
• Maven 3.6
• JDK 1.8
• SpringBoot 2.x

项目文件在GitHub(欢迎star⭐)：
https://github.com/Gang-bb/Gangbb-SpringBoot

如有疑问或是建议，欢迎评论区留言或者QQ:949526365

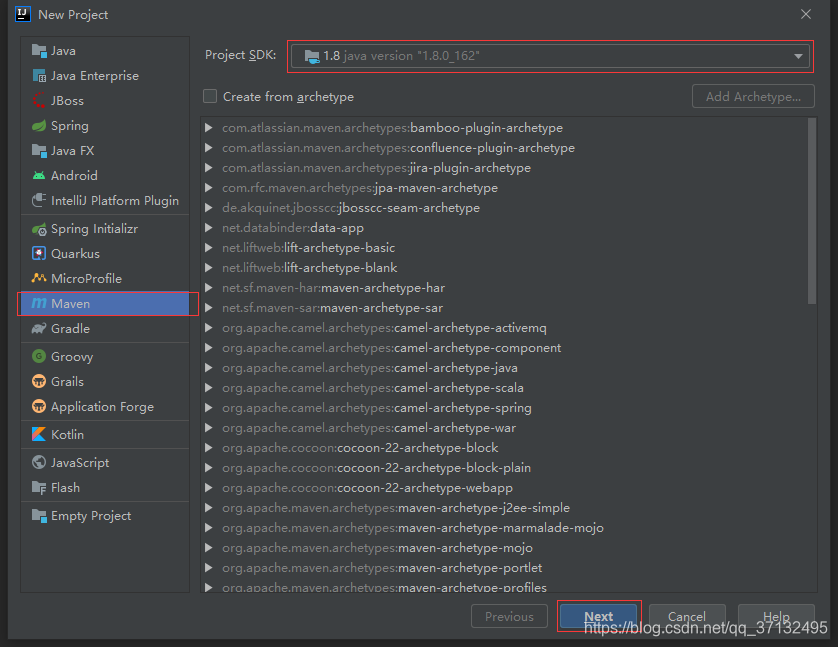

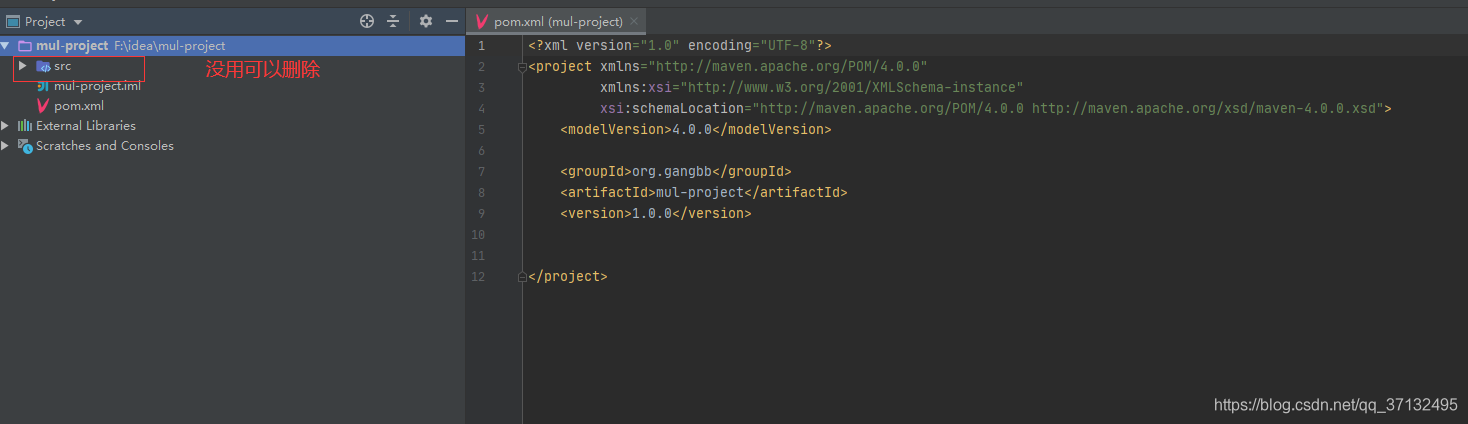

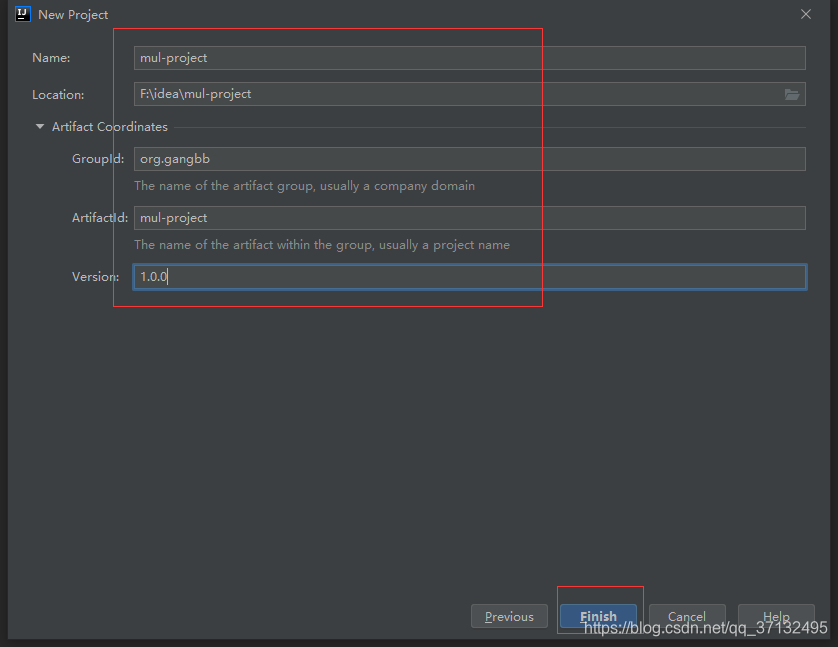

1. 新建主Maven项目

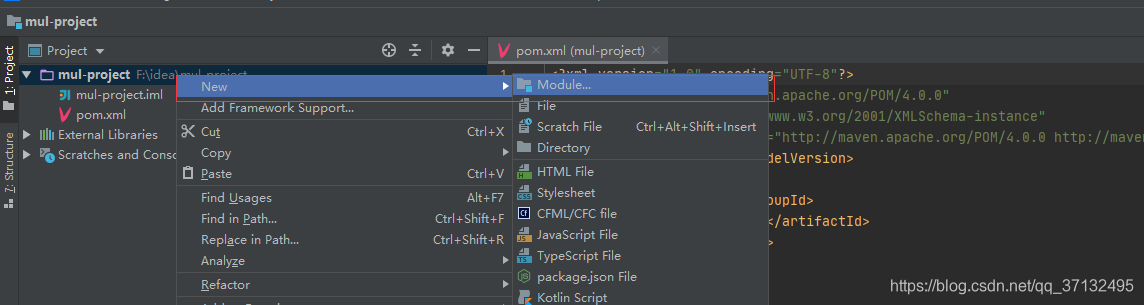

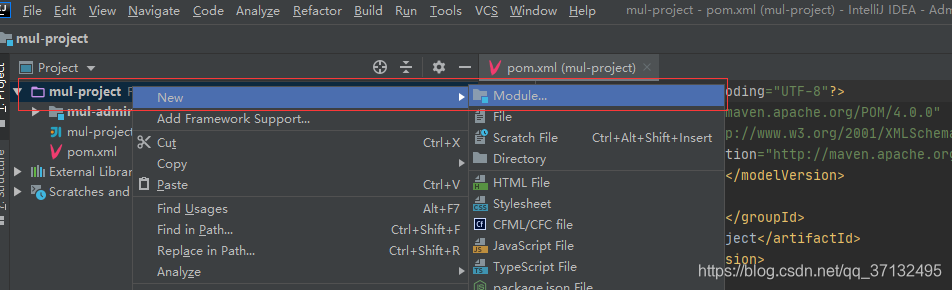

2. 新建子Module项目

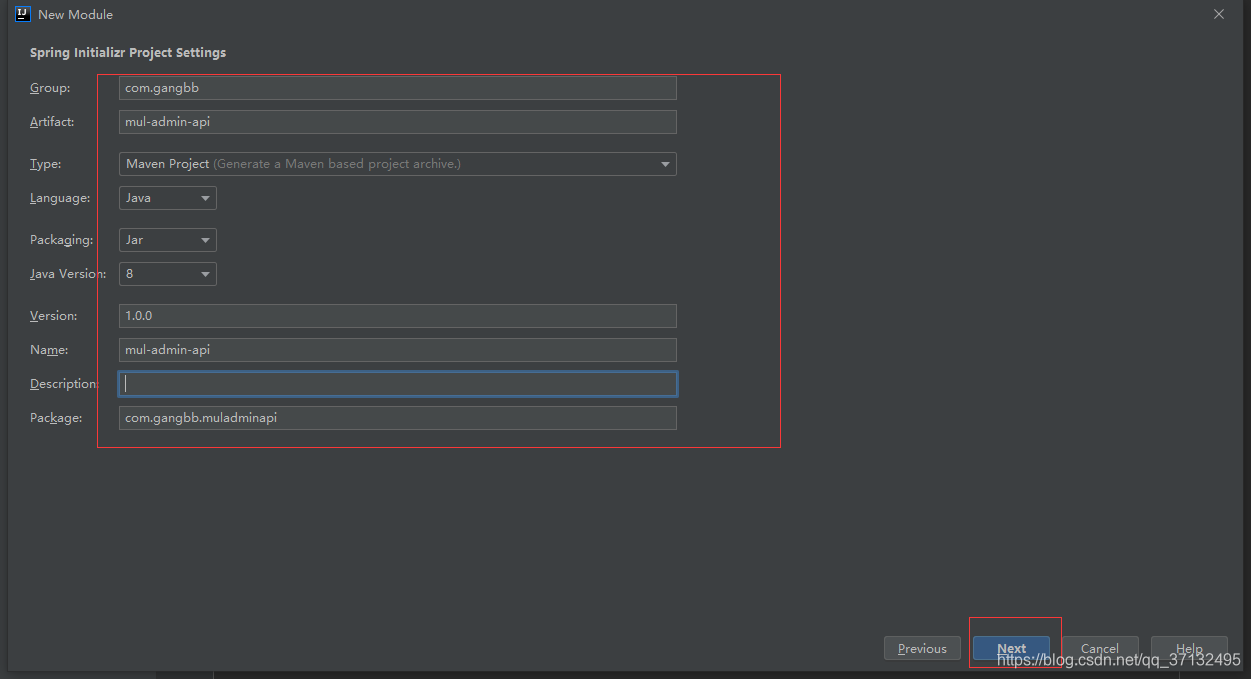

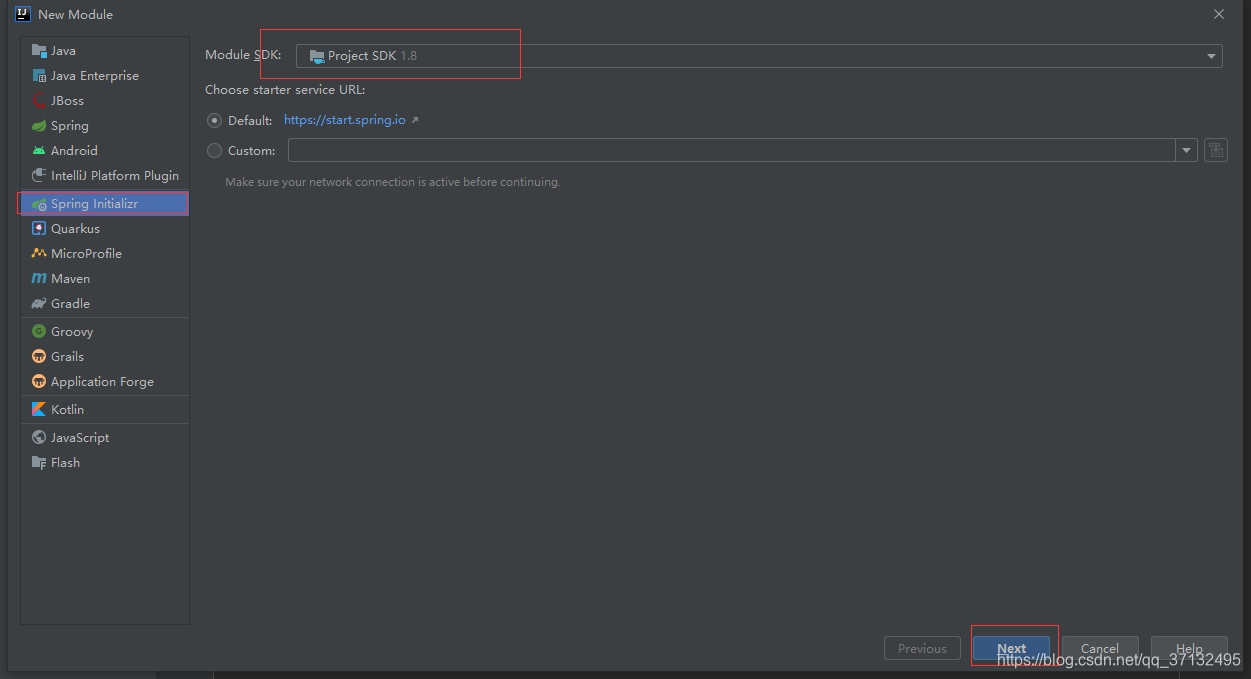

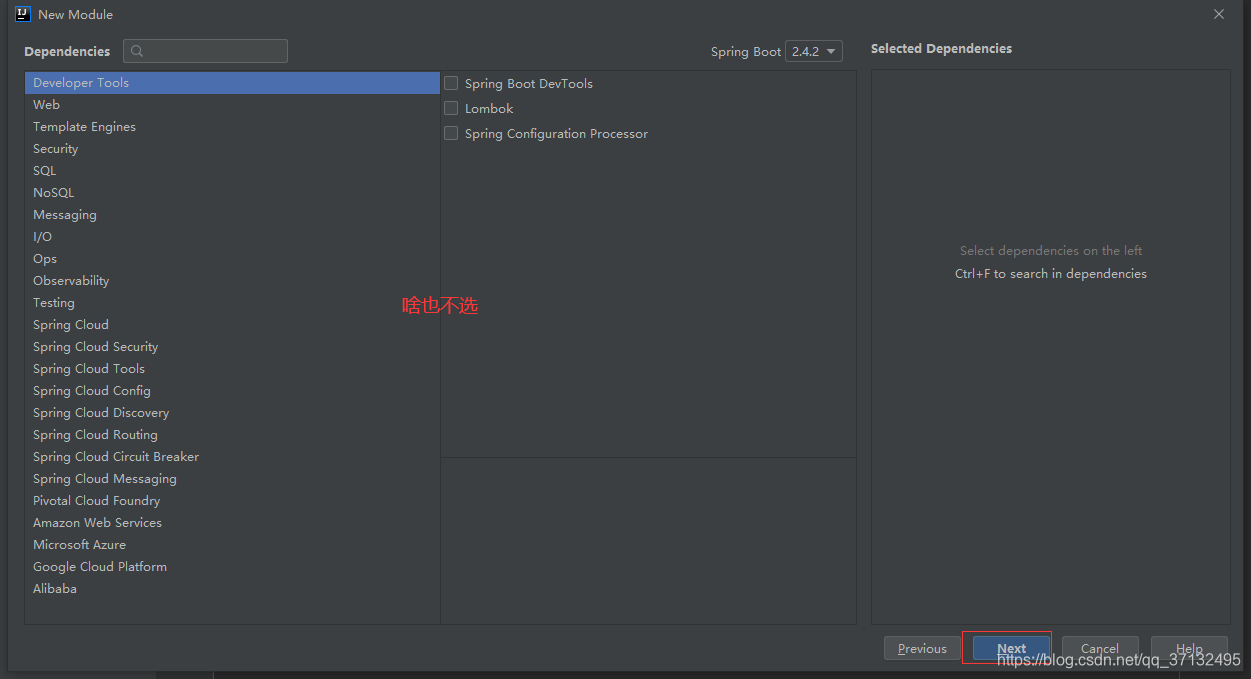

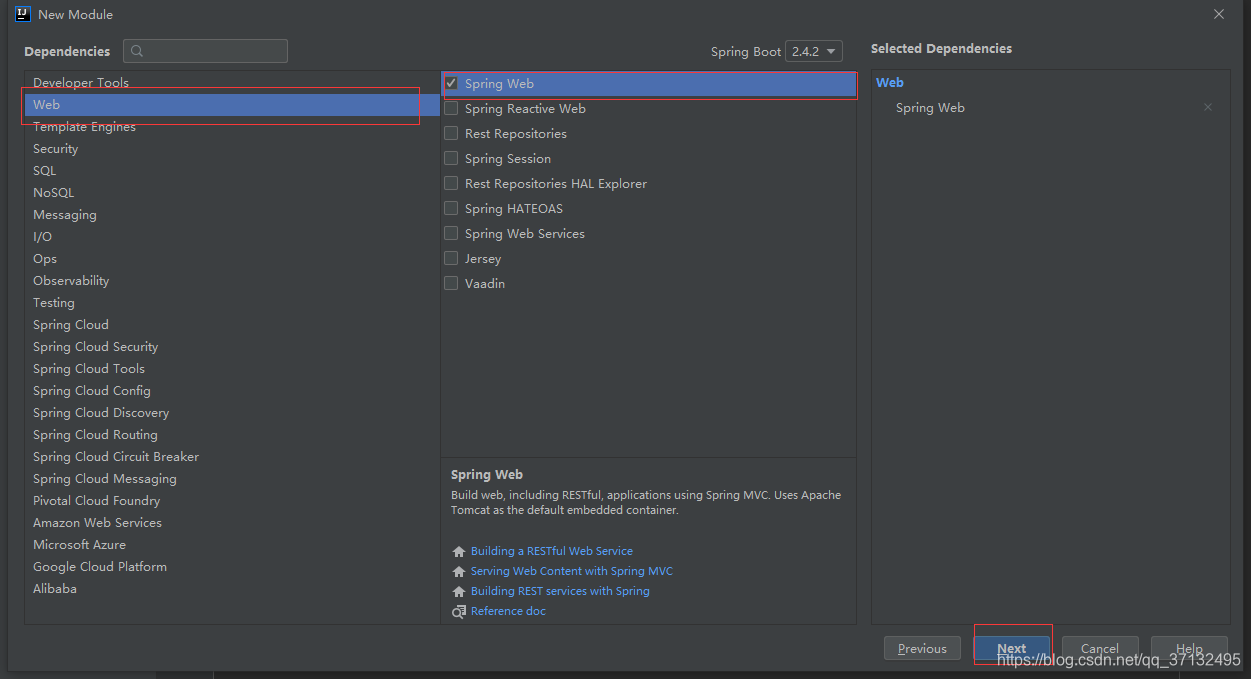

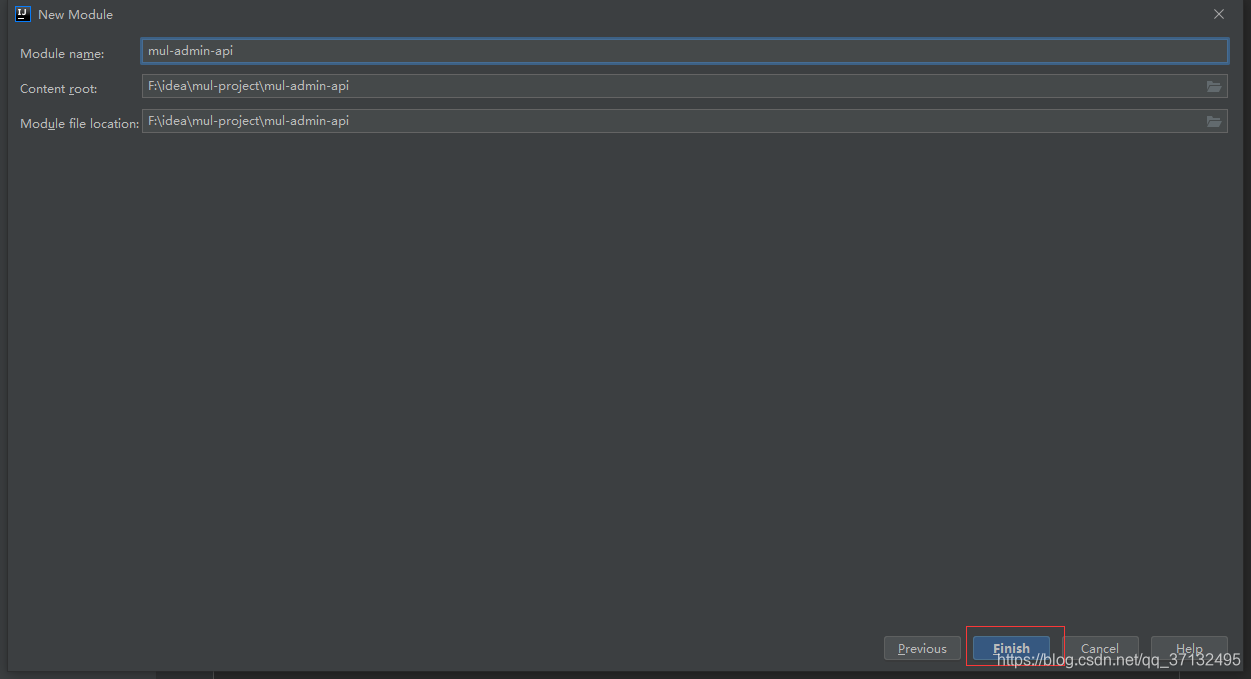

2.1 新建SpringBoot项目(api)

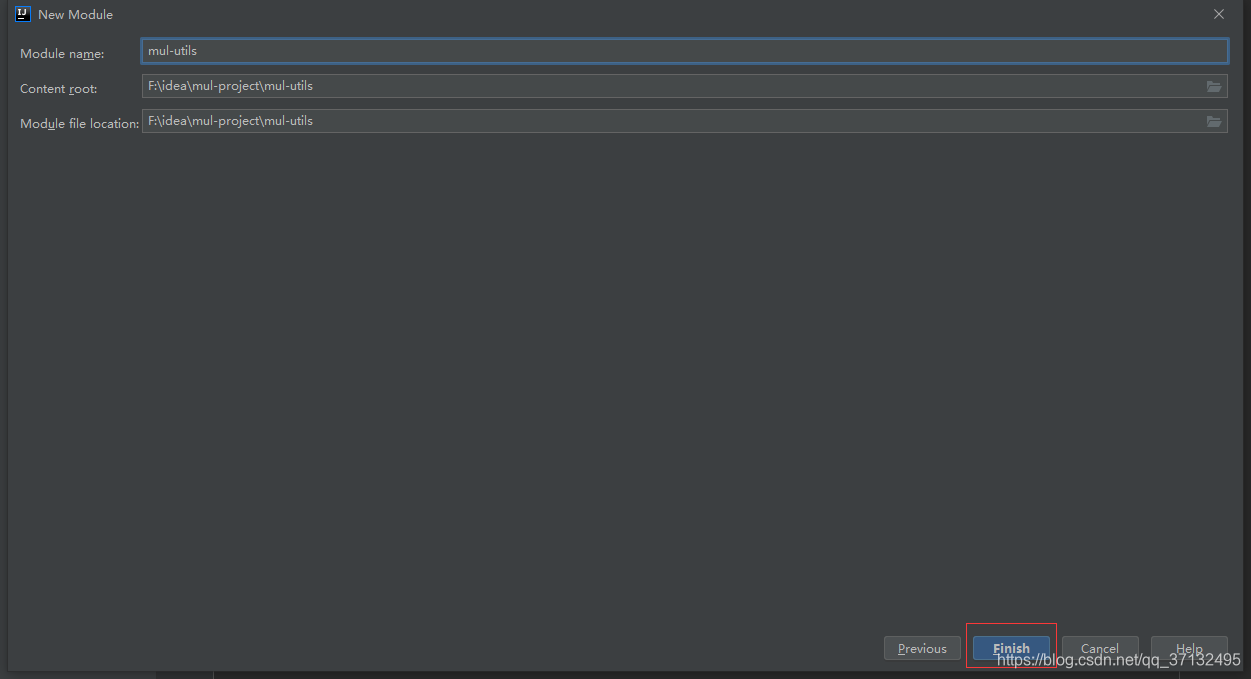

2.2 新建工具类

3. 配置各个模块的pom.xml文件

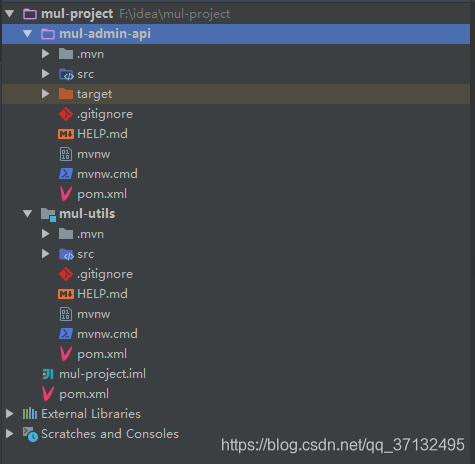

当前目录：

3.1 主project文件配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.gangbb</groupId>
    <artifactId>mul-project</artifactId>
    <version>1.0.0</version>

    <packaging>pom</packaging>
    <modules>
        <module>mul-admin-api</module>
        <module>mul-utils</module>
    </modules>
    <!--主模块控制springboot版本-->
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.4.2</version>
    </parent>
    <!--设置Maven仓库-->
    <repositories>
        <repository>
            <id>aliyun</id>
            <name>aliyun</name>
            <url>https://maven.aliyun.com/repository/public</url>
            <releases>
                <enabled>true</enabled>
            </releases>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </repository>
    </repositories>
    <pluginRepositories>
        <pluginRepository>
            <id>aliyun-plugin</id>
            <name>aliyun-plugin</name>
            <url>https://maven.aliyun.com/repository/public</url>
            <releases>
                <enabled>true</enabled>
            </releases>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </pluginRepository>
    </pluginRepositories>


</project>

3.2 子module项目配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <artifactId>mul-project</artifactId>
        <groupId>org.gangbb</groupId>
        <version>1.0.0</version>
        <relativePath>../pom.xml</relativePath>
    </parent>
    <groupId>com.gangbb</groupId>
    <artifactId>mul-admin-api</artifactId>
    <version>1.0.0</version>
    <name>mul-admin-api</name>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>
