Spring学习之ApplicationContext学习

spring-context包

spring boot 中，默认使用GenericWebApplicationContext实现类。

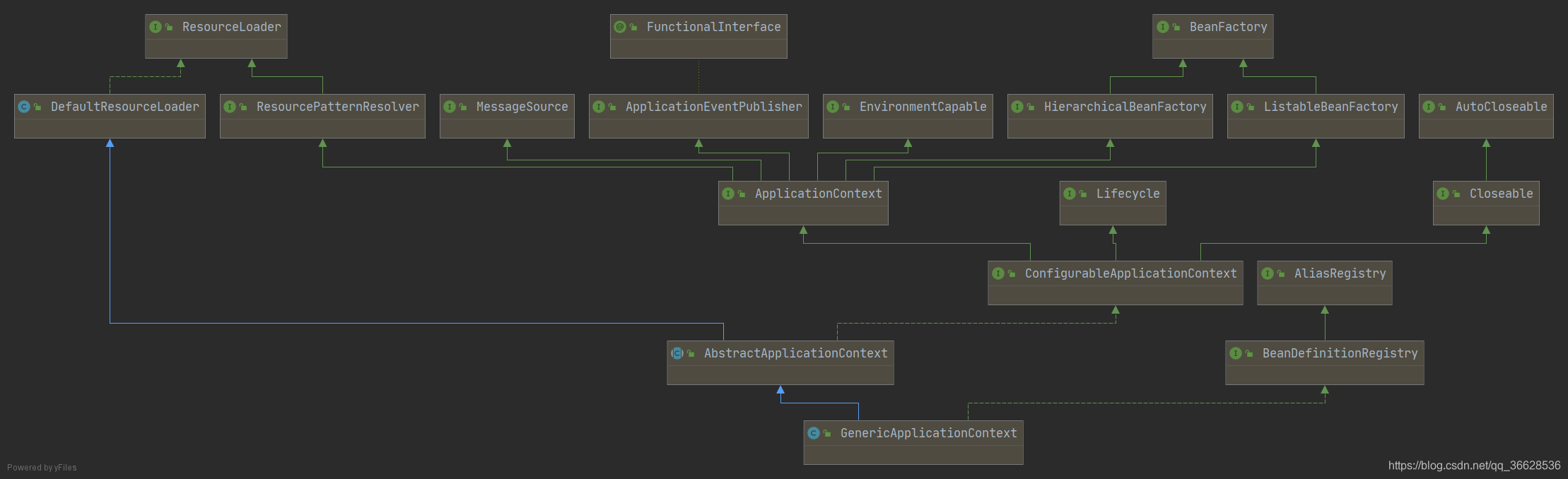

我们先看一下ApplicationContext的体系结构

我们已GenericApplicationContext为最外层的实现类形成了上图，可以看到ApplicationContext接口位于中间位置，它也是我们容器的最顶层接口。先从它入手。

1 ApplicationContext接口

public interface ApplicationContext extends EnvironmentCapable, ListableBeanFactory, HierarchicalBeanFactory,
		MessageSource, ApplicationEventPublisher, ResourcePatternResolver {

• 这是spring容器的最顶层接口，根据接口继承关系可以知道，它具有环境上下文、BeanFactory、发布事件到注册的Listeners的功能、解析消息（支持国际化）、解析本地文件的能力。
• ApplicationContext是bean容器的一个运行环境（也可以理解为它在bean容器上面又包装了一层），这里所谓的bean容器也就是BeanFactory。 BeanFactory的实现类中存在一个专门存放beanName和beanDefinition的ConcurrentHashMap,它里面存放的就是我们bean。
• 除了实现BeanFactory接口的生命周期外，它还会发现实现和执行了ApplicationContextAware、ResourceLoaderAware、ApplicationEventPublisherAware和MessageSourceAware的bean的功能。

/**
	 *返回容器的唯一id
	 */
	@Nullable
	String getId();

	/**
	 * 返回名字
	 */
	String getApplicationName();

	/**
	 * 返回另一种名字
	 */
	String getDisplayName();

	/**
	 *返回容器第一次被加载的时间
	 */
	long getStartupDate();

	/**
	 * 返回父容器
	 */
	@Nullable
	ApplicationContext getParent();

	/**
	 * 提供获取容器中AutowireCapableBeanFactory的能力
	 * 这个一般应用在，想初始化一些不在application中的bean时候使用，
	 */
	AutowireCapableBeanFactory getAutowireCapableBeanFactory() throws IllegalStateException;

上面就是顶端接口Application的分析，接下来我们看它的子类ConfigurableApplicationContext

2 ConfigurableApplicationContext接口

public interface ConfigurableApplicationContext extends ApplicationContext, Lifecycle, Closeable {

• SPI接口（java提供的一种动态加载机制），可以通过在META/INF —>service---->xxxx.ConfigurableApplicationContent----->你的实现类
• 继承于ApplicationContext接口，提供与applicationListener，environment，beanFactoryProcessor等相关的set方法，还有启动入口方法refresh。

/**
	 * 多个上下文配置路径的分隔符
	 */
	String CONFIG_LOCATION_DELIMITERS = ",; \t\n";

	/**
	 * 转换服务bean的名称（转换服务，提供类型转换，一个class转换到另一个class）
	 */
	String CONVERSION_SERVICE_BEAN_NAME = "conversionService";

	/**
	 * 加载时间织入bean名称，如果上下文存在这么一个bean，上下文将会用一个临时类加载器(支持类加载期间对指定bean进行代码编织)去进行类型匹配，从而运行LoadTimeWeacer 去处理所有实际的bean 类。
	 * 该方式只适用与类加载方式进行，而大多数aop都在运行时利用动态代理和CGLib方式实现。
	 */
	String LOAD_TIME_WEAVER_BEAN_NAME = "loadTimeWeaver";

	/**
	 *enviroment 环境bean 名称
	 */
	String ENVIRONMENT_BEAN_NAME = "environment";

	/**
	 *系统配置bean 名称
	 */
	String SYSTEM_PROPERTIES_BEAN_NAME = "systemProperties";

	/**
	 * 系统环境bean名称
	 */
	String SYSTEM_ENVIRONMENT_BEAN_NAME = "systemEnvironment";

	/**
	 * 上下文关闭的钩子线程的名称
	 */
	String SHUTDOWN_HOOK_THREAD_NAME = "SpringContextShutdownHook";
	void setId(String id);
	void setParent(@Nullable ApplicationContext parent);
	void setEnvironment(ConfigurableEnvironment environment);

	@Override
	ConfigurableEnvironment getEnvironment();

	/**
	 * 为内置的beanFactory设置BeanFactoryPostProcesser,在容器#refresh()中被应用
	 */
	void addBeanFactoryPostProcessor(BeanFactoryPostProcessor postProcessor);

	/**
	 * 添加容器监听器，用来监听容器的refresh shutdown等事件
	 */
	void addApplicationListener(ApplicationListener<?> listener);

	/**
	 * 添加协议解析器，它的作用就是提供解析配置文件路径的拓展，我们可以实现ProtocolResolver来实现我们自己解析location从而获取resource。location(配置文件所在位置的入参) resource(配置文件的解析类)
	 * protocolResolver经常在resouce loader中使用
	 */
	void addProtocolResolver(ProtocolResolver resolver);

	/**
	 * 启动入口方法，子类去实现具体启动流程
	 */
	void refresh() throws BeansException, IllegalStateException;

	/**
	 * 向jvm注册一个钩子，当jvm关闭时关闭这个上下文
	 */
	void registerShutdownHook();

	/**
	 * 关闭这个上下文，释放资源，释放锁，并清除掉容器中的缓存单例bean。
	 */
	@Override
	void close();

	/**
	 * 判断容器是否被激活，是否执行了refresh(),并且为执行close（）
	 */
	boolean isActive();

	/**
	 * 返回内置的可配置枚举工厂
	 */
	ConfigurableListableBeanFactory getBeanFactory() throws IllegalStateException;

**总结：**ConfigurableApplicationContext 接口主要实现了上下文的一些配置功能，包括 id name，父上下文、环境、上下文监听器，协议解析器、钩子线程、BeanFactoryPostProcesser 等功能。

3 AbstractApplicationContext抽象类

public abstract class AbstractApplicationContext extends DefaultResourceLoader
		implements ConfigurableApplicationContext {

• 实现了ConfigurableApplicationContext接口。
• refresh方法：容器启动的骨架实现，使用了模板设计模式。提供对ConfigurableApplicationContext接口的refresh方法的模板实现，即定义了ApplicationContext的启动步骤，但是不提供具体每步的实现，由子类提供。
• 成员变量定义：定义了applicationListener，environment，beanFactoryProcessor等相关的成员变量。

/**
	 * 消息源的bean名称，用来实现多语言。不指定引用父类的bean
	 */
	public static final String MESSAGE_SOURCE_BEAN_NAME = "messageSource";

	/**
	 * 生命周期管理bean名称，没有指定使用DefaultLifecycleProcessor
	 * onRefresh() 和 onClose();
	 * onRefresh()在上下问的refresh()的finishRefresh()中被调用，表示上下文完成刷新
	 * onClose() 表示上下文被关闭
	 */
	public static final String LIFECYCLE_PROCESSOR_BEAN_NAME = "lifecycleProcessor";

	/**
	 * beanFactory中事件多路处理器bean的名字.
	 * default SimpleApplicationEventMulticaster is used.
	 */
	public static final String APPLICATION_EVENT_MULTICASTER_BEAN_NAME = "applicationEventMulticaster";

	//提前加载ContextCloseEvent类，解决WebLogic 8.1关闭的问题
	static {
		ContextClosedEvent.class.getName();
	}
	/** 获取日志对象，可以应用到子类 */
	protected final Log logger = LogFactory.getLog(getClass());
============创建成员对象，支撑行为接口的功能=============================
	private String id = ObjectUtils.identityToString(this);
	private String displayName = ObjectUtils.identityToString(this);
	@Nullable
	private ApplicationContext parent;
	@Nullable
	private ConfigurableEnvironment environment;
	private final List<BeanFactoryPostProcessor> beanFactoryPostProcessors = new ArrayList<>();
	private long startupDate;
	private final AtomicBoolean active = new AtomicBoolean();
	private final AtomicBoolean closed = new AtomicBoolean();

	/** refresh 和 destory的锁对象监控器. */
	private final Object startupShutdownMonitor = new Object();

	/** 注册到jvm的关闭钩子对象*/
	@Nullable
	private Thread shutdownHook;

	/**支持通配符的资源解析器 */
	private ResourcePatternResolver resourcePatternResolver;

	/** 生命周期处理器对象，管理该上下文的生命周期 */
	@Nullable
	private LifecycleProcessor lifecycleProcessor;

	/** 消息源对象. */
	@Nullable
	private MessageSource messageSource;

	/** 事件推送的实现类. */
	@Nullable
	private ApplicationEventMulticaster applicationEventMulticaster;

	/** 静态的上下文监听器 */
	private final Set<ApplicationListener<?>> applicationListeners = new LinkedHashSet<>();

	/** 在refresh之前本地的监听器. */
	@Nullable
	private Set<ApplicationListener<?>> earlyApplicationListeners;

	/** 在多播器设置之前发布的ApplicationEvents. */
	@Nullable
	private Set<ApplicationEvent> earlyApplicationEvents;


	/**
	 * 构造器
	 */
	public AbstractApplicationContext() {
		this.resourcePatternResolver = getResourcePatternResolver();
	}
	public AbstractApplicationContext(@Nullable ApplicationContext parent) {
		this();
		setParent(parent);
	}


	//---------------------------------------------------------------------
	// 对ApplicationContext接口的实现
	//---------------------------------------------------------------------

	@Override
	public void setId(String id) {
		this.id = id;
	}

	@Override
	public String getId() {
		return this.id;
	}

	@Override
	public String getApplicationName() {
		return "";
	}

	public void setDisplayName(String displayName) {
		Assert.hasLength(displayName, "Display name must not be empty");
		this.displayName = displayName;
	}
	@Override
	public String getDisplayName() {
		return this.displayName;
	}
	@Override
	@Nullable
	public ApplicationContext getParent() {
		return this.parent;
	}

	@Override
	public void setEnvironment(ConfigurableEnvironment environment) {
		this.environment = environment;
	}
	@Override
	public ConfigurableEnvironment getEnvironment() {
		if (this.environment == null) {
			this.environment = createEnvironment();
		}
		return this.environment;
	}

	protected ConfigurableEnvironment createEnvironment() {
		return new StandardEnvironment();
	}

	/**
	 * Return this context's internal bean factory as AutowireCapableBeanFactory,
	 * if already available.
	 * @see #getBeanFactory()
	 */
	@Override
	public AutowireCapableBeanFactory getAutowireCapableBeanFactory() throws IllegalStateException {
		return getBeanFactory();
	}

	@Override
	public long getStartupDate() {
		return this.startupDate;
	}

	/**
	 * 发送指定的事件给所有的监听者
	 * 监听者的初始化在消息源之后，所有可以在监听者中使用messageSource。
	 */
	@Override
	public void publishEvent(ApplicationEvent event) {
		publishEvent(event, null);
	}

	@Override
	public void publishEvent(Object event) {
		publishEvent(event, null);
	}

	/**
	 * 推送事件的具体实现方法，对本类和子类开放。对外开放不暴露eventType属性
	 * ApplicationEvent（普通事件） PayloadApplicationEvent（带负载的事件，就是事件里面可以携带一      * 些我们用到的信息）两种事件类型
	 */
	protected void publishEvent(Object event, @Nullable ResolvableType eventType) {
		Assert.notNull(event, "Event must not be null");

		// Decorate event as an ApplicationEvent if necessary
		ApplicationEvent applicationEvent;
		if (event instanceof ApplicationEvent) {
			applicationEvent = (ApplicationEvent) event;
		}
		else {
            //this表示事件发生时所在的对象
			applicationEvent = new PayloadApplicationEvent<>(this, event);
			if (eventType == null) {
                //获取payload的类型
				eventType = ((PayloadApplicationEvent<?>) applicationEvent).getResolvableType();
			}
		}
        //判断是否存在之前为播报的事件存在，存在，把当前的事件放到这个集合，不存在获取事件多路发送器然后发送事件给监听者
		if (this.earlyApplicationEvents != null) {
			this.earlyApplicationEvents.add(applicationEvent);
		}
		else {
            //获取多路播报器发送事件
			getApplicationEventMulticaster().multicastEvent(applicationEvent, eventType);
		}

		// 父容器执行同样的事件传播
		if (this.parent != null) {
			if (this.parent instanceof AbstractApplicationContext) {
				((AbstractApplicationContext) this.parent).publishEvent(event, eventType);
			}
			else {
				this.parent.publishEvent(event);
			}
		}
	}

	ApplicationEventMulticaster getApplicationEventMulticaster() throws IllegalStateException {
		if (this.applicationEventMulticaster == null) {
			throw new IllegalStateException("ApplicationEventMulticaster not initialized - " +
					"call 'refresh' before multicasting events via the context: " + this);
		}
		return this.applicationEventMulticaster;
	}

	LifecycleProcessor getLifecycleProcessor() throws IllegalStateException {
		if (this.lifecycleProcessor == null) {
			throw new IllegalStateException("LifecycleProcessor not initialized - " +
					"call 'refresh' before invoking lifecycle methods via the context: " + this);
		}
		return this.lifecycleProcessor;
	}

	protected ResourcePatternResolver getResourcePatternResolver() {
		return new PathMatchingResourcePatternResolver(this);
	}


	//---------------------------------------------------------------------
	// 对 ConfigurableApplicationContext 的实现
	//---------------------------------------------------------------------

	/**
	 * 这只父上下文，如果父上下文的环境是ConfigurableEnviroment,将当前上下文环境和父环境合并
	 */
	@Override
	public void setParent(@Nullable ApplicationContext parent) {
		this.parent = parent;
		if (parent != null) {
			Environment parentEnvironment = parent.getEnvironment();
			if (parentEnvironment instanceof ConfigurableEnvironment) {
				getEnvironment().merge((ConfigurableEnvironment) parentEnvironment);
			}
		}
	}

	@Override
	public void addBeanFactoryPostProcessor(BeanFactoryPostProcessor postProcessor) {
		Assert.notNull(postProcessor, "BeanFactoryPostProcessor must not be null");
		this.beanFactoryPostProcessors.add(postProcessor);
	}
	public List<BeanFactoryPostProcessor> getBeanFactoryPostProcessors() {
		return this.beanFactoryPostProcessors;
	}

	@Override
	public void addApplicationListener(ApplicationListener<?> listener) {
		Assert.notNull(listener, "ApplicationListener must not be null");
        //如果已经创建了事件多路处理器，则将listener增加到它上面
		if (this.applicationEventMulticaster != null) {
			this.applicationEventMulticaster.addApplicationListener(listener);
		}
		this.applicationListeners.add(listener);
	}
	public Collection<ApplicationListener<?>> getApplicationListeners() {
		return this.applicationListeners;
	}

	@Override
	public void refresh() throws BeansException, IllegalStateException {
        //单线程执行，锁住监控器
		synchronized (this.startupShutdownMonitor) {
			// 为startupData、close、active赋值
            // 打印日志、将servletConfig、servletContext放到spring容器的environment的 propertySources中
            // 检查配置必须项是否存在
			prepareRefresh();

			// 告诉子类去刷新内置的beanFactory
            // 如果之前创建过了Factory，清除缓存的bean、清除beanFactory的id 等等，
            // 加载bean转换成beanDefinition ---- beanDefinitionReader
			ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

			// 为内置beanFactory设置属性.
			prepareBeanFactory(beanFactory);

			try {
				// 允许上下文对工厂进行后置处理，也就是提供了再次修改bean工厂的时间点.
                // 就是对默认配置的内置工厂进行修改，这个阶段beandefiniton已经被加载了，但是bean还未实例化，我们可以注册beanPostProcessors从而修改bean
				postProcessBeanFactory(beanFactory);

				// 实例化和执行所有已经注册的BeanFactoryPostProcesser bean.
                // 如果指定了顺序，要按顺序执行
                // 这里包含 beanFactoryPostP 和 beanDif RegistPostP
				invokeBeanFactoryPostProcessors(beanFactory);

				// 实例化和注册所有的BeanPostProcessor beans
                // 根据优先级接口（PrioriryOrdered.class>Ordered.class）
                //三种类型的后置处理器
				registerBeanPostProcessors(beanFactory);

				// 注册消息源，如果工厂已经存在该bean，直接用，并合并父上下文的上下文
                // 如果不存在就创建一个空的数据源bean
				initMessageSource();

				// 创建消息多路处理器
				initApplicationEventMulticaster();

				// 提供的模板方法，交给子类实现。
                // 用来初始化一些指定的bean，在是实例化单例成员之前。
				onRefresh();

				// 注册那些实现了ApplicationListener的类成为bean
				registerListeners();

				// 实例化所有的非延迟加载的单例bean.
				finishBeanFactoryInitialization(beanFactory);

				// Last step: publish corresponding event.
				finishRefresh();
			}

			catch (BeansException ex) {
				if (logger.isWarnEnabled()) {
					logger.warn("Exception encountered during context initialization - " +
							"cancelling refresh attempt: " + ex);
				}

				// Destroy already created singletons to avoid dangling resources.
				destroyBeans();

				// Reset 'active' flag.
				cancelRefresh(ex);

				// Propagate exception to caller.
				throw ex;
			}

			finally {
				// Reset common introspection caches in Spring's core, since we
				// might not ever need metadata for singleton beans anymore...
				resetCommonCaches();
			}
		}
	}

	protected void prepareRefresh() {
		// Switch to active.
		this.startupDate = System.currentTimeMillis();
		this.closed.set(false);
		this.active.set(true);

		if (logger.isDebugEnabled()) {
			if (logger.isTraceEnabled()) {
				logger.trace("Refreshing " + this);
			}
			else {
				logger.debug("Refreshing " + getDisplayName());
			}
		}

		// Initialize any placeholder property sources in the context environment.
		initPropertySources();

		// Validate that all properties marked as required are resolvable:
		// see ConfigurablePropertyResolver#setRequiredProperties
		getEnvironment().validateRequiredProperties();

		// Store pre-refresh ApplicationListeners...
		if (this.earlyApplicationListeners == null) {
			this.earlyApplicationListeners = new LinkedHashSet<>(this.applicationListeners);
		}
		else {
			// Reset local application listeners to pre-refresh state.
			this.applicationListeners.clear();
			this.applicationListeners.addAll(this.earlyApplicationListeners);
		}

		// Allow for the collection of early ApplicationEvents,
		// to be published once the multicaster is available...
		this.earlyApplicationEvents = new LinkedHashSet<>();
	}

	protected void initPropertySources() {
		// For subclasses: do nothing by default.
	}

	/**
	 * Tell the subclass to refresh the internal bean factory.
	 * @return the fresh BeanFactory instance
	 * @see #refreshBeanFactory()
	 * @see #getBeanFactory()
	 */
	protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
		refreshBeanFactory();
		return getBeanFactory();
	}

	/**
	 * Configure the factory's standard context characteristics,
	 * such as the context's ClassLoader and post-processors.
	 * @param beanFactory the BeanFactory to configure
	 */
	protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
		//告诉工厂使用容器的类加载器
		beanFactory.setBeanClassLoader(getClassLoader());
        //设置EL表达式解析器，bean实例化填充属性会用到
		beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));
        //设置属性注册解析器PropertyEditor
		beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));

		// Configure the bean factory with context callbacks.
        //将当前的ApplicationContext对象交给ApplicationContextAwareProcessor类来处理，从而在Aware接口实现类中的注入applicationContext
		beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
        //设置自动装配忽略的接口（ConfiguabelListableBeanFactory提供的功能）
		beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
		beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
		beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
		beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
		beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
		beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);

		// 注册可以解析的自动装配
		// MessageSource registered (and found for autowiring) as a bean.
		beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
		beanFactory.registerResolvableDependency(ResourceLoader.class, this);
		beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
		beanFactory.registerResolvableDependency(ApplicationContext.class, this);

		// 将当前上下文对象交给ApplicationListenerDetector对象，它会监测上下文中存在的bean是不是ApplicationListener.
		beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));

		// 如果当前BeanFactory包含loadTimeWeaver Bean，说明存在类加载期织入AspectJ，则把当前BeanFactory交给类加载期BeanPostProcessor实现类LoadTimeWeaverAwareProcessor来处理，从而实现类加载期织入AspectJ的目的。
		if (beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
			beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
			// Set a temporary ClassLoader for type matching.
			beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
		}

		// 注册当前容器环境组件bean
		if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
			beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
		}
        //注册系统配置systemProperties组件Bean
		if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
			beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
		}
        //注册系统环境systemEnvironment组件Bean
		if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
			beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
		}
	}

	/**
	 * Modify the application context's internal bean factory after its standard
	 * initialization. All bean definitions will have been loaded, but no beans
	 * will have been instantiated yet. This allows for registering special
	 * BeanPostProcessors etc in certain ApplicationContext implementations.
	 * @param beanFactory the bean factory used by the application context
	 */
	protected void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) {
	}

	/**
	 * Instantiate and invoke all registered BeanFactoryPostProcessor beans,
	 * respecting explicit order if given.
	 * <p>Must be called before singleton instantiation.
	 */
	protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
		PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());

		// Detect a LoadTimeWeaver and prepare for weaving, if found in the meantime
		// (e.g. through an @Bean method registered by ConfigurationClassPostProcessor)
		if (beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
			beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
			beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
		}
	}

	/**
	 * Instantiate and register all BeanPostProcessor beans,
	 * respecting explicit order if given.
	 * <p>Must be called before any instantiation of application beans.
	 */
	protected void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory) {
		PostProcessorRegistrationDelegate.registerBeanPostProcessors(beanFactory, this);
	}

	/**
	 * Initialize the MessageSource.
	 * Use parent's if none defined in this context.
	 */
	protected void initMessageSource() {
		ConfigurableListableBeanFactory beanFactory = getBeanFactory();
		if (beanFactory.containsLocalBean(MESSAGE_SOURCE_BEAN_NAME)) {
			this.messageSource = beanFactory.getBean(MESSAGE_SOURCE_BEAN_NAME, MessageSource.class);
			// Make MessageSource aware of parent MessageSource.
			if (this.parent != null && this.messageSource instanceof HierarchicalMessageSource) {
				HierarchicalMessageSource hms = (HierarchicalMessageSource) this.messageSource;
				if (hms.getParentMessageSource() == null) {
					// Only set parent context as parent MessageSource if no parent MessageSource
					// registered already.
					hms.setParentMessageSource(getInternalParentMessageSource());
				}
			}
			if (logger.isTraceEnabled()) {
				logger.trace("Using MessageSource [" + this.messageSource + "]");
			}
		}
		else {
			// Use empty MessageSource to be able to accept getMessage calls.
			DelegatingMessageSource dms = new DelegatingMessageSource();
			dms.setParentMessageSource(getInternalParentMessageSource());
			this.messageSource = dms;
			beanFactory.registerSingleton(MESSAGE_SOURCE_BEAN_NAME, this.messageSource);
			if (logger.isTraceEnabled()) {
				logger.trace("No '" + MESSAGE_SOURCE_BEAN_NAME + "' bean, using [" + this.messageSource + "]");
			}
		}
	}

	/**
	 * Initialize the ApplicationEventMulticaster.
	 * Uses SimpleApplicationEventMulticaster if none defined in the context.
	 * @see org.springframework.context.event.SimpleApplicationEventMulticaster
	 */
	protected void initApplicationEventMulticaster() {
		ConfigurableListableBeanFactory beanFactory = getBeanFactory();
		if (beanFactory.containsLocalBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME)) {
			this.applicationEventMulticaster =
					beanFactory.getBean(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, ApplicationEventMulticaster.class);
			if (logger.isTraceEnabled()) {
				logger.trace("Using ApplicationEventMulticaster [" + this.applicationEventMulticaster + "]");
			}
		}
		else {
			this.applicationEventMulticaster = new SimpleApplicationEventMulticaster(beanFactory);
			beanFactory.registerSingleton(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, this.applicationEventMulticaster);
			if (logger.isTraceEnabled()) {
				logger.trace("No '" + APPLICATION_EVENT_MULTICASTER_BEAN_NAME + "' bean, using " +
						"[" + this.applicationEventMulticaster.getClass().getSimpleName() + "]");
			}
		}
	}

	/**
	 * Initialize the LifecycleProcessor.
	 * Uses DefaultLifecycleProcessor if none defined in the context.
	 * @see org.springframework.context.support.DefaultLifecycleProcessor
	 */
	protected void initLifecycleProcessor() {
		ConfigurableListableBeanFactory beanFactory = getBeanFactory();
		if (beanFactory.containsLocalBean(LIFECYCLE_PROCESSOR_BEAN_NAME)) {
			this.lifecycleProcessor =
					beanFactory.getBean(LIFECYCLE_PROCESSOR_BEAN_NAME, LifecycleProcessor.class);
			if (logger.isTraceEnabled()) {
				logger.trace("Using LifecycleProcessor [" + this.lifecycleProcessor + "]");
			}
		}
		else {
			DefaultLifecycleProcessor defaultProcessor = new DefaultLifecycleProcessor();
			defaultProcessor.setBeanFactory(beanFactory);
			this.lifecycleProcessor = defaultProcessor;
			beanFactory.registerSingleton(LIFECYCLE_PROCESSOR_BEAN_NAME, this.lifecycleProcessor);
			if (logger.isTraceEnabled()) {
				logger.trace("No '" + LIFECYCLE_PROCESSOR_BEAN_NAME + "' bean, using " +
						"[" + this.lifecycleProcessor.getClass().getSimpleName() + "]");
			}
		}
	}

	/**
	 * Template method which can be overridden to add context-specific refresh work.
	 * Called on initialization of special beans, before instantiation of singletons.
	 * <p>This implementation is empty.
	 * @throws BeansException in case of errors
	 * @see #refresh()
	 */
	protected void onRefresh() throws BeansException {
		// For subclasses: do nothing by default.
	}


	protected void registerListeners() {
		// 先注册静态指定的listener,
		for (ApplicationListener<?> listener : getApplicationListeners()) {
			getApplicationEventMulticaster().addApplicationListener(listener);
		}
        //从工厂里面获取ApplicationListnener,注册到多路处理器里面
		String[] listenerBeanNames = getBeanNamesForType(ApplicationListener.class, true, false);
		for (String listenerBeanName : listenerBeanNames) {
			getApplicationEventMulticaster().addApplicationListenerBean(listenerBeanName);
		}

		// 发送一些早期上下文事件
		Set<ApplicationEvent> earlyEventsToProcess = this.earlyApplicationEvents;
		this.earlyApplicationEvents = null;
		if (earlyEventsToProcess != null) {
			for (ApplicationEvent earlyEvent : earlyEventsToProcess) {
				getApplicationEventMulticaster().multicastEvent(earlyEvent);
			}
		}
	}

	/**
	 * 完成此上下文的bean工厂的初始化，初始化所有剩余的单例bean。
	 */
	protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
		// 初始化service转换类，该类的作用就是用来进行类型转换的，比如我们properties里面写的都是字符串，但是我们注入的可能就是一个类，这个字符串和类型的转换就是这个bean来做的。
		if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
				beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
			beanFactory.setConversionService(
					beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
		}

		if (!beanFactory.hasEmbeddedValueResolver()) {
			beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
		}

		// 实例化类加载编织器bean
		String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
		for (String weaverAwareName : weaverAwareNames) {
			getBean(weaverAwareName);
		}
		beanFactory.setTempClassLoader(null);

		// 缓存所有的beandefinition
		beanFactory.freezeConfiguration();

		// 实例化所有的非延迟加载的单例
        // DefaultListableBeanFactory中实现：
        //1、获取工厂中的beanDefinitionNames
        //2、遍历所有beanDefinitionNames,生成合并的Definition
        //3、判断bean是不是FactoryBean 类型，如果是调用getBean()方法，并将其命名为&+beanName
        //4、判断factoryBean是否需要提前初始化，从而获取一个单例的bean。根据属性IsEagerInit
        //5、步骤3，如果bean不是一个FactoryBean()
        //6、getBean()---> org.springframework.beans.factory.support.AbstractBeanFactory#doGetBean
        //7、doGetBean（）---》获取容器中的bean。
        //8、获取bean的真正名字，消除FactoryBean的'& 和别名
        //9、获取缓存中的bean(没有就去提前抛出队列拿，在没有利用对应bean的ObjectFactory创建)，			//   DefatultSingleonBeanRegistry#getSingleton
        //10、步骤9的分支，如果从缓存拿不到，解决bean循环依赖问题，如果是一个原型的bean被循环引用直接抛异常。
        //11、去父工厂里面获取，有直接返回，没有就继续；
        //12、初始化依赖的bean。如果存在循环依赖就抛出异常（不是单列的bean，单例的bean通过earyObject解决了这个问题）
        //13、注入依赖的bean
        //14、createBean------>doCreateBean(这下面就是bean生命周期的过程)，这样容器中就将一个singelbean创建好，并缓存在容器中了。
        //15、执行所有实现了SmartInitialzingSingle的bean的afterSingletonsInstantiated
		beanFactory.preInstantiateSingletons();
	}

	/**
	 * Finish the refresh of this context, invoking the LifecycleProcessor's
	 * onRefresh() method and publishing the
	 * {@link org.springframework.context.event.ContextRefreshedEvent}.
	 */
	protected void finishRefresh() {
		//清除资源缓存，---defaultResourceLoader
		clearResourceCaches();

		// Initialize lifecycle processor for this context.
		initLifecycleProcessor();

		// Propagate refresh to lifecycle processor first.
		getLifecycleProcessor().onRefresh();

		// Publish the final event.
		publishEvent(new ContextRefreshedEvent(this));

		// Participate in LiveBeansView MBean, if active.
		LiveBeansView.registerApplicationContext(this);
	}

	/**
	 * Cancel this context's refresh attempt, resetting the {@code active} flag
	 * after an exception got thrown.
	 * @param ex the exception that led to the cancellation
	 */
	protected void cancelRefresh(BeansException ex) {
		this.active.set(false);
	}

	/**
	 * Reset Spring's common reflection metadata caches, in particular the
	 * {@link ReflectionUtils}, {@link AnnotationUtils}, {@link ResolvableType}
	 * and {@link CachedIntrospectionResults} caches.
	 * @since 4.2
	 * @see ReflectionUtils#clearCache()
	 * @see AnnotationUtils#clearCache()
	 * @see ResolvableType#clearCache()
	 * @see CachedIntrospectionResults#clearClassLoader(ClassLoader)
	 */
	protected void resetCommonCaches() {
		ReflectionUtils.clearCache();
		AnnotationUtils.clearCache();
		ResolvableType.clearCache();
		CachedIntrospectionResults.clearClassLoader(getClassLoader());
	}


	/**
	 * Register a shutdown hook {@linkplain Thread#getName() named}
	 * {@code SpringContextShutdownHook} with the JVM runtime, closing this
	 * context on JVM shutdown unless it has already been closed at that time.
	 * <p>Delegates to {@code doClose()} for the actual closing procedure.
	 * @see Runtime#addShutdownHook
	 * @see ConfigurableApplicationContext#SHUTDOWN_HOOK_THREAD_NAME
	 * @see #close()
	 * @see #doClose()
	 */
	@Override
	public void registerShutdownHook() {
		if (this.shutdownHook == null) {
			// No shutdown hook registered yet.
			this.shutdownHook = new Thread(SHUTDOWN_HOOK_THREAD_NAME) {
				@Override
				public void run() {
					synchronized (startupShutdownMonitor) {
						doClose();
					}
				}
			};
			Runtime.getRuntime().addShutdownHook(this.shutdownHook);
		}
	}

	/**
	 * Callback for destruction of this instance, originally attached
	 * to a {@code DisposableBean} implementation (not anymore in 5.0).
	 * <p>The {@link #close()} method is the native way to shut down
	 * an ApplicationContext, which this method simply delegates to.
	 * @deprecated as of Spring Framework 5.0, in favor of {@link #close()}
	 */
	@Deprecated
	public void destroy() {
		close();
	}

	/**
	 * Close this application context, destroying all beans in its bean factory.
	 * <p>Delegates to {@code doClose()} for the actual closing procedure.
	 * Also removes a JVM shutdown hook, if registered, as it's not needed anymore.
	 * @see #doClose()
	 * @see #registerShutdownHook()
	 */
	@Override
	public void close() {
		synchronized (this.startupShutdownMonitor) {
			doClose();
			// If we registered a JVM shutdown hook, we don't need it anymore now:
			// We've already explicitly closed the context.
			if (this.shutdownHook != null) {
				try {
					Runtime.getRuntime().removeShutdownHook(this.shutdownHook);
				}
				catch (IllegalStateException ex) {
					// ignore - VM is already shutting down
				}
			}
		}
	}

	/**
	 * Actually performs context closing: publishes a ContextClosedEvent and
	 * destroys the singletons in the bean factory of this application context.
	 * <p>Called by both {@code close()} and a JVM shutdown hook, if any.
	 * @see org.springframework.context.event.ContextClosedEvent
	 * @see #destroyBeans()
	 * @see #close()
	 * @see #registerShutdownHook()
	 */
	protected void doClose() {
		// Check whether an actual close attempt is necessary...
		if (this.active.get() && this.closed.compareAndSet(false, true)) {
			if (logger.isDebugEnabled()) {
				logger.debug("Closing " + this);
			}

			LiveBeansView.unregisterApplicationContext(this);

			try {
				// Publish shutdown event.
				publishEvent(new ContextClosedEvent(this));
			}
			catch (Throwable ex) {
				logger.warn("Exception thrown from ApplicationListener handling ContextClosedEvent", ex);
			}

			// Stop all Lifecycle beans, to avoid delays during individual destruction.
			if (this.lifecycleProcessor != null) {
				try {
					this.lifecycleProcessor.onClose();
				}
				catch (Throwable ex) {
					logger.warn("Exception thrown from LifecycleProcessor on context close", ex);
				}
			}

			// Destroy all cached singletons in the context's BeanFactory.
			destroyBeans();

			// Close the state of this context itself.
			closeBeanFactory();

			// Let subclasses do some final clean-up if they wish...
			onClose();

			// Reset local application listeners to pre-refresh state.
			if (this.earlyApplicationListeners != null) {
				this.applicationListeners.clear();
				this.applicationListeners.addAll(this.earlyApplicationListeners);
			}

			// Switch to inactive.
			this.active.set(false);
		}
	}

	/**
	 * Template method for destroying all beans that this context manages.
	 * The default implementation destroy all cached singletons in this context,
	 * invoking {@code DisposableBean.destroy()} and/or the specified
	 * "destroy-method".
	 * <p>Can be overridden to add context-specific bean destruction steps
	 * right before or right after standard singleton destruction,
	 * while the context's BeanFactory is still active.
	 * @see #getBeanFactory()
	 * @see org.springframework.beans.factory.config.ConfigurableBeanFactory#destroySingletons()
	 */
	protected void destroyBeans() {
		getBeanFactory().destroySingletons();
	}

	/**
	 * Template method which can be overridden to add context-specific shutdown work.
	 * The default implementation is empty.
	 * <p>Called at the end of {@link #doClose}'s shutdown procedure, after
	 * this context's BeanFactory has been closed. If custom shutdown logic
	 * needs to execute while the BeanFactory is still active, override
	 * the {@link #destroyBeans()} method instead.
	 */
	protected void onClose() {
		// For subclasses: do nothing by default.
	}

	@Override
	public boolean isActive() {
		return this.active.get();
	}

	/**
	 * Assert that this context's BeanFactory is currently active,
	 * throwing an {@link IllegalStateException} if it isn't.
	 * <p>Invoked by all {@link BeanFactory} delegation methods that depend
	 * on an active context, i.e. in particular all bean accessor methods.
	 * <p>The default implementation checks the {@link #isActive() 'active'} status
	 * of this context overall. May be overridden for more specific checks, or for a
	 * no-op if {@link #getBeanFactory()} itself throws an exception in such a case.
	 */
	protected void assertBeanFactoryActive() {
		if (!this.active.get()) {
			if (this.closed.get()) {
				throw new IllegalStateException(getDisplayName() + " has been closed already");
			}
			else {
				throw new IllegalStateException(getDisplayName() + " has not been refreshed yet");
			}
		}
	}


	//---------------------------------------------------------------------
	// Implementation of BeanFactory interface
	//---------------------------------------------------------------------

	@Override
	public Object getBean(String name) throws BeansException {
		assertBeanFactoryActive();
		return getBeanFactory().getBean(name);
	}

	@Override
	public <T> T getBean(String name, Class<T> requiredType) throws BeansException {
		assertBeanFactoryActive();
		return getBeanFactory().getBean(name, requiredType);
	}

	@Override
	public Object getBean(String name, Object... args) throws BeansException {
		assertBeanFactoryActive();
		return getBeanFactory().getBean(name, args);
	}

	@Override
	public <T> T getBean(Class<T> requiredType) throws BeansException {
		assertBeanFactoryActive();
		return getBeanFactory().getBean(requiredType);
	}

	@Override
	public <T> T getBean(Class<T> requiredType, Object... args) throws BeansException {
		assertBeanFactoryActive();
		return getBeanFactory().getBean(requiredType, args);
	}

	@Override
	public <T> ObjectProvider<T> getBeanProvider(Class<T> requiredType) {
		assertBeanFactoryActive();
		return getBeanFactory().getBeanProvider(requiredType);
	}

	@Override
	public <T> ObjectProvider<T> getBeanProvider(ResolvableType requiredType) {
		assertBeanFactoryActive();
		return getBeanFactory().getBeanProvider(requiredType);
	}

	@Override
	public boolean containsBean(String name) {
		return getBeanFactory().containsBean(name);
	}

	@Override
	public boolean isSingleton(String name) throws NoSuchBeanDefinitionException {
		assertBeanFactoryActive();
		return getBeanFactory().isSingleton(name);
	}

	@Override
	public boolean isPrototype(String name) throws NoSuchBeanDefinitionException {
		assertBeanFactoryActive();
		return getBeanFactory().isPrototype(name);
	}

	@Override
	public boolean isTypeMatch(String name, ResolvableType typeToMatch) throws NoSuchBeanDefinitionException {
		assertBeanFactoryActive();
		return getBeanFactory().isTypeMatch(name, typeToMatch);
	}

	@Override
	public boolean isTypeMatch(String name, Class<?> typeToMatch) throws NoSuchBeanDefinitionException {
		assertBeanFactoryActive();
		return getBeanFactory().isTypeMatch(name, typeToMatch);
	}

	@Override
	@Nullable
	public Class<?> getType(String name) throws NoSuchBeanDefinitionException {
		assertBeanFactoryActive();
		return getBeanFactory().getType(name);
	}

	@Override
	@Nullable
	public Class<?> getType(String name, boolean allowFactoryBeanInit) throws NoSuchBeanDefinitionException {
		assertBeanFactoryActive();
		return getBeanFactory().getType(name, allowFactoryBeanInit);
	}

	@Override
	public String[] getAliases(String name) {
		return getBeanFactory().getAliases(name);
	}


	//---------------------------------------------------------------------
	// Implementation of ListableBeanFactory interface
	//---------------------------------------------------------------------

	@Override
	public boolean containsBeanDefinition(String beanName) {
		return getBeanFactory().containsBeanDefinition(beanName);
	}

	@Override
	public int getBeanDefinitionCount() {
		return getBeanFactory().getBeanDefinitionCount();
	}

	@Override
	public String[] getBeanDefinitionNames() {
		return getBeanFactory().getBeanDefinitionNames();
	}

	@Override
	public String[] getBeanNamesForType(ResolvableType type) {
		assertBeanFactoryActive();
		return getBeanFactory().getBeanNamesForType(type);
	}

	@Override
	public String[] getBeanNamesForType(ResolvableType type, boolean includeNonSingletons, boolean allowEagerInit) {
		assertBeanFactoryActive();
		return getBeanFactory().getBeanNamesForType(type, includeNonSingletons, allowEagerInit);
	}

	@Override
	public String[] getBeanNamesForType(@Nullable Class<?> type) {
		assertBeanFactoryActive();
		return getBeanFactory().getBeanNamesForType(type);
	}

	@Override
	public String[] getBeanNamesForType(@Nullable Class<?> type, boolean includeNonSingletons, boolean allowEagerInit) {
		assertBeanFactoryActive();
		return getBeanFactory().getBeanNamesForType(type, includeNonSingletons, allowEagerInit);
	}

	@Override
	public <T> Map<String, T> getBeansOfType(@Nullable Class<T> type) throws BeansException {
		assertBeanFactoryActive();
		return getBeanFactory().getBeansOfType(type);
	}

	@Override
	public <T> Map<String, T> getBeansOfType(@Nullable Class<T> type, boolean includeNonSingletons, boolean allowEagerInit)
			throws BeansException {

		assertBeanFactoryActive();
		return getBeanFactory().getBeansOfType(type, includeNonSingletons, allowEagerInit);
	}

	@Override
	public String[] getBeanNamesForAnnotation(Class<? extends Annotation> annotationType) {
		assertBeanFactoryActive();
		return getBeanFactory().getBeanNamesForAnnotation(annotationType);
	}

	@Override
	public Map<String, Object> getBeansWithAnnotation(Class<? extends Annotation> annotationType)
			throws BeansException {

		assertBeanFactoryActive();
		return getBeanFactory().getBeansWithAnnotation(annotationType);
	}

	@Override
	@Nullable
	public <A extends Annotation> A findAnnotationOnBean(String beanName, Class<A> annotationType)
			throws NoSuchBeanDefinitionException {

		assertBeanFactoryActive();
		return getBeanFactory().findAnnotationOnBean(beanName, annotationType);
	}


	//---------------------------------------------------------------------
	// Implementation of HierarchicalBeanFactory interface
	//---------------------------------------------------------------------

	@Override
	@Nullable
	public BeanFactory getParentBeanFactory() {
		return getParent();
	}

	@Override
	public boolean containsLocalBean(String name) {
		return getBeanFactory().containsLocalBean(name);
	}

	/**
	 * Return the internal bean factory of the parent context if it implements
	 * ConfigurableApplicationContext; else, return the parent context itself.
	 * @see org.springframework.context.ConfigurableApplicationContext#getBeanFactory
	 */
	@Nullable
	protected BeanFactory getInternalParentBeanFactory() {
		return (getParent() instanceof ConfigurableApplicationContext ?
				((ConfigurableApplicationContext) getParent()).getBeanFactory() : getParent());
	}


	//---------------------------------------------------------------------
	// Implementation of MessageSource interface
	//---------------------------------------------------------------------

	@Override
	public String getMessage(String code, @Nullable Object[] args, @Nullable String defaultMessage, Locale locale) {
		return getMessageSource().getMessage(code, args, defaultMessage, locale);
	}

	@Override
	public String getMessage(String code, @Nullable Object[] args, Locale locale) throws NoSuchMessageException {
		return getMessageSource().getMessage(code, args, locale);
	}

	@Override
	public String getMessage(MessageSourceResolvable resolvable, Locale locale) throws NoSuchMessageException {
		return getMessageSource().getMessage(resolvable, locale);
	}

	/**
	 * Return the internal MessageSource used by the context.
	 * @return the internal MessageSource (never {@code null})
	 * @throws IllegalStateException if the context has not been initialized yet
	 */
	private MessageSource getMessageSource() throws IllegalStateException {
		if (this.messageSource == null) {
			throw new IllegalStateException("MessageSource not initialized - " +
					"call 'refresh' before accessing messages via the context: " + this);
		}
		return this.messageSource;
	}

	/**
	 * Return the internal message source of the parent context if it is an
	 * AbstractApplicationContext too; else, return the parent context itself.
	 */
	@Nullable
	protected MessageSource getInternalParentMessageSource() {
		return (getParent() instanceof AbstractApplicationContext ?
				((AbstractApplicationContext) getParent()).messageSource : getParent());
	}


	//---------------------------------------------------------------------
	// Implementation of ResourcePatternResolver interface
	//---------------------------------------------------------------------

	@Override
	public Resource[] getResources(String locationPattern) throws IOException {
		return this.resourcePatternResolver.getResources(locationPattern);
	}


	//---------------------------------------------------------------------
	// Implementation of Lifecycle interface
	//---------------------------------------------------------------------

	@Override
	public void start() {
		getLifecycleProcessor().start();
		publishEvent(new ContextStartedEvent(this));
	}

	@Override
	public void stop() {
		getLifecycleProcessor().stop();
		publishEvent(new ContextStoppedEvent(this));
	}

	@Override
	public boolean isRunning() {
		return (this.lifecycleProcessor != null && this.lifecycleProcessor.isRunning());
	}


	//---------------------------------------------------------------------
	// Abstract methods that must be implemented by subclasses
	//---------------------------------------------------------------------

	/**
	 * Subclasses must implement this method to perform the actual configuration load.
	 * The method is invoked by {@link #refresh()} before any other initialization work.
	 * <p>A subclass will either create a new bean factory and hold a reference to it,
	 * or return a single BeanFactory instance that it holds. In the latter case, it will
	 * usually throw an IllegalStateException if refreshing the context more than once.
	 * @throws BeansException if initialization of the bean factory failed
	 * @throws IllegalStateException if already initialized and multiple refresh
	 * attempts are not supported
	 */
	protected abstract void refreshBeanFactory() throws BeansException, IllegalStateException;

	/**
	 * Subclasses must implement this method to release their internal bean factory.
	 * This method gets invoked by {@link #close()} after all other shutdown work.
	 * <p>Should never throw an exception but rather log shutdown failures.
	 */
	protected abstract void closeBeanFactory();

	/**
	 * Subclasses must return their internal bean factory here. They should implement the
	 * lookup efficiently, so that it can be called repeatedly without a performance penalty.
	 * <p>Note: Subclasses should check whether the context is still active before
	 * returning the internal bean factory. The internal factory should generally be
	 * considered unavailable once the context has been closed.
	 * @return this application context's internal bean factory (never {@code null})
	 * @throws IllegalStateException if the context does not hold an internal bean factory yet
	 * (usually if {@link #refresh()} has never been called) or if the context has been
	 * closed already
	 * @see #refreshBeanFactory()
	 * @see #closeBeanFactory()
	 */
	@Override
	public abstract ConfigurableListableBeanFactory getBeanFactory() throws IllegalStateException;


	/**
	 * Return information about this context.
	 */
	@Override
	public String toString() {
		StringBuilder sb = new StringBuilder(getDisplayName());
		sb.append(", started on ").append(new Date(getStartupDate()));
		ApplicationContext parent = getParent();
		if (parent != null) {
			sb.append(", parent: ").append(parent.getDisplayName());
		}
		return sb.toString();
	}
