Arangodb——操作案例一

原创已于 2023-03-12 20:16:38 修改 · 499 阅读

1 ·

CC 4.0 BY-SA版权

文章标签：

#ArangoDB

于 2023-03-12 19:50:09 首次发布

ArangoDB 专栏收录该内容

6 篇文章

订阅专栏

文章讨论了如何在ArangoDB中使用边缘文档来表示家庭关系，如ChildOf，以及执行图查询来查找家庭成员。此外，还展示了如何处理航班数据，包括从特定机场出发的航班和到达特定机场的航班查询。

家庭关系

使用前面 Characters 和 Traits 文档，创建所需的边文档以将这些关系存储在数据库
- 创建 ChildOf 边缘文档
  - ChildOf.json
    - [{"_key":"279410","_id":"ChildOf/279410","_from":"Characters/266693","_to":"Characters/265323","_rev":"_fk1jx6y---"},{"_key":"279411","_id":"ChildOf/279411","_from":"Characters/266691","_to":"Characters/265323","_rev":"_fk1jx62---"},{"_key":"279412","_id":"ChildOf/279412","_from":"Characters/266692","_to":"Characters/265323","_rev":"_fk1jx62--A"},{"_key":"279413","_id":"ChildOf/279413","_from":"Characters/266695","_to":"Characters/265323","_rev":"_fk1jx62--C"},{"_key":"279414","_id":"ChildOf/279414","_from":"Characters/266693","_to":"Characters/266684","_rev":"_fk1jx62--E"},{"_key":"279415","_id":"ChildOf/279415","_from":"Characters/266691","_to":"Characters/266684","_rev":"_fk1jx62--G"},{"_key":"279416","_id":"ChildOf/279416","_from":"Characters/266692","_to":"Characters/266684","_rev":"_fk1jx62--I"},{"_key":"279417","_id":"ChildOf/279417","_from":"Characters/266695","_to":"Characters/266684","_rev":"_fk1jx62--K"},{"_key":"279418","_id":"ChildOf/279418","_from":"Characters/266690","_to":"Characters/265323","_rev":"_fk1jx66---"},{"_key":"279419","_id":"ChildOf/279419","_from":"Characters/266683","_to":"Characters/266700","_rev":"_fk1jx66--A"},{"_key":"279420","_id":"ChildOf/279420","_from":"Characters/266685","_to":"Characters/266700","_rev":"_fk1jx66--C"},{"_key":"279421","_id":"ChildOf/279421","_from":"Characters/266698","_to":"Characters/266700","_rev":"_fk1jx66--E"},{"_key":"279422","_id":"ChildOf/279422","_from":"Characters/266696","_to":"Characters/266685","_rev":"_fk1jx66--G"},{"_key":"279423","_id":"ChildOf/279423","_from":"Characters/266696","_to":"Characters/266683","_rev":"_fk1jx66--I"}]
- 循环遍历边缘文档
AQL 检索
- OUTBOUND
  - 从一个顶点开始，沿着边到其他顶点
    - FOR c IN Characters FILTER c.name == "Bran" FOR v IN 1..1 OutBOUND c ChildOf RETURN v.name
    - FOR v IN 1..1 属于顶点的深度数
- INBOUND
  - 沿反向边缘方向

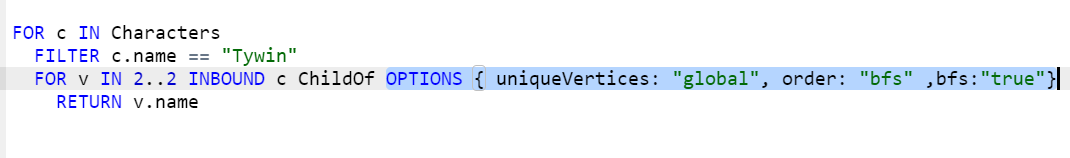

- 通过父母名称查找子女，去重复数据
  - OPTIONS { uniqueVertices: "global", order: "bfs" ,bfs:"true"}
  - uniqueVertices: "global"设置会在早期抑制重复顶点。
    - 与 DISTINCT 可替换

美国机场和航班地图

创建文档
- Airports
  - https://arangodb-dataset-library.s3.amazonaws.com/flights_dataset/vertices/airports.json
- Flights
  - https://arangodb-dataset-library.s3.amazonaws.com/flights_dataset/edges/flights.json
图查询
- 返回可以从洛杉矶国际机场 (LAX) 沿航班边缘直接到达（第一步）的所有机场的名称
  - WITH airports FOR airport IN 1..1 OUTBOUND 'airports/LAX' flights RETURN DISTINCT airport.name
- 返回任意 10 个航班文件以及从LAX起飞的航班和目的地机场文件
  - WITH airports FOR airport, flight IN OUTBOUND 'airports/LAX' flights LIMIT 10 RETURN {airport,flight}
- 返回 10 个航班号，飞机降落在 Bismarck Municipal Airport (BIS)。
  - WITH airports FOR airport, flight IN INBOUND 'airports/BIS' flights LIMIT 10 RETURN flight.FlightNum
- 查找1月5日和7日从BIS起飞或降落的所有连接，并返回目的地城市和世界标准时间（UTC）的到达时间。
  - WITH airports FOR airport, flight IN ANY 'airports/BIS' flights FILTER flight.Month == 1 AND flight.Day >= 5 AND flight.Day <= 7 RETURN { city: airport.city, time: flight.ArrTimeUTC }
