cobbler

1. cobbler简介

Cobbler是一个Linux服务器安装的服务，可以通过网络启动(PXE)的方式来快速安装、重装物理服务器和虚拟机，同时还可以管理DHCP，DNS等。

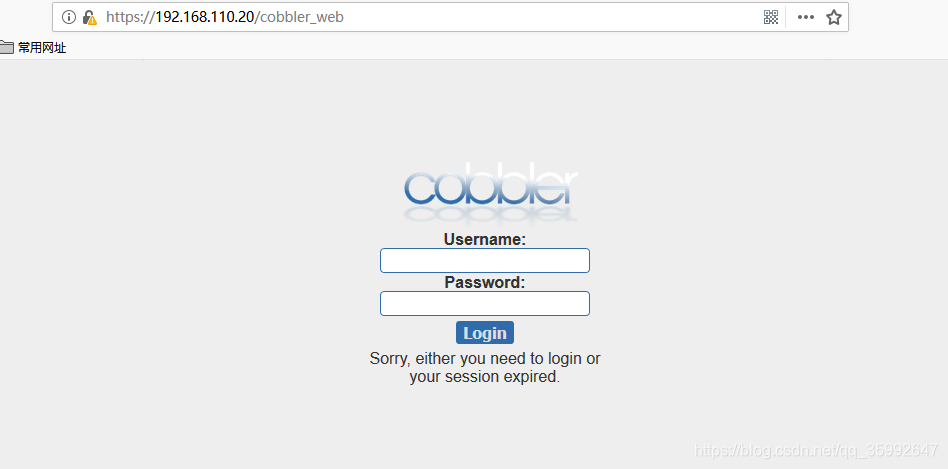

Cobbler可以使用命令行方式管理，也提供了基于Web的界面管理工具(cobbler-web)，还提供了API接口，可以方便二次开发使用。

Cobbler是较早前的kickstart的升级版，优点是比较容易配置，还自带web界面比较易于管理。

Cobbler内置了一个轻量级配置管理系统，但它也支持和其它配置管理系统集成，如Puppet，暂时不支持SaltStack。

cobbler官网

cobbler集成的服务

  • PXE服务支持
  • DHCP服务管理
  • DNS服务管理(可选bind,dnsmasq)
  • 电源管理
  • Kickstart服务支持
  • YUM仓库管理
  • TFTP(PXE启动时需要)
  • Apache(提供kickstart的安装源，并提供定制化的kickstart配置)

cobbler配置文件详解
cobbler配置文件目录在/etc/cobbler

配置文件作用
/etc/cobbler/settingscobbler 主配置文件
/etc/cobbler/iso/iso模板配置文件
/etc/cobbler/pxepxe模板配置文件
/etc/cobbler/power电源配置文件
/etc/cobbler/user.confweb服务授权配置文件
/etc/cobbler/users.digestweb访问的用户名密码配置文件
/etc/cobbler/dhcp.templatedhcp服务器的的配置模板
/etc/cobbler/dnsmasq.templatedns服务器的配置模板
/etc/cobbler/tftpd.templatetftp服务的配置模板
/etc/cobbler/modules.conf模块的配置文件

cobbler数据目录

目录作用
/var/lib/cobbler/config/用于存放distros，system，profiles等信息配置文件
/var/lib/cobbler/triggers/用于存放用户定义的cobbler命令
/var/lib/cobbler/kickstart/默认存放kickstart文件
/var/lib/cobbler/loaders/存放各种引导程序以及镜像目录
/var/www/cobbler/ks_mirror/导入的发行版系统的所有数据
/var/www/cobbler/images/导入发行版的kernel和initrd镜像用于远程网络启动
/var/www/cobbler/repo_mirror/yum仓库存储目录

cobbler日志文件

日志文件路径说明
/var/log/cobbler/installing客户端安装日志
/var/log/cobbler/cobbler.logcobbler日志

cobbler命令详解

cobbler check       //核对当前设置是否有问题
cobbler list        //列出所有的cobbler元素
cobbler report      //列出元素的详细信息
cobbler sync        //同步配置到数据目录,更改配置最好都要执行下
cobbler reposync    //同步yum仓库
cobbler distro      //查看导入的发行版系统信息
cobbler system      //查看添加的系统信息
cobbler profile     //查看配置信息

2. cobbler服务端部署

//配置yum源
[root@liuwei ~]# curl -o /etc/yum.repos.d/CentOS7-Base-163.repo http://mirrors.163.com/.help/CentOS7-Base-163.repo
[root@liuweit ~]# sed -i 's/\$releasever/7/g' /etc/yum.repos.d/CentOS7-Base-163.repo
[root@liuwei~]# sed -i 's/^enabled=.*/enabled=1/g' /etc/yum.repos.d/CentOS7-Base-163.repo
[root@liuwei ~]# yum -y install epel-release

//安装cobbler以及相关的软件
[root@liuwei ~]# yum -y install httpd dhcp tftp python-ctypes cobbler  xinetd cobbler-web pykickstart

//关闭防火墙和selinux
[root@liuwei ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
   Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
   Active: inactive (dead)
     Docs: man:firewalld(1)
[root@liuwei ~]# getenforce
Disabled


//启动服务并设置开机自启
[root@liuwei ~]# systemctl start httpd
[root@liuwei ~]# systemctl start cobblerd
[root@liuwei ~]# systemctl enable httpd
Created symlink from /etc/systemd/system/multi-user.target.wants/httpd.service to /usr/lib/systemd/system/httpd.service.
[root@liuwei ~]# systemctl enable cobblerd
Created symlink from /etc/systemd/system/multi-user.target.wants/cobblerd.service to /usr/lib/systemd/system/cobblerd.service.

//修改server的ip地址为本机ip
[root@liuwei ~]# vim /etc/cobbler/settings
server: 192.168.110.20

//设置tftp的ip地址为本机ip
[root@liuwei ~]# vim /etc/cobbler/settings
next_server: 192.168.110.20

//开启tftp
[root@liuwei ~]# sed -i '/disable/s/yes/no/g' /etc/xinetd.d/tftp

//下载缺失文件
[root@liuwei ~]# cobbler get-loaders
task started: 2019-03-05_163431_get_loaders
task started (id=Download Bootloader Content, time=Tue Mar  5 16:34:31 2019)
downloading https://cobbler.github.io/loaders/README to /var/lib/cobbler/loaders/README
downloading https://cobbler.github.io/loaders/COPYING.elilo to /var/lib/cobbler/loaders/COPYING.elilo
downloading https://cobbler.github.io/loaders/COPYING.yaboot to /var/lib/cobbler/loaders/COPYING.yaboot
downloading https://cobbler.github.io/loaders/COPYING.syslinux to /var/lib/cobbler/loaders/COPYING.syslinux
downloading https://cobbler.github.io/loaders/elilo-3.8-ia64.efi to /var/lib/cobbler/loaders/elilo-ia64.efi
downloading https://cobbler.github.io/loaders/yaboot-1.3.17 to /var/lib/cobbler/loaders/yaboot
downloading https://cobbler.github.io/loaders/pxelinux.0-3.86 to /var/lib/cobbler/loaders/pxelinux.0
downloading https://cobbler.github.io/loaders/menu.c32-3.86 to /var/lib/cobbler/loaders/menu.c32
downloading https://cobbler.github.io/loaders/grub-0.97-x86.efi to /var/lib/cobbler/loaders/grub-x86.efi
downloading https://cobbler.github.io/loaders/grub-0.97-x86_64.efi to /var/lib/cobbler/loaders/grub-x86_64.efi
*** TASK COMPLETE ***

//启动rsync并设置开机自启
[root@liuwei ~]# systemctl start rsyncd
[root@liuwei ~]# systemctl enable rsyncd
Created symlink from /etc/systemd/system/multi-user.target.wants/rsyncd.service to /usr/lib/systemd/system/rsyncd.service.

//生成加密的密码
[root@liuwei ~]# openssl passwd -1 -salt "$RANDOM" 'lw1234'
$1$112$U7OQrkxMcFHHwPt6Nn/1x1

//将新生成的加密密码加入到配置文件
[root@liuwei ~]# cat /etc/cobbler/settings |grep default_password_crypted
default_password_crypted: "$1$112$U7OQrkxMcFHHwPt6Nn/1x1"

//重启cobbler
[root@liuwei ~]# systemctl restart cobblerd
[root@liuwei ~]# ss -anlt
State      Recv-Q Send-Q Local Address:Port               Peer Address:Port
LISTEN     0      128               *:111                           *:*
LISTEN     0      128               *:39282                         *:*
LISTEN     0      128               *:22                            *:*
LISTEN     0      100       127.0.0.1:25                            *:*
LISTEN     0      5         127.0.0.1:25151                         *:*
LISTEN     0      5                 *:873                           *:*
LISTEN     0      128              :::111                          :::*
LISTEN     0      128              :::80                           :::*
LISTEN     0      128              :::52051                        :::*
LISTEN     0      32               :::21                           :::*
LISTEN     0      128              :::22                           :::*
LISTEN     0      100             ::1:25                           :::*
LISTEN     0      128              :::443                          :::*
LISTEN     0      5                :::873                          :::*
LISTEN     0      80               :::3306                         :::*

//通过cobbler check 核对当前设置是否有问题
[root@liuwei ~]# cobbler check
The following are potential configuration items that you may want to fix:

1 : debmirror package is not installed, it will be required to manage debian deployments and repositories
2 : fencing tools were not found, and are required to use the (optional) power management features. install cman or fence-agents to use them

Restart cobblerd and then run 'cobbler sync' to apply changes.
//以上两个是关于debian系统的错误，请忽略

//配置cobbler dhcp
//修改cobbler配置文件，让cobbler控制dhcp
[root@liuwei ~]# sed -i '/^manage_dhcp/s/0/1/g' /etc/cobbler/settings
[root@liuwei ~]# cat /etc/cobbler/settings |grep dhcp
manage_dhcp: 1

//配置dhcp
[root@liuwei ~]# vim /etc/cobbler/dhcp.template
subnet 192.168.110.0 netmask 255.255.255.0 {
     option routers             192.168.110.20;
     option domain-name-servers 192.168.110.2;
     option subnet-mask         255.255.255.0;
     range dynamic-bootp        192.168.110.100 192.168.110.254;
     default-lease-time         21600;
     max-lease-time             43200;
     next-server                $next_server;

//重启服务并同步配置，改完dhcp必须要sync同步配置
[root@liuwei ~]# systemctl restart cobblerd
[root@liuwei ~]# cobbler sync

task started: 2019-03-05_164522_sync
task started (id=Sync, time=Tue Mar  5 16:45:22 2019)
running pre-sync triggers
cleaning trees
removing: /var/lib/tftpboot/grub/images
copying bootloaders
trying hardlink /var/lib/cobbler/loaders/pxelinux.0 -> /var/lib/tftpboot/pxelinux.0
trying hardlink /var/lib/cobbler/loaders/menu.c32 -> /var/lib/tftpboot/menu.c32
trying hardlink /var/lib/cobbler/loaders/yaboot -> /var/lib/tftpboot/yaboot
trying hardlink /usr/share/syslinux/memdisk -> /var/lib/tftpboot/memdisk
trying hardlink /var/lib/cobbler/loaders/grub-x86.efi -> /var/lib/tftpboot/grub/grub-x86.efi
trying hardlink /var/lib/cobbler/loaders/grub-x86_64.efi -> /var/lib/tftpboot/grub/grub-x86_64.efi
copying distros to tftpboot
copying images
generating PXE configuration files
generating PXE menu structure
rendering DHCP files
generating /etc/dhcp/dhcpd.conf
rendering TFTPD files
generating /etc/xinetd.d/tftp
cleaning link caches
running post-sync triggers
running python triggers from /var/lib/cobbler/triggers/sync/post/*
running python trigger cobbler.modules.sync_post_restart_services
running: dhcpd -t -q
received on stdout:
received on stderr:
running: service dhcpd restart
received on stdout:
received on stderr: Redirecting to /bin/systemctl restart dhcpd.service

running shell triggers from /var/lib/cobbler/triggers/sync/post/*
running python triggers from /var/lib/cobbler/triggers/change/*
running python trigger cobbler.modules.manage_genders
running python trigger cobbler.modules.scm_track
running shell triggers from /var/lib/cobbler/triggers/change/*
*** TASK COMPLETE ***

//检查dhcp是否正常
[root@liuwei ~]# netstat -anulp|grep dhcp
udp        0      0 0.0.0.0:67              0.0.0.0:*                           3209/dhcpd

//导入redhat7镜像
[root@liuwei ~]# mount /dev/cdrom /mnt
mount: /dev/sr0 写保护，将以只读方式挂载
[root@liuwei ~]# cobbler import --path=/mnt --name=rhel-7 --arch=x86_64
task started: 2019-03-05_164836_import
task started (id=Media import, time=Tue Mar  5 16:48:36 2019)
Found a candidate signature: breed=redhat, version=rhel6
Found a candidate signature: breed=redhat, version=rhel7
Found a matching signature: breed=redhat, version=rhel7
Adding distros from path /var/www/cobbler/ks_mirror/rhel-7-x86_64:
creating new distro: rhel-7-x86_64
trying symlink: /var/www/cobbler/ks_mirror/rhel-7-x86_64 -> /var/www/cobbler/links/rhel-7-x86_64
creating new profile: rhel-7-x86_64
associating repos
checking for rsync repo(s)
checking for rhn repo(s)
checking for yum repo(s)
starting descent into /var/www/cobbler/ks_mirror/rhel-7-x86_64 for rhel-7-x86_64
processing repo at : /var/www/cobbler/ks_mirror/rhel-7-x86_64
need to process repo/comps: /var/www/cobbler/ks_mirror/rhel-7-x86_64
looking for /var/www/cobbler/ks_mirror/rhel-7-x86_64/repodata/*comps*.xml
Keeping repodata as-is :/var/www/cobbler/ks_mirror/rhel-7-x86_64/repodata
processing repo at : /var/www/cobbler/ks_mirror/rhel-7-x86_64/addons/HighAvailability
need to process repo/comps: /var/www/cobbler/ks_mirror/rhel-7-x86_64/addons/HighAvailability
looking for /var/www/cobbler/ks_mirror/rhel-7-x86_64/addons/HighAvailability/repodata/*comps*.xml
Keeping repodata as-is :/var/www/cobbler/ks_mirror/rhel-7-x86_64/addons/HighAvailability/repodata
processing repo at : /var/www/cobbler/ks_mirror/rhel-7-x86_64/addons/ResilientStorage
need to process repo/comps: /var/www/cobbler/ks_mirror/rhel-7-x86_64/addons/ResilientStorage
looking for /var/www/cobbler/ks_mirror/rhel-7-x86_64/addons/ResilientStorage/repodata/*comps*.xml
Keeping repodata as-is :/var/www/cobbler/ks_mirror/rhel-7-x86_64/addons/ResilientStorage/repodata
*** TASK COMPLETE ***

//说明：
    --path      //镜像路径
    --name      //为安装源定义一个名字
    --arch      //指定安装源平台

//安装源的唯一标示就是根据name参数来定义，本例导入成功后，安装源的唯一标示就是：CentOS-7-x86_64，如果重复，系统会提示导入失败

//查看cobbler镜像列表
[root@liuwei ~]#
[root@liuwei ~]# cobbler list
distros:
   rhel-7-x86_64

profiles:
   rhel-7-x86_64

systems:

repos:

images:

mgmtclasses:

packages:

files:

//创建kickstarts自动安装脚本
[root@liuwei ~]# cat > /var/lib/cobbler/kickstarts/rhel-7-x86_64.ks << 'EOF'
> auth --enableshadow --passalgo=sha512
> bootloader --location=mbr
> clearpart --all --initlabel
> part /boot --asprimary --fstype="ext4" --size=500
> part swap --fstype="swap" --size=4096
> part / --fstype="ext4" --grow --size=15000
> text
> firewall --disabled
> firstboot --disable
> keyboard us
> lang en_US
> url --url=http://192.168.110.20/cobbler/ks_mirror/rhel-7-x86_64
> $yum_repo_stanza
> reboot
> rootpw --iscrypted $6$jr1yzmvwQK./YynC$QUy9jR4yajB.e35KXRV18P7S9SNDvGoey3LlFYJ2ADMGYxC3wMygbuor1oBLHL7B4AjRSd1sH1lvn0AD0F0Yv0
>
> selinux --disabled
> skipx
> timezone Asia/Shanghai --isUtc --nontp
> install
> zerombr
>
> %packages
> @^minimal
> @core
> kexec-tools
>
> %end
>
> %addon com_redhat_kdump --enable --reserve-mb='auto'
>
> %end
>
> %anaconda
> pwpolicy root --minlen=6 --minquality=1 --notstrict --nochanges --notempty
> pwpolicy user --minlen=6 --minquality=1 --notstrict --nochanges --emptyok
> pwpolicy luks --minlen=6 --minquality=1 --notstrict --nochanges --notempty
> %end
> EOF

//检查ks文件语法是否有误
[root@liuwei ~]# cobbler validateks
task started: 2019-03-05_170812_validateks
task started (id=Kickstart Validation, time=Tue Mar  5 17:08:12 2019)
----------------------------
osversion: rhel7
checking url: http://192.168.110.20/cblr/svc/op/ks/profile/rhel-7-x86_64
running: /usr/bin/ksvalidator -v "rhel7" "http://192.168.110.20/cblr/svc/op/ks/profile/rhel-7-x86_64"
received on stdout:
received on stderr:
*** all kickstarts seem to be ok ***
*** TASK COMPLETE ***

//查看当前cobbler有哪些配置文件
[root@liuwei ~]# cobbler profile list
   rhel-7-x86_64

//修改profile，将我们新建的ks文件设为默认的kickstarts安装文件
[root@liuwei ~]# cobbler profile edit --name rhel-7-x86_64 --kickstart=/var/lib/cobbler/kickstarts/rhel-7-x86_64.ks

//配置网卡名称为传统网卡名称eth0
[root@liuwei ~]# cobbler profile edit --name rhel-7-x86_64 --kopts='net.ifnames=0 biosdevname=0'

//检查当前系统cobbler配置文件信息
[root@liuwei ~]# cobbler profile report
Name                           : rhel-7-x86_64
TFTP Boot Files                : {}
Comment                        :
DHCP Tag                       : default
Distribution                   : rhel-7-x86_64     //仓库名字
Enable gPXE?                   : 0
Enable PXE Menu?               : 1
Fetchable Files                : {}
Kernel Options                 : {'biosdevname': '0', 'net.ifnames': '0'}   //网卡设为传统命名方式
Kernel Options (Post Install)  : {}
Kickstart                      : /var/lib/cobbler/kickstarts/rhel-7-x86_64.ks   //使用的kickstarts配置文件的路径，必须为我们新建的ks文件的路径
Kickstart Metadata             : {}
Management Classes             : []
Management Parameters          : <<inherit>>
Name Servers                   : []
Name Servers Search Path       : []
Owners                         : ['admin']
Parent Profile                 :
Internal proxy                 :
Red Hat Management Key         : <<inherit>>
Red Hat Management Server      : <<inherit>>
Repos                          : []
Server Override                : <<inherit>>
Template Files                 : {}
Virt Auto Boot                 : 1
Virt Bridge                    : xenbr0
Virt CPUs                      : 1
Virt Disk Driver Type          : raw
Virt File Size(GB)             : 5
Virt Path                      :
Virt RAM (MB)                  : 512
Virt Type                      : kvm

//同步cobbler
[root@liuwei ~]# cobbler sync
task started: 2019-03-05_171642_sync
task started (id=Sync, time=Tue Mar  5 17:16:42 2019)
running pre-sync triggers
cleaning trees
removing: /var/www/cobbler/images/rhel-7-x86_64
removing: /var/lib/tftpboot/pxelinux.cfg/default
removing: /var/lib/tftpboot/grub/images
removing: /var/lib/tftpboot/grub/grub-x86.efi
removing: /var/lib/tftpboot/grub/grub-x86_64.efi
removing: /var/lib/tftpboot/grub/efidefault
removing: /var/lib/tftpboot/images/rhel-7-x86_64
removing: /var/lib/tftpboot/s390x/profile_list
copying bootloaders
trying hardlink /var/lib/cobbler/loaders/grub-x86.efi -> /var/lib/tftpboot/grub/grub-x86.efi
trying hardlink /var/lib/cobbler/loaders/grub-x86_64.efi -> /var/lib/tftpboot/grub/grub-x86_64.efi
copying distros to tftpboot
copying files for distro: rhel-7-x86_64
trying hardlink /var/www/cobbler/ks_mirror/rhel-7-x86_64/images/pxeboot/vmlinuz -> /var/lib/tftpboot/images/rhel-7-x86_64/vmlinuz
trying hardlink /var/www/cobbler/ks_mirror/rhel-7-x86_64/images/pxeboot/initrd.img -> /var/lib/tftpboot/images/rhel-7-x86_64/initrd.img
copying images
generating PXE configuration files
generating PXE menu structure
copying files for distro: rhel-7-x86_64
trying hardlink /var/www/cobbler/ks_mirror/rhel-7-x86_64/images/pxeboot/vmlinuz -> /var/www/cobbler/images/rhel-7-x86_64/vmlinuz
trying hardlink /var/www/cobbler/ks_mirror/rhel-7-x86_64/images/pxeboot/initrd.img -> /var/www/cobbler/images/rhel-7-x86_64/initrd.img
Writing template files for rhel-7-x86_64
rendering DHCP files
generating /etc/dhcp/dhcpd.conf
rendering TFTPD files
generating /etc/xinetd.d/tftp
processing boot_files for distro: rhel-7-x86_64
cleaning link caches
running post-sync triggers
running python triggers from /var/lib/cobbler/triggers/sync/post/*
running python trigger cobbler.modules.sync_post_restart_services
running: dhcpd -t -q
received on stdout:
received on stderr:
running: service dhcpd restart
received on stdout:
received on stderr: Redirecting to /bin/systemctl restart dhcpd.service

running shell triggers from /var/lib/cobbler/triggers/sync/post/*
running python triggers from /var/lib/cobbler/triggers/change/*
running python trigger cobbler.modules.manage_genders
running python trigger cobbler.modules.scm_track
running shell triggers from /var/lib/cobbler/triggers/change/*
*** TASK COMPLETE ***

//为避免发生未知问题，先把服务端所有服务重启
[root@liuwei ~]# systemctl restart xinetd
[root@liuwei ~]# systemctl restart cobblerd
[root@liuwei ~]# systemctl restart httpd
[root@liuwei ~]# ss -anlt
State      Recv-Q Send-Q Local Address:Port               Peer Address:Port
LISTEN     0      128               *:111                           *:*
LISTEN     0      128               *:39282                         *:*
LISTEN     0      128               *:22                            *:*
LISTEN     0      100       127.0.0.1:25                            *:*
LISTEN     0      5         127.0.0.1:25151                         *:*
LISTEN     0      5                 *:873                           *:*
LISTEN     0      128              :::111                          :::*
LISTEN     0      128              :::80                           :::*
LISTEN     0      128              :::52051                        :::*
LISTEN     0      32               :::21                           :::*
LISTEN     0      128              :::22                           :::*
LISTEN     0      100             ::1:25                           :::*
LISTEN     0      128              :::443                          :::*
LISTEN     0      5                :::873                          :::*
LISTEN     0      80               :::3306                         :::*

3. 客户端安装

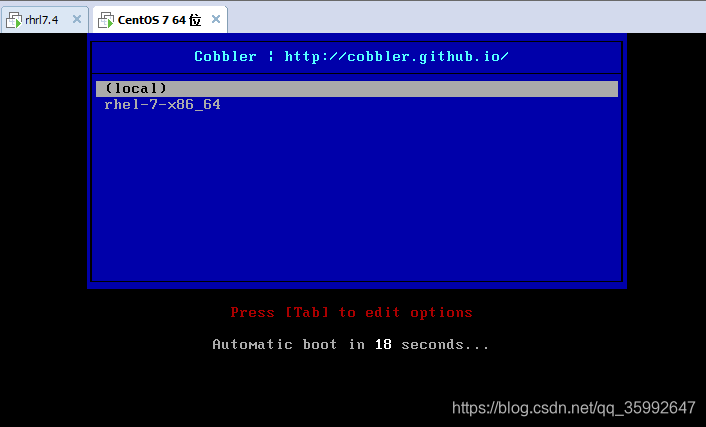

新建虚拟机从pxe启动：

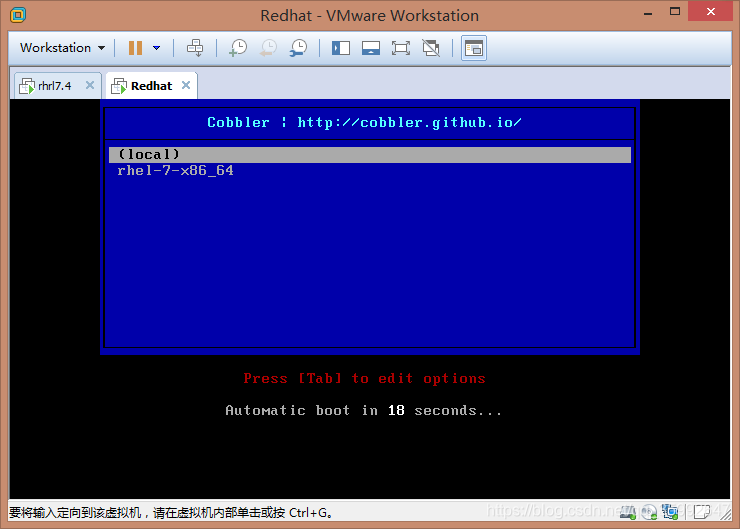

Redhat：
在这里插入图片描述在这里插入图片描述

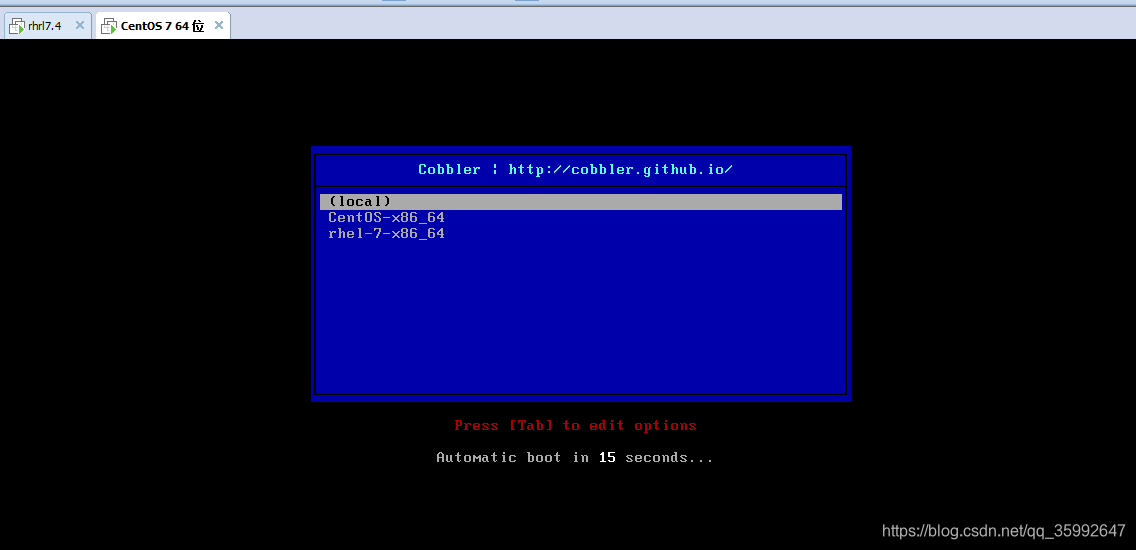

centos：
在这里插入图片描述

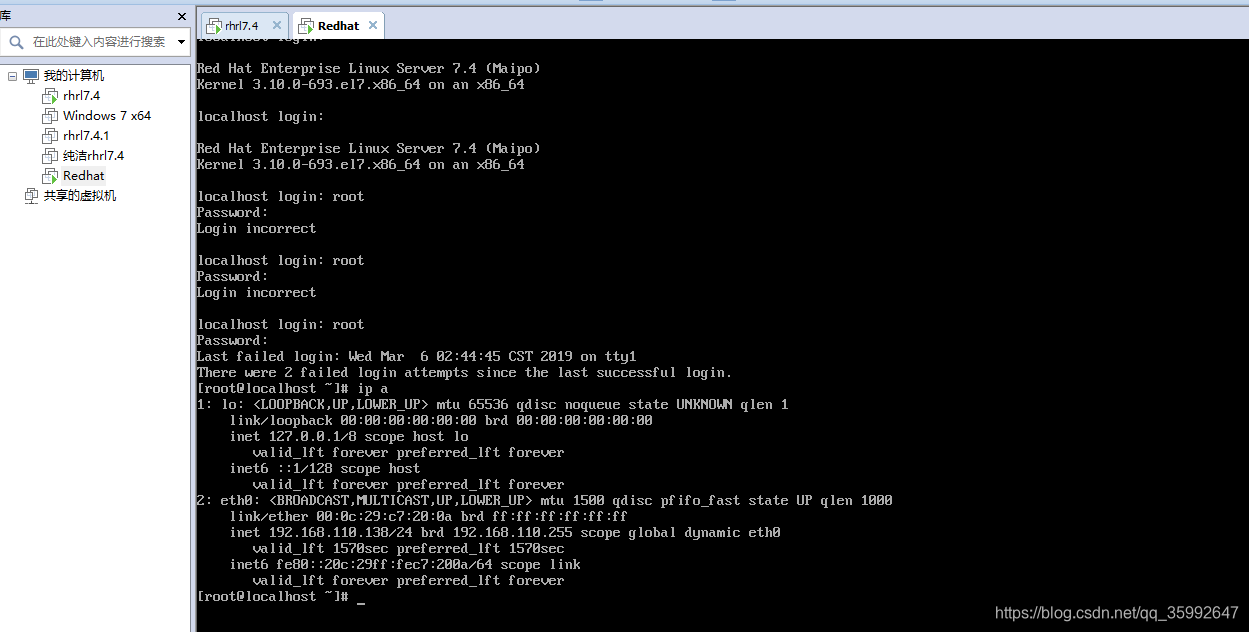

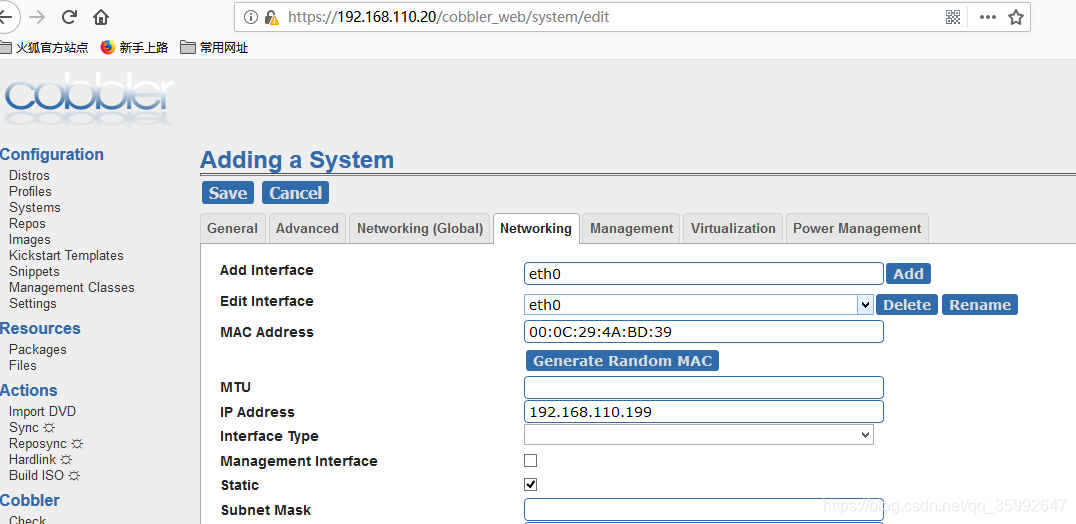

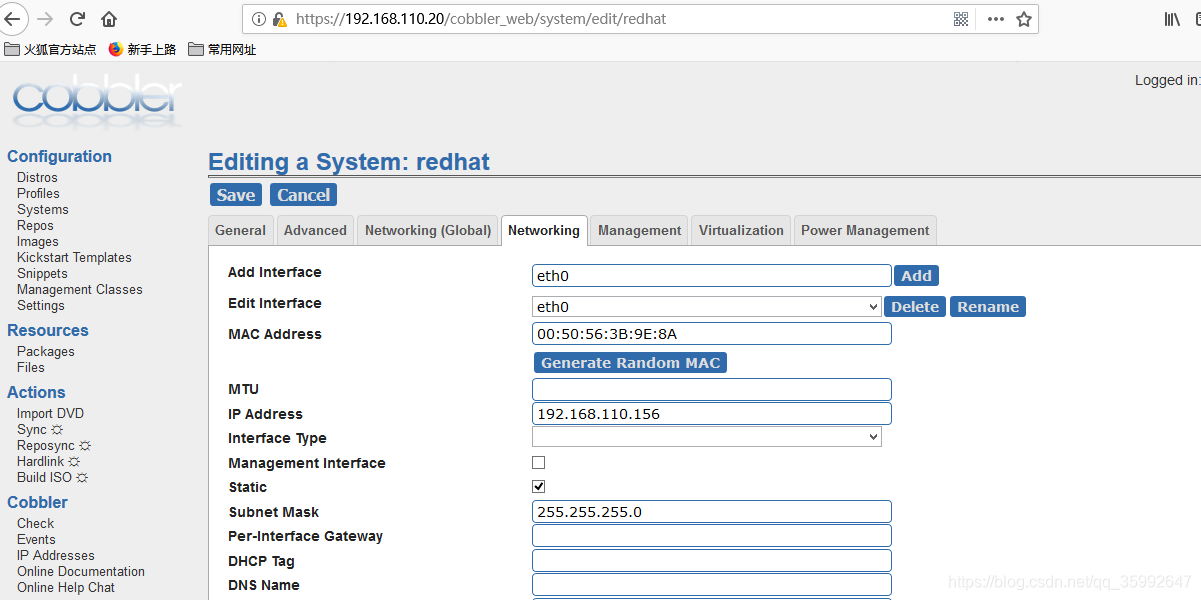

4. 定制安装

定制安装步骤：

  • 统计服务器mac地址
  • 配置cobbler
  • 安装

访问403出错就是要添加https访问

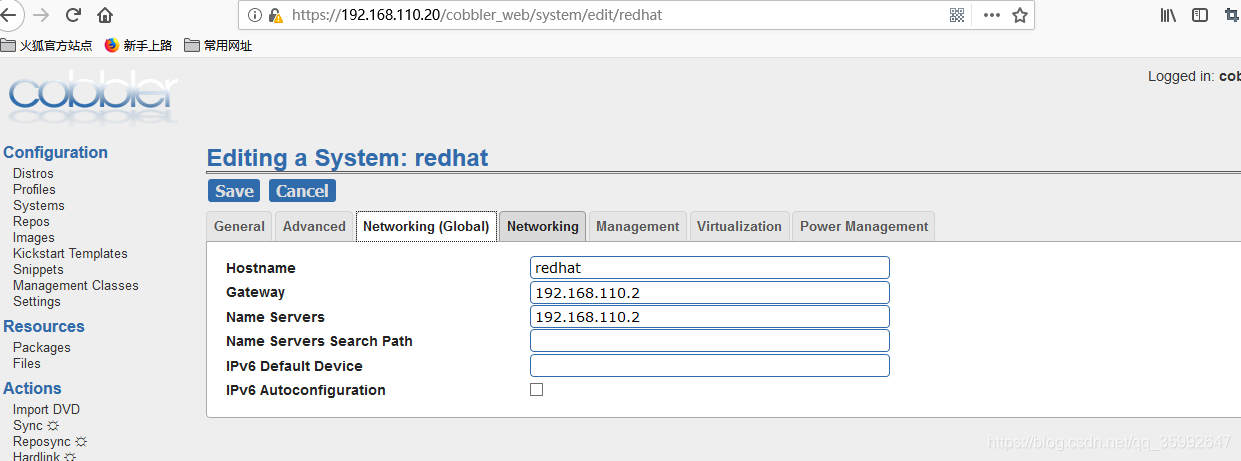

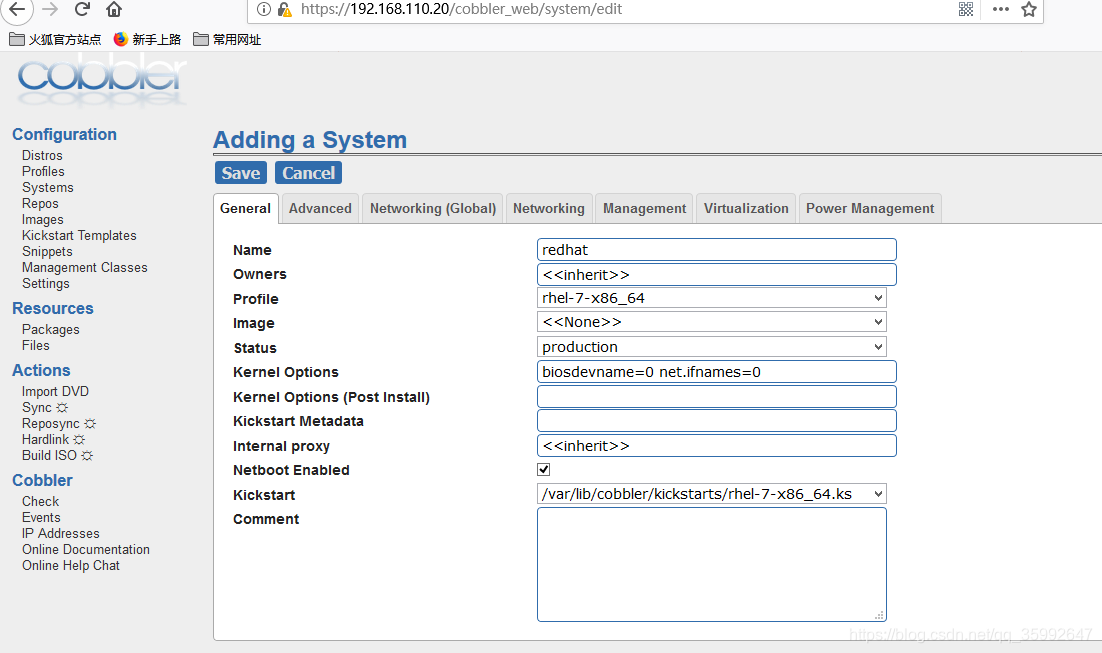

在这里插入图片描述在这里插入图片描述

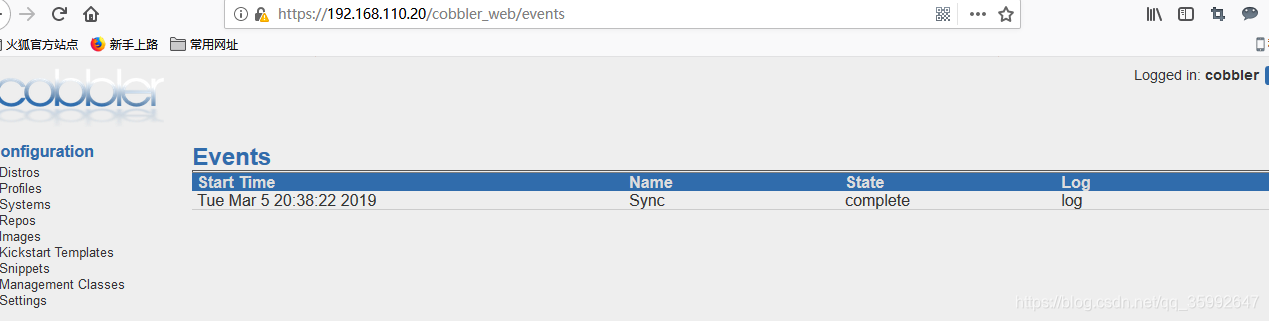

在这里插入图片描述在这里插入图片描述重启服务：

[root@liuwei ~]# systemctl restart httpd
[root@liuwei ~]# cobbler sync
task started: 2019-03-05_200618_sync
task started (id=Sync, time=Tue Mar  5 20:06:18 2019)
running pre-sync triggers
cleaning trees
removing: /var/www/cobbler/images/rhel-7-x86_64
removing: /var/lib/tftpboot/pxelinux.cfg/default
removing: /var/lib/tftpboot/pxelinux.cfg/01-00-50-56-3b-9e-8a
removing: /var/lib/tftpboot/grub/images
removing: /var/lib/tftpboot/grub/grub-x86.efi
removing: /var/lib/tftpboot/grub/grub-x86_64.efi
removing: /var/lib/tftpboot/grub/efidefault
removing: /var/lib/tftpboot/grub/01-00-50-56-3B-9E-8A
removing: /var/lib/tftpboot/images/rhel-7-x86_64
removing: /var/lib/tftpboot/s390x/profile_list
copying bootloaders
trying hardlink /var/lib/cobbler/loaders/grub-x86.efi -> /var/lib/tftpboot/grub/grub-x86.efi
trying hardlink /var/lib/cobbler/loaders/grub-x86_64.efi -> /var/lib/tftpboot/grub/grub-x86_64.efi
copying distros to tftpboot
copying files for distro: rhel-7-x86_64
trying hardlink /var/www/cobbler/ks_mirror/rhel-7-x86_64/images/pxeboot/vmlinuz -> /var/lib/tftpboot/images/rhel-7-x86_64/vmlinuz
trying hardlink /var/www/cobbler/ks_mirror/rhel-7-x86_64/images/pxeboot/initrd.img -> /var/lib/tftpboot/images/rhel-7-x86_64/initrd.img
copying images
generating PXE configuration files
generating: /var/lib/tftpboot/pxelinux.cfg/01-00-50-56-3b-9e-8a
generating: /var/lib/tftpboot/grub/01-00-50-56-3B-9E-8A
generating PXE menu structure
copying files for distro: rhel-7-x86_64
trying hardlink /var/www/cobbler/ks_mirror/rhel-7-x86_64/images/pxeboot/vmlinuz -> /var/www/cobbler/images/rhel-7-x86_64/vmlinuz
trying hardlink /var/www/cobbler/ks_mirror/rhel-7-x86_64/images/pxeboot/initrd.img -> /var/www/cobbler/images/rhel-7-x86_64/initrd.img
Writing template files for rhel-7-x86_64
rendering DHCP files
generating /etc/dhcp/dhcpd.conf
rendering TFTPD files
generating /etc/xinetd.d/tftp
processing boot_files for distro: rhel-7-x86_64
cleaning link caches
running post-sync triggers
running python triggers from /var/lib/cobbler/triggers/sync/post/*
running python trigger cobbler.modules.sync_post_restart_services
running: dhcpd -t -q
received on stdout:
received on stderr:
running: service dhcpd restart
received on stdout:
received on stderr: Redirecting to /bin/systemctl restart dhcpd.service

running shell triggers from /var/lib/cobbler/triggers/sync/post/*
running python triggers from /var/lib/cobbler/triggers/change/*
running python trigger cobbler.modules.manage_genders
running python trigger cobbler.modules.scm_track
running shell triggers from /var/lib/cobbler/triggers/change/*
*** TASK COMPLETE ***
[root@liuwei ~]# systemctl restart cobblerd
[root@liuwei ~]# systemctl restart xinetd

CentOS:
前面步骤相同，就是将脚本名字改为CentOS就可以了，其他步骤相同

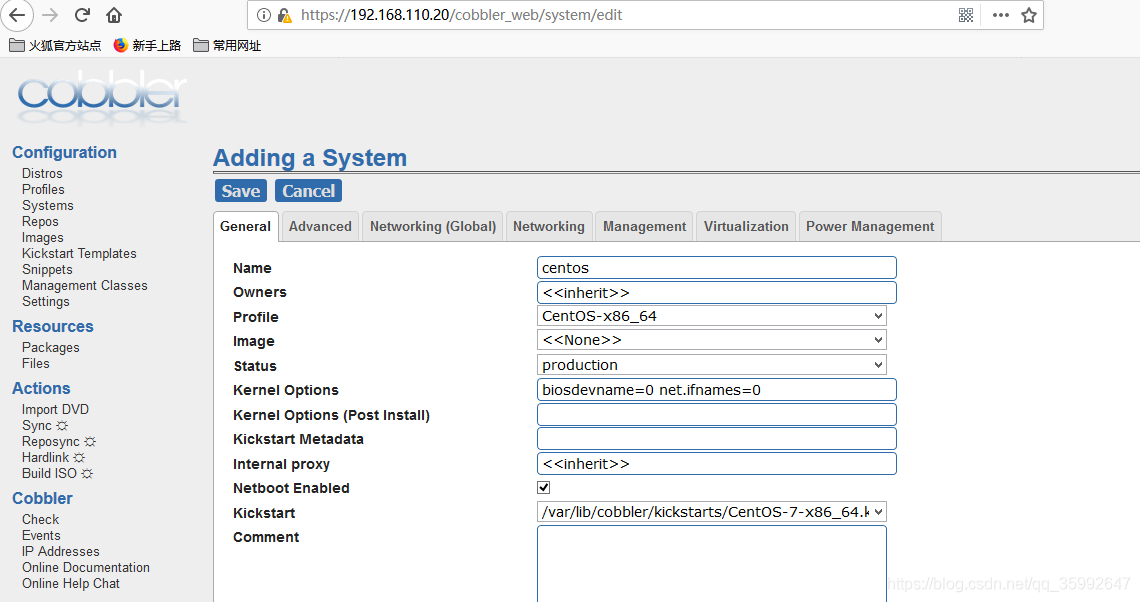

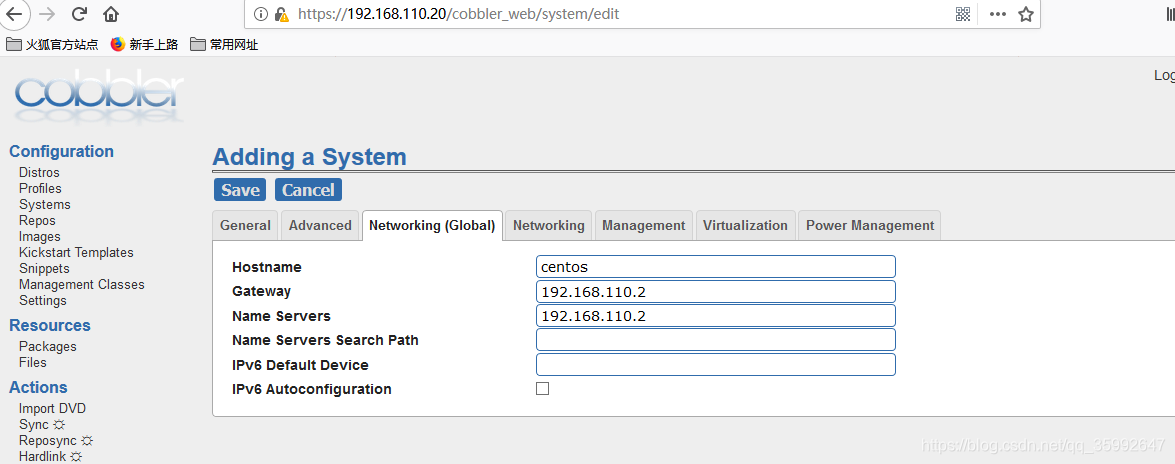

在这里插入图片描述定制安装：
在这里插入图片描述在这里插入图片描述在这里插入图片描述在这里插入图片描述

心若-止水
关注
cobbler-3.0.0.tar.gz
12-24
Cobbler 是一个自动化Linux部署系统，主要用于简化和加速服务器、虚拟机以及网络设备的配置和部署过程。它集成了多种工具，如PXE（预启动执行环境）、DHCP（动态主机配置协议）、DNS（域名系统）和Kickstart，允许...
cobbler离线安装的getLoader离线包
12-10
Cobbler 是一个自动化Linux部署系统，它简化了配置网络启动服务器、安装操作系统以及后续管理的任务。这个"getLoader离线包"是针对Cobbler 2.8.5 版本的一个工具，用于在没有互联网连接的情况下进行Cobbler的安装和...
cobbler的dhcp服务_使用Cobbler无人值守安装CentOS6.5(一)
weixin_39860952的博客
12-21 158
Cobbler是一个快速网络安装linux的服务，而且在经过调整也可以支持网络安装windows。该工具使用python开发，小巧轻便(才15k行代码)，使用简单的命令即可完成PXE网络安装环境的配置，同时还可以管理DHCP，DNS，以及yum包镜像。我用的系统是Centos6.5 64位配置epel yum源我这用阿里云的epelmv/etc/yum.repos.d/epel.repo/...
Centos7 下cobbler安装及配置
anli9207的博客
10-15 341
1.背景介绍 作为运维，在公司经常遇到一些机械性重复工作要做，例如：为新机器装系统，一台两台机器装系统，可以用光盘、U盘等介质安装，1小时也完成了，但是如果有成百台的服务器还要用光盘、U盘去安装，就显得有些力不从心了。PXE技术就能很好的解决这个问题，本文将会对PXE的工作原理有所介绍，而cobbler则是基于PXE技术的工作原理的二次封装，通过命令的方式简化了PXE配置过程。 2....
CentOS7.X 下NTP时间服务器搭建
大痴小乙的博客
11-29 1149
1、NTP简介 NTP（Network Time Protocol，网络时间协议）是用来使网络中的各个计算机时间同步的一种协议。 2、NTP用途 有些时候，局域网里面的设备需要进行时间的同步，当时又不能连接到互联网上。这时候，就需要在一台服务器上搭建NTP服务了，然后其他的电脑只需要和该服务器进行时间同步即可。本次服务搭建的环境是在CentOS7.5，其他的Linux环境的搭建应该也差不多。 3、...
Centos7 安装奔跑的小火车
u014042047的博客
07-06 1629
Centos7 安装奔跑的小火车 1、将“epel-release-7-11.noarch.rpm”软件包上传到虚拟机/opt目录下 下载地址：https://wwa.lanzous.com/i16hxecn8na tar zcvf epel-release-7-11.noarch.rpm 2、安装软件包 rpm -ivh epel-release-7-11.noarch.rpm 3、安装sl yum -y install sl 4、使用sl命令查看一下吧 sl ## 奔跑的小火车 man ls
docker-cobbler.tar.gz
08-04
docker cobbler批量部署系统容器构建脚本
linux运维笔记：自动化安装实践cobbler.docx
10-14
Linux 运维笔记：自动化安装实践 Cobbler Cobbler 是一个 Linux 服务器安装的服务，可以通过网络启动（PXE）的方式来快速安装、重装物理服务器和虚拟机，同时还可以管理 DHCP、DNS 等。Cobbler 可以使用命令行方式...
cobbler离线安装getLoader离线包
06-01
cobbler离线安装getLoader离线包 centos7的 解压到/var/lib/cobbler/ 理论上 centos6 也可以用
epel-release-7-11.noarch.rpm
07-02
rancid+cvs。只支持Centos 7.x系统
Linux在安装epel-release时，报错epel-release-7-14.noarch.rpm 的公钥尚未安装
荷塘月色
11-26 2691
Linux在安装epel-release时，报错epel-release-7-14.noarch.rpm 的公钥尚未安装的解决方法。
CentOS安装epel源详解
weixin_34190136的博客
05-15 620
什么是epel源EPEL (Extra Packages for Enterprise Linux)是基于Fedora的一个项目，为“红帽系”的操作系统提供额外的软件包，适用于RHEL、CentOS和Scientific Linux.我们需要安装一个叫”epel-release”的软件包，这个软件包会自动配置yum的软件仓库。在http://mirrors.sohu.com/...
Linux Centos7离线安装epel-release脚本整理 (创建离线epel源)
学亮编程手记
04-23 2214
【代码】Linux Centos7离线安装epel-release脚本整理 (创建离线epel源)
EPEL
SmartMZ Log
08-15 2524
EPEL(http://fedoraproject.org/wiki/EPEL) 是由 Fedora 社区打造，为 RHEL 及衍生发行版如 CentOS、Scientific Linux 等提供高质量软件包的项目。
linux7 epel源,CentOS7安装EPEL源
weixin_28990983的博客
05-16 424
CentOS7安装EPEL[lijiayun@centos-*** ~]$ yum install epel-release已加载插件：fastestmirror, langpacks您需要 root 权限执行此命令。[lijiayun@centos-*** ~]$ su密码：[root@centos-*** lijiayun]# yum install epel-release已加载插件：fas...
Linux系统安装epel源遇到的问题 yum报错[Errno 256] No more mirrors to try
最新发布
2301_80014606的博客
05-20 1203
今天我在学Linux进程管理的时候，需要用上htophtop的介绍 是Linux系统中的一个互动的进程查看器,与Linux传统的top比较的话,更并且还操作!而用htop需要安装epel源，在安装的时候我遇到了Error downloading packages: epel-release-7-11.noarch: [Errno 256] No more mirrors to try.如图所示执行命令yum clean all清理客户端yum源配置的缓存执行命令yum makecache将Linux服务
ceph 分布式存储-文件存储(CephFS)搭建
weixin_44389885的博客
12-06 578
1. 创建元数据服务器 1.1 安装mds PG数量的预估 集群中单个池的PG数计算公式如下：PG 总数 = (OSD 数 * 100) / 最大副本数 / 池数 (结果必须舍入到最接近2的N次幂的值) #ceph-deploy install mds_server $ ceph-deploy install ceph-xxx-osd03.gz01 [ceph_deploy....
ceph分布式存储-对象存储(RGW)搭建
weixin_44389885的博客
12-11 508
1. 相关软件包 1.1 安装软件包 PG数量的预估 集群中单个池的PG数计算公式如下：PG 总数 = (OSD 数 * 100) / 最大副本数 / 池数 (结果必须舍入到最接近2的N次幂的值) #在管理节点的工作目录下，给 Ceph 对象网关节点安装Ceph对象所需的软件包 #ceph-deploy install --rgw <node1> [<node2&...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
