环境：

master 4核8G centos7.4
node01 4核8G centos7.4
node02 4核8G centos7.4

3个核心组件部署脚本

来源@可克的文章
原文章链接：https://blog.youkuaiyun.com/samxx8/article/details/129790854

进入系统后随便进个目录下载一键部署脚本，赋权并运行；上述3个主机都需要运行一遍这个脚本。

cd  /home
curl -sL https://fastyw.com/wp-content/uploads/2022/12/k8s.sh > k8s.sh
chmod +x k8s.sh
./k8s.sh

脚本内容（复制原作者的）：

#!/bin/bash
# Author: 有人说我白

RED="\033[31m"      # Error message
GREEN="\033[32m"    # Success message
YELLOW="\033[33m"   # Warning message
BLUE="\033[36m"     # Info message
PLAIN='\033[0m'

colorEcho() {
    echo -e "${1}${@:2}${PLAIN}"
}

checkSystem() {
    result=$(id | awk '{print $1}')
    if [[ $result != "uid=0(root)" ]]; then
        colorEcho $RED " 请以root身份执行该脚本"
        exit 1
    fi

    res=`which yum 2>/dev/null`
    if [[ "$?" != "0" ]]; then
        res=`which apt 2>/dev/null`
        if [[ "$?" != "0" ]]; then
            colorEcho $RED " 不受支持的Linux系统"
            exit 1
        fi
        PMT="apt"
        CMD_INSTALL="apt install -y "
        CMD_REMOVE="apt remove -y "
        CMD_UPGRADE="apt update && apt upgrade -y; apt autoremove -y"
    else
        PMT="yum"
        CMD_INSTALL="yum install -y "
        CMD_REMOVE="yum remove -y "
        CMD_UPGRADE="yum update -y"
    fi
        if [[ $PMT == "apt"   ]];then
                colorEcho $RED " 不受支持的Linux系统"
            exit 1
        fi
    res=`which systemctl 2>/dev/null`
    if [[ "$?" != "0" ]]; then
        colorEcho $RED " 系统版本过低，请升级到最新版本"
        exit 1
    fi
}


preinstall() {
        hostnamectl set-hostname $ROLE-$HOSTNAME
    #$PMT clean all
    [[ "$PMT" = "apt" ]] && $PMT update
    #echo $CMD_UPGRADE | bash
    echo ""
    colorEcho $BLUE " 安装必要软件"
    if [[ "$PMT" = "yum" ]]; then
        $CMD_INSTALL epel-release
    fi
    $CMD_INSTALL curl vim docker
        res=`which curl 2>/dev/null`
    [[ "$?" != "0" ]] && $CMD_INSTALL curl
        res=`which docker 2>/dev/null`
    [[ "$?" != "0" ]] && $CMD_INSTALL docker
        systemctl enable --now docker

        colorEcho $BLUE "配置服务器环境"
    if [[ -s /etc/selinux/config ]] && grep 'SELINUX=enforcing' /etc/selinux/config; then
        sed -i 's/SELINUX=enforcing/SELINUX=permissive/g' /etc/selinux/config
        setenforce 0
    fi
        echo 1 > /proc/sys/net/ipv4/ip_forward
        echo 1 > /proc/sys/net/bridge/bridge-nf-call-iptables
        echo 'net.ipv4.ip_forward = 1' >>  /etc/sysctl.conf
        sysctl -p
        swapoff -a
}

installk8s(){
cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
        colorEcho $BLUE '安装k8s组件'
        $CMD_INSTALL --nogpgcheck kubelet-1.23.5-0 kubeadm-1.23.5-0 kubectl-1.23.5-0
        systemctl enable --now kubelet

}

getip(){
        colorEcho $BLUE " 请选择获取本机ip/vip的方式："
    echo "   1)网络获取"
    echo "   2)手动输入"
    read -p " 请选择获取本机ip/vip的方式(默认联网获取)：" answer
        if [[ -z "$answer" ]]; then
        METHOD="network"
    else
        case $answer in
        1)
            METHOD="network"
            ;;
                2)
            METHOD="matual"
            ;;
        *)
            colorEcho $RED " 无效的选择，使用默认角色"
            METHOD="network"
        esac
    fi
    echo ""
    colorEcho $BLUE " 获取本机ip/vip的方式： $METHOD"
        if [[ $METHOD == 'network' ]];then
                ip=`curl -s icanhazip.com`
        else
                read -p " 请输入本机ip/vip：" ip
        fi
        colorEcho $YELLOW "本机ip/vip地址为: $ip"
        read -p '确认安装请按回车键(CTRL+C退出脚本)' a
}


init(){
cat <<-EOF >/root/kubeadm_init.yaml
apiVersion: kubeadm.k8s.io/v1beta3
kind: ClusterConfiguration
kubernetesVersion: v1.23.5
apiServer:
  certSANs:
  - "$ip"
controlPlaneEndpoint: "$ip:6443"
networking:
  podSubnet: 10.244.0.0/16
imageRepository: registry.cn-hangzhou.aliyuncs.com/google_containers
EOF
        kubeadm init --config=/root/kubeadm_init.yaml|tee /root/kubeinit.log
        mkdir -p $HOME/.kube
        cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
        chown $(id -u):$(id -g) $HOME/.kube/config
        kubectl apply -f https://raw.githubusercontent.com/flannel-io/flannel/master/Documentation/kube-flannel.yml
        colorEcho $GREEN 'k8s安装完成'
}

greplog(){
        colorEcho $RED "关键命令，请注意保存"
        colorEcho $BLUE "如需部署集群"
        colorEcho $BLUE "请在其他master节点中执行下面命令"
        echo ` grep -E  -B 2 '\\-\\-control\-plane' /root/kubeinit.log|sed 's/\\\\//g'`
        colorEcho $BLUE "请在其他node节点执行完脚本后执行下面命令"
        echo `grep -E  -B 2 '\\-\\-control\-plane' /root/kubeinit.log |grep -v control|sed 's/\\\\//g'`
}


menu(){
        checkSystem
        colorEcho $BLUE " 请选择本机的角色："
    echo "   1)master"
    echo "   2)node"
    read -p " 请选择k8s角色（默认master）" answer
        if [[ -z "$answer" ]]; then
        ROLE="master"
    else
        case $answer in
        1)
            ROLE="master"
            ;;
                2)
            ROLE="node"
            ;;
        *)
            colorEcho $RED " 无效的选择，使用默认角色"
            ROLE="master"
        esac
    fi
    echo ""
    colorEcho $BLUE " 当前k8s角色： $ROLE"

        if [[ $ROLE == 'master' ]];then
                colorEcho $BLUE " 检测到您设置的角色为master，请选择行为："
                echo "   1)建立新集群"
                echo "   2)加入旧集群"
                read -p " 请选择master节点行为（默认建立新集群）" answer
                if [[ -z "$answer" ]]; then
                        ACTION="new"
                else
                        case $answer in
                        1)
                                ACTION="new"
                                ;;
                        2)
                                ACTION="old"
                                ;;
                        *)
                                colorEcho $RED " 无效的选择，使用默认行为"
                                ACTION="new"
                        esac
                fi
                echo ""
                colorEcho $BLUE " 当前k8s节点行为： $ACTION"
                if [[ $ACTION == "new" ]];then
                        getip
                        preinstall
                        installk8s
                        init
                        greplog
                else
                        preinstall
                        installk8s
                        colorEcho $BLUE " master节点安装完成，请在主master节点日志中拿取命令加入主节点"

                fi

        else
                preinstall
                installk8s
                colorEcho $BLUE " node节点安装完成，请在主master节点日志中拿取命令加入主节点"
        fi
}

main(){
        menu
}
main

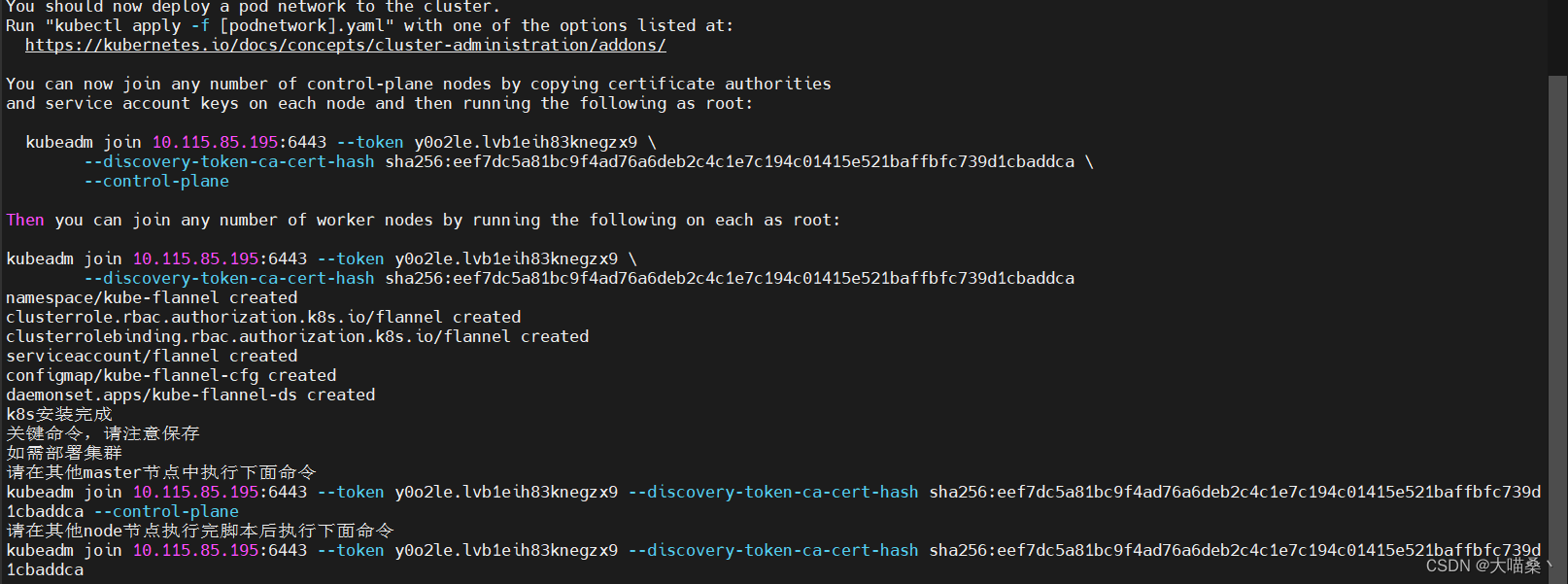

这个是master节点运行完成后的截图，在图片最后几行提示了，其他节点加入需要运行的命令。那么在node节点也运行完上面的一键安装脚本后，使用下面提示的命令加入集群即可。建议是保存好这个。
在这里插入图片描述

Dashboard UI部署

上面脚本里面安装的是1.23.5-0版本K8S，那么Dashboard需要与之兼容，我这边写的命令也是基于这个版本的，需要更换版本的除了上述脚本中需要自行修改外，UI版本兼容问题也需要考虑。
这里为兼容性确认链接：https://github.com/kubernetes/dashboard/releases

下载yaml：

wget  https://raw.githubusercontent.com/kubernetes/dashboard/v2.5.1/aio/deploy/recommended.yaml

添加web访问端口

vi recommended.yaml

红框中为需要添加内容
在这里插入图片描述

安装并查询是否安装成功：

kubectl apply -f recommended.yaml
kubectl get svc,pods -n kubernetes-dashboard -o wide

创建登录用的admin用户

cat > dashboard-admin.yaml << EOF
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard
EOF

kubectl apply -f dashboard-admin.yaml
kubectl -n kubernetes-dashboard get secrets

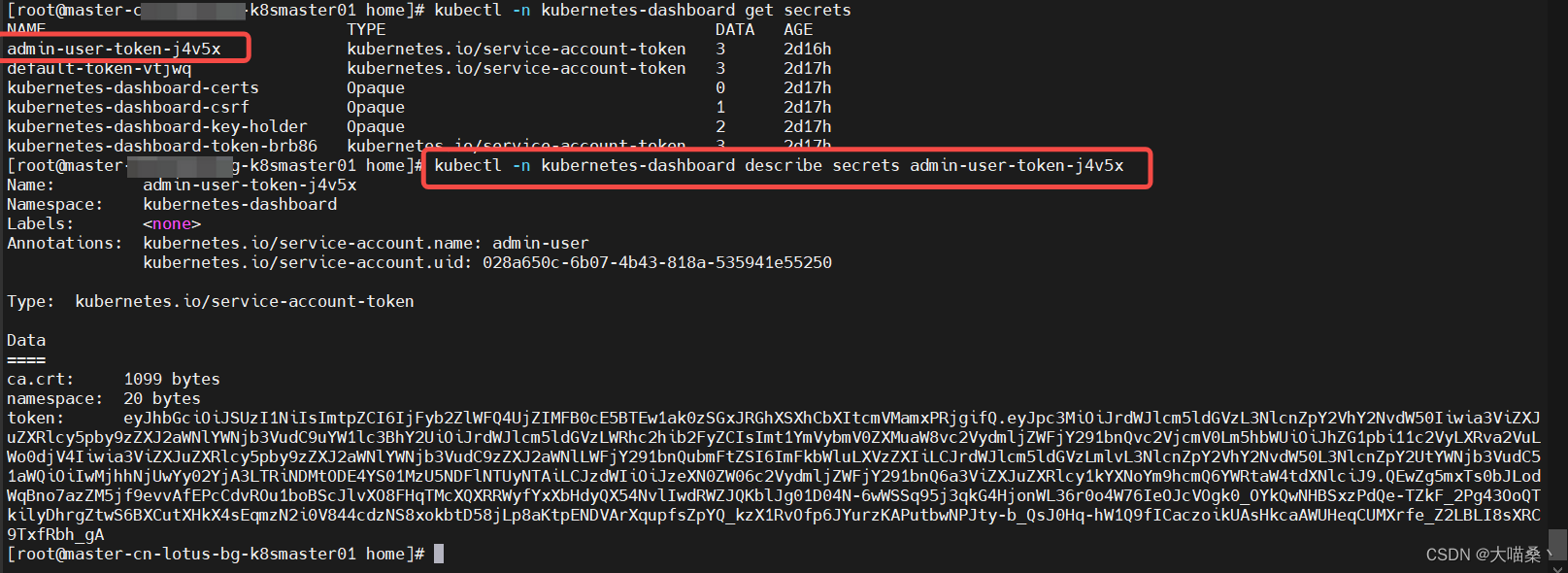

获取admin的用户信息，并获取token，注意，命令中的admin-user-token-j4v5x，最后的j4v5x根据第一条命令获取到的信息修改。

kubectl -n kubernetes-dashboard get secrets
kubectl -n kubernetes-dashboard describe secrets admin-user-token-j4v5x

在这里插入图片描述

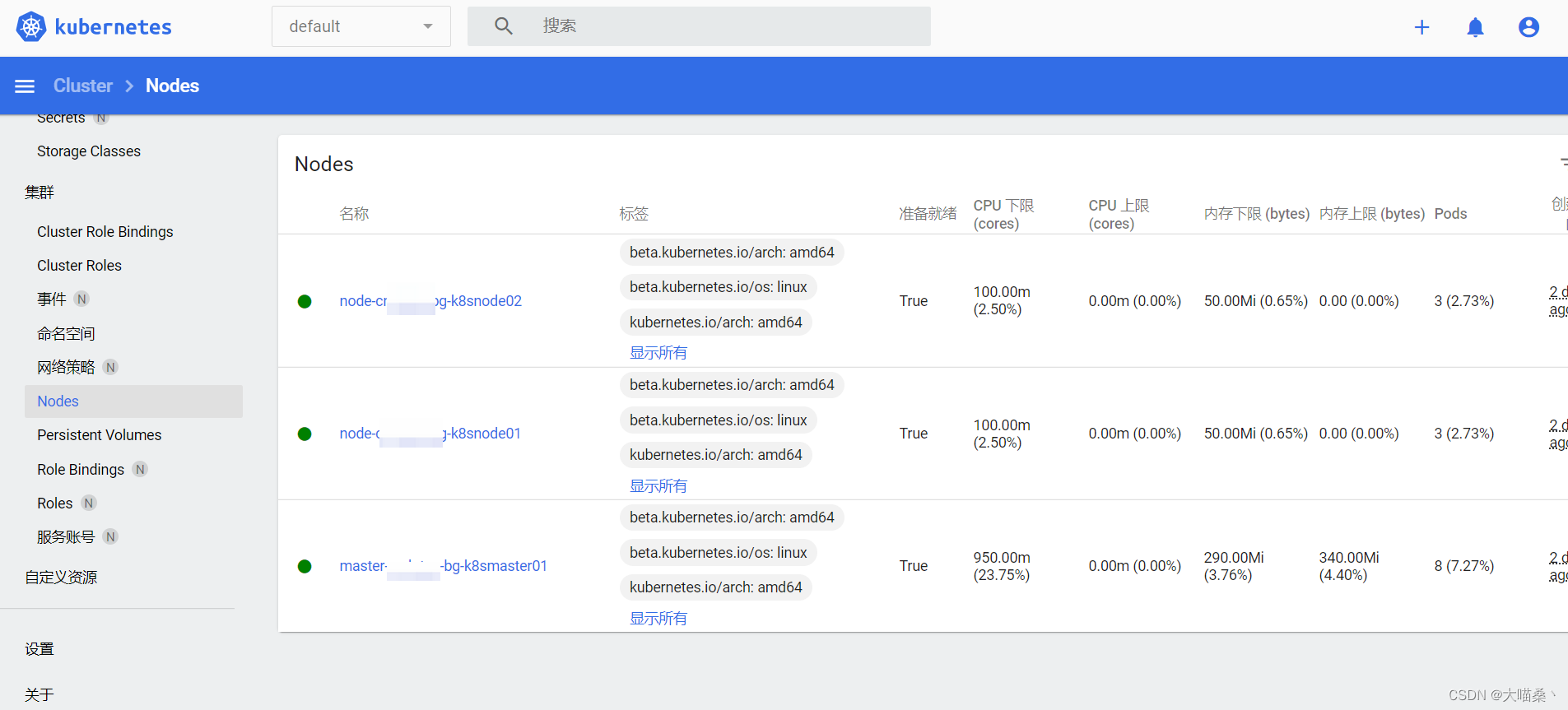

复制token，打开web页面登录测试；访问页面为https://10.xx.xx.xx:30001/#/login
在这里插入图片描述
部署完成；
