PyQt5学习记录

1. 工具

        使用Idea 进行pyqt5的开发

2. 环境

        python 环境为3.10.1

3. 安装pyqt5环境

pip install pyqt5

由于pyqt designer 跟python 版本关系，3.10以上的使用

pip install pyqt5designer

进行安装，低于3.10.x的使用

pip install pyqt5_tools

进行安装

4. 开发

4.1 手敲ui代码

# -*- coding: utf-8-*-
# 测试QWidget

import sys
from PyQt5.QtWidgets import QApplication, QWidget

if __name__ == '__main__':
    app = QApplication(sys.argv)

    w = QWidget()
    w.resize(250, 150)
    w.move(300, 300)
    w.setWindowTitle('widget test')
    w.show()

    sys.exit(app.exec_())

4.2 使用designer 设计Ui,使用pyui工具进行Ui文件到py 文件的转换

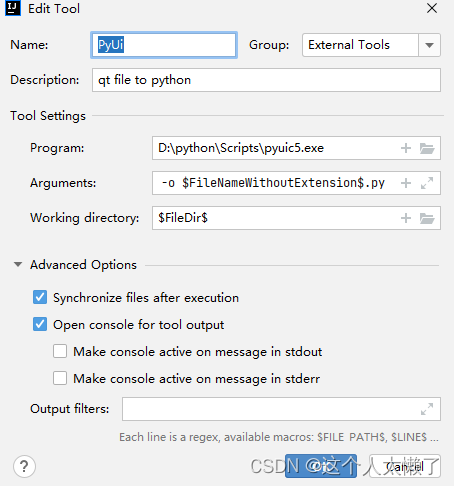

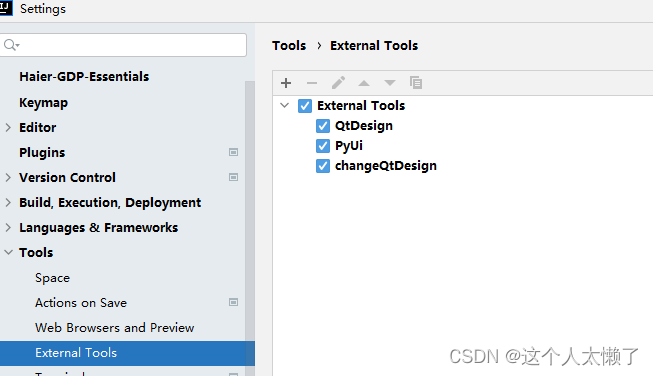

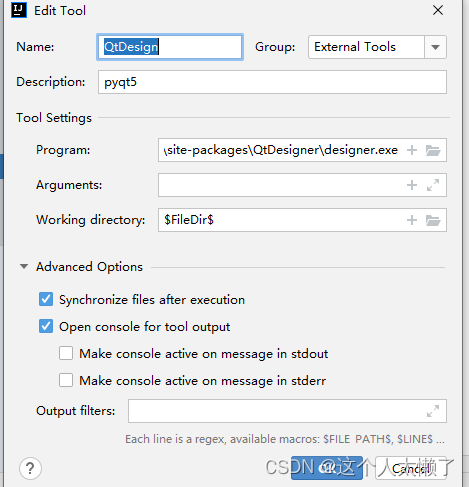

配置idea 的第三方工具

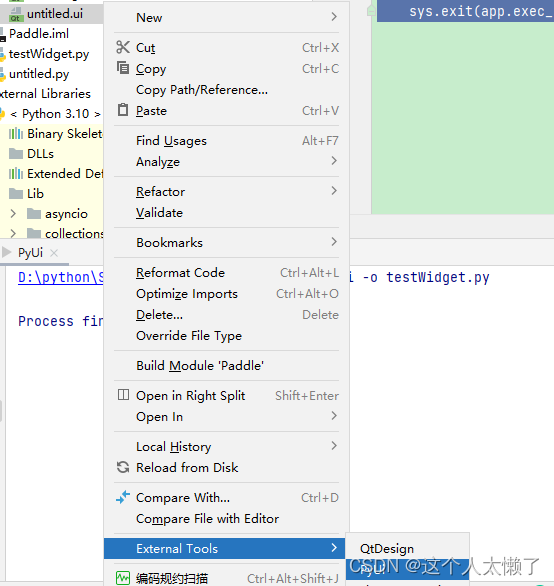

配置完成后，打开designer进行ui的设置，然后选中保存好的ui文件，使用pyui进行转换





4.3 信号与槽函数

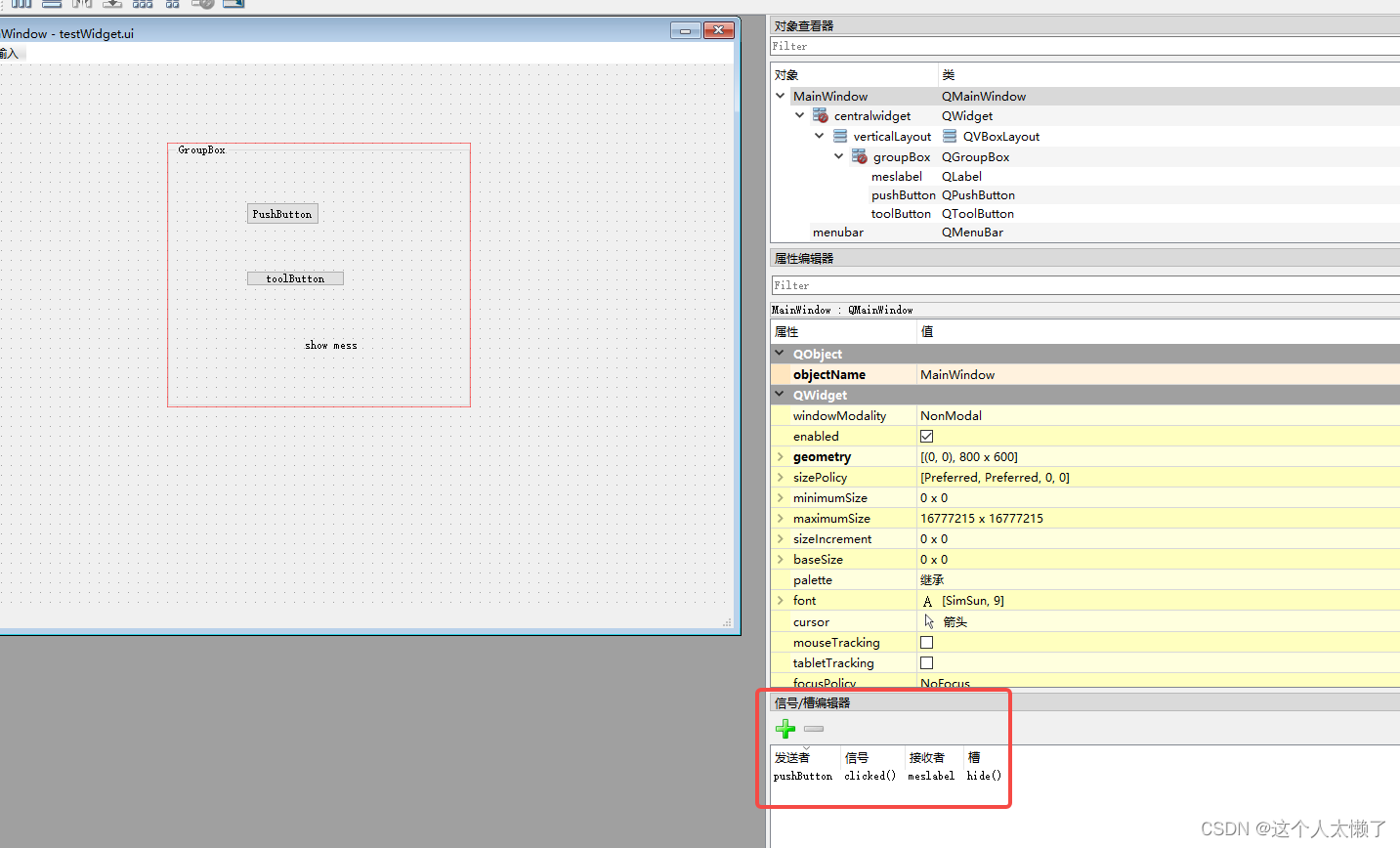

使用信号与槽编辑器

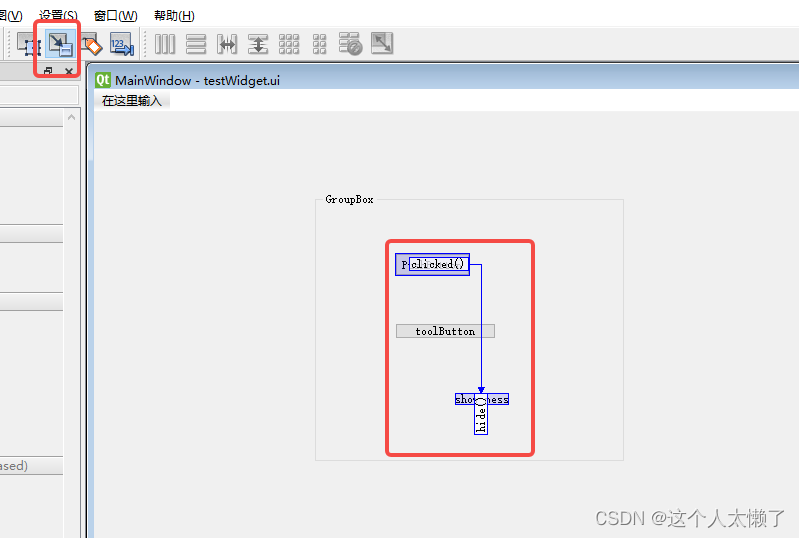

或者使用编辑信号与槽

 4.4. 使用ui转换的py代码

转换后的py文件如下

# -*- coding: utf-8 -*-

# Form implementation generated from reading ui file 'testWidget.ui'
#
# Created by: PyQt5 UI code generator 5.15.7
#
# WARNING: Any manual changes made to this file will be lost when pyuic5 is
# run again.  Do not edit this file unless you know what you are doing.


from PyQt5 import QtCore, QtGui, QtWidgets


class Ui_MainWindow(object):
    def setupUi(self, MainWindow):
        MainWindow.setObjectName("MainWindow")
        MainWindow.resize(800, 600)
        self.centralwidget = QtWidgets.QWidget(MainWindow)
        self.centralwidget.setObjectName("centralwidget")
        self.verticalLayoutWidget = QtWidgets.QWidget(self.centralwidget)
        self.verticalLayoutWidget.setGeometry(QtCore.QRect(220, 80, 311, 271))
        self.verticalLayoutWidget.setObjectName("verticalLayoutWidget")
        self.verticalLayout = QtWidgets.QVBoxLayout(self.verticalLayoutWidget)
        self.verticalLayout.setContentsMargins(0, 0, 0, 0)
        self.verticalLayout.setObjectName("verticalLayout")
        self.groupBox = QtWidgets.QGroupBox(self.verticalLayoutWidget)
        self.groupBox.setObjectName("groupBox")
        self.pushButton = QtWidgets.QPushButton(self.groupBox)
        self.pushButton.setGeometry(QtCore.QRect(80, 60, 75, 23))
        self.pushButton.setObjectName("pushButton")
        self.toolButton = QtWidgets.QToolButton(self.groupBox)
        self.toolButton.setGeometry(QtCore.QRect(80, 130, 101, 16))
        self.toolButton.setObjectName("toolButton")
        self.meslabel = QtWidgets.QLabel(self.groupBox)
        self.meslabel.setGeometry(QtCore.QRect(140, 200, 54, 12))
        self.meslabel.setObjectName("meslabel")
        self.verticalLayout.addWidget(self.groupBox)
        MainWindow.setCentralWidget(self.centralwidget)
        self.menubar = QtWidgets.QMenuBar(MainWindow)
        self.menubar.setGeometry(QtCore.QRect(0, 0, 800, 23))
        self.menubar.setObjectName("menubar")
        MainWindow.setMenuBar(self.menubar)
        self.statusbar = QtWidgets.QStatusBar(MainWindow)
        self.statusbar.setObjectName("statusbar")
        MainWindow.setStatusBar(self.statusbar)

        self.retranslateUi(MainWindow)
        self.pushButton.clicked.connect(self.meslabel.hide) # type: ignore
        QtCore.QMetaObject.connectSlotsByName(MainWindow)

    def retranslateUi(self, MainWindow):
        _translate = QtCore.QCoreApplication.translate
        MainWindow.setWindowTitle(_translate("MainWindow", "MainWindow"))
        self.groupBox.setTitle(_translate("MainWindow", "GroupBox"))
        self.pushButton.setText(_translate("MainWindow", "PushButton"))
        self.toolButton.setText(_translate("MainWindow", "toolButton"))
        self.meslabel.setText(_translate("MainWindow", "show mess"))

启动代码如下

# -*- coding: utf-8-*-
# 测试QWidget

import sys
from PyQt5.QtWidgets import QApplication, QWidget, QMainWindow
import testWidget
if __name__ == '__main__':
    app = QApplication(sys.argv)

    tstW = testWidget.Ui_MainWindow()
    mainWindow = QMainWindow()
    # w = QWidget()
    # w.resize(250, 150)
    # w.move(300, 300)
    # w.setWindowTitle('widget test')
    tstW.setupUi(mainWindow)
    mainWindow.show()

    sys.exit(app.exec_())
