本文介绍了Elastic-job的任务事件追踪功能。通过数据源配置和事件监听，任务执行时会在指定数据源创建两张表。详细阐述了整合过程，包括pom.xml、application.yml等配置。还提及查看控制台，项目启动有任务执行时会生成表，但控制台添加事件追踪数据源存在问题待解决。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

一、简介

            esjob提供了任务事件追踪功能，通过做数据源配置，监听事件，会在任务执行的时候在指定的数据源创建俩张表，job_execution_log， 和 job_status_trace_log。然后通过配置事件追踪数据源配置，就可以在作业历史中查看作业的执行记录了。

此处使用的是上篇配置的一个simple类型的任务。

二、 整合过程

2.1 pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.5.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.elasticjob</groupId>
    <artifactId>demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>demo</name>
    <description>Demo project for Spring Boot</description>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!-- 当当的elastic-job-lite相关 -->
        <dependency>
            <artifactId>elastic-job-common-core</artifactId>
            <groupId>com.dangdang</groupId>
            <version>2.1.5</version>
        </dependency>
        <dependency>
            <artifactId>elastic-job-lite-core</artifactId>
            <groupId>com.dangdang</groupId>
            <version>2.1.5</version>
        </dependency>
        <dependency>
            <artifactId>elastic-job-lite-spring</artifactId>
            <groupId>com.dangdang</groupId>
            <version>2.1.5</version>
        </dependency>
        <!-- 当当的elastic-job-lite相关 -->


        <!-- lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.18</version>
            <scope>provided</scope>
        </dependency>
        <!-- lombok -->


        <!-- mysql -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <!-- mysql -->

        <!-- druid -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.9</version>
        </dependency>
        <!-- druid -->

        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.2</version>
        </dependency>

        <!--<dependency>
            <groupId> org.springframework.boot </groupId>
            <artifactId> spring-boot-configuration-processor </artifactId>
            <optional> true </optional>
        </dependency>-->


    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

2.2 application.yml


# 端口
server:
  port: 8080


# spring配置相关
spring:
  # 应用名称
  application:
    name: elastic-job-demo
  # elasticjob数据源
  datasource:
    elasticjob:
      driverClassName: com.mysql.jdbc.Driver
      username: root
      password: 123456
      # spring2.0此处为jdbc-url
      jdbc-url: jdbc:mysql://localhost:3306/elastic-job?useUnicode=true&characterEncoding=UTF-8&allowMultiQueries=true&serverTimezone=GMT%2B8
      type: com.alibaba.druid.pool.DruidDataSource



# zk注册中心配置相关
reg-center:
  # 连接Zookeeper服务器的列表IP:端口号,多个地址用逗号分隔
  server-list: "IP:2181,IP:2182,IP:2183"
  # Zookeeper的命名空间
  namespace: zk-elastic-job
  # 等待重试的间隔时间的初始值 默认1000，单位：毫秒
  baseSleepTimeMilliseconds: 1000
  # 等待重试的间隔时间的最大值 默认3000，单位：毫秒
  maxSleepTimeMilliseconds: 3000
  # 最大重试次数 默认3
  maxRetries: 3
  # 会话超时时间 默认60000，单位：毫秒
  sessionTimeoutMilliseconds: 60000
  # 连接超时时间 默认15000，单位：毫秒
  connectionTimeoutMilliseconds: 15000
  # 连接Zookeeper的权限令牌 默认不需要
  #digest:


# simpleJobDemo作业配置相关
simpleJobDemo:
  # cron表达式，用于控制作业触发时间
  cron: 0 * * * * ?
  # 作业分片总数
  sharding-total-count: 3
  # 分片序列号和参数用等号分隔，多个键值对用逗号分隔.分片序列号从0开始，不可大于或等于作业分片总数
  sharding-item-parameters: 0=上海,1=北京,2=深圳
  # 作业自定义参数,可通过传递该参数为作业调度的业务方法传参，用于实现带参数的作业
  job-parameter: "simpleJobDemo作业参数"
  # 是否开启任务执行失效转移，开启表示如果作业在一次任务执行中途宕机，允许将该次未完成的任务在另一作业节点上补偿执行, 默认为false
  failover: true
  # 是否开启错过任务重新执行 默认为true
  misfire: true
  # 作业描述信息
  job-description: "simpleJobDemo作业描述"

2.3 zk注册中心配置

package com.elasticjob.demo.config.esjob;

import com.dangdang.ddframe.job.reg.zookeeper.ZookeeperConfiguration;
import com.dangdang.ddframe.job.reg.zookeeper.ZookeeperRegistryCenter;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;


/**
 * zk注册中心配置
 */
@Configuration
public class ZkRegistryCenterConfig {

    @Value("${reg-center.server-list}")
    private String serverList;

    @Value("${reg-center.namespace}")
    private String namespace;

    @Bean(initMethod = "init")
    public ZookeeperRegistryCenter regCenter() {
        return new ZookeeperRegistryCenter(new ZookeeperConfiguration(serverList, namespace));
    }

}

2.4 ElasticJob数据源

package com.elasticjob.demo.config.esjob;

import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.jdbc.DataSourceBuilder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;

import javax.sql.DataSource;

/**
 * @author qjwyss
 * @date 2019/5/23
 * @description ElasticJob数据源
 */
@Configuration
public class ElasticJobDatabase {

    @Bean
    @ConfigurationProperties(prefix = "spring.datasource.elasticjob")
    public DataSource elasticjobDataSource() {
        return DataSourceBuilder.create().build();
    }

    @Bean
    public SqlSessionFactory elasticjobSqlSessionFactory(@Qualifier("elasticjobDataSource") DataSource dataSource) throws Exception {
        SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
        bean.setDataSource(dataSource);
        return bean.getObject();
    }

    @Bean
    public DataSourceTransactionManager elasticjobTransactionManager(@Qualifier("elasticjobDataSource") DataSource dataSource) {
        return new DataSourceTransactionManager(dataSource);
    }

    @Bean
    public SqlSessionTemplate elasticjobSqlSessionTemplate(@Qualifier("elasticjobSqlSessionFactory") SqlSessionFactory sqlSessionFactory) throws Exception {
        return new SqlSessionTemplate(sqlSessionFactory);
    }


}

注： 此处注册了一个esjob的数据源。因为有时候任务量会比较大并频繁，生成的监控记录会比较多，可以单独部署。

2.5 JobEventConfig监听配置

package com.elasticjob.demo.config.esjob;

import com.dangdang.ddframe.job.event.JobEventConfiguration;
import com.dangdang.ddframe.job.event.rdb.JobEventRdbConfiguration;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;

@Configuration
public class JobEventConfig {

    @Autowired
    private DataSource dataSource;

    @Bean
    public JobEventConfiguration jobEventConfiguration() {
        return new JobEventRdbConfiguration(dataSource);
    }
}

2.6 全局作业配置中心

package com.elasticjob.demo.config.esjob;

import com.dangdang.ddframe.job.event.JobEventConfiguration;
import com.dangdang.ddframe.job.lite.api.JobScheduler;
import com.dangdang.ddframe.job.lite.config.LiteJobConfiguration;
import com.dangdang.ddframe.job.lite.spring.api.SpringJobScheduler;
import com.dangdang.ddframe.job.reg.zookeeper.ZookeeperRegistryCenter;
import com.elasticjob.demo.taskjob.simplejob.SimpleJobDemo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * 全局作业配置中心
 */
@Configuration
public class JobConfig {

    @Autowired
    private ZookeeperRegistryCenter regCenter;
    @Autowired
    private LiteJobConfiguration liteJobConfiguration;
    @Autowired
    private JobEventConfiguration jobEventConfiguration;
    @Autowired
    private SimpleJobDemo simpleJobDemo;

    @Bean(initMethod = "init")
    public JobScheduler simpleJobScheduler() {
        return new SpringJobScheduler(simpleJobDemo, regCenter, liteJobConfiguration, jobEventConfiguration);
    }
}

2.7 SimpleJobDemo作业配置

package com.elasticjob.demo.taskjob.simplejob;

import com.dangdang.ddframe.job.config.JobCoreConfiguration;
import com.dangdang.ddframe.job.config.simple.SimpleJobConfiguration;
import com.dangdang.ddframe.job.lite.config.LiteJobConfiguration;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * SimpleJobDemo作业配置
 */
@Configuration
public class SimpleJobDemoJobProperties {

    @Value("${simpleJobDemo.cron}")
    private String cron;

    @Value("${simpleJobDemo.sharding-total-count}")
    private int shardingTotalCount;

    @Value("${simpleJobDemo.sharding-item-parameters}")
    private String shardingItemParameters;

    @Value("${simpleJobDemo.job-description}")
    private String jobDescription;

    @Value("${simpleJobDemo.job-parameter}")
    private String jobParameter;

    @Autowired
    private SimpleJobDemo simpleJobDemo;

    @Bean
    public LiteJobConfiguration liteJobConfiguration() {

        JobCoreConfiguration.Builder builder =
                JobCoreConfiguration.newBuilder(simpleJobDemo.getClass().getName(), cron, shardingTotalCount);

        JobCoreConfiguration jobCoreConfiguration = builder
                .shardingItemParameters(shardingItemParameters)
                .description(jobDescription)
                .jobParameter(jobParameter)
                .build();

        SimpleJobConfiguration simpleJobConfiguration = new SimpleJobConfiguration(jobCoreConfiguration, simpleJobDemo.getClass().getCanonicalName());
        return LiteJobConfiguration
                .newBuilder(simpleJobConfiguration)
                .overwrite(true)
                .build();
    }

}

2.8 SimpleJobDemo

package com.elasticjob.demo.taskjob.simplejob;

import com.dangdang.ddframe.job.api.ShardingContext;
import com.dangdang.ddframe.job.api.simple.SimpleJob;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;

@Component
@Slf4j
public class SimpleJobDemo implements SimpleJob {

    @Override
    public void execute(ShardingContext shardingContext) {
        log.info("shardingContext的信息为：" + shardingContext);

        switch (shardingContext.getShardingItem()) {
            case 0:
                System.out.println("上海分片执行的任务：求和1到3完成，结果为：6");
                break;
            case 1:
                System.out.println("北京分片执行的任务：求和4到7完成，结果为：22");
                break;
            case 2:
                System.out.println("深圳分片执行的任务：求和8到10完成，结果为：27");
                break;
        }


    }
}

2.9 执行

  • 启动项目，可以看到输入如下内容：
    • 2019-05-23 15:19:30.382  INFO 15492 --- [SimpleJobDemo-1] c.e.d.taskjob.simplejob.SimpleJobDemo    : shardingContext的信息为：ShardingContext(jobName=com.elasticjob.demo.taskjob.simplejob.SimpleJobDemo, taskId=com.elasticjob.demo.taskjob.simplejob.SimpleJobDemo@-@0,1,2@-@READY@-@172.16.0.222@-@15492, shardingTotalCount=3, jobParameter=simpleJobDemo作业参数, shardingItem=0, shardingParameter=上海)
上海分片执行的任务：求和1到3完成，结果为：6
2019-05-23 15:19:30.383  INFO 15492 --- [SimpleJobDemo-2] c.e.d.taskjob.simplejob.SimpleJobDemo    : shardingContext的信息为：ShardingContext(jobName=com.elasticjob.demo.taskjob.simplejob.SimpleJobDemo, taskId=com.elasticjob.demo.taskjob.simplejob.SimpleJobDemo@-@0,1,2@-@READY@-@172.16.0.222@-@15492, shardingTotalCount=3, jobParameter=simpleJobDemo作业参数, shardingItem=1, shardingParameter=北京)
北京分片执行的任务：求和4到7完成，结果为：22
2019-05-23 15:19:30.385  INFO 15492 --- [SimpleJobDemo-3] c.e.d.taskjob.simplejob.SimpleJobDemo    : shardingContext的信息为：ShardingContext(jobName=com.elasticjob.demo.taskjob.simplejob.SimpleJobDemo, taskId=com.elasticjob.demo.taskjob.simplejob.SimpleJobDemo@-@0,1,2@-@READY@-@172.16.0.222@-@15492, shardingTotalCount=3, jobParameter=simpleJobDemo作业参数, shardingItem=2, shardingParameter=深圳)
深圳分片执行的任务：求和8到10完成，结果为：27

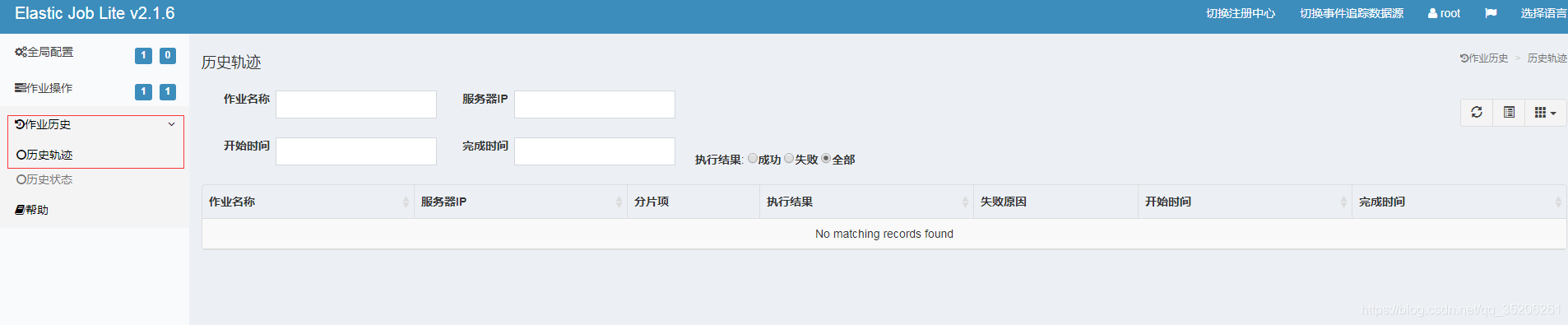

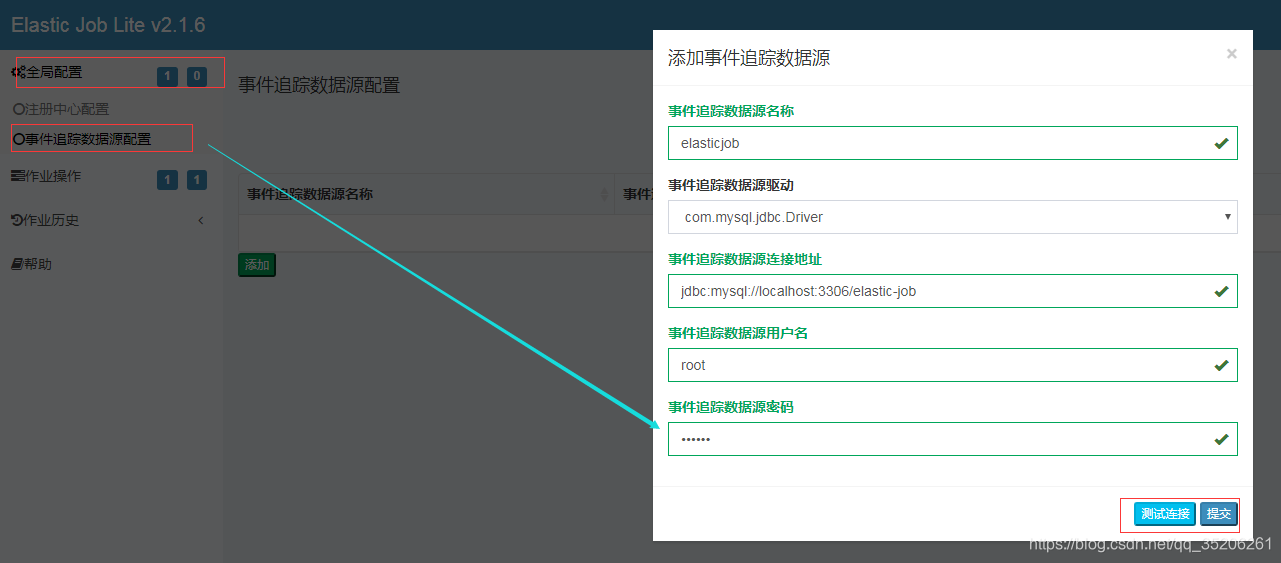

三、查看控制台

3.1 数据库

  • 当项目启动并有任务执行的时候，会生成一下俩张表，如下图：
  • job_execution_log表结构详解TODO
    • CREATE TABLE `job_execution_log` (
  `id` varchar(40) NOT NULL,
  `job_name` varchar(100) NOT NULL,
  `task_id` varchar(255) NOT NULL,
  `hostname` varchar(255) NOT NULL,
  `ip` varchar(50) NOT NULL,
  `sharding_item` int(11) NOT NULL,
  `execution_source` varchar(20) NOT NULL,
  `failure_cause` varchar(4000) DEFAULT NULL,
  `is_success` int(11) NOT NULL,
  `start_time` timestamp NULL DEFAULT NULL,
  `complete_time` timestamp NULL DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;



  • job_status_trace_log表结构详解TODO
    • CREATE TABLE `job_status_trace_log` (
  `id` varchar(40) NOT NULL,
  `job_name` varchar(100) NOT NULL,
  `original_task_id` varchar(255) NOT NULL,
  `task_id` varchar(255) NOT NULL,
  `slave_id` varchar(50) NOT NULL,
  `source` varchar(50) NOT NULL,
  `execution_type` varchar(20) NOT NULL,
  `sharding_item` varchar(100) NOT NULL,
  `state` varchar(20) NOT NULL,
  `message` varchar(4000) DEFAULT NULL,
  `creation_time` timestamp NULL DEFAULT NULL,
  PRIMARY KEY (`id`),
  KEY `TASK_ID_STATE_INDEX` (`task_id`,`state`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;



3.2 控制台添加事件追踪数据源TODO

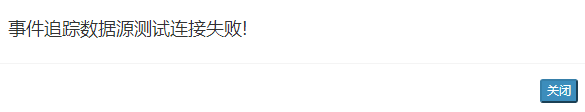

 注： 此处一直失败，TODO

3.3 查看



四、Elastic-job系列

评论 4
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
