pdm应用

本文介绍了一种使用SQL脚本自动生成PDM(物理数据模型)的方法,并提供了两个具体的VBA脚本示例。一个脚本用于将SQL脚本中的注释内容替换为名称列的内容,另一个则实现相反的操作,即将名称列的内容替换为注释列的内容。这些脚本适用于处理当前活动的物理数据模型。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

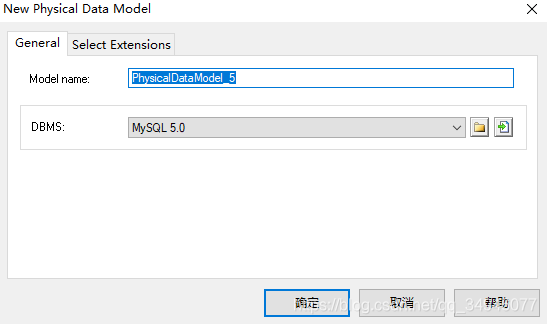

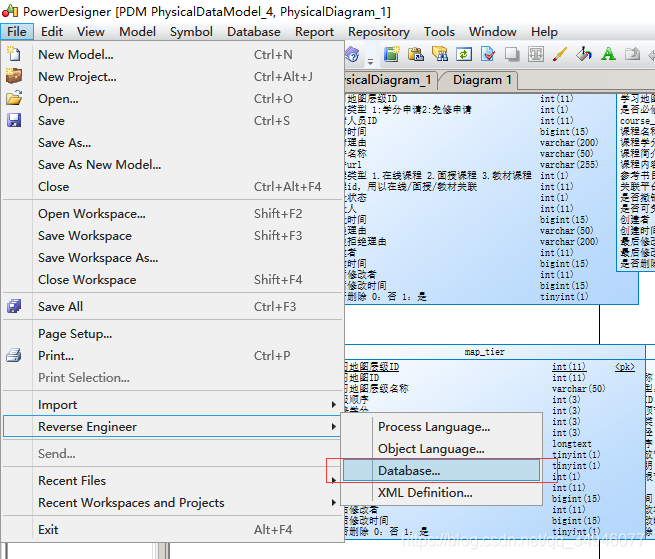

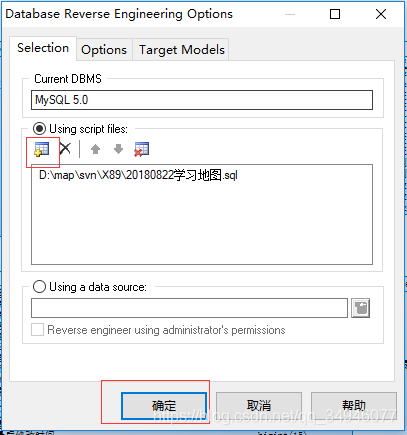

1、mysql的sql脚本生成pdm文件

2、将sql脚本里的comment的内容替换成name列的内容

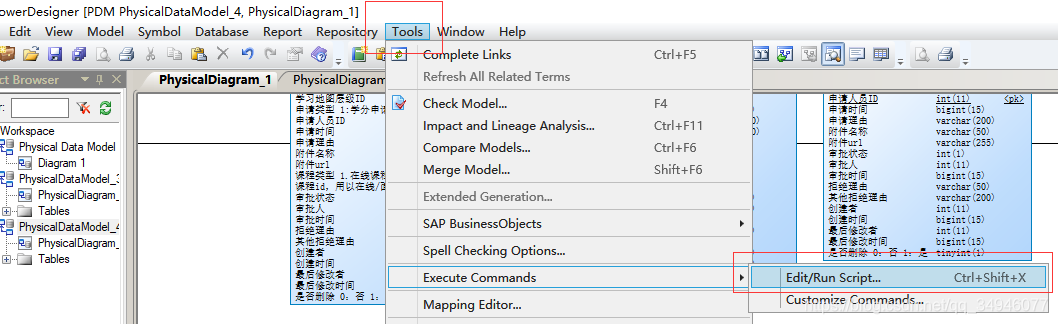

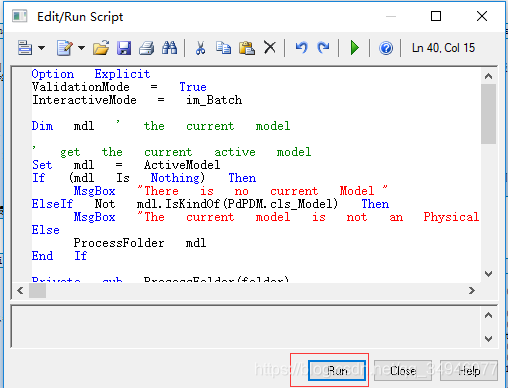

运行的脚本:

Option   Explicit
ValidationMode   =   True
InteractiveMode   =   im_Batch

Dim   mdl   '   the   current   model

'   get   the   current   active   model
Set   mdl   =   ActiveModel
If   (mdl   Is   Nothing)   Then
      MsgBox   "There   is   no   current   Model "
ElseIf   Not   mdl.IsKindOf(PdPDM.cls_Model)   Then
      MsgBox   "The   current   model   is   not   an   Physical   Data   model. "
Else
      ProcessFolder   mdl
End   If

Private   sub   ProcessFolder(folder)
On Error Resume Next
      Dim   Tab   'running     table
      for   each   Tab   in   folder.tables
            if   not   tab.isShortcut   then
                  tab.name   =   tab.comment
                  Dim   col   '   running   column
                  for   each   col   in   tab.columns
                  if col.comment="" then
                  else
                        col.name=   col.comment
                  end if
                  next
            end   if
      next

      Dim   view   'running   view
      for   each   view   in   folder.Views
            if   not   view.isShortcut   then
                  view.name   =   view.comment
            end   if
      next

      '   go   into   the   sub-packages
      Dim   f   '   running   folder
      For   Each   f   In   folder.Packages
            if   not   f.IsShortcut   then
                  ProcessFolder   f
            end   if
      Next
end   sub

3、把name列的内容替换成comment列的内容

Option   Explicit
ValidationMode   =   True
InteractiveMode   =   im_Batch

Dim   mdl   '   the   current   model

'   get   the   current   active   model
Set   mdl   =   ActiveModel
If   (mdl   Is   Nothing)   Then
      MsgBox   "There   is   no   current   Model "
ElseIf   Not   mdl.IsKindOf(PdPDM.cls_Model)   Then
      MsgBox   "The   current   model   is   not   an   Physical   Data   model. "
Else
      ProcessFolder   mdl
End   If

'   This   routine   copy   name   into   comment   for   each   table,   each   column   and   each   view
'   of   the   current   folder
Private   sub   ProcessFolder(folder)
      Dim   Tab   'running     table
      for   each   Tab   in   folder.tables
            if   not   tab.isShortcut   then
                  tab.comment   =   tab.name
                  Dim   col   '   running   column
                  for   each   col   in   tab.columns
                        col.comment=   col.name
                  next
            end   if
      next

      Dim   view   'running   view
      for   each   view   in   folder.Views
            if   not   view.isShortcut   then
                  view.comment   =   view.name
            end   if
      next

      '   go   into   the   sub-packages
      Dim   f   '   running   folder
      For   Each   f   In   folder.Packages
            if   not   f.IsShortcut   then
                  ProcessFolder   f
            end   if
      Next
end   sub
