单链表的局限：

单链表可以用于表示任意的线性关系。

有些线性关系是循环的，即没有队尾元素。

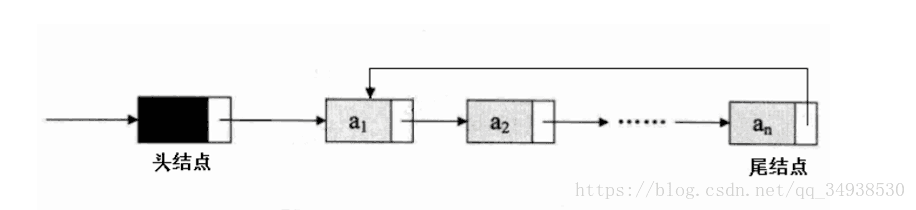

循环链表的定义：

将单链表中的最后一个元素的next指针指向第一个元素。

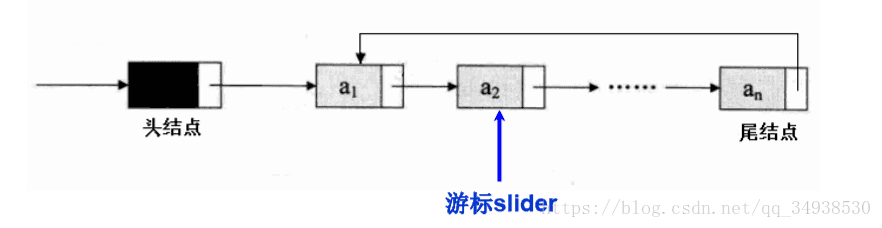

在循环链表中可以定义一个“当前”指针，这个指针通常称为游标，可以通过这个游标来遍历链表中的所有元素。

实现代码：

定义的头文件：

#ifndef __CIRCLELIST_H_
#define __CIRCLELIST_H_

typedef void CircleList;
typedef struct _tag_CircleListNode CircleListNode;
struct  _tag_CircleListNode
{
    CircleListNode* next;
};


CircleList* CircleList_Create();

void CircleList_Destory(CircleList* list);

void CircleList_Clear(CircleList* list);

int CircleList_Length(CircleList* list);

int CircleList_Insert(CircleList *list,CircleListNode *node,int pos);

CircleListNode *CircleList_Get(CircleList* list,int pos);

CircleListNode *CircleList_Delete(CircleList *list,int pos);

CircleListNode *CircleList_DeleteNode(CircleList *list,CircleListNode *node);

CircleListNode *CircleList_Reset(CircleList *list);

CircleListNode *CircleList_Current(CircleList *list);

CircleListNode *CircleList_Next(CircleList *list);

#endif

实现的c文件：

#include <stdio.h>
#include <malloc.h>
#include "CircleList.h"

typedef struct _tag_CircleList
{
    CircleListNode header;
    CircleListNode *slider;//游标，用来遍历链表中的所有元素
    int Length;
}TCircleList;
/*
创建一个头结点
*/
CircleList* CircleList_Create()//O(1)
{
        TCircleList *ret = (TCircleList*)malloc(sizeof(TCircleList));

        if(ret != NULL)
        {
            ret->Length = 0;
            ret->header.next = NULL;
            ret->slider = NULL;
        }

        return ret;
}
/*
释放链表
*/
void CircleList_Destory(CircleList* list)//O(1)
{
    free(list);
}
/*
链表清空
*/
void CircleList_Clear(CircleList* list)//O(1)
{
   TCircleList *sList = (TCircleList*)list;

   if(sList != NULL)
   {
       sList->Length = 0;
       sList->header.next = NULL;
       sList->slider = NULL;
   }
}
/*
得到链表长度
*/
int CircleList_Length(CircleList* list)//O(1)
{
     TCircleList *sList = (TCircleList*)list;
     int ret = -1;

     if(sList != NULL)
     {
        ret = sList->Length;
     }

     return ret;
}
/*
链表的插入
*/
int CircleList_Insert(CircleList *list,CircleListNode *node,int pos)//O(n)
{
   TCircleList *sList = (TCircleList*)list;
   int ret = (sList != NULL)&&(pos >= 0)&&(node != NULL);
   int i;

   if( ret )
   {
      CircleListNode *current = (CircleListNode*)sList;

      for(i=0; (i<pos)&&(current->next != NULL); i++)
      {
            current = current->next;
      }

      node->next = current->next;
      current->next = node;
      //从第一个元素插入
      if(sList->Length == 0)
      {
              sList->header.next = node;
              sList->slider = node;//游标指向第一个节点
      }

      sList->Length++;
      //如果是从第0个位置插入,最后一个节点指向第一个节点
      if(current == (CircleListNode*)sList)
      {
        //定义一个指向最后的指针
        CircleListNode *last = CircleList_Get(list,sList->Length-1);

        last->next = current->next;
      }

   }

   return ret;
}
/*
链表的查找
*/
CircleListNode *CircleList_Get(CircleList* list,int pos)//O(n)
{
    TCircleList *sList = (TCircleList*)list;
    CircleListNode *ret = NULL;
    int i;

    if( (0<=pos) && (sList != NULL) )
    {
          CircleListNode *current = (CircleListNode*)sList;
          for(i=0; i<pos; i++)
          {
            current = current->next;
          }
          ret = current->next;
    }

    return ret;
}
/*
单链表的删除
*/
CircleListNode *CircleList_Delete(CircleList *list,int pos)//O(n)
{
    TCircleList *sList = (TCircleList*)list;
    CircleListNode *ret = NULL;
    int i;

    if( (0<=pos) && (sList != NULL) && (sList->Length > 0))
    {
          CircleListNode *current = (CircleListNode*)sList;
          CircleListNode *frist = (CircleListNode*)sList->header.next;
          CircleListNode *last = NULL;
          for(i=0; i<pos; i++)
          {
            current = current->next;
          }
          //删除第一个元素，last指向最后一个元素
          if(current == (CircleListNode*)sList)
          {
            last = (CircleListNode*)CircleList_Get(sList,sList->Length-1);
          }
          ret = current->next;
          current->next = ret->next;

          sList->Length--;
          //如果删除的是第一节点,头结点指向第二节点,尾节点指向第二节点
          if(last != NULL)
          {
            sList->header.next = ret->next;
            last->next = ret->next;
          }
          //如果删除的元素，恰好是游标所指向的位置，游标向后一个位置
          if(ret == sList->slider)
          {
                  sList->slider = ret->next;
          }
          //删除节点之后长度为0
          if(sList->Length == 0)
          {
             sList->header.next = NULL;
             sList->slider = NULL;
          }
    }
    return ret;
}

CircleListNode *CircleList_DeleteNode(CircleList *list,CircleListNode *node)
{
    TCircleList *sList = (TCircleList*)list;
    CircleListNode *ret = NULL;
    int i;

    if( sList != NULL )
    {
      CircleListNode *current = (CircleListNode*)sList;

      for(i=0; i<sList->Length; i++)
      {
        if(current->next == node)
        {
            ret = current->next;
            break;
        }
        current = current->next;
      }

      if(ret != NULL)
      {
        CircleList_Delete(sList,i);
      }
    }

    return ret;
}

CircleListNode *CircleList_Reset(CircleList *list)
{
    TCircleList *sList = (TCircleList*)list;
    CircleListNode *ret = NULL;

    if( sList != NULL )
    {
        sList->slider = sList->header.next;
        ret =  sList->slider;
    }

    return ret;
}

CircleListNode *CircleList_Current(CircleList *list)
{
    TCircleList *sList = (TCircleList*)list;
    CircleListNode *ret = NULL;

    if( sList != NULL )
    {
        ret = sList->slider;
    }

    return ret;
}

CircleListNode *CircleList_Next(CircleList *list)
{
    TCircleList *sList = (TCircleList*)list;
    CircleListNode *ret = NULL;

    if( (sList != NULL) && (sList->slider != NULL)  )
    {
        ret = sList->slider;
        sList->slider = ret->next;
    }

    return ret;
}

测试程序：

#include <stdio.h>
#include "CircleList.h"
#include <stdlib.h>

struct Value
{
    CircleListNode header;
    int v;
};

int main(int argc, char *argv[])
{
  int i = 0;
  CircleList *list = CircleList_Create();

  struct Value v1;
  struct Value v2;
  struct Value v3;
  struct Value v4;
  struct Value v5;
  struct Value v6;
  struct Value v7;
  struct Value v8;

  v1.v = 1;
  v2.v = 2;
  v3.v = 3;
  v4.v = 4;
  v5.v = 5;
  v6.v = 6;
  v7.v = 7;
  v8.v = 8;

  CircleList_Insert(list,(CircleListNode*)&v1,0);
  CircleList_Insert(list,(CircleListNode*)&v2,0);
  CircleList_Insert(list,(CircleListNode*)&v3,0);
  CircleList_Insert(list,(CircleListNode*)&v4,0);
  CircleList_Insert(list,(CircleListNode*)&v5,0);
  CircleList_Insert(list,(CircleListNode*)&v6,0);

  for(i=0; i<2*CircleList_Length(list); i++)
  {
        struct Value *pv = (struct Value*)CircleList_Get(list,i);
        printf("%d\n",pv->v);
  }

  while(CircleList_Length(list) > 0)
  {
      CircleList_Delete(list,0);
  }

  CircleList_Destory(list);
  printf("Press enter to continue ...");
  getchar();
  while(1);
  return 0;

}
/*测试代码
int i = 0;
  CircleList *list = CircleList_Create();

  struct Value v1;
  struct Value v2;
  struct Value v3;
  struct Value v4;
  struct Value v5;
  struct Value v6;
  struct Value v7;
  struct Value v8;

  v1.v = 1;
  v2.v = 2;
  v3.v = 3;
  v4.v = 4;
  v5.v = 5;
  v6.v = 6;
  v7.v = 7;
  v8.v = 8;

  CircleList_Insert(list,(CircleListNode*)&v1,CircleList_Length(list));
  CircleList_Insert(list,(CircleListNode*)&v2,CircleList_Length(list));
  CircleList_Insert(list,(CircleListNode*)&v3,CircleList_Length(list));
  CircleList_Insert(list,(CircleListNode*)&v4,CircleList_Length(list));
  CircleList_Insert(list,(CircleListNode*)&v5,CircleList_Length(list));
  CircleList_Insert(list,(CircleListNode*)&v6,CircleList_Length(list));

  CircleList_Insert(list,(CircleListNode*)&v7,7);
  CircleList_Delete(list,0);

  for(i=0; i<2*CircleList_Length(list); i++)
  {
        struct Value *pv = (struct Value*)CircleList_Get(list,i);
        printf("%d\n",pv->v);
  }

  printf("\n");

  while(CircleList_Length(list) > 0)
  {
     struct Value *pv = (struct Value*)CircleList_Delete(list,0);
     printf("%d\n",pv->v);
  }

  printf("\n");
  //循环列表的骚操作
  CircleList_Insert(list,(CircleListNode*)&v1,CircleList_Length(list));
  CircleList_Insert(list,(CircleListNode*)&v2,CircleList_Length(list));
  CircleList_Insert(list,(CircleListNode*)&v3,CircleList_Length(list));
  CircleList_Insert(list,(CircleListNode*)&v4,CircleList_Length(list));
  CircleList_Insert(list,(CircleListNode*)&v5,CircleList_Length(list));
  CircleList_Insert(list,(CircleListNode*)&v6,CircleList_Length(list));
  CircleList_Insert(list,(CircleListNode*)&v7,CircleList_Length(list));
  CircleList_Insert(list,(CircleListNode*)&v8,CircleList_Length(list));
  //通过游标获取元素
  for(i=0; i<CircleList_Length(list); i++)
  {
     struct Value *pv = (struct Value*)CircleList_Next(list);
     printf("%d\n",pv->v);
  }

  printf("\n");
  //重置链表的游标
  CircleList_Reset(list);
  //约瑟夫问题
  while(CircleList_Length(list) > 0)
  {
     struct Value *pv = NULL;
     //每次取出第三个
     for(i=1;i<3;i++)
     {
       CircleList_Next(list);
     }
     pv = (struct Value*)CircleList_Current(list);
     printf("%d\n",pv->v);
     CircleList_DeleteNode(list,(CircleListNode*)pv);
  }

  CircleList_Destory(list);
*/
