本文深入探讨Spring框架中HierarchicalBeanFactory的概念，通过实例演示如何创建父子容器，展示子容器如何访问父容器的bean，以及父容器无法访问子容器bean的特点，强调Spring架构的灵活性和扩展性。

一、介绍

HierarchicalBeanFactory是什么呢？

spring ioc容器可以建立父子层级管关联的容器体系，子容器可以访问父容器的bean，反过来父容器权不能访问子容器的bean，在容器里面，bean的id必须唯一，但是子容器可以拥有和父容器相同id的bean，父子容器层级关系增强了spring架构的灵活性和扩展性。

二、测试

接下来我们来测试一下父容器

定义两个bean

package spring.hierarchical;

import java.io.Serializable;

/**
 * @author jiezhou
 * @CalssName:
 * @Package com.Hierarchical
 * @Description:
 * @date 2020/6/22/10:34
 */
public class Child implements Serializable{

    private String name;
    private int age;

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int age) {
        this.age = age;
    }

    @Override
    public String toString() {
        return "Child{" +
                "name='" + name + '\'' +
                ", age=" + age +
                '}';
    }
}

package spring.hierarchical;

import java.io.Serializable;

/**
 * @author jiezhou
 * @CalssName: Father
 * @Package com.Hierarchical
 * @Description:
 * @date 2020/6/22/10:35
 */
public class Father implements Serializable {
    private String name;
    private int age;

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int age) {
        this.age = age;
    }

    @Override
    public String toString() {
        return "Father{" +
                "name='" + name + '\'' +
                ", age=" + age +
                '}';
    }
}

定义两个容器对应配置文件

beanChild.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context-4.3.xsd
    ">

    <bean id="child" class="spring.hierarchical.Child"
           p:name="大头儿子" p:age="11"
     />
</beans>

beanFather.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:p="http://www.springframework.org/schema/p"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
    ">
    <bean id="father" class="spring.hierarchical.Father"
          p:name="小头爸爸" p:age="33"
    />
</beans>

log4j.properties

log4j.rootLogger=ERROR, stdout

log4j.logger.xyz.coolblog.chapter1.dao=TRACE
log4j.logger.xyz.coolblog.chapter1.dao2=TRACE
log4j.logger.xyz.coolblog.chapter4.dao=TRACE
log4j.logger.xyz.coolblog.chapter7.dao=TRACE

log4j.logger.xyz.coolblog.chapter3.model.dao=TRACE
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target = System.out
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%5p [%t] - %m%n

然后在定义测试类

HierarchicalBeanFactoryTest

package spring.hierarchical;

import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.support.DefaultListableBeanFactory;
import org.springframework.beans.factory.xml.XmlBeanDefinitionReader;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import org.springframework.core.io.Resource;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import org.springframework.util.Assert;

import java.io.IOException;

/**
 * @author jiezhou
 * @CalssName: HierarchicalBeanFactoryTest
 * @Package com.Hierarchical
 * @Description: spring的父子容器测试
 * @date 2020/6/22/10:32
 */
public class HierarchicalBeanFactoryTest {

    /*
    * 步骤
    * 1、建立多个bean.xml 文件对应于多个容器
    *
    * 2、创建父子容器
    * 3、HierarchicalBeanFactory添加父容器
    *
    * */


    public static void main(String[] args) throws IOException {
        //创建子容器
        /*ClassPathXmlApplicationContext childClassPathXmlApplicationContext = new ClassPathXmlApplicationContext("classpath:beanChild.xml");

        //创建父容器
        ClassPathXmlApplicationContext fatherClassPathXmlApplicationContext = new ClassPathXmlApplicationContext("classpath:beanFather.xml");

        childClassPathXmlApplicationContext.setParent(fatherClassPathXmlApplicationContext);

//        BeanFactory factory = child.getParentBeanFactory();
        try {
            //子容器获取父容器的bean
            Child child = (Child) childClassPathXmlApplicationContext.getBean("child");
            Assert.notNull(child);
            System.out.println(child.toString());
        }catch (Exception e){
            e.printStackTrace();
        }
        Father father = (Father) fatherClassPathXmlApplicationContext.getBean("father");
        System.out.println(father.toString());*/


        //============================================上面的代码不能正常测试子父容器（HierarchicalBeanFactory）============================================
        //child
        PathMatchingResourcePatternResolver pathMatchingResourcePatternResolver = new PathMatchingResourcePatternResolver();
        Resource resource = pathMatchingResourcePatternResolver.getResource("classpath:beanChild.xml");
        DefaultListableBeanFactory childFactory = new DefaultListableBeanFactory();
        XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(childFactory);
        reader.loadBeanDefinitions(resource);

        //father
        PathMatchingResourcePatternResolver fathePathMatchingResourcePatternResolver = new PathMatchingResourcePatternResolver();
        Resource fatherResource = fathePathMatchingResourcePatternResolver.getResource("classpath:beanFather.xml");
        DefaultListableBeanFactory fatherFactory = new DefaultListableBeanFactory();
        XmlBeanDefinitionReader fatherReader = new XmlBeanDefinitionReader(fatherFactory);
        fatherReader.loadBeanDefinitions(fatherResource);


        childFactory.setParentBeanFactory(fatherFactory);
        //1、测试父容器调用自己bean和字容器的bean，我们发现父容器不能获取子容器的bean
        Father father = fatherFactory.getBean("father",Father.class);
        System.out.println(father.toString());
        Assert.notNull(father);
        try {
            Child child = (Child) fatherFactory.getBean("child");
            Assert.isNull(child);
        }catch (Exception e){
            e.printStackTrace();
        }

        //2、测试子容器获取父容器的bean
        Father bean = childFactory.getBean("father", Father.class);
        Assert.notNull(bean);
        System.out.println("我是子容器获取的父容器的bean"+"\r\n"+bean.toString());

    }
}

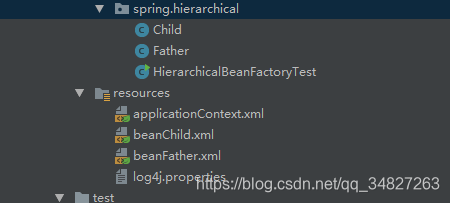

总的结构图
