神经网络图像二分类



实现了一个神经网络-二进制分类

让我们在python中实现一个用于二进制分类的基本神经网络，该神经网络用于在给定图像为0或1时进行分类。

In [277]:



import pandas as pd

import numpy as np

​

import matplotlib.pyplot as plt

import matplotlib.image as mpimg

import seaborn as sns

%matplotlib inline

​

import itertools

from sklearn.model_selection import train_test_split

from sklearn.metrics import confusion_matrix

from sklearn import  metrics

2.1数据准备

第一步是加载和准备数据集

数据来源：https://github.com/woshizhangrong/train_raw

In [278]:



train = pd.read_csv("E:/Digit_Recognizer/train1.csv")

In [279]:



sns.countplot(train['label'])

Out[279]:

<matplotlib.axes._subplots.AxesSubplot at 0x243f59e8>

In [280]:



# Check for null and missing values

train.isnull().any().describe()

Out[280]:

count       785
unique        1
top       False
freq        785
dtype: object

我检查损坏的图像(里面缺少值)。

在训练和测试数据集中没有缺失值。所以我们可以安全的继续。

In [281]:



# include only the rows having label = 0 or 1 (binary classification)

X = train[train['label'].isin([0, 1])]

​

# target variable

Y = train[train['label'].isin([0, 1])]['label']

​

# remove the label from X

X = X.drop(['label'], axis = 1)

2.2实现激活函数

我们将使用sigmoid激活函数，因为它输出0和1之间的值，所以这是一个很好的选择，对于二元分类问题

In [282]:



# implementing a sigmoid activation function

def sigmoid(z):

    s = 1.0/ (1 + np.exp(-z))

    return s

2.3定义神经网络架构

创建一个有三层的模型——输入，隐藏，输出。

In [283]:



def network_architecture(X, Y):

    # nodes in input layer

    n_x = X.shape[0]

    # nodes in hidden layer

    n_h = 10

    # nodes in output layer

    n_y = Y.shape[0]

    return (n_x, n_h, n_y)

2.4定义神经网络参数

神经网络参数是权重和偏差，我们需要初始化为零值。第一层只包含输入，所以没有权重和偏差，但是隐藏层和输出层有一个权重和偏差项。(W1、b1、W2、b2)

In [284]:



def define_network_parameters(n_x, n_h, n_y):

    W1 = np.random.randn(n_h,n_x) * 0.01 # random initialization

    b1 = np.zeros((n_h, 1)) # zero initialization

    W2 = np.random.randn(n_y,n_h) * 0.01

    b2 = np.zeros((n_y, 1))

    return {"W1": W1, "b1": b1, "W2": W2, "b2": b2}

2.5实现正向传播

隐藏层和输出层将使用sigmoid激活函数计算激活，并将其向前传递。在计算这个激活时，在将输入传递给函数之前，输入要乘以权重并加上偏差。

In [285]:



def forward_propagation(X, params):

    Z1 = np.dot(params['W1'], X)+params['b1']

    A1 = sigmoid(Z1)

​

    Z2 = np.dot(params['W2'], A1)+params['b2']

    A2 = sigmoid(Z2)

    return {"Z1": Z1, "A1": A1, "Z2": Z2, "A2": A2}

2.6计算网络误差

为了计算成本，一种直接的方法是计算预测值与实际值之间的绝对误差。但更好的损失函数是对数损失函数，其定义为:

-Summ ( Log (Pred) Actual + Log (1 - Pred ) Actual ) / m

In [286]:



def compute_error(Predicted, Actual):

    logprobs = np.multiply(np.log(Predicted), Actual)+ np.multiply(np.log(1-Predicted), 1-Actual)

    cost = -np.sum(logprobs) / Actual.shape[1]

    return np.squeeze(cost)

2.7实现反向传播

在反向传播函数中，将误差反向传递到前一层，计算权值和偏差的导数。然后使用导数更新权重和偏差。

In [287]:



def backward_propagation(params, activations, X, Y):

    m = X.shape[1]

    # output layer

    dZ2 = activations['A2'] - Y # compute the error derivative

    dW2 = np.dot(dZ2, activations['A1'].T) / m # compute the weight derivative

    db2 = np.sum(dZ2, axis=1, keepdims=True)/m # compute the bias derivative

    # hidden layer

    dZ1 = np.dot(params['W2'].T, dZ2)*(1-np.power(activations['A1'], 2))

    dW1 = np.dot(dZ1, X.T)/m

    db1 = np.sum(dZ1, axis=1,keepdims=True)/m

    return {"dW1": dW1, "db1": db1, "dW2": dW2, "db2": db2}

​

def update_parameters(params, derivatives, alpha = 1.2):

    # alpha is the model's learning rate

    params['W1'] = params['W1'] - alpha * derivatives['dW1']

    params['b1'] = params['b1'] - alpha * derivatives['db1']

    params['W2'] = params['W2'] - alpha * derivatives['dW2']

    params['b2'] = params['b2'] - alpha * derivatives['db2']

    return params

2.8模型的编写和培训

创建一个编译所有关键函数的函数，并创建一个神经网络模型。

In [288]:



def neural_network(X, Y, n_h, num_iterations=100):

    n_x = network_architecture(X, Y)[0]

    n_y = network_architecture(X, Y)[2]

    params = define_network_parameters(n_x, n_h, n_y)

    for i in range(0, num_iterations):

        results = forward_propagation(X, params)

        error = compute_error(results['A2'], Y)

        derivatives = backward_propagation(params, results, X, Y)

        params = update_parameters(params, derivatives)

    return params

In [289]:



y = Y.values.reshape(1, Y.size)

x = X.T.values

model = neural_network(x, y, n_h = 10, num_iterations = 10)

d:\ProgramData\Anaconda3\lib\site-packages\ipykernel_launcher.py:3: RuntimeWarning: overflow encountered in exp
  This is separate from the ipykernel package so we can avoid doing imports until

2.9预测

In [290]:



def predict(parameters, X):

    results = forward_propagation(X, parameters)

    print (results['A2'][0])

    predictions = np.around(results['A2'])

    return predictions

​

predictions = predict(model, x)

print ('Accuracy: %d' % float((np.dot(y,predictions.T) + np.dot(1-y,1-predictions.T))/float(y.size)*100) + '%')

[0.96541361 0.40257492 0.96541361 ... 0.96541361 0.40257492 0.96541361]
Accuracy: 94%

d:\ProgramData\Anaconda3\lib\site-packages\ipykernel_launcher.py:3: RuntimeWarning: overflow encountered in exp
  This is separate from the ipykernel package so we can avoid doing imports until

混淆矩阵

混淆矩阵可以非常有助于看到您的模型的缺点。

In [291]:



def plot_confusion_matrix(cm, classes,

                          normalize=False,

                          title='Confusion matrix',

                          cmap=plt.cm.Blues):

    """

    This function prints and plots the confusion matrix.

    Normalization can be applied by setting `normalize=True`.

    """

    plt.imshow(cm, interpolation='nearest', cmap=cmap)

    plt.title(title)

    plt.colorbar()

    tick_marks = np.arange(len(classes))

    plt.xticks(tick_marks, classes, rotation=45)

    plt.yticks(tick_marks, classes)

​

    if normalize:

        cm = cm.astype('float') / cm.sum(axis=1)[:, np.newaxis]

​

    thresh = cm.max() / 2.

    for i, j in itertools.product(range(cm.shape[0]), range(cm.shape[1])):

        plt.text(j, i, cm[i, j],

                 horizontalalignment="center",

                 color="white" if cm[i, j] > thresh else "black")

​

    plt.tight_layout()

    plt.ylabel('True label')

    plt.xlabel('Predicted label')

In [292]:

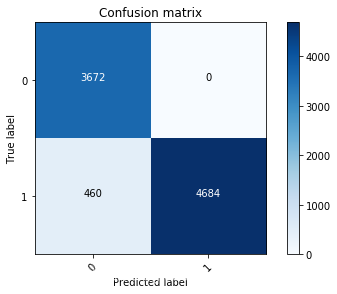

confusion_mtx = confusion_matrix(predictions.reshape(-1,1), y.reshape(-1,1))

# plot the confusion matrix

plot_confusion_matrix(confusion_mtx, classes = range(2))

3.实现了神经网络的多类分类

在前面的步骤中，我讨论了如何在python中从头开始实现用于二进制分类的NN。Python的库(如sklearn)提供了高效的神经网络的优秀实现，可以直接在数据集上实现神经网络。在本节中，让我们实现一个多类神经网络来对图像中显示的数字进行从0到9的分类

3.1数据准备

将列车数据集分割为列车和验证集

In [293]:



Y = train['label'][:20000] # use more number of rows for more training

X = train.drop(['label'], axis = 1)[:20000] # use more number of rows for more training

x_train, x_val, y_train, y_val = train_test_split(X, Y, test_size=0.20, random_state=42)

In [294]:



# Some examples

plt.imshow(x_train.iloc[0].values.reshape(28,28))

Out[294]:

<matplotlib.image.AxesImage at 0x1c155588>

3.2模型的训练

训练具有10个隐含层的神经网络模型。

In [295]:



from sklearn import neural_network

model = neural_network.MLPClassifier(alpha=1e-5, hidden_layer_sizes=(80,), solver='lbfgs', random_state=18)

model.fit(x_train, y_train)

Out[295]:

MLPClassifier(activation='relu', alpha=1e-05, batch_size='auto', beta_1=0.9,
       beta_2=0.999, early_stopping=False, epsilon=1e-08,
       hidden_layer_sizes=(80,), learning_rate='constant',
       learning_rate_init=0.001, max_iter=200, momentum=0.9,
       nesterovs_momentum=True, power_t=0.5, random_state=18, shuffle=True,
       solver='lbfgs', tol=0.0001, validation_fraction=0.1, verbose=False,
       warm_start=False)

3.3 预测

In [296]:



predicted = model.predict(x_val)

print("Classification Report:\n %s:" % (metrics.classification_report(y_val, predicted)))

print(model.score(x_val,y_val))

Classification Report:
              precision    recall  f1-score   support

          0       0.95      0.98      0.96       390
          1       0.98      0.98      0.98       483
          2       0.92      0.91      0.91       386
          3       0.92      0.89      0.90       412
          4       0.92      0.93      0.92       379
          5       0.91      0.91      0.91       355
          6       0.96      0.95      0.95       396
          7       0.94      0.93      0.93       452
          8       0.88      0.92      0.90       356
          9       0.89      0.89      0.89       391

avg / total       0.93      0.93      0.93      4000
:
0.92825

In [297]:

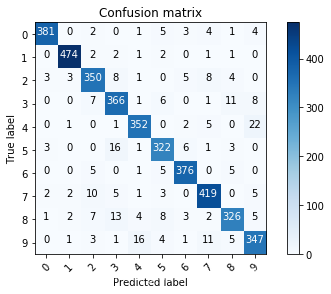

confusion_mtx = confusion_matrix(predicted, y_val)

# plot the confusion matrix

plot_confusion_matrix(confusion_mtx, classes = range(10))

In [298]:



# Display some error results

def display_errors(errors_index,img_errors,pred_errors, obs_errors):

    """ This function shows 6 images with their predicted and real labels"""

    n = 0

    nrows = 2

    ncols = 3

    fig, ax = plt.subplots(nrows,ncols,sharex=True,sharey=True)

    for row in range(nrows):

        for col in range(ncols):

            error = errors_index[n]

            ax[row,col].imshow(img_errors.iloc[error].values.reshape(28,28))

            ax[row,col].set_title("Predicted label :{}\nTrue label :{}".format(pred_errors[error],obs_errors.values[error]))

            n += 1

​

In [299]:



# Errors are difference between predicted labels and true labels

errors = (predicted - y_val != 0)

pred_classes_errors = predicted[errors]

image_errors = x_val[errors]

true_classes_errors = y_val[errors]

error_idx = np.random.randint(low=0, high=len(image_errors), size=6)

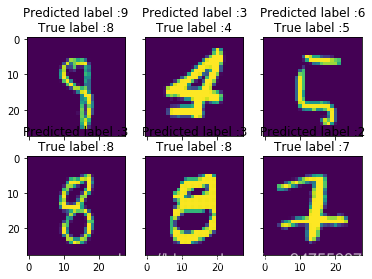

In [300]:



# Show the 6 errors

display_errors(error_idx,image_errors ,pred_classes_errors, true_classes_errors)
