xxl-job部署记录

服务端

官网：https://www.jianshu.com/p/fa7186bea84b

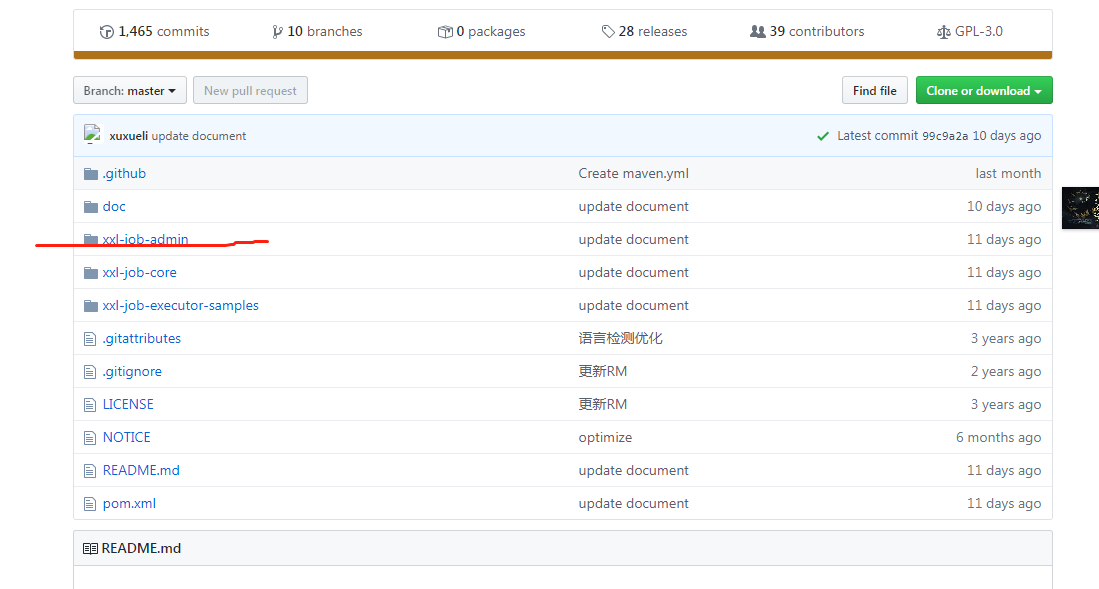

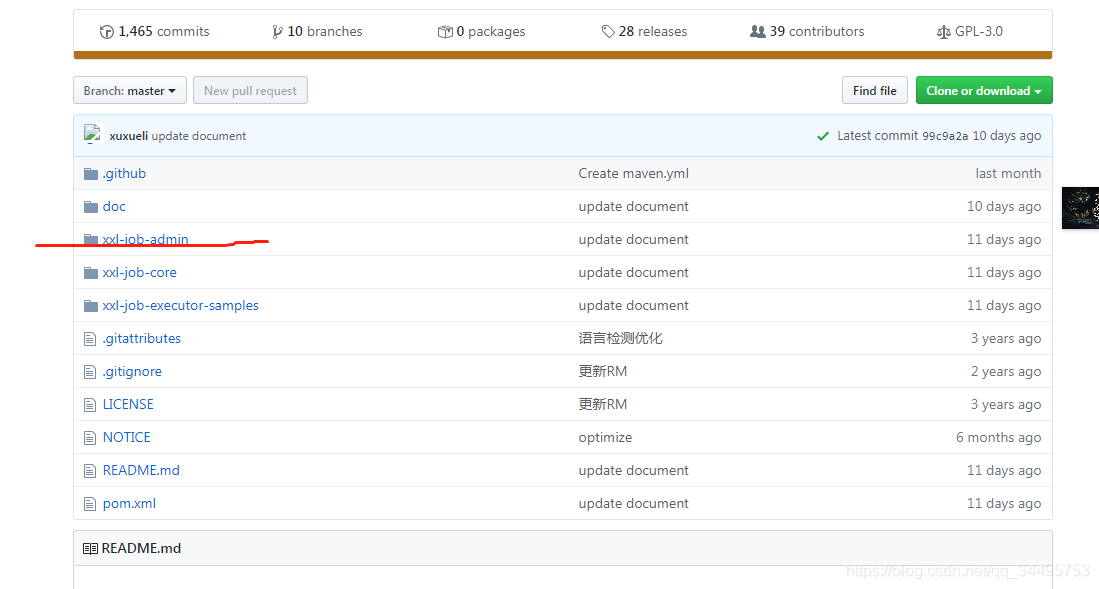

源码：https://github.com/xuxueli/xxl-job/

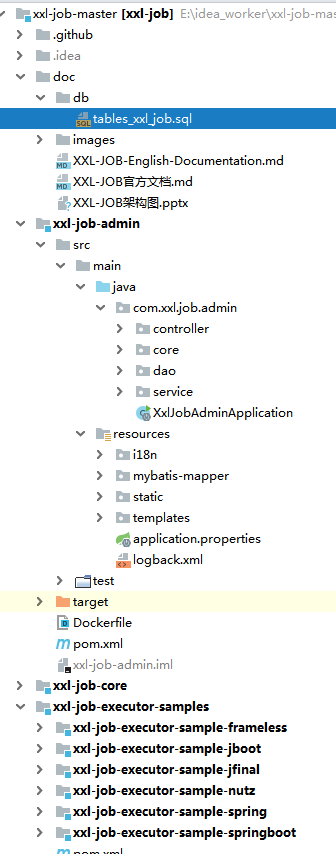

下载后配置一些本地的数据库导入sql如图



启动就行

http://localhost:8080/xxl-job-admin   登陆

 账号：admin；密码：123456

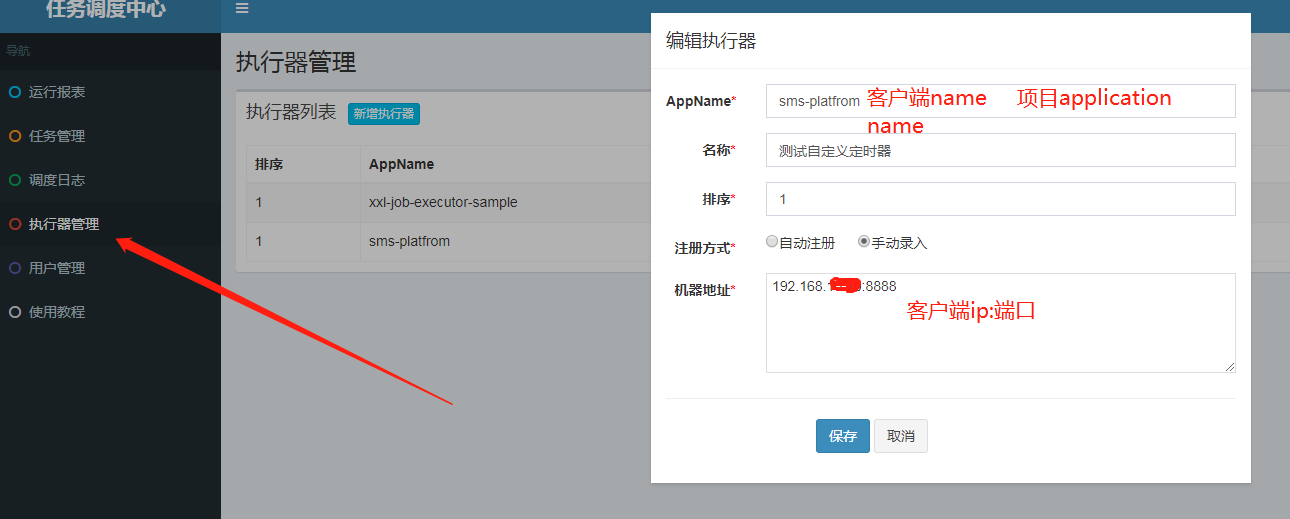

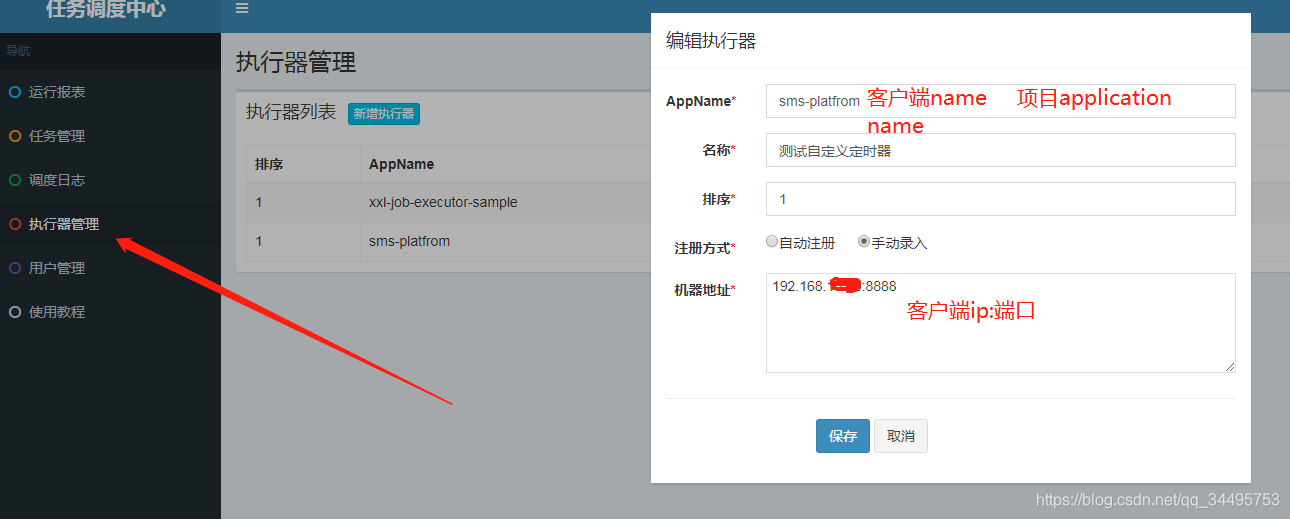

先建立执行器

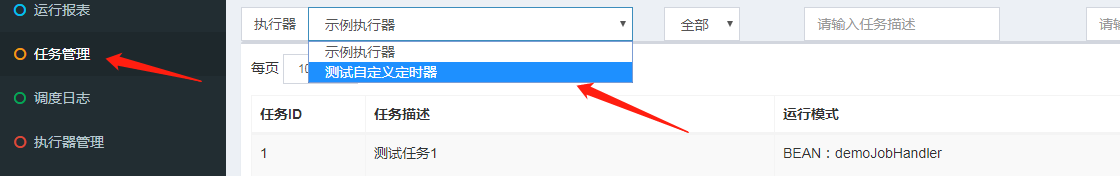

 在建立任务（选择自定义设置的执行器）

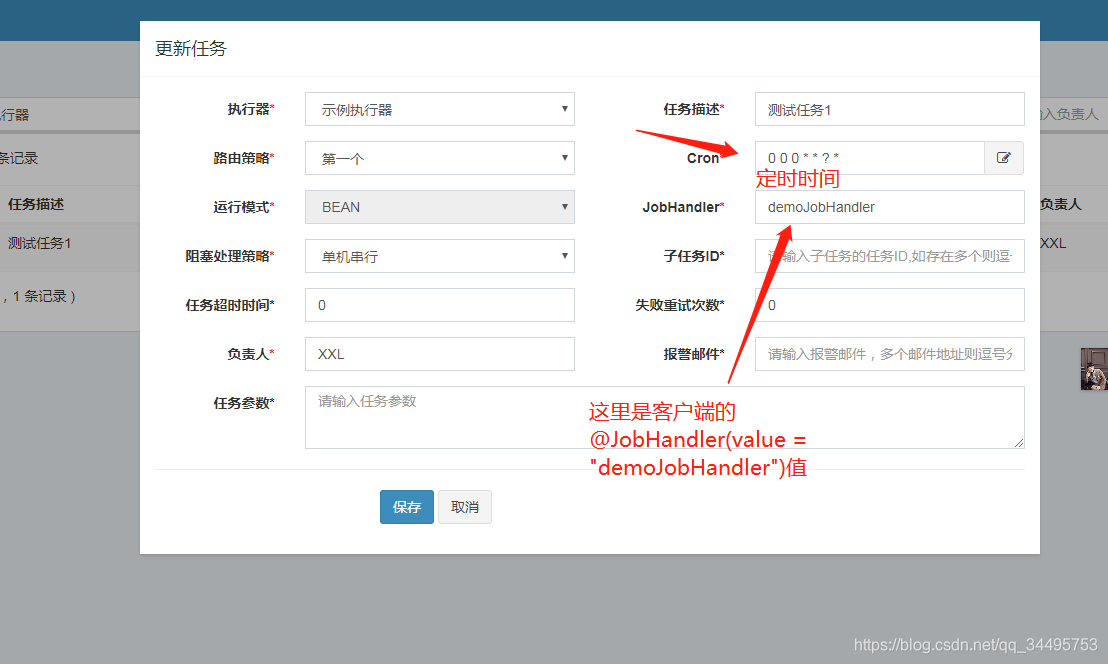

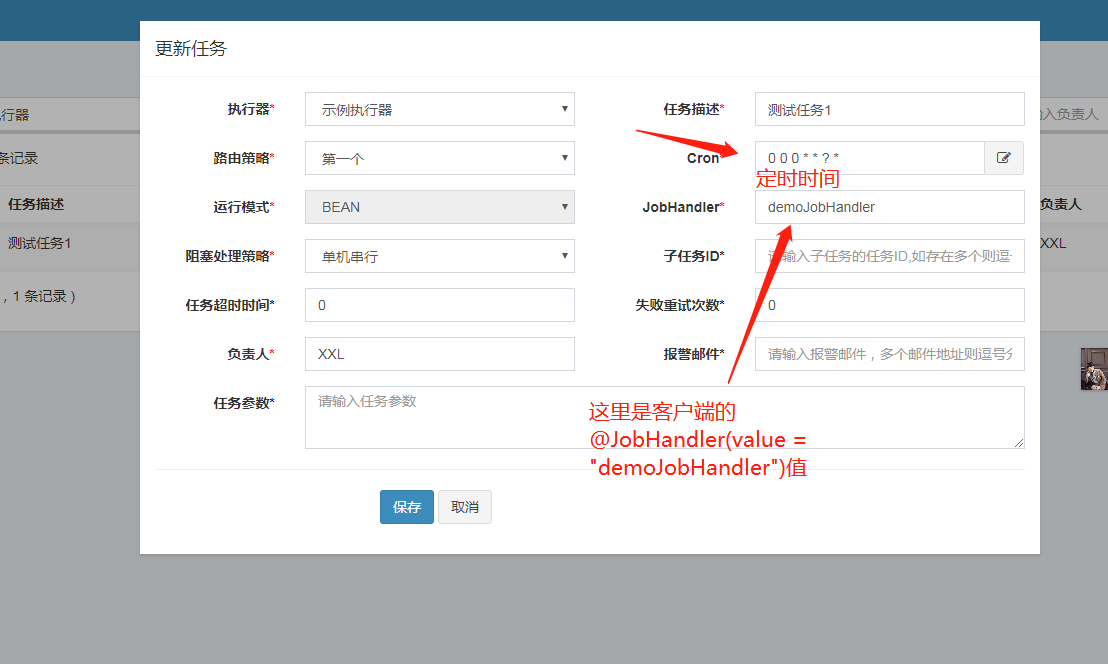

 创建任务

 测试

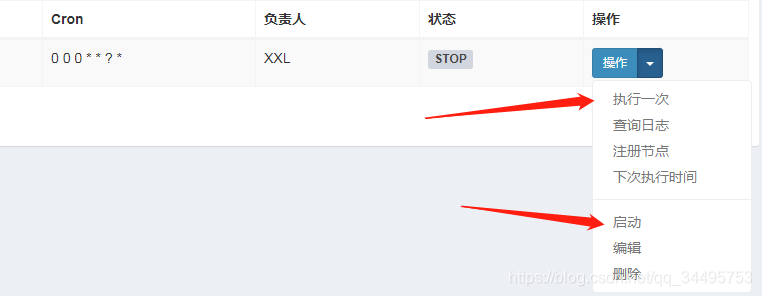

任务列表可点击执行一次测试，正常运行点击执行就行

客户端

maven导入jar

<dependency>
            <groupId>com.xuxueli</groupId>
            <artifactId>xxl-job-core</artifactId>
            <version>2.1.2</version>
        </dependency>

加入config类

@Configuration
public class XxlJobConfig {
    private Logger logger = LoggerFactory.getLogger(XxlJobConfig.class);

    @Value("${xxl.job.admin.addresses}")
    private String adminAddresses;

    @Value("${xxl.job.executor.appname}")
    private String appName;

    @Value("${xxl.job.executor.ip}")
    private String ip;

    @Value("${xxl.job.executor.port}")
    private int port;

    @Value("${xxl.job.accessToken}")
    private String accessToken;

    @Value("${xxl.job.executor.logpath}")
    private String logPath;

    @Value("${xxl.job.executor.logretentiondays}")
    private int logRetentionDays;


    @Bean
    public XxlJobSpringExecutor xxlJobExecutor() {
        logger.info(">>>>>>>>>>> xxl-job config init.");
        XxlJobSpringExecutor xxlJobSpringExecutor = new XxlJobSpringExecutor();
        xxlJobSpringExecutor.setAdminAddresses(adminAddresses);
        xxlJobSpringExecutor.setAppName(appName);
        xxlJobSpringExecutor.setIp(ip);
        xxlJobSpringExecutor.setPort(port);
        xxlJobSpringExecutor.setAccessToken(accessToken);
        xxlJobSpringExecutor.setLogPath(logPath);
        xxlJobSpringExecutor.setLogRetentionDays(logRetentionDays);

        return xxlJobSpringExecutor;
    }

测试类

@JobHandler(value = "demoJobHandler")
@Component
public class demo extends IJobHandler {

    @Override
    public ReturnT<String> execute(String s) throws Exception {
        System.out.println("自定义测试");
        return null;
    }
}

yml配置文件

xxl:
  job:
    ### 执行器通讯TOKEN [选填]：非空时启用；
    accessToken: ''
    admin:
      ### 调度中心部署跟地址 [选填]：如调度中心集群部署存在多个地址则用逗号分隔。执行器将会使用该地址进行"执行器心跳注册"和"任务结果回调"；为空则关闭自动注册；
      addresses: http://192.168.10.40:8080/xxl-job-admin
    executor:
      ### 执行器AppName [选填]：执行器心跳注册分组依据；为空则关闭自动注册
      appname: sms-platfrom
      ip: 192.168.10.40        //本地id,在admin端执行器中也要配置
      logpath: /data/applogs/xxl-job/jobhandler
      logretentiondays: 30
      port: 8888
