前言:
CocoaPods 作为目前库依赖管理的工具,是非常好用的一把利器。我们有了它,再也无需拖
第三方库以及第三方库所依赖的framework仅仅只需要通过终端,输入一些指令即可完成这些操作;而且涉及到第三方库的更新升级也可以通过 CocoaPods 进行手动管理更新。
一、基本知识简介
1、官网及相关链接
- Rvm 官网 : https://www.rvm.io/
Ruby 官网 :https://rubygems.org/
CocoaPods 官网 :https://cocoapods.org/
Rvm 安装指南:https://rvm.io/rvm/install
Homebrew 官网:http://brew.sh/index_zh-cn.html
ruby 镜像 - taobao:https://ruby.taobao.org/
ruby 镜像 - china:https://gems.ruby-china.org/2、Homebrew 介绍
- Homebrew 是一个软件包管理器,用于在mac上安装一些os x上没有的UNiX工具;类似于360软件管理器。
3、Rvm 介绍
Rvm 全称 Ruby Version Manager ,是安装和管理 ruby 的一种工具。
摘录:RVM is a command-line tool which allows you to easily install, manage, and work with multiple ruby environments from interpreters to sets of gems.
4、Ruby 介绍
- Ruby 是一种面向对象的脚本语言,简单易用,功能强大。能跨平台和可移植性好等等。其实就是种脚本语言。
- Ruby 的软件源使用的是亚马逊的云服务,国内网络环境下载时可能会出现各种不稳定和超时,所以自带的需要翻墙。
据消息了解,2016.06 淘宝源 暂停维护了,建议使用 China ruby 源。
- 可以将 官方 ruby 源 替换成国内 淘宝 ruby([https://ruby.taobao.org/](https://ruby.taobao.org/) ) - 或者是由 China ruby 源([https://gems.ruby-china.org/](https://gems.ruby-china.org/) )。
5、CocoaPods 介绍
- CocoaPods 是 iOS 最常用的第三方类库管理工具,绝大部分有名的开源类库都支持 CocoaPods。
- CocoaPods 是用 ruby 实现的,要想使用它首先需要有 ruby 的环境。幸运的是OS X系统默认已经可以运行 ruby 了。但是有时候 ruby 版本过低是无法正常支持 CocoaPods 的使用,所以需要先安装更新升级 rvm 和 ruby。
二、CocoaPods 安装使用
如果没有意外情况,按照下面走就没问题了
1、检查安装 rvm 环境( 正常情况可直接略过此步骤 )
- 检查当前 rvm 环境( 此处检查是否存在 rvm 环境 ):
$ rvm -v
`输出结果:( 存在 rvm 环境)` muxuguixiandeMacBook-Pro:~ jijiucheng$ rvm -v rvm 1.29.1 (latest) by Wayne E. Seguin <wayneeseguin@gmail.com>, Michal Papis <mpapis@gmail.com> [https://rvm.io/]
`输出结果:(不存在 rvm 环境)` muxuguixiandeMacBook-Pro:~ jijiucheng$ rvm -v -bash: rvm: command not found
情况一:如果不存在 rvm 环境,先安装 配置 rvm 环境;① 期间可能会问你 `sudo管理员` 密码,以及自动通过 `homebrew` 安装依赖包; 等待一段时间后就可以成功安装好 `rvm`。
$ curl -L https://get.rvm.io | bash -s stable

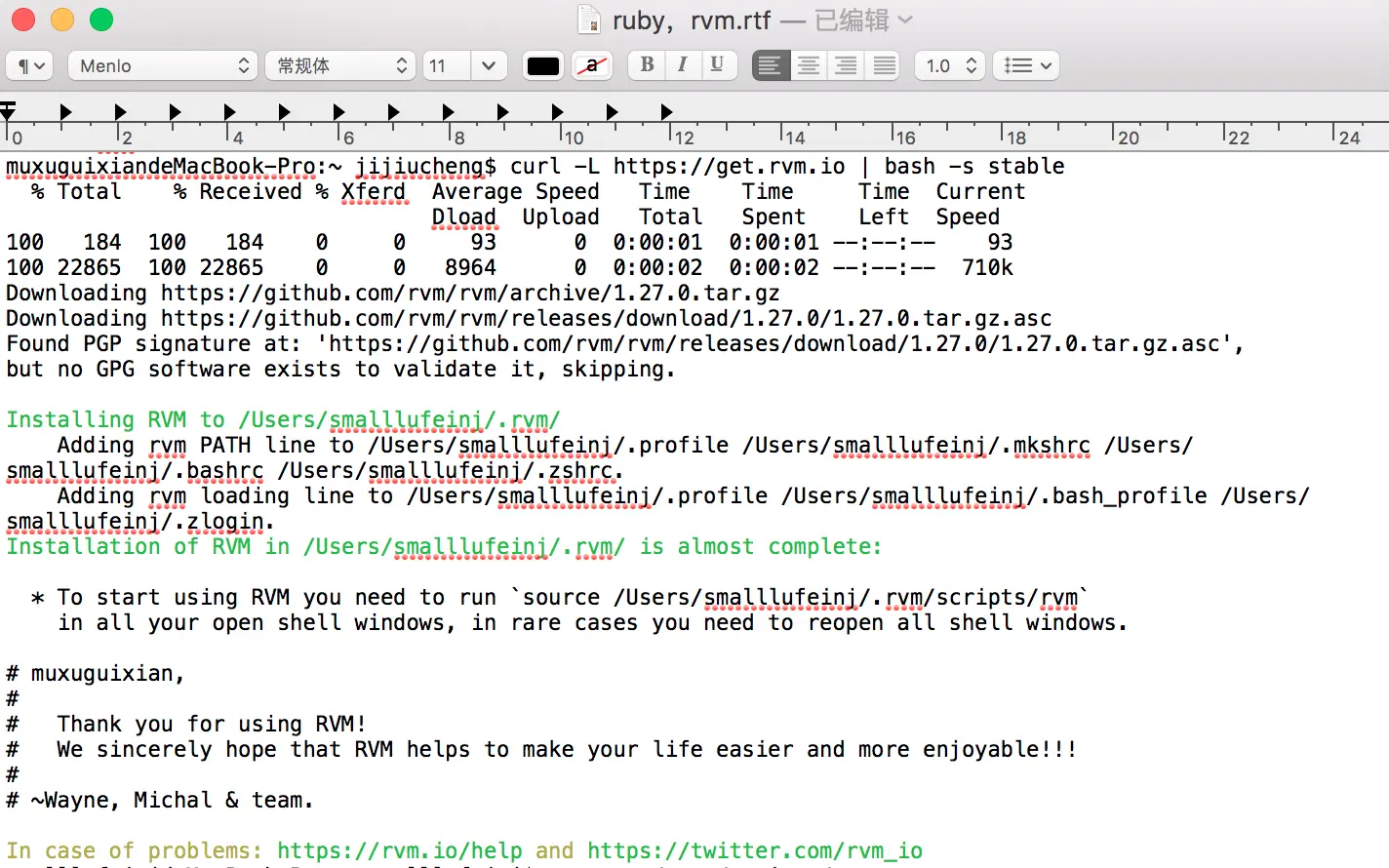

输出结果:(下载安装)(显示的 `` 代表一行空格) muxuguixiandeMacBook-Pro:~ jijiucheng$ curl -L https://get.rvm.io | bash -s stable % Total % Received % Xferd Average Speed Time Time Time Current Dload Upload Total Spent Left Speed 100 184 100 184 0 0 93 0 0:00:01 0:00:01 --:--:-- 93 100 22865 100 22865 0 0 8964 0 0:00:02 0:00:02 --:--:-- 710k Downloading https://github.com/rvm/rvm/archive/1.27.0.tar.gz Downloading https://github.com/rvm/rvm/releases/download/1.27.0/1.27.0.tar.gz.asc Found PGP signature at: 'https://github.com/rvm/rvm/releases/download/1.27.0/1.27.0.tar.gz.asc', but no GPG software exists to validate it, skipping. `` `Installing RVM to /Users/smalllufeinj/.rvm/` Adding rvm PATH line to /Users/smalllufeinj/.profile /Users/smalllufeinj/.mkshrc /Users/smalllufeinj/.bashrc /Users/smalllufeinj/.zshrc. Adding rvm loading line to /Users/smalllufeinj/.profile /Users/smalllufeinj/.bash_profile /Users/smalllufeinj/.zlogin. `Installation of RVM in /Users/smalllufeinj/.rvm/ is almost complete:` `` .* To start using RVM you need to run `source /Users/smalllufeinj/.rvm/scripts/rvm` in all your open shell windows, in rare cases you need to reopen all shell windows. `` # muxuguixian, # # Thank you for using RVM! # We sincerely hope that RVM helps to make your life easier and more enjoyable!!! # # ~Wayne, Michal & team. `` In case of problems: https://rvm.io/help and https://twitter.com/rvm_io
![]()
下载安装 rvm 环境.
② 然后,载入 RVM 环境(新开 Termal 就不用这么做了,会自动重新载入的)。
$ source ~/.rvm/scripts/rvm
输出结果:(^_^)(什么都没有输出) muxuguixiandeMacBook-Pro:~ jijiucheng$ source ~/.rvm/scripts/rvm
③ 再次检查 rvm 是否安装正确。
$ rvm -v
`输出结果:( 存在 rvm 环境)` muxuguixiandeMacBook-Pro:~ jijiucheng$ rvm -v rvm 1.29.0 (latest) by Wayne E. Seguin <wayneeseguin@gmail.com>, Michal Papis <mpapis@gmail.com> [https://rvm.io/]
情况二:如果存在 rvm 环境,用 rvm 安装 ruby 环境;
- 当 ruby 版本低于 2.2.2 时,安装 CocoaPods 会报错;为防止 ruby 版本过低,建议先升级 ruby 环境,建议升级到 2.3.0 版本以上。【可以通过 $ ruby -v 指令检查当前 ruby 版本】
① 查询已知的 ruby 环境。
$ rvm list known
输出结果:(显示的 `` 代表一行空格) muxuguixiandeMacBook-Pro:~ jijiucheng$ rvm list known # MRI Rubies [ruby-]1.8.6[-p420] [ruby-]1.8.7[-head] # security released on head [ruby-]1.9.1[-p431] [ruby-]1.9.2[-p330] [ruby-]1.9.3[-p551] [ruby-]2.0.0[-p648] [ruby-]2.1[.8] [ruby-]2.2[.4] [ruby-]2.3[.0] [ruby-]2.2-head ruby-head `` # for forks use: rvm install ruby-head-<name> --url https://github.com/github/ruby.git --branch 2.2 `` # JRuby jruby-1.6[.8] jruby-1.7[.23] jruby[-9.0.5.0] jruby-head `` # Rubinius rbx-1[.4.3] rbx-2.3[.0] rbx-2.4[.1] rbx[-2.5.8] rbx-head `` # Opal opal `` # Minimalistic ruby implementation - ISO 30170:2012 mruby[-head] `` # Ruby Enterprise Edition ree-1.8.6 ree[-1.8.7][-2012.02] `` # GoRuby goruby `` # Topaz topaz `` # MagLev maglev[-head] maglev-1.0.0 `` # Mac OS X Snow Leopard Or Newer macruby-0.10 macruby-0.11 macruby[-0.12] macruby-nightly macruby-head `` # IronRuby ironruby[-1.1.3] ironruby-head
![]()
查询已知的 ruby 环境
② 指定 ruby 版本进行更新( 此处按照 ruby 2.4.0 版本进行更新 )。
$ rvm install 2.4.0
输出结果:( 此处因为终端输出的字符过多,所以此处用截图方式 )
![]()
指定 ruby 版本进行更新
③ 第二步需要一段时间等待,完成后此时 rvm 环境就配置好了;Ruby Gems 就安装好了。
④ 补充相关指令: 查询已安装的 ruby: $ rvm list 卸载一个已安装版本: $ rvm remove 1.9.2
2、检查更新 ruby 版本环境(正常情况下从此步骤开始)
- CocoaPods 是用 gem ruby 实现的,要想使用它首先需要有 gem ruby 的环境。且 MAC 的 OS X系统默认已经可以运行 ruby 。
此处建议 gem ruby 包环境升级到 2.6.x 以上。
检查 gem ruby 版本号:
$ sudo gem -v
检查结果:( 默认情况下版本应该较低,建议升级到 ) muxuguixiandeMacBook-Pro:local jijiucheng$ gem -v 2.5.1
更新 gem ruby 版本号:
$ gem update --system
更新成功:( 实际打印可能与此不同,但是成功了就会显示 Successfully ) muxuguixiandeMacBook-Pro:local jijiucheng$ gem update --system Updating rubygems-update Fetching: rubygems-update-2.6.7.gem (100%) Successfully installed rubygems-update-2.6.7
此种提示:( 表示已经是最新的 gem ruby 环境 ) muxuguixiandeMacBook-Pro:~ jijiucheng$ gem update --system Latest version currently installed. Aborting.
检查 ruby 源:
$ gem sources -l
检查结果:( 如果电脑没安装过 CocoaPods,此时应该是默认 ruby 源 ) muxuguixiandeMacBook-Pro:~ jijiucheng$ gem sources -l *** CURRENT SOURCES *** https://rubygems.org/
移除 ruby 源:
$ gem sources --remove https://rubygems.org/
移除结果: muxuguixiandeMacBook-Pro:local jijiucheng$ gem sources --remove https://rubygems.org/ https://rubygems.org/ removed from sources
替换添加国内镜像源 ruby-china 源,因为上面已经提到国内镜像源 taobao 源 已经停止维护了,所以此处替换的是 ruby-china 源,且尽量确保只有一个 ruby-china 源。
也可以,可以将 官方 ruby 源 替换成国内 淘宝 ruby([https://ruby.taobao.org/](https://ruby.taobao.org/) )
$ gem sources --add https://gems.ruby-china.org
替换结果: muxuguixiandeMacBook-Pro:local jijiucheng$ gem sources --add https://gems.ruby-china.org https://gems.ruby-china.org added to sources
再次检查此时的 ruby 源:( 已经变成了 ruby-china 源 ) muxuguixiandeMacBook-Pro:local jijiucheng$ gem sources -l *** CURRENT SOURCES *** https://gems.ruby-china.org
- 3、安装 CocoaPods
- 安装 CocoaPods(
sudo 表示管理员执行指令)(此处需要输入一次密码)
$ sudo gem install cocoapods
`注意点:<------------------------------> 此处有个注意点` 由于 OS X 系统的不同,此处的指令也是有些变化: OS X 10.11之前系统的安装 CocoaPods 指令: $ sudo gem install cocoapods OS X 10.11以后系统的安装 CocoaPods 指令: $ sudo gem install -n /usr/local/bin cocoa pods OS X 10.12 $ sudo gem install -n /usr/local/bin cocoa pods

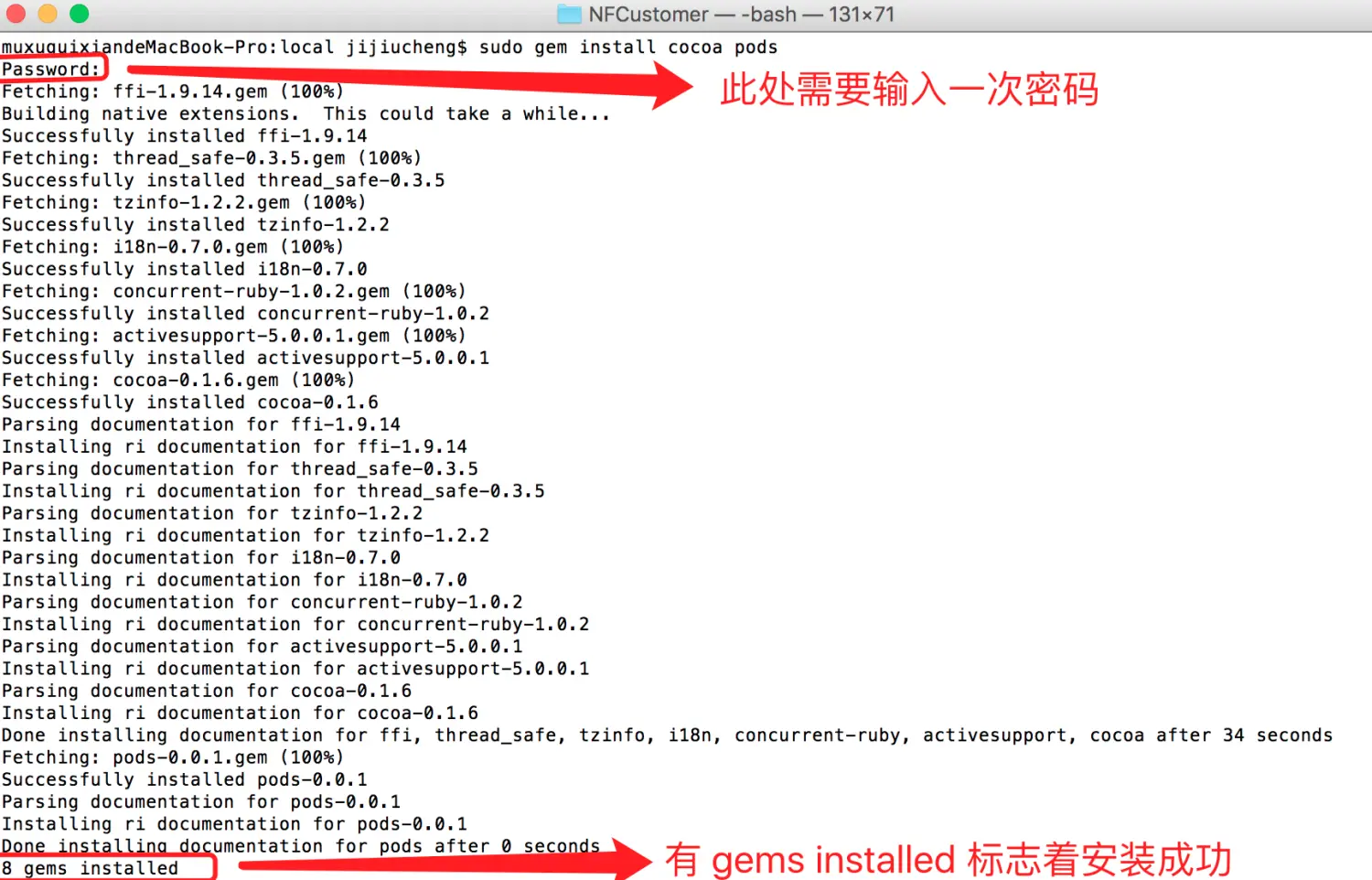

安装结果:(正常情况打印没有这么多,此处是因为解决报错时,同时打印了这么多) muxuguixiandeMacBook-Pro:local jijiucheng$ sudo gem install cocoa pods Password: <-----------------------------------> // 此处需要输入一次密码 Fetching: ffi-1.9.14.gem (100%) Building native extensions. This could take a while... Successfully installed ffi-1.9.14 Fetching: thread_safe-0.3.5.gem (100%) Successfully installed thread_safe-0.3.5 Fetching: tzinfo-1.2.2.gem (100%) Successfully installed tzinfo-1.2.2 Fetching: i18n-0.7.0.gem (100%) Successfully installed i18n-0.7.0 Fetching: concurrent-ruby-1.0.2.gem (100%) Successfully installed concurrent-ruby-1.0.2 Fetching: activesupport-5.0.0.1.gem (100%) Successfully installed activesupport-5.0.0.1 Fetching: cocoa-0.1.6.gem (100%) Successfully installed cocoa-0.1.6 Parsing documentation for ffi-1.9.14 Installing ri documentation for ffi-1.9.14 Parsing documentation for thread_safe-0.3.5 Installing ri documentation for thread_safe-0.3.5 Parsing documentation for tzinfo-1.2.2 Installing ri documentation for tzinfo-1.2.2 Parsing documentation for i18n-0.7.0 Installing ri documentation for i18n-0.7.0 Parsing documentation for concurrent-ruby-1.0.2 Installing ri documentation for concurrent-ruby-1.0.2 Parsing documentation for activesupport-5.0.0.1 Installing ri documentation for activesupport-5.0.0.1 Parsing documentation for cocoa-0.1.6 Installing ri documentation for cocoa-0.1.6 Done installing documentation for ffi, thread_safe, tzinfo, i18n, concurrent-ruby, activesupport, cocoa after 34 seconds Fetching: pods-0.0.1.gem (100%) Successfully installed pods-0.0.1 Parsing documentation for pods-0.0.1 Installing ri documentation for pods-0.0.1 Done installing documentation for pods after 0 seconds 8 gems installed <------------------ 此处有 gems installed 标志着安装 CocoaPods 成功 ------------------>
![]()
安装 CocoaPods
- 正常情况下此处会出现很大的坑,经常会出现各种报错问题,大多数是为 ruby 环境过低没有更新升级,或者是牵扯到 rvm 管理器环境的问题,在后面各种报错问题的解决方案的中会有提到。
iOS11.2
----> 指令:
----> $ sudo gem install cocoapods
----> 需要密码

- 4、配置 CocoaPods 环境
- 4.1 --> cd 到目录文件夹,回车 enter
- 4.2 --> ls -l 查找是否到了指定目录
- 4.3 --> pod init进行初始化
- 4.4 --> open podfile如下所示
Podfile 配置文件固定语句(如下): ```说明:可能有些人看到的固定语句不一样,但是大同小异,基本上都能实现最终效果。` ---> # Uncomment this line to define a global platform for your project platform :ios, '8.0' target 'CocoaPodsTestDemo' do # Uncomment this line if you're using Swift or would like to use dynamic frameworks # Pods for CocoaPodsTestDemo pod 'AFNetworking', '~>3.1.0' pod 'SDWebImage' pod 'MBProgressHUD' pod 'FMDB' pod 'Masonry' pod 'MJExtension' pod 'MJRefresh' # use_frameworks! # pod 'ReactiveCocoa' end
- 4.5 --> 按照如上进行填写,设置 com+s保存
- 4.6 --> pod install -help用来查找命令行,pod的命令行不用记
- 4.6 -->pod install --no-repo-update即可或pod update
三、CocoaPods 安装过程中报错问题解决
说明:此部分所列举的问题均是在执行相关指令时出现的报错
1、Rvm 环境搭建
报错一:
① Error running 'requirements_osx_brew_update_system ruby-2.3.0', showing last 15 lines of /Users/jijiucheng/.rvm/log/1475769205_ruby- 2.3.0/update_system.log ② curl: (35) Server aborted the SSL handshake
① 报错指令:
$ rvm install 2.3.0
② 报错信息:
Error running 'requirements_osx_brew_update_system ruby-
2.3.0',showing last 15 lines of /Users/jijiucheng/.rvm/log/1475769205_ruby-
2.3.0/update_system.log............Requirements installation failed with status: 1.
curl: (35) Server aborted the SSL handshake![]()
报错信息 1.png![]()
报错信息 2.png
③ 报错原因:网络问题,因为需要翻墙,所以网络不稳定;建议选择 VPN,保证线路的稳定性。
④ 解决方案( 指令一行一行输入 ):
$ cd /usr/local
$ git remote set-url origin git://mirrors.ustc.edu.cn/brew.git
$ echo 'export HOMEBREW_BOTTLE_DOMAIN=https://mirrors.ustc.edu.cn/homebrew-bottles' >> ~/.bashrc![]()
解决方案 .png
⑤ 方案链接:方案解决链接 -- https://segmentfault.com/q/1010000004276750报错二:
- ① Error running '__rvm_make -j 1',showing last 15 lines of /Users/jijiucheng/.rvm/log/1475769349_ruby-2.3.0/make.log
① 报错指令:
$ rvm install 2.3.0
② 报错信息:

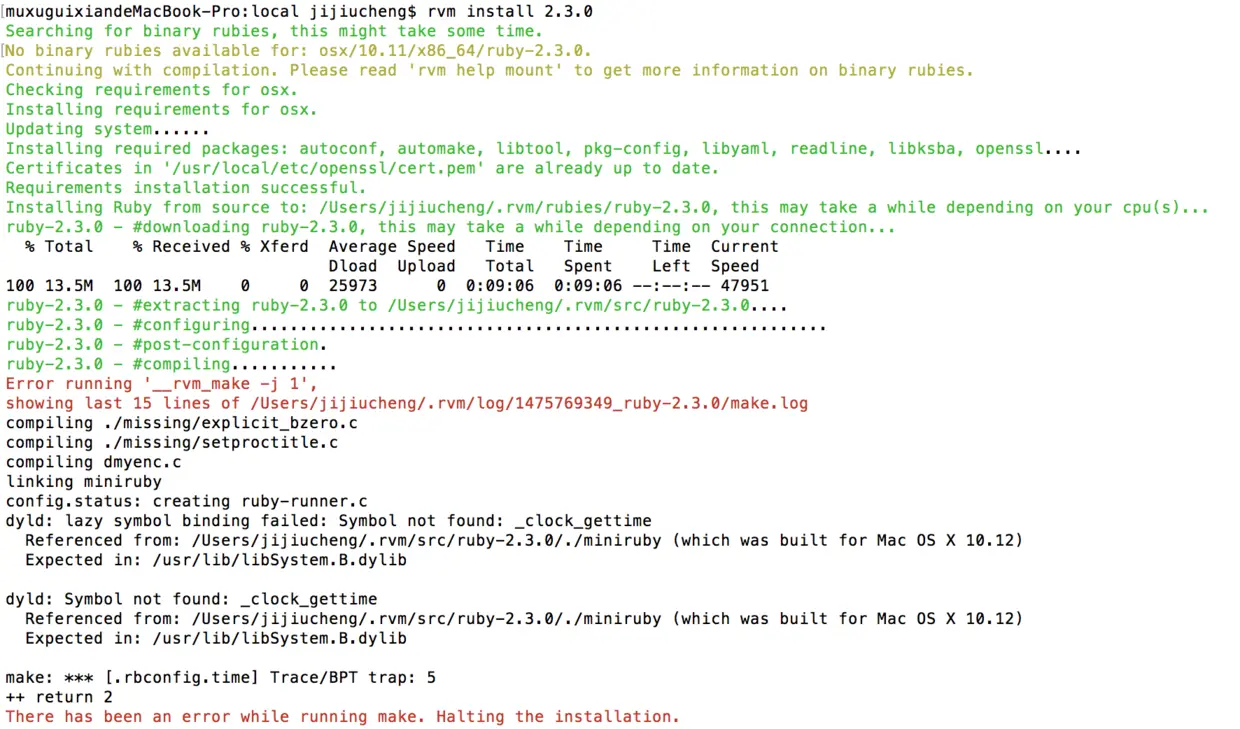

Error running '__rvm_make -j 1',showing last 15 lines of /Users/jijiucheng/.rvm/log/1475769349_ruby-2.3.0/make.log............There has been an error while running make. Halting the installation.
![]()
报错信息 .png
③ 报错原因:缺少 Xcode 工具,xcode command line
④ 解决方案:
$ xcode-select --install
![]()
解决方案 .png
*⑤ 方案链接:
方案解决链接 1 - http://stackoverflow.com/questions/35228481/error-running-rvm-make-install
方案解决链接 2 - http://www.th7.cn/Program/Ruby/201609/966343.shtml
报错三:
- ① Gemset '' does not exist, 'rvm ruby-2.3.0 do rvm gemset create ' first, or append '--create'.
① 报错指令:
$ rvm install 2.3.0
- ② 报错信息:

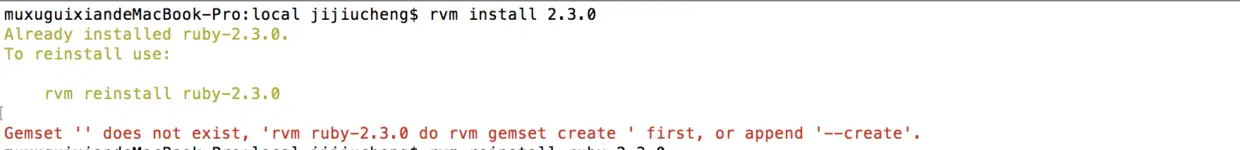

muxuguixiandeMacBook-Pro:local jijiucheng$ rvm install 2.3.0 Already installed ruby-2.3.0. To reinstall use:
rvm reinstall ruby-2.3.0
Gemset '' does not exist, 'rvm ruby-2.3.0 do rvm gemset create ' first, or append '--create'.
![]()
报错信息 .png
- ③ 报错原因:指令不对,已经存在 ruby-2.3.0 的文件残留,需要重新安装;
- ④ 解决方案:

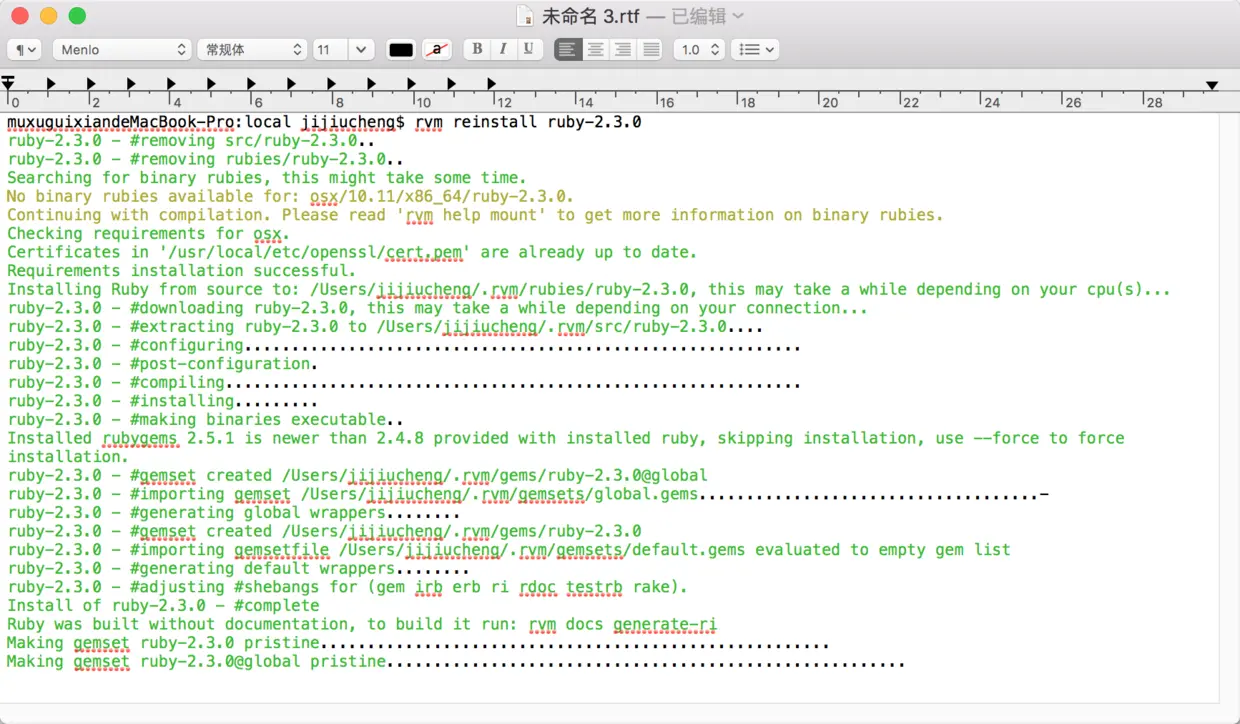

$ rvm reinstall ruby-2.3.0
![]()
解决方案 .png2、CocoaPods 安装及使用报错
报错一
- ① Setting up CocoaPods master repo
- ② [!] Unable to add a source with url https://github.com/CocoaPods/Specs.git named master. You can try adding it manually in ~/.cocoapods/repos or via pod repo add
- ① 报错指令:
$ pod install
- ② 报错信息:

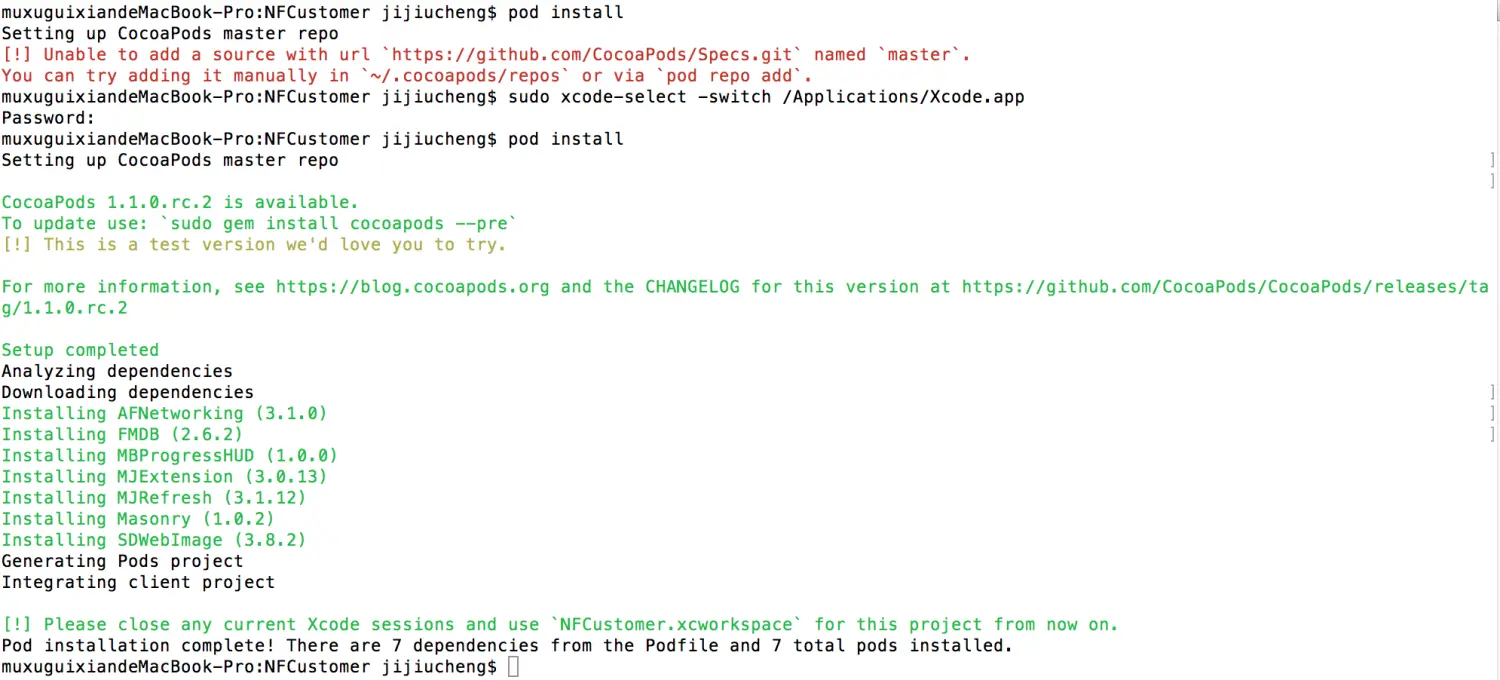

muxuguixiandeMacBook-Pro:NFCustomer jijiucheng$ pod installSetting up CocoaPods master repo[!] Unable to add a source with url `https://github.com/CocoaPods/Specs.git` named `master`.You can try adding it manually in `~/.cocoapods/repos` or via `pod repo add`.
![]()
报错信息 .png
- ③ 报错原因:由于安装了多个Xcode导致路径变了,需要变换路径:
sudo xcode-select -switch /Applications/Xcode.app
sudo xcode-select -switch /Applications/Xcode\ 2.app
- ④ 解决方案:
$ sudo xcode-select -switch /Applications/Xcode.app
![]()
解决方案
- ⑤ 资料补充:出现 Setting up CocoaPods master repo,说明 Cocoapods 在将它的信息下载到 ~/.cocoapods 里;新创建终端窗口,输入 cd ~/.cocoapods ,回车,输入 du -sh * 命令来查看文件大小,每隔几分钟查看一次,这个目录最终大小是100多M( 本人这里大概 800M + ),就是完成了。
- ⑥ 方案链接:
方案解决链接
1 - ios开发怎样卸载已经安装的cocoapod方案解决链接
2 - CocoaPods安装和使用及问题:Setting up CocoaPods master repo
报错二
更新cocoapod的时候会出现 下面错误
Performing a deep fetch of themaster
specs repo to improve future performance
- 【解决】:
纠结半天,是因为pod steup的时候创建master这个库,没成功,之后就算移除镜像重新安装的话 默认是从matser库里获取,导致安装不成功。
解决办法是移除master库,重新创建。
$ pod repo update --verbose
$ rm -rf ~/.cocoapods/repos/master
$ pod setup
四、资料补充
1、指令补全
- ① Rvm 指令库
$ ruby -v # 查看ruby 版本 $ rvm list known # 列出已知的 ruby 版本 $ rvm install 2.3.0 # 选择指定 ruby 版本进行更新 $ rvm get stable # 更新 rvm $ rvm use 2.2.2 # 切换到指定 ruby 版本 $ rvm use 2.2.2 --default # 设置指定 ruby 版本为默认版本 $ rvm list # 查询已安装的 ruby 版本 $ rvm remove 1.9.2 # 卸载移除 指定 ruby 版本
$ curl -L https://get.rvm.io | bash -s stable # 安装 rvm 环境 $ curl -sSL https://get.rvm.io | bash -s stable --ruby # 默认安装 rvm 最新版本 $ curl -sSL https://get.rvm.io | bash -s stable --ruby=2.3.0 # 安装 rvm 指定版本 $ source ~/.rvm/scripts/rvm # 载入 rvm
- ② gem 指令库*
$ gem -v # 查看 gem 版本 $ gem source # 查看 gem 配置源 $ gem source -l # 查看 gem 配置源目录 $ gem sources -a url # 添加 gem 配置源(url 需换成网址) $ gem sources --add url # 添加 gem 配置源(url 需换成网址) $ gem sources -r url # 删除 gem 配置源(url 需换成网址) $ gem sources --remove url # 删除 gem 配置源(url 需换成网址) $ gem update # 更新 所有包 $ gem update --system # 更新 Ruby Gems 软件 $ $ gem install rake # 安装 rake,从本地或远程服务器 $ gem install rake --remote # 安装 rake,从远程服务器 $ gem install watir -v 1.6.2 # 安装 指定版本的 watir $ gem install watir --version 1.6.2 # 安装 指定版本的 watir $ gem uninstall rake # 卸载 rake 包 $ gem list d # 列出 本地以 d 打头的包 $ gem query -n ''[0-9]'' --local # 查找 本地含有数字的包 $ gem search log --both # 查找 从本地和远程服务器上查找含有 log 字符串的包 $ gem search log --remoter # 查找 只从远程服务器上查找含有 log 字符串的包 $ gem search -r log # 查找 只从远程服务器上查找含有log字符串的包 $ $ gem help # 提醒式的帮助 $ gem help install # 列出 install 命令 帮助 $ gem help examples # 列出 gem 命令使用一些例子 $ gem build rake.gemspec # 把 rake.gemspec 编译成 rake.gem $ gem check -v pkg/rake-0.4.0.gem # 检测 rake 是否有效 $ gem cleanup # 清除 所有包旧版本,保留最新版本 $ gem contents rake # 显示 rake 包中所包含的文件 $ gem dependency rails -v 0.10.1 # 列出 与 rails 相互依赖的包 $ gem environment # 查看 gem 的环境 $ $ sudo gem -v # 查看 gem 版本(以管理员权限) $ sudo gem install cocoa pods # 安装 CocoaPods(以管理员权限) $ sudo gem install cocoapods # 安装 CocoaPods(以管理员权限) $ sudo gem install cocoapods --pre # 安装 CocoaPods 至预览版(以管理员权限) $ sudo gem install cocoapods -v 0.39.0 # 安装 CocoaPods 指定版本(以管理员权限) $ sudo gem update cocoapods # 更新 CocoaPods 至最新版(以管理员权限) $ sudo gem update cocoapods --pre # 更新 CocoaPods 至预览版(以管理员权限) $ sudo gem uninstall cocoapods -v 0.39.0 # 移除 CocoaPods 指定版本(以管理员权限)
- ③ pod 指令库
$ pod setup # CocoaPods 将信息下载到~/.cocoapods/repos 目录下。如果安装 CocoaPods 时不执行此命令,在初次执行 pod intall 命令时,系统也会自动执行该指令 $ pod --version # 检查 CocoaPods 是否安装成功及其版本号 $ pod install # 安装 CocoaPods 的配置文件 Podfile
参考文章:
01:【iOS工具】rvm、Ruby环境和CocoaPods安装使用及相关报错问题解决(2016.12.15 更新)
02: iOS - CocoaPods版本升级那些坑
03:gem源替换成淘宝的源
04 - Rvm、Ruby及Cocoapods安装
05 - RVM 和 Ruby的安装
06 - iOS的库依赖管理工具CocoaPods
07 - CocoaPods的安装以及遇到的坑
08 - ios开发怎样卸载已经安装的cocoapod
06 - 配置CocoaPods前 - 本地安装好Ruby环境
09 - iOS 学习笔记二【cocopods安装使用和安装过程中遇到的问题及解决办法】【20160725更新】
10 - ruby学习及编译ruby缺少openssl问题解决
问题解决
01 - 解决升级EI Capiton CocoaPods "pod: command not found"
02 - curl: (35) Server aborted the SSL handshake
03 - 第一种 - Error running '__rvm_make -j 1'
04 - 第二种 - Error running '__rvm_make -j 1'
05 - [!] Unable to add a source with url "xxxxxxxxxxxxx"
06 - Error running 'requirements_osx_brew_update_system ruby-2.0.0-p643'
07 - 关于安装cocoapods遇到的一些坑(ERROR: Error installing cocoapods: activesupport requires Ruby version >= 2.2)
08 - Homebrew install: Failed during: git fetch origin master:refs/remotes/origin/master -n --depth=1
09 - Pod /usr/bin/git clone https://github.com/CocoaPods/Specs.git master
声明:
本文根据【iOS工具】rvm、Ruby环境和CocoaPods安装使用及相关报错问题解决(2016.12.15 更新)进行的重新排班,和实际操作。相当于转载学习,而后,又添加了点扩充,用于自己长期学习资料留存。如果上面所有参考文章有侵权现象,请联系,删除。谢谢!
