Es启动流程

main

启动方法是org.elasticsearch.bootstrap.Elasticsearch.main，代码如下：

public static void main(final String[] args) throws Exception {
        // we want the JVM to think there is a security manager installed so that if internal policy decisions that would be based on the
        // presence of a security manager or lack thereof act as if there is a security manager present (e.g., DNS cache policy)
        System.setSecurityManager(new SecurityManager() {
            @Override
            public void checkPermission(Permission perm) {
                // grant all permissions so that we can later set the security manager to the one that we want
            }
        });
        LogConfigurator.registerErrorListener();
        final Elasticsearch elasticsearch = new Elasticsearch();
        int status = main(args, elasticsearch, Terminal.DEFAULT);
        if (status != ExitCodes.OK) {
            exit(status);
        }
    }

做了三件事：

加载安全配置
注册错误监听器
创建Elasticsearch实例。如果创建失败则exit

接下来细看一下其中的main()。

static int main(final String[] args, final Elasticsearch elasticsearch, final Terminal terminal) throws Exception {
        return elasticsearch.main(args, terminal);
    }

Elasticsearch的静态main函数调用了一个非静态的main。这个main的实现位于Command中。

Command::main步骤：

添加Shutdown Hook。

Shutdown Hook是jvm在关闭服务时用于清理关闭资源的机制。当jvm关闭时，会先调用addShutdownHook中添加的所有Hook，系统执行完毕后，jvm才会关闭。因此，Shutdown Hook可以在关闭jvm时进行内存清理、对象销毁等操作。

beforeMain.run()执行main之前的操作，如日志配置的加载。
调用mainWithoutErrorHandling。该方法位于Command类中。

public final int main(String[] args, Terminal terminal) throws Exception {
        if (addShutdownHook()) {
            shutdownHookThread = new Thread(() -> {
                try {
                    this.close();
                } catch (final IOException e) {
                    try (
                        StringWriter sw = new StringWriter();
                        PrintWriter pw = new PrintWriter(sw)) {
                        e.printStackTrace(pw);
                        terminal.println(sw.toString());
                    } catch (final IOException impossible) {
                        // StringWriter#close declares a checked IOException from the Closeable interface but the Javadocs for StringWriter
                        // say that an exception here is impossible
                        throw new AssertionError(impossible);
                    }
                }
            });
            Runtime.getRuntime().addShutdownHook(shutdownHookThread);
        }

        beforeMain.run();

        try {
            mainWithoutErrorHandling(args, terminal);
        } catch (OptionException e) {
            printHelp(terminal);
            terminal.println(Terminal.Verbosity.SILENT, "ERROR: " + e.getMessage());
            return ExitCodes.USAGE;
        } catch (UserException e) {
            if (e.exitCode == ExitCodes.USAGE) {
                printHelp(terminal);
            }
            terminal.println(Terminal.Verbosity.SILENT, "ERROR: " + e.getMessage());
            return e.exitCode;
        }
        return ExitCodes.OK;
    }

Command.mainWithoutErrorHandling中执行启动指令，代码如下：

void mainWithoutErrorHandling(String[] args, Terminal terminal) throws Exception {
        final OptionSet options = parser.parse(args);

        if (options.has(helpOption)) {
            printHelp(terminal);
            return;
        }

        if (options.has(silentOption)) {
            terminal.setVerbosity(Terminal.Verbosity.SILENT);
        } else if (options.has(verboseOption)) {
            terminal.setVerbosity(Terminal.Verbosity.VERBOSE);
        } else {
            terminal.setVerbosity(Terminal.Verbosity.NORMAL);
        }

        execute(terminal, options);
    }

核心代码是execute()。在Command类当中，该方法是个抽象方法：

protected abstract void execute(Terminal terminal, OptionSet options) throws Exception;

那么具体执行的是哪个实现，就要看一下上文中涉及的两个类的继承关系。

execute

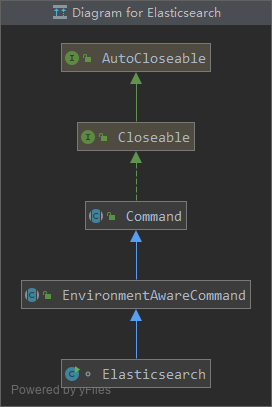

在这里插入图片描述

程序入口所在的Elasticsearch继承了EnvironmentAwareCommand, EnvironmentAwareCommand继承Command并实现execute方法。

因此在调用elasticSearch.main()时，实际执行的是EnvironmentAwareCommand的execute实现。实现代码如下：

protected void execute(Terminal terminal, OptionSet options) throws Exception {
        final Map<String, String> settings = new HashMap<>();
        for (final KeyValuePair kvp : settingOption.values(options)) {
            if (kvp.value.isEmpty()) {
                throw new UserException(ExitCodes.USAGE, "setting [" + kvp.key + "] must not be empty");
            }
            if (settings.containsKey(kvp.key)) {
                final String message = String.format(
                        Locale.ROOT,
                        "setting [%s] already set, saw [%s] and [%s]",
                        kvp.key,
                        settings.get(kvp.key),
                        kvp.value);
                throw new UserException(ExitCodes.USAGE, message);
            }
            settings.put(kvp.key, kvp.value);
        }

        putSystemPropertyIfSettingIsMissing(settings, "path.data", "es.path.data");
        putSystemPropertyIfSettingIsMissing(settings, "path.home", "es.path.home");
        putSystemPropertyIfSettingIsMissing(settings, "path.logs", "es.path.logs");

        execute(terminal, options, createEnv(terminal, settings));
    }

上述方法先读取命令行配置，并检查其中三个关键配置es.path.data、es.path.home、es.path.logs。接下来在进行execute。

这里的execute在EnvironmentAwareCommand中同样也是抽象函数：

protected abstract void execute(Terminal terminal, OptionSet options, Environment env) throws Exception;

这里执行的是Elasticsearch::execute的实现。

protected void execute(Terminal terminal, OptionSet options, Environment env) throws UserException {

    	...

        try {
            init(daemonize, pidFile, quiet, env);
        } catch (NodeValidationException e) {
            throw new UserException(ExitCodes.CONFIG, e.getMessage());
        }
    }

上述代码省略了参数校验的部分，我们直接关注init方法。

init

void init(final boolean daemonize, final Path pidFile, final boolean quiet, Environment initialEnv)
        throws NodeValidationException, UserException {
        try {
            Bootstrap.init(!daemonize, pidFile, quiet, initialEnv);
        } catch (BootstrapException | RuntimeException e) {
            // format exceptions to the console in a special way
            // to avoid 2MB stacktraces from guice, etc.
            throw new StartupException(e);
        }
    }

Elasticsearch::init调用了Bootstrap.init方法，es启动的执行过程是在方法中。代码很长，但是主要做了以下几个步骤：

创建Bootstrap实例
加载安全配置
加载环境配置
配置logger
创建pid文件
调用Bootstrap::setup
调用Bootstrap::start

static void init(
            final boolean foreground,
            final Path pidFile,
            final boolean quiet,
            final Environment initialEnv) throws BootstrapException, NodeValidationException, UserException {
        // force the class initializer for BootstrapInfo to run before
        // the security manager is installed
        BootstrapInfo.init();

        INSTANCE = new Bootstrap();

        final SecureSettings keystore = loadSecureSettings(initialEnv);
        final Environment environment = createEnvironment(foreground, pidFile, keystore, initialEnv.settings(), initialEnv.configFile());
        try {
            LogConfigurator.configure(environment);
        } catch (IOException e) {
            throw new BootstrapException(e);
        }
        if (environment.pidFile() != null) {
            try {
                PidFile.create(environment.pidFile(), true);
            } catch (IOException e) {
                throw new BootstrapException(e);
            }
        }

        	...

            INSTANCE.setup(true, environment);

            ...

            INSTANCE.start();

            ...
        } catch (NodeValidationException | RuntimeException e) {
            ...
        }
    }

接下来细看一下setup和start方法。

setup方法用于初始化环境配置并创建Node实例。详细步骤如下：

environment.settings获取环境配置
spawnNativeControllers为每个模块（Plugin）创建native Controller，并通过ProcessBuilder创建子进程（Process）实例
initializeNatives初始化本地资源：
- 如果是root用户，抛出错误
- 启用SystemCallFilter（需要JNA）
- 设置mlockAll
mlockAll配置：jvm在gc时会将堆中的页写回磁盘，当再次需要读取该页面时再从磁盘读取。如果Elasticsearch的页被jvm通过gc写入磁盘，再次进行读取时会产生大量磁盘抖动从而影响Es性能。因此，可以通过开启memory lock将Es的堆页面进行锁定，不允许gc将Es的堆页面进行交换，防止上述情况产生。

https://www.elastic.co/guide/en/elasticsearch/reference/6.3/_memory_lock_check.html
- 创建Windows关闭事件的监听器，再监听器当中调用Bootstrap::stop关闭服务
- 初始化Lucene随机数种子
initializeProbes初始化探测器。该方法实例化了两种探测器：ProcessProbe和OsProbe。分别对进程情况和系统情况进行监控。
添加Shutdown Hook
检查Jar Hell
格式化输出ifconfig日志
初始化SecurityManager
创建Node节点。Node的创建还不是这一部分的重点，放到Node相关内容细看。

Jar Hell：jar包冲突

private void setup(boolean addShutdownHook, Environment environment) throws BootstrapException {
    	// 1. 获取环境配置
        Settings settings = environment.settings();

    	// 2. 创建native controllers并创建进程实例
        try {
            spawner.spawnNativeControllers(environment);
        } catch (IOException e) {
            throw new BootstrapException(e);
        }

    	// 3. 初始化本地资源
        initializeNatives(
                environment.tmpFile(),
                BootstrapSettings.MEMORY_LOCK_SETTING.get(settings),
                BootstrapSettings.SYSTEM_CALL_FILTER_SETTING.get(settings),
                BootstrapSettings.CTRLHANDLER_SETTING.get(settings));

    	// 4. 初始化进程和系统监控
        // initialize probes before the security manager is installed
        initializeProbes();

    	// 5. 添加shutdown hook
        if (addShutdownHook) {
            Runtime.getRuntime().addShutdownHook(new Thread() {
                @Override
                public void run() {
                    try {
                        IOUtils.close(node, spawner);
                        LoggerContext context = (LoggerContext) LogManager.getContext(false);
                        Configurator.shutdown(context);
                    } catch (IOException ex) {
                        throw new ElasticsearchException("failed to stop node", ex);
                    }
                }
            });
        }

    	// 6. 检查jar包冲突
        try {
            // look for jar hell
            final Logger logger = ESLoggerFactory.getLogger(JarHell.class);
            JarHell.checkJarHell(logger::debug);
        } catch (IOException | URISyntaxException e) {
            throw new BootstrapException(e);
        }

    	// 7. 输出ifconfig日志
        // Log ifconfig output before SecurityManager is installed
        IfConfig.logIfNecessary();

    	// 8. 初始化SecurityManager
        // install SM after natives, shutdown hooks, etc.
        try {
            Security.configure(environment, BootstrapSettings.SECURITY_FILTER_BAD_DEFAULTS_SETTING.get(settings));
        } catch (IOException | NoSuchAlgorithmException e) {
            throw new BootstrapException(e);
        }

    	// 9. 创建Node实例
        node = new Node(environment) {
            @Override
            protected void validateNodeBeforeAcceptingRequests(
                final BootstrapContext context,
                final BoundTransportAddress boundTransportAddress, List<BootstrapCheck> checks) throws NodeValidationException {
                BootstrapChecks.check(context, boundTransportAddress, checks);
            }
        };
    }

到这里，节点的相关配置就设置完成了。接下来执行Bootstrap::start。

start方法的作用是启用节点和KeepAliveThread。代码如下：

private void start() throws NodeValidationException {
        node.start();
        keepAliveThread.start();
    }

node.start()的内容不在这里详细说。我们来看看keepAliveThread的定义。

private final CountDownLatch keepAliveLatch = new CountDownLatch(1);
private final Thread keepAliveThread;

/** creates a new instance */
    Bootstrap() {
        keepAliveThread = new Thread(new Runnable() {
            @Override
            public void run() {
                try {
                    keepAliveLatch.await();
                } catch (InterruptedException e) {
                    // bail out
                }
            }
        }, "elasticsearch[keepAlive/" + Version.CURRENT + "]");
        keepAliveThread.setDaemon(false);
        // keep this thread alive (non daemon thread) until we shutdown
        Runtime.getRuntime().addShutdownHook(new Thread() {
            @Override
            public void run() {
                keepAliveLatch.countDown();
            }
        });
    }
