JMeter 压测Server Agent无法监控资源问题，PerfMon Metrics Collector报Waiting for sample，Error loading results fil

JMeter 压测Server Agent无法监控资源问题，PerfMon Metrics Collector报Waiting for sample，Error loading results file - see file log， Can't accept UDP connections java.net.BindException: Address already in use 各种疑难杂症

如何安装插件此博主已经说得很详细了。

https://www.cnblogs.com/saryli/p/6596647.html

但是需注意几点：

1.修改默认端口，这样可以避免掉一个问题。ServerAgent默认是4444端口，当然你可以修改，比如：./startAgent.sh –udp-port 0 –tcp-port 3450这样。

2.ServerAgent-2.2.1.zip下载下来之后拷贝到服务器上之后再进行解压。unzip ServerAgent-2.2.1.zip

 我的安装目录是/usr/local/Jmeter/ServerAgent-2.2.3



（Jmeter从入门到MMP）

在使用Jmeter的性能监控插件时遇到了几个问题mark一下：

1.防火墙未关闭

2.端口号被占用。linux下输入命令 lsof -i:4444查看是否有被占用。如果有，使用kill -9 25601关闭

被占用会报如下错误

[root@business01 ServerAgent-2.2.3]# sh startAgent.sh
INFO 2019-01-25 15:52:36.544 [kg.apc.p] (): Binding UDP to 4444
ERROR 2019-01-25 15:52:36.582 [kg.apc.p] (): Can't accept UDP connections
java.net.BindException: Address already in use
at sun.nio.ch.Net.bind0(Native Method)
at sun.nio.ch.Net.bind(Net.java:433)
at sun.nio.ch.DatagramChannelImpl.bind(DatagramChannelImpl.java:691)
at sun.nio.ch.DatagramSocketAdaptor.bind(DatagramSocketAdaptor.java:91)
at kg.apc.perfmon.PerfMonWorker.listenUDP(PerfMonWorker.java:144)
at kg.apc.perfmon.PerfMonWorker.startAcceptingCommands(PerfMonWorker.java:107)
at kg.apc.perfmon.AgentTool.processParams(AgentTool.java:72)
at kg.apc.cmdtools.PluginsCMD.processParams(PluginsCMD.java:63)
at kg.apc.cmdtools.PluginsCMD.processParams(PluginsCMD.java:23)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at kg.apc.cmd.UniversalRunner.main(UniversalRunner.java:174)
INFO 2019-01-25 15:52:36.583 [kg.apc.p] (): Binding TCP to 4444
ERROR 2019-01-25 15:52:36.586 [kg.apc.p] (): Can't accept TCP connections
java.net.BindException: Address already in use
at sun.nio.ch.Net.bind0(Native Method)
at sun.nio.ch.Net.bind(Net.java:433)
at sun.nio.ch.Net.bind(Net.java:425)
at sun.nio.ch.ServerSocketChannelImpl.bind(ServerSocketChannelImpl.java:223)
at sun.nio.ch.ServerSocketAdaptor.bind(ServerSocketAdaptor.java:74)
at sun.nio.ch.ServerSocketAdaptor.bind(ServerSocketAdaptor.java:67)
at kg.apc.perfmon.PerfMonWorker.listenTCP(PerfMonWorker.java:135)
at kg.apc.perfmon.PerfMonWorker.startAcceptingCommands(PerfMonWorker.java:114)
at kg.apc.perfmon.AgentTool.processParams(AgentTool.java:72)
at kg.apc.cmdtools.PluginsCMD.processParams(PluginsCMD.java:63)
at kg.apc.cmdtools.PluginsCMD.processParams(PluginsCMD.java:23)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at kg.apc.cmd.UniversalRunner.main(UniversalRunner.java:174)

3.未成功启动startAgent。下图是成功启动图。

启动时使用此命令nohup sh startAgent.sh &（注意后面有一个&符号，此命令是不中断在后台运行）

4.（这是主要问题）很多人都会出现如下问题Waiting for samples，

执行了就是不出图形结果。解决方法：写入一个文件。

但是不知道怎么写入文件呀，报Error loading results file - see file log错误。

解决方法：新建一个txt文件，并添加以下文本之后保存。

<?xml version="1.0" encoding="UTF-8"?>
<testResults version="1.2">
</testResults>

 也可直接，D:\服务器性能监控数据.csv

成功效果图

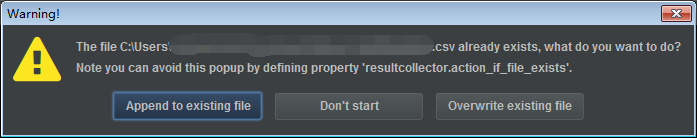

弹出下图警告直接Overwrite existing file ，此警告是提示文件已存在。

从左到右的按钮意思是：添加到现有文件、不要开始、覆盖现有文件

5（这个也重要）如果有生成文件或者已创建的txt里有文字了，但是 还是显示Waiting for samples。那是因为你只发送了一条请求，执行时间少于1秒，所以线程组循环次数设置为永远吧！

 2号问题报错的开始

[root@web01 ServerAgent-2.2.3]# sh startAgent.sh
INFO 2018-12-11 17:39:44.960 [kg.apc.p] (): Binding UDP to 4444
ERROR 2018-12-11 17:39:45.022 [kg.apc.p] (): Can't accept UDP connections
java.net.BindException: Address already in use
at sun.nio.ch.Net.bind0(Native Method)
at sun.nio.ch.Net.bind(Net.java:433)
at sun.nio.ch.DatagramChannelImpl.bind(DatagramChannelImpl.java:691)
at sun.nio.ch.DatagramSocketAdaptor.bind(DatagramSocketAdaptor.java:91)
at kg.apc.perfmon.PerfMonWorker.listenUDP(PerfMonWorker.java:144)
at kg.apc.perfmon.PerfMonWorker.startAcceptingCommands(PerfMonWorker.java:107)
at kg.apc.perfmon.AgentTool.processParams(AgentTool.java:72)
at kg.apc.cmdtools.PluginsCMD.processParams(PluginsCMD.java:63)
at kg.apc.cmdtools.PluginsCMD.processParams(PluginsCMD.java:23)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at kg.apc.cmd.UniversalRunner.main(UniversalRunner.java:174)
INFO 2018-12-11 17:39:45.024 [kg.apc.p] (): Binding TCP to 4444
ERROR 2018-12-11 17:39:45.029 [kg.apc.p] (): Can't accept TCP connections
java.net.BindException: Address already in use
at sun.nio.ch.Net.bind0(Native Method)
at sun.nio.ch.Net.bind(Net.java:433)
at sun.nio.ch.Net.bind(Net.java:425)
at sun.nio.ch.ServerSocketChannelImpl.bind(ServerSocketChannelImpl.java:223)
at sun.nio.ch.ServerSocketAdaptor.bind(ServerSocketAdaptor.java:74)
at sun.nio.ch.ServerSocketAdaptor.bind(ServerSocketAdaptor.java:67)
at kg.apc.perfmon.PerfMonWorker.listenTCP(PerfMonWorker.java:135)
at kg.apc.perfmon.PerfMonWorker.startAcceptingCommands(PerfMonWorker.java:114)
at kg.apc.perfmon.AgentTool.processParams(AgentTool.java:72)
at kg.apc.cmdtools.PluginsCMD.processParams(PluginsCMD.java:63)
at kg.apc.cmdtools.PluginsCMD.processParams(PluginsCMD.java:23)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at kg.apc.cmd.UniversalRunner.main(UniversalRunner.java:174)

 2号问题的结束
