dubbo的搭建及各种配置样例

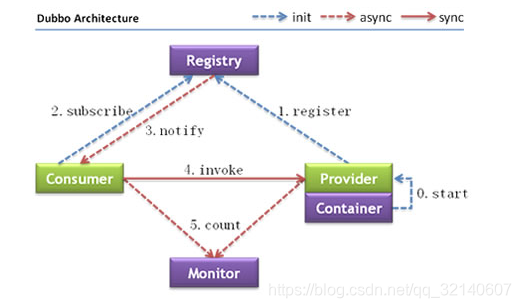

在文章开始的时候先引入官网的架构图,

节点角色说明

节点	角色说明
Provider	暴露服务的服务提供方
Consumer	调用远程服务的服务消费方
Registry	服务注册与发现的注册中心
Monitor	统计服务的调用次数和调用时间的监控中心
Container	服务运行容器

以上取自dubbo官网文档 http://dubbo.apache.org/zh-cn/docs/user/preface/architecture.html

---

dubbo干嘛的?一个分布式的RPC远程调用框架,可以使得调用远程服务如同调用本地服务一般的框架.具体介绍可以前往官网文档查看,这里不多加赘述,官网文档地址已在上文提及.

接下来看一个dubbo的样例.

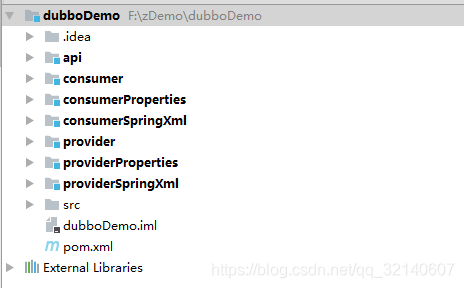

先看一下整个样例的层级结构

api为公共组件,包括服务的接口规范

consumer为服务消费方,provider为服务提供方.

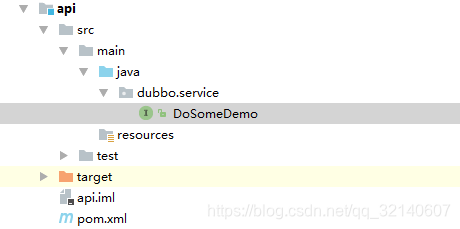

首先看api模块

代码如下:

public interface DoSomeDemo {
    String doSome(String name);
}

pom文件配置如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>dubboDemo</artifactId>
        <groupId>dubboDemo</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>api</artifactId>

    <dependencies>
        <dependency>
            <groupId>dubboDemo</groupId>
            <artifactId>api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>dubbo</artifactId>
            <version>2.6.2</version>
        </dependency>

        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.4.9</version>
        </dependency>

        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>4.0.0</version>
        </dependency>

    </dependencies>


</project>

pom文件中引入了dubbo,zookeeper(注册中心)

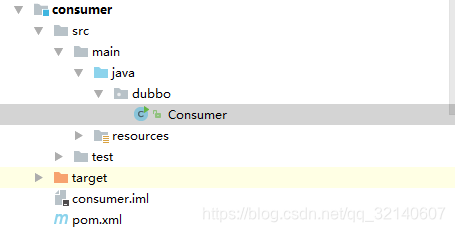

接下来是consumer模块的代码

代码如下

public class Consumer {

    public Object getRemoteCall(String url){

        //创建一个远程服务代理
        ReferenceConfig referenceConfig=new ReferenceConfig();

        //配置当前应用信息
        ApplicationConfig applicationConfig=new ApplicationConfig("consumer");
        referenceConfig.setApplication(applicationConfig);
        //选择远程服务
        referenceConfig.setInterface(DoSomeDemo.class);

        //直连的方式 无需注册中心,将url传入即可
      //referenceConfig.setUrl(url);

        //Multicast注册中心 不需要启动任何中心节点，只要广播地址一样，就可以互相发现
       // RegistryConfig registryConfig=new RegistryConfig("multicast://224.1.1.1:111");

        //zookeeper注册中心
        RegistryConfig registryConfig=new RegistryConfig("zookeeper://127.0.0.1:2181");
        referenceConfig.setRegistry(registryConfig);
        //和本地bean一样使用xxxService,返回的就是拿到的远程服务对象(实际为一个代理对象)
        return referenceConfig.get();
    }

    public static void main(String[] args) throws IOException {
        Consumer consumer=new Consumer();
         //如果使用直连方式则需要将整个url传入,本机的ip为10.111.23.237
        //DoSomeDemo doSomeDemo = (DoSomeDemo) consumer.getRemoteCall("dubbo://10.111.23.237:20880/dubbo.service.DoSomeDemo");
        DoSomeDemo doSomeDemo = (DoSomeDemo) consumer.getRemoteCall(null);

        while (!"Q".equals(read())){
            //调用远程服务
            System.out.println(doSomeDemo.doSome("ok"));
        }
    }

    //读取后台输入
    private static  String read(){

        LineNumberReader lineNumberReader = new LineNumberReader(
                new InputStreamReader(System.in));
        try {
            return lineNumberReader.readLine();
        } catch (IOException e) {
            e.printStackTrace();
        }
        return "";
    }

}

代码中列出了三种注册中心的方式,直连(无注册中心),Multicast注册中心(不需要启动任何中心节点),zookeeper注册中心,这里采取zookeeper举例.

这里的配置只满足最简单的举例,详细的配置依赖关系如下:图片取自dubbo官网api

说回代码,consumer已经有了,接下来看看provider

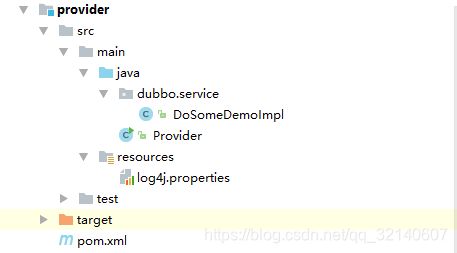

dubbo.service目录底下为实现api接口的实现

public class DoSomeDemoImpl implements DoSomeDemo {
    @Override
    public String doSome(String name) {
        return ("provider  --- dubbo.service.DoSomeDemoImpl"+"------"+name+"---"+ RpcContext.getContext().getLocalAddressString());
    }
}

打印出Rpc调用的端口及方法入参,便于之后查看对比结果

pom文件中引入api模块即可

    <dependencies>
        <dependency>
            <groupId>dubboDemo</groupId>
            <artifactId>api</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

最为关键的Provider的实现代码如下

public class Provider {

    public static void start(int port){

        //服务提供者暴露服务配置
        ServiceConfig serviceConfig=new ServiceConfig();

        //服务config 相当于 <dubbo:application/>配置
        ApplicationConfig applicationConfig=new ApplicationConfig("provider");
        serviceConfig.setApplication(applicationConfig);

       //服务提供者协议配置  协议config 相当于<dubbo:protocol/>配置
        ProtocolConfig protocolConfig=new ProtocolConfig("dubbo",port);
        serviceConfig.setProtocol(protocolConfig);


          //直连 协议config
         //RegistryConfig registryConfig=new RegistryConfig(RegistryConfig.NO_AVAILABLE);

        //Multicast注册中心
       //RegistryConfig registryConfig=new RegistryConfig("multicast://224.1.1.1:111");
        RegistryConfig registryConfig=new RegistryConfig("zookeeper://127.0.0.1:2181");
        serviceConfig.setRegistry(registryConfig);

        //将服务的具体方法设置进去
        serviceConfig.setInterface(DoSomeDemo.class);
        serviceConfig.setRef(new DoSomeDemoImpl());
        // 暴露及注册服务
        serviceConfig.export();

        //拿到当前服务的端口
        port=((URL)serviceConfig.getExportedUrls().get(0)).getPort();
        System.out.println("服务启动:"+port);
    }

    public static void main(String[] args) throws IOException {
        Provider.start(-1);
        System.in.read();
    }
}

简言之,设置服务,选择协议,选择注册中心,将服务方法设入,全部放进服务配置中,然后暴露此服务

到这里,其实已经能够将Consumer与Provider启动,并且能够在Consumer中调用"DoSomeDemo"接口的实现方法了.

接下来看看Xml配置方式该如何设置

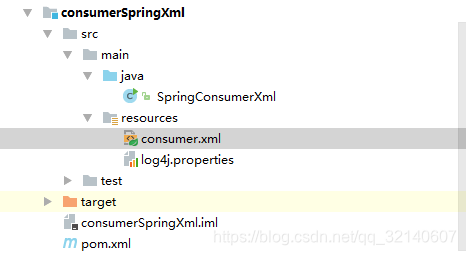

consumer.xml配置文件如下

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
       xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd">

    <dubbo:application name="consumerSpringXml"/>
    <dubbo:reference interface="dubbo.service.DoSomeDemo"  id="doSomeDemo"/>
    <dubbo:registry address="zookeeper://127.0.0.1:2181"/>

</beans>

没错,和属性配置没什么区别,定义服务名称(consumerSpringXml),定义注册中心(zookeeper://127.0.0.1:2181),创建远程服务代理(dubbo.service.DoSomeDemo)

启动类代码如下

public class SpringConsumerXml {

    public static void main(String[] args) throws IOException {
        ApplicationContext context=new ClassPathXmlApplicationContext("consumer.xml");
        ((ClassPathXmlApplicationContext)context).start();
        System.in.read();

        DoSomeDemo doSomeDemo= (DoSomeDemo) context.getBean("doSomeDemo");
        while (!"Q".equals(read())){
            System.out.println(doSomeDemo.doSome("Xml"));
        }
    }

    private static  String read(){

        LineNumberReader lineNumberReader = new LineNumberReader(
                new InputStreamReader(System.in));
        try {
            return lineNumberReader.readLine();
        } catch (IOException e) {
            e.printStackTrace();
        }
        return "";
    }

}

加载xml文件启动,拿到doSomeDemo对象,直接调用即可,与调用本地对象没有区别

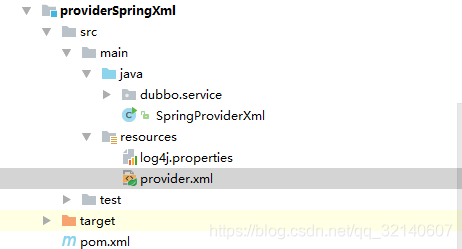

接下来看看provider用xml配置的模块

provider.xml代码如下

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
       xmlns="http://www.springframework.org/schema/beans"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd">


    <dubbo:application name="providerSpringXml"/>
    <dubbo:protocol port="-1" name="dubbo"/>
    <dubbo:registry   protocol="zookeeper"  address="127.0.0.1:2181"/>
    <dubbo:service interface="dubbo.service.DoSomeDemo" ref="doSomeDemoXml"/>
    <!--将bean对象交给spring容器管理-->
    <bean id="doSomeDemoXml" class="dubbo.service.DoSomeDemoXmlImpl"/>
</beans>

与consumer.xml不同的在于需要将提供的服务对象交给spring容器管理

启动类代码如下:

public class SpringProviderXml {
    public static void main(String[] args) throws IOException {
        ApplicationContext context=new ClassPathXmlApplicationContext("provider.xml");
        ((ClassPathXmlApplicationContext)context).start();
        System.in.read();
    }
}

单纯的加载xml文件,启动,System.in.read();是为了让服务不停止

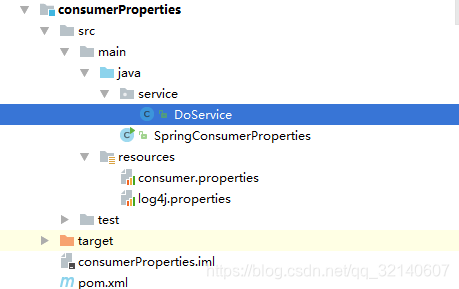

最后看看使用注解的方式

注意,这里的DoService类

import com.alibaba.dubbo.config.annotation.Reference;
import dubbo.service.DoSomeDemo;
import org.springframework.stereotype.Service;


@Service
public class DoService {

    @Reference
    DoSomeDemo doSomeDemo;

    public String doSome(String name){
        return doSomeDemo.doSome(name);
    }

}

@Reference为dubbo的注解,而@Service为spring的注解,为了将该对象交由spring容器管理

properties文件配置则更加简单

dubbo.application.name:consumerSpringProperties
dubbo.registry.address:zookeeper://127.0.0.1:2181

仅此而已

启动类则配置稍微多一些

@Configuration
@EnableDubbo(scanBasePackages = "service")
@PropertySource("consumer.properties")
@ComponentScan("service")
public class SpringConsumerProperties {
    public static void main(String[] args) {
        ApplicationContext context=new AnnotationConfigApplicationContext(SpringConsumerProperties.class);
        ((AnnotationConfigApplicationContext)context).start();

        DoService doService= (DoService) context.getBean("doService");
        while (!"Q".equals(read())){
            System.out.println(doService.doSome("Properties"));
        }
    }



    private static  String read(){

        LineNumberReader lineNumberReader = new LineNumberReader(
                new InputStreamReader(System.in));
        try {
            return lineNumberReader.readLine();
        } catch (IOException e) {
            e.printStackTrace();
        }
        return "";
    }
}

注解从上往下依次介绍,@Configuration为spring配置类注解,这里不再赘述,

@EnableDubbo(scanBasePackages = "service")
@ComponentScan("service")
这两个注解为开启dubbo 并设置注解的扫描范围,由于这里的样例将包名取为service且只有一层,所以容易引起误解,实际情况则需要将包名路径全部写入

@PropertySource("consumer.properties") 读取配置文件的注解,这里也不多介绍

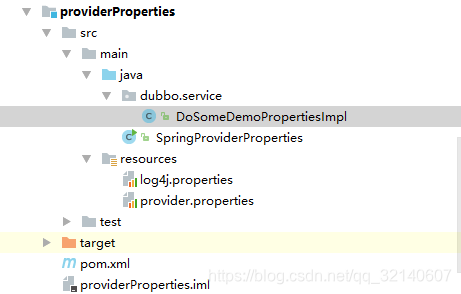

最后再来看看Provider用注解的配置

properties文件

dubbo.application.name:providerSpringProvider
dubbo.protocol.name:dubbo
dubbo.protocol.port:-1
dubbo.registry.address:zookeeper://127.0.0.1:2181

暴露的服务方法

import com.alibaba.dubbo.config.annotation.Service;


@Service
public class DoSomeDemoPropertiesImpl implements DoSomeDemo {
    @Override
    public String doSome(String name) {
        return ("provider  --- dubbo.service.DoSomeDemoPropertiesImpl"+"------"+name+"---"+ RpcContext.getContext().getLocalAddressString());
    }
}

而这里要注意的则是@Service注解为dubbo注解,不是spring的

启动类

@Configuration
@PropertySource("provider.properties")
@EnableDubbo(scanBasePackages = "dubbo.service")
public class SpringProviderProperties {
    public static void main(String[] args) throws IOException {
        ApplicationContext context=new AnnotationConfigApplicationContext(SpringProviderProperties.class);
        ((AnnotationConfigApplicationContext)context).start();
        System.in.read();
    }
}

大致与Consumer相似,这里不再赘述
