本文介绍了一个项目的模块布局和模板文件夹创建过程，包括引入Lombok插件、创建模板文件夹及静态资源文件夹，并详细展示了如何配置HTML布局文件，实现导航栏、侧边栏等元素的构建。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

整个项目依赖的层级，web也就是controller层依赖了service层，需要引入service的模块，service层需要依赖dao层，需要引入dao层的模块，

填加lombook插件，在父pom下填加

   <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok-maven-plugin</artifactId>
            <version>1.16.18.1</version>
        </dependency>

然后在dao层的pom里也加上，但是不用写版本号

  <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok-maven-plugin</artifactId>
    </dependency>

模块布局

第一步，在resource下面创建templates模板文件夹

第二步，创建一个layout文件夹，并且创建一个layout.ftl文件

第三步，在resource下面创建一个static文件夹在创建个lib

第四步，把需要的组件复制到lib下面，startbootstrap-sb-admin-gh-pages、bootstrap、jquery

第五步:layout.ftl上面加入

<html>
<head>
    <meta charset="utf-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">
    <meta name="description" content="">
    <meta name="author" content="">
    <title>小蜜蜂接口测试MOCK平台</title>
    <!-- Bootstrap core JavaScript-->
    <script src="/lib/startbootstrap-sb-admin-gh-pages/vendor/jquery/jquery.min.js"></script>
    <script src="/lib/startbootstrap-sb-admin-gh-pages/vendor/bootstrap/js/bootstrap.bundle.min.js"></script>

    <!-- Core plugin JavaScript-->
    <script src="/lib/startbootstrap-sb-admin-gh-pages/vendor/jquery-easing/jquery.easing.min.js"></script>

    <!-- Page level plugin JavaScript-->
    <script src="/lib/startbootstrap-sb-admin-gh-pages/vendor/chart.js/Chart.min.js"></script>
    <script src="/lib/startbootstrap-sb-admin-gh-pages/vendor/datatables/jquery.dataTables.js"></script>
    <script src="/lib/startbootstrap-sb-admin-gh-pages/vendor/datatables/dataTables.bootstrap4.js"></script>

    <!-- Custom scripts for all pages-->
    <script src="/lib/startbootstrap-sb-admin-gh-pages/js/sb-admin.min.js"></script>

    <!-- Demo scripts for this page-->
    <script src="/lib/startbootstrap-sb-admin-gh-pages/js/demo/datatables-demo.js"></script>
    <script src="/lib/startbootstrap-sb-admin-gh-pages/js/demo/chart-area-demo.js"></script>


    <!-- Custom fonts for this template-->
    <link href="/lib/startbootstrap-sb-admin-gh-pages/vendor/fontawesome-free/css/all.min.css" rel="stylesheet" type="text/css">

    <!-- Page level plugin CSS-->
    <link href="/lib/startbootstrap-sb-admin-gh-pages/vendor/datatables/dataTables.bootstrap4.css" rel="stylesheet">

    <!-- Custom styles for this template-->
    <link href="/lib/startbootstrap-sb-admin-gh-pages/css/sb-admin.css" rel="stylesheet">

    <link rel="icon" type="image/x-icon" href="/static/favicon.ico">

</head>
</html>

在head下面加入body

<body id="page-top">

<nav class="navbar navbar-expand navbar-dark bg-dark static-top">

    <a class="navbar-brand mr-1" href="index.html">小蜜蜂接口测试平台</a>

    <button class="btn btn-link btn-sm text-white order-1 order-sm-0" id="sidebarToggle" href="#">
        <i class="fas fa-bars"></i>
    </button>

    <!-- Navbar Search -->
    <form class="d-none d-md-inline-block form-inline ml-auto mr-0 mr-md-3 my-2 my-md-0">
        <div class="input-group">
            <input type="text" class="form-control" placeholder="Search for..." aria-label="Search" aria-describedby="basic-addon2">
            <div class="input-group-append">
                <button class="btn btn-primary" type="button">
                    <i class="fas fa-search"></i>
                </button>
            </div>
        </div>
    </form>

    <!-- Navbar -->
    <ul class="navbar-nav ml-auto ml-md-0">
        <li class="nav-item dropdown no-arrow mx-1">
            <a class="nav-link dropdown-toggle" href="#" id="alertsDropdown" role="button" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">
                <i class="fas fa-bell fa-fw"></i>
                <span class="badge badge-danger">9+</span>
            </a>
            <div class="dropdown-menu dropdown-menu-right" aria-labelledby="alertsDropdown">
                <a class="dropdown-item" href="#">Action</a>
                <a class="dropdown-item" href="#">Another action</a>
                <div class="dropdown-divider"></div>
                <a class="dropdown-item" href="#">Something else here</a>
            </div>
        </li>
        <li class="nav-item dropdown no-arrow mx-1">
            <a class="nav-link dropdown-toggle" href="#" id="messagesDropdown" role="button" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">
                <i class="fas fa-envelope fa-fw"></i>
                <span class="badge badge-danger">7</span>
            </a>
            <div class="dropdown-menu dropdown-menu-right" aria-labelledby="messagesDropdown">
                <a class="dropdown-item" href="#">Action</a>
                <a class="dropdown-item" href="#">Another action</a>
                <div class="dropdown-divider"></div>
                <a class="dropdown-item" href="#">Something else here</a>
            </div>
        </li>
        <li class="nav-item dropdown no-arrow">
            <a class="nav-link dropdown-toggle" href="#" id="userDropdown" role="button" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">
                <i class="fas fa-user-circle fa-fw"></i>
            </a>
            <div class="dropdown-menu dropdown-menu-right" aria-labelledby="userDropdown">
                <a class="dropdown-item" href="#">Settings</a>
                <a class="dropdown-item" href="#">Activity Log</a>
                <div class="dropdown-divider"></div>
                <a class="dropdown-item" href="#" data-toggle="modal" data-target="#logoutModal">Logout</a>
            </div>
        </li>
    </ul>

</nav>

<div id="wrapper">

    <!-- Sidebar -->
    <ul class="sidebar navbar-nav">
        <li class="nav-item active">
            <a class="nav-link" href="index.html">
                <i class="fas fa-fw fa-tachometer-alt"></i>
                <span>质量保障部</span>
            </a>
        </li>
        <li class="nav-item">
            <a class="nav-link" href="charts.html">
                <i class="fas fa-fw fa-chart-area"></i>
                <span>接口管理</span></a>
        </li>
        <li class="nav-item">
            <a class="nav-link" href="tables.html">
                <i class="fas fa-fw fa-table"></i>
                <span>用例管理</span></a>
        </li>
        <li class="nav-item dropdown">
            <a class="nav-link dropdown-toggle" href="#" id="pagesDropdown" role="button" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">
                <i class="fas fa-fw fa-folder"></i>
                <span>工具箱</span>
            </a>
            <div class="dropdown-menu" aria-labelledby="pagesDropdown">
                <h6 class="dropdown-header">Login Screens:</h6>
                <a class="dropdown-item" href="login.html">Login</a>
                <a class="dropdown-item" href="register.html">Register</a>
                <a class="dropdown-item" href="forgot-password.html">Forgot Password</a>
                <div class="dropdown-divider"></div>
                <h6 class="dropdown-header">Other Pages:</h6>
                <a class="dropdown-item" href="404.html">404 Page</a>
                <a class="dropdown-item" href="blank.html">Blank Page</a>
            </div>
        </li>
    </ul>

    <div id="content-wrapper">

        <div class="container-fluid">

            <!-- Breadcrumbs-->
            <ol class="breadcrumb">
                <li class="breadcrumb-item">
                    <a href="#">Dashboard</a>
                </li>
                <li class="breadcrumb-item active">Overview</li>
            </ol>

            <!-- Icon Cards-->
            <div class="row">
                <div class="col-xl-3 col-sm-6 mb-3">
                    <div class="card text-white bg-primary o-hidden h-100">
                        <div class="card-body">
                            <div class="card-body-icon">
                                <i class="fas fa-fw fa-comments"></i>
                            </div>
                            <div class="mr-5">26 New Messages!</div>
                        </div>
                        <a class="card-footer text-white clearfix small z-1" href="#">
                            <span class="float-left">View Details</span>
                            <span class="float-right">
                  <i class="fas fa-angle-right"></i>
                </span>
                        </a>
                    </div>
                </div>
                <div class="col-xl-3 col-sm-6 mb-3">
                    <div class="card text-white bg-warning o-hidden h-100">
                        <div class="card-body">
                            <div class="card-body-icon">
                                <i class="fas fa-fw fa-list"></i>
                            </div>
                            <div class="mr-5">11 New Tasks!</div>
                        </div>
                        <a class="card-footer text-white clearfix small z-1" href="#">
                            <span class="float-left">View Details</span>
                            <span class="float-right">
                  <i class="fas fa-angle-right"></i>
                </span>
                        </a>
                    </div>
                </div>
                <div class="col-xl-3 col-sm-6 mb-3">
                    <div class="card text-white bg-success o-hidden h-100">
                        <div class="card-body">
                            <div class="card-body-icon">
                                <i class="fas fa-fw fa-shopping-cart"></i>
                            </div>
                            <div class="mr-5">123 New Orders!</div>
                        </div>
                        <a class="card-footer text-white clearfix small z-1" href="#">
                            <span class="float-left">View Details</span>
                            <span class="float-right">
                  <i class="fas fa-angle-right"></i>
                </span>
                        </a>
                    </div>
                </div>
                <div class="col-xl-3 col-sm-6 mb-3">
                    <div class="card text-white bg-danger o-hidden h-100">
                        <div class="card-body">
                            <div class="card-body-icon">
                                <i class="fas fa-fw fa-life-ring"></i>
                            </div>
                            <div class="mr-5">13 New Tickets!</div>
                        </div>
                        <a class="card-footer text-white clearfix small z-1" href="#">
                            <span class="float-left">View Details</span>
                            <span class="float-right">
                  <i class="fas fa-angle-right"></i>
                </span>
                        </a>
                    </div>
                </div>
            </div>

            <!-- Area Chart Example-->
            <div class="card mb-3">
                <div class="card-header">
                    <i class="fas fa-chart-area"></i>
                    Area Chart Example</div>
                <div class="card-body">
                    <canvas id="myAreaChart" width="100%" height="30"></canvas>
                </div>
                <div class="card-footer small text-muted">Updated yesterday at 11:59 PM</div>
            </div>

            <!-- DataTables Example -->
            <div class="card mb-3">
                <div class="card-header">
                    <i class="fas fa-table"></i>
                    Data Table Example</div>
                <div class="card-body">
                    <div class="table-responsive">
                        <table class="table table-bordered" id="dataTable" width="100%" cellspacing="0">
                            <thead>

                            </thead>
                            <tfoot>

                            </tbody>
                        </table>
                    </div>
                </div>
                <div class="card-footer small text-muted">Updated yesterday at 11:59 PM</div>
            </div>

        </div>
        <!-- /.container-fluid -->

        <!-- Sticky Footer -->
        <footer class="sticky-footer">
            <div class="container my-auto">
                <div class="copyright text-center my-auto">
                    <span>Copyright © Your Website 2019</span>
                </div>
            </div>
        </footer>

    </div>
    <!-- /.content-wrapper -->

</div>
<!-- /#wrapper -->

<!-- Scroll to Top Button-->
<a class="scroll-to-top rounded" href="#page-top">
    <i class="fas fa-angle-up"></i>
</a>

<!-- Logout Modal-->
<div class="modal fade" id="logoutModal" tabindex="-1" role="dialog" aria-labelledby="exampleModalLabel" aria-hidden="true">
    <div class="modal-dialog" role="document">
        <div class="modal-content">
            <div class="modal-header">
                <h5 class="modal-title" id="exampleModalLabel">Ready to Leave?</h5>
                <button class="close" type="button" data-dismiss="modal" aria-label="Close">
                    <span aria-hidden="true">×</span>
                </button>
            </div>
            <div class="modal-body">Select "Logout" below if you are ready to end your current session.</div>
            <div class="modal-footer">
                <button class="btn btn-secondary" type="button" data-dismiss="modal">Cancel</button>
                <a class="btn btn-primary" href="login.html">Logout</a>
            </div>
        </div>
    </div>
</div>



</body>

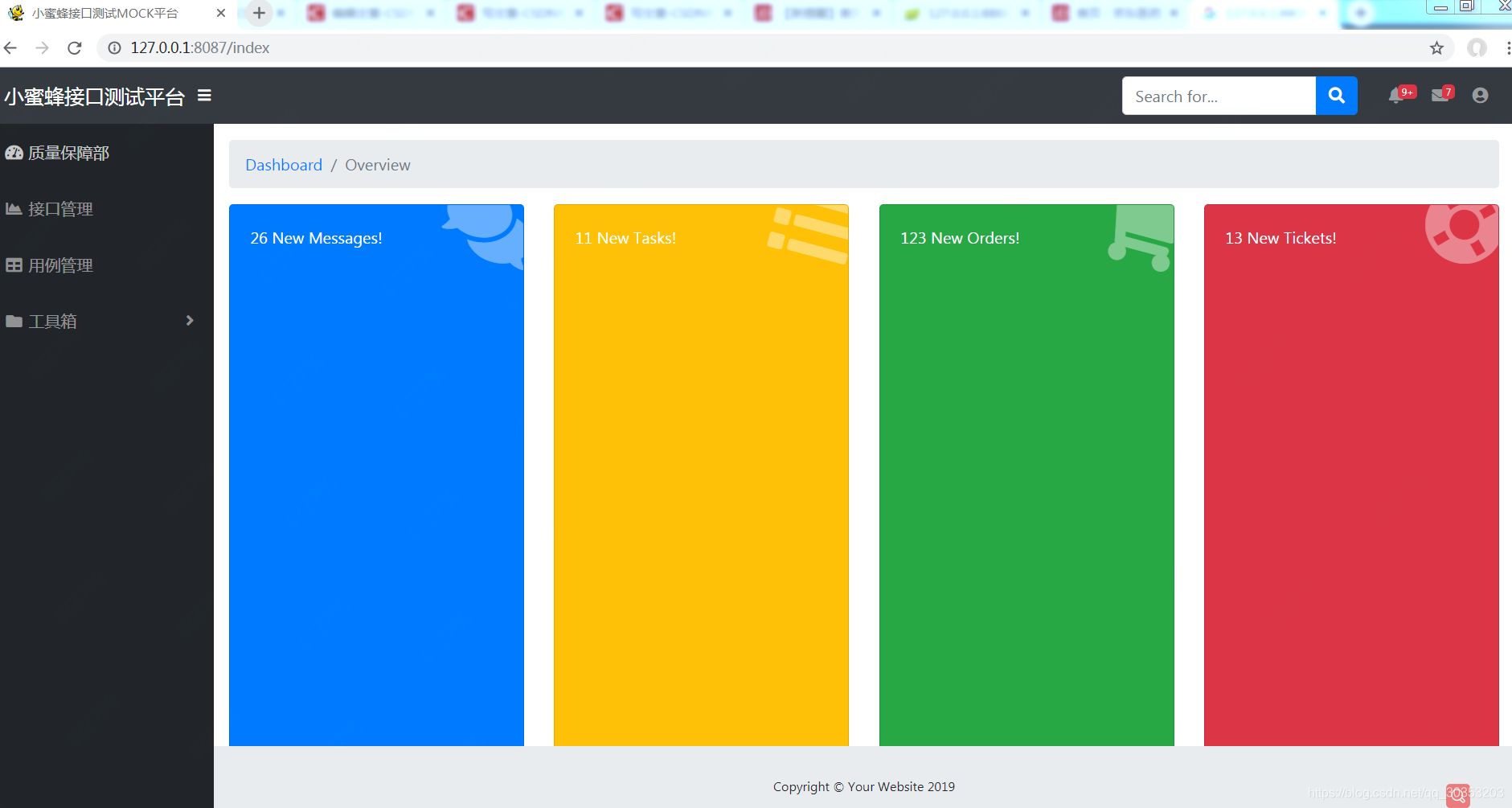

新建一个index.ftl页面引入layout文件，引入之后启动应用打开首页，用include引入，并且用marco

<#include "/layout/layout.ftl"/>
<@body>
你好
</@body>

在layout.ftl文件中加入<#marco>, body 是方法名，并且加入<#nested>,注意位置，在内容页面位置，使用的时候用 <@body>你好</body>，就显示你好

<#macro body>
<html...>
</#macro>

表单提交

ajax提交

回显表单方式 EL表达式value="${method!}"

ajax 回显方式
