Shiro学习第一节

表结构设计

一个用户有多个角色，一个角色对应多个权限，总体来讲是五张表

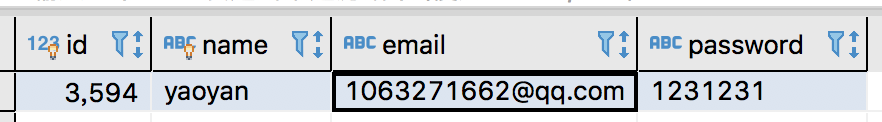

用户表

作用

用于验证用户帐号密码

表结构

CREATE TABLE `user` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `name` varchar(100) CHARACTER SET utf8 COLLATE utf8_bin DEFAULT NULL,
  `email` varchar(255) CHARACTER SET utf8 COLLATE utf8_bin DEFAULT '',
  `password` text CHARACTER SET utf8 COLLATE utf8_bin,
  PRIMARY KEY (`id`),
  UNIQUE KEY `UK_NAME` (`name`) USING BTREE
) ENGINE=MyISAM AUTO_INCREMENT=3597 DEFAULT CHARSET=utf8 COLLATE=utf8_bin

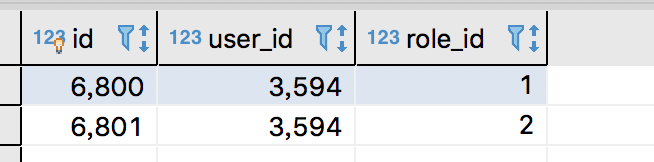

用户——角色关联表

作用

用于通过用户ID查找角色ID

表结构

CREATE TABLE `user_role` (
  `id` bigint(11) NOT NULL AUTO_INCREMENT,
  `user_id` bigint(11) NOT NULL,
  `role_id` bigint(11) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=6802 DEFAULT CHARSET=utf8

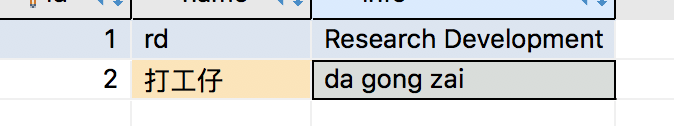

角色表

作用

用于标识用户角色

表结构

CREATE TABLE `role` (
  `id` bigint(11) NOT NULL AUTO_INCREMENT,
  `name` varchar(255) NOT NULL,
  `info` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4629 DEFAULT CHARSET=utf8

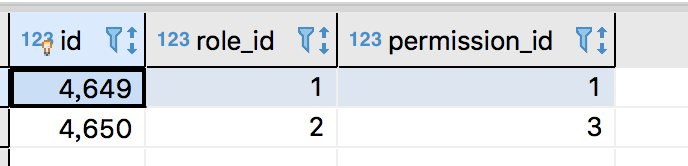

角色——权限关联表

作用

用过角色ID，查找权限ID

表结构

CREATE TABLE `role_permission` (
  `id` bigint(11) NOT NULL AUTO_INCREMENT,
  `role_id` bigint(11) NOT NULL,
  `permission_id` bigint(11) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=4651 DEFAULT CHARSET=utf8

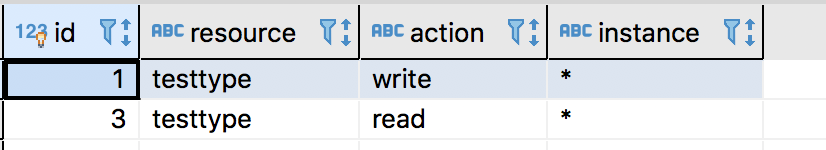

权限表

作用

定义用户有哪些权限

表结构

CREATE TABLE `permission` (
  `id` bigint(11) NOT NULL AUTO_INCREMENT,
  `resource` varchar(255) NOT NULL,
  `action` varchar(255) NOT NULL,
  `instance` varchar(255) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=3224 DEFAULT CHARSET=utf8

重写登录验证

@Override
    protected AuthenticationInfo doGetAuthenticationInfo(
        AuthenticationToken token) throws AuthenticationException {
        System.out.println("ApiRealm.doGetAuthenticationInfo");
        String username = (String) token.getPrincipal(); // 得到用户名
        String password = new String((char[]) token.getCredentials()); // 得到密码
        System.out.println("password = " + password);
        User user = userMapper.findUser(username);
        System.out.println("user = " + user);
        if (!password.equals(user.getPassword())) {
            return null;
        }

        SimpleAuthenticationInfo authInf = new SimpleAuthenticationInfo(
            username, password, getName());

        return authInf;
    }

重写权限检查验证

@Override
    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {
        String username = (String) principals.getPrimaryPrincipal(); // 得到用户名
        try {
            System.out.println("username = " + username);
            UserAuthInfo authInfo = userMapper.selectUserAuthInfo(username);
            if (authInfo != null) {
                SimpleAuthorizationInfo info = new SimpleAuthorizationInfo();
                Gson gson = new Gson();
                List<RoleInfo> userRole = authInfo.getUserRole();
                System.out.println("userRole = " + gson.toJson(userRole));
                for (RoleInfo userRoleInfo : userRole) {
                    info.addRole(userRoleInfo.getRole());
                    for (PermissionInfo rolePermission : userRoleInfo
                                                             .getRolePermission()) {
                        String permission = rolePermission.getResource() + ":"
                                                + rolePermission.getAction() + ":"
                                                + rolePermission.getInstance();
                        info.addStringPermission(permission);
                    }
                }
                return info;
            } else {
                return null;
            }
        } catch (Exception e) {

            return null;
        }
    }

表查询

SELECT `user`.id AS user_id ,`user`.`name` AS user_name,
        role.id AS role_id,role.name AS role_name,
        permission.id AS permission_id,permission.resource,
        permission.action,permission.instance
        from `user`
        INNER JOIN user_role on `user`.id=user_role.user_id
        INNER JOIN role on user_role.role_id=role.id
        INNER JOIN role_permission ON role_permission.role_id=role.id
        INNER JOIN permission ON role_permission.permission_id=permission.id
        WHERE `user`.`name`= 'yaoyan'

MyBatis

java

@SqlMapper
public interface UserMapper {
     User findUser(String name);

     UserAuthInfo selectUserAuthInfo(String name);
}

xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.mybatis.mapper.UserMapper">

    <select id="findUser" resultType="com.mybatis.entity.User" parameterType="java.lang.String">
        select * from user where `user`.`name` = #{0,jdbcType=VARCHAR}
    </select>

    <resultMap id="UserAuthInfoMap" type="com.mybatis.entity.UserAuthInfo">
        <id column="user_id" property="userId" jdbcType="BIGINT" />
        <result column="user_name" property="username" jdbcType="VARCHAR" />
        <collection property="userRole"
                    ofType="com.mybatis.entity.RoleInfo">
            <id property="id" column="role_id" />
            <result property="role" column="role_name" />
            <collection property="rolePermission"
                        ofType="com.mybatis.entity.PermissionInfo">
                <id property="id" column="permission_id" />
                <result property="resource" column="resource" />
                <result property="action" column="action" />
                <result property="instance" column="instance" />
            </collection>
        </collection>
    </resultMap>

    <select id="selectUserAuthInfo" parameterType="java.lang.String"
            resultMap="UserAuthInfoMap">
        SELECT `user`.id AS user_id ,`user`.`name` AS user_name,
        role.id AS role_id,role.name AS role_name,
        permission.id AS permission_id,permission.resource,
        permission.action,permission.instance
        from `user`
        INNER JOIN user_role on `user`.id=user_role.user_id
        INNER JOIN role on user_role.role_id=role.id
        INNER JOIN role_permission ON role_permission.role_id=role.id
        INNER JOIN permission ON role_permission.permission_id=permission.id
        WHERE `user`.`name`= #{0,jdbcType=VARCHAR}
  </select>
</mapper>

测试

代码

@GET
    @Path("/hello")
    public Response sayHello() {
        servletResponse.setContentType("text/html;charset=utf-8");
        StringBuilder stringBuilder = new StringBuilder();
        SecurityUtils.setSecurityManager(new DefaultSecurityManager(apiRealm));
        AuthenticationToken token = new UsernamePasswordToken("yaoyan",
            "1231231");
        Subject subject = SecurityUtils.getSubject();

        boolean ret = false;

        try {
            subject.login(token);
            ret = true;
        } catch (AuthenticationException e) {
            ret = false;
        }

        if (ret == true) {
            stringBuilder.append("登录成功   ");
            if (subject.hasRole("ikun")) {
                stringBuilder.append("有角色rd   ");
            } else {
                stringBuilder.append("没有角色rd   ");
            }
            if (subject.isPermitted("testtype:write:3")) {
                stringBuilder.append("有权限 write   ");
            } else {
                stringBuilder.append("没有权限 write   ");
            }
        } else {
            stringBuilder.append("登录失败");
        }

        return Response.status(200).entity(stringBuilder.toString()).build();

    }

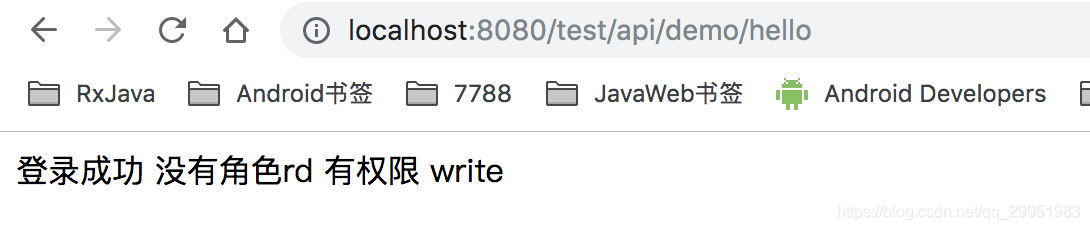

结果
