本文介绍了一个基于Spring Boot的微信应用开发案例，详细展示了如何利用MyBatis框架进行数据库操作，包括区域信息的增删改查等功能，并集成了前端微信小程序的交互设计。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

pom.xml:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.imooc</groupId>
	<artifactId>wchat</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>wchat</name>
	<description>Demo project for Spring Boot</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>1.5.4.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.7</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>org.mybatis.spring.boot</groupId>
			<artifactId>mybatis-spring-boot-starter</artifactId>
			<version>1.3.2</version>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>
		<dependency>
			<groupId>com.mchange</groupId>
			<artifactId>c3p0</artifactId>
			<version>0.9.5.2</version>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>


</project>

mybatis-config.xml:

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <!--配置全局属性-->
    <settings>
        <!--使用jdbc的getGeneratedKeys获取数据库自增主键值-->
        <setting name="useGeneratedKeys" value="true" />
        <!--使用列标签替换列别名 默认：true-->
        <setting name="useColumnLabel" value="true"/>
        <!--开启驼峰命名转换：Table{create_time} -> Entity{createTime}-->
        <setting name="mapUnderscoreToCamelCase" value="true"/>
    </settings>
</configuration>

application.properties:

server.context-path=/demo

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/demo?useUnicode=true&characterEncoding=utf8&useSSL=false
jdbc.username=root
jdbc.password=1234

#Mybatis
mybatis_config_file=mybatis-config.xml
mapper_path=/mapper/**.xml
entity_package=com.imooc.demo.entity

Area.java:

package com.imooc.demo.entity;

import java.util.Date;

/**
 * Created by yrui on 2018/9/3.
 */
public class Area {
    private Integer areaId;

    private String areaName;

    private Integer priority;

    private Date createTime;

    private Date lastEditTime;

    public Integer getAreaId() {
        return areaId;
    }

    public void setAreaId(Integer areaId) {
        this.areaId = areaId;
    }

    public String getAreaName() {
        return areaName;
    }

    public void setAreaName(String areaName) {
        this.areaName = areaName;
    }

    public Integer getPriority() {
        return priority;
    }

    public void setPriority(Integer priority) {
        this.priority = priority;
    }

    public Date getCreateTime() {
        return createTime;
    }

    public void setCreateTime(Date createTime) {
        this.createTime = createTime;
    }

    public Date getLastEditTime() {
        return lastEditTime;
    }

    public void setLastEditTime(Date lastEditTime) {
        this.lastEditTime = lastEditTime;
    }



}

DataSourceConfiguration.java:

package com.imooc.demo.config.dao;

import com.mchange.v2.c3p0.ComboPooledDataSource;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.beans.PropertyVetoException;

/**
 * Created by yrui on 2018/9/3.
 */
@Configuration
//配置mybatis mapper的扫描路径
@MapperScan("com.imooc.demo.dao")
public class DataSourceConfiguration {
    @Value("${jdbc.driver}")
    private String jdbcDriver;
    @Value("${jdbc.url}")
    private String jdbcUrl;
    @Value("${jdbc.username}")
    private String jdbcUsername;
    @Value("${jdbc.password}")
    private String jdbcPassword;

    @Bean(name="dataSource")
    public ComboPooledDataSource createDataSource() throws PropertyVetoException{
        ComboPooledDataSource dataSource = new ComboPooledDataSource();
        dataSource.setDriverClass(jdbcDriver);
        dataSource.setJdbcUrl(jdbcUrl);
        dataSource.setUser(jdbcUsername);
        dataSource.setPassword(jdbcPassword);
        //关闭连接后不自动commit
        dataSource.setAutoCommitOnClose(false);
        return dataSource;
    }
}

SessionFactoryConfiguration.java:

package com.imooc.demo.config.dao;

import org.mybatis.spring.SqlSessionFactoryBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;

import javax.sql.DataSource;
import java.io.IOException;

/**
 * Created by yrui on 2018/9/3.
 */
@Configuration
public class SessionFactoryConfiguration {
    //mybatis-config.xml配置文件路径
    @Value("${mybatis_config_file}")
    private String mybatisConfigFilePath;
    //mybatis mapper文件所在路径
    @Value("${mapper_path}")
    private String mapperPath;
    //实体类所在的package
    @Value("${entity_package}")
    private String entityPackage;

    @Autowired
    @Qualifier("dataSource")
    private DataSource dataSource;

    @Bean(name="sqlSessionFactory")
    public SqlSessionFactoryBean createSqlSessionFactoryBean() throws IOException {
        SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
        sqlSessionFactoryBean.setConfigLocation(new ClassPathResource(mybatisConfigFilePath));
        PathMatchingResourcePatternResolver resolver = new PathMatchingResourcePatternResolver();
        String packageSearchPath = PathMatchingResourcePatternResolver.CLASSPATH_ALL_URL_PREFIX+mapperPath;
        sqlSessionFactoryBean.setMapperLocations(resolver.getResources(packageSearchPath));
        sqlSessionFactoryBean.setDataSource(dataSource);
        sqlSessionFactoryBean.setTypeAliasesPackage(entityPackage);
        return sqlSessionFactoryBean;
    }
}

TransactionManagementConfiguration.java

package com.imooc.demo.config.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;
import org.springframework.transaction.PlatformTransactionManager;
import org.springframework.transaction.annotation.EnableTransactionManagement;
import org.springframework.transaction.annotation.TransactionManagementConfigurer;

import javax.sql.DataSource;

/**
 * Created by yrui on 2018/9/3.
 */
@Configuration
@EnableTransactionManagement
public class TransactionManagementConfiguration implements TransactionManagementConfigurer{

    @Autowired
    private DataSource dataSource;
    @Override
    public PlatformTransactionManager annotationDrivenTransactionManager() {
        return new DataSourceTransactionManager(dataSource);
    }
}

AreaDao.java:

package com.imooc.demo.dao;

import com.imooc.demo.entity.Area;

import java.util.List;

/**
 * Created by yrui on 2018/9/3.
 */
public interface AreaDao {
    List<Area> queryArea();
    Area queryAreaById(int areaId);
    int insertArea(Area area);
    int updateArea(Area area);
    int deleteArea(int areaId);
}

AreaService.java:

package com.imooc.demo.service;

import com.imooc.demo.entity.Area;

import java.util.List;

/**
 * Created by yrui on 2018/9/3.
 */
public interface AreaService {
    List<Area> getAreaList();

    Area getAreaById(int areaId);

    boolean addArea(Area area);

    boolean modifyArea(Area area);

    boolean deleteArea(int areaId);
}

AreaServiceImpl.java:

package com.imooc.demo.service.impl;

import com.imooc.demo.dao.AreaDao;
import com.imooc.demo.entity.Area;
import com.imooc.demo.service.AreaService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import java.util.Date;
import java.util.List;

/**
 * Created by yrui on 2018/9/3.
 */
@Service
public class AreaServiceImpl implements AreaService{
    @Autowired
    private AreaDao areaDao;

    @Override
    public List<Area> getAreaList() {
        return areaDao.queryArea();
    }

    @Override
    public Area getAreaById(int areaId) {
        return areaDao.queryAreaById(areaId);
    }

    @Transactional
    @Override
    public boolean addArea(Area area) {
        if(area.getAreaName()!=null&&!"".equals(area.getAreaName())){
            area.setCreateTime(new Date());
            area.setLastEditTime(new Date());
            try{
                int effectedNum = areaDao.insertArea(area);
                if(effectedNum>0){
                    return true;
                }else{
                    throw new RuntimeException("插入区域信息失败！");
                }
            }catch (Exception e){
                throw new RuntimeException("插入区域信息失败:"+e.getMessage());
            }
        }else{
            throw new RuntimeException("区域信息不能为空！");
        }
    }

    @Override
    public boolean modifyArea(Area area) {
        if(area.getAreaId()!=null&&area.getAreaId()>0){
            area.setLastEditTime(new Date());
            try{
                int effectedNum = areaDao.updateArea(area);
                if(effectedNum>0){
                    return true;
                }else{
                    throw new RuntimeException("更新区域信息失败！");
                }
            }catch (Exception e){
                throw new RuntimeException("更新区域信息失败:"+e.toString());
            }
        }else{
            throw new RuntimeException("区域信息不能为空！");
        }
    }

    @Override
    public boolean deleteArea(int areaId) {
        if (areaId > 0) {
            try {
                int effectedNum = areaDao.deleteArea(areaId);
                if (effectedNum > 0) {
                    return true;
                } else {
                    throw new RuntimeException("删除区域信息失败！");
                }
            } catch (Exception e) {
                throw new RuntimeException("删除区域信息失败:" + e.toString());
            }
        } else {
            throw new RuntimeException("区域Id不能为空！");
        }
    }
}

AreaController.java:

package com.imooc.demo.web;

import com.imooc.demo.entity.Area;
import com.imooc.demo.service.AreaService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * Created by yrui on 2018/9/3.
 */
@RestController
@RequestMapping("/superadmin")
public class AreaController {
    @Autowired
    private AreaService areaService;

    @RequestMapping(value="/listarea",method = RequestMethod.GET)
    private Map<String,Object> listArea(){
        Map<String,Object> modelMap = new HashMap<String,Object>();
        List<Area> list = areaService.getAreaList();
        modelMap.put("areaList",list);
        return modelMap;
    }

    @RequestMapping(value="/getareabyid",method = RequestMethod.GET)
    private Map<String,Object> getAreaById(Integer areaId){
        Map<String,Object> modelMap = new HashMap<String,Object>();
        Area area = areaService.getAreaById(areaId);
        modelMap.put("area",area);
        return modelMap;
    }

    @RequestMapping(value="/addarea",method = RequestMethod.POST)
    private Map<String,Object> addArea(@RequestBody Area area){
        Map<String,Object> modelMap = new HashMap<String,Object>();
        modelMap.put("success",areaService.addArea(area));
        return modelMap;
    }

    @RequestMapping(value="/modifyarea",method = RequestMethod.POST)
    private Map<String,Object> modifyArea(@RequestBody Area area){
        Map<String,Object> modelMap = new HashMap<String,Object>();
        modelMap.put("success",areaService.modifyArea(area));
        return modelMap;
    }

    @RequestMapping(value="/removearea",method = RequestMethod.GET)
    private Map<String,Object> removeArea(Integer areaId){
        Map<String,Object> modelMap = new HashMap<String,Object>();
        modelMap.put("success",areaService.deleteArea(areaId));
        return modelMap;
    }

}

AreaDao.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.imooc.demo.dao.AreaDao">
    <select id="queryArea" resultType="com.imooc.demo.entity.Area">
        SELECT area_id,area_name,priority,create_time,last_edit_time
        from tb_area ORDER BY priority DESC
    </select>
    <select id="queryAreaById" resultType="com.imooc.demo.entity.Area">
         SELECT area_id,area_name,priority,create_time,last_edit_time
        from tb_area WHERE area_id = #{areaId}
    </select>
    <insert id="insertArea" useGeneratedKeys="true" keyProperty="areaId"
            keyColumn="area_id" parameterType="com.imooc.demo.entity.Area">
        INSERT INTO tb_area(area_name,priority,create_time,last_edit_time)
        VALUES(#{areaName},#{priority},#{createTime},#{lastEditTime})
    </insert>
    <update id="updateArea" parameterType="com.imooc.demo.entity.Area">
        UPDATE tb_area
        <set>
            <if test="areaName!=null">area_name=#{areaName},</if>
            <if test="priority!=null">priority=#{priority},</if>
            <if test="lastEditTime!=null">last_edit_time=#{lastEditTime}</if>
        </set>
        WHERE area_id=#{areaId}
    </update>
    <delete id="deleteArea">
        DELETE FROM tb_area WHERE area_id=#{areaId}
    </delete>
</mapper>

后台编写完成，前台使用微信web开发者工具编写。

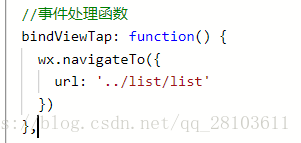

将index.js中的事件处理函数的url改为“../list/list”

list.json:

改标题名

{
  "navigationBarTitleText": "区域信息列表"
}

list.wxml:

<!--pages/list/list.wxml-->
<view class='container'>
  <view class='widget'>
    <text class='column'>ID</text>
    <text class='column'>区域名</text>
    <text class='column'>优先级</text>
    <text class='link-column'>操作</text>
  </view>
  <scroll-view scroll-y="true">
    <view>
      <block wx:for="{{list}}">
        <view class='widget'>
          <text class='column'>{{item.areaId}}</text>
          <text class='column'>{{item.areaName}}</text>
          <text class='column'>{{item.priority}}</text>
          <view class='link-column'>
            <navigator class='link' url='../operation/operation?areaId={{item.areaId}}'>编辑</navigator> |
            <text class='link' bindtap='deleteArea' data-areaid='{{item.areaId}}' data-areaname='{{item.areaName}}' data-index='{{index}}'>删除</text>
          </view>
        </view>
      </block>
    </view>
  </scroll-view>
  <button type='primary' bindtap='addArea'>添加区域信息</button>
</view>

list.wxss:

/* pages/list/list.wxss */
.widget {
  position: relative;
  margin-top: 5rpx;
  margin-bottom: 5rpx;
  padding-top: 10rpx;
  padding-bottom: 10rpx;
  padding-left: 40rpx;
  padding-right: 40rpx;
  border: #ddd 1px solid;
}

.container {
  height: 100%;
  display: table;
  align-items: center;
  justify-content: space-between;
  box-sizing: border-box;
  padding-top: 10rpx;
  padding-bottom: 10rpx;
  text-align: center;
}

.column {
  width: 4rem;
  display: table-cell;
}

.link-column {
  width: 6rem;
  display: table-cell;
}

.link {
  color: blue;
  display: inline-table;
}

list.js:

// pages/list/list.js
Page({

  /**
   * 页面的初始数据
   */
  data: {
    list: []
  },

  /**
   * 生命周期函数--监听页面加载
   */
  onLoad: function (options) {

  },

  /**
   * 生命周期函数--监听页面初次渲染完成
   */
  onReady: function () {

  },

  /**
   * 生命周期函数--监听页面显示
   */
  onShow: function () {
    var that = this;
    wx.request({
      url: 'http://127.0.0.1:8080/demo/superadmin/listarea',
      method: 'Get',
      data: {},
      success: function (res) {
        var list = res.data.areaList;
        if (list == null) {
          var toastText = '获取数据失败' + res.data.errMsg;
          wx.showToast({
            title: toastText,
            icon: '',
            duration: 2000
          });
        } else {
          that.setData({
            list: list
          });
        }
      }
    })
  },

  /**
   * 生命周期函数--监听页面隐藏
   */
  onHide: function () {

  },

  /**
   * 生命周期函数--监听页面卸载
   */
  onUnload: function () {

  },

  /**
   * 页面相关事件处理函数--监听用户下拉动作
   */
  onPullDownRefresh: function () {

  },

  /**
   * 页面上拉触底事件的处理函数
   */
  onReachBottom: function () {

  },

  /**
   * 用户点击右上角分享
   */
  onShareAppMessage: function () {

  },
  addArea: function () {
    wx.navigateTo({
      url: '../operation/operation',
    })
  },
  deleteArea: function (e) {
    var that = this;
    wx.showModal({
      title: '提示',
      content: '确定要删除[' + e.target.dataset.areaname + ']吗？',
      success: function (sm) {
        if (sm.confirm) {
          wx.request({
            url: 'http://127.0.0.1:8080/demo/superadmin/removearea',
            data: { 'areaId': e.target.dataset.areaid },
            method: 'GET',
            success: function (res) {
              var result = res.data.success;
              var toastText = "删除成功！";
              if (result != true) {
                toastText = "删除失败！";
              } else {
                that.data.list.splice(e.target.dataset.index, 1);
                that.setData({
                  list: that.data.list
                });
                wx.showToast({
                  title: toastText,
                  icon: '',
                  duration: 2000
                });
              }
            }
          })
        }
      }
    })
  }
})

operation.json:

{
  "navigationBarTitleText": "区域信息表单"
}

operation.wxml:

<!--pages/operation/operation.wxml-->
<view class='container'>
  <form bindsubmit='formSubmit' bindreset='formReset'>
    <view class='row'>
      <text>区域名：</text>
      <input type='text' name="areaName" placeholder='请输入区域名' value='{{areaName}}' />
    </view>
    <view class='row'>
      <text>优先级：</text>
      <input type='number' name="priority" placeholder='数值越大越靠前' value='{{priority}}' />
    </view>
    <view class='row'>
      <button type='primary' form-type='submit'>提交</button>
      <button type='primary' form-type='reset'>清空</button>
    </view>
  </form>

</view>

operation.wxss:

/* pages/operation/operation.wxss */
.container{
    padding: 1rem;
    font-size: 0.9rem;
    line-height: 1.5rem;
}
.row{
    display: flex;
    align-items: center;
    margin-bottom: 0.8rem;
}
.row text{
    flex-grow: 1;
    text-align: right;
}
.row input{
    font-size: 0.7rem;
    flex-grow: 3;
    border: 1px solid #0099CC;
    display: inline-block;
    border-radius: 0.3rem;
    box-shadow: 0 0 0.15rem #aaa;
    padding: 0.3rem;
}
.row button{
    padding: 0 2rem;
    margin: 3rem 1rem;
}

operation.js:

// pages/operation/operation.js
Page({

  /**
   * 页面的初始数据
   */
  data: {
    areaId:undefined,
    areaName:'',
    priority:'',
    addUrl: "http://127.0.0.1:8080/demo/superadmin/addarea",
    modifyUrl: "http://127.0.0.1:8080/demo/superadmin/modifyarea"
  },

  /**
   * 生命周期函数--监听页面加载
   */
  onLoad: function (options) {
    var that = this;
    //页面初始化 options为页面跳转所带来的参数
    this.setData({
      areaId: options.areaId
    });
    if(options.areaId==undefined){
      return;
    }
    wx.request({
      url: 'http://127.0.0.1:8080/demo/superadmin/getareabyid',
      data:{"areaId":options.areaId},
      method:'GET',
      success: function(res){
        var area = res.data.area;
        if(area==undefined){
          var toastText = "获取数据失败"+res.data.errMsg;
          wx.showToast({
            title: toastText,
            icon:'',
            duration:2000
          });
        }else{
          that.setData({
            areaName:area.areaName,
            priority:area.priority
          });
        }
      }
    })
  },

  /**
   * 生命周期函数--监听页面初次渲染完成
   */
  onReady: function () {

  },

  /**
   * 生命周期函数--监听页面显示
   */
  onShow: function () {

  },

  /**
   * 生命周期函数--监听页面隐藏
   */
  onHide: function () {

  },

  /**
   * 生命周期函数--监听页面卸载
   */
  onUnload: function () {

  },

  /**
   * 页面相关事件处理函数--监听用户下拉动作
   */
  onPullDownRefresh: function () {

  },

  /**
   * 页面上拉触底事件的处理函数
   */
  onReachBottom: function () {

  },

  /**
   * 用户点击右上角分享
   */
  onShareAppMessage: function () {

  },
  formSubmit: function(e){
    var that = this;
    var formData = e.detail.value;
    var url = this.data.addUrl;
    if(that.data.areaId!=undefined){
      formData.areaId = that.data.areaId;
      url = this.data.modifyUrl;
    }
    wx.request({
      url: url,
      data: JSON.stringify(formData),
      method: 'POST',
      header: {
        'Content-Type':'application/json'
      },
      success: function(res){
        var result = res.data.success;
        var toastText = "操作成功！";
        if(result!=true){
          toastText = "操作失败"+res.data.errMsg;
        }
        wx.showToast({
          title: toastText,
          icon:'',
          duration:2000
        });
        if(that.data.areaId==undefined){
          wx.redirectTo({
            url: '../list/list',
          })
        }
      }
    })
  }
})

完成！

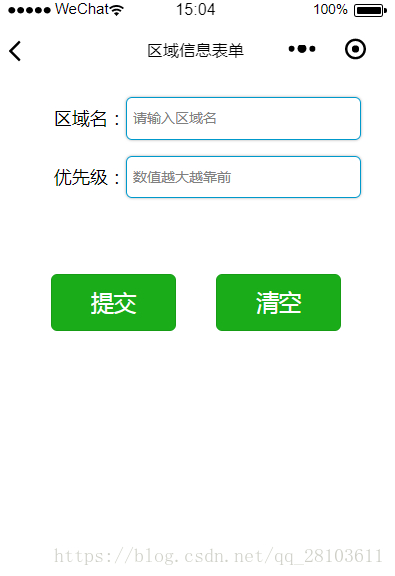

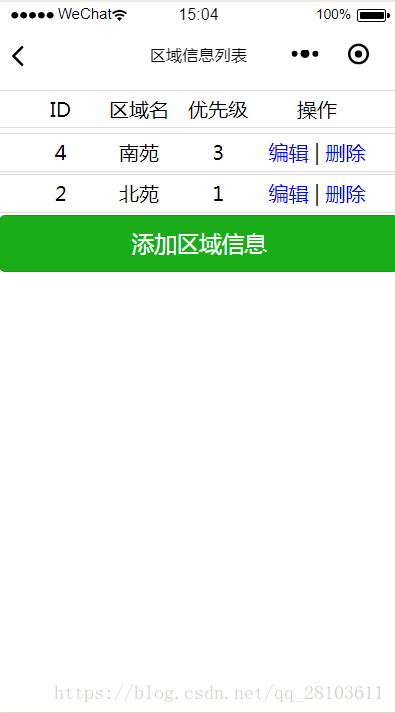

最终效果：
