COCO数据集转VOC（预训练）

注：本代码可用于提取coco数据集中的某些类，也可用于提取coco数据集中的全部类别。

一、下载coco数据集

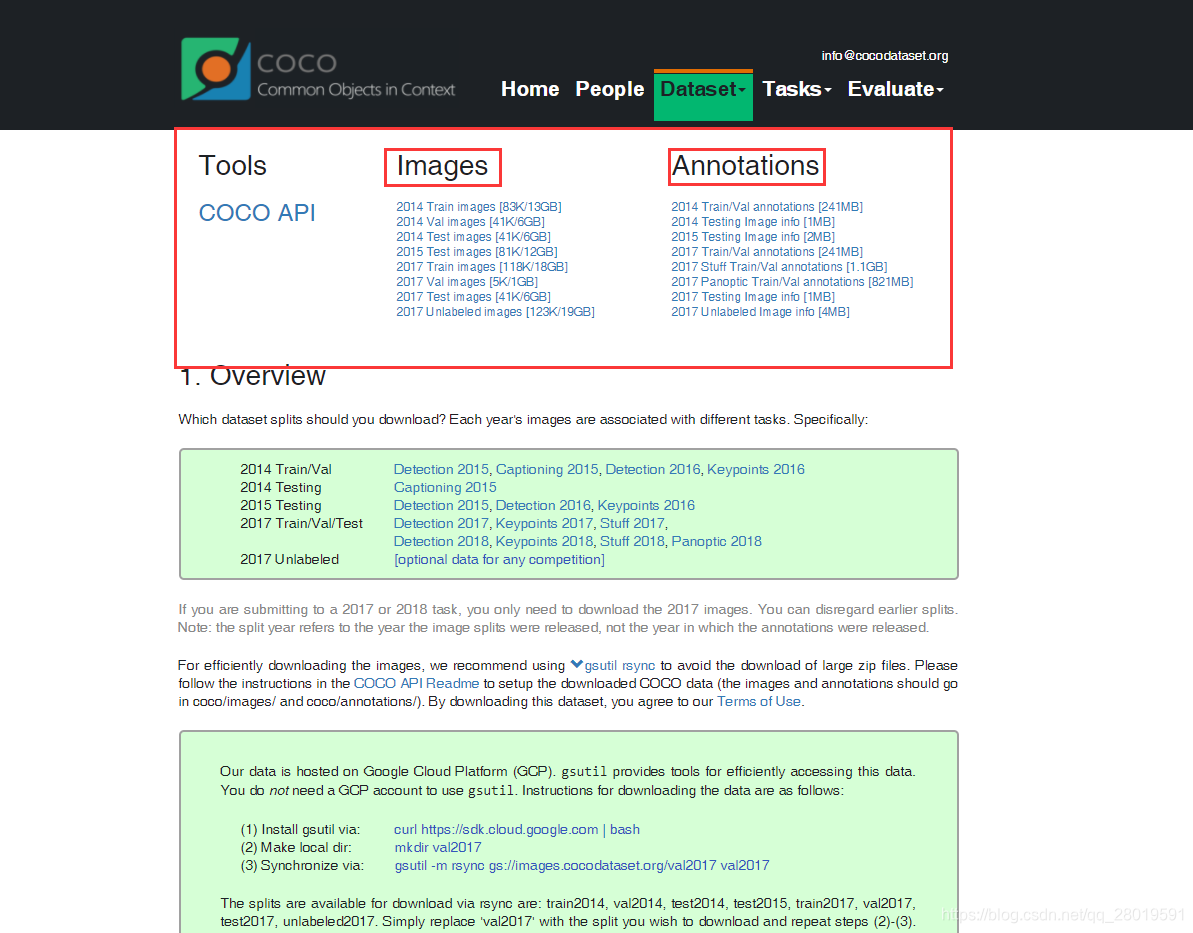

官网：http://cocodataset.org/#download。根据需要下载对应的数据集。

二、安装pycocotools

具体安装方法参考上篇博客：windows10下安装pycocotools

三、coco数据集转VOC数据集+生成YOLO/VOC所需的txt(比例7:2:1)

COCO数据集目标检测中有80个类，但有90个Id，对应关系如下：

 {1: 'person', 2: 'bicycle', 3: 'car', 4: 'motorcycle', 5: 'airplane', 6: 'bus', 7: 'train', 8: 'truck', 9: 'boat', 10: 'traffic light', 11: 'fire hydrant', 13: 'stop sign', 14: 'parking meter', 15: 'bench', 16: 'bird', 17: 'cat', 18: 'dog', 19: 'horse', 20: 'sheep', 21: 'cow', 22: 'elephant', 23: 'bear', 24: 'zebra', 25: 'giraffe', 27: 'backpack', 28: 'umbrella', 31: 'handbag', 32: 'tie', 33: 'suitcase', 34: 'frisbee', 35: 'skis', 36: 'snowboard', 37: 'sports ball', 38: 'kite', 39: 'baseball bat', 40: 'baseball glove', 41: 'skateboard', 42: 'surfboard', 43: 'tennis racket', 44: 'bottle', 46: 'wine glass', 47: 'cup', 48: 'fork', 49: 'knife', 50: 'spoon', 51: 'bowl', 52: 'banana', 53: 'apple', 54: 'sandwich', 55: 'orange', 56: 'broccoli', 57: 'carrot', 58: 'hot dog',59: 'pizza', 60: 'donut', 61: 'cake', 62: 'chair', 63: 'couch', 64: 'potted plant', 65: 'bed', 67: 'dining table', 70: 'toilet', 72: 'tv', 73: 'laptop', 74: 'mouse', 75: 'remote', 76: 'keyboard',77: 'cell phone', 78: 'microwave', 79: 'oven', 80: 'toaster', 81: 'sink', 82: 'refrigerator', 84: 'book', 85: 'clock', 86: 'vase', 87: 'scissors', 88: 'teddy bear', 89: 'hair drier', 90: 'toothbrush'}

转化代码如下，修改main方法中的路径部分即可运行：

from pycocotools.coco import COCO
import os
import shutil
from tqdm import tqdm
import skimage.io as io
import matplotlib.pyplot as plt
import cv2
from PIL import Image, ImageDraw
import random


headstr = """\
<annotation>
    <folder>VOC</folder>
    <filename>%s</filename>
    <source>
        <database>My Database</database>
        <annotation>COCO</annotation>
        <image>flickr</image>
        <flickrid>NULL</flickrid>
    </source>
    <owner>
        <flickrid>NULL</flickrid>
        <name>company</name>
    </owner>
    <size>
        <width>%d</width>
        <height>%d</height>
        <depth>%d</depth>
    </size>
    <segmented>0</segmented>
"""
objstr = """\
    <object>
        <name>%s</name>
        <pose>Unspecified</pose>
        <truncated>0</truncated>
        <difficult>0</difficult>
        <bndbox>
            <xmin>%d</xmin>
            <ymin>%d</ymin>
            <xmax>%d</xmax>
            <ymax>%d</ymax>
        </bndbox>
    </object>
"""

tailstr = '''\
</annotation>
'''

# 如果目录不存在则创建它，存在则删除后创建
def mkr(path):
    if os.path.exists(path):
        # 删除后创建
        shutil.rmtree(path)
        # os.mkdir(path)
        # os.mkdir创建单层目录；os.makedirs创建多层目录
        os.makedirs(path)
    else:
        os.makedirs(path)

# 通过coco数据集的id，得到它的类别名
def id2name(coco):
    classes=dict()
    for cls in coco.dataset['categories']:
        classes[cls['id']]=cls['name']
    return classes

# 写xml文件
def write_xml(anno_path,head, objs, tail):
    f = open(anno_path, "w")
    f.write(head)
    for obj in objs:
        f.write(objstr%(obj[0],obj[1],obj[2],obj[3],obj[4]))
    f.write(tail)

#
def save_annotations_and_imgs(coco,dataset,filename,objs):
    #eg:COCO_train2014_000000196610.jpg-->COCO_train2014_000000196610.xml
    anno_path=anno_dir+filename[:-3]+'xml'
    #print(anno_path)
    #img_path=dataDir+dataset+'/'+filename
    img_path=dataset+'/'+filename
    #print(img_path)
    dst_imgpath=img_dir+filename
    #print(dst_imgpath)
    img=cv2.imread(img_path)
    #print("***********")
    #print(img1.shape)
    if (img.shape[2] == 1):
        print(filename + " not a RGB image")
        return
    shutil.copy(img_path, dst_imgpath)

    head=headstr % (filename, img.shape[1], img.shape[0], img.shape[2])
    tail = tailstr
    write_xml(anno_path,head, objs, tail)


def showimg(coco,dataset,img,classes,cls_id,show=True):
    global dataDir
    I=Image.open('%s/%s/%s'%(dataDir,dataset,img['file_name']))
    #print(I)#
    #通过id，得到注释的信息
    annIds = coco.getAnnIds(imgIds=img['id'], catIds=cls_id, iscrowd=None)
    #print(annIds)
    anns = coco.loadAnns(annIds)
    #print(anns)
    # coco.showAnns(anns)
    objs = []
    for ann in anns:
        class_name=classes[ann['category_id']]
        #print(class_name)
        if class_name in classes_names:
            #print(class_name)
            if 'bbox' in ann:
                bbox=ann['bbox']
                xmin = int(bbox[0])
                ymin = int(bbox[1])
                xmax = int(bbox[2] + bbox[0])
                ymax = int(bbox[3] + bbox[1])
                obj = [class_name, xmin, ymin, xmax, ymax]
                objs.append(obj)
                draw = ImageDraw.Draw(I)
                draw.rectangle([xmin, ymin, xmax, ymax])
    if show:
        plt.figure()
        plt.axis('off')
        plt.imshow(I)
        plt.show()
    return objs
def generate():
    for dataset in datasets_list:
        #./COCO/annotations/instances_train2014.json
        annFile='{}/annotations/instances_{}.json'.format(dataDir,dataset)

        #COCO API for initializing annotated data
        coco = COCO(annFile)
        '''
        COCO 对象创建完毕后会输出如下信息:
        loading annotations into memory...
        Done (t=0.81s)
        creating index...
        index created!
        至此, json 脚本解析完毕, 并且将图片和对应的标注数据关联起来.
        '''
        #show all classes in coco
        classes = id2name(coco)
        #print(classes)
        #[1, 2, 3, 4, 6, 8]
        classes_ids = coco.getCatIds(catNms=classes_names)
        #print(classes_ids)
        #print("**********")
        #print(classes_names)
        for cls in classes_names:
            #Get ID number of this class
            cls_id=coco.getCatIds(catNms=[cls])
            img_ids=coco.getImgIds(catIds=cls_id)
            #print(cls,len(img_ids))
            # imgIds=img_ids[0:10]
            for imgId in tqdm(img_ids):
                img = coco.loadImgs(imgId)[0]
                #print("##########")
                #print(img)
                #print("##########")
                filename = img['file_name']
                #print(filename)
                objs=showimg(coco, dataset, img, classes,classes_ids,show=False)
                #print(objs)
                save_annotations_and_imgs(coco, dataset, filename, objs)
def split_traintest(trainratio=0.7,valratio=0.2,testratio=0.1):
    dataset_dir=dataDir
    files=os.listdir(img_dir)
    trains=[]
    vals=[]
    trainvals=[]
    tests=[]
    random.shuffle(files)
    for i in range(len(files)):
        filepath=img_dir+"/"+files[i][:-3]+"jpg" #找到以上images文件夹下的图片
        #print(filepath)
        if(i<trainratio*len(files)):
            trains.append(files[i])
            trainvals.append(files[i])
        elif i<(trainratio+valratio)*len(files):
            vals.append(files[i])
            trainvals.append(files[i])
        else:
            tests.append(files[i])
    #生成yolo所用的txt
    with open(dataset_dir+"/trainval.txt","w")as f:
        for line in trainvals:
            line=img_dir+"/"+line
            f.write(line+"\n")
    with open(dataset_dir+"/test.txt","w") as f:
        for line in tests:
            line=img_dir+"/"+line
            f.write(line+"\n")

    #生成voc所用的txt
    maindir=dataset_dir+"ImageSets/Main"
    mkr(maindir)
    with open(maindir+"/train.txt","w") as f:
        for line in trains:
            line=line[:line.rfind(".")]
            f.write(line+"\n")
    with open(maindir+"/val.txt","w") as f:
        for line in vals:
            line=line[:line.rfind(".")]
            f.write(line+"\n")
    with open(maindir+"/trainval.txt","w") as f:
        for line in trainvals:
            line=line[:line.rfind(".")]
            f.write(line+"\n")
    with open(maindir+"/test.txt","w") as f:
        for line in tests:
            line=line[:line.rfind(".")]
            f.write(line+"\n")

    print("spliting done")

if __name__=="__main__":
    # 下载的coco数据集存放路径，annotations和train2014/val2014/...
    dataDir= 'C:/Users/ttt/Desktop/coco/'
    # 转化后的文件保存路径
    savepath="C:/Users/ttt/Desktop/coco/result/"
    # 转化后图片保存路径
    img_dir=savepath+'images/'
    # 转化后xml保存路径
    anno_dir=savepath+'Annotations/'
    # 选用的数据集列表
    # datasets_list=['train2014', 'val2014']
    datasets_list=['val2017']
    # 想要从coco数据集中提取的类别
    # coco数据集目标检测中有90个id，但实际只有80类
    # classes_names = ['car', 'bicycle', 'person', 'motorcycle', 'bus', 'truck']
    classes_names = ['person','bicycle','car','motorcycle','airplane','bus','train','truck','boat','traffic light','fire hydrant','stop sign','parking meter','bench','bird','cat','dog','horse','sheep','cow','elephant','bear','zebra','giraffe','backpack','umbrella','handbag','tie','suitcase','frisbee','skis','snowboard','sports ball','kite','baseball bat','baseball glove','skateboard','surfboard','tennis racket','bottle','wine glass','cup','fork','knife','spoon','bowl','banana','apple','sandwich','orange','broccoli','carrot','hot dog','pizza','donut','cake','chair','couch','potted plant','bed','dining table','toilet','tv','laptop','mouse','remote','keyboard','cell phone','microwave','oven','toaster','sink','refrigerator','book','clock','vase','scissors','teddy bear','hair drier','toothbrush']

    #创建所需要的目录
    mkr(savepath)
    mkr(img_dir)
    mkr(anno_dir)

    #生成voc格式的数据集
    generate()
    #生成yolo及voc所使用的txt文件
    split_traintest()
