logstash 例子

概述

1、收集tomcat日志一

使用 [ 作为日志切割

 input {

	file {
		type => "es_error"
        path => "E:/install/tempTwo/*.log"
		start_position => beginning
		codec => multiline {
			pattern => "^\["
			negate => true
			what => "previous"
		}
    }

    file {
		type => "tomcat_error"
        path => "E:/install/temp/*.log"
		start_position => beginning
		codec => multiline {
			pattern => "^\["
			negate => true
			what => "previous"
		}
    }
}


output {

	if [type]  == "es_error" {
	    elasticsearch { hosts => localhost
                    index => "logstash-es-%{+YYYY.MM.dd}"}
	}

	if [type]  == "tomcat_error" {
	    elasticsearch { hosts => localhost
                    index => "logstash-tomcat-%{+YYYY.MM.dd}"}
	}


    stdout { codec => rubydebug  }
}

2、收集tomcat日志二

input {
    file {
		type => "tomcat_error"
        path => "E:/install/temp/*.log"
		start_position => beginning
    }
}

filter {
    if [type] == "tomcat_error" {
            multiline {
                      pattern => "^[^\[]"
                      what => "previous"
                  }
                mutate {
           split => ["message", "|"]
        }
        grok {
            match => {
                           "message" => "(?m)%{TIMESTAMP_ISO8601:logtime}"
            }
        }
    }
}


output {
    elasticsearch { hosts => localhost
                    index => "logstash-cmis-%{+YYYY.MM.dd}"}

    stdout { codec => rubydebug  }
}

3、收集nginx日志

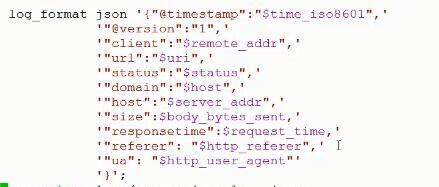

设置nginx 的日志格式为json

input {

	file {
		type => "access_log"
        path => "E:/install/tempTwo/*.log"
		codec => json
		start_position => beginning
    }

}

4、收集syslog日志

logstash 监听tcp udp的514 端口
vim /etc/rsyslog.conf 最后增加

*.* @@192.168.0.11:514

input {
	syslog {
		type => "sys_log"
        host => "192.168.0.1"
		port => "514"
    }
}

4、收集tcp日志

input {
	tcp {
		type => "tcp_log"
        host => "192.168.0.11"
		port => "6666"
    }
}

安装 nc

nc 192.168.56.11 6666 < /etc/resolv.conf

收集slowlog-grok

常用表达式

缺点占用cpu

logstash-patterns-core

https://github.com/logstash-plugins/logstash-patterns-core/tree/master/patterns


https://github.com/logstash-plugins/logstash-patterns-core/blob/master/patterns/grok-patterns
