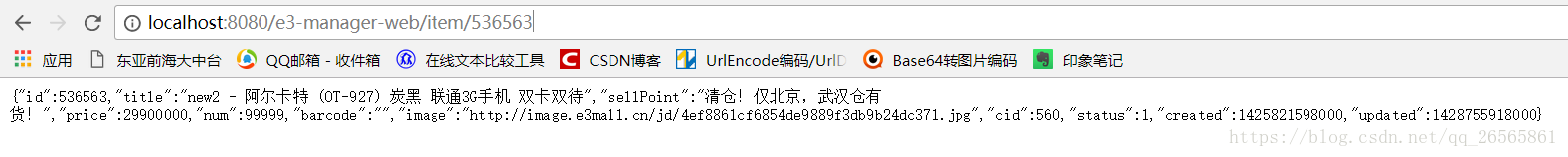

本文介绍了一个基于Spring、SpringMVC和MyBatis（SSM）的Java Web项目搭建过程，并实现了简单的商品查询功能。文章详细介绍了开发环境配置、项目结构搭建、SSM框架整合步骤及具体实现代码。

一，环境说明

jdk1.7.0_07(cmd命令行输入java -version查看)，点击下载
eclipse Kepler Service Release 2
apache-maven-3.3.9(cmd命令行输入mvn -v查看)，点击下载
apache-tomcat-7.0.52，点击下载
mysql-5.5.28-winx64，点击下载

二，设置Eclipse开发环境

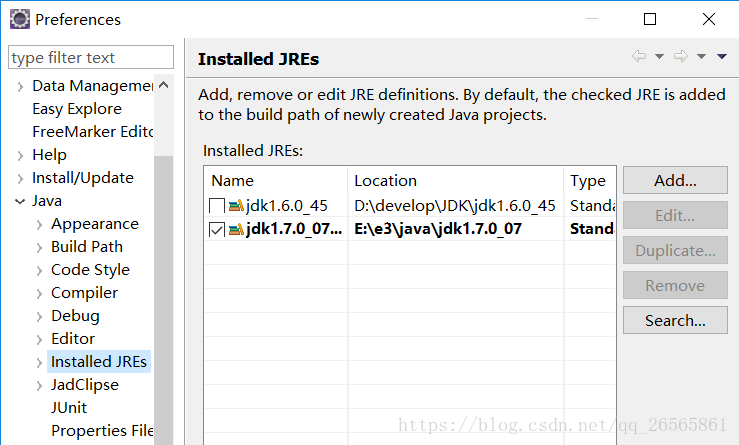

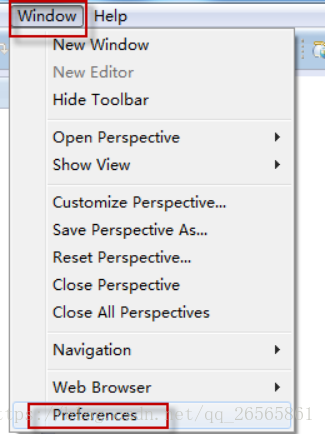

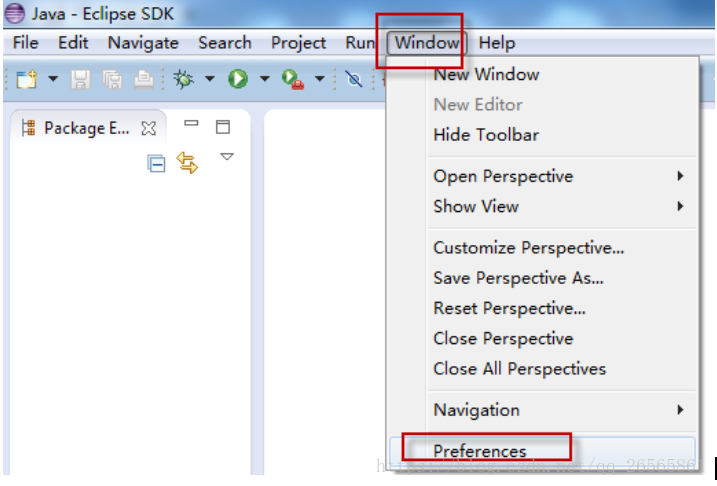

2.1，设置jre运行环境

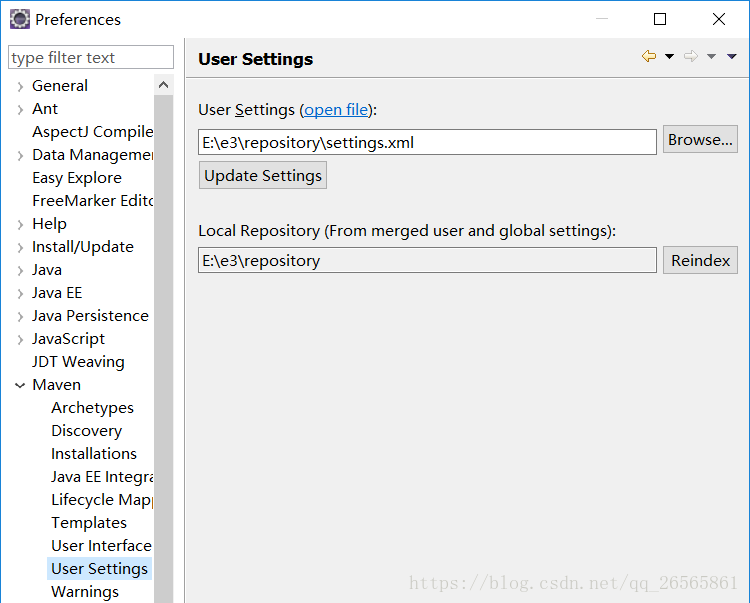

2.2，配置settings.xml文件和仓库路径

settings.xml

<?xml version="1.0"?>
<settings>
<localRepository>E:\e3\repository</localRepository><!--需要改成自己的maven的本地仓库地址-->
    <mirrors>
        <mirror>
            <id>alimaven</id>
            <name>aliyun maven</name>
            <url>http://maven.aliyun.com/nexus/content/groups/public/</url>
            <mirrorOf>central</mirrorOf>
        </mirror>
    </mirrors>
  <profiles>
    <profile>
       <id>nexus</id>
        <repositories>
            <repository>
                <id>nexus</id>
                <name>local private nexus</name>
                <url>http://maven.oschina.net/content/groups/public/</url>
                <releases>
                    <enabled>true</enabled>
                </releases>
                <snapshots>
                    <enabled>false</enabled>
                </snapshots>
            </repository>
        </repositories>

        <pluginRepositories>
            <pluginRepository>
            <id>nexus</id>
            <name>local private nexus</name>
            <url>http://maven.oschina.net/content/groups/public/</url>
            <releases>
                <enabled>true</enabled>
            </releases>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
            </pluginRepository>
        </pluginRepositories>
    </profile></profiles>
</settings>

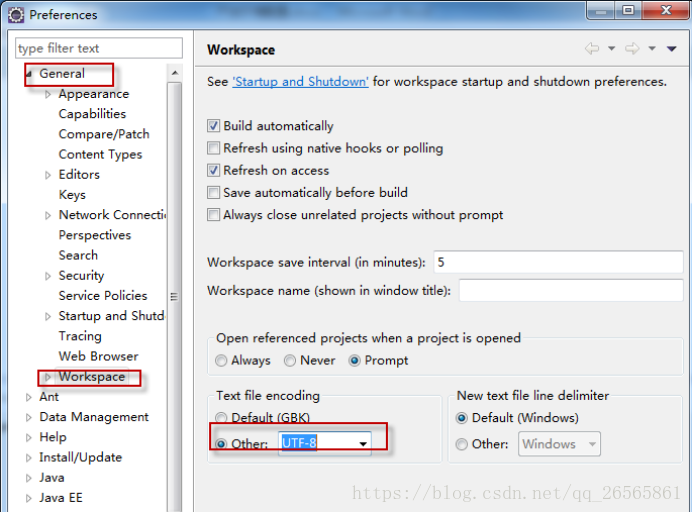

2.3，设置eclipse默认字符集

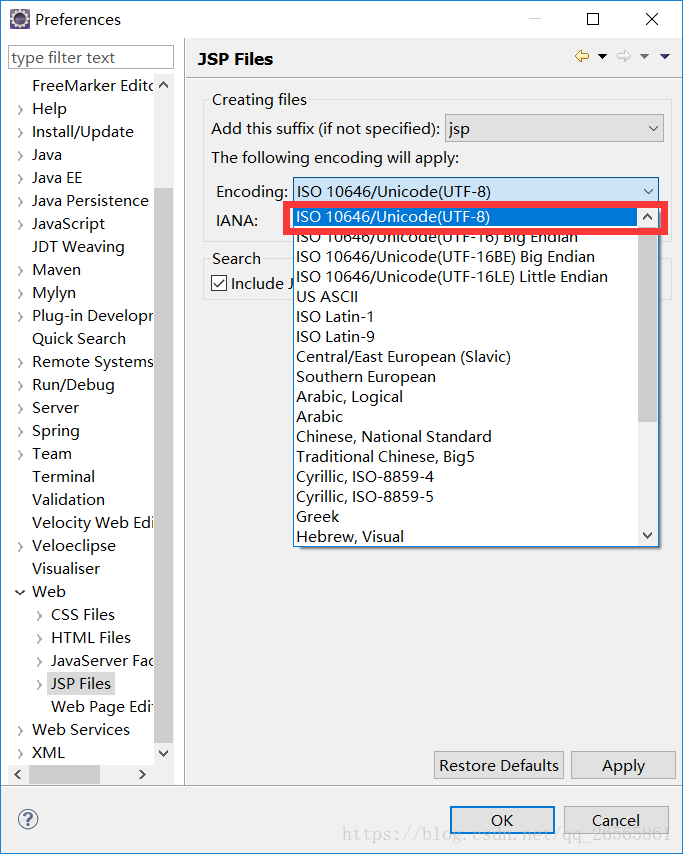

2.4，设置JSP页面编码

2.5，配置tomcat运行环境

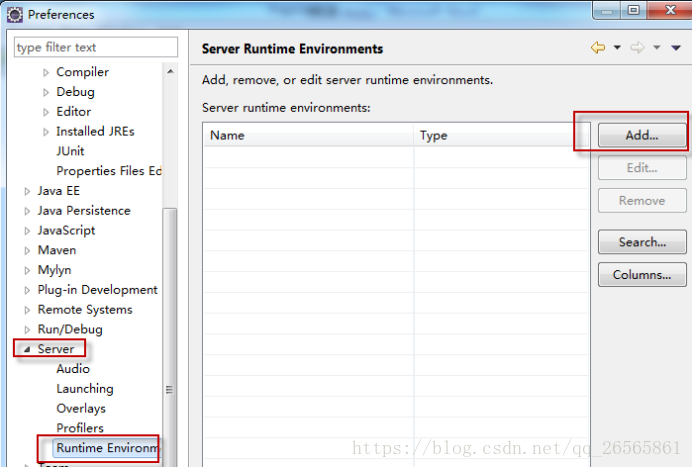

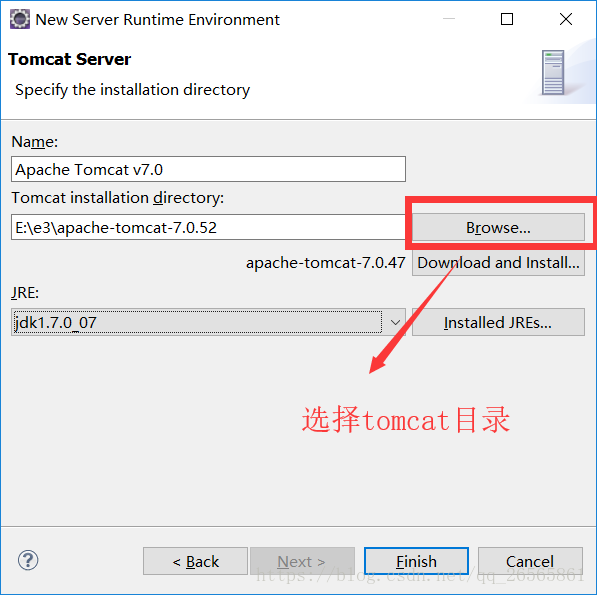

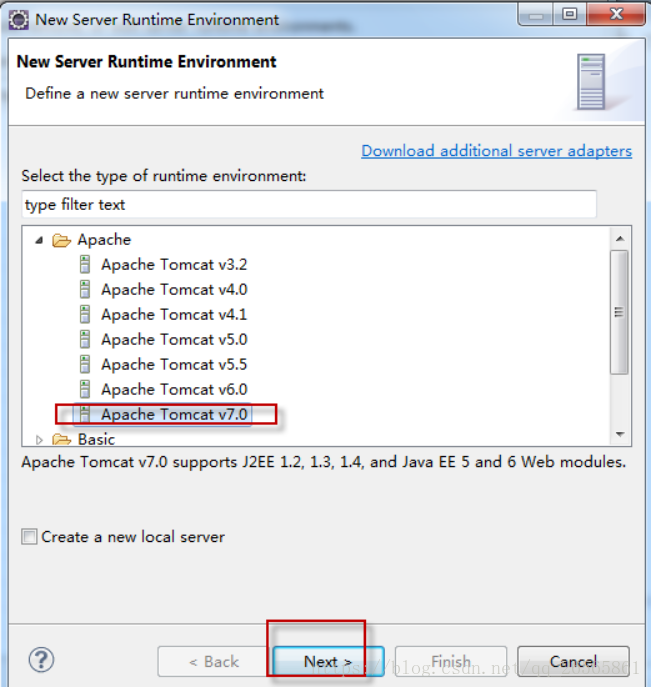

2.5.1,添加tomcat运行环境

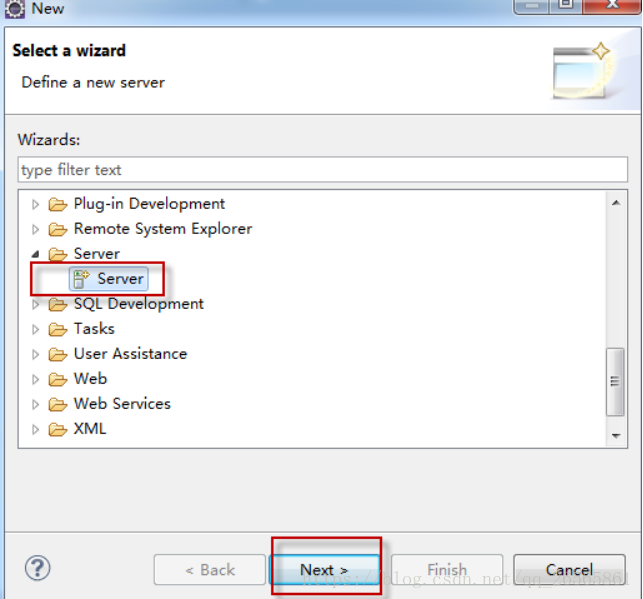

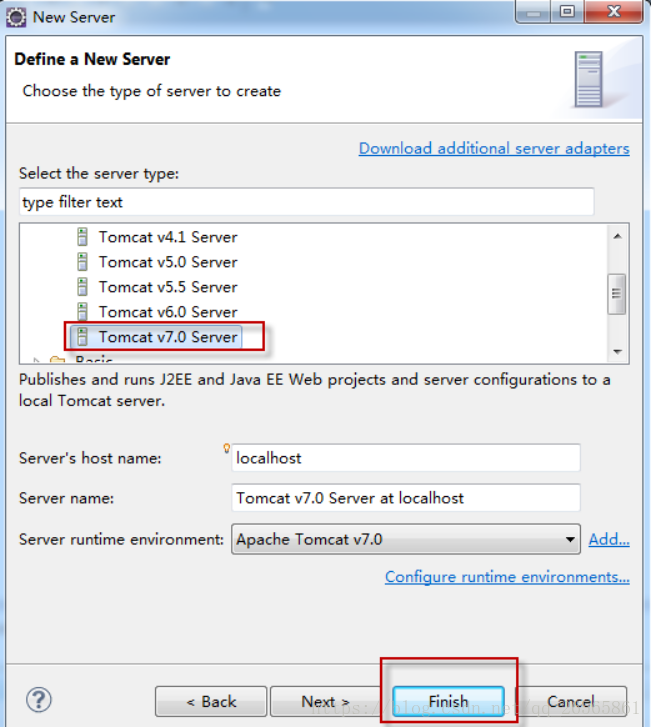

2.5.2,添加Tomcat Server

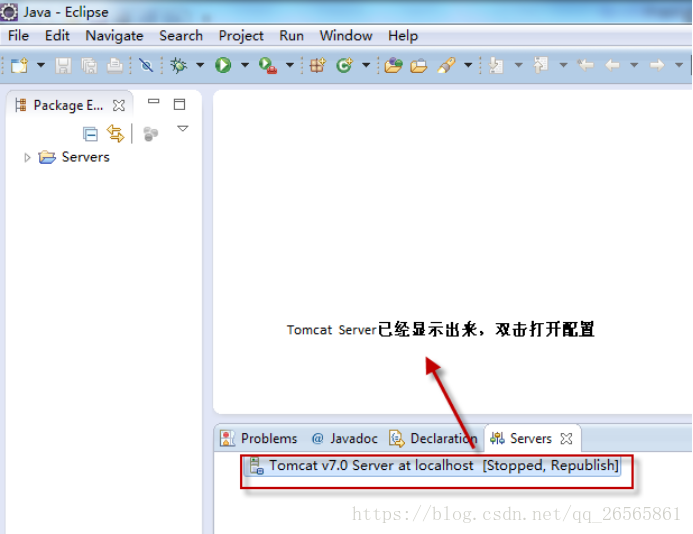

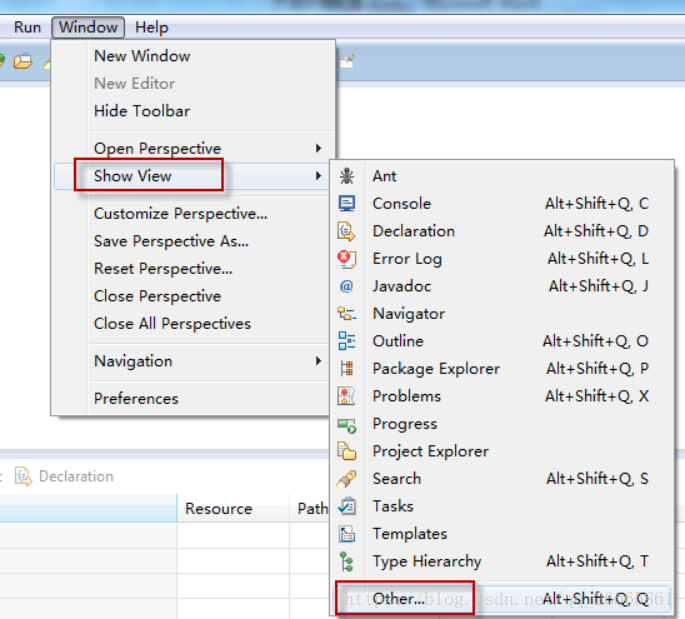

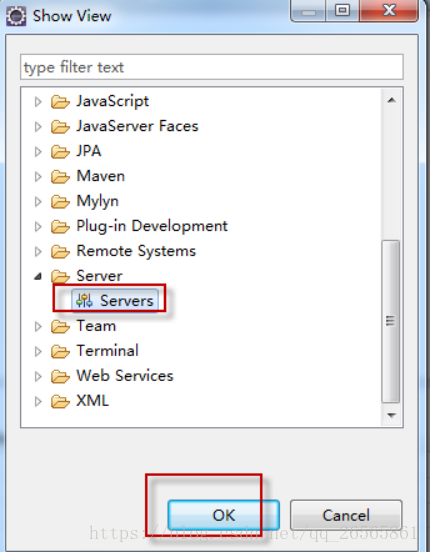

2.5.3,显示Tomcat Server

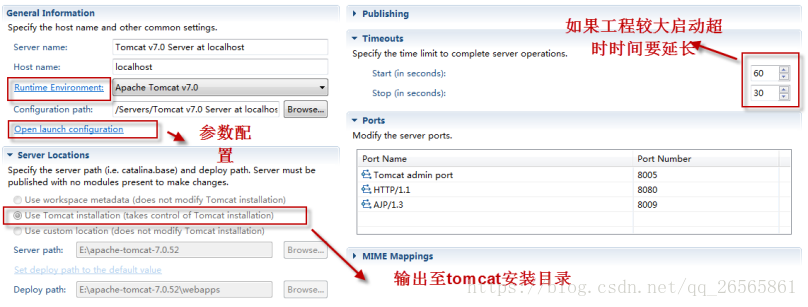

2.5.4,配置tomcat

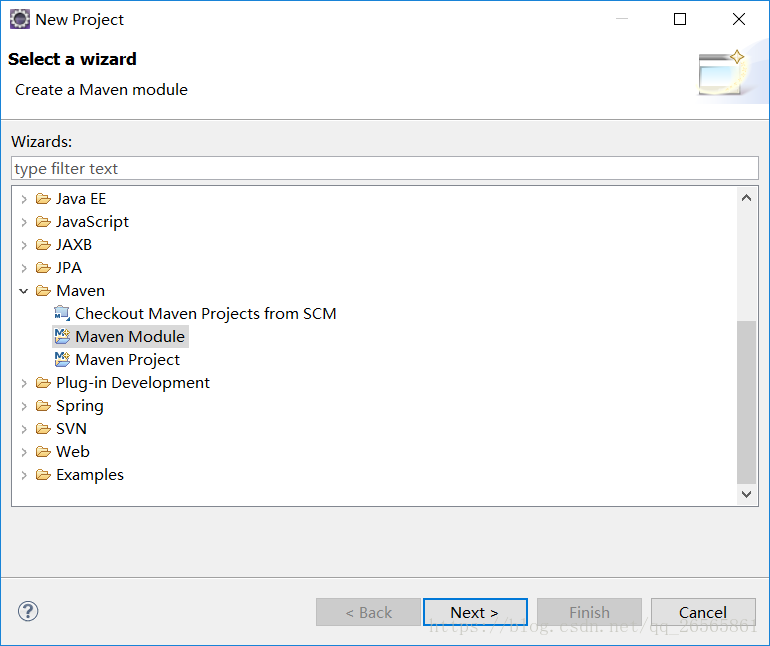

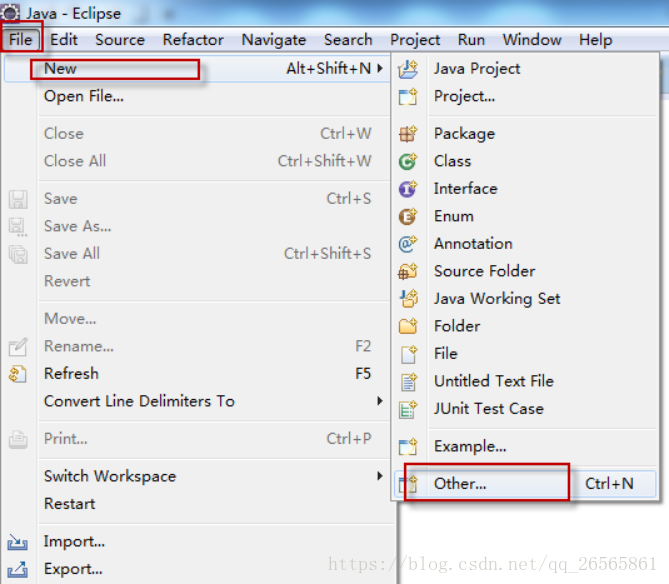

3,工程搭建

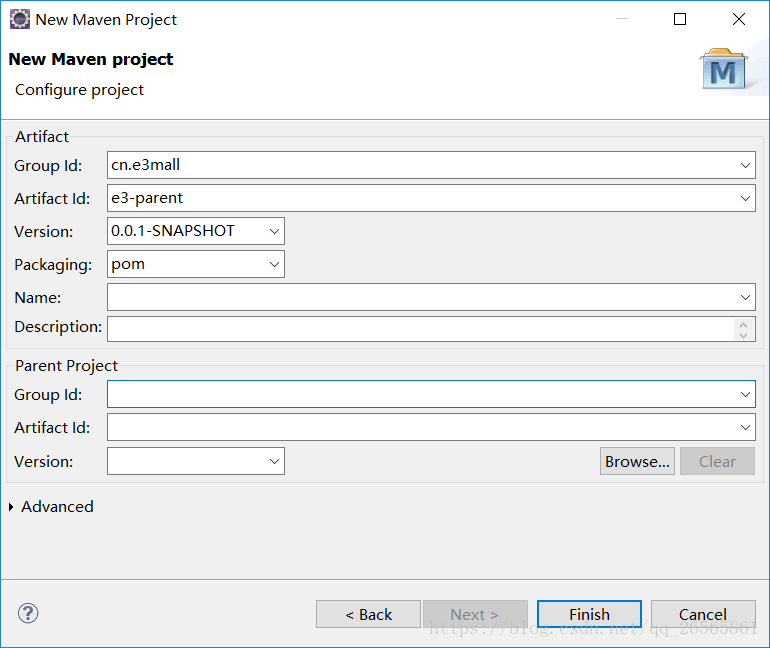

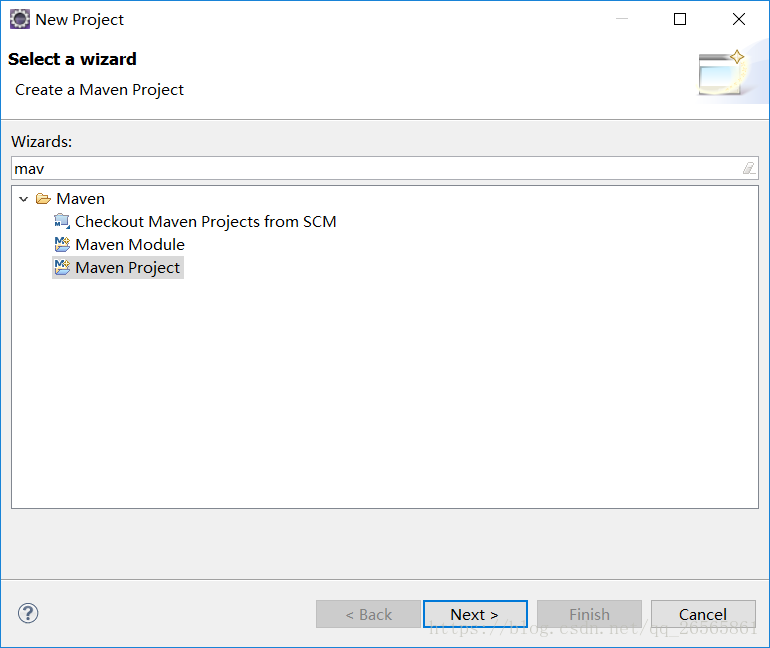

3.1，e3-parent（父工程，管理依赖的版本）

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>cn.e3mall</groupId>
	<artifactId>e3-parent</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>pom</packaging>
	<!-- 集中定义依赖版本号 -->
	<properties>
		<junit.version>4.12</junit.version>
		<spring.version>4.2.4.RELEASE</spring.version>
		<mybatis.version>3.2.8</mybatis.version>
		<mybatis.spring.version>1.2.2</mybatis.spring.version>
		<mybatis.paginator.version>1.2.15</mybatis.paginator.version>
		<mysql.version>5.1.32</mysql.version>
		<slf4j.version>1.6.4</slf4j.version>
		<jackson.version>2.4.2</jackson.version>
		<druid.version>1.0.9</druid.version>
		<httpclient.version>4.3.5</httpclient.version>
		<jstl.version>1.2</jstl.version>
		<servlet-api.version>2.5</servlet-api.version>
		<jsp-api.version>2.0</jsp-api.version>
		<joda-time.version>2.5</joda-time.version>
		<commons-lang3.version>3.3.2</commons-lang3.version>
		<commons-io.version>1.3.2</commons-io.version>
		<commons-net.version>3.3</commons-net.version>
		<pagehelper.version>3.4.2-fix</pagehelper.version>
		<jsqlparser.version>0.9.1</jsqlparser.version>
		<commons-fileupload.version>1.3.1</commons-fileupload.version>
		<jedis.version>2.7.2</jedis.version>
		<solrj.version>4.10.3</solrj.version>
		<dubbo.version>2.5.3</dubbo.version>
		<zookeeper.version>3.4.7</zookeeper.version>
		<zkclient.version>0.1</zkclient.version>
		<activemq.version>5.11.2</activemq.version>
		<freemarker.version>2.3.23</freemarker.version>
		<quartz.version>2.2.2</quartz.version>
	</properties>
	<dependencyManagement>
		<dependencies>
			<!-- 时间操作组件 -->
			<dependency>
				<groupId>joda-time</groupId>
				<artifactId>joda-time</artifactId>
				<version>${joda-time.version}</version>
			</dependency>
			<!-- Apache工具组件 -->
			<dependency>
				<groupId>org.apache.commons</groupId>
				<artifactId>commons-lang3</artifactId>
				<version>${commons-lang3.version}</version>
			</dependency>
			<dependency>
				<groupId>org.apache.commons</groupId>
				<artifactId>commons-io</artifactId>
				<version>${commons-io.version}</version>
			</dependency>
			<dependency>
				<groupId>commons-net</groupId>
				<artifactId>commons-net</artifactId>
				<version>${commons-net.version}</version>
			</dependency>
			<!-- Jackson Json处理工具包 -->
			<dependency>
				<groupId>com.fasterxml.jackson.core</groupId>
				<artifactId>jackson-databind</artifactId>
				<version>${jackson.version}</version>
			</dependency>
			<!-- httpclient -->
			<dependency>
				<groupId>org.apache.httpcomponents</groupId>
				<artifactId>httpclient</artifactId>
				<version>${httpclient.version}</version>
			</dependency>
			<!-- quartz任务调度框架 -->
			<dependency>
				<groupId>org.quartz-scheduler</groupId>
				<artifactId>quartz</artifactId>
				<version>${quartz.version}</version>
			</dependency>
			<!-- 单元测试 -->
			<dependency>
				<groupId>junit</groupId>
				<artifactId>junit</artifactId>
				<version>${junit.version}</version>
				<scope>test</scope>
			</dependency>
			<!-- 日志处理 -->
			<dependency>
				<groupId>org.slf4j</groupId>
				<artifactId>slf4j-log4j12</artifactId>
				<version>${slf4j.version}</version>
			</dependency>
			<!-- Mybatis -->
			<dependency>
				<groupId>org.mybatis</groupId>
				<artifactId>mybatis</artifactId>
				<version>${mybatis.version}</version>
			</dependency>
			<dependency>
				<groupId>org.mybatis</groupId>
				<artifactId>mybatis-spring</artifactId>
				<version>${mybatis.spring.version}</version>
			</dependency>
			<dependency>
				<groupId>com.github.miemiedev</groupId>
				<artifactId>mybatis-paginator</artifactId>
				<version>${mybatis.paginator.version}</version>
			</dependency>
			<dependency>
				<groupId>com.github.pagehelper</groupId>
				<artifactId>pagehelper</artifactId>
				<version>${pagehelper.version}</version>
			</dependency>
			<!-- MySql -->
			<dependency>
				<groupId>mysql</groupId>
				<artifactId>mysql-connector-java</artifactId>
				<version>${mysql.version}</version>
			</dependency>
			<!-- 连接池 -->
			<dependency>
				<groupId>com.alibaba</groupId>
				<artifactId>druid</artifactId>
				<version>${druid.version}</version>
			</dependency>
			<!-- Spring -->
			<dependency>
				<groupId>org.springframework</groupId>
				<artifactId>spring-context</artifactId>
				<version>${spring.version}</version>
			</dependency>
			<dependency>
				<groupId>org.springframework</groupId>
				<artifactId>spring-beans</artifactId>
				<version>${spring.version}</version>
			</dependency>
			<dependency>
				<groupId>org.springframework</groupId>
				<artifactId>spring-webmvc</artifactId>
				<version>${spring.version}</version>
			</dependency>
			<dependency>
				<groupId>org.springframework</groupId>
				<artifactId>spring-jdbc</artifactId>
				<version>${spring.version}</version>
			</dependency>
			<dependency>
				<groupId>org.springframework</groupId>
				<artifactId>spring-aspects</artifactId>
				<version>${spring.version}</version>
			</dependency>
			<dependency>
				<groupId>org.springframework</groupId>
				<artifactId>spring-jms</artifactId>
				<version>${spring.version}</version>
			</dependency>
			<dependency>
				<groupId>org.springframework</groupId>
				<artifactId>spring-context-support</artifactId>
				<version>${spring.version}</version>
			</dependency>
			<!-- JSP相关 -->
			<dependency>
				<groupId>jstl</groupId>
				<artifactId>jstl</artifactId>
				<version>${jstl.version}</version>
			</dependency>
			<dependency>
				<groupId>javax.servlet</groupId>
				<artifactId>servlet-api</artifactId>
				<version>${servlet-api.version}</version>
				<scope>provided</scope>
			</dependency>
			<dependency>
				<groupId>javax.servlet</groupId>
				<artifactId>jsp-api</artifactId>
				<version>${jsp-api.version}</version>
				<scope>provided</scope>
			</dependency>
			<!-- 文件上传组件 -->
			<dependency>
				<groupId>commons-fileupload</groupId>
				<artifactId>commons-fileupload</artifactId>
				<version>${commons-fileupload.version}</version>
			</dependency>
			<!-- Redis客户端 -->
			<dependency>
				<groupId>redis.clients</groupId>
				<artifactId>jedis</artifactId>
				<version>${jedis.version}</version>
			</dependency>
			<!-- solr客户端 -->
			<dependency>
				<groupId>org.apache.solr</groupId>
				<artifactId>solr-solrj</artifactId>
				<version>${solrj.version}</version>
			</dependency>
			<!-- dubbo相关 -->
			<dependency>
				<groupId>com.alibaba</groupId>
				<artifactId>dubbo</artifactId>
				<version>${dubbo.version}</version>
			</dependency>
			<dependency>
				<groupId>org.apache.zookeeper</groupId>
				<artifactId>zookeeper</artifactId>
				<version>${zookeeper.version}</version>
			</dependency>
			<dependency>
				<groupId>com.github.sgroschupf</groupId>
				<artifactId>zkclient</artifactId>
				<version>${zkclient.version}</version>
			</dependency>
			<dependency>
				<groupId>org.apache.activemq</groupId>
				<artifactId>activemq-all</artifactId>
				<version>${activemq.version}</version>
			</dependency>
			<dependency>
				<groupId>org.freemarker</groupId>
				<artifactId>freemarker</artifactId>
				<version>${freemarker.version}</version>
			</dependency>

		</dependencies>
	</dependencyManagement>

	<build>
		<finalName>${project.artifactId}</finalName>
		<plugins>
			<!-- 资源文件拷贝插件 -->
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-resources-plugin</artifactId>
				<version>2.7</version>
				<configuration>
					<encoding>UTF-8</encoding>
				</configuration>
			</plugin>
			<!-- java编译插件 -->
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>3.2</version>
				<configuration>
					<source>1.7</source>
					<target>1.7</target>
					<encoding>UTF-8</encoding>
				</configuration>
			</plugin>
		</plugins>
		<pluginManagement>
			<plugins>
				<!-- 配置Tomcat插件 -->
				<plugin>
					<groupId>org.apache.tomcat.maven</groupId>
					<artifactId>tomcat7-maven-plugin</artifactId>
					<version>2.2</version>
				</plugin>
			</plugins>
		</pluginManagement>
	</build>
</project>

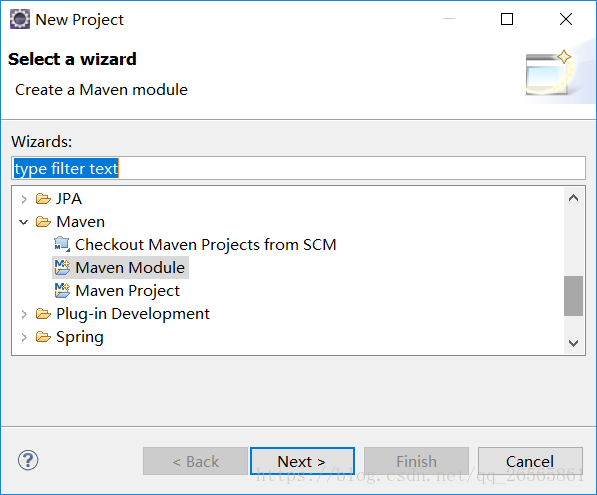

3.2，e3-common（工具类）

打包方式选择jar包

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>cn.e3mall</groupId>
		<artifactId>e3-parent</artifactId>
		<version>0.0.1-SNAPSHOT</version>
	</parent>
	<groupId>cn.e3mall</groupId>
	<artifactId>e3-common</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<dependencies>
		<!-- 时间操作组件 -->
		<dependency>
			<groupId>joda-time</groupId>
			<artifactId>joda-time</artifactId>
		</dependency>
		<!-- Apache工具组件 -->
		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-lang3</artifactId>
		</dependency>
		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-io</artifactId>
		</dependency>
		<dependency>
			<groupId>commons-net</groupId>
			<artifactId>commons-net</artifactId>
		</dependency>
		<!-- Jackson Json处理工具包 -->
		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-databind</artifactId>
		</dependency>
		<!-- httpclient -->
		<dependency>
			<groupId>org.apache.httpcomponents</groupId>
			<artifactId>httpclient</artifactId>
		</dependency>
		<!-- quartz任务调度框架 -->
		<dependency>
			<groupId>org.quartz-scheduler</groupId>
			<artifactId>quartz</artifactId>
		</dependency>
		<!-- 单元测试 -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<scope>test</scope>
		</dependency>
		<!-- 日志处理 -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
		</dependency>
	</dependencies>
</project>

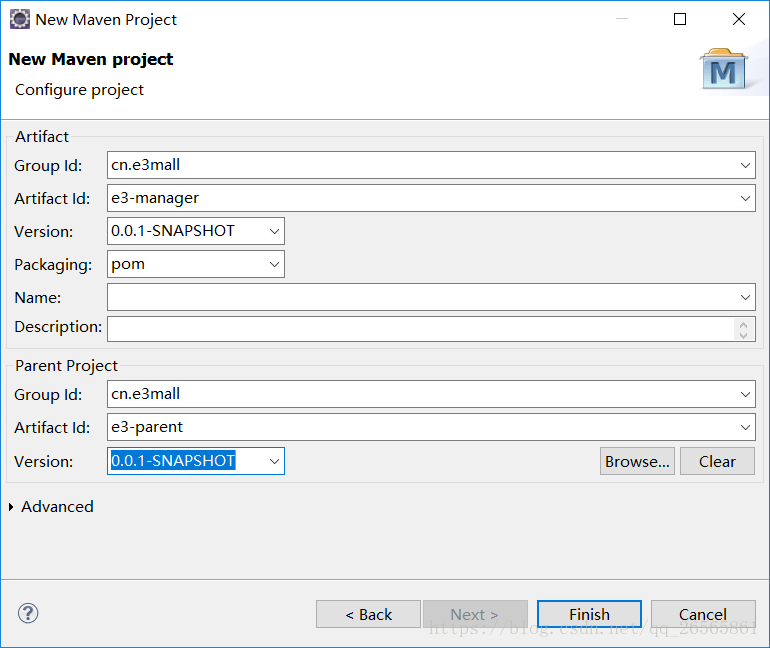

3.3，e3-manager（聚合工程，下面所有工程的父工程）

打包方式选择pom

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>cn.e3mall</groupId>
		<artifactId>e3-parent</artifactId>
		<version>0.0.1-SNAPSHOT</version>
	</parent>
	<groupId>cn.e3mall</groupId>
	<artifactId>e3-manager</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>pom</packaging>
	<dependencies>
		<dependency>
			<groupId>cn.e3mall</groupId>
			<artifactId>e3-common</artifactId>
			<version>0.0.1-SNAPSHOT</version>
		</dependency>
	</dependencies>
</project>

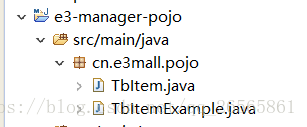

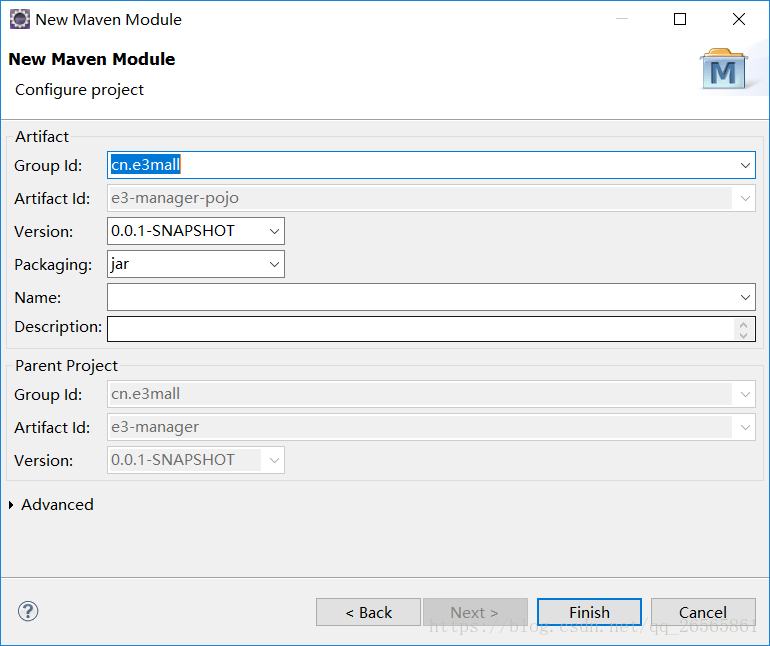

3.4，e3-manager-pojo（实体层）

选择新建maven module工程

3.5，e3-manager-dao（持久层）

选择新建maven module工程

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>cn.e3mall</groupId>
		<artifactId>e3-manager</artifactId>
		<version>0.0.1-SNAPSHOT</version>
	</parent>
	<artifactId>e3-manager-dao</artifactId>
	<dependencies>
		<dependency>
			<groupId>cn.e3mall</groupId>
			<artifactId>e3-manager-pojo</artifactId>
			<version>0.0.1-SNAPSHOT</version>
		</dependency>
		<!-- 添加对mybatis的依赖 -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
		</dependency>
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
		</dependency>
		<dependency>
			<groupId>com.github.miemiedev</groupId>
			<artifactId>mybatis-paginator</artifactId>
		</dependency>
		<dependency>
			<groupId>com.github.pagehelper</groupId>
			<artifactId>pagehelper</artifactId>
		</dependency>
		<!-- MySql -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>
		<!-- 连接池 -->
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>druid</artifactId>
		</dependency>
	</dependencies>
</project>

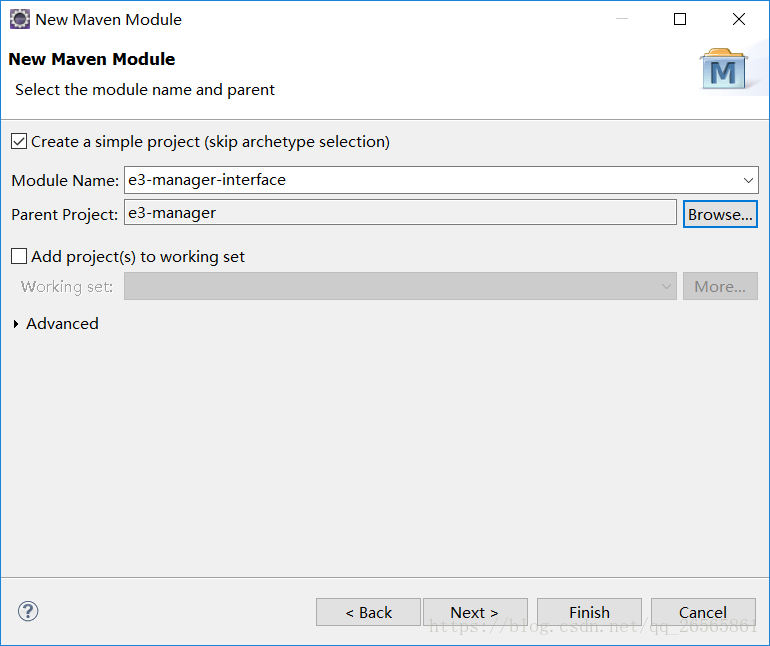

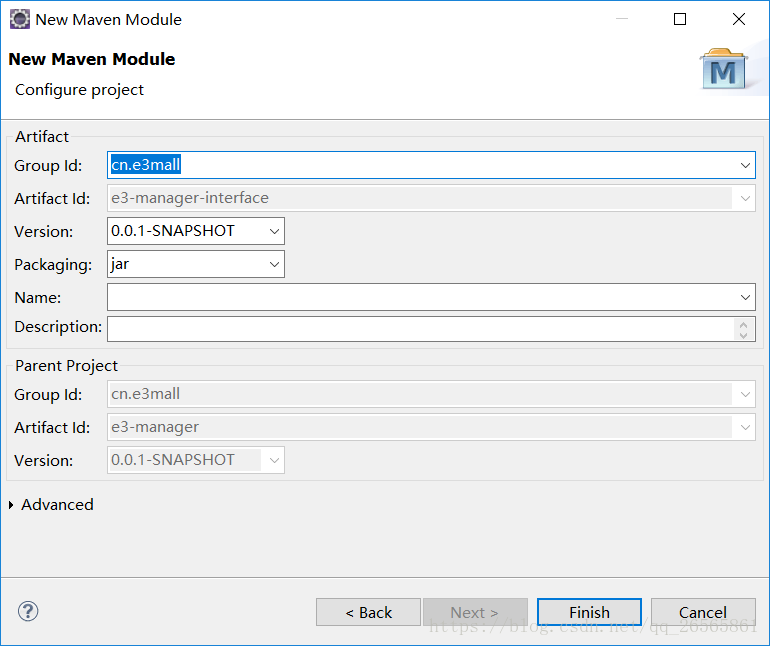

3.6，e3-manager-interface（接口）

选择新建maven module工程

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>cn.e3mall</groupId>
		<artifactId>e3-manager</artifactId>
		<version>0.0.1-SNAPSHOT</version>
	</parent>
	<artifactId>e3-manager-interface</artifactId>
	<dependencies>
		<dependency>
			<groupId>cn.e3mall</groupId>
			<artifactId>e3-manager-pojo</artifactId>
			<version>0.0.1-SNAPSHOT</version>
		</dependency>
	</dependencies>
</project>

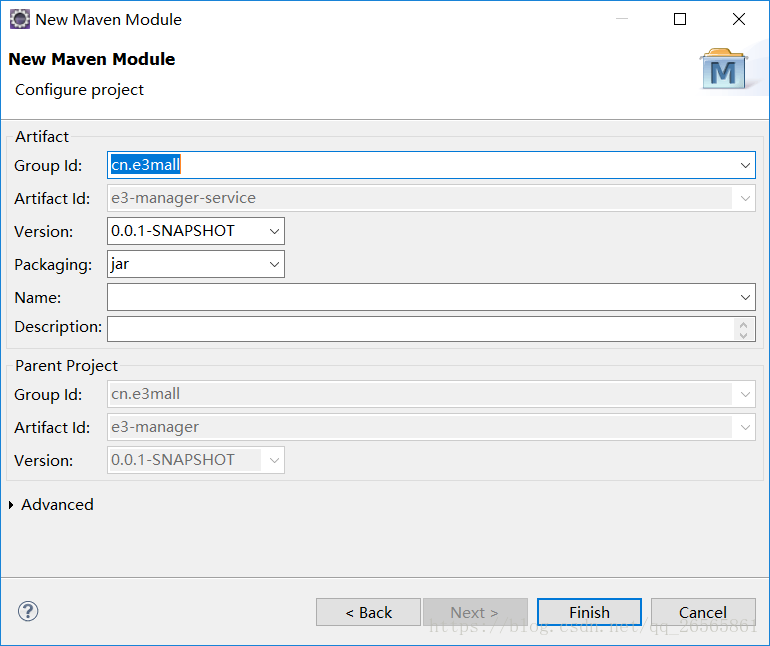

3.7，e3-manager-service（服务层）

选择新建maven module工程

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>cn.e3mall</groupId>
		<artifactId>e3-manager</artifactId>
		<version>0.0.1-SNAPSHOT</version>
	</parent>
	<artifactId>e3-manager-service</artifactId>
	<dependencies>
		<dependency>
			<groupId>cn.e3mall</groupId>
			<artifactId>e3-manager-dao</artifactId>
			<version>0.0.1-SNAPSHOT</version>
		</dependency>
		<dependency>
			<groupId>cn.e3mall</groupId>
			<artifactId>e3-manager-interface</artifactId>
			<version>0.0.1-SNAPSHOT</version>
		</dependency>
		<!-- spring的依赖 -->
		<!-- Spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-beans</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aspects</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jms</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context-support</artifactId>
		</dependency>
	</dependencies>
</project>

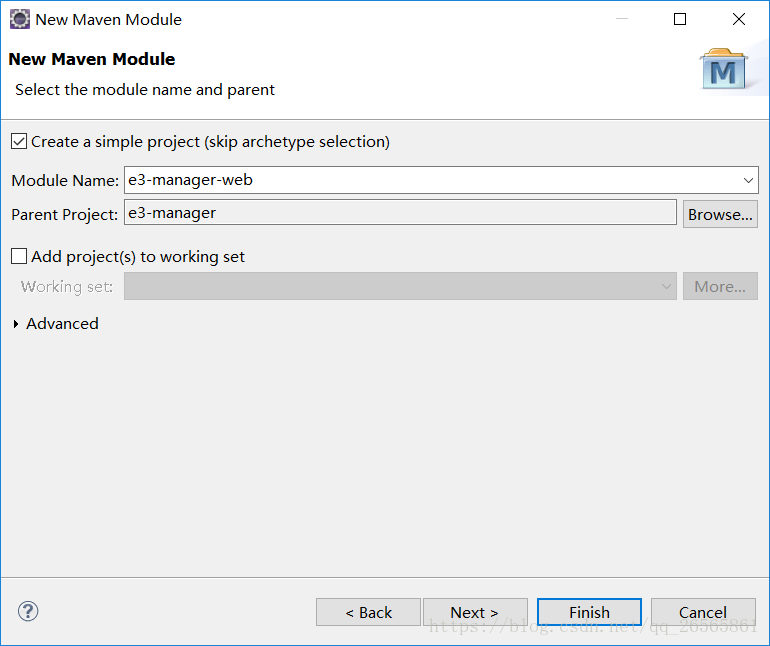

3.8，e3-manager-web（web工程）

选择新建maven module工程

打包方式选择war包

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>cn.e3mall</groupId>
		<artifactId>e3-manager</artifactId>
		<version>0.0.1-SNAPSHOT</version>
	</parent>
	<artifactId>e3-manager-web</artifactId>
	<packaging>war</packaging>
	<dependencies>
		<dependency>
		<groupId>cn.e3mall</groupId>
		<artifactId>e3-manager-service</artifactId>
		<version>0.0.1-SNAPSHOT</version>
		</dependency>
		<!-- JSP相关 -->
		<dependency>
			<groupId>jstl</groupId>
			<artifactId>jstl</artifactId>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>servlet-api</artifactId>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jsp-api</artifactId>
			<scope>provided</scope>
		</dependency>
	</dependencies>
</project>

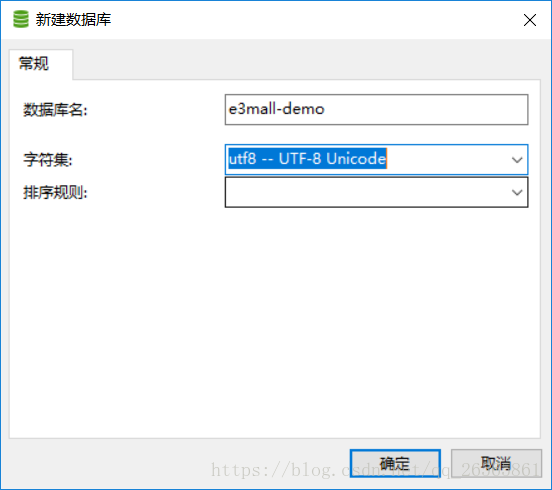

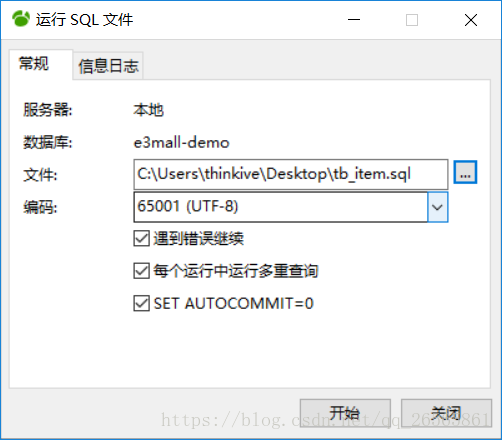

4,新建数据库导入表结构和数据

tb_item.sql

/*
Navicat MySQL Data Transfer

Source Server         : 本地
Source Server Version : 50528
Source Host           : localhost:3306
Source Database       : e3mall-32

Target Server Type    : MYSQL
Target Server Version : 50528
File Encoding         : 65001

Date: 2018-07-18 20:54:10
*/

SET FOREIGN_KEY_CHECKS=0;

-- ----------------------------
-- Table structure for tb_item
-- ----------------------------
DROP TABLE IF EXISTS `tb_item`;
CREATE TABLE `tb_item` (
  `id` bigint(20) NOT NULL COMMENT '商品id，同时也是商品编号',
  `title` varchar(100) NOT NULL COMMENT '商品标题',
  `sell_point` varchar(500) DEFAULT NULL COMMENT '商品卖点',
  `price` bigint(20) NOT NULL COMMENT '商品价格，单位为：分',
  `num` int(10) NOT NULL COMMENT '库存数量',
  `barcode` varchar(30) DEFAULT NULL COMMENT '商品条形码',
  `image` varchar(500) DEFAULT NULL COMMENT '商品图片',
  `cid` bigint(10) NOT NULL COMMENT '所属类目，叶子类目',
  `status` tinyint(4) NOT NULL DEFAULT '1' COMMENT '商品状态，1-正常，2-下架，3-删除',
  `created` datetime NOT NULL COMMENT '创建时间',
  `updated` datetime NOT NULL COMMENT '更新时间',
  PRIMARY KEY (`id`),
  KEY `cid` (`cid`),
  KEY `status` (`status`),
  KEY `updated` (`updated`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COMMENT='商品表';

-- ----------------------------
-- Records of tb_item
-- ----------------------------
INSERT INTO `tb_item` VALUES ('536563', 'new2 - 阿尔卡特 (OT-927) 炭黑 联通3G手机 双卡双待', '清仓！仅北京，武汉仓有货！', '29900000', '99999', '', 'http://image.e3mall.cn/jd/4ef8861cf6854de9889f3db9b24dc371.jpg', '560', '1', '2015-03-08 21:33:18', '2015-04-11 20:38:38');

5，ssm框架整合

5.1，整合思路

SqlMapConfig.xml：spring整合mybatis需要引入SqlMapConfig.xml，里面可以没有实质性的内容，但是必须保留文件头。

applicationContext-dao.xml：由spring创建数据库连接池，管理SqlSessionFactory、mapper代理对象。

applicationContext-service.xml：所有service对象交由spring容器管理

applicationContext-trans.xml：由spring来管理实务

springmvc.xml:引入springmvc，由spring来管理controller

web.xml:加载spring容器，加载springmvc

5.2,SqlMapConfig.xml

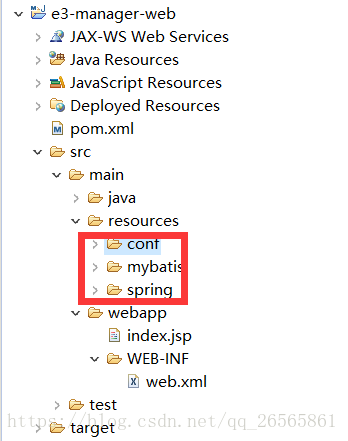

在e3-manager-web/src/main/resources/目录下创建三个文件夹conf、spring、mybatis

在mybatis目录下创建SqlMapConfig.xml文件，文件内容如下：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
		PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
		"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

</configuration>

5.3,applicationContext-dao.xml

在spring目录下创建applicationContext-dao.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.2.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.2.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.2.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.2.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.2.xsd">

	<!-- 数据库连接池 -->
	<!-- 加载配置文件 -->
	<context:property-placeholder location="classpath:conf/db.properties" />
	<!-- 数据库连接池 -->
	<bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource"
		destroy-method="close">
		<property name="url" value="${jdbc.url}" />
		<property name="username" value="${jdbc.username}" />
		<property name="password" value="${jdbc.password}" />
		<property name="driverClassName" value="${jdbc.driver}" />
		<property name="maxActive" value="10" />
		<property name="minIdle" value="5" />
	</bean>
	<!-- 让spring管理sqlsessionfactory 使用mybatis和spring整合包中的 -->
	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<!-- 数据库连接池 -->
		<property name="dataSource" ref="dataSource" />
		<!-- 加载mybatis的全局配置文件 -->
		<property name="configLocation" value="classpath:mybatis/SqlMapConfig.xml" />
	</bean>
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<property name="basePackage" value="cn.e3mall.mapper" />
	</bean>
</beans>

5.4,applicationContext-service.xml

在spring目录下创建applicationContext-service.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.2.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.2.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.2.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.2.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.2.xsd">

	<!-- 配置包扫描器 -->
	<context:component-scan base-package="cn.e3mall.service"/>

</beans>

5.5,applicationContext-trans.xml

在spring目录下创建applicationContext-trans.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.2.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.2.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.2.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.2.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.2.xsd">
	<!-- 事务管理器 -->
	<bean id="transactionManager"
		class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<!-- 数据源 -->
		<property name="dataSource" ref="dataSource" />
	</bean>
	<!-- 通知 -->
	<tx:advice id="txAdvice" transaction-manager="transactionManager">
		<tx:attributes>
			<!-- 传播行为 -->
			<tx:method name="save*" propagation="REQUIRED" />
			<tx:method name="insert*" propagation="REQUIRED" />
			<tx:method name="add*" propagation="REQUIRED" />
			<tx:method name="create*" propagation="REQUIRED" />
			<tx:method name="delete*" propagation="REQUIRED" />
			<tx:method name="update*" propagation="REQUIRED" />
			<tx:method name="find*" propagation="SUPPORTS" read-only="true" />
			<tx:method name="select*" propagation="SUPPORTS" read-only="true" />
			<tx:method name="get*" propagation="SUPPORTS" read-only="true" />
		</tx:attributes>
	</tx:advice>
	<!-- 切面 -->
	<aop:config>
		<aop:advisor advice-ref="txAdvice"
			pointcut="execution(* cn.e3mall.service..*.*(..))" />
	</aop:config>
</beans>

5.6,springmvc.xml

在spring目录下创建springmvc.xml：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.2.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.2.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.2.xsd">

	<context:component-scan base-package="cn.e3mall.controller" />
	<mvc:annotation-driven />
	<bean
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix" value="/WEB-INF/jsp/" />
		<property name="suffix" value=".jsp" />
	</bean>
</beans>

5.7,web.xml

在webapp目录下创建WEB-INF目录，创建web.xml文件：

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://java.sun.com/xml/ns/javaee"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
	version="2.5">
	<display-name>e3-manager-web</display-name>
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
		<welcome-file>index.htm</welcome-file>
		<welcome-file>index.jsp</welcome-file>
		<welcome-file>default.html</welcome-file>
		<welcome-file>default.htm</welcome-file>
		<welcome-file>default.jsp</welcome-file>
	</welcome-file-list>
	<!-- 加载spring容器 -->
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:spring/applicationContext-*.xml</param-value>
	</context-param>
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<!-- 解决post乱码 -->
	<filter>
		<filter-name>CharacterEncodingFilter</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
		<init-param>
			<param-name>encoding</param-name>
			<param-value>utf-8</param-value>
		</init-param>
	</filter>
	<filter-mapping>
		<filter-name>CharacterEncodingFilter</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>


	<!-- springmvc的前端控制器 -->
	<servlet>
		<servlet-name>e3-manager</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<!-- contextConfigLocation不是必须的， 如果不配置contextConfigLocation， springmvc的配置文件默认在：WEB-INF/servlet的name+"-servlet.xml" -->
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:spring/springmvc.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>e3-manager</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>

	<context-param>
		<param-name>log4jConfigLocation</param-name>
		<param-value>classpath:conf/log4j.properties</param-value>
	</context-param>
	<listener>
		<listener-class>org.springframework.web.util.Log4jConfigListener</listener-class>
	</listener>
</web-app>

5.8,db.properties

在conf目录下创建db.properties，注意数据库名、用户名和密码：

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/e3mall-demo?characterEncoding=utf-8
jdbc.username=root
jdbc.password=a123

5.9,log4j.properties

在conf目录下创建log4j.properties文件：

log4j.rootLogger=INFO,Console,File
#\u63A7\u5236\u53F0\u65E5\u5FD7
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.Target=System.out
log4j.appender.Console.layout=org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=[%p][%t][%d{yyyy-MM-dd HH\:mm\:ss}][%C] - %m%n
#\u666E\u901A\u6587\u4EF6\u65E5\u5FD7
log4j.appender.File=org.apache.log4j.RollingFileAppender
log4j.appender.File.File=logs/ssm.log
log4j.appender.File.MaxFileSize=10MB
#\u8F93\u51FA\u65E5\u5FD7\uFF0C\u5982\u679C\u6362\u6210DEBUG\u8868\u793A\u8F93\u51FADEBUG\u4EE5\u4E0A\u7EA7\u522B\u65E5\u5FD7
log4j.appender.File.Threshold=ALL
log4j.appender.File.layout=org.apache.log4j.PatternLayout
log4j.appender.File.layout.ConversionPattern=[%p][%t][%d{yyyy-MM-dd HH\:mm\:ss}][%C] - %m%n

6，开发一个小的查询功能

6.1,需求描述

浏览器输入http://localhost:8080/e3-manager-web/item/536563能查到对应的商品信息

6.2，创建实体类

创建cn.e3mall.pojo包：

TbItem.java

package cn.e3mall.pojo;

import java.util.Date;

public class TbItem {
    private Long id;

    private String title;

    private String sellPoint;

    private Long price;

    private Integer num;

    private String barcode;

    private String image;

    private Long cid;

    private Byte status;

    private Date created;

    private Date updated;

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getTitle() {
        return title;
    }

    public void setTitle(String title) {
        this.title = title == null ? null : title.trim();
    }

    public String getSellPoint() {
        return sellPoint;
    }

    public void setSellPoint(String sellPoint) {
        this.sellPoint = sellPoint == null ? null : sellPoint.trim();
    }

    public Long getPrice() {
        return price;
    }

    public void setPrice(Long price) {
        this.price = price;
    }

    public Integer getNum() {
        return num;
    }

    public void setNum(Integer num) {
        this.num = num;
    }

    public String getBarcode() {
        return barcode;
    }

    public void setBarcode(String barcode) {
        this.barcode = barcode == null ? null : barcode.trim();
    }

    public String getImage() {
        return image;
    }

    public void setImage(String image) {
        this.image = image == null ? null : image.trim();
    }

    public Long getCid() {
        return cid;
    }

    public void setCid(Long cid) {
        this.cid = cid;
    }

    public Byte getStatus() {
        return status;
    }

    public void setStatus(Byte status) {
        this.status = status;
    }

    public Date getCreated() {
        return created;
    }

    public void setCreated(Date created) {
        this.created = created;
    }

    public Date getUpdated() {
        return updated;
    }

    public void setUpdated(Date updated) {
        this.updated = updated;
    }
}

TbItemExample.java

package cn.e3mall.pojo;

import java.util.ArrayList;
import java.util.Date;
import java.util.List;

public class TbItemExample {
    protected String orderByClause;

    protected boolean distinct;

    protected List<Criteria> oredCriteria;

    public TbItemExample() {
        oredCriteria = new ArrayList<Criteria>();
    }

    public void setOrderByClause(String orderByClause) {
        this.orderByClause = orderByClause;
    }

    public String getOrderByClause() {
        return orderByClause;
    }

    public void setDistinct(boolean distinct) {
        this.distinct = distinct;
    }

    public boolean isDistinct() {
        return distinct;
    }

    public List<Criteria> getOredCriteria() {
        return oredCriteria;
    }

    public void or(Criteria criteria) {
        oredCriteria.add(criteria);
    }

    public Criteria or() {
        Criteria criteria = createCriteriaInternal();
        oredCriteria.add(criteria);
        return criteria;
    }

    public Criteria createCriteria() {
        Criteria criteria = createCriteriaInternal();
        if (oredCriteria.size() == 0) {
            oredCriteria.add(criteria);
        }
        return criteria;
    }

    protected Criteria createCriteriaInternal() {
        Criteria criteria = new Criteria();
        return criteria;
    }

    public void clear() {
        oredCriteria.clear();
        orderByClause = null;
        distinct = false;
    }

    protected abstract static class GeneratedCriteria {
        protected List<Criterion> criteria;

        protected GeneratedCriteria() {
            super();
            criteria = new ArrayList<Criterion>();
        }

        public boolean isValid() {
            return criteria.size() > 0;
        }

        public List<Criterion> getAllCriteria() {
            return criteria;
        }

        public List<Criterion> getCriteria() {
            return criteria;
        }

        protected void addCriterion(String condition) {
            if (condition == null) {
                throw new RuntimeException("Value for condition cannot be null");
            }
            criteria.add(new Criterion(condition));
        }

        protected void addCriterion(String condition, Object value, String property) {
            if (value == null) {
                throw new RuntimeException("Value for " + property + " cannot be null");
            }
            criteria.add(new Criterion(condition, value));
        }

        protected void addCriterion(String condition, Object value1, Object value2, String property) {
            if (value1 == null || value2 == null) {
                throw new RuntimeException("Between values for " + property + " cannot be null");
            }
            criteria.add(new Criterion(condition, value1, value2));
        }

        public Criteria andIdIsNull() {
            addCriterion("id is null");
            return (Criteria) this;
        }

        public Criteria andIdIsNotNull() {
            addCriterion("id is not null");
            return (Criteria) this;
        }

        public Criteria andIdEqualTo(Long value) {
            addCriterion("id =", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdNotEqualTo(Long value) {
            addCriterion("id <>", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdGreaterThan(Long value) {
            addCriterion("id >", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdGreaterThanOrEqualTo(Long value) {
            addCriterion("id >=", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdLessThan(Long value) {
            addCriterion("id <", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdLessThanOrEqualTo(Long value) {
            addCriterion("id <=", value, "id");
            return (Criteria) this;
        }

        public Criteria andIdIn(List<Long> values) {
            addCriterion("id in", values, "id");
            return (Criteria) this;
        }

        public Criteria andIdNotIn(List<Long> values) {
            addCriterion("id not in", values, "id");
            return (Criteria) this;
        }

        public Criteria andIdBetween(Long value1, Long value2) {
            addCriterion("id between", value1, value2, "id");
            return (Criteria) this;
        }

        public Criteria andIdNotBetween(Long value1, Long value2) {
            addCriterion("id not between", value1, value2, "id");
            return (Criteria) this;
        }

        public Criteria andTitleIsNull() {
            addCriterion("title is null");
            return (Criteria) this;
        }

        public Criteria andTitleIsNotNull() {
            addCriterion("title is not null");
            return (Criteria) this;
        }

        public Criteria andTitleEqualTo(String value) {
            addCriterion("title =", value, "title");
            return (Criteria) this;
        }

        public Criteria andTitleNotEqualTo(String value) {
            addCriterion("title <>", value, "title");
            return (Criteria) this;
        }

        public Criteria andTitleGreaterThan(String value) {
            addCriterion("title >", value, "title");
            return (Criteria) this;
        }

        public Criteria andTitleGreaterThanOrEqualTo(String value) {
            addCriterion("title >=", value, "title");
            return (Criteria) this;
        }

        public Criteria andTitleLessThan(String value) {
            addCriterion("title <", value, "title");
            return (Criteria) this;
        }

        public Criteria andTitleLessThanOrEqualTo(String value) {
            addCriterion("title <=", value, "title");
            return (Criteria) this;
        }

        public Criteria andTitleLike(String value) {
            addCriterion("title like", value, "title");
            return (Criteria) this;
        }

        public Criteria andTitleNotLike(String value) {
            addCriterion("title not like", value, "title");
            return (Criteria) this;
        }

        public Criteria andTitleIn(List<String> values) {
            addCriterion("title in", values, "title");
            return (Criteria) this;
        }

        public Criteria andTitleNotIn(List<String> values) {
            addCriterion("title not in", values, "title");
            return (Criteria) this;
        }

        public Criteria andTitleBetween(String value1, String value2) {
            addCriterion("title between", value1, value2, "title");
            return (Criteria) this;
        }

        public Criteria andTitleNotBetween(String value1, String value2) {
            addCriterion("title not between", value1, value2, "title");
            return (Criteria) this;
        }

        public Criteria andSellPointIsNull() {
            addCriterion("sell_point is null");
            return (Criteria) this;
        }

        public Criteria andSellPointIsNotNull() {
            addCriterion("sell_point is not null");
            return (Criteria) this;
        }

        public Criteria andSellPointEqualTo(String value) {
            addCriterion("sell_point =", value, "sellPoint");
            return (Criteria) this;
        }

        public Criteria andSellPointNotEqualTo(String value) {
            addCriterion("sell_point <>", value, "sellPoint");
            return (Criteria) this;
        }

        public Criteria andSellPointGreaterThan(String value) {
            addCriterion("sell_point >", value, "sellPoint");
            return (Criteria) this;
        }

        public Criteria andSellPointGreaterThanOrEqualTo(String value) {
            addCriterion("sell_point >=", value, "sellPoint");
            return (Criteria) this;
        }

        public Criteria andSellPointLessThan(String value) {
            addCriterion("sell_point <", value, "sellPoint");
            return (Criteria) this;
        }

        public Criteria andSellPointLessThanOrEqualTo(String value) {
            addCriterion("sell_point <=", value, "sellPoint");
            return (Criteria) this;
        }

        public Criteria andSellPointLike(String value) {
            addCriterion("sell_point like", value, "sellPoint");
            return (Criteria) this;
        }

        public Criteria andSellPointNotLike(String value) {
            addCriterion("sell_point not like", value, "sellPoint");
            return (Criteria) this;
        }

        public Criteria andSellPointIn(List<String> values) {
            addCriterion("sell_point in", values, "sellPoint");
            return (Criteria) this;
        }

        public Criteria andSellPointNotIn(List<String> values) {
            addCriterion("sell_point not in", values, "sellPoint");
            return (Criteria) this;
        }

        public Criteria andSellPointBetween(String value1, String value2) {
            addCriterion("sell_point between", value1, value2, "sellPoint");
            return (Criteria) this;
        }

        public Criteria andSellPointNotBetween(String value1, String value2) {
            addCriterion("sell_point not between", value1, value2, "sellPoint");
            return (Criteria) this;
        }

        public Criteria andPriceIsNull() {
            addCriterion("price is null");
            return (Criteria) this;
        }

        public Criteria andPriceIsNotNull() {
            addCriterion("price is not null");
            return (Criteria) this;
        }

        public Criteria andPriceEqualTo(Long value) {
            addCriterion("price =", value, "price");
            return (Criteria) this;
        }

        public Criteria andPriceNotEqualTo(Long value) {
            addCriterion("price <>", value, "price");
            return (Criteria) this;
        }

        public Criteria andPriceGreaterThan(Long value) {
            addCriterion("price >", value, "price");
            return (Criteria) this;
        }

        public Criteria andPriceGreaterThanOrEqualTo(Long value) {
            addCriterion("price >=", value, "price");
            return (Criteria) this;
        }

        public Criteria andPriceLessThan(Long value) {
            addCriterion("price <", value, "price");
            return (Criteria) this;
        }

        public Criteria andPriceLessThanOrEqualTo(Long value) {
            addCriterion("price <=", value, "price");
            return (Criteria) this;
        }

        public Criteria andPriceIn(List<Long> values) {
            addCriterion("price in", values, "price");
            return (Criteria) this;
        }

        public Criteria andPriceNotIn(List<Long> values) {
            addCriterion("price not in", values, "price");
            return (Criteria) this;
        }

        public Criteria andPriceBetween(Long value1, Long value2) {
            addCriterion("price between", value1, value2, "price");
            return (Criteria) this;
        }

        public Criteria andPriceNotBetween(Long value1, Long value2) {
            addCriterion("price not between", value1, value2, "price");
            return (Criteria) this;
        }

        public Criteria andNumIsNull() {
            addCriterion("num is null");
            return (Criteria) this;
        }

        public Criteria andNumIsNotNull() {
            addCriterion("num is not null");
            return (Criteria) this;
        }

        public Criteria andNumEqualTo(Integer value) {
            addCriterion("num =", value, "num");
            return (Criteria) this;
        }

        public Criteria andNumNotEqualTo(Integer value) {
            addCriterion("num <>", value, "num");
            return (Criteria) this;
        }

        public Criteria andNumGreaterThan(Integer value) {
            addCriterion("num >", value, "num");
            return (Criteria) this;
        }

        public Criteria andNumGreaterThanOrEqualTo(Integer value) {
            addCriterion("num >=", value, "num");
            return (Criteria) this;
        }

        public Criteria andNumLessThan(Integer value) {
            addCriterion("num <", value, "num");
            return (Criteria) this;
        }

        public Criteria andNumLessThanOrEqualTo(Integer value) {
            addCriterion("num <=", value, "num");
            return (Criteria) this;
        }

        public Criteria andNumIn(List<Integer> values) {
            addCriterion("num in", values, "num");
            return (Criteria) this;
        }

        public Criteria andNumNotIn(List<Integer> values) {
            addCriterion("num not in", values, "num");
            return (Criteria) this;
        }

        public Criteria andNumBetween(Integer value1, Integer value2) {
            addCriterion("num between", value1, value2, "num");
            return (Criteria) this;
        }

        public Criteria andNumNotBetween(Integer value1, Integer value2) {
            addCriterion("num not between", value1, value2, "num");
            return (Criteria) this;
        }

        public Criteria andBarcodeIsNull() {
            addCriterion("barcode is null");
            return (Criteria) this;
        }

        public Criteria andBarcodeIsNotNull() {
            addCriterion("barcode is not null");
            return (Criteria) this;
        }

        public Criteria andBarcodeEqualTo(String value) {
            addCriterion("barcode =", value, "barcode");
            return (Criteria) this;
        }

        public Criteria andBarcodeNotEqualTo(String value) {
            addCriterion("barcode <>", value, "barcode");
            return (Criteria) this;
        }

        public Criteria andBarcodeGreaterThan(String value) {
            addCriterion("barcode >", value, "barcode");
            return (Criteria) this;
        }

        public Criteria andBarcodeGreaterThanOrEqualTo(String value) {
            addCriterion("barcode >=", value, "barcode");
            return (Criteria) this;
        }

        public Criteria andBarcodeLessThan(String value) {
            addCriterion("barcode <", value, "barcode");
            return (Criteria) this;
        }

        public Criteria andBarcodeLessThanOrEqualTo(String value) {
            addCriterion("barcode <=", value, "barcode");
            return (Criteria) this;
        }

        public Criteria andBarcodeLike(String value) {
            addCriterion("barcode like", value, "barcode");
            return (Criteria) this;
        }

        public Criteria andBarcodeNotLike(String value) {
            addCriterion("barcode not like", value, "barcode");
            return (Criteria) this;
        }

        public Criteria andBarcodeIn(List<String> values) {
            addCriterion("barcode in", values, "barcode");
            return (Criteria) this;
        }

        public Criteria andBarcodeNotIn(List<String> values) {
            addCriterion("barcode not in", values, "barcode");
            return (Criteria) this;
        }

        public Criteria andBarcodeBetween(String value1, String value2) {
            addCriterion("barcode between", value1, value2, "barcode");
            return (Criteria) this;
        }

        public Criteria andBarcodeNotBetween(String value1, String value2) {
            addCriterion("barcode not between", value1, value2, "barcode");
            return (Criteria) this;
        }

        public Criteria andImageIsNull() {
            addCriterion("image is null");
            return (Criteria) this;
        }

        public Criteria andImageIsNotNull() {
            addCriterion("image is not null");
            return (Criteria) this;
        }

        public Criteria andImageEqualTo(String value) {
            addCriterion("image =", value, "image");
            return (Criteria) this;
        }

        public Criteria andImageNotEqualTo(String value) {
            addCriterion("image <>", value, "image");
            return (Criteria) this;
        }

        public Criteria andImageGreaterThan(String value) {
            addCriterion("image >", value, "image");
            return (Criteria) this;
        }

        public Criteria andImageGreaterThanOrEqualTo(String value) {
            addCriterion("image >=", value, "image");
            return (Criteria) this;
        }

        public Criteria andImageLessThan(String value) {
            addCriterion("image <", value, "image");
            return (Criteria) this;
        }

        public Criteria andImageLessThanOrEqualTo(String value) {
            addCriterion("image <=", value, "image");
            return (Criteria) this;
        }

        public Criteria andImageLike(String value) {
            addCriterion("image like", value, "image");
            return (Criteria) this;
        }

        public Criteria andImageNotLike(String value) {
            addCriterion("image not like", value, "image");
            return (Criteria) this;
        }

        public Criteria andImageIn(List<String> values) {
            addCriterion("image in", values, "image");
            return (Criteria) this;
        }

        public Criteria andImageNotIn(List<String> values) {
            addCriterion("image not in", values, "image");
            return (Criteria) this;
        }

        public Criteria andImageBetween(String value1, String value2) {
            addCriterion("image between", value1, value2, "image");
            return (Criteria) this;
        }

        public Criteria andImageNotBetween(String value1, String value2) {
            addCriterion("image not between", value1, value2, "image");
            return (Criteria) this;
        }

        public Criteria andCidIsNull() {
            addCriterion("cid is null");
            return (Criteria) this;
        }

        public Criteria andCidIsNotNull() {
            addCriterion("cid is not null");
            return (Criteria) this;
        }

        public Criteria andCidEqualTo(Long value) {
            addCriterion("cid =", value, "cid");
            return (Criteria) this;
        }

        public Criteria andCidNotEqualTo(Long value) {
            addCriterion("cid <>", value, "cid");
            return (Criteria) this;
        }

        public Criteria andCidGreaterThan(Long value) {
            addCriterion("cid >", value, "cid");
            return (Criteria) this;
        }

        public Criteria andCidGreaterThanOrEqualTo(Long value) {
            addCriterion("cid >=", value, "cid");
            return (Criteria) this;
        }

        public Criteria andCidLessThan(Long value) {
            addCriterion("cid <", value, "cid");
            return (Criteria) this;
        }

        public Criteria andCidLessThanOrEqualTo(Long value) {
            addCriterion("cid <=", value, "cid");
            return (Criteria) this;
        }

        public Criteria andCidIn(List<Long> values) {
            addCriterion("cid in", values, "cid");
            return (Criteria) this;
        }

        public Criteria andCidNotIn(List<Long> values) {
            addCriterion("cid not in", values, "cid");
            return (Criteria) this;
        }

        public Criteria andCidBetween(Long value1, Long value2) {
            addCriterion("cid between", value1, value2, "cid");
            return (Criteria) this;
        }

        public Criteria andCidNotBetween(Long value1, Long value2) {
            addCriterion("cid not between", value1, value2, "cid");
            return (Criteria) this;
        }

        public Criteria andStatusIsNull() {
            addCriterion("status is null");
            return (Criteria) this;
        }

        public Criteria andStatusIsNotNull() {
            addCriterion("status is not null");
            return (Criteria) this;
        }

        public Criteria andStatusEqualTo(Byte value) {
            addCriterion("status =", value, "status");
            return (Criteria) this;
        }

        public Criteria andStatusNotEqualTo(Byte value) {
            addCriterion("status <>", value, "status");
            return (Criteria) this;
        }

        public Criteria andStatusGreaterThan(Byte value) {
            addCriterion("status >", value, "status");
            return (Criteria) this;
        }

        public Criteria andStatusGreaterThanOrEqualTo(Byte value) {
            addCriterion("status >=", value, "status");
            return (Criteria) this;
        }

        public Criteria andStatusLessThan(Byte value) {
            addCriterion("status <", value, "status");
            return (Criteria) this;
        }

        public Criteria andStatusLessThanOrEqualTo(Byte value) {
            addCriterion("status <=", value, "status");
            return (Criteria) this;
        }

        public Criteria andStatusIn(List<Byte> values) {
            addCriterion("status in", values, "status");
            return (Criteria) this;
        }

        public Criteria andStatusNotIn(List<Byte> values) {
            addCriterion("status not in", values, "status");
            return (Criteria) this;
        }

        public Criteria andStatusBetween(Byte value1, Byte value2) {
            addCriterion("status between", value1, value2, "status");
            return (Criteria) this;
        }

        public Criteria andStatusNotBetween(Byte value1, Byte value2) {
            addCriterion("status not between", value1, value2, "status");
            return (Criteria) this;
        }

        public Criteria andCreatedIsNull() {
            addCriterion("created is null");
            return (Criteria) this;
        }

        public Criteria andCreatedIsNotNull() {
            addCriterion("created is not null");
            return (Criteria) this;
        }

        public Criteria andCreatedEqualTo(Date value) {
            addCriterion("created =", value, "created");
            return (Criteria) this;
        }

        public Criteria andCreatedNotEqualTo(Date value) {
            addCriterion("created <>", value, "created");
            return (Criteria) this;
        }

        public Criteria andCreatedGreaterThan(Date value) {
            addCriterion("created >", value, "created");
            return (Criteria) this;
        }

        public Criteria andCreatedGreaterThanOrEqualTo(Date value) {
            addCriterion("created >=", value, "created");
            return (Criteria) this;
        }

        public Criteria andCreatedLessThan(Date value) {
            addCriterion("created <", value, "created");
            return (Criteria) this;
        }

        public Criteria andCreatedLessThanOrEqualTo(Date value) {
            addCriterion("created <=", value, "created");
            return (Criteria) this;
        }

        public Criteria andCreatedIn(List<Date> values) {
            addCriterion("created in", values, "created");
            return (Criteria) this;
        }

        public Criteria andCreatedNotIn(List<Date> values) {
            addCriterion("created not in", values, "created");
            return (Criteria) this;
        }

        public Criteria andCreatedBetween(Date value1, Date value2) {
            addCriterion("created between", value1, value2, "created");
            return (Criteria) this;
        }

        public Criteria andCreatedNotBetween(Date value1, Date value2) {
            addCriterion("created not between", value1, value2, "created");
            return (Criteria) this;
        }

        public Criteria andUpdatedIsNull() {
            addCriterion("updated is null");
            return (Criteria) this;
        }

        public Criteria andUpdatedIsNotNull() {
            addCriterion("updated is not null");
            return (Criteria) this;
        }

        public Criteria andUpdatedEqualTo(Date value) {
            addCriterion("updated =", value, "updated");
            return (Criteria) this;
        }

        public Criteria andUpdatedNotEqualTo(Date value) {
            addCriterion("updated <>", value, "updated");
            return (Criteria) this;
        }

        public Criteria andUpdatedGreaterThan(Date value) {
            addCriterion("updated >", value, "updated");
            return (Criteria) this;
        }

        public Criteria andUpdatedGreaterThanOrEqualTo(Date value) {
            addCriterion("updated >=", value, "updated");
            return (Criteria) this;
        }

        public Criteria andUpdatedLessThan(Date value) {
            addCriterion("updated <", value, "updated");
            return (Criteria) this;
        }

        public Criteria andUpdatedLessThanOrEqualTo(Date value) {
            addCriterion("updated <=", value, "updated");
            return (Criteria) this;
        }

        public Criteria andUpdatedIn(List<Date> values) {
            addCriterion("updated in", values, "updated");
            return (Criteria) this;
        }

        public Criteria andUpdatedNotIn(List<Date> values) {
            addCriterion("updated not in", values, "updated");
            return (Criteria) this;
        }

        public Criteria andUpdatedBetween(Date value1, Date value2) {
            addCriterion("updated between", value1, value2, "updated");
            return (Criteria) this;
        }

        public Criteria andUpdatedNotBetween(Date value1, Date value2) {
            addCriterion("updated not between", value1, value2, "updated");
            return (Criteria) this;
        }
    }

    public static class Criteria extends GeneratedCriteria {

        protected Criteria() {
            super();
        }
    }

    public static class Criterion {
        private String condition;

        private Object value;

        private Object secondValue;

        private boolean noValue;

        private boolean singleValue;

        private boolean betweenValue;

        private boolean listValue;

        private String typeHandler;

        public String getCondition() {
            return condition;
        }

        public Object getValue() {
            return value;
        }

        public Object getSecondValue() {
            return secondValue;
        }

        public boolean isNoValue() {
            return noValue;
        }

        public boolean isSingleValue() {
            return singleValue;
        }

        public boolean isBetweenValue() {
            return betweenValue;
        }

        public boolean isListValue() {
            return listValue;
        }

        public String getTypeHandler() {
            return typeHandler;
        }

        protected Criterion(String condition) {
            super();
            this.condition = condition;
            this.typeHandler = null;
            this.noValue = true;
        }

        protected Criterion(String condition, Object value, String typeHandler) {
            super();
            this.condition = condition;
            this.value = value;
            this.typeHandler = typeHandler;
            if (value instanceof List<?>) {
                this.listValue = true;
            } else {
                this.singleValue = true;
            }
        }

        protected Criterion(String condition, Object value) {
            this(condition, value, null);
        }

        protected Criterion(String condition, Object value, Object secondValue, String typeHandler) {
            super();
            this.condition = condition;
            this.value = value;
            this.secondValue = secondValue;
            this.typeHandler = typeHandler;
            this.betweenValue = true;
        }

        protected Criterion(String condition, Object value, Object secondValue) {
            this(condition, value, secondValue, null);
        }
    }
}

6.3,dao层

创建cn.e3mall.mapper包：

TbItemMapper.java

package cn.e3mall.mapper;

import cn.e3mall.pojo.TbItem;
import cn.e3mall.pojo.TbItemExample;
import java.util.List;
import org.apache.ibatis.annotations.Param;

public interface TbItemMapper {
    int countByExample(TbItemExample example);

    int deleteByExample(TbItemExample example);

    int deleteByPrimaryKey(Long id);

    int insert(TbItem record);

    int insertSelective(TbItem record);

    List<TbItem> selectByExample(TbItemExample example);

    TbItem selectByPrimaryKey(Long id);

    int updateByExampleSelective(@Param("record") TbItem record, @Param("example") TbItemExample example);

    int updateByExample(@Param("record") TbItem record, @Param("example") TbItemExample example);

    int updateByPrimaryKeySelective(TbItem record);

    int updateByPrimaryKey(TbItem record);
}

TbItemMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="cn.e3mall.mapper.TbItemMapper" >
  <resultMap id="BaseResultMap" type="cn.e3mall.pojo.TbItem" >
    <id column="id" property="id" jdbcType="BIGINT" />
    <result column="title" property="title" jdbcType="VARCHAR" />
    <result column="sell_point" property="sellPoint" jdbcType="VARCHAR" />
    <result column="price" property="price" jdbcType="BIGINT" />
    <result column="num" property="num" jdbcType="INTEGER" />
    <result column="barcode" property="barcode" jdbcType="VARCHAR" />
    <result column="image" property="image" jdbcType="VARCHAR" />
    <result column="cid" property="cid" jdbcType="BIGINT" />
    <result column="status" property="status" jdbcType="TINYINT" />
    <result column="created" property="created" jdbcType="TIMESTAMP" />
    <result column="updated" property="updated" jdbcType="TIMESTAMP" />
  </resultMap>
  <sql id="Example_Where_Clause" >
    <where >
      <foreach collection="oredCriteria" item="criteria" separator="or" >
        <if test="criteria.valid" >
          <trim prefix="(" suffix=")" prefixOverrides="and" >
            <foreach collection="criteria.criteria" item="criterion" >
              <choose >
                <when test="criterion.noValue" >
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue" >
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue" >
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue" >
                  and ${criterion.condition}
                  <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Update_By_Example_Where_Clause" >
    <where >
      <foreach collection="example.oredCriteria" item="criteria" separator="or" >
        <if test="criteria.valid" >
          <trim prefix="(" suffix=")" prefixOverrides="and" >
            <foreach collection="criteria.criteria" item="criterion" >
              <choose >
                <when test="criterion.noValue" >
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue" >
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue" >
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue" >
                  and ${criterion.condition}
                  <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Base_Column_List" >
    id, title, sell_point, price, num, barcode, image, cid, status, created, updated
  </sql>
  <select id="selectByExample" resultMap="BaseResultMap" parameterType="cn.e3mall.pojo.TbItemExample" >
    select
    <if test="distinct" >
      distinct
    </if>
    <include refid="Base_Column_List" />
    from tb_item
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
    <if test="orderByClause != null" >
      order by ${orderByClause}
    </if>
  </select>
  <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Long" >
    select
    <include refid="Base_Column_List" />
    from tb_item
    where id = #{id,jdbcType=BIGINT}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Long" >
    delete from tb_item
    where id = #{id,jdbcType=BIGINT}
  </delete>
  <delete id="deleteByExample" parameterType="cn.e3mall.pojo.TbItemExample" >
    delete from tb_item
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
  </delete>
  <insert id="insert" parameterType="cn.e3mall.pojo.TbItem" >
    insert into tb_item (id, title, sell_point,
      price, num, barcode,
      image, cid, status,
      created, updated)
    values (#{id,jdbcType=BIGINT}, #{title,jdbcType=VARCHAR}, #{sellPoint,jdbcType=VARCHAR},
      #{price,jdbcType=BIGINT}, #{num,jdbcType=INTEGER}, #{barcode,jdbcType=VARCHAR},
      #{image,jdbcType=VARCHAR}, #{cid,jdbcType=BIGINT}, #{status,jdbcType=TINYINT},
      #{created,jdbcType=TIMESTAMP}, #{updated,jdbcType=TIMESTAMP})
  </insert>
  <insert id="insertSelective" parameterType="cn.e3mall.pojo.TbItem" >
    insert into tb_item
    <trim prefix="(" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        id,
      </if>
      <if test="title != null" >
        title,
      </if>
      <if test="sellPoint != null" >
        sell_point,
      </if>
      <if test="price != null" >
        price,
      </if>
      <if test="num != null" >
        num,
      </if>
      <if test="barcode != null" >
        barcode,
      </if>
      <if test="image != null" >
        image,
      </if>
      <if test="cid != null" >
        cid,
      </if>
      <if test="status != null" >
        status,
      </if>
      <if test="created != null" >
        created,
      </if>
      <if test="updated != null" >
        updated,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        #{id,jdbcType=BIGINT},
      </if>
      <if test="title != null" >
        #{title,jdbcType=VARCHAR},
      </if>
      <if test="sellPoint != null" >
        #{sellPoint,jdbcType=VARCHAR},
      </if>
      <if test="price != null" >
        #{price,jdbcType=BIGINT},
      </if>
      <if test="num != null" >
        #{num,jdbcType=INTEGER},
      </if>
      <if test="barcode != null" >
        #{barcode,jdbcType=VARCHAR},
      </if>
      <if test="image != null" >
        #{image,jdbcType=VARCHAR},
      </if>
      <if test="cid != null" >
        #{cid,jdbcType=BIGINT},
      </if>
      <if test="status != null" >
        #{status,jdbcType=TINYINT},
      </if>
      <if test="created != null" >
        #{created,jdbcType=TIMESTAMP},
      </if>
      <if test="updated != null" >
        #{updated,jdbcType=TIMESTAMP},
      </if>
    </trim>
  </insert>
  <select id="countByExample" parameterType="cn.e3mall.pojo.TbItemExample" resultType="java.lang.Integer" >
    select count(*) from tb_item
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
  </select>
  <update id="updateByExampleSelective" parameterType="map" >
    update tb_item
    <set >
      <if test="record.id != null" >
        id = #{record.id,jdbcType=BIGINT},
      </if>
      <if test="record.title != null" >
        title = #{record.title,jdbcType=VARCHAR},
      </if>
      <if test="record.sellPoint != null" >
        sell_point = #{record.sellPoint,jdbcType=VARCHAR},
      </if>
      <if test="record.price != null" >
        price = #{record.price,jdbcType=BIGINT},
      </if>
      <if test="record.num != null" >
        num = #{record.num,jdbcType=INTEGER},
      </if>
      <if test="record.barcode != null" >
        barcode = #{record.barcode,jdbcType=VARCHAR},
      </if>
      <if test="record.image != null" >
        image = #{record.image,jdbcType=VARCHAR},
      </if>
      <if test="record.cid != null" >
        cid = #{record.cid,jdbcType=BIGINT},
      </if>
      <if test="record.status != null" >
        status = #{record.status,jdbcType=TINYINT},
      </if>
      <if test="record.created != null" >
        created = #{record.created,jdbcType=TIMESTAMP},
      </if>
      <if test="record.updated != null" >
        updated = #{record.updated,jdbcType=TIMESTAMP},
      </if>
    </set>
    <if test="_parameter != null" >
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByExample" parameterType="map" >
    update tb_item
    set id = #{record.id,jdbcType=BIGINT},
      title = #{record.title,jdbcType=VARCHAR},
      sell_point = #{record.sellPoint,jdbcType=VARCHAR},
      price = #{record.price,jdbcType=BIGINT},
      num = #{record.num,jdbcType=INTEGER},
      barcode = #{record.barcode,jdbcType=VARCHAR},
      image = #{record.image,jdbcType=VARCHAR},
      cid = #{record.cid,jdbcType=BIGINT},
      status = #{record.status,jdbcType=TINYINT},
      created = #{record.created,jdbcType=TIMESTAMP},
      updated = #{record.updated,jdbcType=TIMESTAMP}
    <if test="_parameter != null" >
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByPrimaryKeySelective" parameterType="cn.e3mall.pojo.TbItem" >
    update tb_item
    <set >
      <if test="title != null" >
        title = #{title,jdbcType=VARCHAR},
      </if>
      <if test="sellPoint != null" >
        sell_point = #{sellPoint,jdbcType=VARCHAR},
      </if>
      <if test="price != null" >
        price = #{price,jdbcType=BIGINT},
      </if>
      <if test="num != null" >
        num = #{num,jdbcType=INTEGER},
      </if>
      <if test="barcode != null" >
        barcode = #{barcode,jdbcType=VARCHAR},
      </if>
      <if test="image != null" >
        image = #{image,jdbcType=VARCHAR},
      </if>
      <if test="cid != null" >
        cid = #{cid,jdbcType=BIGINT},
      </if>
      <if test="status != null" >
        status = #{status,jdbcType=TINYINT},
      </if>
      <if test="created != null" >
        created = #{created,jdbcType=TIMESTAMP},
      </if>
      <if test="updated != null" >
        updated = #{updated,jdbcType=TIMESTAMP},
      </if>
    </set>
    where id = #{id,jdbcType=BIGINT}
  </update>
  <update id="updateByPrimaryKey" parameterType="cn.e3mall.pojo.TbItem" >
    update tb_item
    set title = #{title,jdbcType=VARCHAR},
      sell_point = #{sellPoint,jdbcType=VARCHAR},
      price = #{price,jdbcType=BIGINT},
      num = #{num,jdbcType=INTEGER},
      barcode = #{barcode,jdbcType=VARCHAR},
      image = #{image,jdbcType=VARCHAR},
      cid = #{cid,jdbcType=BIGINT},
      status = #{status,jdbcType=TINYINT},
      created = #{created,jdbcType=TIMESTAMP},
      updated = #{updated,jdbcType=TIMESTAMP}
    where id = #{id,jdbcType=BIGINT}
  </update>
</mapper>

6.4,接口

创建cn.e3mall.service包：

ItemService.java

package cn.e3mall.service;

import cn.e3mall.pojo.TbItem;

public interface ItemService {

	TbItem getItemById(long itemId);
}

6.5,service

创建cn.e3mall.service.impl包

ItemServiceImpl.java

package cn.e3mall.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import cn.e3mall.mapper.TbItemMapper;
import cn.e3mall.pojo.TbItem;
import cn.e3mall.pojo.TbItemExample;
import cn.e3mall.pojo.TbItemExample.Criteria;
import cn.e3mall.service.ItemService;

/**
 * 商品管理Service
 * <p>Title: ItemServiceImpl</p>
 * <p>Description: </p>
 * <p>Company: www.itcast.cn</p>
 * @version 1.0
 */
@Service
public class ItemServiceImpl implements ItemService {

	@Autowired
	private TbItemMapper itemMapper;

	@Override
	public TbItem getItemById(long itemId) {
		//根据主键查询
		//TbItem tbItem = itemMapper.selectByPrimaryKey(itemId);
		TbItemExample example = new TbItemExample();
		Criteria criteria = example.createCriteria();
		//设置查询条件
		criteria.andIdEqualTo(itemId);
		//执行查询
		List<TbItem> list = itemMapper.selectByExample(example);
		if (list != null && list.size() > 0) {
			return list.get(0);
		}
		return null;
	}

}

6.6，controller

创建cn.e3mall.controller目录

ItemController.java

package cn.e3mall.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import cn.e3mall.pojo.TbItem;
import cn.e3mall.service.ItemService;

/**
 * 商品管理Controller
 * <p>Title: ItemController</p>
 * <p>Description: </p>
 * <p>Company: www.itcast.cn</p>
 * @version 1.0
 */
@Controller
public class ItemController {

	@Autowired
	private ItemService itemService;

	@RequestMapping("/item/{itemId}")
	@ResponseBody
	public TbItem getItemById(@PathVariable Long itemId) {
		TbItem tbItem = itemService.getItemById(itemId);
		return tbItem;
	}
}

6.7,解决mapper绑定异常的问题

在pom.xml文件的project节点内添加

<!-- 如果不添加此节点mybatis的mapper.xml文件都会被漏掉。 -->
	<build>
		<resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>
	</build>
