SpringBoot源码分析

文章目录

SpringBoot源码分析

01、分析

Spring、Mybatis、Springmvc、Springboot 必须要掌握和明白源码分析
SpringCloud 你至少使用，并且说出这些组件他们的含义以及在项目所处角色

如果有一些源码分析的话，就非常不错了
Dubbo、Tomcat 源码分析

02、Springboot 的源码分析

1、SpringBoot三大特性

1、帮助开发者快速整合第三方框架（原理Maven依赖封装）

2、嵌服务器（原理Java语言创建服务器）

3、完全注解形式替代XML

传统的spring项目

基于xml方式
依赖的第三方的模块，都在pom.xml逐个依赖，还需要在xml文件中去配置

配置的目的就是让spring去加载和管理这些bean。
需要依赖外部的tomcat容器去部署项目才可以进行项目发布与部署
日志管理，也需要额外的配置
配置组件或者应用非常的麻烦和繁复。

springboot的项目：

零配置，用注解的取代的传统意义上的xml文件
starter机制，解决什么问题，是如何解决
内置了tomcat容器和日志管理。开发起来只需要启动main函数即可。就可以项目运行起来了。
springboot管理的bean是如何注册springioc容器，springboot是怎么和spring发生关系？

03、如何去学习分析源码

心中一定有方向和目标

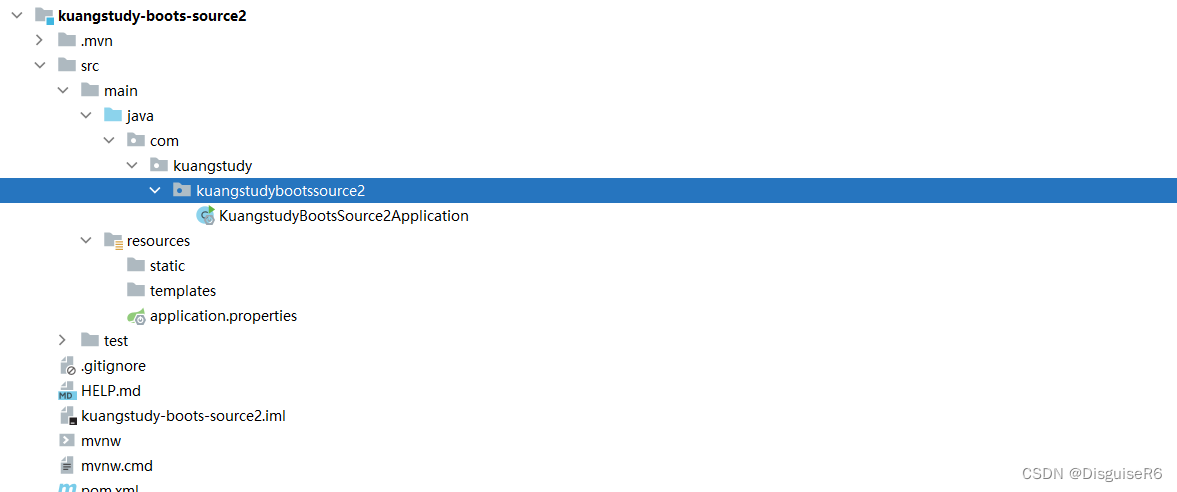

04、springboot项目的整体结构

在这里插入图片描述

核心启动类：

package com.kuangstudy.kuangstudybootssource2;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class KuangstudyBootsSource2Application {

    public static void main(String[] args) {
        SpringApplication.run(KuangstudyBootsSource2Application.class, args);
    }

}

05、Springboot的零配置是怎么解决呢？

答案是用：注解

传统ssm的方式的：

xml – applicationContext.xml

<bean id="xxx" class="xxxx">
<bean id="xxx" class="xxxx">
<bean id="xxx" class="xxxx">
<bean id="xxx" class="xxxx">
<bean id="xxx" class="xxxx">

扫包 + 注解

<component-scan basePackeges="com.kuangstudy.service">
<component-scan basePackeges="com.kuangstudy.mapper">
<component-scan basePackeges="com.kuangstudy.controller">

注解：@Service、@Controller、@RestContoller、@Respostity、@Component等

SpringBoot改进

扫包(注解) + 注解

@ComponentScan + 注解：
@Service、
@Controller、
@RestContoller、
@Respostity、
@Component等

@Configuration+@Bean 配置类 + @Bean初始化

@Import机制

@Import(配置类&selector即可实现类，你也可以写普通bean)
@Import(RedisConfiguration.class)
@Import(UserService.class)
@Import(AxxxxSelector.class)

@ImportResource

@ImportResource("classpath:applicationContext.xml")

06、Springboot的零配置它们在解决一个什么问题？

抛弃传统的xml方式
也可以集合整合传统的xml方式通过@ImportResource来整合即可。但是不建议大家混合使用。

不管传统的xml方式还是springboot提供的这四种机制它在解决什么问题?

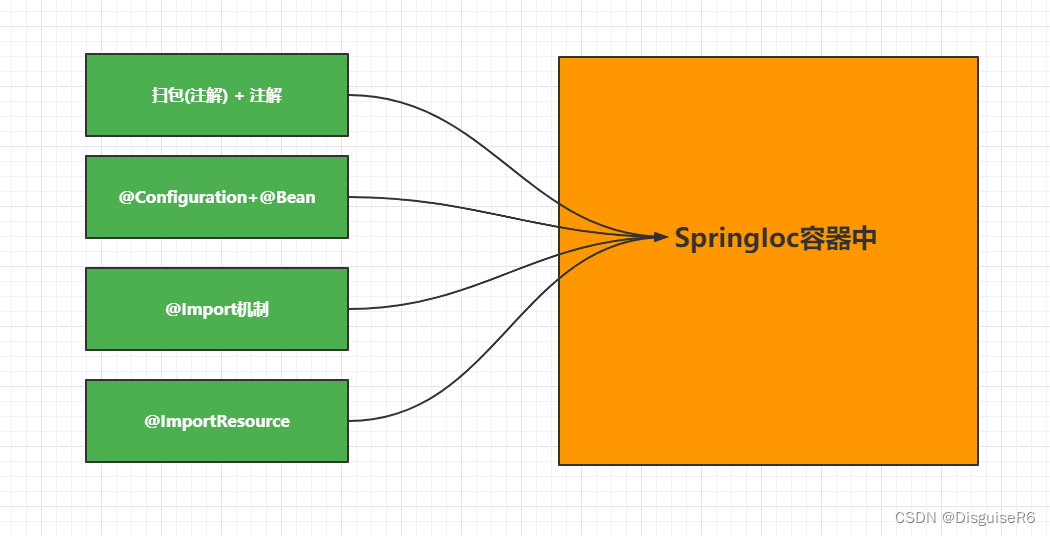

它们都在解决一个问题：
在这里插入图片描述

通过不同的方式，把项目中的和第三方依赖全部通过这些机制，放入到spring的ioc容器中。springboot它的基础核心还是spring，它只不过是对spring这项目进行升级和改进。

07、怎么认识项目中的bean

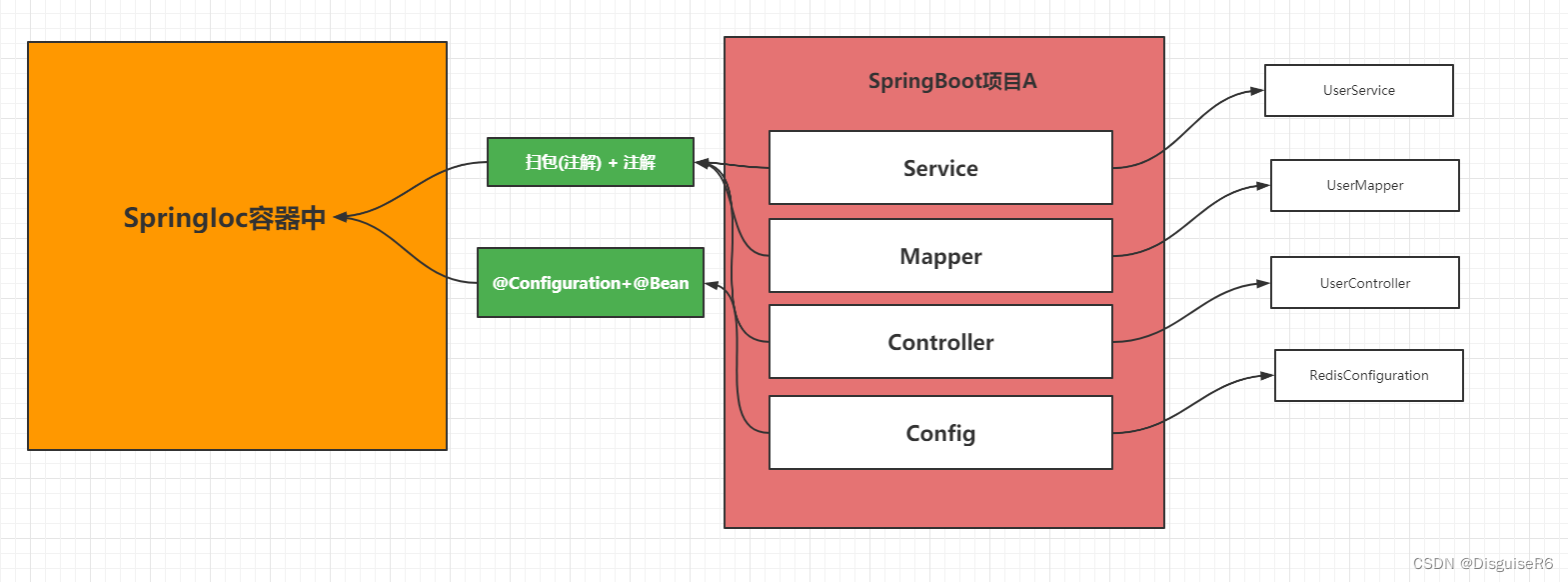

项目中的：bean
在这里插入图片描述

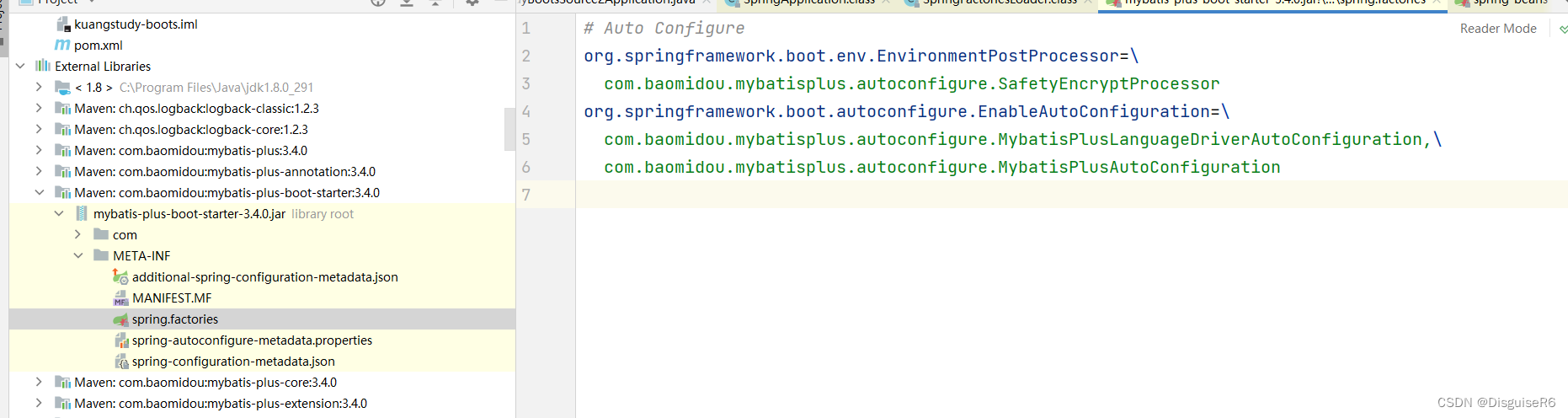

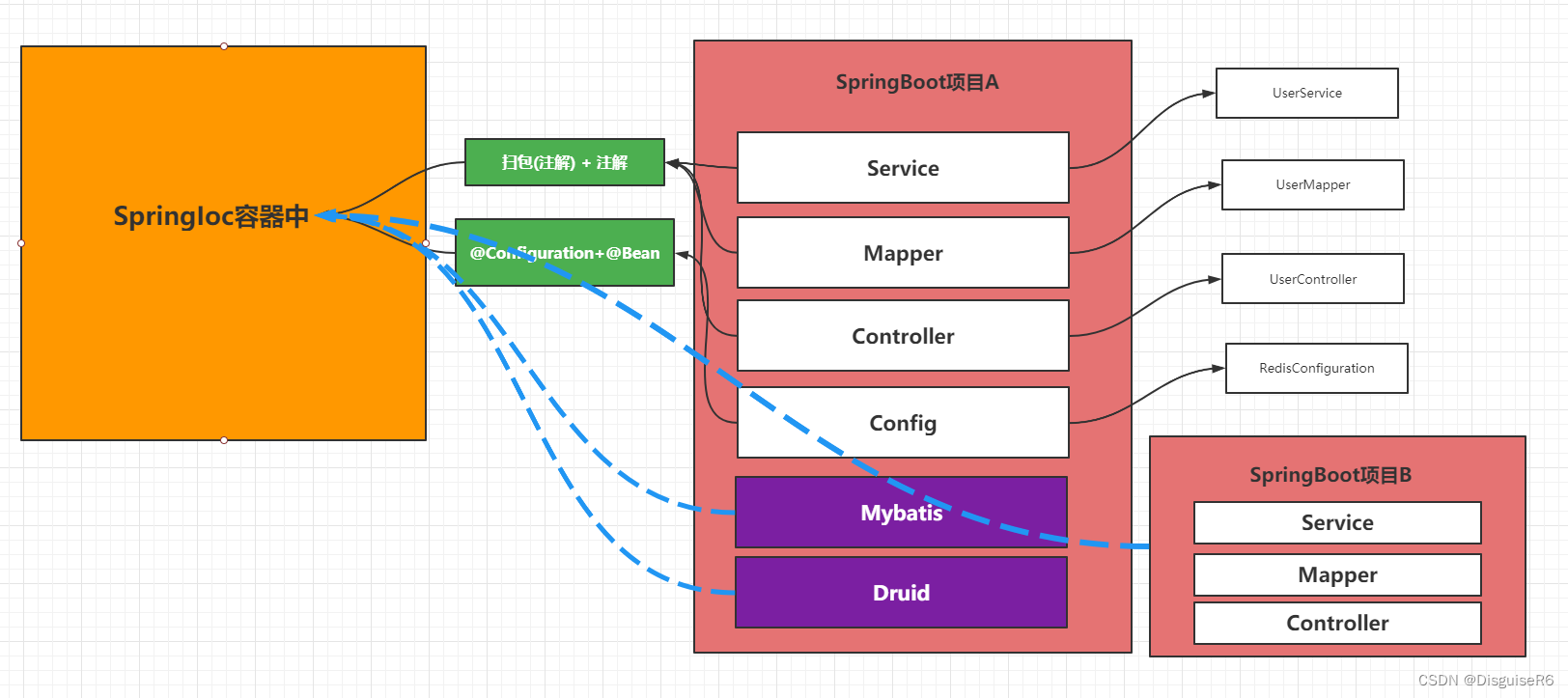

第三方的依赖：bean
在这里插入图片描述

解决方案：

第一种解决方案：必须这些第三方的包名必须要和当前项目A包名要一致，否则加载不进去）
扫包 + 注解
```
@ComponentScan(basePackages = {"com.kuangstudy.kuangstudybootssource2",
"org.mybatis","com.ablibb.druid","com.xxxxx"})
```
上面话，肯定是不可取的。因为这种方式去加载第三方的bean，到项目中ioc中去的，肯定非常麻烦和维护起来就是灾难。

08、@Import机制，拯救第三方bean加载到项目ioc容器

这个就是所谓的：starter机制

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>

<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.4.0</version>
</dependency>

官方提供的：spring-boot-starter-xxxx

两者的区别：官方不需要加版本号，因为通过 parent指定的版本统一升级和管理。

 <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.4.8</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent

第三方提供的：xxxx-boot-starter

它遵循springboot的starter机制开发出来的一种形式。它的导入就必须加version

<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.4.0</version>
</dependency>

09、四种机制的分析，如何把bean加载到ioc容器中

在启动springboot项目的时候

package com.kuangstudy.kuangstudybootssource2;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class KuangstudyBootsSource2Application {

    public static void main(String[] args) {
        SpringApplication.run(KuangstudyBootsSource2Application.class, args);
    }

}

核心方法：

SpringApplication.run(KuangstudyBootsSource2Application.class, args);

----1、调用方法如下

public static ConfigurableApplicationContext run(Class<?> primarySource, String... args) {
        return run(new Class[]{primarySource}, args);
    }

----2、调用方法如下

    public static ConfigurableApplicationContext run(Class<?>[] primarySources, String[] args) {
        return (new SpringApplication(primarySources)).run(args);
    }

----3、调用方法如下(核心)：

return (new SpringApplication(primarySources)).run(args);
----------------------------------------------------------
# 拆解
// 初始化
SpringApplication application = new SpringApplication(primarySources)
// 运行阶段

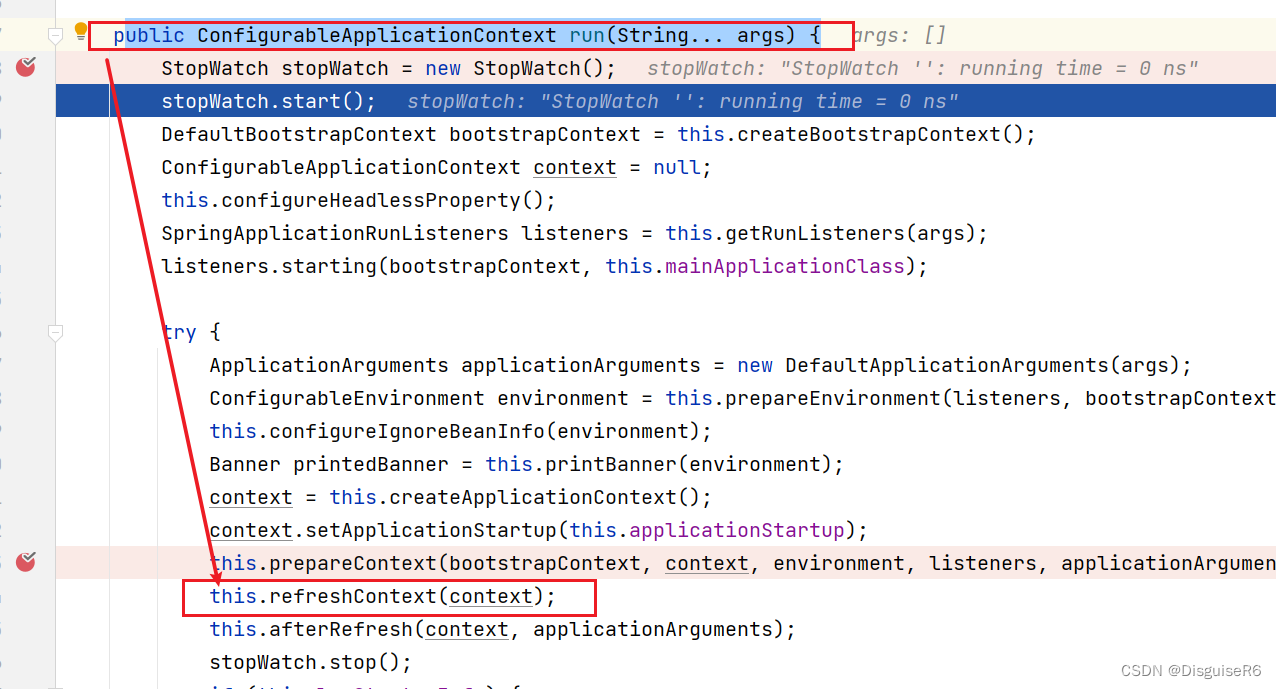

application.run();

09-01、初始化阶段

new SpringApplication(primarySources)

初始化阶段 : 把项目中所有的符合SpringBoot机制的bean全部收集起来。map

----1、调用构造函数方法

public SpringApplication(Class<?>... primarySources) {
    this((ResourceLoader)null, primarySources);
}

----2、调用具体的初始化方法过程(核心)

 public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {
        // 1： 初始化数组，集合，开关标记
     	this.sources = new LinkedHashSet();
        this.bannerMode = Mode.CONSOLE;
        this.logStartupInfo = true;
        this.addCommandLineProperties = true;
        this.addConversionService = true;
        this.headless = true;
        this.registerShutdownHook = true;
        this.additionalProfiles = Collections.emptySet();
        this.isCustomEnvironment = false;
        this.lazyInitialization = false;
        this.applicationContextFactory = ApplicationContextFactory.DEFAULT;
        this.applicationStartup = ApplicationStartup.DEFAULT;
        this.resourceLoader = resourceLoader;
        Assert.notNull(primarySources, "PrimarySources must not be null");
        this.primarySources = new LinkedHashSet(Arrays.asList(primarySources));
        this.webApplicationType = WebApplicationType.deduceFromClasspath();

     	// 核心代码1--
        this.bootstrapRegistryInitializers = this.getBootstrapRegistryInitializersFromSpringFactories();
       // 核心代码2--
        this.bootstrapRegi this.setInitializers(this.getSpringFactoriesInstances(ApplicationContextInitializer.class));
       // 核心代码3--
        this.bootstrapRegi this.setListeners(this.getSpringFactoriesInstances(ApplicationListener.class));
        this.mainApplicationClass = this.deduceMainApplicationClass();
    }

核心代码1和核心代码2和核心代码3都在调用一个相同的方法：

核心代码1

this.getSpringFactoriesInstances(BootstrapRegistryInitializer.class)

核心代码2

this.getSpringFactoriesInstances(ApplicationContextInitializer.class);

核心代码3

this.getSpringFactoriesInstances(ApplicationListener.class)

三个都传递了一个类：

1：为什么要传递类？

触发类加载器

2：传递类的作用是干啥？

出发类加载器，通过双亲委派模型，把项目中所有的类。包括jdk、jdkext、target/classes、spring.jar。mybatis.jar全部把他们中编译号的字节文件class找到。放入map中。

BootstrapRegistryInitializer(大哥) 100女孩子

其实它这类不具体干活的类，它提前把项目中的类全部找到放入缓存map中，然后给ApplicationContextInitializer 、ApplicationListener 提供一个缓存机制，后面两者的获取对应bean就不会重复去触发类加载，频繁的扫描过滤。

----3、调用具体的getSpringFactoriesInstances(核心)

private <T> Collection<T> getSpringFactoriesInstances(Class<T> type) {
    return this.getSpringFactoriesInstances(type, new Class[0]);
}

private <T> Collection<T> getSpringFactoriesInstances(Class<T> type, Class<?>[] parameterTypes, Object... args) {
        ClassLoader classLoader = this.getClassLoader();
        Set<String> names = new LinkedHashSet(SpringFactoriesLoader.loadFactoryNames(type, classLoader));
        List<T> instances = this.createSpringFactoriesInstances(type, parameterTypes, classLoader, args, names);
        AnnotationAwareOrderComparator.sort(instances);
        return instances;
    }

下面就类加载器：AppClassLoader – ExtClassLoader – BootstrapClassLoader(双亲委派模型)

ClassLoader classLoader = this.getClassLoader();

双亲委派模型：一句话：找项目中所有的class字节文件，不论jdk、ext、项目写的classes、spring.jar通通全部找到。

问：你项目中引入jdk是怎么加载进去的，你项目引入的spring.jar它里面的类你为什么就可以使用。你项目String,List为什么就可以使用了呢？

答案：就是引起在启动的时候，项目会调用类加载器通过双亲委派模型把项目中所有的 classes 全部找到。然后放入到 jvm 中去，只不过 springboot 把这些加载的 classes 进行过滤匹配把符合条件的 bean 放入到 ioc 容器中的过程。那些是符合条件的bean呢？

扫包 + 注解（@Service,@Controller）
是不是符合import机制
是不是符合@Configuration + @Bean

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-DvygotD3-1658415285139)(assets/image-20210711221015439.png)]

----4、开始对类加载的加载类进行过滤

  Set<String> names = new LinkedHashSet(SpringFactoriesLoader.loadFactoryNames(type, classLoader));

type：interface org.springframework.boot.Bootstrapper 开始进行匹配过滤。作用其实就是一个加载缓存的目的，作用就是：它会把类加载中所有的jar文件存在：META-INF/spring.factories 文件中的内容全部找到。然后这个META-INF/spring.factories中的bean全部放入到Map中如下：

----5、把jar包中中包含MEAT-INF/spring.factories的找到(核心)

 private static Map<String, List<String>> loadSpringFactories(ClassLoader classLoader) {
        Map<String, List<String>> result = (Map)cache.get(classLoader);
        if (result != null) {
            return result;
        } else {
            HashMap result = new HashMap();

            try {
                // 通过类加载器，把jar中包含MEAT-INF/spring.factories，找到
                // 这里的原理是一个双亲委派模型：
                Enumeration urls = classLoader.getResources("META-INF/spring.factories");

                while(urls.hasMoreElements()) {
                    URL url = (URL)urls.nextElement();
                    UrlResource resource = new UrlResource(url);
                    // 解析
                    Properties properties = PropertiesLoaderUtils.loadProperties(resource);
                    Iterator var6 = properties.entrySet().iterator();

                    while(var6.hasNext()) {
                        Entry<?, ?> entry = (Entry)var6.next();
                        String factoryTypeName = ((String)entry.getKey()).trim();
                        String[] factoryImplementationNames = StringUtils.commaDelimitedListToStringArray((String)entry.getValue());
                        String[] var10 = factoryImplementationNames;
                        int var11 = factoryImplementationNames.length;

                        for(int var12 = 0; var12 < var11; ++var12) {
                            String factoryImplementationName = var10[var12];
                            ((List)result.computeIfAbsent(factoryTypeName, (key) -> {
                                return new ArrayList();
                            })).add(factoryImplementationName.trim());
                        }
                    }
                }

                result.replaceAll((factoryType, implementations) -> {
                    return (List)implementations.stream().distinct().collect(Collectors.collectingAndThen(Collectors.toList(), Collections::unmodifiableList));
                });
                cache.put(classLoader, result);
                return result;
            } catch (IOException var14) {
                throw new IllegalArgumentException("Unable to load factories from location [META-INF/spring.factories]", var14);
            }
        }
    }

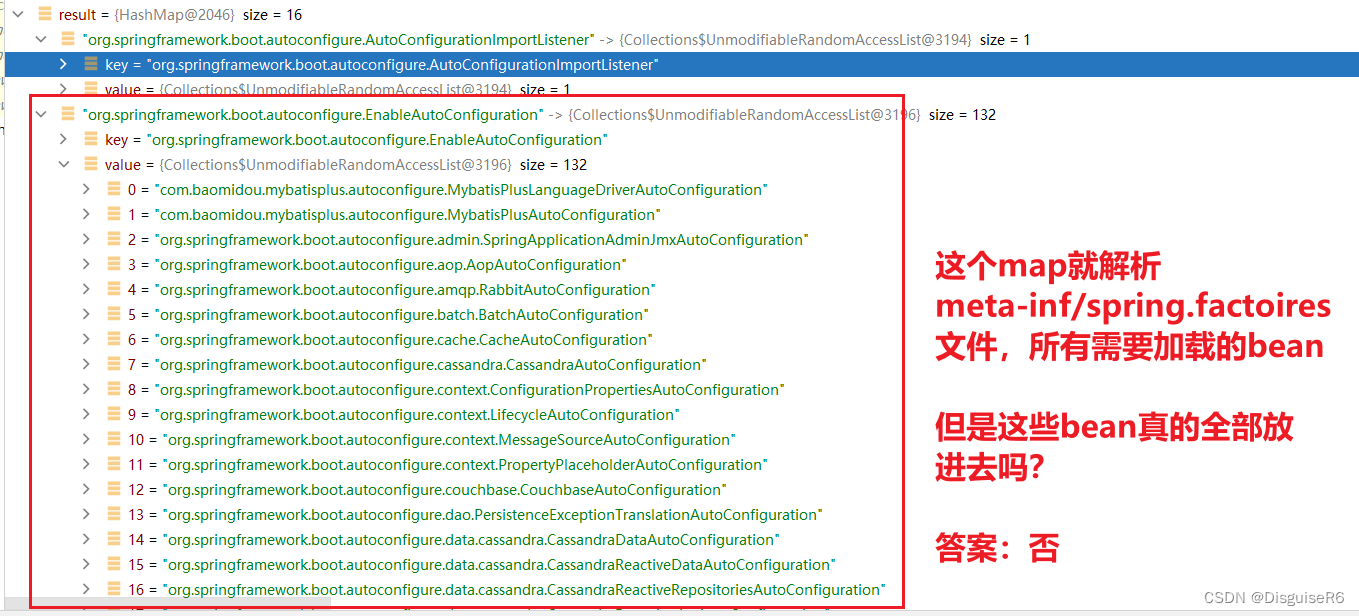

09-03、springboot是如何把需要的bean加载出来的呢？

我们知道类加载，把项目所有的classes统统都加载的jvm中。这么多的class。springboot是如何需要管理和初始化放入到ioc容器的classes找出来呢？springBoot借鉴了java9的新特性:spi机制。这中机制其实就是把需要被加载类放入一个配置中，而springboot命名规则就是：META-INF/spring.factories。

而这个文件中就定义springboot需要加载的所有的bean,都放在这个文件中。
现在要做的事情，找到这个文件
解析这个文件

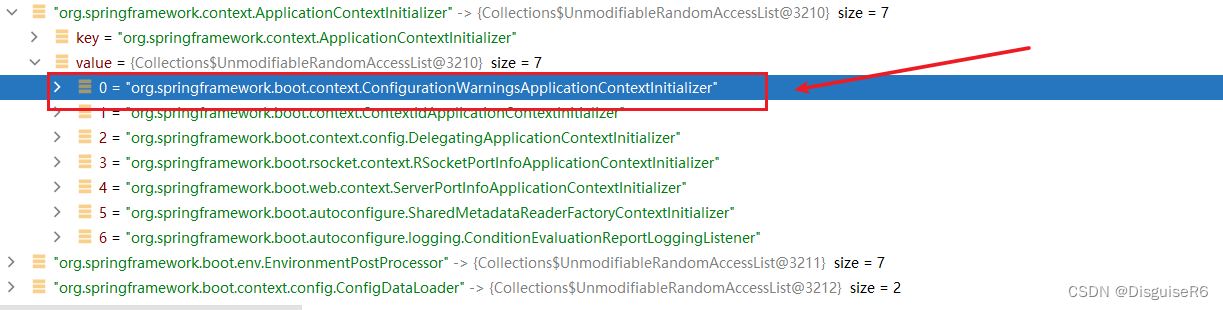

解析以后的bean,放入到map中（仅此而已，千万记住这个时候还没有和springioc产生任何关系）

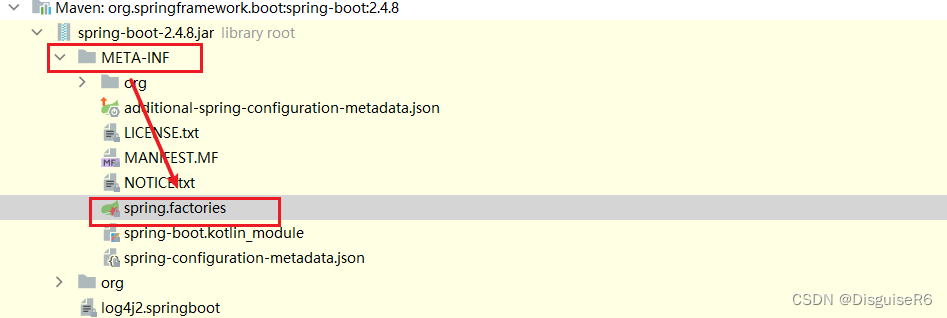

找到第一个需要解析的jar包：

jar:file:/C:/Users/xuche/.m2/repository/org/springframework/boot/spring-boot/2.4.8/spring-boot-2.4.8.jar!/META-INF/spring.factories

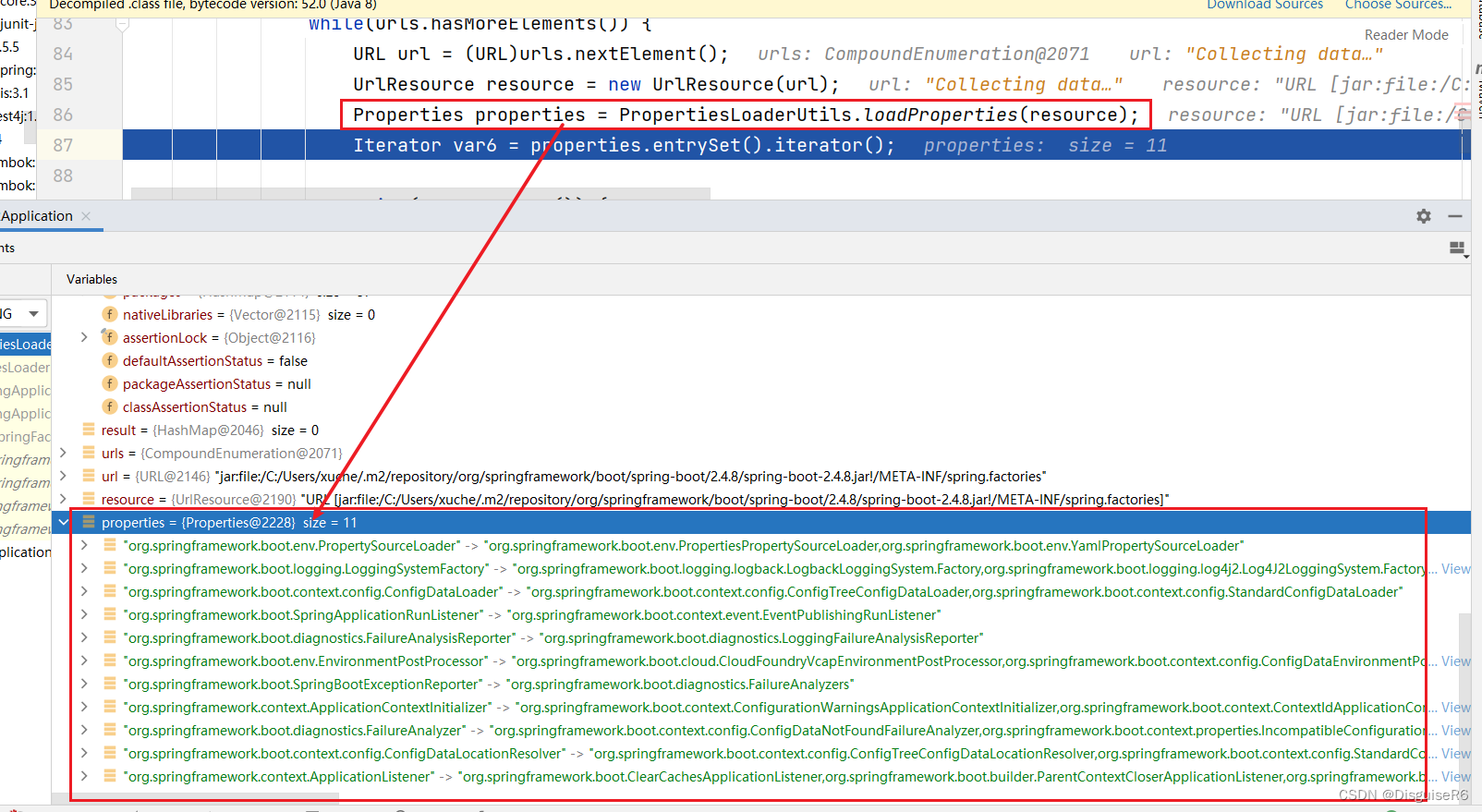

在这里插入图片描述

# Logging Systems
org.springframework.boot.logging.LoggingSystemFactory=\
org.springframework.boot.logging.logback.LogbackLoggingSystem.Factory,\
org.springframework.boot.logging.log4j2.Log4J2LoggingSystem.Factory,\
org.springframework.boot.logging.java.JavaLoggingSystem.Factory

# PropertySource Loaders
org.springframework.boot.env.PropertySourceLoader=\
org.springframework.boot.env.PropertiesPropertySourceLoader,\
org.springframework.boot.env.YamlPropertySourceLoader

# ConfigData Location Resolvers
org.springframework.boot.context.config.ConfigDataLocationResolver=\
org.springframework.boot.context.config.ConfigTreeConfigDataLocationResolver,\
org.springframework.boot.context.config.StandardConfigDataLocationResolver

# ConfigData Loaders
org.springframework.boot.context.config.ConfigDataLoader=\
org.springframework.boot.context.config.ConfigTreeConfigDataLoader,\
org.springframework.boot.context.config.StandardConfigDataLoader

# Run Listeners
org.springframework.boot.SpringApplicationRunListener=\
org.springframework.boot.context.event.EventPublishingRunListener

# Error Reporters
org.springframework.boot.SpringBootExceptionReporter=\
org.springframework.boot.diagnostics.FailureAnalyzers

# Application Context Initializers
org.springframework.context.ApplicationContextInitializer=\
org.springframework.boot.context.ConfigurationWarningsApplicationContextInitializer,\
org.springframework.boot.context.ContextIdApplicationContextInitializer,\
org.springframework.boot.context.config.DelegatingApplicationContextInitializer,\
org.springframework.boot.rsocket.context.RSocketPortInfoApplicationContextInitializer,\
org.springframework.boot.web.context.ServerPortInfoApplicationContextInitializer

# Application Listeners
org.springframework.context.ApplicationListener=\
org.springframework.boot.ClearCachesApplicationListener,\
org.springframework.boot.builder.ParentContextCloserApplicationListener,\
org.springframework.boot.context.FileEncodingApplicationListener,\
org.springframework.boot.context.config.AnsiOutputApplicationListener,\
org.springframework.boot.context.config.DelegatingApplicationListener,\
org.springframework.boot.context.logging.LoggingApplicationListener,\
org.springframework.boot.env.EnvironmentPostProcessorApplicationListener,\
org.springframework.boot.liquibase.LiquibaseServiceLocatorApplicationListener

# Environment Post Processors
org.springframework.boot.env.EnvironmentPostProcessor=\
org.springframework.boot.cloud.CloudFoundryVcapEnvironmentPostProcessor,\
org.springframework.boot.context.config.ConfigDataEnvironmentPostProcessor,\
org.springframework.boot.env.RandomValuePropertySourceEnvironmentPostProcessor,\
org.springframework.boot.env.SpringApplicationJsonEnvironmentPostProcessor,\
org.springframework.boot.env.SystemEnvironmentPropertySourceEnvironmentPostProcessor,\
org.springframework.boot.reactor.DebugAgentEnvironmentPostProcessor

# Failure Analyzers
org.springframework.boot.diagnostics.FailureAnalyzer=\
org.springframework.boot.context.config.ConfigDataNotFoundFailureAnalyzer,\
org.springframework.boot.context.properties.IncompatibleConfigurationFailureAnalyzer,\
org.springframework.boot.context.properties.NotConstructorBoundInjectionFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.BeanCurrentlyInCreationFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.BeanDefinitionOverrideFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.BeanNotOfRequiredTypeFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.BindFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.BindValidationFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.UnboundConfigurationPropertyFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.ConnectorStartFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.NoSuchMethodFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.NoUniqueBeanDefinitionFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.PortInUseFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.ValidationExceptionFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.InvalidConfigurationPropertyNameFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.InvalidConfigurationPropertyValueFailureAnalyzer,\
org.springframework.boot.diagnostics.analyzer.PatternParseFailureAnalyzer,\
org.springframework.boot.liquibase.LiquibaseChangelogMissingFailureAnalyzer

# Failure Analysis Reporters
org.springframework.boot.diagnostics.FailureAnalysisReporter=\
org.springframework.boot.diagnostics.LoggingFailureAnalysisReporter

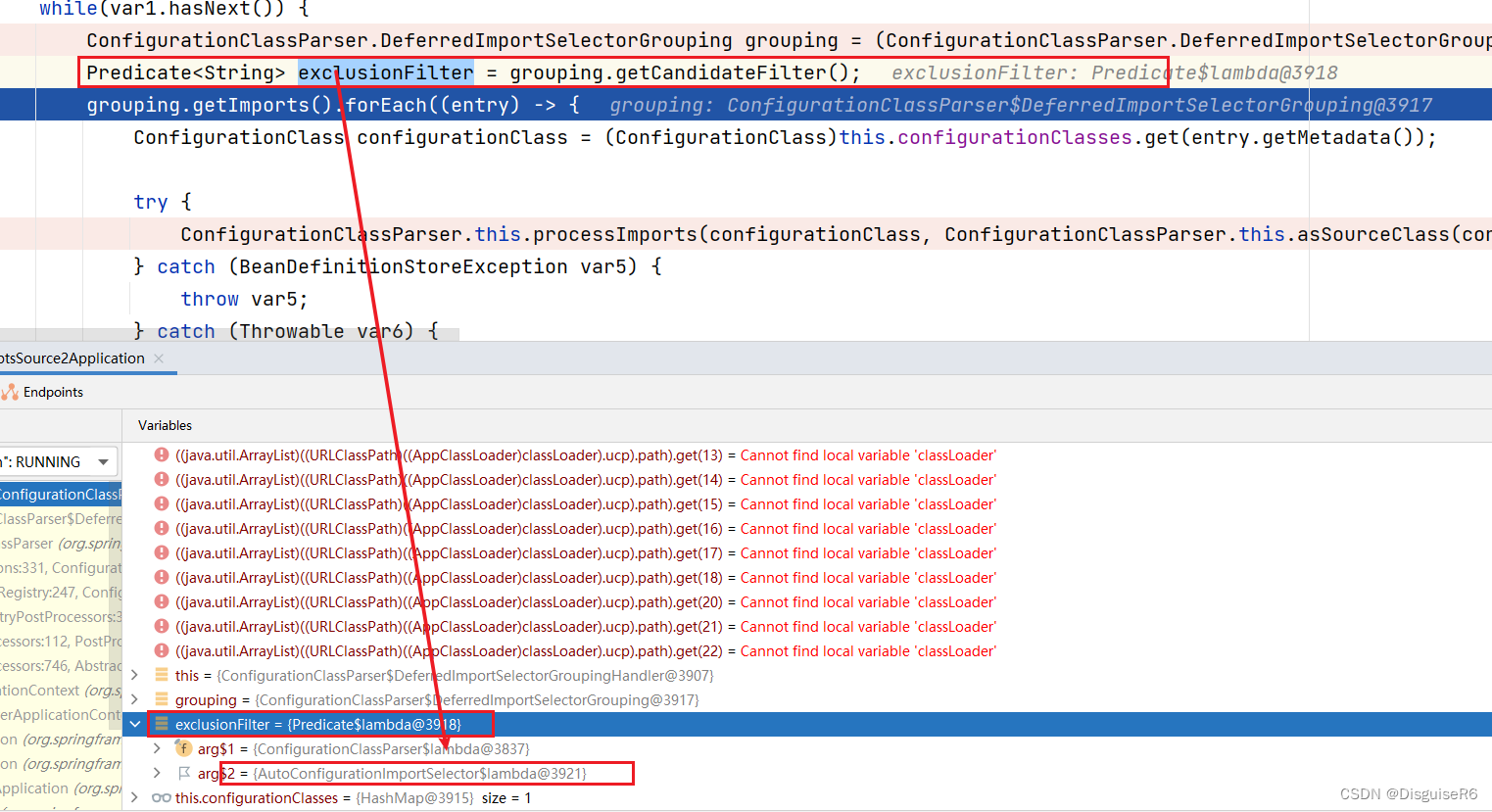

在这里插入图片描述

找到第二个jar进行解析

URL [jar:file:/C:/Users/xuche/.m2/repository/org/springframework/spring-beans/5.3.8/spring-beans-5.3.8.jar!/META-INF/spring.factories]

org.springframework.beans.BeanInfoFactory=org.springframework.beans.ExtendedBeanInfoFactory

找到第三个jar进行解析文件

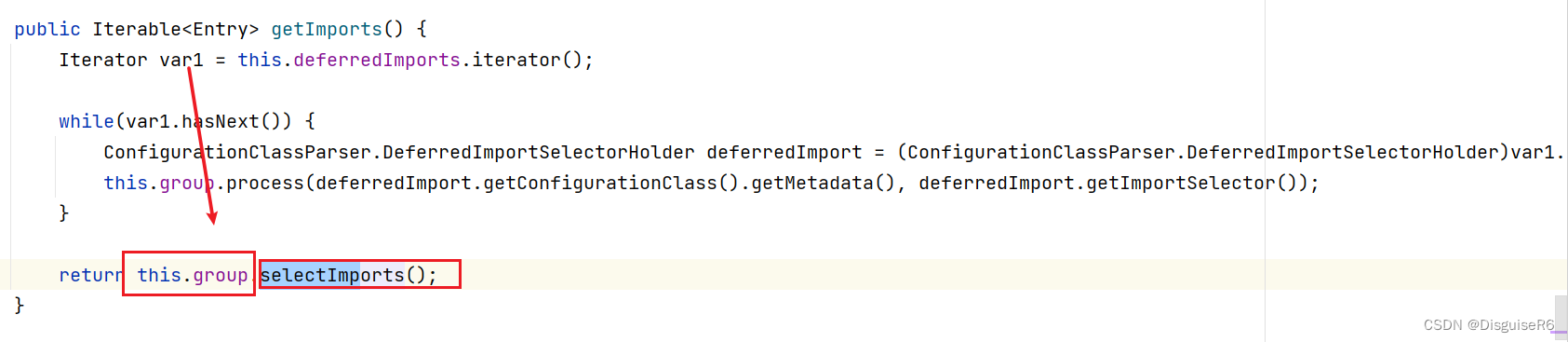

在这里插入图片描述

# Auto Configure
org.springframework.boot.env.EnvironmentPostProcessor=\
  com.baomidou.mybatisplus.autoconfigure.SafetyEncryptProcessor
org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
  com.baomidou.mybatisplus.autoconfigure.MybatisPlusLanguageDriverAutoConfiguration,\
  com.baomidou.mybatisplus.autoconfigure.MybatisPlusAutoConfiguration

第四个需要解析jar（重点）

URL [jar:file:/C:/Users/xuche/.m2/repository/org/springframework/boot/spring-boot-autoconfigure/2.4.8/spring-boot-autoconfigure-2.4.8.jar!/META-INF/spring.factories]

# Initializers
org.springframework.context.ApplicationContextInitializer=\
org.springframework.boot.autoconfigure.SharedMetadataReaderFactoryContextInitializer,\
org.springframework.boot.autoconfigure.logging.ConditionEvaluationReportLoggingListener

# Application Listeners
org.springframework.context.ApplicationListener=\
org.springframework.boot.autoconfigure.BackgroundPreinitializer

# Auto Configuration Import Listeners
org.springframework.boot.autoconfigure.AutoConfigurationImportListener=\
org.springframework.boot.autoconfigure.condition.ConditionEvaluationReportAutoConfigurationImportListener

# Auto Configuration Import Filters
org.springframework.boot.autoconfigure.AutoConfigurationImportFilter=\
org.springframework.boot.autoconfigure.condition.OnBeanCondition,\
org.springframework.boot.autoconfigure.condition.OnClassCondition,\
org.springframework.boot.autoconfigure.condition.OnWebApplicationCondition

# Auto Configure
org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
org.springframework.boot.autoconfigure.admin.SpringApplicationAdminJmxAutoConfiguration,\
org.springframework.boot.autoconfigure.aop.AopAutoConfiguration,\
org.springframework.boot.autoconfigure.amqp.RabbitAutoConfiguration,\
org.springframework.boot.autoconfigure.batch.BatchAutoConfiguration,\
org.springframework.boot.autoconfigure.cache.CacheAutoConfiguration,\
org.springframework.boot.autoconfigure.cassandra.CassandraAutoConfiguration,\
org.springframework.boot.autoconfigure.context.ConfigurationPropertiesAutoConfiguration,\
org.springframework.boot.autoconfigure.context.LifecycleAutoConfiguration,\
org.springframework.boot.autoconfigure.context.MessageSourceAutoConfiguration,\
org.springframework.boot.autoconfigure.context.PropertyPlaceholderAutoConfiguration,\
org.springframework.boot.autoconfigure.couchbase.CouchbaseAutoConfiguration,\
org.springframework.boot.autoconfigure.dao.PersistenceExceptionTranslationAutoConfiguration,\
org.springframework.boot.autoconfigure.data.cassandra.CassandraDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.cassandra.CassandraReactiveDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.cassandra.CassandraReactiveRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.cassandra.CassandraRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.couchbase.CouchbaseDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.couchbase.CouchbaseReactiveDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.couchbase.CouchbaseReactiveRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.couchbase.CouchbaseRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.elasticsearch.ElasticsearchDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.elasticsearch.ElasticsearchRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.elasticsearch.ReactiveElasticsearchRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.elasticsearch.ReactiveElasticsearchRestClientAutoConfiguration,\
org.springframework.boot.autoconfigure.data.jdbc.JdbcRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.jpa.JpaRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.ldap.LdapRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.mongo.MongoDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.mongo.MongoReactiveDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.mongo.MongoReactiveRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.mongo.MongoRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.neo4j.Neo4jDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.neo4j.Neo4jReactiveDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.neo4j.Neo4jReactiveRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.neo4j.Neo4jRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.solr.SolrRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.r2dbc.R2dbcDataAutoConfiguration,\
org.springframework.boot.autoconfigure.data.r2dbc.R2dbcRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.redis.RedisAutoConfiguration,\
org.springframework.boot.autoconfigure.data.redis.RedisReactiveAutoConfiguration,\
org.springframework.boot.autoconfigure.data.redis.RedisRepositoriesAutoConfiguration,\
org.springframework.boot.autoconfigure.data.rest.RepositoryRestMvcAutoConfiguration,\
org.springframework.boot.autoconfigure.data.web.SpringDataWebAutoConfiguration,\
org.springframework.boot.autoconfigure.elasticsearch.ElasticsearchRestClientAutoConfiguration,\
org.springframework.boot.autoconfigure.flyway.FlywayAutoConfiguration,\
org.springframework.boot.autoconfigure.freemarker.FreeMarkerAutoConfiguration,\
org.springframework.boot.autoconfigure.groovy.template.GroovyTemplateAutoConfiguration,\
org.springframework.boot.autoconfigure.gson.GsonAutoConfiguration,\
org.springframework.boot.autoconfigure.h2.H2ConsoleAutoConfiguration,\
org.springframework.boot.autoconfigure.hateoas.HypermediaAutoConfiguration,\
org.springframework.boot.autoconfigure.hazelcast.HazelcastAutoConfiguration,\
org.springframework.boot.autoconfigure.hazelcast.HazelcastJpaDependencyAutoConfiguration,\
org.springframework.boot.autoconfigure.http.HttpMessageConvertersAutoConfiguration,\
org.springframework.boot.autoconfigure.http.codec.CodecsAutoConfiguration,\
org.springframework.boot.autoconfigure.influx.InfluxDbAutoConfiguration,\
org.springframework.boot.autoconfigure.info.ProjectInfoAutoConfiguration,\
org.springframework.boot.autoconfigure.integration.IntegrationAutoConfiguration,\
org.springframework.boot.autoconfigure.jackson.JacksonAutoConfiguration,\
org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration,\
org.springframework.boot.autoconfigure.jdbc.JdbcTemplateAutoConfiguration,\
org.springframework.boot.autoconfigure.jdbc.JndiDataSourceAutoConfiguration,\
org.springframework.boot.autoconfigure.jdbc.XADataSourceAutoConfiguration,\
org.springframework.boot.autoconfigure.jdbc.DataSourceTransactionManagerAutoConfiguration,\
org.springframework.boot.autoconfigure.jms.JmsAutoConfiguration,\
org.springframework.boot.autoconfigure.jmx.JmxAutoConfiguration,\
org.springframework.boot.autoconfigure.jms.JndiConnectionFactoryAutoConfiguration,\
org.springframework.boot.autoconfigure.jms.activemq.ActiveMQAutoConfiguration,\
org.springframework.boot.autoconfigure.jms.artemis.ArtemisAutoConfiguration,\
org.springframework.boot.autoconfigure.jersey.JerseyAutoConfiguration,\
org.springframework.boot.autoconfigure.jooq.JooqAutoConfiguration,\
org.springframework.boot.autoconfigure.jsonb.JsonbAutoConfiguration,\
org.springframework.boot.autoconfigure.kafka.KafkaAutoConfiguration,\
org.springframework.boot.autoconfigure.availability.ApplicationAvailabilityAutoConfiguration,\
org.springframework.boot.autoconfigure.ldap.embedded.EmbeddedLdapAutoConfiguration,\
org.springframework.boot.autoconfigure.ldap.LdapAutoConfiguration,\
org.springframework.boot.autoconfigure.liquibase.LiquibaseAutoConfiguration,\
org.springframework.boot.autoconfigure.mail.MailSenderAutoConfiguration,\
org.springframework.boot.autoconfigure.mail.MailSenderValidatorAutoConfiguration,\
org.springframework.boot.autoconfigure.mongo.embedded.EmbeddedMongoAutoConfiguration,\
org.springframework.boot.autoconfigure.mongo.MongoAutoConfiguration,\
org.springframework.boot.autoconfigure.mongo.MongoReactiveAutoConfiguration,\
org.springframework.boot.autoconfigure.mustache.MustacheAutoConfiguration,\
org.springframework.boot.autoconfigure.neo4j.Neo4jAutoConfiguration,\
org.springframework.boot.autoconfigure.orm.jpa.HibernateJpaAutoConfiguration,\
org.springframework.boot.autoconfigure.quartz.QuartzAutoConfiguration,\
org.springframework.boot.autoconfigure.r2dbc.R2dbcAutoConfiguration,\
org.springframework.boot.autoconfigure.r2dbc.R2dbcTransactionManagerAutoConfiguration,\
org.springframework.boot.autoconfigure.rsocket.RSocketMessagingAutoConfiguration,\
org.springframework.boot.autoconfigure.rsocket.RSocketRequesterAutoConfiguration,\
org.springframework.boot.autoconfigure.rsocket.RSocketServerAutoConfiguration,\
org.springframework.boot.autoconfigure.rsocket.RSocketStrategiesAutoConfiguration,\
org.springframework.boot.autoconfigure.security.servlet.SecurityAutoConfiguration,\
org.springframework.boot.autoconfigure.security.servlet.UserDetailsServiceAutoConfiguration,\
org.springframework.boot.autoconfigure.security.servlet.SecurityFilterAutoConfiguration,\
org.springframework.boot.autoconfigure.security.reactive.ReactiveSecurityAutoConfiguration,\
org.springframework.boot.autoconfigure.security.reactive.ReactiveUserDetailsServiceAutoConfiguration,\
org.springframework.boot.autoconfigure.security.rsocket.RSocketSecurityAutoConfiguration,\
org.springframework.boot.autoconfigure.security.saml2.Saml2RelyingPartyAutoConfiguration,\
org.springframework.boot.autoconfigure.sendgrid.SendGridAutoConfiguration,\
org.springframework.boot.autoconfigure.session.SessionAutoConfiguration,\
org.springframework.boot.autoconfigure.security.oauth2.client.servlet.OAuth2ClientAutoConfiguration,\
org.springframework.boot.autoconfigure.security.oauth2.client.reactive.ReactiveOAuth2ClientAutoConfiguration,\
org.springframework.boot.autoconfigure.security.oauth2.resource.servlet.OAuth2ResourceServerAutoConfiguration,\
org.springframework.boot.autoconfigure.security.oauth2.resource.reactive.ReactiveOAuth2ResourceServerAutoConfiguration,\
org.springframework.boot.autoconfigure.solr.SolrAutoConfiguration,\
org.springframework.boot.autoconfigure.task.TaskExecutionAutoConfiguration,\
org.springframework.boot.autoconfigure.task.TaskSchedulingAutoConfiguration,\
org.springframework.boot.autoconfigure.thymeleaf.ThymeleafAutoConfiguration,\
org.springframework.boot.autoconfigure.transaction.TransactionAutoConfiguration,\
org.springframework.boot.autoconfigure.transaction.jta.JtaAutoConfiguration,\
org.springframework.boot.autoconfigure.validation.ValidationAutoConfiguration,\
org.springframework.boot.autoconfigure.web.client.RestTemplateAutoConfiguration,\
org.springframework.boot.autoconfigure.web.embedded.EmbeddedWebServerFactoryCustomizerAutoConfiguration,\
org.springframework.boot.autoconfigure.web.reactive.HttpHandlerAutoConfiguration,\
org.springframework.boot.autoconfigure.web.reactive.ReactiveWebServerFactoryAutoConfiguration,\
org.springframework.boot.autoconfigure.web.reactive.WebFluxAutoConfiguration,\
org.springframework.boot.autoconfigure.web.reactive.error.ErrorWebFluxAutoConfiguration,\
org.springframework.boot.autoconfigure.web.reactive.function.client.ClientHttpConnectorAutoConfiguration,\
org.springframework.boot.autoconfigure.web.reactive.function.client.WebClientAutoConfiguration,\
org.springframework.boot.autoconfigure.web.servlet.DispatcherServletAutoConfiguration,\
org.springframework.boot.autoconfigure.web.servlet.ServletWebServerFactoryAutoConfiguration,\
org.springframework.boot.autoconfigure.web.servlet.error.ErrorMvcAutoConfiguration,\
org.springframework.boot.autoconfigure.web.servlet.HttpEncodingAutoConfiguration,\
org.springframework.boot.autoconfigure.web.servlet.MultipartAutoConfiguration,\
org.springframework.boot.autoconfigure.web.servlet.WebMvcAutoConfiguration,\
org.springframework.boot.autoconfigure.websocket.reactive.WebSocketReactiveAutoConfiguration,\
org.springframework.boot.autoconfigure.websocket.servlet.WebSocketServletAutoConfiguration,\
org.springframework.boot.autoconfigure.websocket.servlet.WebSocketMessagingAutoConfiguration,\
org.springframework.boot.autoconfigure.webservices.WebServicesAutoConfiguration,\
org.springframework.boot.autoconfigure.webservices.client.WebServiceTemplateAutoConfiguration

# Failure analyzers
org.springframework.boot.diagnostics.FailureAnalyzer=\
org.springframework.boot.autoconfigure.data.redis.RedisUrlSyntaxFailureAnalyzer,\
org.springframework.boot.autoconfigure.diagnostics.analyzer.NoSuchBeanDefinitionFailureAnalyzer,\
org.springframework.boot.autoconfigure.flyway.FlywayMigrationScriptMissingFailureAnalyzer,\
org.springframework.boot.autoconfigure.jdbc.DataSourceBeanCreationFailureAnalyzer,\
org.springframework.boot.autoconfigure.jdbc.HikariDriverConfigurationFailureAnalyzer,\
org.springframework.boot.autoconfigure.r2dbc.ConnectionFactoryBeanCreationFailureAnalyzer,\
org.springframework.boot.autoconfigure.session.NonUniqueSessionRepositoryFailureAnalyzer

# Template availability providers
org.springframework.boot.autoconfigure.template.TemplateAvailabilityProvider=\
org.springframework.boot.autoconfigure.freemarker.FreeMarkerTemplateAvailabilityProvider,\
org.springframework.boot.autoconfigure.mustache.MustacheTemplateAvailabilityProvider,\
org.springframework.boot.autoconfigure.groovy.template.GroovyTemplateAvailabilityProvider,\
org.springframework.boot.autoconfigure.thymeleaf.ThymeleafTemplateAvailabilityProvider,\
org.springframework.boot.autoconfigure.web.servlet.JspTemplateAvailabilityProvider

org.springframework.boot.autoconfigure.EnableAutoConfiguration

就是这个注解对应的所有的配置类？这些配置类，如何加载到ioc容器中的呢？（运行阶段）

在这里插入图片描述

初始化阶段为什么还没放入ioc容器中？

答案：因为初始化阶段仅仅值是一个解析和准备的工作，就把需要的bean全部找到。仅此而已。

@Conditionxxxxxx

ApplicationContextInitializers

org.springframework.context.ApplicationContextInitializer=
org.springframework.boot.context.ConfigurationWarningsApplicationContextInitializer,
org.springframework.boot.context.ContextIdApplicationContextInitializer,
org.springframework.boot.context.config.DelegatingApplicationContextInitializer,
org.springframework.boot.rsocket.context.RSocketPortInfoApplicationContextInitializer,
org.springframework.boot.web.context.ServerPortInfoApplicationContextInitializer

在这里插入图片描述

Run ---------- 1 2 3 4 5 6 7 -------- selectImports

1: 执行run方法

在这里插入图片描述

this.refreshContext(context);

 protected void refresh(ConfigurableApplicationContext applicationContext) {
        applicationContext.refresh();
    }

protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
    PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, this.getBeanFactoryPostProcessors());
    if (!NativeDetector.inNativeImage() && beanFactory.getTempClassLoader() == null && beanFactory.containsBean("loadTimeWeaver")) {
        beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
        beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
    }

}

invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry, beanFactory.getApplicationStartup());

postProcessor.postProcessBeanDefinitionRegistry(registry);

7: ConfigurationClassPostProcessor

public void processConfigBeanDefinitions(BeanDefinitionRegistry registry) {
    parser.parse(candidates);
}

public void processGroupImports() {
    Iterator var1 = this.groupings.values().iterator();

    while(var1.hasNext()) {
        ConfigurationClassParser.DeferredImportSelectorGrouping grouping = (ConfigurationClassParser.DeferredImportSelectorGrouping)var1.next();
        Predicate<String> exclusionFilter = grouping.getCandidateFilter();
        grouping.getImports().forEach((entry) -> {
            ConfigurationClass configurationClass = (ConfigurationClass)this.configurationClasses.get(entry.getMetadata());

            try {
                ConfigurationClassParser.this.processImports(configurationClass, ConfigurationClassParser.this.asSourceClass(configurationClass, exclusionFilter), Collections.singleton(ConfigurationClassParser.this.asSourceClass(entry.getImportClassName(), exclusionFilter)), exclusionFilter, false);
            } catch (BeanDefinitionStoreException var5) {
                throw var5;
            } catch (Throwable var6) {
                throw new BeanDefinitionStoreException("Failed to process import candidates for configuration class [" + configurationClass.getMetadata().getClassName() + "]", var6);
            }
        });
    }

}

private Group createGroup(@Nullable Class<? extends Group> type) {
    Class<? extends Group> effectiveType = type != null ? type : ConfigurationClassParser.DefaultDeferredImportSelectorGroup.class;
    return (Group)ParserStrategyUtils.instantiateClass(effectiveType, Group.class, ConfigurationClassParser.this.environment, ConfigurationClassParser.this.resourceLoader, ConfigurationClassParser.this.registry);
}
}

在这里插入图片描述

ApplicationListeners

org.springframework.context.ApplicationListener=
org.springframework.boot.ClearCachesApplicationListener,
org.springframework.boot.builder.ParentContextCloserApplicationListener,
org.springframework.boot.context.FileEncodingApplicationListener,
org.springframework.boot.context.config.AnsiOutputApplicationListener,
org.springframework.boot.context.config.DelegatingApplicationListener,
org.springframework.boot.context.logging.LoggingApplicationListener,
org.springframework.boot.env.EnvironmentPostProcessorApplicationListener,
org.springframework.boot.liquibase.LiquibaseServiceLocatorApplicationListener

09-04、运行阶段

.run(args);

运行阶段：把初始化阶段的所有收集的bean，全部初始化放入到ioc容器中去、再去经历spring生命周期，运行结束项目就被运行起来了。tomcat

证明：启动类在启动默认情况下，会把当前主类的包名作为的包入口

也就是@ComponentScan的原理。其实它背后有一个类在做事情，如下：

org.springframework.boot.context.ConfigurationWarningsApplicationContextInitializer

如何证明：注解的解析和放入ioc是在运行阶段去执行和解析呢？

在初始化的构造函数结束行打个断点 — run方法开头打个断点----在解析类中打个断点

如果是按照这个执行话，说明我的初始阶段仅仅就解析spring.factories这个文件和收集对应需要初始化的bean。

并且证明注解的解析和bean初始化都是在run方法执行中
在初始化的构造函数结束行打个断点 -----在解析类中打个断点（错误）

证明：启动类在启动默认情况下，会把当前主类的包名作为的包入口

也就是@ComponentScan的原理。其实它背后有一个类在做事情，如下：

org.springframework.boot.autoconfigure.AutoConfigurationImportSelector

如何证明：注解的解析和放入ioc是在运行阶段去执行和解析呢？

在初始化的构造函数结束行打个断点 — run方法开头打个断点----在解析类中打个断点

如果是按照这个执行话，说明我的初始阶段仅仅就解析spring.factories这个文件和收集对应需要初始化的bean。

并且证明注解的解析和bean初始化都是在run方法执行中
在初始化的构造函数结束行打个断点 -----在解析类中打个断点（错误）

09-03、如何和springioc发生关系

run方法执行：this.refreshContext(context);

09-04、Spring生命周期的阶段

public void refresh() throws BeansException, IllegalStateException {
        synchronized(this.startupShutdownMonitor) {
            StartupStep contextRefresh = this.applicationStartup.start("spring.context.refresh");
            this.prepareRefresh();
            ConfigurableListableBeanFactory beanFactory = this.obtainFreshBeanFactory();
            this.prepareBeanFactory(beanFactory);

            try {
                this.postProcessBeanFactory(beanFactory);
                StartupStep beanPostProcess = this.applicationStartup.start("spring.context.beans.post-process");
                this.invokeBeanFactoryPostProcessors(beanFactory);
                this.registerBeanPostProcessors(beanFactory);
                beanPostProcess.end();
                this.initMessageSource();
                this.initApplicationEventMulticaster();
                this.onRefresh();
                this.registerListeners();
                this.finishBeanFactoryInitialization(beanFactory);
                this.finishRefresh();
            } catch (BeansException var10) {
                if (this.logger.isWarnEnabled()) {
                    this.logger.warn("Exception encountered during context initialization - cancelling refresh attempt: " + var10);
                }

                this.destroyBeans();
                this.cancelRefresh(var10);
                throw var10;
            } finally {
                this.resetCommonCaches();
                contextRefresh.end();
            }

        }
    }
