Spring源码深度解析之AnnotationConfigApplicationContext概述

Spring的配置由基于XML，逐渐演变为基于注解，常用的应用程序上下文也由ClassPathXmlApplicationContext转为AnnotationConfigApplicationContext但基本流程都是一样的。

AnnotationConfigApplicationContext代码如下所示

public AnnotationConfigApplicationContext(Class<?>... annotatedClasses) {
		//这里由于他有父类，故而会先调用父类的构造方法，然后才会调用自己的构造方法
		//在自己构造方法中初始一个读取器和扫描器
		this();
		register(annotatedClasses);
		refresh();
	}

AnnotationConfigApplicationContext在实例化的时候会先调用父类的构造方法初始化BeanFactory，这个类包含很多重要的容器比如beanDefinitionMap等等

public GenericApplicationContext() {
               //这个类包含很多重要的容器比如beanDefinitionMap等等
		this.beanFactory = new DefaultListableBeanFactory();
	}

this()方法

在this()方法中主要初始化一个读取器和一个扫描器，扫描器的的作用主要提给程序员程序员使用，在spring进行扫描的时候会再实例化一个扫描器。这里最重要是是AnnotatedBeanDefinitionReader

public AnnotationConfigApplicationContext() {
		this.reader = new AnnotatedBeanDefinitionReader(this);

		/**
		 * 可以用来扫描宝或者类，继而转换成bd
		 * 但实际上我们扫描包不是scanner这个对象，是spring自己new的一个ClassPathBeanDefinitionScanner
		 * 这里的scanner仅仅是为了程序员能够在外部调用AnnotationConfigApplicationContext对象scan方法
		 */
		this.scanner = new ClassPathBeanDefinitionScanner(this);
	}

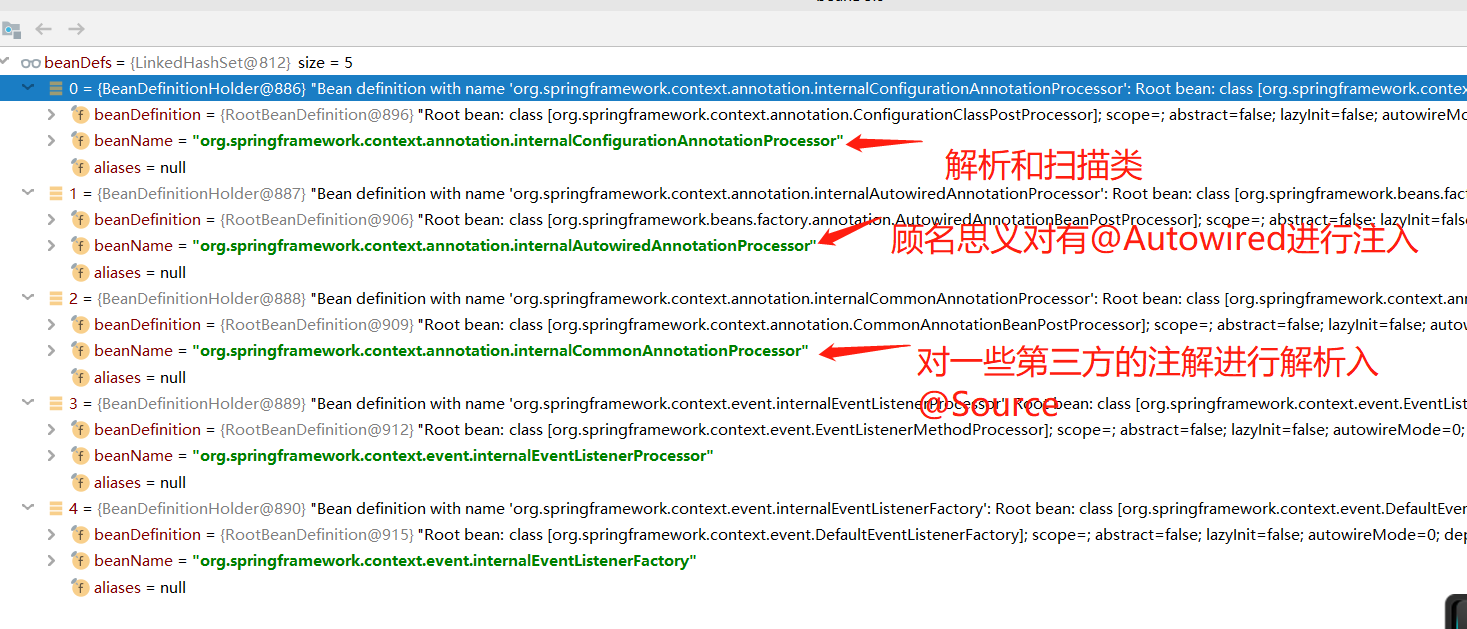

AnnotatedBeanDefinitionReader实例化的时候会调用registerAnnotationConfigProcessors方法，在beanDefinitionMap放入几个非常重要的的类，这几个类贯整个Spring容器的生命周期

public static Set<BeanDefinitionHolder> registerAnnotationConfigProcessors(
			BeanDefinitionRegistry registry, @Nullable Object source) {

		......删除部分代码
		Set<BeanDefinitionHolder> beanDefs = new LinkedHashSet<>(8);

		if (!registry.containsBeanDefinition(CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));
		}

		if (!registry.containsBeanDefinition(AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
		}

		// Check for JSR-250 support, and if present add the CommonAnnotationBeanPostProcessor.
		if (jsr250Present && !registry.containsBeanDefinition(COMMON_ANNOTATION_PROCESSOR_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(CommonAnnotationBeanPostProcessor.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, COMMON_ANNOTATION_PROCESSOR_BEAN_NAME));
		}

		// Check for JPA support, and if present add the PersistenceAnnotationBeanPostProcessor.
		if (jpaPresent && !registry.containsBeanDefinition(PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition();
			try {
				def.setBeanClass(ClassUtils.forName(PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME,
						AnnotationConfigUtils.class.getClassLoader()));
			}
			catch (ClassNotFoundException ex) {
				throw new IllegalStateException(
						"Cannot load optional framework class: " + PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME, ex);
			}
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME));
		}

		if (!registry.containsBeanDefinition(EVENT_LISTENER_PROCESSOR_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(EventListenerMethodProcessor.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_PROCESSOR_BEAN_NAME));
		}

		if (!registry.containsBeanDefinition(EVENT_LISTENER_FACTORY_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(DefaultEventListenerFactory.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_FACTORY_BEAN_NAME));
		}

		return beanDefs;
	}

register(annotatedClasses)方法

register(annotatedClasses)最终会调用registerBeanDefinition向beanDefinitionMap注册一个配置类，它的beanDefinition是AnnotatedGenericBeanDefinition。

private <T> void doRegisterBean(Class<T> beanClass, @Nullable String name,
			@Nullable Class<? extends Annotation>[] qualifiers, @Nullable Supplier<T> supplier,
			@Nullable BeanDefinitionCustomizer[] customizers) {
                //创建一个AnnotatedGenericBeanDefinition
		AnnotatedGenericBeanDefinition abd = new AnnotatedGenericBeanDefinition(beanClass);
		if (this.conditionEvaluator.shouldSkip(abd.getMetadata())) {
			return;
		}

         ......................................
             //进行beanDefinition注册
		BeanDefinitionReaderUtils.registerBeanDefinition(definitionHolder, this.registry);
	}

refresh()方法

refresh()方法，每个方法的作用请看注释，这里比较重要的是两个方法是invokeBeanFactoryPostProcessors(beanFactory)和finishBeanFactoryInitialization(beanFactory)分别进行类扫描和依赖注入以及AOP

@Override
	public void refresh() throws BeansException, IllegalStateException {
		synchronized (this.startupShutdownMonitor) {
			// Prepare this context for refreshing.
			//准备工作包括设置启动时间，是否激活标志位，初始化属性源（property source）配置
			prepareRefresh();

			// Tell the subclass to refresh the internal bean factory.
			//如果是基于XML配置，并BeanFactory工厂不是在构造函数初始的时候进行实例化的，而是调用这个方法。
			ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

			// Prepare the bean factory for use in this context.
			//对BeanFactory功能进行填充
			prepareBeanFactory(beanFactory);

			try {
				// Allows post-processing of the bean factory in context subclasses.
				//目前是个空方法，如果有需要由子类进行扩展
				postProcessBeanFactory(beanFactory);

				// Invoke factory processors registered as beans in the context.
				//在spring环境中去执行已经被注册的 BeanFactoryPostProcessors，类的扫描就是在这里进行的，它的作用是在
				//bean初始化之前做一些干预。
				invokeBeanFactoryPostProcessors(beanFactory);

				// Register bean processors that intercept bean creation.
				//注册BeanPostProcessors，BeanPostProcessors的作用是
				// 在bean初始化的时候进行干预，比如说进行AOP，这里只是注册，并不会执行
				registerBeanPostProcessors(beanFactory);

				// Initialize message source for this context.
				//为上下文初始化Message源，即不同的语言的消息体，国际化处理
				initMessageSource();

				// Initialize event multicaster for this context.
				//初始化应用消息广播器，并放入 applicationEventMulticaster
				initApplicationEventMulticaster();

				// Initialize other special beans in specific context subclasses.
				//留给子类初始化其他的Bean
				onRefresh();

				// Check for listener beans and register them.
				//在所有注册的bean中查找Listener bean,注册到消息广播器中
				registerListeners();

				// Instantiate all remaining (non-lazy-init) singletons.
				//这个方法非常重要，依赖注入和AOP就是在这里进行的。
				finishBeanFactoryInitialization(beanFactory);

				// Last step: publish corresponding event.
				//完成刷新过程，通知生命周期处理器lifecycleProcessor刷新过程，同时发出ContextRefreshEvent通知别人。
				finishRefresh();
			}

			catch (BeansException ex) {
				if (logger.isWarnEnabled()) {
					logger.warn("Exception encountered during context initialization - " +
							"cancelling refresh attempt: " + ex);
				}

				// Destroy already created singletons to avoid dangling resources.
				destroyBeans();

				// Reset 'active' flag.
				cancelRefresh(ex);

				// Propagate exception to caller.
				throw ex;
			}

			finally {
				// Reset common introspection caches in Spring's core, since we
				// might not ever need metadata for singleton beans anymore...
				resetCommonCaches();
			}
		}
	}
