Keil:J-link ERROR: Debugger tries to select target interface JTAG.

当遇到Keil J-Link调试器尝试选择不支持的JTAG接口时,解决方案是在Options for Target->Debug->Settings中,将Port下拉菜单的'JTAG'改为'SW',然后保存设置,即可解决问题。

Keil

J-Link

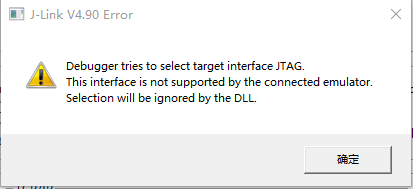

ERROR: Debugger tries to select target interface JTAG.

This interface is not supported by the connected emulator. Selection will be ignored by the DLL

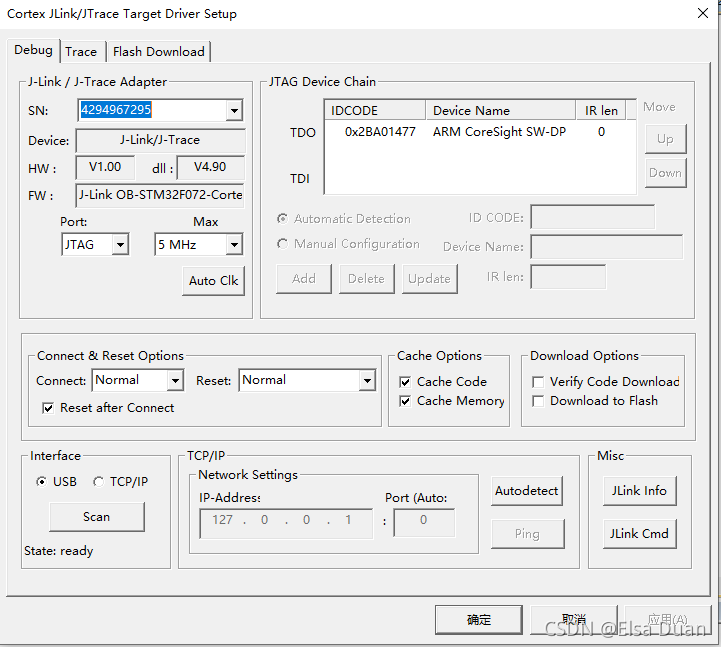

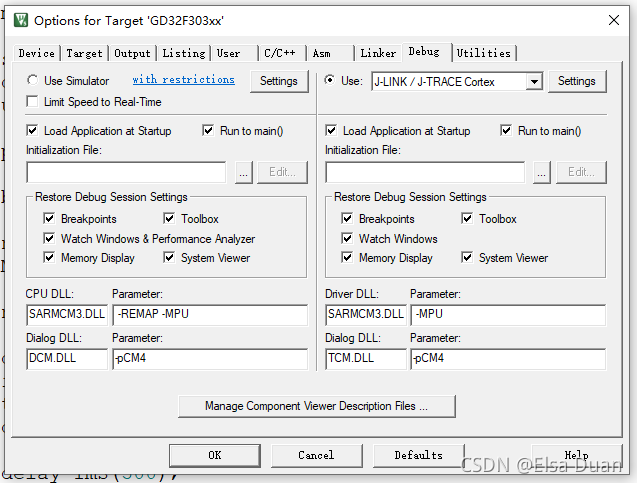

Solution:Options for Target->Debug->Settings,

Port下拉菜单,把”JTAG”改成“SW“,点”确定“,点”OK”。
