实现思想:
1.java在后台建立一个websocket,页面与此socket建立连接,
2.写一个jar程序,当运行时与socket建立连接,并将参数发送到此socket
3.数据库建立insert触发器,当插入数据时调用外部jar程序
环境:jdk7,tomcat7,sqlserver,windows
上干货

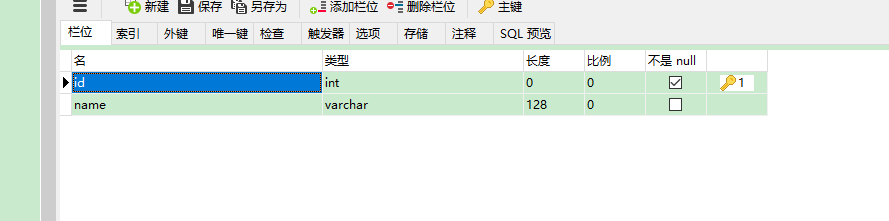

1.创建表test01.表结构如下图
2.创建触发器
-
CREATE TRIGGER test01Trigger
-
ON test01
-
after insert
-
as
-
begin
-
declare @str varchar(255)
-
select @str=name from inserted --将插入的name赋值给str
-
declare @str2 varchar(255)
-
set @str2='java -jar d:\socketTest1.jar '+@str --cmd窗口调用jar程序的命令
-
exec master..xp_cmdshell @str2 --调用外部jar包
-
end
3.java后台代码:创建一个websocket
-
import java.io.IOException;
-
import java.util.concurrent.CopyOnWriteArraySet;
-
import javax.websocket.*;
-
import javax.websocket.server.ServerEndpoint;
-
/**
-
* @ServerEndpoint 注解是一个类层次的注解,它的功能主要是将目前的类定义成一个websocket服务器端,
-
* 注解的值将被用于监听用户连接的终端访问URL地址,客户端可以通过这个URL来连接到WebSocket服务器端
-
*/
-
@ServerEndpoint("/WSwebsocket")
-
public class WebSocketTest {
-
//静态变量,用来记录当前在线连接数。应该把它设计成线程安全的。
-
private static int onlineCount = 0;
-
//concurrent包的线程安全Set,用来存放每个客户端对应的MyWebSocket对象。若要实现服务端与单一客户端通信的话,可以使用Map来存放,其中Key可以为用户标识
-
private static CopyOnWriteArraySet<WebSocketTest> webSocketSet = new CopyOnWriteArraySet<WebSocketTest>();
-
//与某个客户端的连接会话,需要通过它来给客户端发送数据
-
private Session session;
-
/**
-
* 连接建立成功调用的方法
-
* @param session 可选的参数。session为与某个客户端的连接会话,需要通过它来给客户端发送数据
-
*/
-
@OnOpen
-
public void onOpen(Session session){
-
this.session = session;
-
webSocketSet.add(this); //加入set中
-
addOnlineCount(); //在线数加1
-
System.out.println("有新连接加入!当前在线人数为" + getOnlineCount());
-
}
-
/**
-
* 连接关闭调用的方法
-
*/
-
@OnClose
-
public void onClose(){
-
webSocketSet.remove(this); //从set中删除
-
subOnlineCount(); //在线数减1
-
System.out.println("有一连接关闭!当前在线人数为" + getOnlineCount());
-
}
-
/**
-
* 收到客户端消息后调用的方法
-
* @param message 客户端发送过来的消息
-
* @param session 可选的参数
-
*/
-
@OnMessage
-
public void onMessage(String message, Session session) {
-
System.out.println("来自客户端的消息:" + message);
-
//群发消息
-
for(WebSocketTest item: webSocketSet){
-
try {
-
item.sendMessage(message);
-
} catch (IOException e) {
-
e.printStackTrace();
-
continue;
-
}
-
}
-
}
-
/**
-
* 发生错误时调用
-
* @param session
-
* @param error
-
*/
-
@OnError
-
public void onError(Session session, Throwable error){
-
System.out.println("发生错误");
-
error.printStackTrace();
-
}
-
/**
-
* 这个方法与上面几个方法不一样。没有用注解,是根据自己需要添加的方法。
-
* @param message
-
* @throws IOException
-
*/
-
public void sendMessage(String message) throws IOException{
-
this.session.getBasicRemote().sendText(message);
-
//this.session.getAsyncRemote().sendText(message);
-
}
-
public static synchronized int getOnlineCount() {
-
return onlineCount;
-
}
-
public static synchronized void addOnlineCount() {
-
WebSocketTest.onlineCount++;
-
}
-
public static synchronized void subOnlineCount() {
-
WebSocketTest.onlineCount--;
-
}
-
}
4.页面代码:链接此websocket
-
<%@ page language="java" pageEncoding="UTF-8" %>
-
<!DOCTYPE html>
-
<html>
-
<head>
-
<title>Java后端WebSocket的Tomcat实现</title>
-
</head>
-
<body>
-
Welcome<br/><input id="text" type="text"/>
-
<button onclick="send()">发送消息</button>
-
<hr/>
-
<button onclick="closeWebSocket()">关闭WebSocket连接</button>
-
<hr/>
-
<div id="message"></div>
-
</body>
-
<script type="text/javascript">
-
var websocket = null;
-
//判断当前浏览器是否支持WebSocket
-
if ('WebSocket' in window) {
-
websocket = new WebSocket("ws://192.168.1.29:8082/bim/WSwebsocket");
-
}
-
else {
-
alert('当前浏览器 Not support websocket')
-
}
-
//连接发生错误的回调方法
-
websocket.onerror = function () {
-
setMessageInnerHTML("WebSocket连接发生错误");
-
};
-
//连接成功建立的回调方法
-
websocket.onopen = function () {
-
setMessageInnerHTML("WebSocket连接成功");
-
}
-
//接收到消息的回调方法
-
websocket.onmessage = function (event) {
-
setMessageInnerHTML(event.data);
-
}
-
//连接关闭的回调方法
-
websocket.onclose = function () {
-
setMessageInnerHTML("WebSocket连接关闭");
-
}
-
//监听窗口关闭事件,当窗口关闭时,主动去关闭websocket连接,防止连接还没断开就关闭窗口,server端会抛异常。
-
window.onbeforeunload = function () {
-
closeWebSocket();
-
}
-
//将消息显示在网页上
-
function setMessageInnerHTML(innerHTML) {
-
document.getElementById('message').innerHTML += innerHTML + '<br/>';
-
}
-
//关闭WebSocket连接
-
function closeWebSocket() {
-
websocket.close();
-
}
-
//发送消息
-
function send() {
-
var message = document.getElementById('text').value;
-
websocket.send(message);
-
}
-
</script>
-
</html>
5.创建jar程序:
5.1类Myclient代码
-
@ClientEndpoint
-
public class Myclient2 {
-
@OnOpen
-
public void open(Session session){
-
System.out.println("Client WebSocket is opening...");
-
System.out.println("Connected to endpoint:"+ session.getBasicRemote());
-
try {
-
session.getBasicRemote().sendText("Hello");
-
} catch (IOException ex) {
-
}
-
}
-
@OnMessage
-
public void onMessage(String message){
-
System.out.println("Server send message: " + message);
-
}
-
@OnClose
-
public void onClose(){
-
System.out.println("Websocket closed");
-
}
-
}
5.2.类TestSocket的代码
-
public class TestSocket03 {
-
public Session session;
-
protected void start()
-
{
-
WebSocketContainer container = ContainerProvider.getWebSocketContainer();
-
String uri = "ws://192.168.1.29:8082/bim/WSwebsocket";
-
System.out.println("Connecting to" + uri);
-
try {
-
session = container.connectToServer(Myclient2.class, URI.create(uri));
-
} catch (DeploymentException e) {
-
e.printStackTrace();
-
} catch (IOException e) {
-
e.printStackTrace();
-
}
-
}
-
public static void main(String args[]) {
-
TestSocket03 client = new TestSocket03();
-
client.start();
-
String message = "无参";
-
if (args != null && args.length > 0) {
-
message = args[0];
-
}
-
try {
-
client.session.getBasicRemote().sendText(message);
-
client.session.close();
-
} catch (IOException e) {
-
e.printStackTrace();
-
}
-
}
-
}
到此代码已经完成
演示:

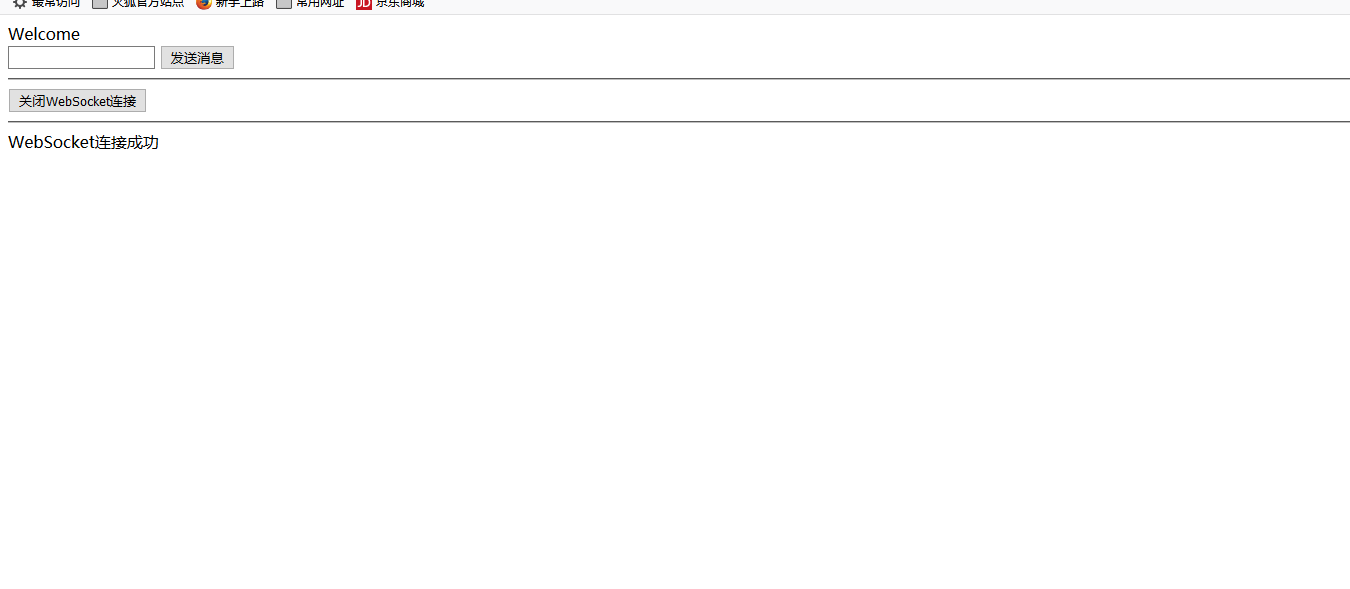

页面如图:

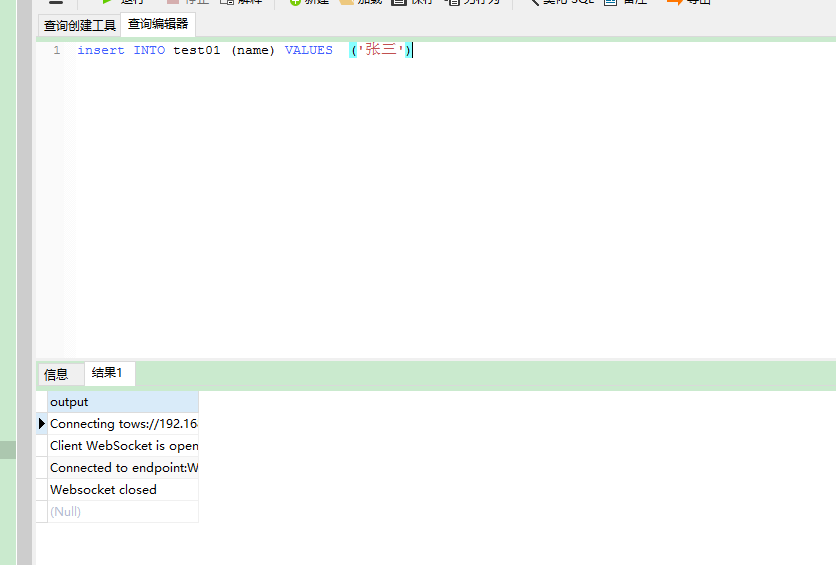

当运行insert语句时如图

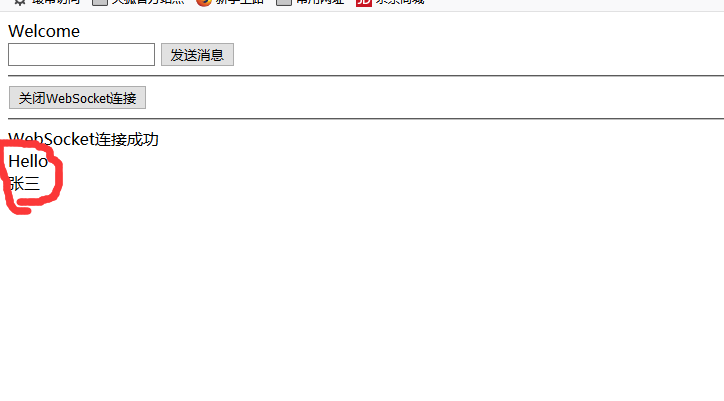

结果页面:
测试成功。。。
