好奇心是学习的第一步

前言：

只因在人群中多看了你一眼，于是我决定深挖一下这个标签，一不小心边打开了Android持续集成的大门，其实除了CircleCI大家也应该有听过一个本地版本的Jenkins，Jenkins是笔者去年就尝试使用过，因为个人能力不足，最终放弃了。而CircleCI的配置得益于GitHub上开源案例，这个项目start并不多，而且笔者尝试部署的时候几经一些摸不着头脑的问题，差点放弃了，最后也是因为一些摸不着头脑的变化突然又通过编译了。不得不说想成功，需要持之以恒的毅力，和水到渠成是的一波运气。

优势

顾名思义，持续集成，减少发布的最后5分钟
CircleCI 支持 GitHub 和 Bitbucket 帐号的登录，授权登录完成后，就可以添加 Projects 了，支持 GitHub 和 Bitbucket 的公有及私有仓库
提供App外链下载地址

Android Studio 配置

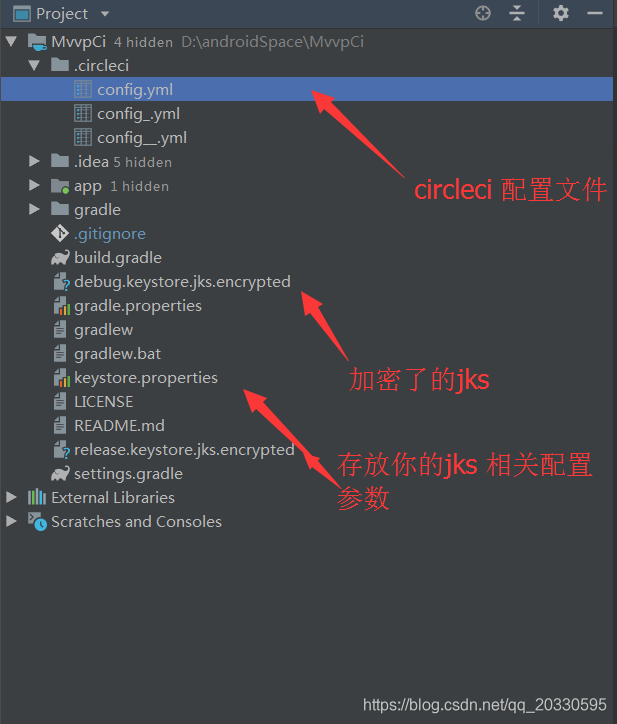

目录结构

目录结构
AndroidStudio所需要存储的文件就这么多。

config.yml

项目下新建 your project\.circleci\config.yml

version: 2
jobs:
  build:
    working_directory: ~/code
    docker:
    - image: circleci/android:api-28-alpha
    environment:
      JVM_OPTS: -Xmx4G
    steps:
    - checkout
    - run: echo "Build process is started ?"
    - run:
        name: Create debug.keystore.jks
        command: openssl aes-256-cbc -d -in "${debugKeyStore}.encrypted" -k $DEBUG_ENCRYPT_SECRET_KEY -md md5 >> $debugKeyStore
    - run:
        name: Create release.keystore.jks
        command: openssl aes-256-cbc -d -in "${releaseKeyStore}.encrypted" -k $RELEASE_ENCRYPT_SECRET_KEY -md md5 >> $releaseKeyStore
    - run:
        name: Create keystore.properies
        command: printf 'debugKeyAlias=%s\ndebugKeyPassword=%s\ndebugKeyStore=%s\ndebugStorePassword=%s\nreleaseKeyAlias=%s\nreleaseKeyPassword=%s\nreleaseKeyStore=%s\nreleaseStorePassword=%s' $debugKeyAlias $debugKeyPassword $debugKeyStore $debugStorePassword $releaseKeyAlias $releaseKeyPassword $releaseKeyStore $releaseStorePassword > keystore.properties
    - restore_cache:
        key: jars-{{ checksum "build.gradle" }}-{{ checksum  "app/build.gradle" }}
    - run:
        name: Download Dependencies
        command: ./gradlew androidDependencies
    - save_cache:
        paths:
        - ~/.gradle
        key: jars-{{ checksum "build.gradle" }}-{{ checksum  "app/build.gradle" }}
    - run:
        name: Run Tests
        command: ./gradlew lint test
    - store_test_results:
        path: app/build/test-results
        destination: test-results/
    - run:
        name: Initial build
        command: ./gradlew clean assembleRelease --no-daemon --stacktrace
    - store_artifacts:
        path: app/build/outputs/apk/
        destination: apks/
    - deploy:
        name: "Deploy to Fabric ??"
        command: |
          echo "Run gradle task to upload generated APK to Fabric"

keystore.properties

debugKeyAlias=Debug
debugKeyPassword=1234567
debugKeyStore=debug.keystore.jks
debugStorePassword=1234567

releaseKeyAlias=dae.rounder
releaseKeyPassword=dae.rounder
releaseKeyStore=release.keystore.jks
releaseStorePassword=dae.rounder

build.gradle

def keystorePropertiesFile = rootProject.file("keystore.properties")
def keystoreProperties = new Properties()
keystoreProperties.load(new FileInputStream(keystorePropertiesFile))

android {
	signingConfigs {
        debug {
            keyAlias keystoreProperties['debugKeyAlias']
            keyPassword keystoreProperties['debugKeyPassword']
            storeFile file(rootDir.getCanonicalPath() + '/' + keystoreProperties['debugKeyStore'])
            storePassword keystoreProperties['debugStorePassword']
        }

        release {
            keyAlias keystoreProperties['releaseKeyAlias']
            keyPassword keystoreProperties['releaseKeyPassword']
            storeFile file(rootDir.getCanonicalPath() + '/' + keystoreProperties['releaseKeyStore'])
            storePassword keystoreProperties['releaseStorePassword']
        }
    }

    buildTypes {
        debug {
            minifyEnabled false
            signingConfig signingConfigs.debug
        }
        release {
            minifyEnabled true
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
            signingConfig signingConfigs.release
        }
    }
}

AS端配置基本就这些了
