本来写了上篇的，可是写得不太好，而且方块的左右移动那里还有bug，索性把上篇删了，只用一篇来说。
效果图
不要用IE浏览器打开，不然会变成......
<!DOCTYPE html>
<html>

<head>
	<meta charset="utf-8">
	<title>俄罗斯方块</title>
</head>

<style type="text/css">
	body {
		font-family: monospace;
	}
	.center {
		position: absolute;
		left: 50%;
		width: 800px;
		margin-left: -200px;
	}
</style>

<body>
	<h1 id="scene" class="center" style="line-height:100%"></h1>
	<div style="float:left">
		<h2 id="msg">score:0</h2>
		<h2 id="nextBlocks" style="line-height:100%"></h2>
		<button id="btn" type="button">开始游戏</button>
	</div>

	<script>

		var KEY_UP = 38;			//上箭头
		var KEY_DOWN = 40;			//下箭头
		var KEY_LEFT = 37;			//左箭头
		var KEY_RIGHT = 39;			//右箭头
		var KEY_SPACE = 32;			//空格键
		var BLOCK_SOLID = "█";		//实心方块
		var BLOCK_HOLLOW = "□";		//空心方块
		var BLOCK_TYPE_NUM = 7;		//方块的种类

		var width = 10;				//宽
		var height = 20;			//高
		var scene = new Array();	//场景
		var sleepTime = 400;		//延时时间
		var blocks;					//方块
		var score = 0;				//分数
		var highestScore = 0;		//最高分
		var nextBlocksType;			//下一个方块的种类
		var isGameOver = true;		//游戏是否已经结束
		var interval;				//定时器

		document.onkeydown = onKeyDown;

		//按键监听
		function onKeyDown(e) {
			if (isGameOver) return;
			switch (e.which) {
				case KEY_LEFT:
					//向左移动
					moveBlocks(-1);
					break;
				case KEY_RIGHT:
					//向右移动
					moveBlocks(1);
					break;
				case KEY_DOWN:
					//跳到底部
					skipToBottom();
					break;
				case KEY_UP:
					//旋转方块
					rotateBlocks();
					break;
				case KEY_SPACE:
					//加速移动
					drop();
					break;
			}
			printScene();
		}

		//按钮
		function onBtnClick() {
			isGameOver = false;
			document.getElementById("btn").disabled = true;
			//打开方块下落的定时器
			interval = window.setInterval(function () { drapBlock() }, sleepTime);
			getNextBlocksType();
			produceBlocks();
			printMsg("score:0");
			init();
		}

		//初始化
		function init() {
			initScene();
			drawFrame();
			printScene();
		}

		//产生方块
		function produceBlocks() {
			blocks = getBlocksByType(nextBlocksType);
			getNextBlocksType();
			printNextBlocks();
		}

		//随机获取下一次的方块
		function getNextBlocksType() {
			do {
				nextBlocksType = Math.round(Math.random() * BLOCK_TYPE_NUM);
			} while (nextBlocksType == 0);
			nextBlocksType--;
		}

		//获取指定类型的方块
		function getBlocksByType(type) {
			var tBlocks = new Object();
			tBlocks.x = new Array();
			tBlocks.y = new Array();
			switch (type) {
				case 0:	//T
					for (var i = 0; i < 3; i++) {
						tBlocks.x[i] = width / 2 + i - 1;
						tBlocks.y[i] = -1;
					}
					tBlocks.x[3] = width / 2;
					tBlocks.y[3] = -2;
					tBlocks.center = 1;
					break;
				case 1:	//I
					for (var i = 0; i <= 3; i++) {
						tBlocks.x[i] = width / 2 - i + 1;
						tBlocks.y[i] = -1;
					}
					tBlocks.center = 1;
					break;
				case 2:	//O
					for (var i = 0; i < 4; i++) {
						tBlocks.x[i] = width / 2 + i % 2 - 1;
						tBlocks.y[i] = -2 + parseInt(i / 2);
					}
					tBlocks.center = -1;
					break;
				case 3:	//L
					tBlocks.x[0] = width / 2 - 1;
					tBlocks.y[0] = -2;
					for (var i = 1; i < 4; i++) {
						tBlocks.x[i] = width / 2 + i - 2;
						tBlocks.y[i] = -1;
					}
					tBlocks.center = 2;
					break;
				case 4:	//J
					tBlocks.x[0] = width / 2 + 1;
					tBlocks.y[0] = -2;
					for (var i = 1; i < 4; i++) {
						tBlocks.x[i] = width / 2 + i - 2;
						tBlocks.y[i] = -1;
					}
					tBlocks.center = 2;
					break;
				case 5:	//Z
					tBlocks.x[0] = width / 2 - 1;
					tBlocks.y[0] = -2;
					tBlocks.x[1] = width / 2;
					tBlocks.y[1] = -2;
					tBlocks.x[2] = width / 2;
					tBlocks.y[2] = -1;
					tBlocks.x[3] = width / 2 + 1;
					tBlocks.y[3] = -1;
					tBlocks.center = 1;
					break;
				case 6:	//S
					tBlocks.x[0] = width / 2;
					tBlocks.y[0] = -2;
					tBlocks.x[1] = width / 2 + 1;
					tBlocks.y[1] = -2;
					tBlocks.x[2] = width / 2 - 1;
					tBlocks.y[2] = -1;
					tBlocks.x[3] = width / 2;
					tBlocks.y[3] = -1;
					tBlocks.center = 0;
					break;
			}
			return tBlocks;
		}

		//初始化屏幕数组
		function initScene() {
			for (var i = 0; i < height + 2; i++) {
				scene[i] = new Array();
				for (var j = 0; j < width + 2; j++) {
					scene[i][j] = BLOCK_HOLLOW;
				}
			}
		}

		//在指定位置画点
		function drawPointAt(x, y) {
			drawChAt(x, y, BLOCK_SOLID);
		}

		//清除指定位置的点
		function clearPointAt(x, y) {
			drawChAt(x, y, BLOCK_HOLLOW);
		}

		//在指定位置是否是实心方块
		function isSolidAt(x, y) {
			return getChAt(x, y) == BLOCK_SOLID;
		}

		//在指定位置画字符
		function drawChAt(x, y, s) {
			scene[y + 1][x + 1] = s;
		}

		//获取指定位置的字符
		function getChAt(x, y) {
			return scene[y + 1][x + 1];
		}

		//画边框
		function drawFrame() {
			for (var i = 0; i < width; i++) {
				drawChAt(i, -1, "─");
				drawChAt(i, height, "─");
			}

			for (var i = 0; i < height; i++) {
				drawChAt(-1, i, "│");
				drawChAt(width, i, "│");
			}
			drawChAt(-1, height, "└");
			drawChAt(width, height, "┘");
			drawChAt(-1, -1, "┌");
			drawChAt(width, -1, "┐");
		}

		//绘制场景
		function printScene() {
			var str = "";
			for (var i = 0; i < height + 2; i++) {
				for (var j = 0; j < width + 2; j++) {
					if (i > 0) {
						var k;
						if (blocks != undefined) {
							for (k = 0; k < blocks.x.length; k++) {
								if (i == blocks.y[k] + 1 && j == blocks.x[k] + 1) break;
							}
						}
						if (blocks != undefined && k != blocks.x.length) {
							str += BLOCK_SOLID;
						} else {
							str += scene[i][j];
						}
					} else {
						str += scene[i][j];
					}
				}
				str += "<br/>";
			}
			document.getElementById("scene").innerHTML = str;
		}

		//方块下落
		function drapBlock() {
			if (isBump(0, 1)) fixBlocks();
			drop();
		}

		//左右移动方块,-1向左移，1向右移
		function moveBlocks(dir) {
			if (!isBump(dir, 0))
				move(dir);
			printScene();
		}

		//移动方块
		function move(dir) {
			for (var i = 0, count = blocks.x.length; i < count; i++) {
				blocks.x[i] += dir;
			}
		}

		//方块跳到底部
		function skipToBottom() {
			while (drop()) { }
			fixBlocks();
		}

		//方块下落
		function drop() {
			if (isBump(0, 1)) return false;

			for (var i = 0, count = blocks.x.length; i < count; i++) {
				blocks.y[i]++;
			}
			printScene();
			return true;
		}

		//旋转方块
		function rotateBlocks() {
			if (blocks.center == -1) return;	//不能旋转的方块

			rotate(1);
			//检测到碰撞，返回原来的位置
			if (isBump(0, 0)) rotate(-1);	//反向旋转，即返回原来的位置

			printScene();
		}

		//旋转, 1顺时针，-1逆时针
		function rotate(dir) {
			var cX = blocks.x[blocks.center];
			var cY = blocks.y[blocks.center];
			for (var i = 0, count = blocks.x.length; i < count; i++) {
				var xt = blocks.x[i];
				if (dir == 1) {
					blocks.x[i] = cX + cY - blocks.y[i];
					blocks.y[i] = xt - cX + cY;
				} else {
					blocks.x[i] = cX - cY + blocks.y[i];
					blocks.y[i] = cX + cY - xt;
				}
			}
		}

		//固定方块
		function fixBlocks() {
			for (var i = 0, count = blocks.x.length; i < count; i++) {
				if (blocks.y[i] < 0) {	//游戏结束
					gameOver();
					return;
				}
				drawPointAt(blocks.x[i], blocks.y[i]);
			}
			produceBlocks();
			elimLine();
		}

		//消除方块检测，有填满一行的就消去
		function elimLine() {
			for (var y = 0; y < height; y++) {
				var x;
				for (x = 0; x < width; x++) {
					if (getChAt(x, y) != BLOCK_SOLID) break;
				}
				if (x == width) {
					clearLine(y);
					score++;
				}
			}
			printMsg("score:" + score);
		}

		//消除一行
		function clearLine(y) {
			for (; y > 1; y--) {
				for (var x = 0; x < width; x++) {
					drawChAt(x, y, getChAt(x, y - 1));
					drawChAt(x, y - 1, BLOCK_HOLLOW);
				}
			}
		}

		//输出信息
		function printMsg(s) {
			document.getElementById("msg").innerHTML = s;
		}

		//显示下一个方块
		function printNextBlocks() {
			var tBlocks = getBlocksByType(nextBlocksType);
			var str = "";
			for (var i = 0; i < 4; i++) {
				for (var j = 0; j < 4; j++) {
					var k;
					var count = tBlocks.x.length;
					for (k = 0; k < count; k++) {
						if (i == tBlocks.y[k] + 3 && j == tBlocks.x[k] - width / 2 + 2) break;
					}
					if (k == count) str += " ";
					else str += BLOCK_SOLID;
				}
				str += "<br/>";
			}
			document.getElementById("nextBlocks").innerHTML = str;
		}

		//是否有碰撞, dx和dy为偏移量
		function isBump(dx, dy) {
			var i;
			var count = blocks.x.length;
			for (i = 0; i < count; i++) {
				if (blocks.x[i] + dx < 0 || blocks.x[i] + dx >= width ||
					blocks.y[i] + dy >= height ||
					isSolidAt(blocks.x[i] + dx, blocks.y[i] + dy))
					return true;
			}
			return false;
		}

		//游戏结束
		function gameOver() {
			if (highestScore < score) highestScore = score;
			printMsg("score:" + score + "<br/>highestScore:" + highestScore + "<br/>GameOver");
			isGameOver = true;
			score = 0;
			document.getElementById("btn").disabled = false;
			window.clearInterval(interval);
		}

		document.getElementById("btn").onclick = onBtnClick;

		window.onload = () => init();
	</script>
</body>

</html>
方块的种类:

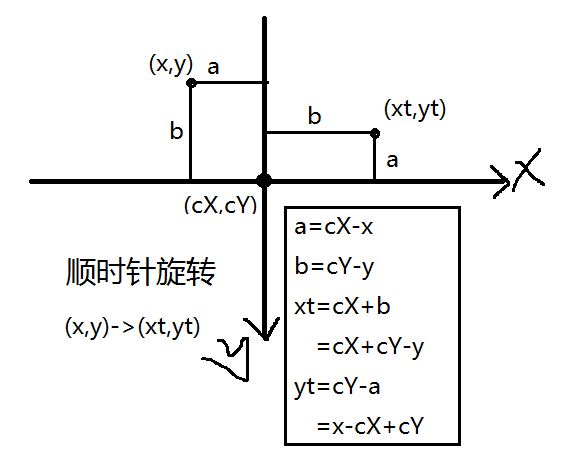

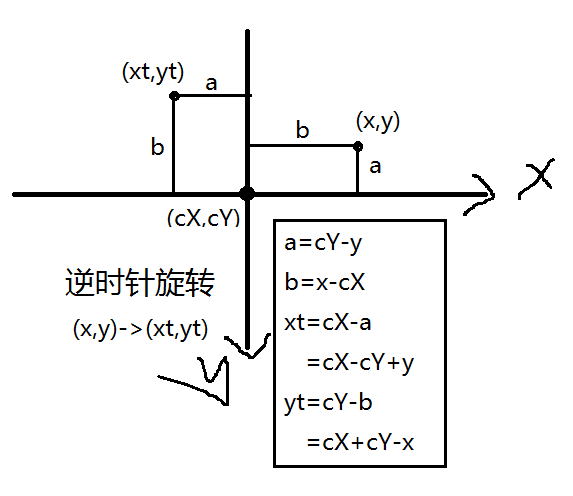

方块的旋转
流程图
