Spring+SpringMVC+Mybatis+redis+layui做无限级左侧导航。

就在上周突然收到一个需求，左侧导航栏要无限级可配置。。。一般左侧导航栏都是三级最多五级很少有需要无限级的，有人可能会问无限级是什么？（再次声明我不卖保健品。。。）无限级导航就是一个无限下级的导航树结构。在这里给大家分享一下我做的demo。温故而知，也方便各位大虾遇到此坑能稳稳跳过。废话不说开始吧。

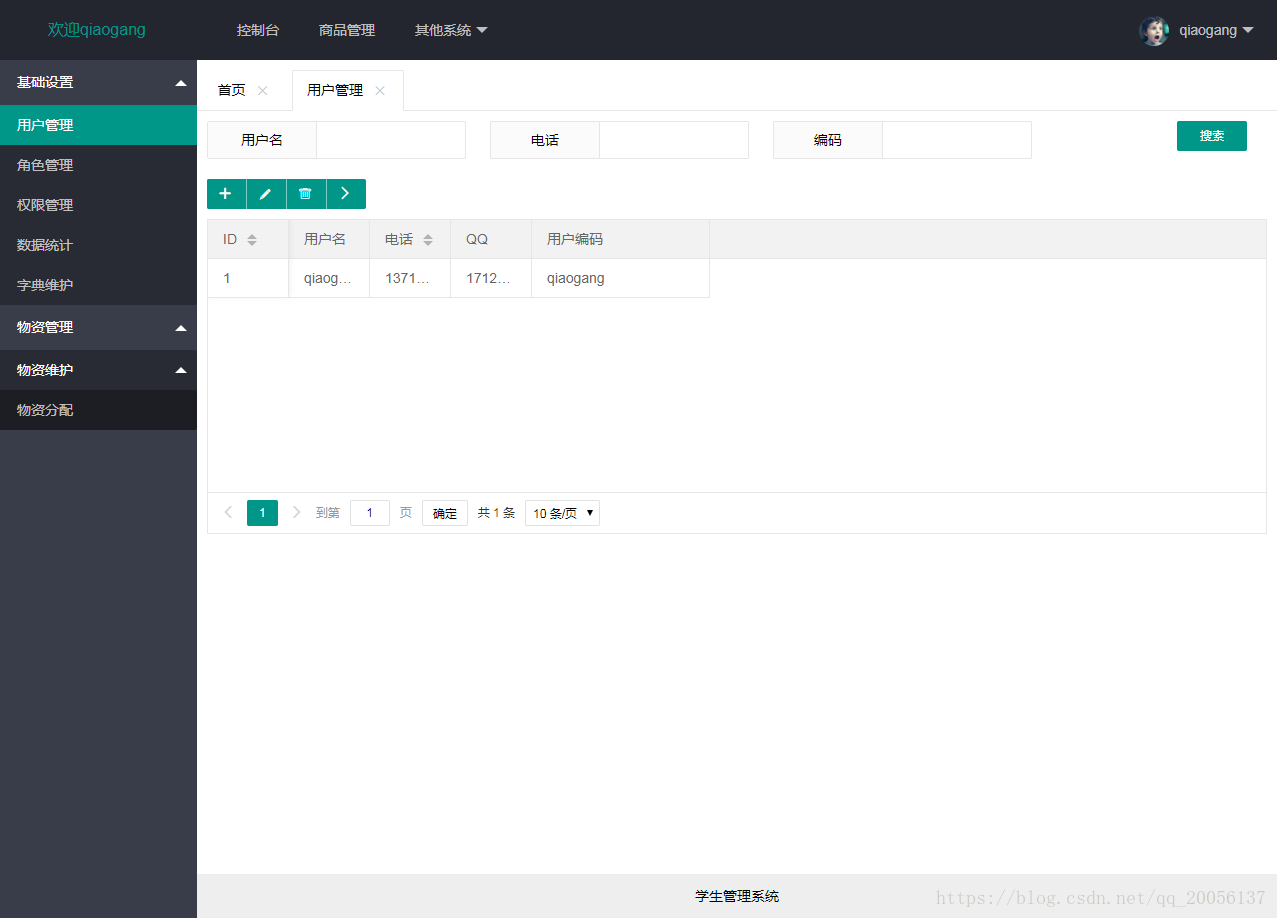

我们先看一下最终效果图: (正如本人脸一样简洁）

第一步搭建环境：springMVC

Web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
                      http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
         version="3.1" metadata-complete="true">
  <display-name>Archetype Created Web Application</display-name>
  <!--配置spring上下文-->
    <context-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:config/contextConfigLocation.xml</param-value>
    </context-param>
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <!-- Spring字符集过滤器 -->
  <filter>
    <filter-name>SpringEncodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>UTF-8</param-value>
    </init-param>
    <init-param>
      <param-name>forceEncoding</param-name>
      <param-value>true</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>SpringEncodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>
  <!-- 添加日志监听器 -->
  <context-param>
    <param-name>logbackConfigLocation</param-name>
    <param-value>classpath:logback.xml</param-value>
  </context-param>
  <listener>
    <listener-class>ch.qos.logback.ext.spring.web.LogbackConfigListener</listener-class>
  </listener>
  <!--配置前端控制器-->
  <servlet>
    <servlet-name>springMVC</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath:config/spring-mvc.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>springMVC</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>
  <!--web.xml默认配置-->
  <welcome-file-list>
    <welcome-file>/WEB-INF/jsp/login.jsp</welcome-file>
  </welcome-file-list>
</web-app>

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.cms</groupId>
  <artifactId>MyCms</artifactId>
  <packaging>war</packaging>
  <version>1.0-SNAPSHOT</version>
  <name>MyCms Maven Webapp</name>
  <url>http://maven.apache.org</url>
  <properties>
    <spring.version>4.0.5.RELEASE</spring.version>
    <mybatis.version>3.2.1</mybatis.version>
    <slf4j.version>1.6.6</slf4j.version>
    <log4j.version>1.2.12</log4j.version>
    <mysql.version>5.1.35</mysql.version>
    <cxf.version>3.1.6</cxf.version>
  </properties>
  <dependencies>
    <!-- 添加Spring依赖 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-core</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-support</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- spring-redis实现 -->
    <dependency>
      <groupId>org.springframework.data</groupId>
      <artifactId>spring-data-redis</artifactId>
      <version>1.6.2.RELEASE</version>
    </dependency>
    <!-- redis客户端jar -->
    <dependency>
      <groupId>redis.clients</groupId>
      <artifactId>jedis</artifactId>
      <version>2.8.0</version>
    </dependency>
<!--web service 依赖-->
    <dependency>
      <groupId>org.apache.cxf</groupId>
      <artifactId>cxf-rt-frontend-jaxws</artifactId>
      <version>${cxf.version}</version>
    </dependency>
    <dependency>
      <groupId>org.apache.cxf</groupId>
      <artifactId>cxf-rt-transports-http</artifactId>
      <version>${cxf.version}</version>
    </dependency>
    <!-- Jetty is needed if you're are not using the CXFServlet -->
    <dependency>
      <groupId>org.apache.cxf</groupId>
      <artifactId>cxf-rt-transports-http-jetty</artifactId>
      <version>${cxf.version}</version>
    </dependency>
    <!-- Ehcache实现,用于参考 -->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-ehcache</artifactId>
      <version>1.0.0</version>
    </dependency>

    <!--spring单元测试依赖 -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
      <scope>test</scope>
    </dependency>

    <dependency>
      <groupId>javax.mail</groupId>
      <artifactId>mail</artifactId>
      <version>1.4.7</version>
    </dependency>

    <!-- spring webmvc相关jar -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <!-- mysql驱动包 -->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql.version}</version>
    </dependency>

    <!-- alibaba data source 相关jar包-->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>0.2.23</version>
    </dependency>

    <!-- alibaba fastjson 格式化对 -->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>fastjson</artifactId>
      <version>1.1.41</version>
    </dependency>

    <!-- logback start -->

    <dependency>
      <groupId>org.slf4j</groupId>
      <artifactId>slf4j-api</artifactId>
      <version>${slf4j.version}</version>
    </dependency>
    <dependency>
      <groupId>ch.qos.logback</groupId>
      <artifactId>logback-classic</artifactId>
      <version>1.1.2</version>
    </dependency>
    <dependency>
      <groupId>ch.qos.logback</groupId>
      <artifactId>logback-core</artifactId>
